Cube Stereo Hybrid ONE55 C:68X TM 750
The Cube Stereo Hybrid Hybrid ONE55 C:68X is 20% lighter than the Stereo 140 frame, but stiffer too, making strong enough to take on the toughest trails! An adjustable head angle and longer reach contribute to handling that more confident riders will love, serving up a cut-and-paste feel that enables tricky line choices even at speed thanks to 150mm of progressive rear wheel travel. Full internal cable routing reduces clutter and maintenance, and the Bosch System controller is neatly housed inside the top tube and can be controlled via Bluetooth from the Mini Remote. It's the complete package.
| Motor | Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System |
| Battery | Bosch Powertube 750Wh |
| Display | Bosch System Control, incl. Mini remote |
| Charger | Bosch 4Ah |
| Frame | C:68X® Monocoque Advanced Twin Mold Technology, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Fully Integrated Battery, Advanced Internal Cable Routing |
| Fork | Fox 38 Float Factory FIT GRIP2, Tapered, 15x110mm, E-Bike Tune, 160mm, Kashima Coated |
| Rear Shock | Fox Float X2 Factory, 230x60mm, High/Low Speed Rebound & Compression w/ 2-Position Lever, Kashima Coated |
| Front Brake | Shimano XT BR-M8120, Hydr. Disc Brake 203mm |
| Rear Brake | Shimano XT BR-M8120, Hydr. Disc Brake 203mm |
| Rear Derailleur | Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed |
| Shift Levers | Shimano XT SL-M8100-IR, Direct Attach |
| Chain | Shimano CN-M8100 |
| Cassette | Shimano XT CS-M8100, 10-51T |
| Crankset | e*thirteen Plus Crank, 34T, 165mm |
| Chain Ring | Spec not provided |
| Chain Guide | Reverse Flip-Guide E-Chain Guide, Direct Mount, GEN4 |
| Rims/Wheelset | Newmen Evolution SL E.G. 30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready |
| Front Hub | Spec not provided |
| Rear Hub | Spec not provided |
| Front Tire | Maxxis Assegai, MaxxGrip/EXO+, Tubeless Ready, 2.5 WT |
| Rear Tire | Maxxis Minion DHR II, MaxxGrip/DoubleDown, Tubeless Ready, 2.4 WT |
| Handlebar | Race Face Turbine R 35, 800mm |
| Stem | Race Face Turbine R 35 |
| Headset | ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment |
| Grips | ACID Disrupt, Soft Compound |
| Saddle | Natural Fit Venec |
| Seat post | Fox Transfer Factory 31.6mm, Kashima Coated |
| Pedals | Not applicable |
| Front Light | Not applicable |
| Rear Light | Not applicable |
| Kickstand | Not applicable |
| Rear Carrier | Not applicable |
| Fenders | Not applicable |
| Bell | Not applicable |
| Lock | Not applicable |
| Mirror | Not applicable |
Cube Stereo Hybrid ONE55 C:68X TM 750
Description
The Cube Stereo Hybrid Hybrid ONE55 C:68X is 20% lighter than the Stereo 140 frame, but stiffer too, making strong enough to take on the toughest trails! An adjustable head angle and longer reach contribute to handling that more confident riders will love, serving up a cut-and-paste feel that enables tricky line choices even at speed thanks to 150mm of progressive rear wheel travel. Full internal cable routing reduces clutter and maintenance, and the Bosch System controller is neatly housed inside the top tube and can be controlled via Bluetooth from the Mini Remote. It's the complete package.
Motor System
| Motor | Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System |
| Battery | Bosch Powertube 750Wh |

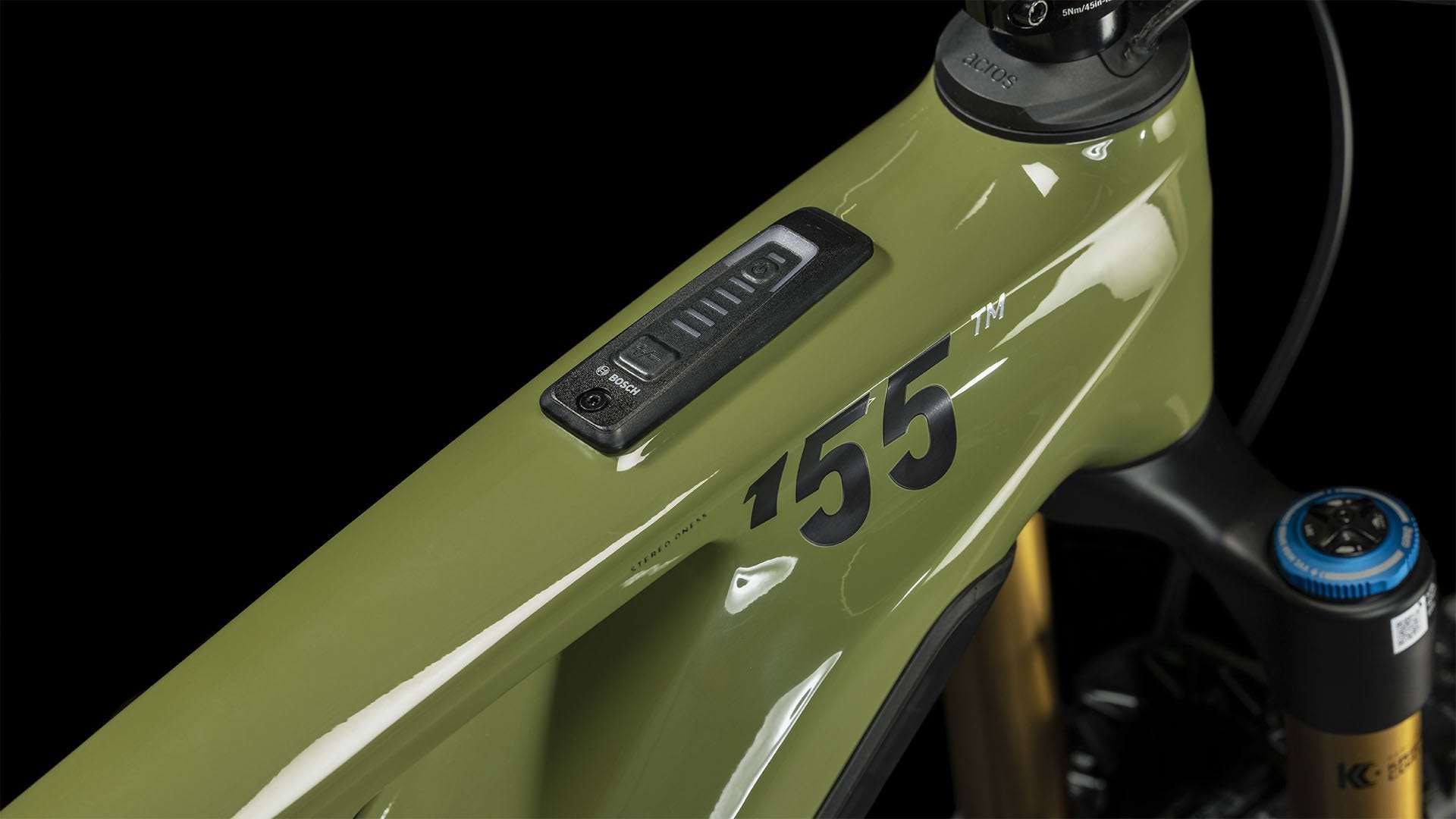

| Display | Bosch System Control, incl. Mini remote |
| Charger | Bosch 4Ah |
Components
| Frame | C:68X® Monocoque Advanced Twin Mold Technology, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Fully Integrated Battery, Advanced Internal Cable Routing |

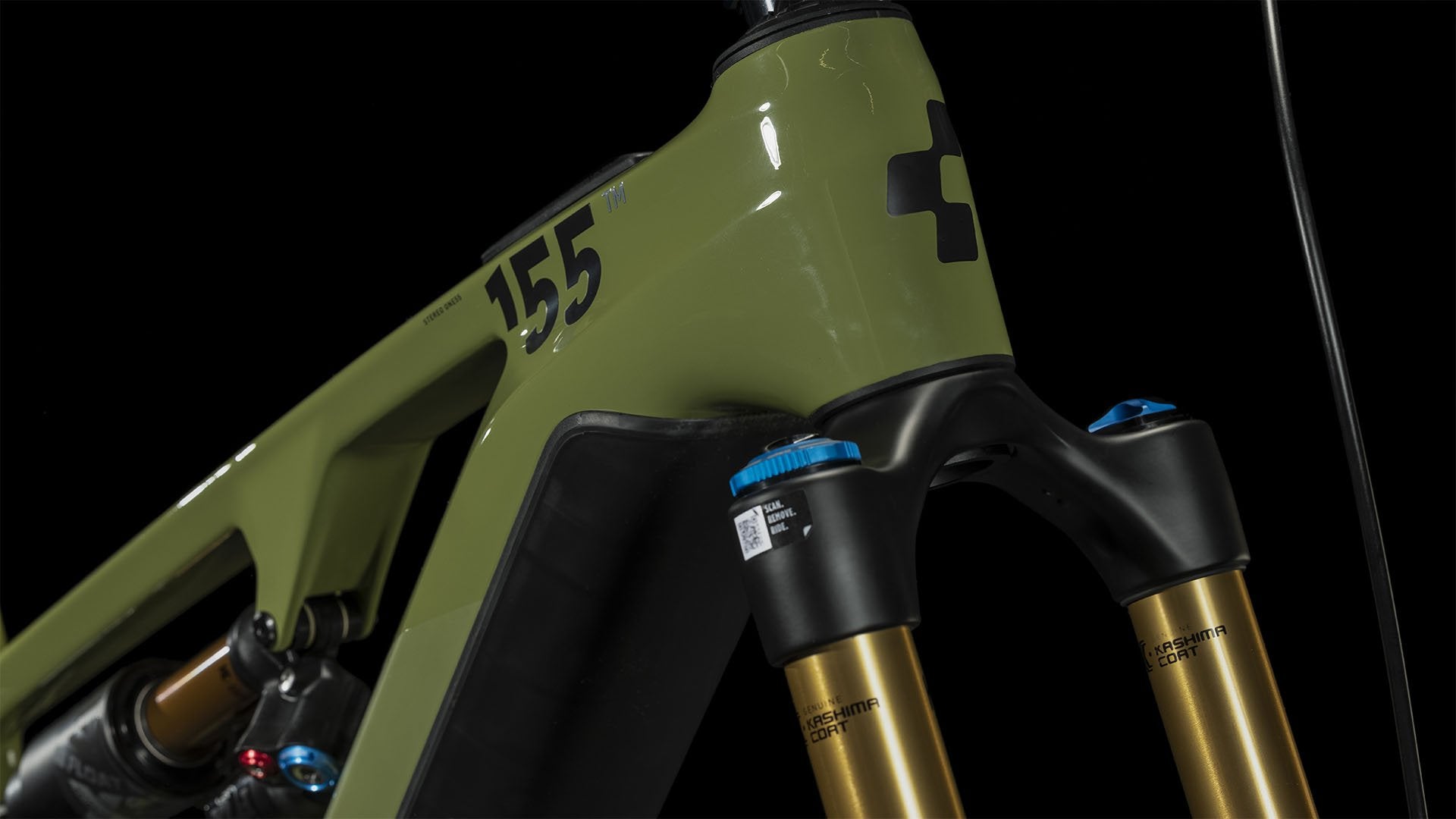

| Fork | Fox 38 Float Factory FIT GRIP2, Tapered, 15x110mm, E-Bike Tune, 160mm, Kashima Coated |
| Rear Shock | Fox Float X2 Factory, 230x60mm, High/Low Speed Rebound & Compression w/ 2-Position Lever, Kashima Coated |
| Front Brake | Shimano XT BR-M8120, Hydr. Disc Brake 203mm |
| Rear Brake | Shimano XT BR-M8120, Hydr. Disc Brake 203mm |
| Rear Derailleur | Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed |
| Shift Levers | Shimano XT SL-M8100-IR, Direct Attach |
| Chain | Shimano CN-M8100 |
| Cassette | Shimano XT CS-M8100, 10-51T |

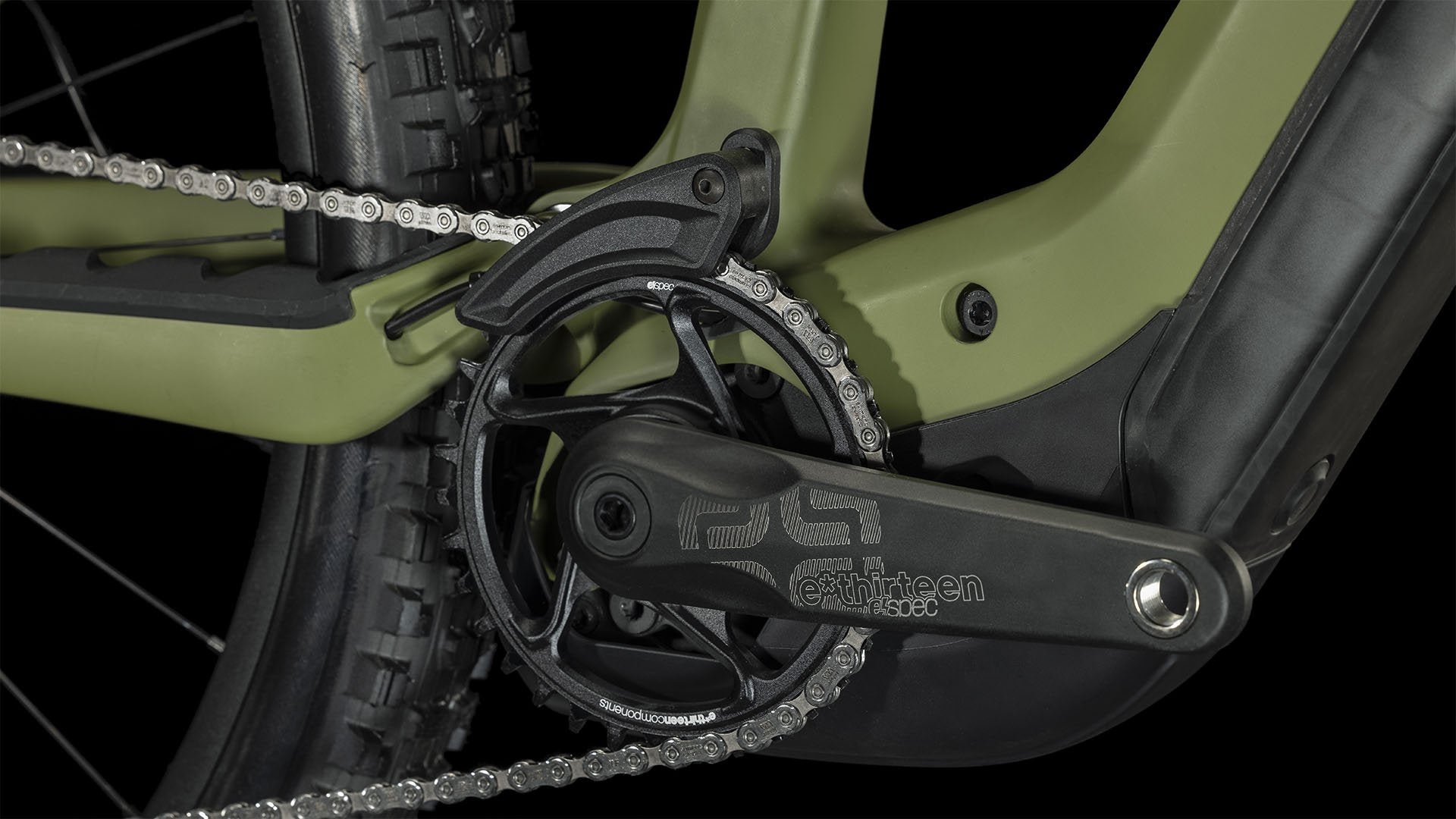

| Crankset | e*thirteen Plus Crank, 34T, 165mm |
| Chain Ring | Spec not provided |
| Chain Guide | Reverse Flip-Guide E-Chain Guide, Direct Mount, GEN4 |
| Rims/Wheelset | Newmen Evolution SL E.G. 30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready |
| Front Hub | Spec not provided |
| Rear Hub | Spec not provided |
| Front Tire | Maxxis Assegai, MaxxGrip/EXO+, Tubeless Ready, 2.5 WT |
| Rear Tire | Maxxis Minion DHR II, MaxxGrip/DoubleDown, Tubeless Ready, 2.4 WT |
| Handlebar | Race Face Turbine R 35, 800mm |
| Stem | Race Face Turbine R 35 |
| Headset | ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment |
| Grips | ACID Disrupt, Soft Compound |

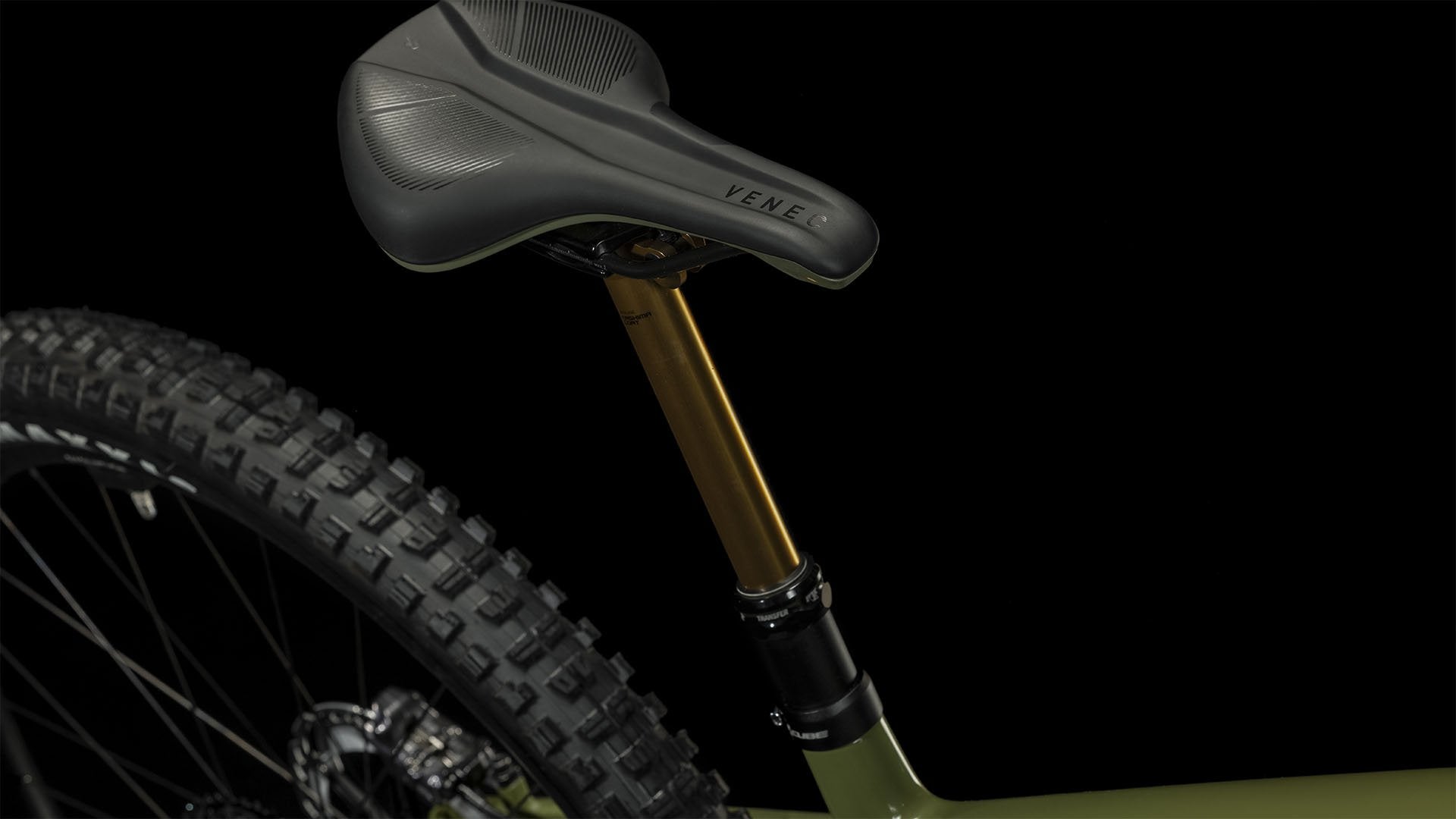

| Saddle | Natural Fit Venec |
| Seat post | Fox Transfer Factory 31.6mm, Kashima Coated |
Extras
| Pedals | Not applicable |
| Front Light | Not applicable |
| Rear Light | Not applicable |
| Kickstand | Not applicable |
| Rear Carrier | Not applicable |
| Fenders | Not applicable |
| Bell | Not applicable |
| Lock | Not applicable |
| Mirror | Not applicable |
Geometry
