Tern GSD S00 LX

Tern GSD S00 LX

Regular price $6,399.00
Sale price $6,399.00 Regular price $6,799.00
Model Year
View full details

The Full Scoop on the Tern GSD S00 LX

  • Is it a cargo ebike? Is it an urban commuter? The Tern GSD S00 LX is both! This compact machine will help you to replace your car and still take all the gear you need for the day (or even the week!). There is space for two full size child bike seats in the back. With a max load capacity of 400 lbs, you can take anything you want just about anywhere. The Tern GSD S00 LX has an adjustable cockpit that resizes in seconds and without tools to fit riders 150 – 195 cm tall (4’11” – 6’5”), so you can easily share it with your family. The updated frame geometry with a slacker seat tube angle and higher handlebars also means the GSD doesn’t just fit—it’s more comfortable too.
    With the option of either a 400wh battery system and a 900wh dual battery set up, the Tern GSD S00 LX bike can keep you rolling all day.

    Components subject to manufacturer changes * MANY optional accessories

  • Motor Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
    Battery Bosch Dual Battery system, 500wh/1000wh
    Display Bosch Purion
    Charger 220V, 4A (EU); 100-240V, 4A (US)
  • Frame Tern GSD, 6061-AL, patented MultiTruss design, EFBE Tri-Test approved: 200 kg

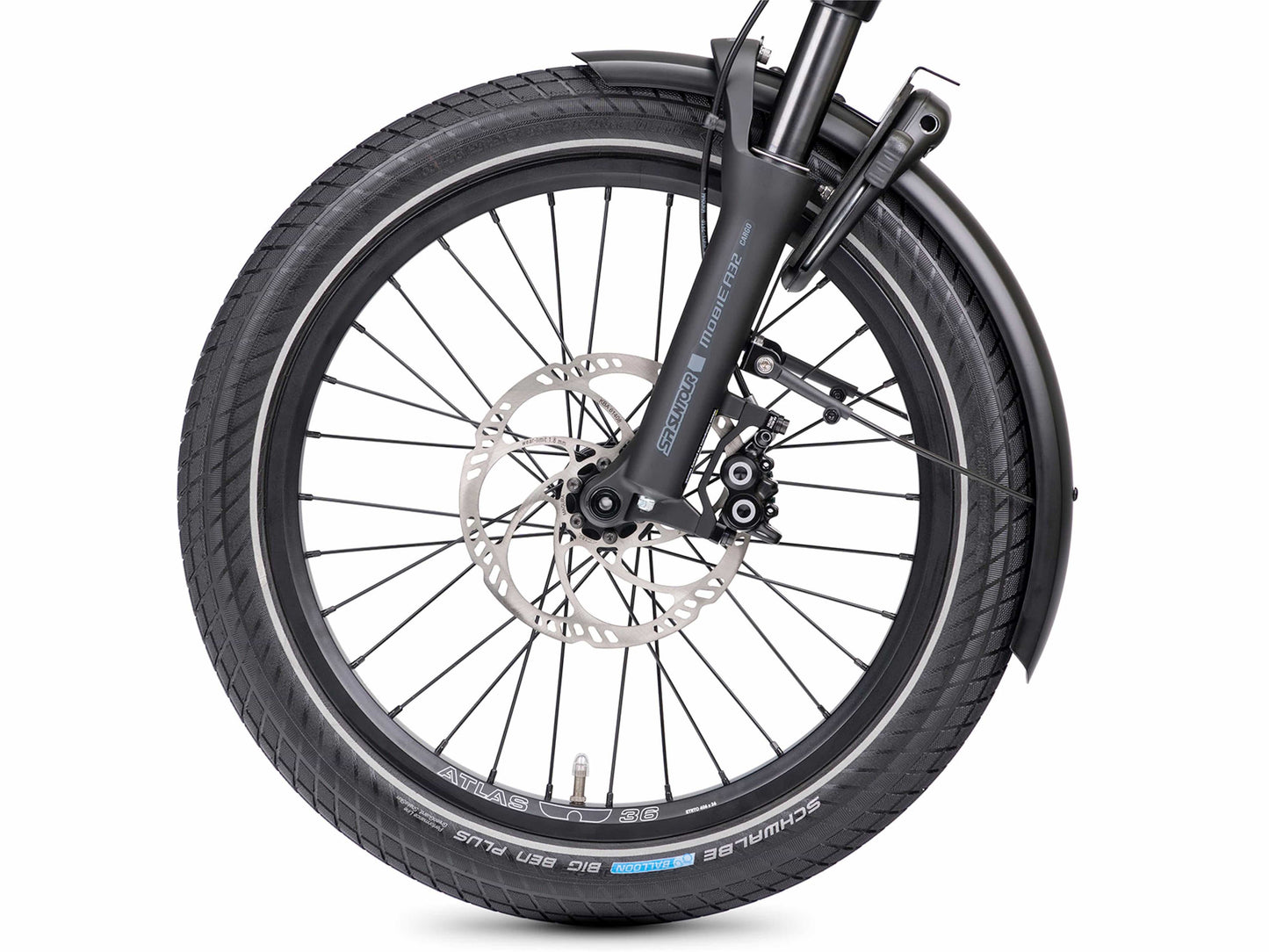

    Fork Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 200 kg
    Rear Shock Spec not provided

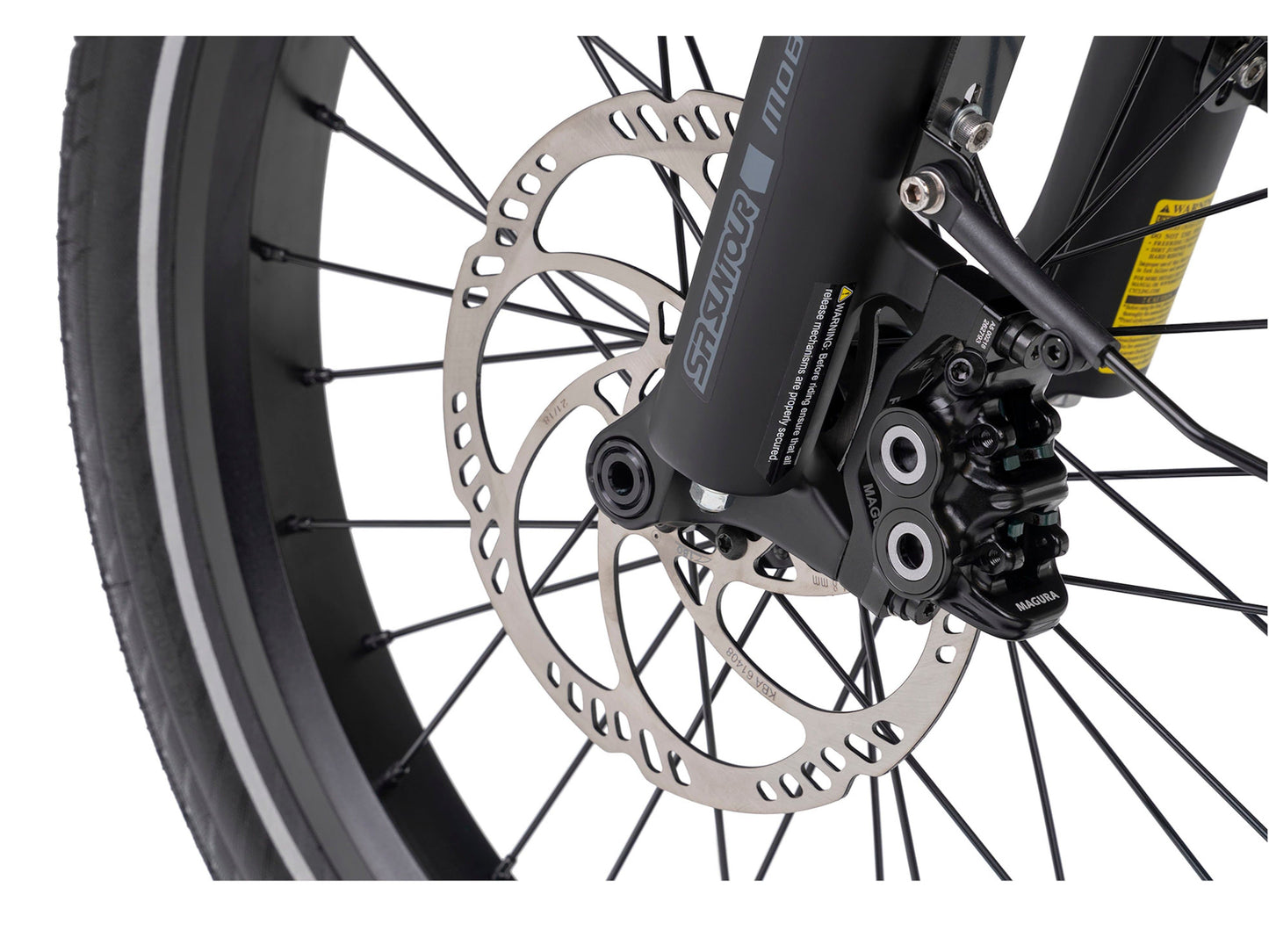

    Front Brake Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads
    Rear Brake Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads
    Rear Derailleur

    Spec not provided

    Shift Levers Enviolo, Twist
    Chain Gates Carbon Drive CDX belt
    Cassette Gates CDX, precision CNC machined cog
    Crankset Tern GSD custom, Gates CDX CNC machined beltring
    Chain Ring Spec not provided
    Chain Guard Tern Custom, full chain cover
    Rims Tern Atlas, ultra wide 36 mm, dual reinforced joint
    Front Hub Tern Atlas, Boost Thru-Axle, Cargo-optimized design, sealed cartridge bearing
    Rear Hub Enviolo SP, 380% continuously variable range, Boost
    Front Tire Schwalbe Big Ben Plus, 55-406, Green Guard puncture protection, Reflex
    Rear Tire

    Tern x Schwalbe Super Moto-X, 62-406, Green Guard puncture protection, Reflex

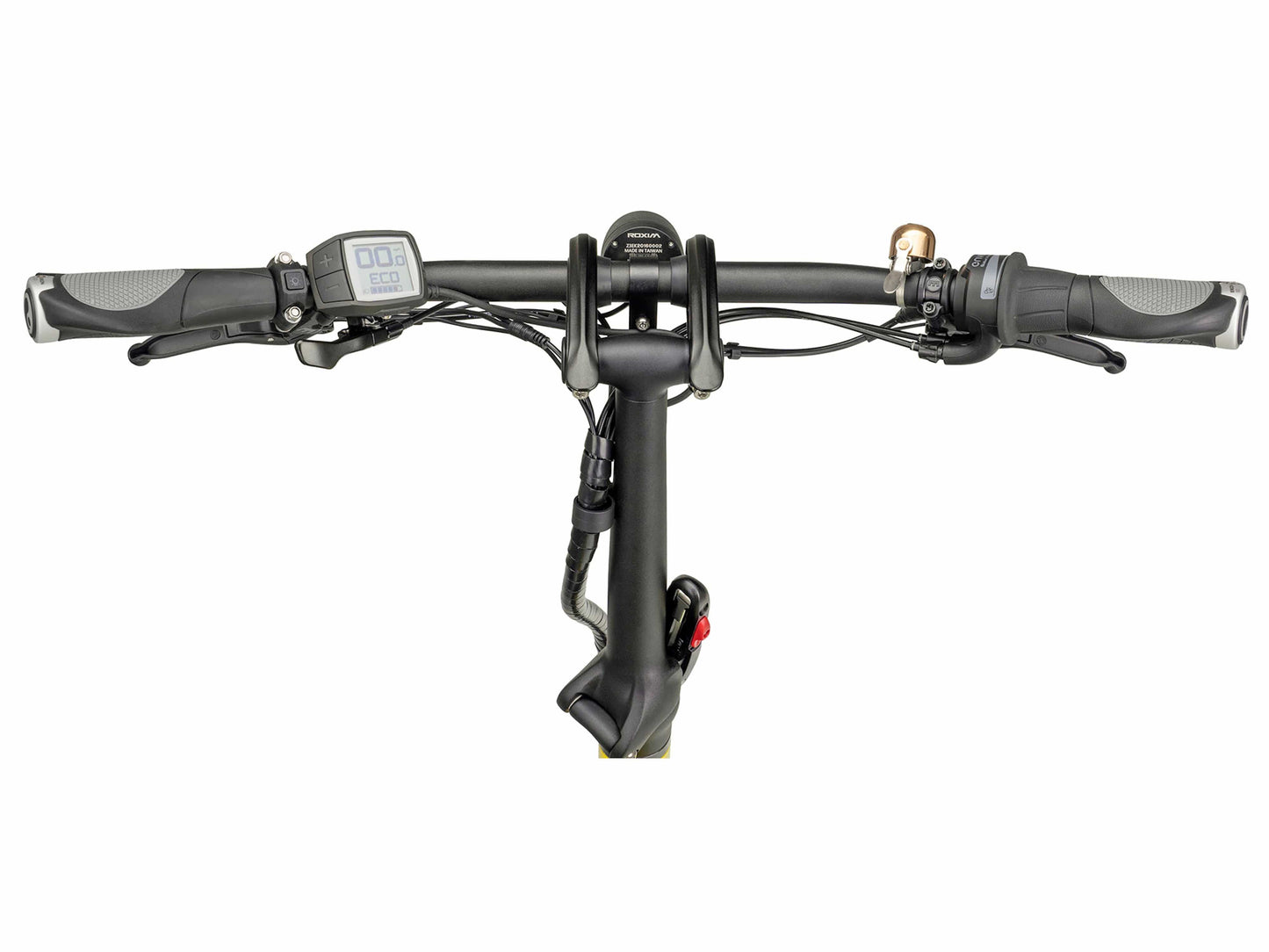

    Handlebar Tern Sweep, 6061-AL, Tern Andros adapted
    Stem Tern Andros, adjustable, forged construction, patented technology
    Headset Tern Flux Pro Taper, 1.5", angular contact bearings, Physis integrated

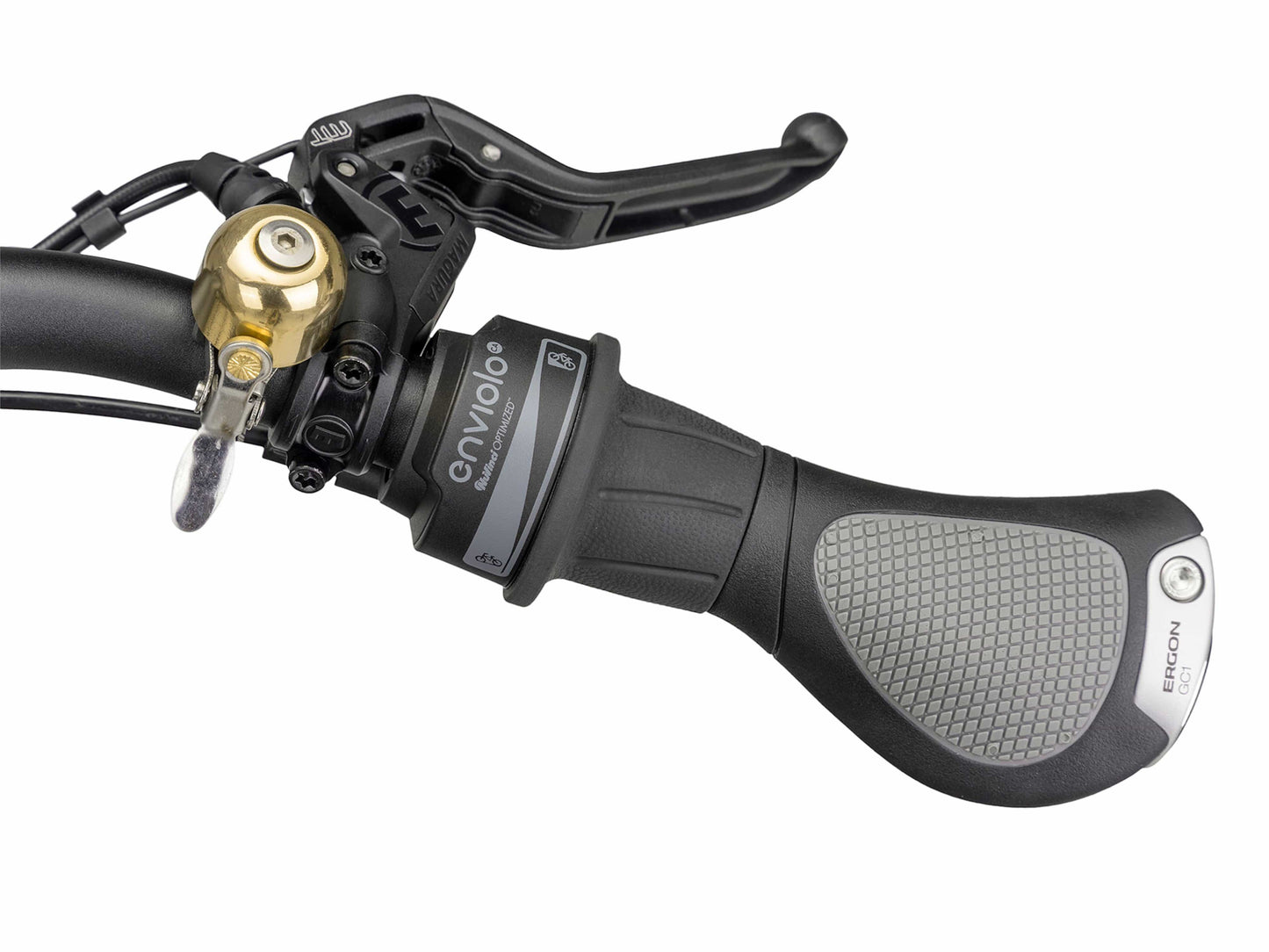

    Grips Ergon
    Saddle Tern GSD by Velo, with rear handle
    Seatpost Cane Creek Thudbuster G4, Tern Telescope, 34.9/30.9 mm
  • Pedals Urban with non-slip surface, sealed bearings
    Front Light Ignis Headlight, Ultra wide 700 lumens, Hi/Lo Beam
    Rear Light RearStop Brake Light, Always on brake light
    Kickstand Atlas Lockstand, w/ remote unlock, patented technology
    Rear Carrier Frame integrated, heavy duty design
    Fenders Integrated Wheel Guard, AL6061, w/ Side Skirt
    Bell Pitch Plus, brass
    Lock ABUS, keyed-alike with Bosch battery
    Mirror Not applicable
