Tern HSD S8i
The Full Scoop on the Tern HSD S8i

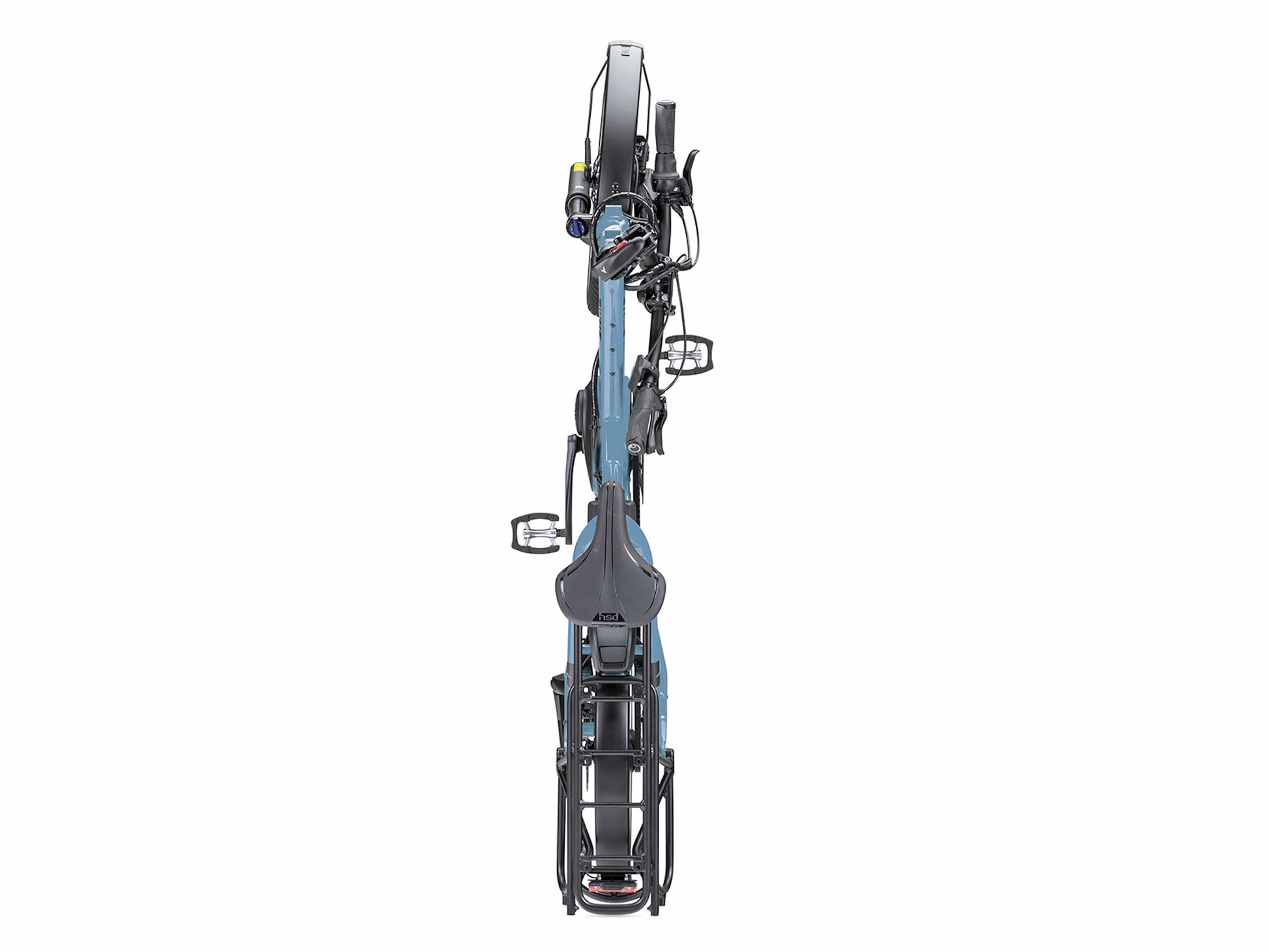

The Tern HSD S8i is mighty but mini: It's easy to handle, easy to share, extremely comfortable to ride, carries a whole lot of cargo—and all of this in a compact design that's shorter than a standard bicycle. Fifteen seconds and the Tern HSD S8i transforms into a flat package that's perfect for fitting into SUVs, station wagons, or bus storage compartments. Despite its diminutive stature, the Tern HSD S8i is a mid-sized cargo bike with some serious hauling capacity. With a maximum gross vehicle weight of 170 kg (374 lb) and an XL-sized Atlas H Rack™, it’ll carry a week’s worth of groceries or camping equipment for the weekend. The Tern HSD S8i resizes in seconds to fit riders from 150 to 195 cm (4’11” to 6’5”) so everybody in the family can enjoy the ride. The Easy-Step frame design is nice and low for easy mounts and dismounts.
- Components subject to manufacturer changes
MotorBosch Active Line Plus (Gen 3), max speed 25 kph (EU); max speed 20 mph (US) Battery Bosch PowerPack 400;42 -110 km (26-69 mi) Display Bosch Purion Charger Bosch Standard Charger

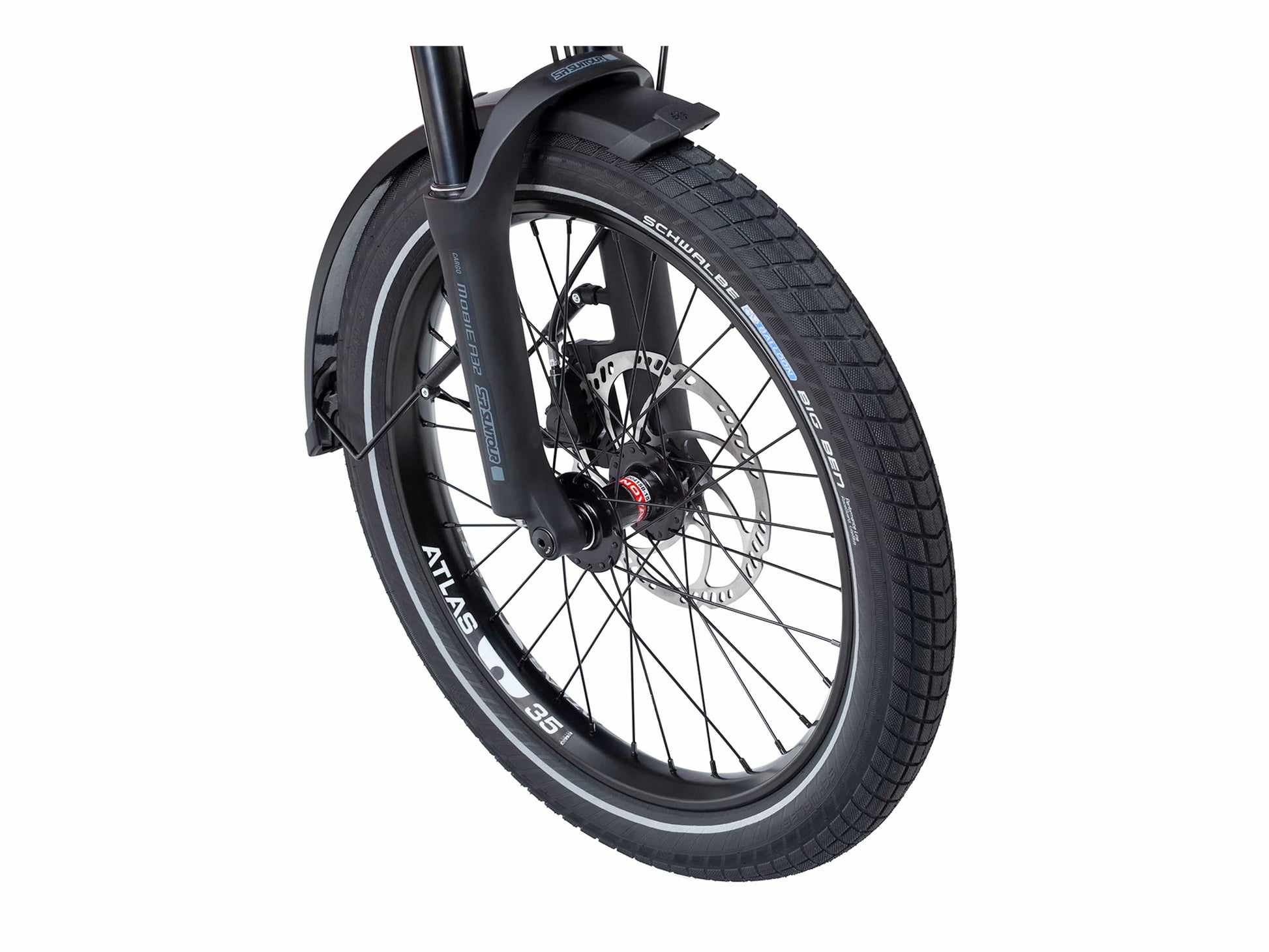

Frame Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved: 170 kg Fork Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE tested for 170 kg Rear Shock Not applicable Front Brake Magura MT4, hydraulic disc, 180 mm rotor, 160mm rear Rear Brake Magura MT4, hydraulic disc, 180 mm rotor, 160mm rear Rear Derailleur Spec not provided Shift Levers Shimano Nexus 8 Chain Gates Carbon Drive CDX belt Cassette Gates CDX, precision CNC machined cog Crankset Tern HSD custom; Gates CDX CNC machined beltring Chain Ring Spec not provided Chain Guard Gates integrated Rims Tern Atlas H, wide 35 mm Front Hub Novatec, Thru-axle, sealed bearings Rear Hub Shimano Nexus 8 Front Tire Schwalbe Big Ben, 55-406, RaceGuard puncture protection, ECE-R75 ebike certification Rear Tire Schwalbe Big Ben, 55-406, RaceGuard puncture protection, ECE-R75 ebike certification Handlebar Tern Sweep, 6061-AL, Tern Andros adapted Stem Tern Andros (G2), adjustable, forged construction, patented technology Headset Tern Flux Pro Taper, 1.5", angular contact bearings, Physis integrated Grips Ergon Saddle Tern HSD Seatpost Tern Telescope, 34.9/30.9 mm, 2014-AL
Pedals Urban with non-slip surface Front Light Tern Valo 2.1, 45 lux/190 lumens Rear Light Herrmans H-Trace, for eBike Kickstand Ursus, rear mount Rear Carrier Atlas H rack, Atlas Rack Mount, 6 point mounting Fenders SKS, stainless hardware Bell Aluminum Lock ABUS 5650L Keyed-alike with Bosch battery Mirror Not applicable
25.4 kg (55.9 lb)FOLDING SIZE:163 x 40.5 x 86 cm (64" x 15.9" x 34")FOLDING TIME:5 secFRAME SIZES:One sizeGEAR INCHES:31" - 95" (2.47 - 7.56 m)DISTANCE: SEATPOST TO HANDLEBAR:Min: 490 mm (19.3"); Max: 590 mm (23")DISTANCE: SADDLE TO PEDAL:Min: 690 mm (27.2") Max: 1050 mm (41.3")SUGGESTED RIDER HEIGHT:150 - 195 cm (4'11" - 6'5")MAX GROSS VEHICLE WEIGHT:170 kg (374 lbs)MAX RIDER WEIGHT:120 kg. (264 lbs.)
