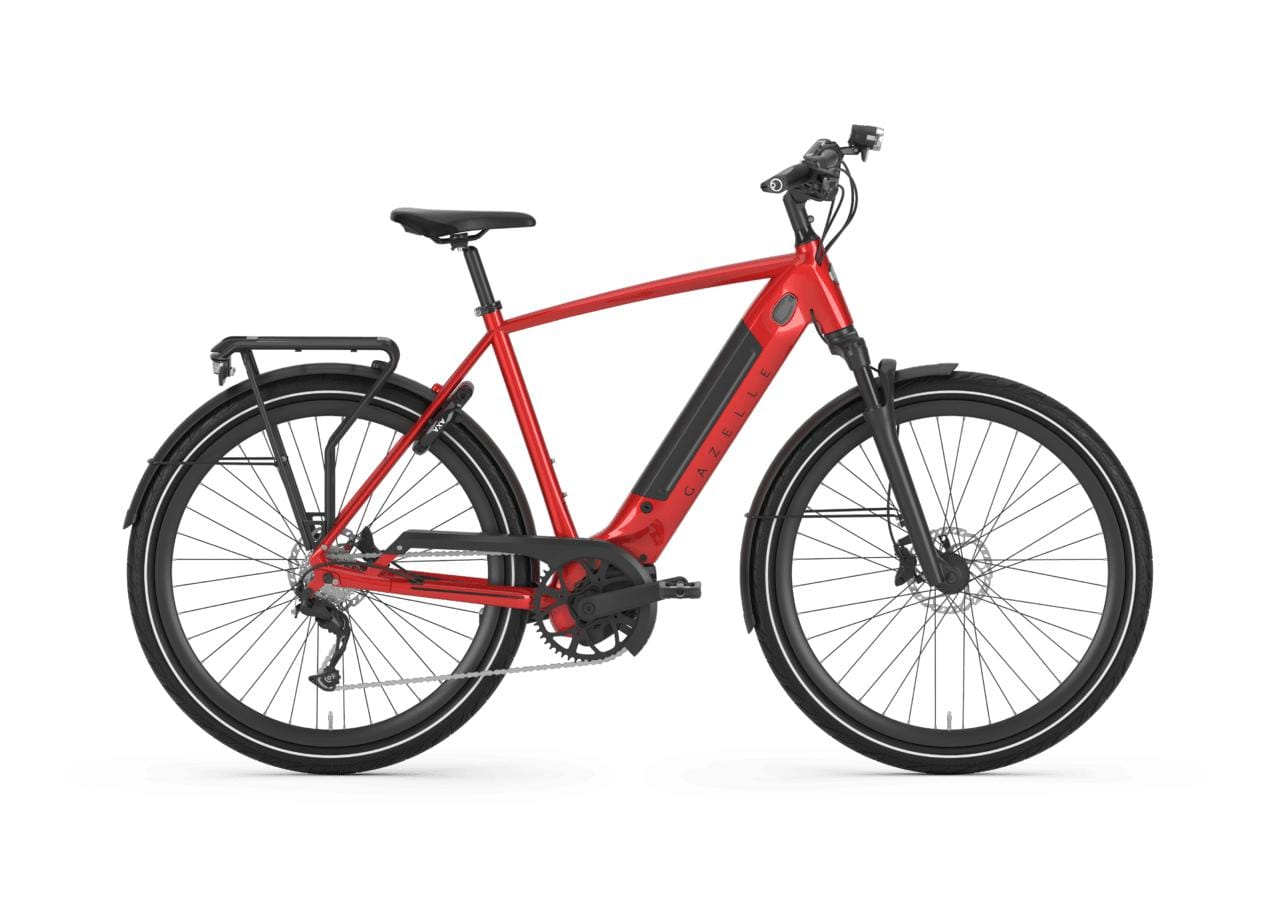

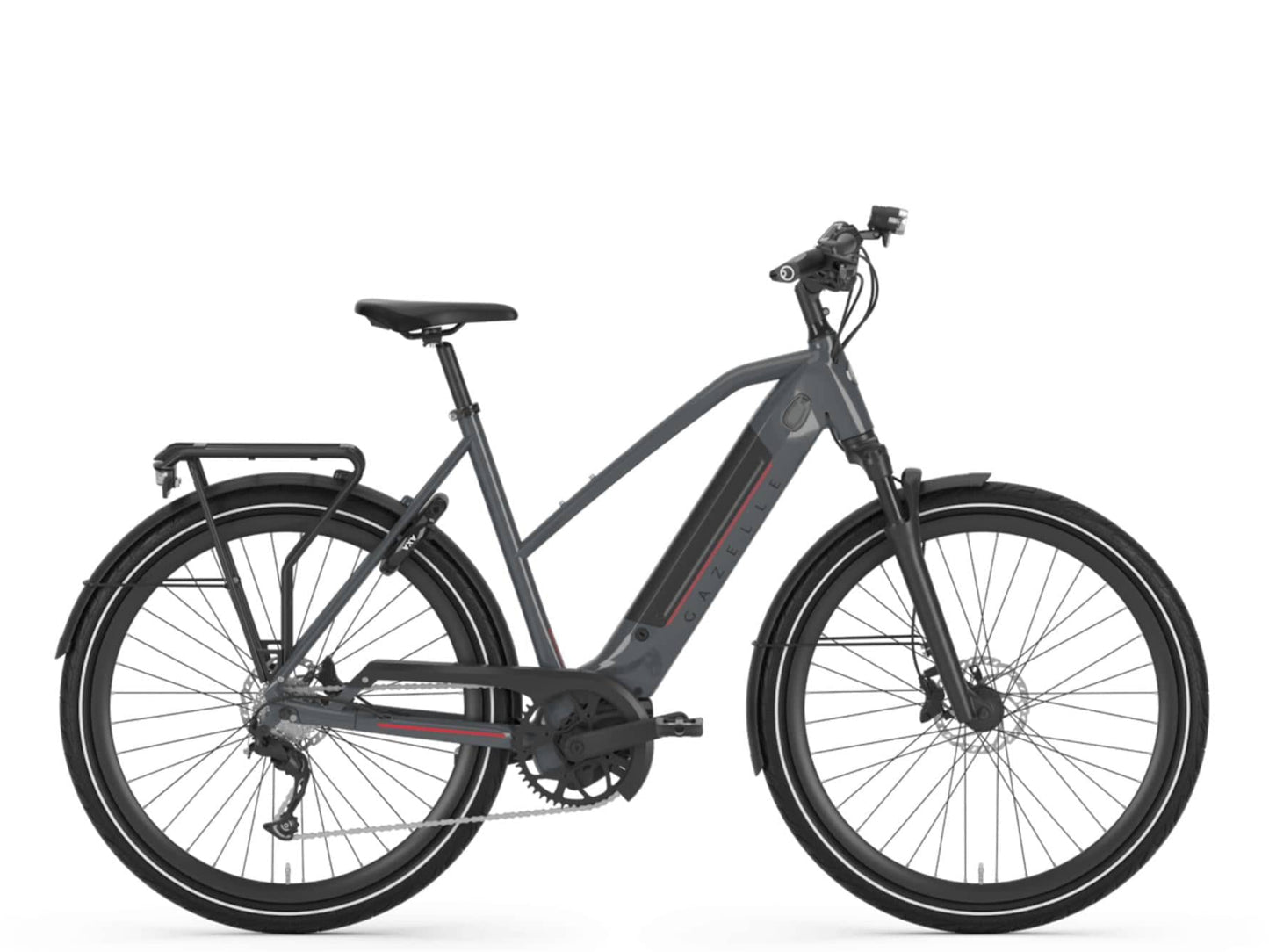

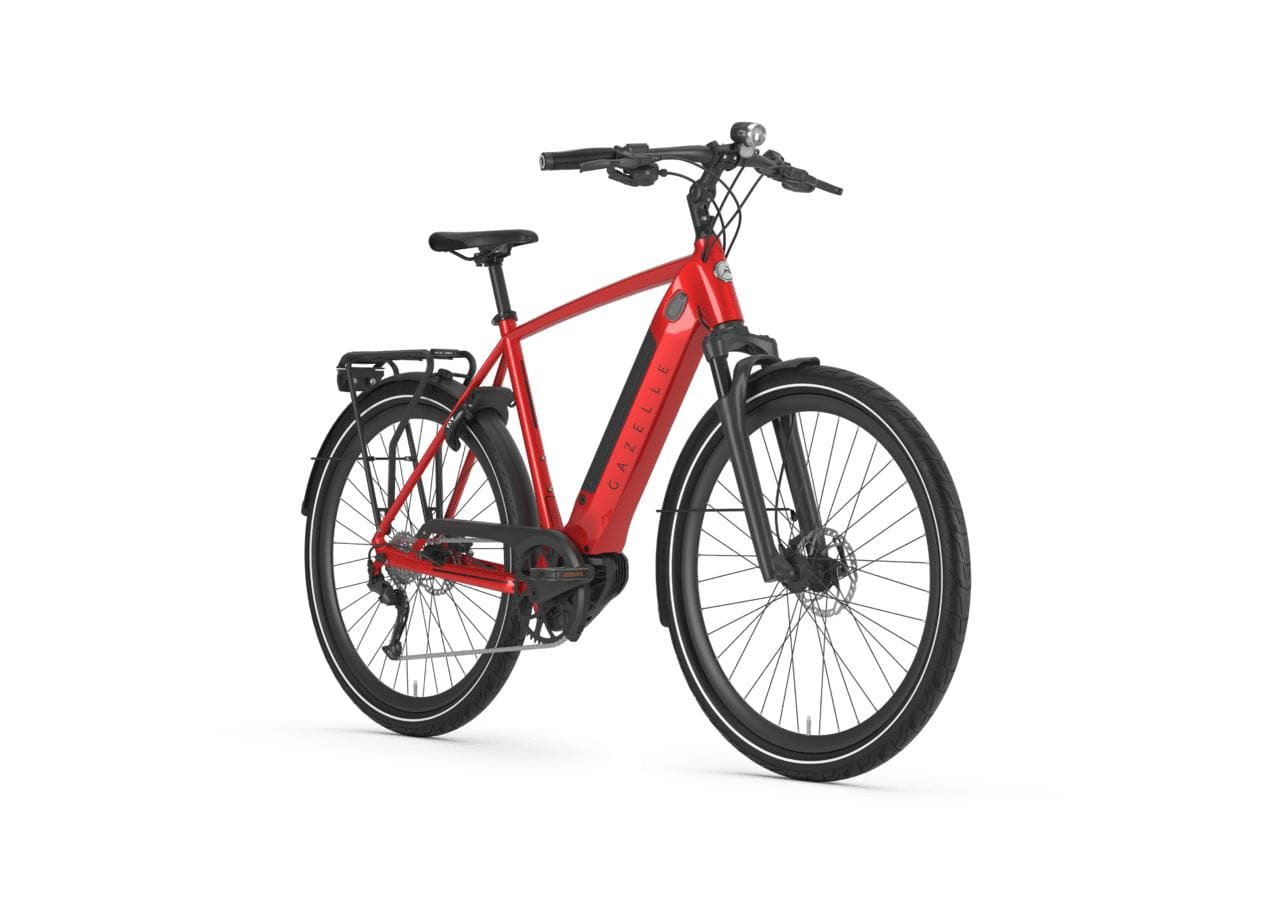

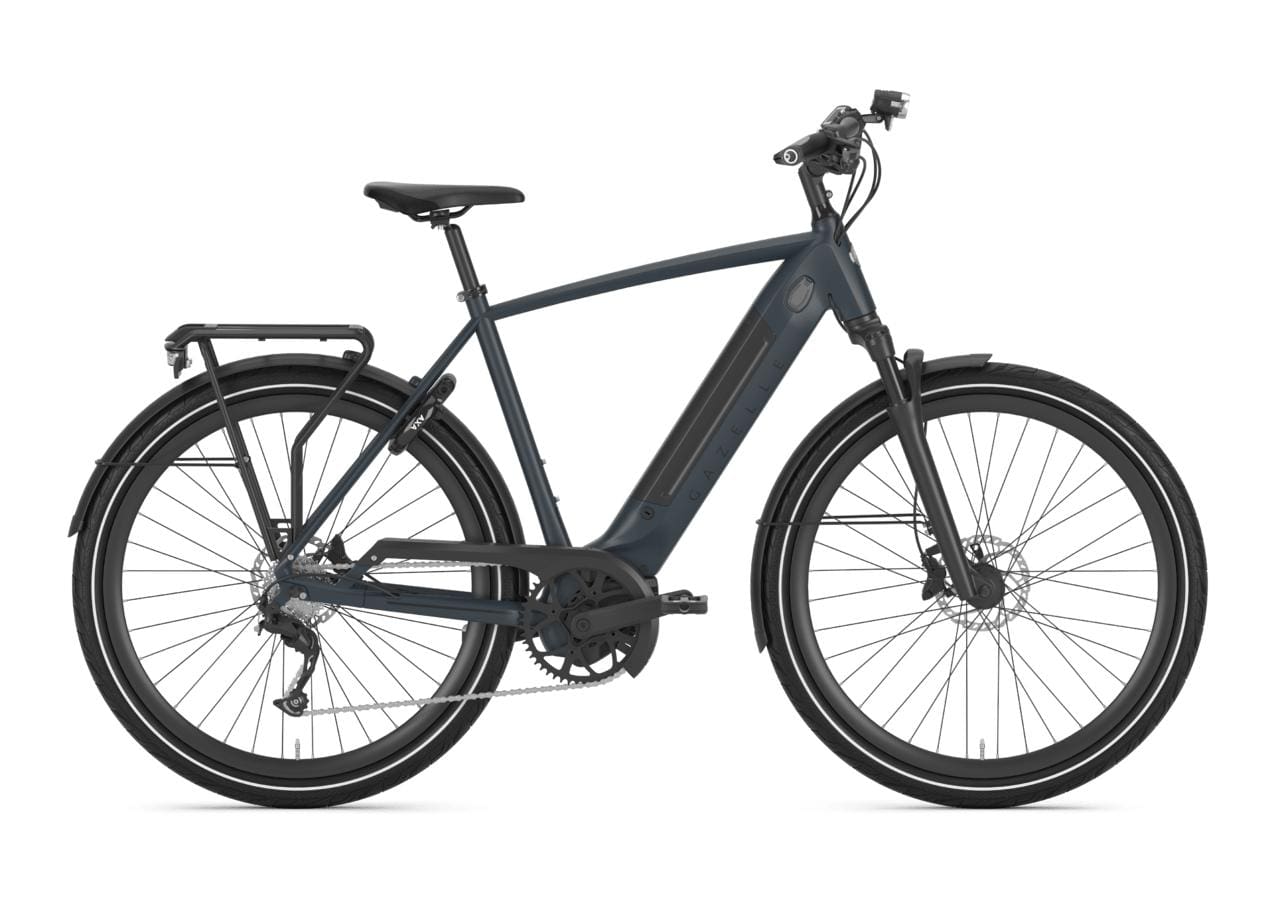

Gazelle Ultimate T10+ Mid & High Step
Gazelle Ultimate T10+ Mid & High Step
*Note: We will always give you a call before preparing your order! We'll confirm you picked the right size and see if you need any accessories.
The Full Scoop on the Gazelle Ultimate T10+
Arrive at work fast and relaxed with the Ultimate T10+. A dynamic contemporary design combined with the integrated motor and battery give the Gazelle Ultimate T10+ HMB a striking yet stylish presence. The aluminium frame is exceedingly stable, which translates into sporty handling and optimum agility.In addition to high-grade components, a high comfort level has been achieved by using puncture-resistant tires, ergonomic handlebar grips and a suspension front fork.
*Components subject to manufacturer changes

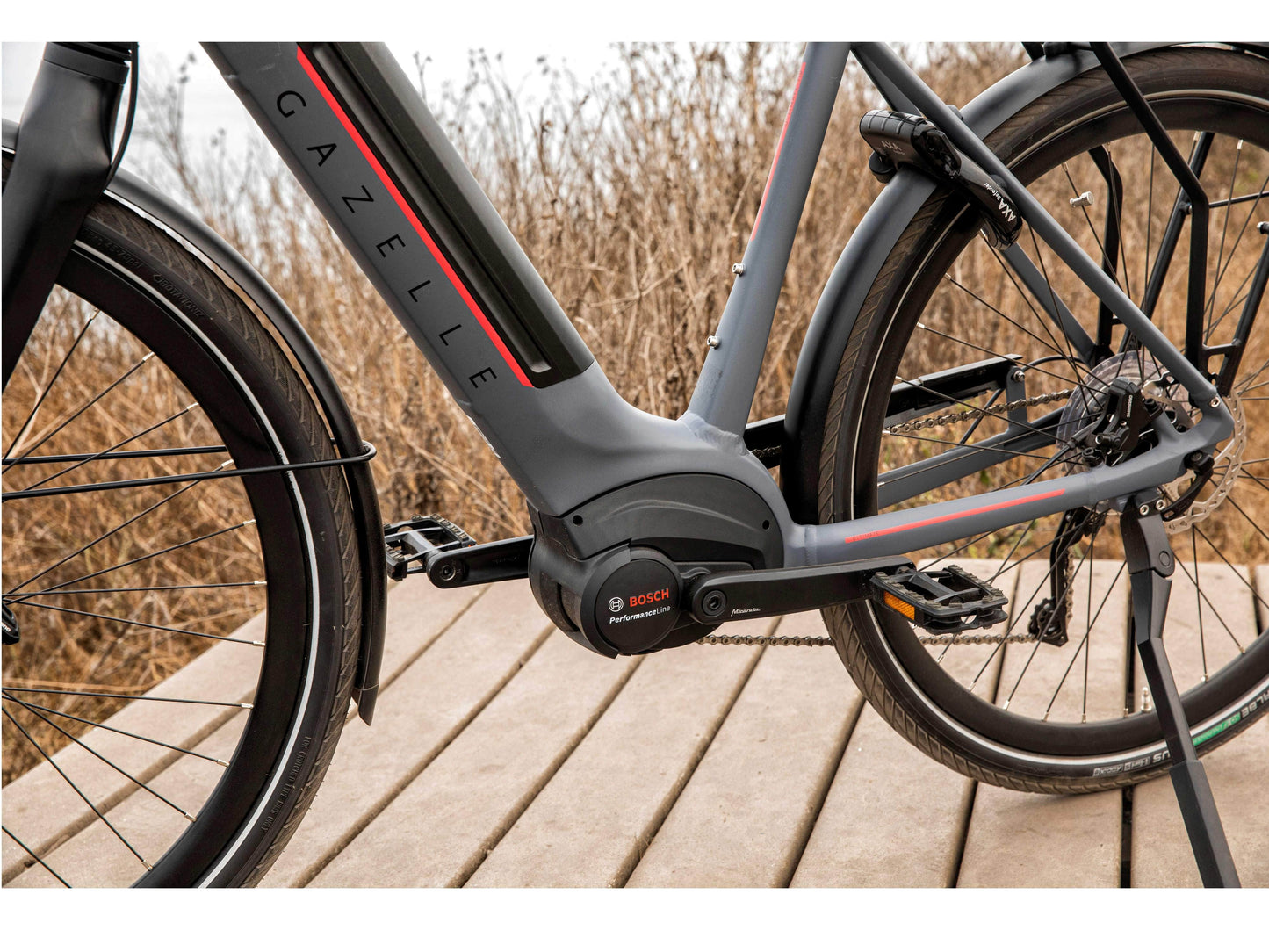

Motor | Bosch Performance Line Speed (85 Nm) 36V |
Battery | 500Wh Li-ion, integrated into frame |
Display | Bosch Purion |
Charger | Bosch 4Ah |
Frame | Stable aluminium frame with 70.5° headset angle and 71.5° saddle tube angle for sporty cycling characteristics. Battery, motor and cables harmoniously integrated into the frame. High-quality finish with attention to detail. |
Fork | Suntour Mobie 45 80mm, lockout |
Rear Shock | Not applicable |
Front Brake | Disc brake with hydraulic control; Shimano BR-MT420, 4 piston 180 mm |
Rear Brake | Disc brake with hydraulic control; Shimano BR-MT420, 4 piston 160 mm |
Rear Derailleur | Shimano Deore |
Shift Levers | Shimano Deore |
Chain | KMC, extra strong, special for e-bike |
Cassette | Spec not provided |
Crankset | Miranda Delta |
Chain Ring | 48, 11-36 |
Chain Guard | Aluminum |
Rims | Ryde Dutch |
Front Hub | Spec not provided |
Rear Hub | Shimano Deore |
Front Tire | Schwalbe Energizer Plus, 47-622 |
Rear Tire | Schwalbe Energizer Plus, 47-622 |
Handlebar | Aluminum slightly curved model |
Stem | Steplessly adjustable |
Headset | Spec not provided |
Grips | Ergon GP1-L, ergonomic |
Saddle | Selle Royal Essenza |
Seatpost | Fixed |
Pedals | Spec not provided |
Front Light | Axa Blue Line 50, LED headlamp, 50 lux, on/off switching via display |
Rear Light | Herrmans H-Cargo, LED battery supply, on/off switching via display |
Kickstand | Drop-down rear stand, Ursus Mooi |
Rear Carrier | Gazelle commuter, aluminum |
Fenders | Aluminium |
Bell | Spec no tprovided |
Lock | AXA Defender, ART ** certified |
Mirror | Not applicable |
The Full Scoop on the Gazelle Ultimate T10+
Description
Arrive at work fast and relaxed with the Ultimate T10+. A dynamic contemporary design combined with the integrated motor and battery give the Gazelle Ultimate T10+ HMB a striking yet stylish presence. The aluminium frame is exceedingly stable, which translates into sporty handling and optimum agility.In addition to high-grade components, a high comfort level has been achieved by using puncture-resistant tires, ergonomic handlebar grips and a suspension front fork.
*Components subject to manufacturer changes
Motor System
Motor | Bosch Performance Line Speed (85 Nm) 36V |
Battery | 500Wh Li-ion, integrated into frame |

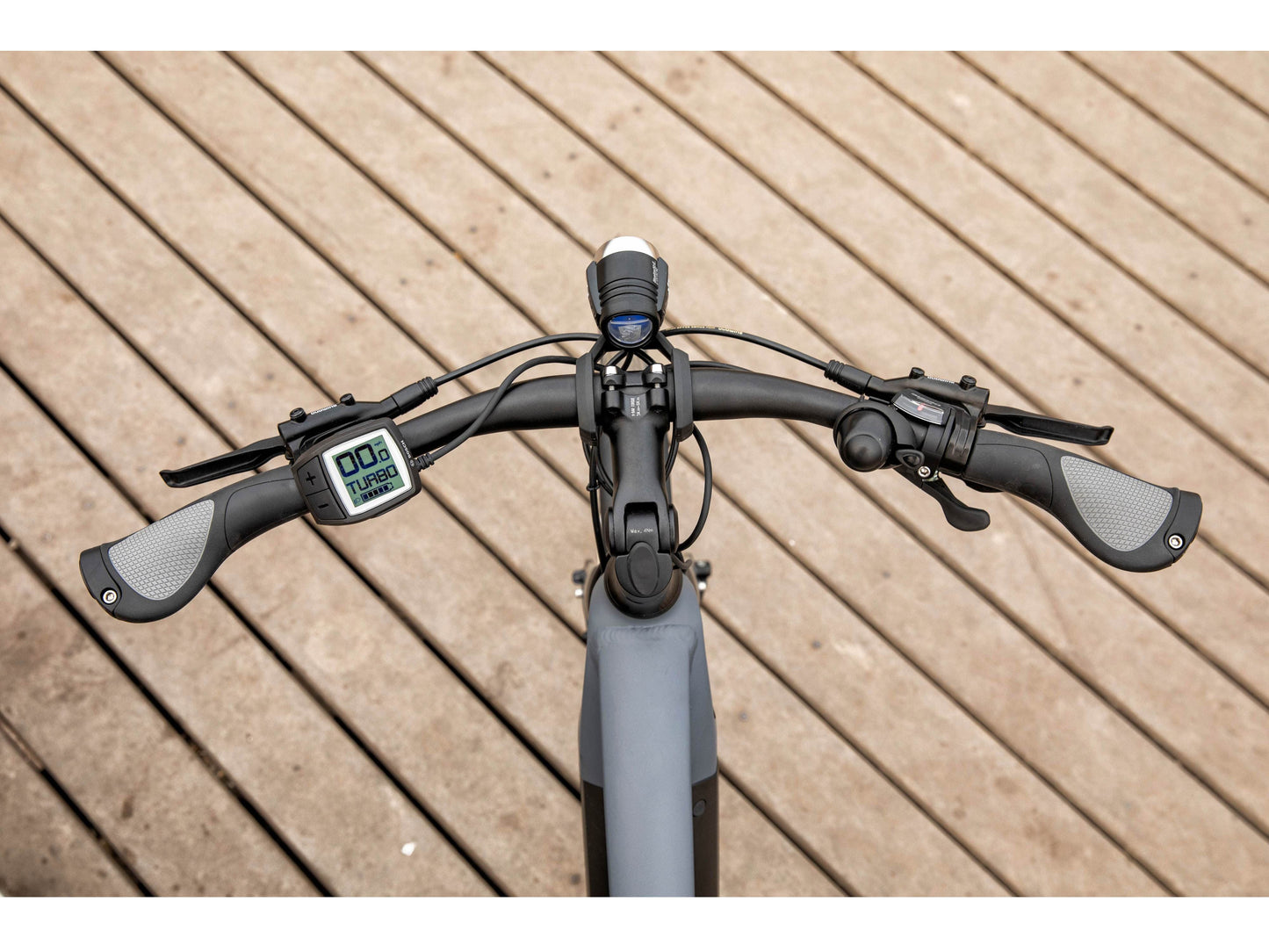

Display | Bosch Purion |
Charger | Bosch 4Ah |
Components
Frame | Stable aluminium frame with 70.5° headset angle and 71.5° saddle tube angle for sporty cycling characteristics. Battery, motor and cables harmoniously integrated into the frame. High-quality finish with attention to detail. |
Fork | Suntour Mobie 45 80mm, lockout |
Rear Shock | Not applicable |
Front Brake | Disc brake with hydraulic control; Shimano BR-MT420, 4 piston 180 mm |
Rear Brake | Disc brake with hydraulic control; Shimano BR-MT420, 4 piston 160 mm |
Rear Derailleur | Shimano Deore |
Shift Levers | Shimano Deore |
Chain | KMC, extra strong, special for e-bike |
Cassette | Spec not provided |
Crankset | Miranda Delta |
Chain Ring | 48, 11-36 |
Chain Guard | Aluminum |
Rims | Ryde Dutch |
Front Hub | Spec not provided |
Rear Hub | Shimano Deore |
Front Tire | Schwalbe Energizer Plus, 47-622 |
Rear Tire | Schwalbe Energizer Plus, 47-622 |
Handlebar | Aluminum slightly curved model |
Stem | Steplessly adjustable |
Headset | Spec not provided |
Grips | Ergon GP1-L, ergonomic |
Saddle | Selle Royal Essenza |
Seatpost | Fixed |
Extras
Pedals | Spec not provided |
Front Light | Axa Blue Line 50, LED headlamp, 50 lux, on/off switching via display |
Rear Light | Herrmans H-Cargo, LED battery supply, on/off switching via display |
Kickstand | Drop-down rear stand, Ursus Mooi |
Rear Carrier | Gazelle commuter, aluminum |
Fenders | Aluminium |
Bell | Spec no tprovided |
Lock | AXA Defender, ART ** certified |
Mirror | Not applicable |
