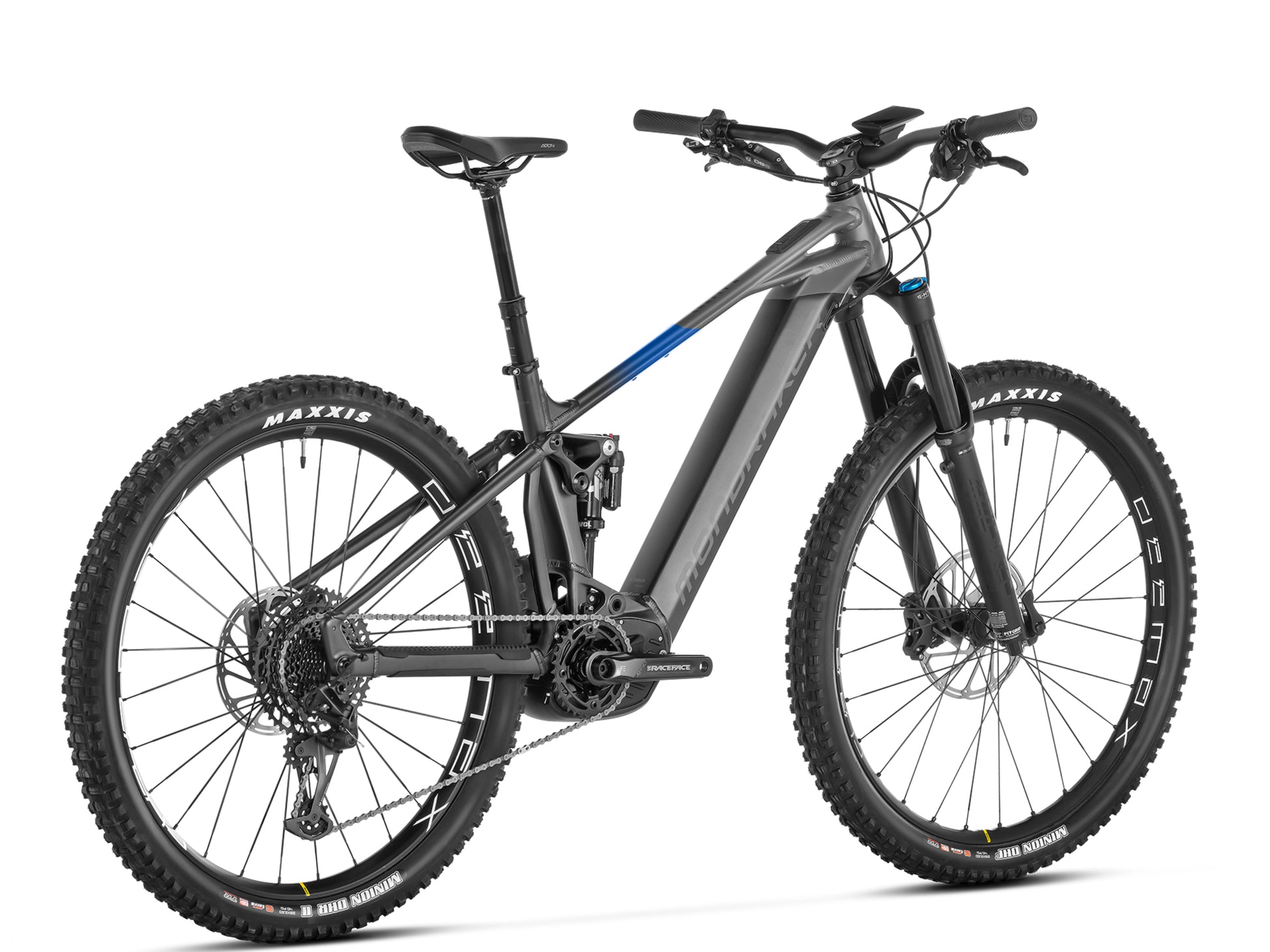

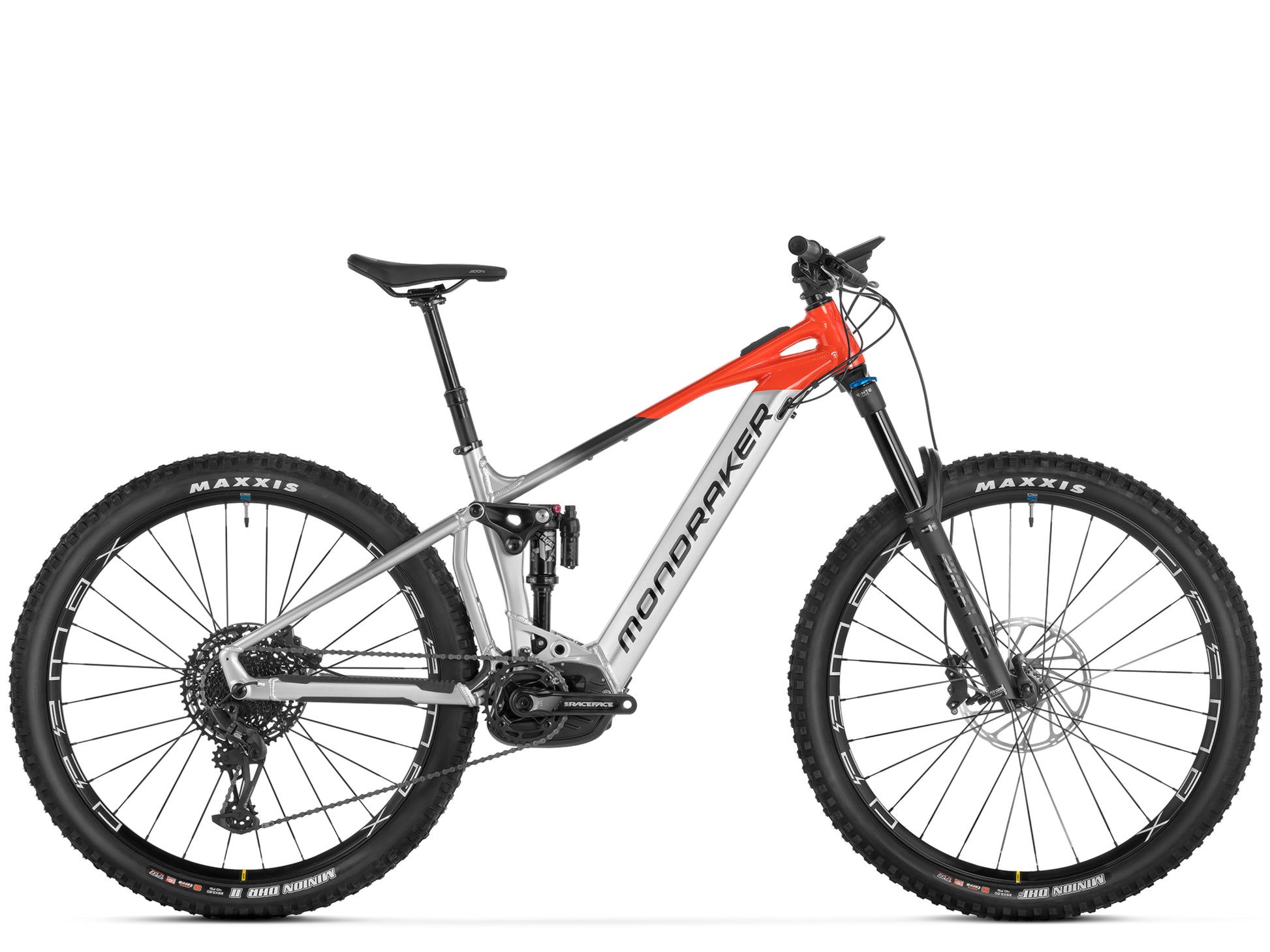

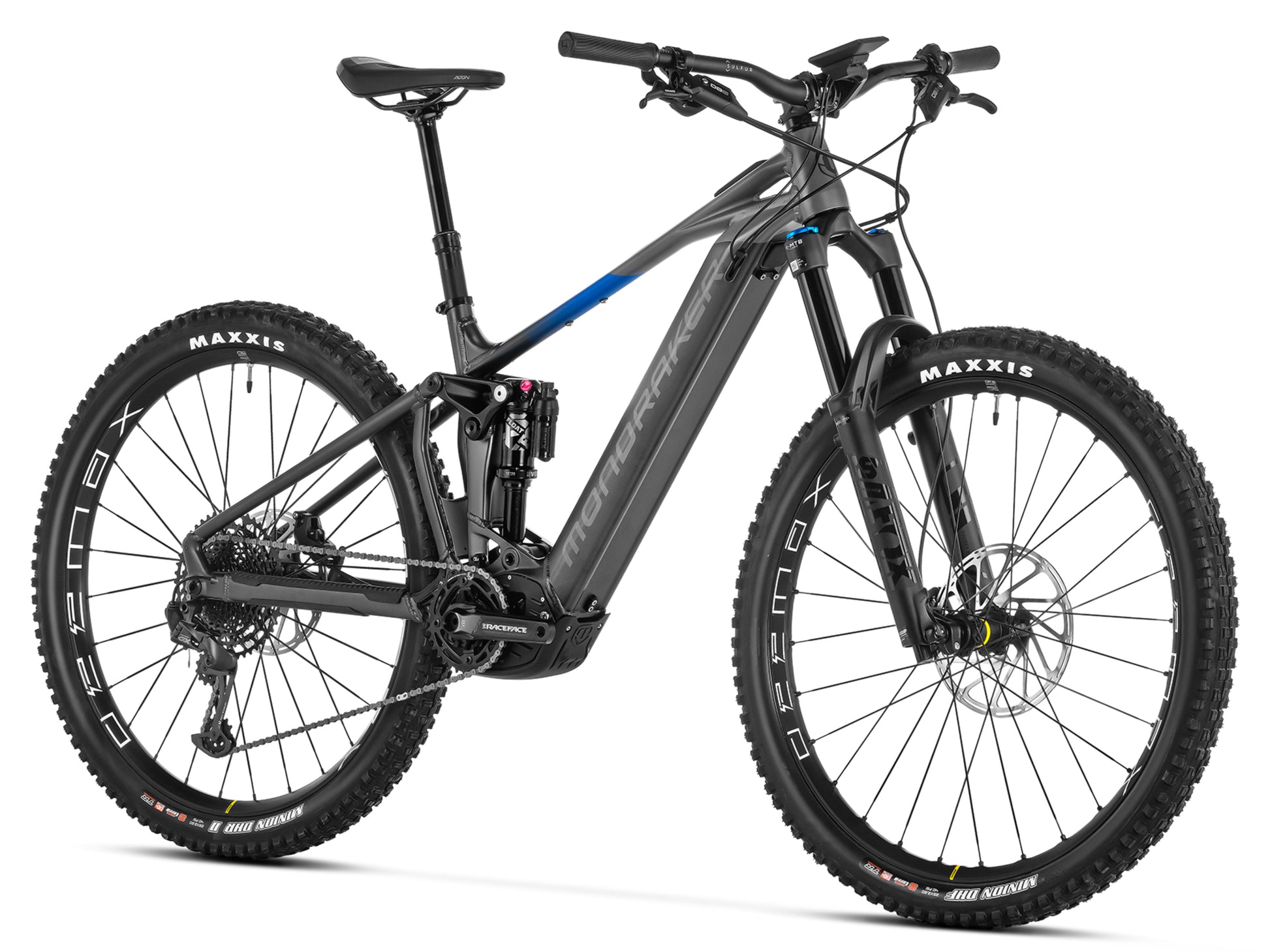

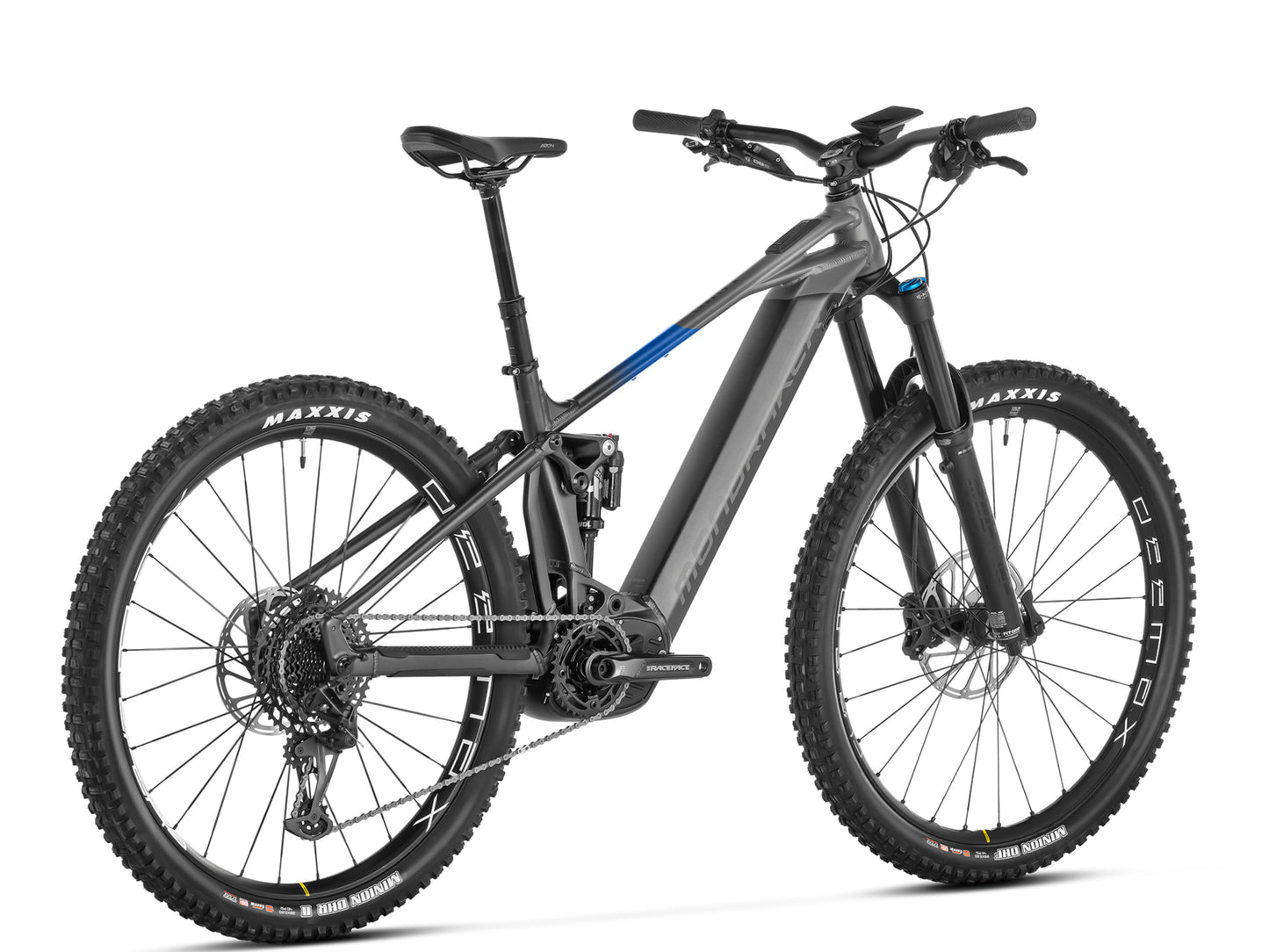

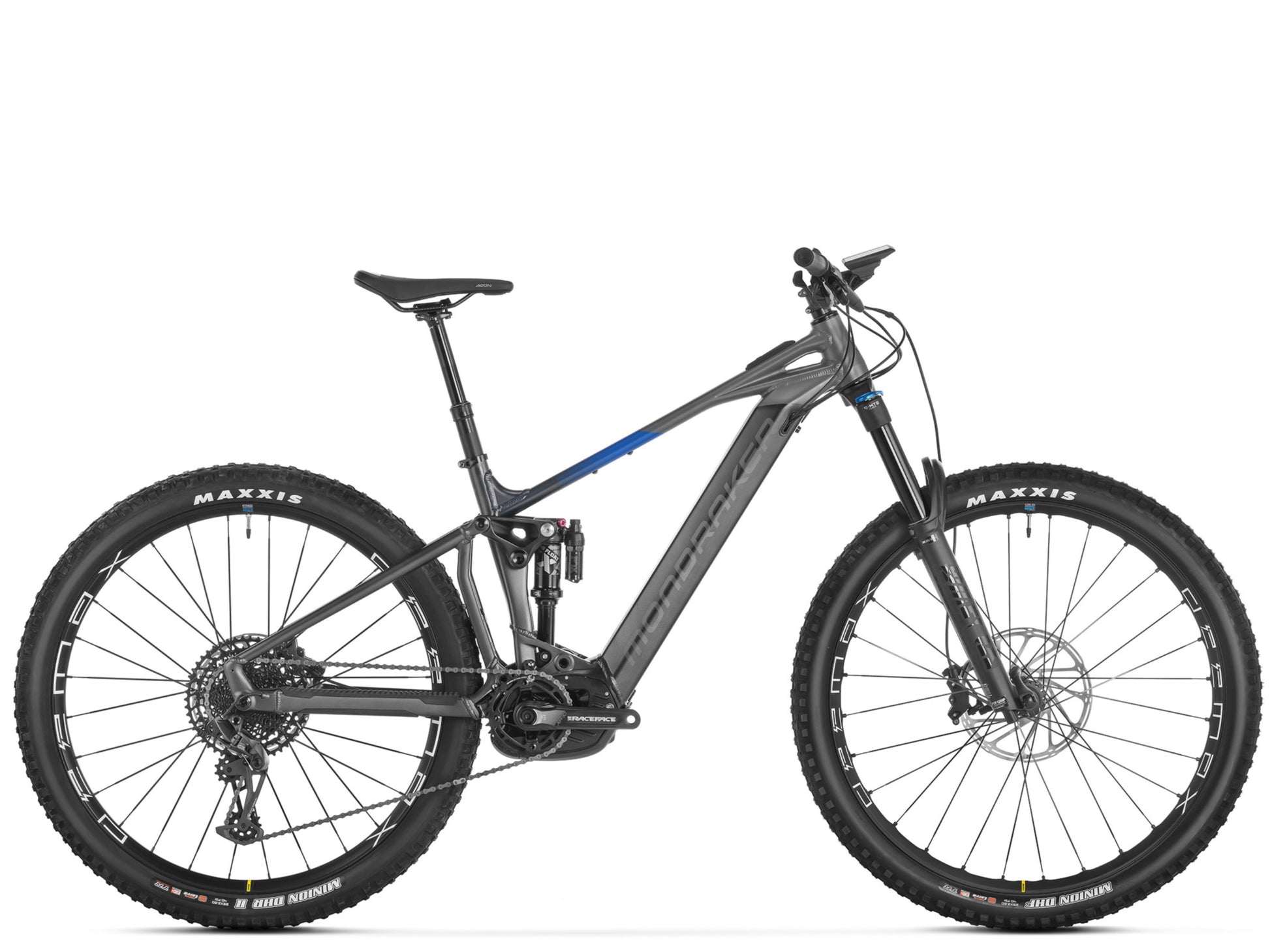

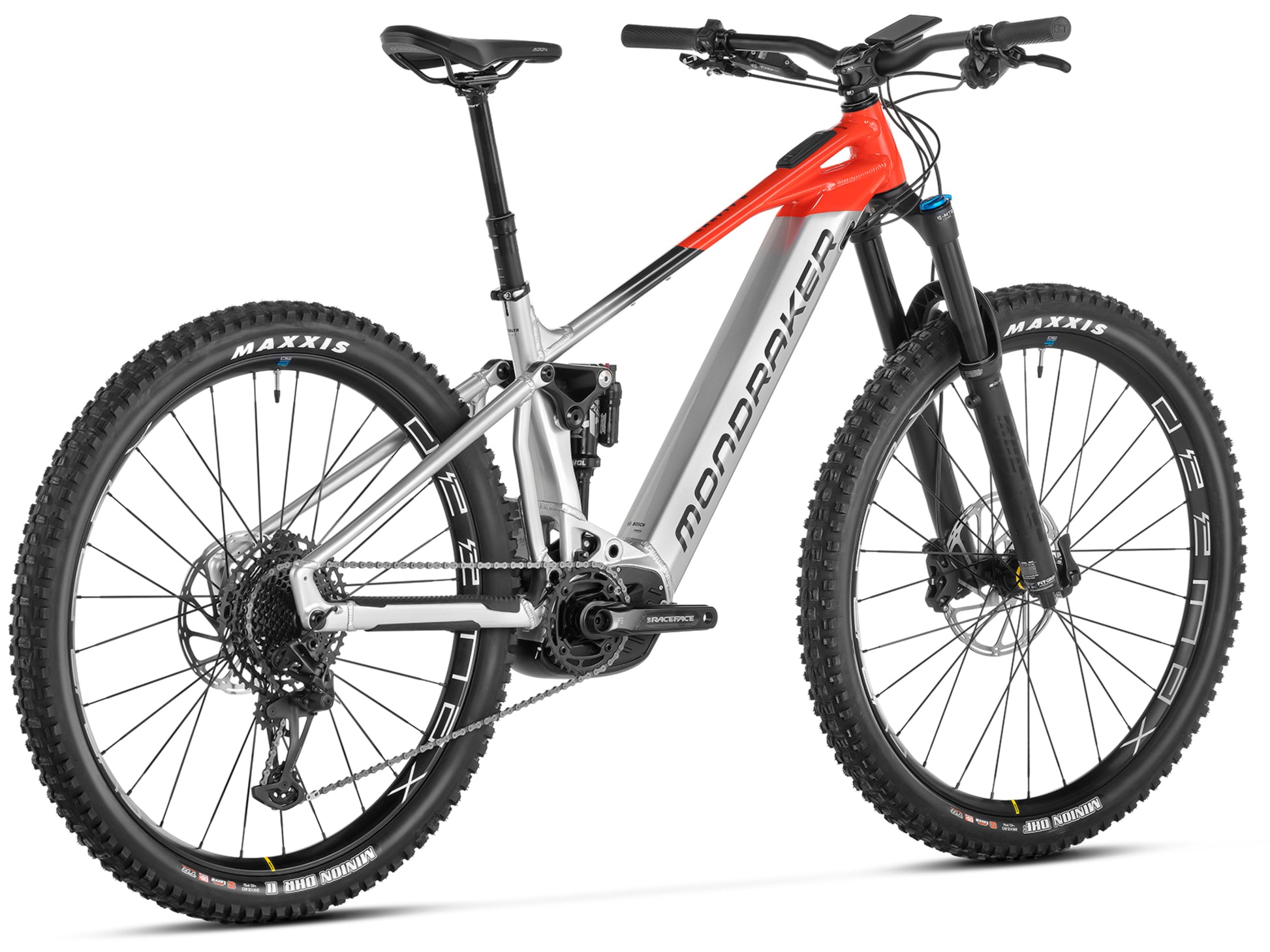

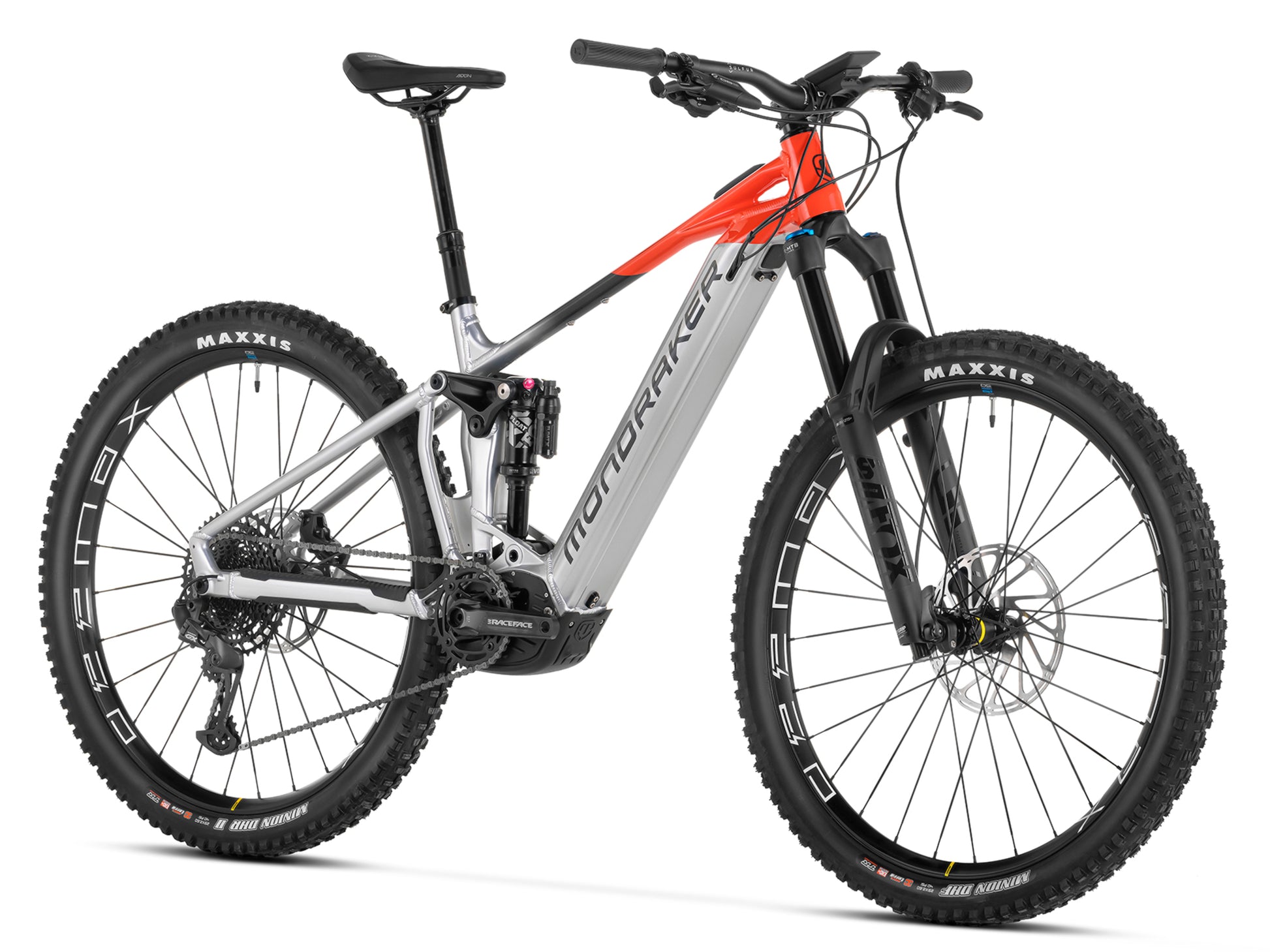

Mondraker Crafty R

The Full Scoop on the Mondraker Crafty R

• Description
• Motor System
• Components
• Extras
• Geometry

•
  The Mondraker Crafty R e-MTB bike is designed for enduro, trail and all-mountain riding! This top level bike boasts updated suspension kinematics and amazing pedaling efficiency. Mondraker Crafty R’s optimized zero suspension uses large bearings on a one-piece monoblock link for extreme bump absorption for plusher rides.

  The Mondraker Crafty R’s upgraded Bosch Performance Line CX GEN4 engine, backed by an integrated 750 Wh Power Tube battery, both seamlessly concealed inside a durable frame to handle the rigors of mountain bike riding. The Mondraker Crafty R also includes a handlebar mounted control module.

  Mondraker Crafty R's unique zero suspension system helps with stability and control by absorbing the strongest vibrations and keeping your wheels planted on the ground even on the most aggressive trails. The zero suspension design offers zero power loss for pedaling stability, zero pedal kickback for minimum chain growth throughout travel, zero brake jack for isolated braking & suspension forces, and zero bumps for absorbing even the slightest bumps for extreme rear wheel stability.

  Aggressive MTB riders will love the safety and confidence offered by Crafty R’s proprietary forward geometry design. Forward geometry also helps with improved handling, overall control, uphill precision, and stability in tough and technical terrains.

•  Mondraker Crafty R price? Save $200 with our rebate found here.



• Components subject to manufacturer changes.

• Motor	Bosch Performance Line CX Cruise (20 mph) GEN4 BS3
  Battery	Bosch Powertube 750Wh
  Display	Bosch Kiox 300
  Charger	Bosch 4Ah

• Frame	Crafty 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery with integrated alloy cover, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
  Fork	Fox 38 29 Float FIT GRIP EVOL Performance, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload
  Rear Shock	Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
  Front Brake	Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
  Rear Brake	Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
  Rear Derailleur	Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
  Shift Levers	Sram Trigger NX Eagle, 12s, X-Actuation 1:1, single click
  Chain	Sram SX Eagle, 12s, Powerlock
  Cassette	Sram PG-1210, 11-50T, 12s
  Crankset	Race Face Aeffect ebike, 165mm
  Chain Ring	Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
  Chain Guard	Spec not provided
  Rims	Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
  Front Hub	Mavic, Boost 15x110mm, IS 6 bolts
  Rear Hub	Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts
  Front Tire	Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
  Rear Tire	Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
  Handlebar	Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 780mm, 9° backsweep, 5° upsweep, 31.8mm barbore
  Stem	Onoff Sulfur FG 30mm 0°, 6061 forged alloy, 31.8mm barbore
  Headset	Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45°x45°, bottom 51.9x40x8x45°x45°
  Grips	Onoff Diamond, 1lock-on, 135mm
  Saddle	Fizik Terra Aidon X5 145mm
  Seatpost	Onoff Pija dropper internal, diameter 31.6mm, S size: 387x125mm, M size: 425x150mm, L/XL size: 465x170mm

• Pedals	Not applicable
  Front Light	Not applicable
  Rear Light	Not applicable
  Kickstand	Not applicable
  Rear Carrier	Not applicable
  Fenders	Not applicable
  Bell	Not applicable
  Lock	Not applicable
  Mirror	Not applicable

•

  		S	M	L	XL
  Seattube length	A	380mm	420mm	450mm	490mm
  Toptube length	B	605mm	625mm	650mm	670mm
  Bottom bracket drop	C	-25mm	-25mm	-25mm	-25mm
  Bottom bracket height	D	350mm	350mm	350mm	350mm
  Chainstay length	E	455mm	455mm	455mm	455mm
  Seat tube angle	F	73.5°	73.5°	73.5°	73.5°
  Effective seattube angle	G	76°	76°	76°	76°
  Headtube angle	H	65.5°	65.5°	65.5°	65.5°
  Fork Offset	I	44mm	44mm	44mm	44mm
  Wheelbase	J	1225mm	1245mm	1265mm	1285mm
  Headtube length	K	110mm	110mm	130mm	130mm
  Reach	L	450mm	470mm	490mm	510mm
  Stack	M	622mm	622mm	640mm	640mm
