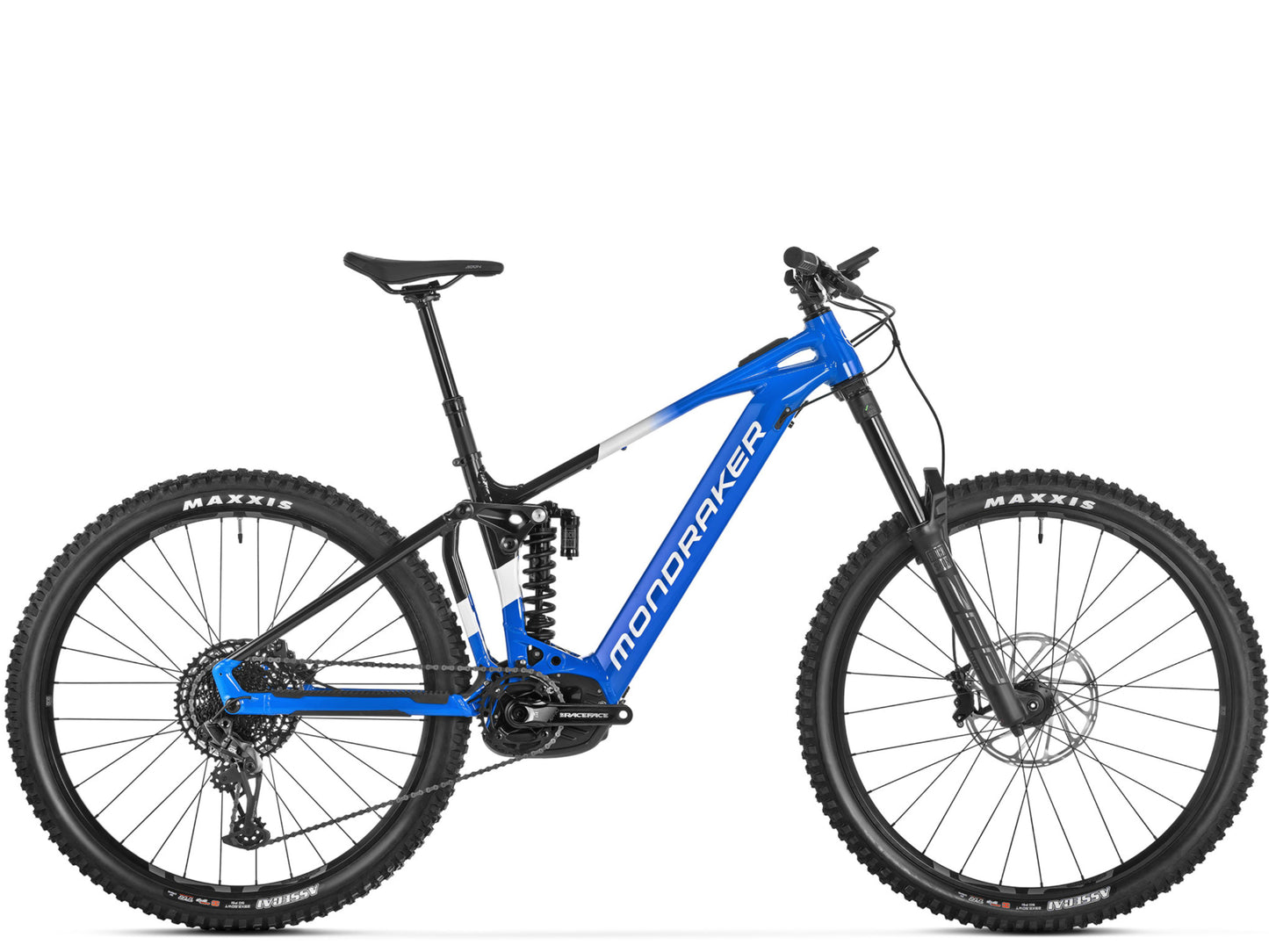

The Full Scoop on Mondraker Level R
Get ready to experience the thrill with the Level R e-MTB bike designed for super enduro, trail and all-mountain riding! The Level is equipped with the Bosch Performance Line CX Gen 4 with the new mini remote and wireless remote control system controller. Along with the 750 Wh battery, you can climb to the top and enjoy as many descents as your heart desires.
*Components subject to manufacturer changes.
| Motor | Bosch Performance Line CX Cruise 25 km/h) GEN4 SMART SYSTEM |
| Battery | Bosch Powertube 750Wh |
| Display | Bosch Intuvia 100 / Bosch Mini Remote / Bosch System Controller |
| Charger | 4Ah |
| Frame | Level 6061 Alloy Stealth Evo, Zero Suspension System optimized for e-bike, 170mm travel, Forward Geometry, non-removable internal battery, 12x148mm Boost rear axle, tapered head tube, one-piece Monobloc top link, HHG internal cabling system , MAX sealed bearings, oversized 17mm axles, speed sensor integrated into the toe, exclusive plastic motor covers. |
| Fork | RockShox ZEB Select Charger RC 29, 180mm, optimized for e-bike, tapered head tube, 15x110mm Boost axle, 44mm offset.Adjustments: low speed compression, low speed rebound, air preload. |
| Rear Shock | RockShox Super Deluxe coil Select R, 225x75mm.Adjustments: external limit switch, low speed rebound, spring preload.Trunnion upper anchor, 25x10mm lower bushings. |
| Front Brake | SRAM DB8, oversized 4-piston caliper, 220mm Centerline one-piece IS 6-bolt disc, sintered sheet steel pads. |
| Rear Brake | SRAM DB8, oversized 4-piston caliper, 6-bolt IS one-piece 200mm Centerline disc, sintered sheet steel pads. |
| Rear Derailleur | Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 |
| Shift Levers | SRAM Trigger NX Eagle, 12v, X-Actuation 1:1, one-click speed change. SRAM GX Eagle, clutch with type 3 roller bearings, box lock, 1x12v, X-Actuation 1:1 |
| Chain | SRAM SX Eagle, 12v, Powerlock |
| Cassette | SRAM PG-1210, 11-50T, 12v |
| Crankset | Race Face Aeffect ebike, 165mm |
| Chain Ring | SRAM X-Sync 2 Eagle, 34 teeth, steel, narrow and wide design, 104 BCD |
| Chain Guard | Spec not provided |
| Rims | e*thirteen E*Spec, IW30 Hookless, 6069 welded aluminum, 30mm internal width, tubeless ready, 28 front wheel spokes / 32 rear wheel spokes |
| Front Hub | 15x110mm e*thirteen Boost, triple-sealed, 100% machined aluminum, 6-bolt IS |
| Rear Hub | e*thirteen Boost 12x148mm, triple-sealed, 100% machined aluminum, 6º return angle, 6-bolt IS, HG freehub |
| Front Tire | Maxxis Assegai 29x2.5WT;tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, with folding rim |
| Rear Tire | Maxxis Assegai 29x2.5WT;tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, with folding rim |
| Handlebars | ONOFF Sulfur 1.0 double-butted in 6061 alloy, rise: 20mm, width: 800mm, rear sweep: 9º, upsweep: 5º, diameter 31.8mm |
| Stem | Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| Headset | Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º |
| Grips | ONOFF Twin, 1 lock-on, 135mm |
| Saddle | Fizik Terra Aidon X5 145mm |
| Seatpost | ONOFF Internal wiring harness, diameter 31.6mm, 1 remote control with bearing, size S: 405x95-125mm, M: 458x120-150mm, L: 498x140-170mm, XL: 558x170-200mm |
| Pedals | Not applicable |
| Front Light | Not applicable |
| Rear Light | Not applicable |
| Kickstand | Not applicable |
| Rear Carrier | Not applicable |
| Fenders | Not applicable |
| Bell | Not applicable |
| Lock | Not applicable |
| Mirror | Not applicable |
| FRAME SIZE | S | M | L | XL | |
|---|---|---|---|---|---|
| A | Seattube length | 380mm | 420mm | 450mm | 490mm |
| B | Toptube length | 605mm | 625mm | 650mm | 670mm |
| C | Bottom bracket drop | -25mm | -25mm | -25mm | -25mm |
| D | Bottom bracket height | 350mm | 350mm | 350mm | 350mm |
| E | Chainstay length | 455mm | 455mm | 455mm | 455mm |
| F | Seat tube angle | 73.5° | 73.5° | 73.5° | 73.5° |
| G | Effective seattube angle | 76° | 76° | 76° | 76° |
| H | Headtube angle | 65.5° | 65.5° | 65.5° | 65.5° |
| I | Fork Offset | 44mm | 44mm | 44mm | 44mm |
| J | Wheelbase | 1225mm | 1245mm | 1265mm | 1285mm |
| K | Headtube length | 110mm | 110mm | 130mm | 130mm |
| L | Reach | 450mm | 470mm | 490mm | 510mm |
| M | Stack | 622mm | 622mm | 640mm | 640mm |
The Full Scoop on Mondraker Level R
Get ready to experience the thrill with the Level R e-MTB bike designed for super enduro, trail and all-mountain riding! The Level is equipped with the Bosch Performance Line CX Gen 4 with the new mini remote and wireless remote control system controller. Along with the 750 Wh battery, you can climb to the top and enjoy as many descents as your heart desires.
*Components subject to manufacturer changes.
Motor System
| Motor | Bosch Performance Line CX Cruise 25 km/h) GEN4 SMART SYSTEM |
| Battery | Bosch Powertube 750Wh |
| Display | Bosch Intuvia 100 / Bosch Mini Remote / Bosch System Controller |
| Charger | 4Ah |
Components
| Frame | Level 6061 Alloy Stealth Evo, Zero Suspension System optimized for e-bike, 170mm travel, Forward Geometry, non-removable internal battery, 12x148mm Boost rear axle, tapered head tube, one-piece Monobloc top link, HHG internal cabling system , MAX sealed bearings, oversized 17mm axles, speed sensor integrated into the toe, exclusive plastic motor covers. |
| Fork | RockShox ZEB Select Charger RC 29, 180mm, optimized for e-bike, tapered head tube, 15x110mm Boost axle, 44mm offset.Adjustments: low speed compression, low speed rebound, air preload. |
| Rear Shock | RockShox Super Deluxe coil Select R, 225x75mm.Adjustments: external limit switch, low speed rebound, spring preload.Trunnion upper anchor, 25x10mm lower bushings. |
| Front Brake | SRAM DB8, oversized 4-piston caliper, 220mm Centerline one-piece IS 6-bolt disc, sintered sheet steel pads. |
| Rear Brake | SRAM DB8, oversized 4-piston caliper, 6-bolt IS one-piece 200mm Centerline disc, sintered sheet steel pads. |
| Rear Derailleur | Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 |
| Shift Levers | SRAM Trigger NX Eagle, 12v, X-Actuation 1:1, one-click speed change. SRAM GX Eagle, clutch with type 3 roller bearings, box lock, 1x12v, X-Actuation 1:1 |
| Chain | SRAM SX Eagle, 12v, Powerlock |
| Cassette | SRAM PG-1210, 11-50T, 12v |
| Crankset | Race Face Aeffect ebike, 165mm |
| Chain Ring | SRAM X-Sync 2 Eagle, 34 teeth, steel, narrow and wide design, 104 BCD |
| Chain Guard | Spec not provided |
| Rims | e*thirteen E*Spec, IW30 Hookless, 6069 welded aluminum, 30mm internal width, tubeless ready, 28 front wheel spokes / 32 rear wheel spokes |
| Front Hub | 15x110mm e*thirteen Boost, triple-sealed, 100% machined aluminum, 6-bolt IS |
| Rear Hub | e*thirteen Boost 12x148mm, triple-sealed, 100% machined aluminum, 6º return angle, 6-bolt IS, HG freehub |
| Front Tire | Maxxis Assegai 29x2.5WT;tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, with folding rim |
| Rear Tire | Maxxis Assegai 29x2.5WT;tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, with folding rim |
| Handlebars | ONOFF Sulfur 1.0 double-butted in 6061 alloy, rise: 20mm, width: 800mm, rear sweep: 9º, upsweep: 5º, diameter 31.8mm |
| Stem | Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| Headset | Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º |
| Grips | ONOFF Twin, 1 lock-on, 135mm |
| Saddle | Fizik Terra Aidon X5 145mm |
| Seatpost | ONOFF Internal wiring harness, diameter 31.6mm, 1 remote control with bearing, size S: 405x95-125mm, M: 458x120-150mm, L: 498x140-170mm, XL: 558x170-200mm |
Extras
| Pedals | Not applicable |
| Front Light | Not applicable |
| Rear Light | Not applicable |
| Kickstand | Not applicable |
| Rear Carrier | Not applicable |
| Fenders | Not applicable |
| Bell | Not applicable |
| Lock | Not applicable |
| Mirror | Not applicable |

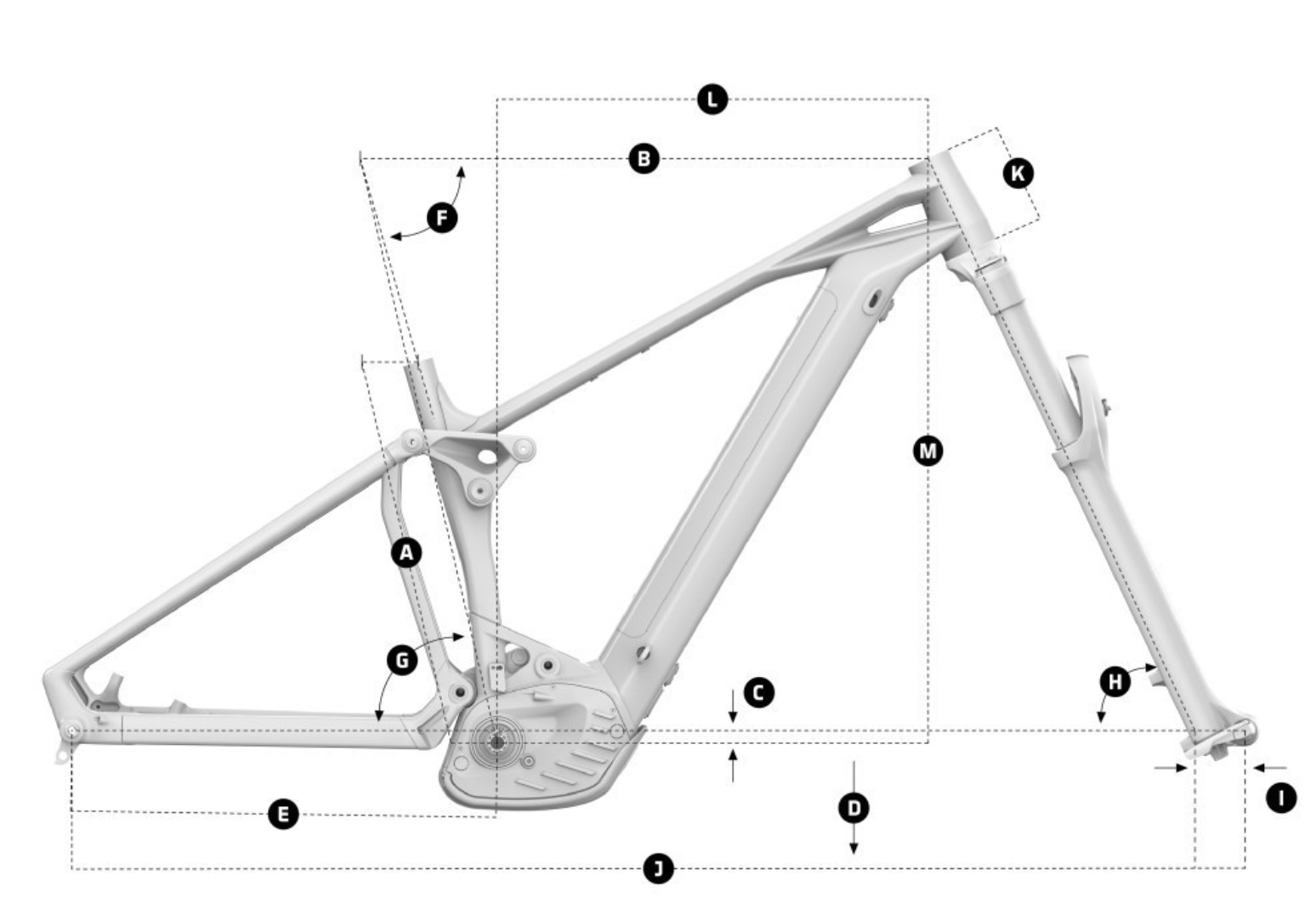

Geometry
| FRAME SIZE | S | M | L | XL | |
|---|---|---|---|---|---|
| A | Seattube length | 380mm | 420mm | 450mm | 490mm |
| B | Toptube length | 605mm | 625mm | 650mm | 670mm |
| C | Bottom bracket drop | -25mm | -25mm | -25mm | -25mm |
| D | Bottom bracket height | 350mm | 350mm | 350mm | 350mm |
| E | Chainstay length | 455mm | 455mm | 455mm | 455mm |
| F | Seat tube angle | 73.5° | 73.5° | 73.5° | 73.5° |
| G | Effective seattube angle | 76° | 76° | 76° | 76° |
| H | Headtube angle | 65.5° | 65.5° | 65.5° | 65.5° |
| I | Fork Offset | 44mm | 44mm | 44mm | 44mm |
| J | Wheelbase | 1225mm | 1245mm | 1265mm | 1285mm |
| K | Headtube length | 110mm | 110mm | 130mm | 130mm |
| L | Reach | 450mm | 470mm | 490mm | 510mm |
| M | Stack | 622mm | 622mm | 640mm | 640mm |
