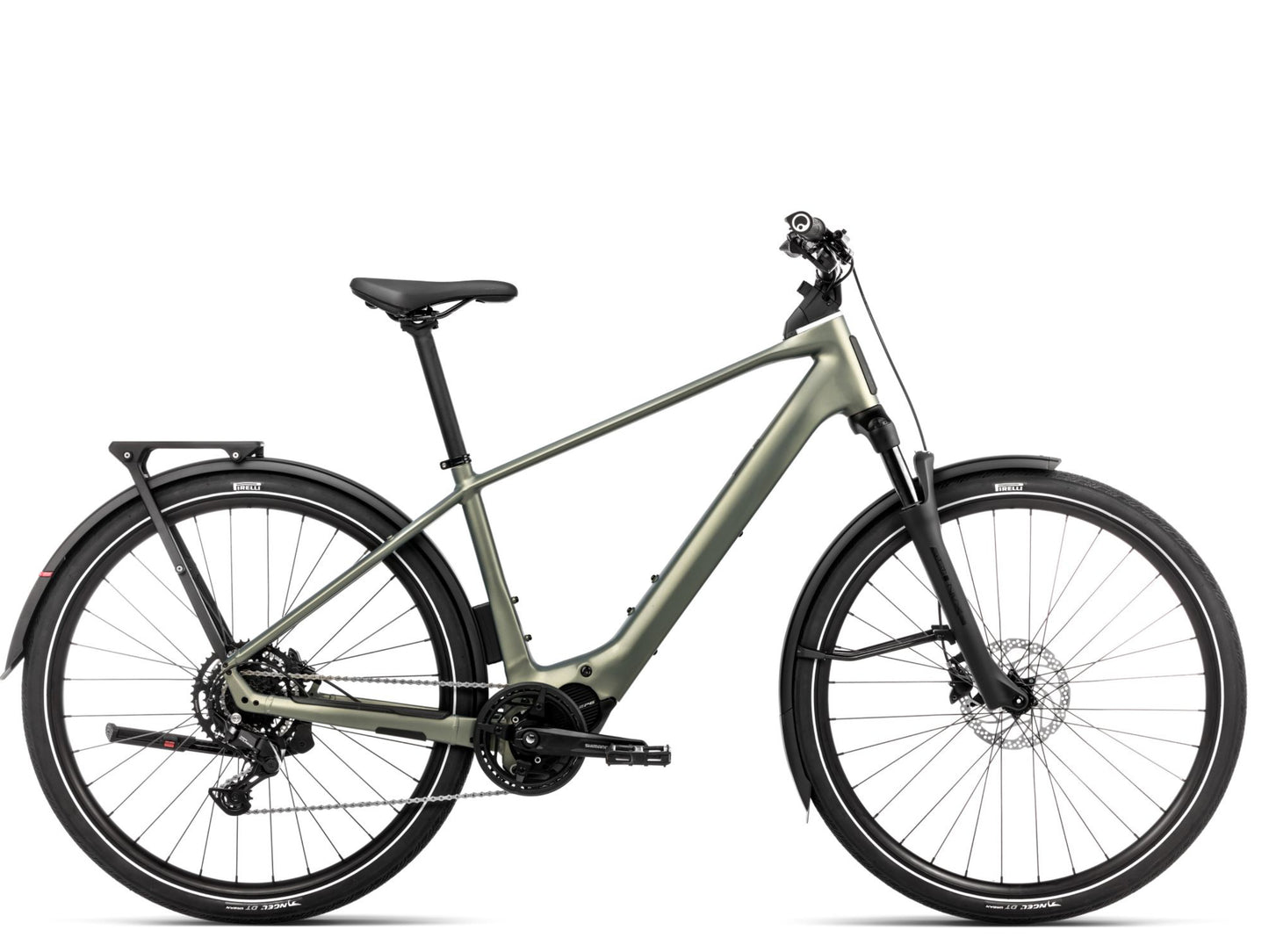

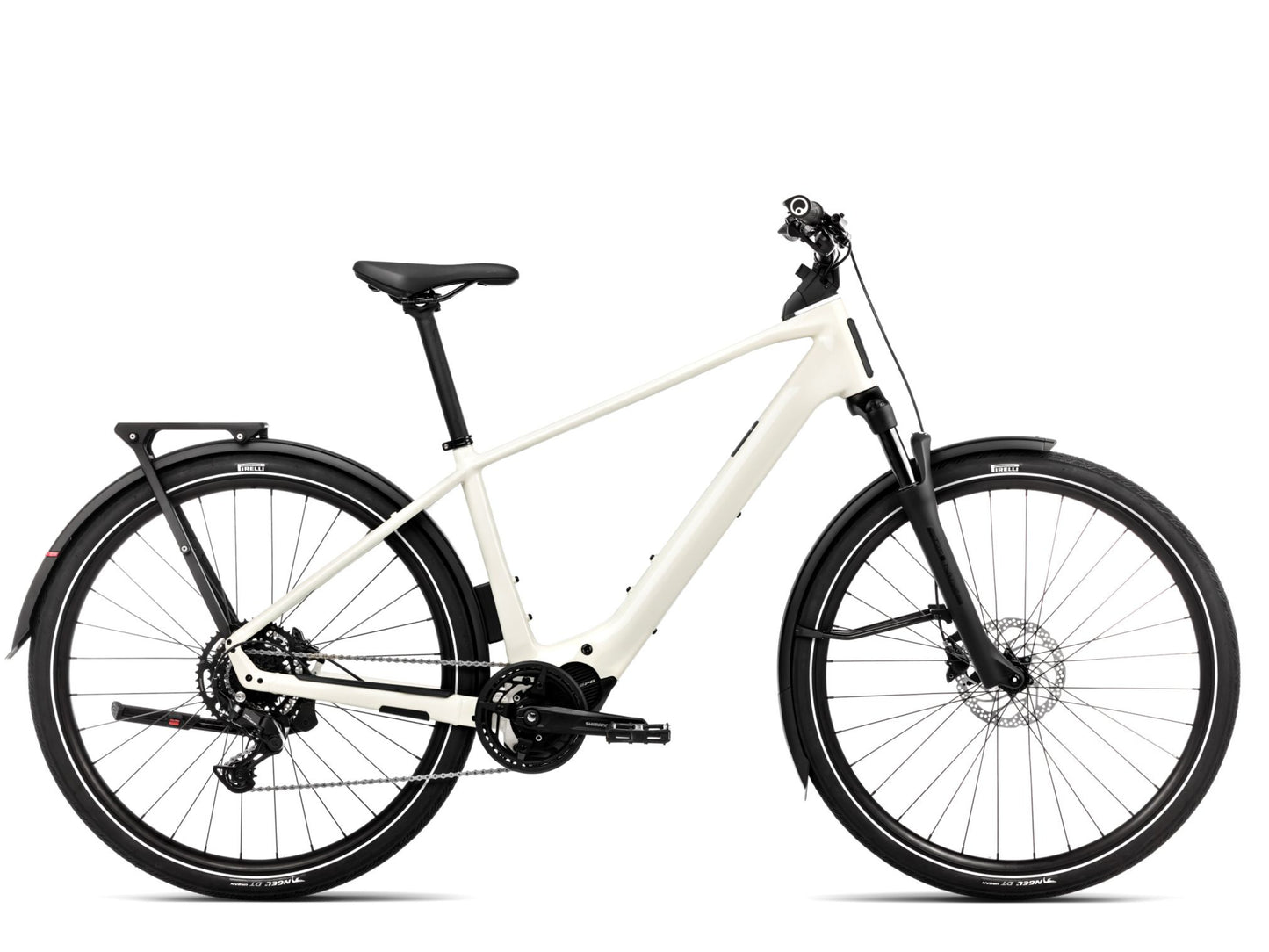

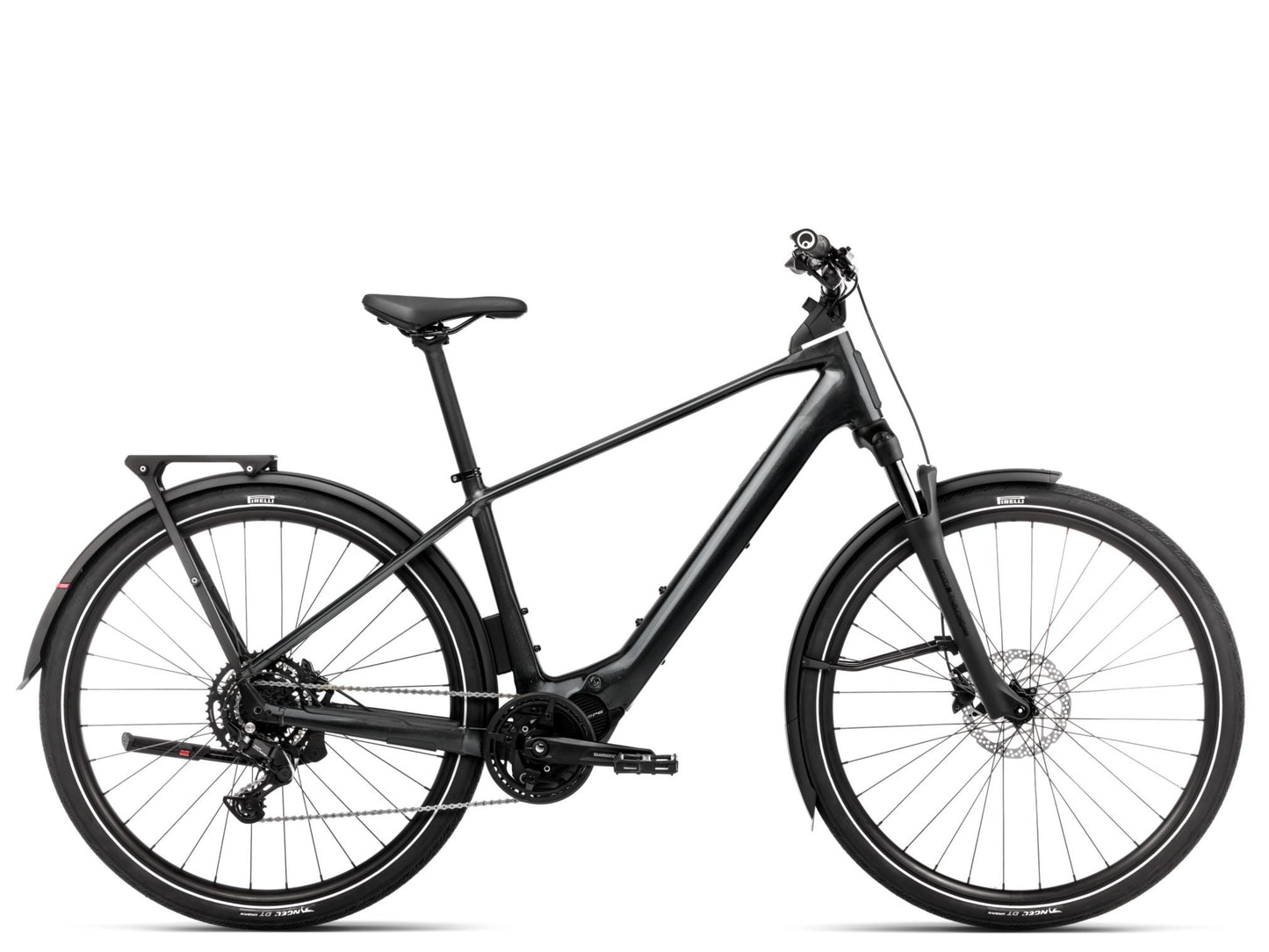

Orbea Kemen SUV 30

The Full Scoop on the Orbea Kemen SUV 30

• Description
• Motor System
• Components
• Extras
• Geometry

•
  The best tools are ones you use daily – the perfect bike is one that fits seamlessly with your many needs. Tireless, capacious and effortless, the Orbea Kemen SUV 30 goes beyond simple utility by turning ebike rides into delightful mini-adventures. Whizz through the morning traffic, breath fresh air on your way to work, let the Orbea Kemen SUV 30 take the strain so you don´t break a sweat. After work take the long way home, escape the bike lane and have an urban adventure.

  Orbea's Kemen SUV 30 is prepared for your busy schedule with bigger tires with more aggressive tread and strong carrier for heavy loads and rough roads. The EP8 motor has plentiful power for the steepest roads and the heaviest loads, more than enough to get you up to speed quickly and whisk you to work without breaking a sweat. The cutting edge battery means that even with a fully loaded bike you can expect over 5 hours of riding.

  The Orbea Kemen SUV 30 comes with sleek, sturdy fenders which ensure you arrive to your destination clean and dry. Kemen SUV uses wider fenders, with a custom shape to offer more protection when things get dirty.

• *Components subject to manufacturer changes

• Motor	Shimano EP8
  Battery	Orbea Internal 540Wh (Optional 252Wh Range Extender)
  Display	Shimano SC-E5003
  Charger	Orbea Smart Charger (42V-4A)

•


  Frame	Orbea Kemen Top Bar, Shimano Steps, Integrated battery, Hydroformed Alloy 6061 series Internal Cable Routing, Boost 148x12, carrier and kickstand compatible
  Fork	Marzocchi Bomber Z2 100 QR15x110 E-Bike Optimized
  Rear Shock	Not applicable
  Front Brake	Magura MT30 Hydraulic Disc Easy Route Connection
  Rear Brake	Magura MT30 Hydraulic Disc Easy Route Connection
  Rear Derailleur	Shimano Deore M5130 Link Glide GS Shadow Plus
  Shift Levers	Shimano Deore M5130 Link Glide
  Chain	Shimano LG500
  Cassette	Shimano CS-LG600 11-43t 10-Speed
  Crankset	Shimano Steps EM600
  Chain Ring	Alloy EP8 36t w/chainguard
  Chain Guard	Spec not provided
  Rims	Orbea OC1 29c Tubeless Ready
  Front Hub	Spec not provided
  Rear Hub	Spec not provided
  Front Tire	Schwalbe Johnny Watts, 29x2.35 RaceGuard Reflective Tape
  Rear Tire	Schwalbe Johnny Watts, 29x2.35 RaceGuard Reflective Tape
  Handlebar	OC 35mm 20mm Rise 780mm
  Stem	OC1 35mm interface -6º
  Headset	FSA 1-1/2" Integrated Aluminum Cup
  Grips	Spec not provided
  Saddle	Selle Royal Vivo
  Seatpost	Alloy 31.6 Offset 0

• Pedals	VP-537 Black
  Front Light	Lezyne Ebike POWER STVZO PRO E115 with remote 310 lumens
  Rear Light	Lezyne Super Bright CARRIER STVZO Alert Technology 12Lumen
  Kickstand	Ursus Mooi rear adjustable
  Rear Carrier	Orbea Kemen Suv oversize Alloy Rear Carrier, w/Mik HD and Oertlieb QL3.1 system
  Fenders	CURANA Apollo 70mm
  Bell	Not applicable
  Lock	Not applicable
  Mirror	Not applicable

•

  		S	M	L	XL
  HEIGHT		61.1"-66.9"	65.0"-70.9"	70.1"-74.8"	72.8"-78.74"
  SEAT TUBE (C-T)	1	400	453	483	533
  TOP TUBE (EFF)	2	563	576	606	642
  HEAD TUBE	3	110	115	132	153
  CHAINSTAY	4	445	445	445	445
  BB HEIGHT	5	307,5	307,5	307,5	307,5
  BB DROP*	6	63	63	63	63
  WHEELBASE	7	1134	1142	1173	1211
  HEAD ANGLE*	8	66,5º	67º	67º	67º
  SEAT ANGLE*	9	75º	75º	75º	75º
  STANDOVER	10	816	839	861	895
  REACH	11	405	415	440	470
  STACK	12	617	624	640	659
  FORK LENGTH	13	513,5	513,5	513,5	513,5
  RAKE		44	44	44	44
