The Full Scoop on the Tranisition Relay
Loamwolf Lightweight eMTB of the Year!

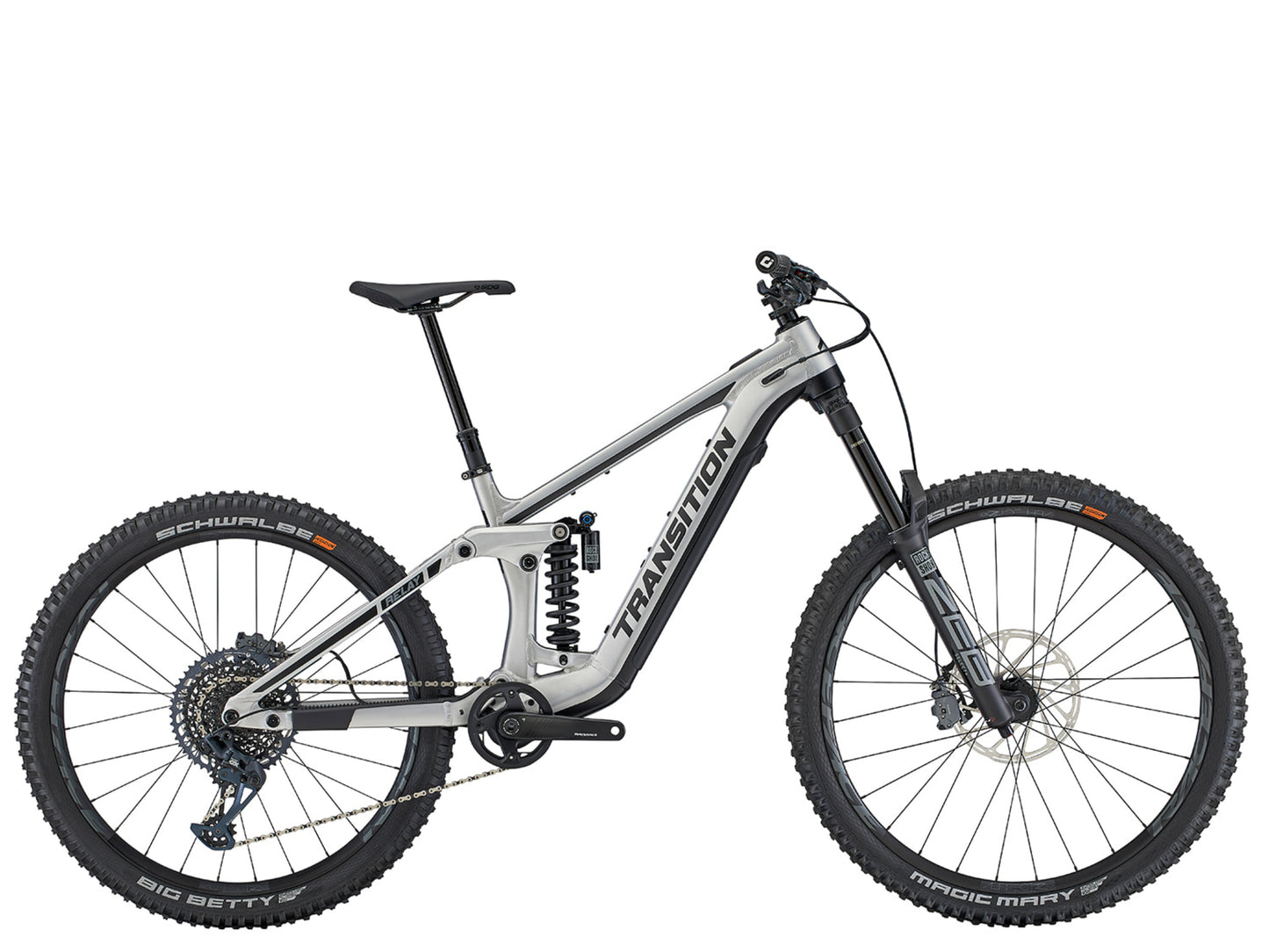

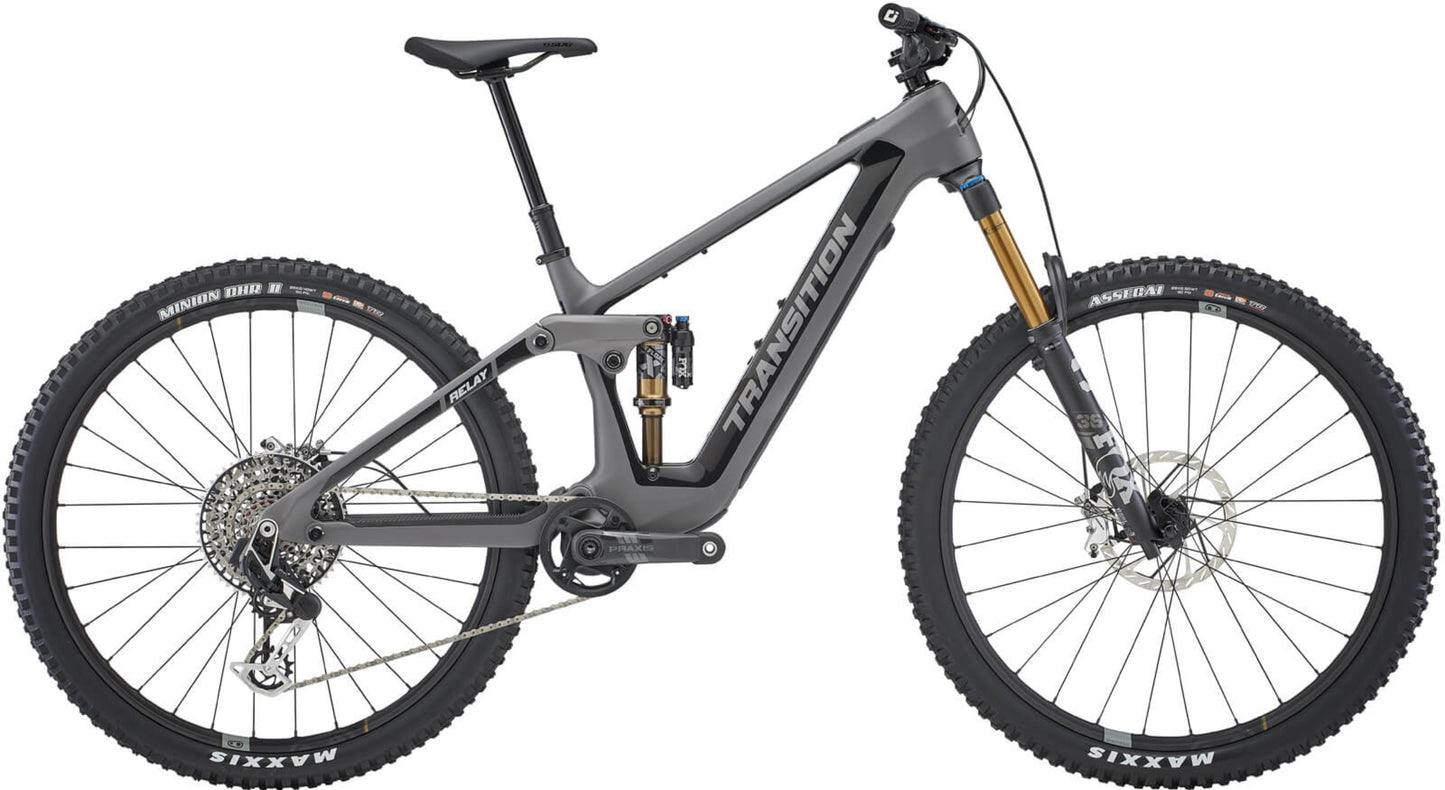

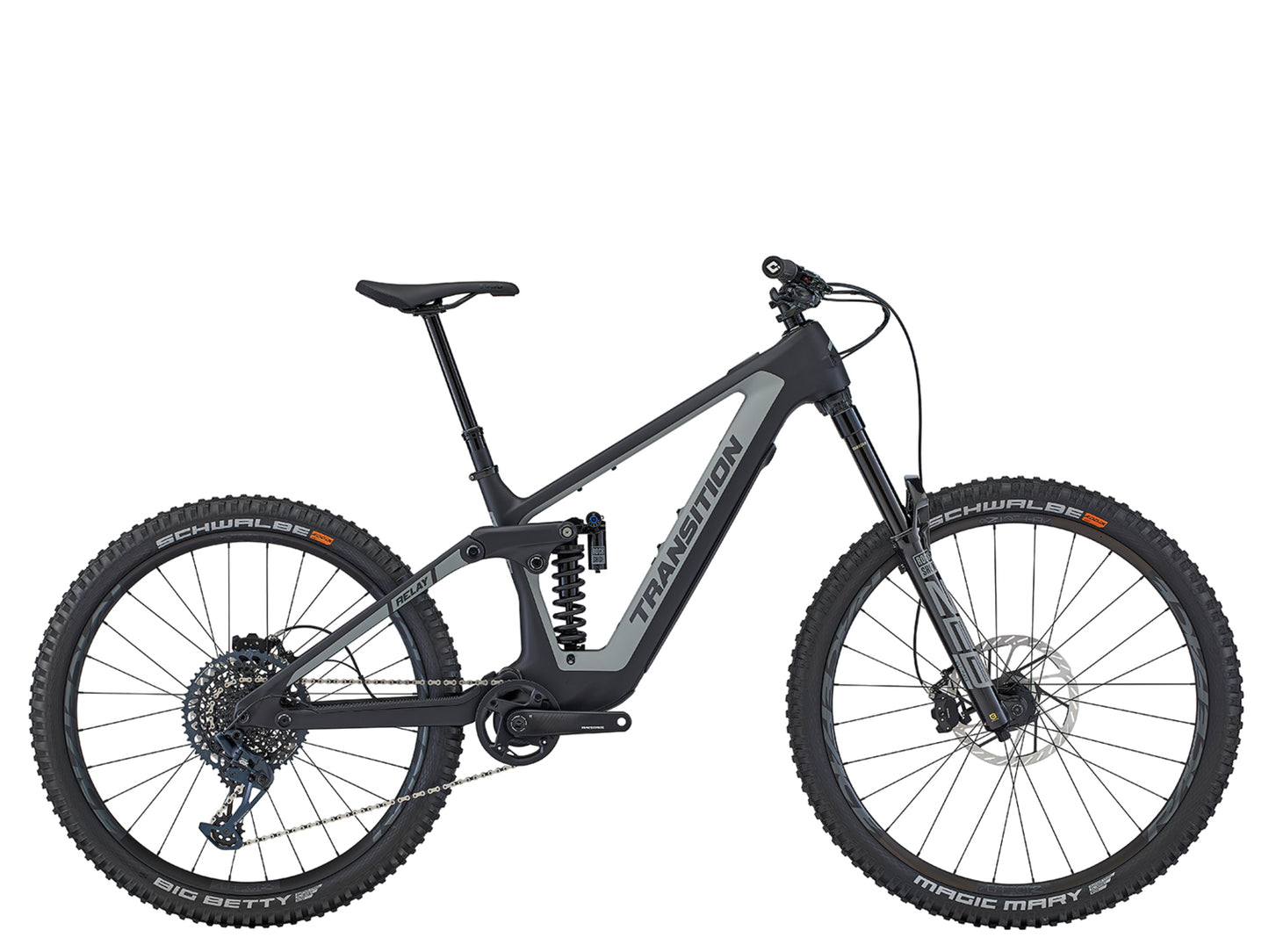

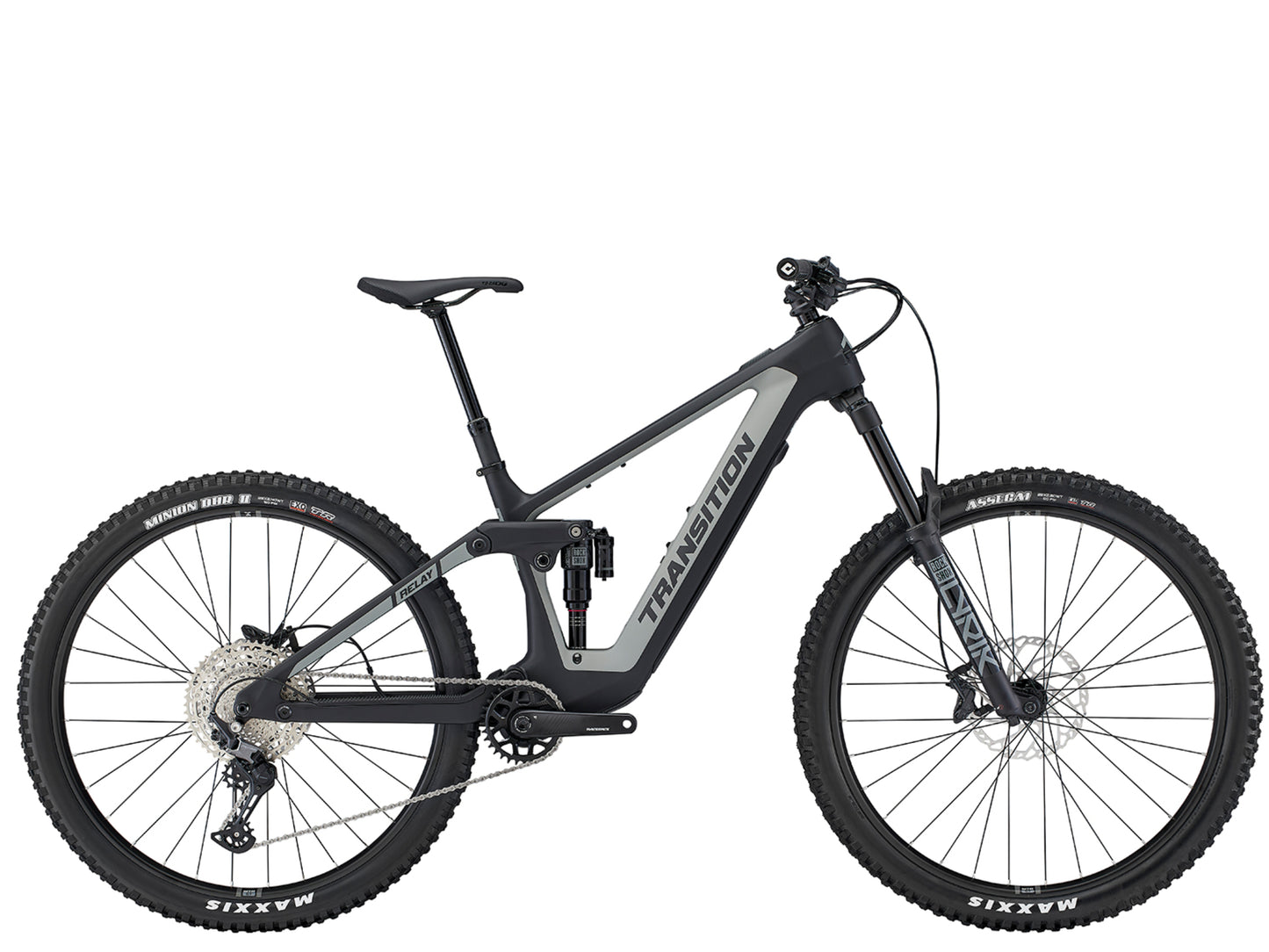

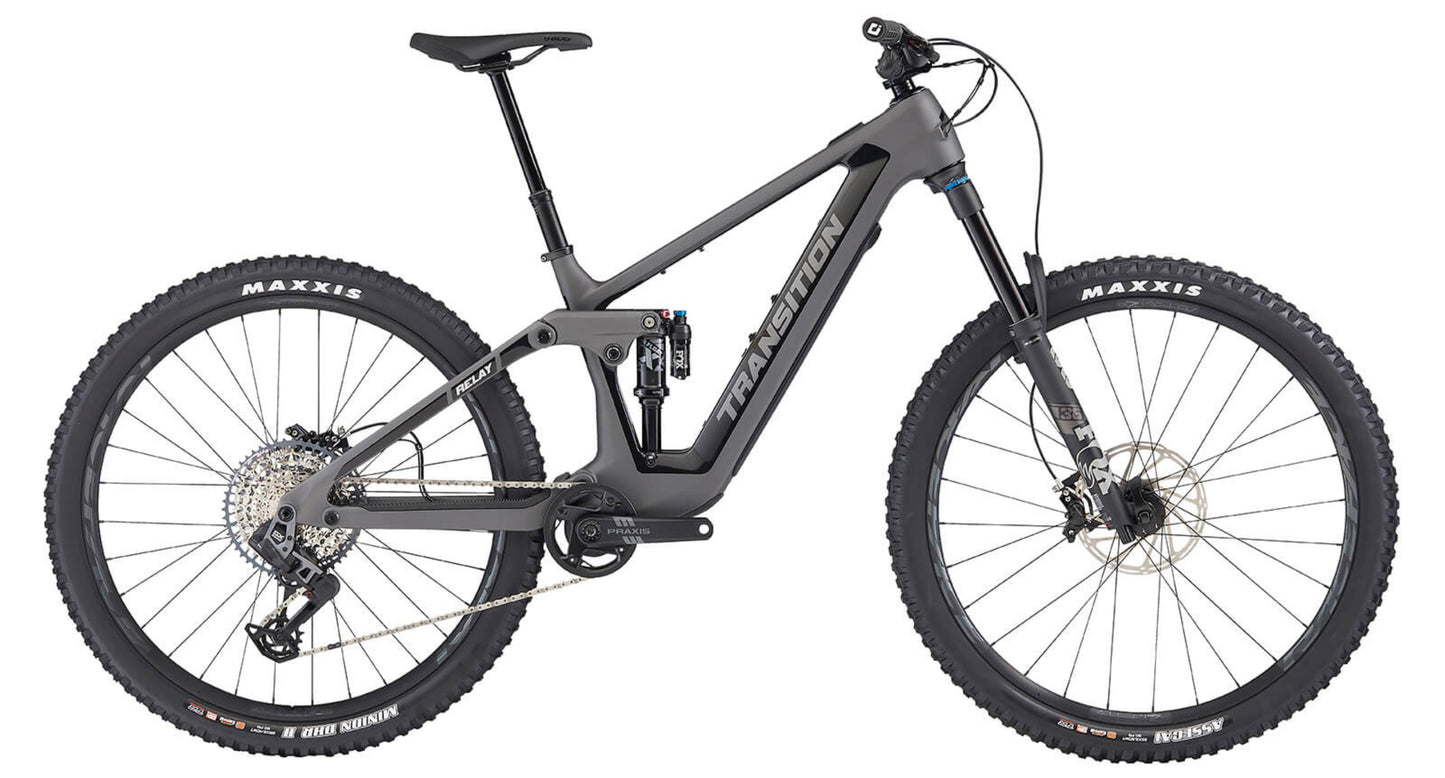

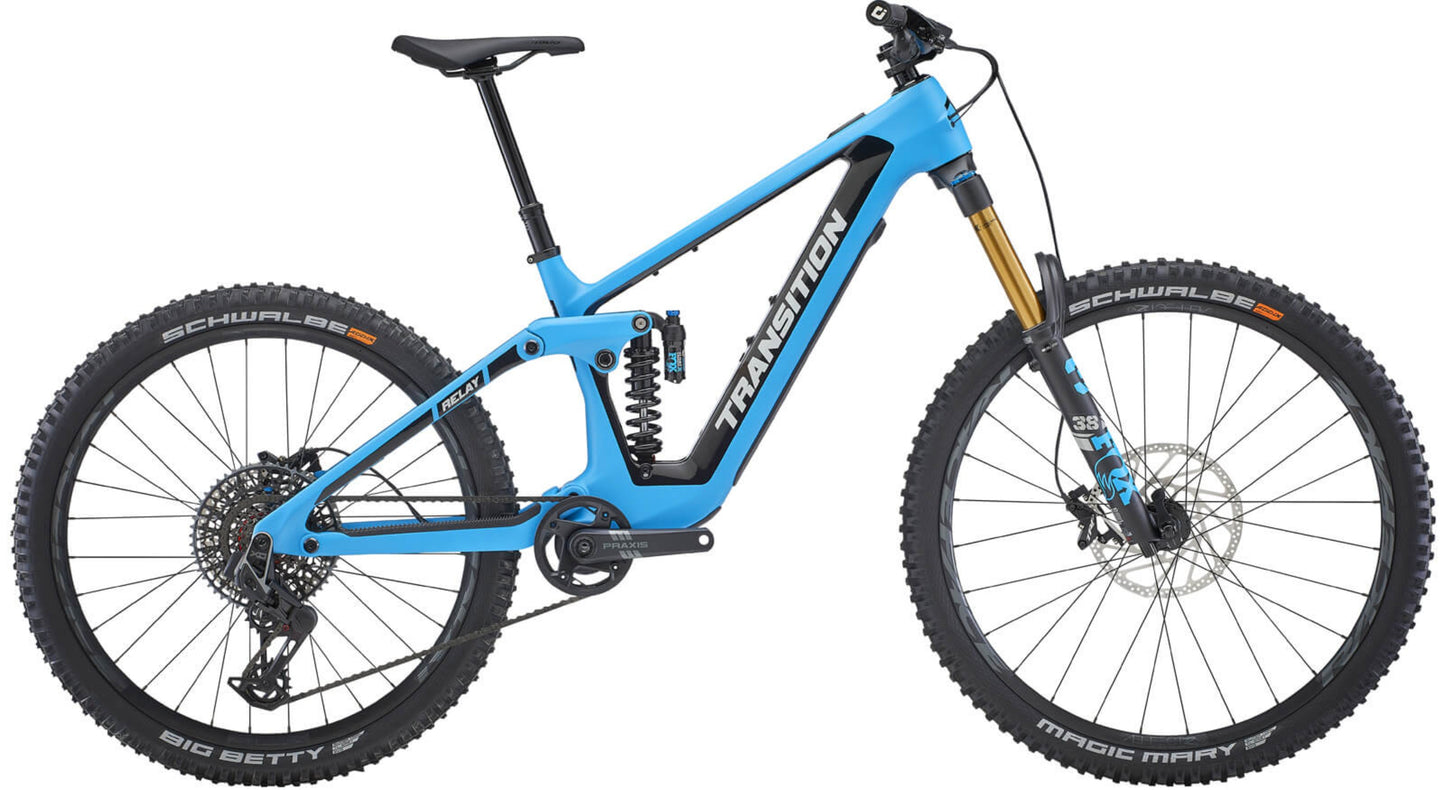

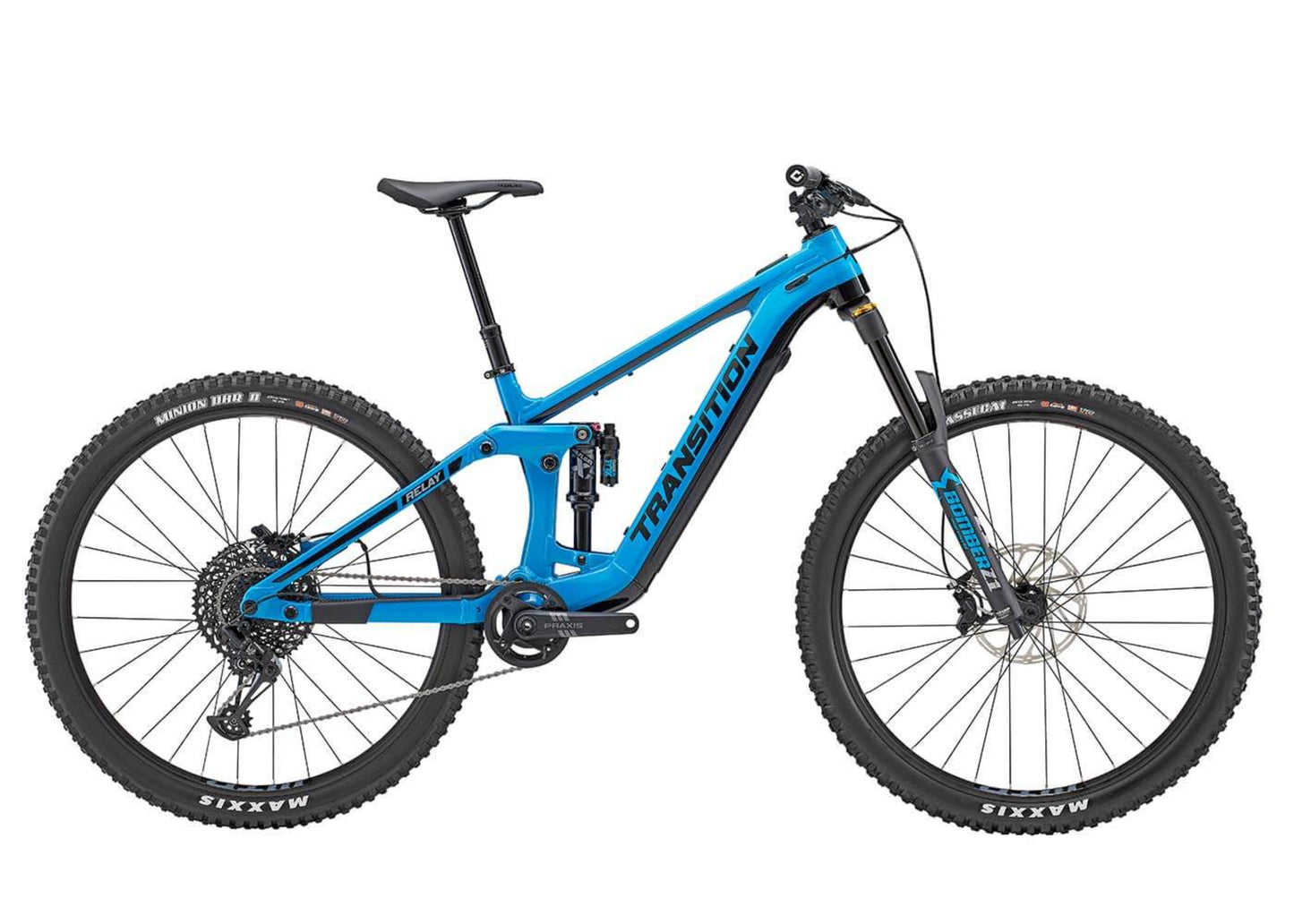

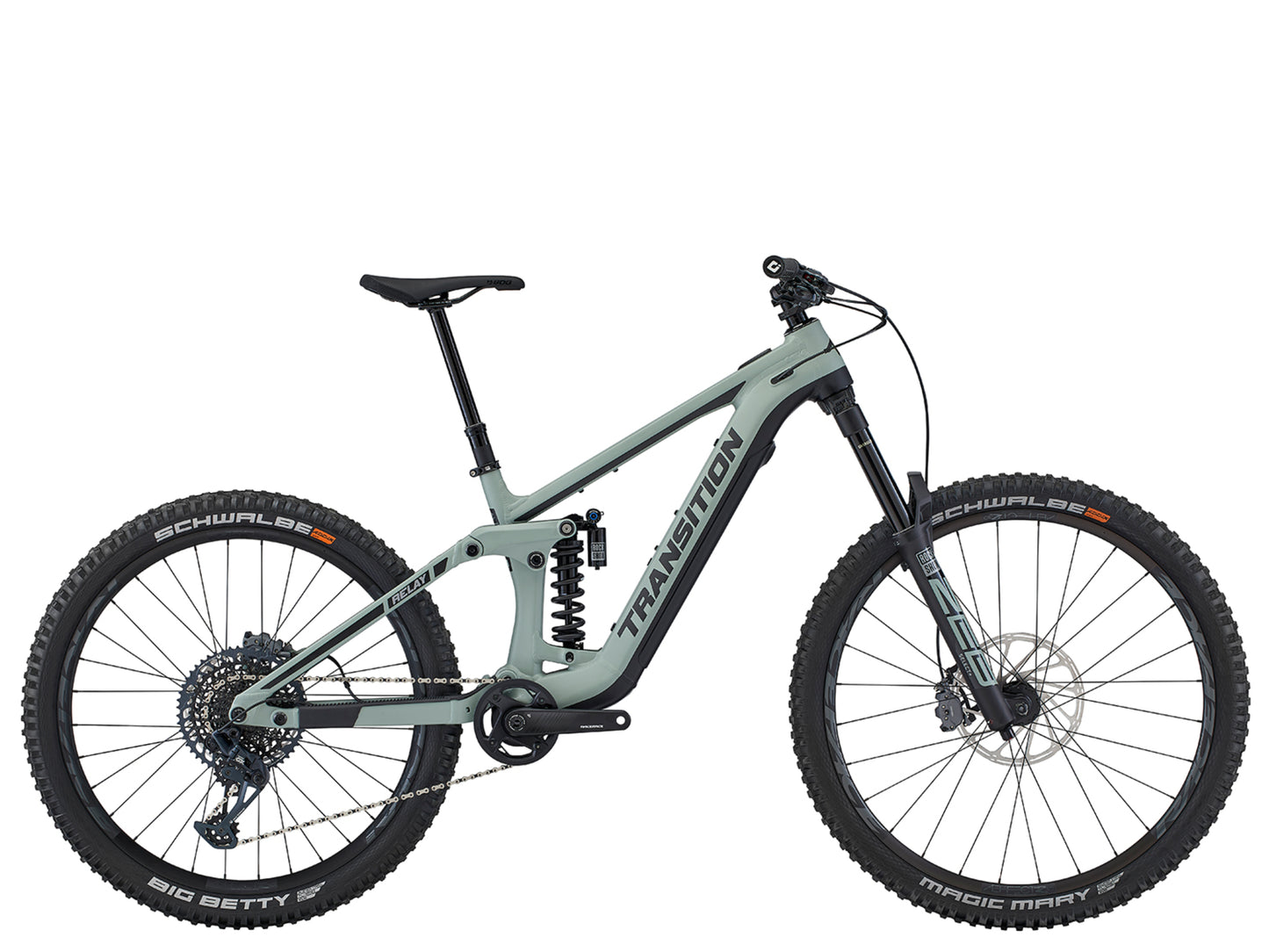

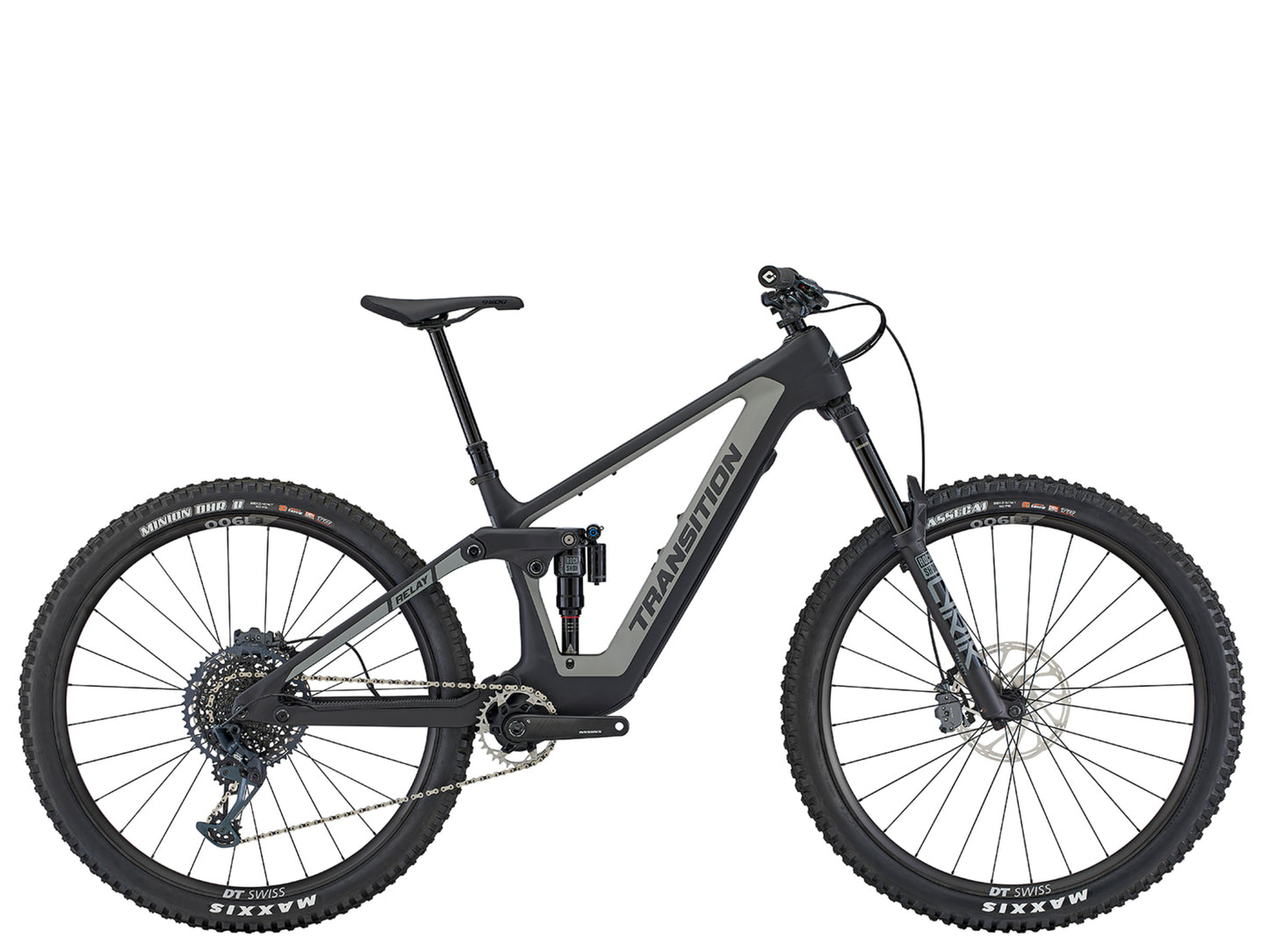

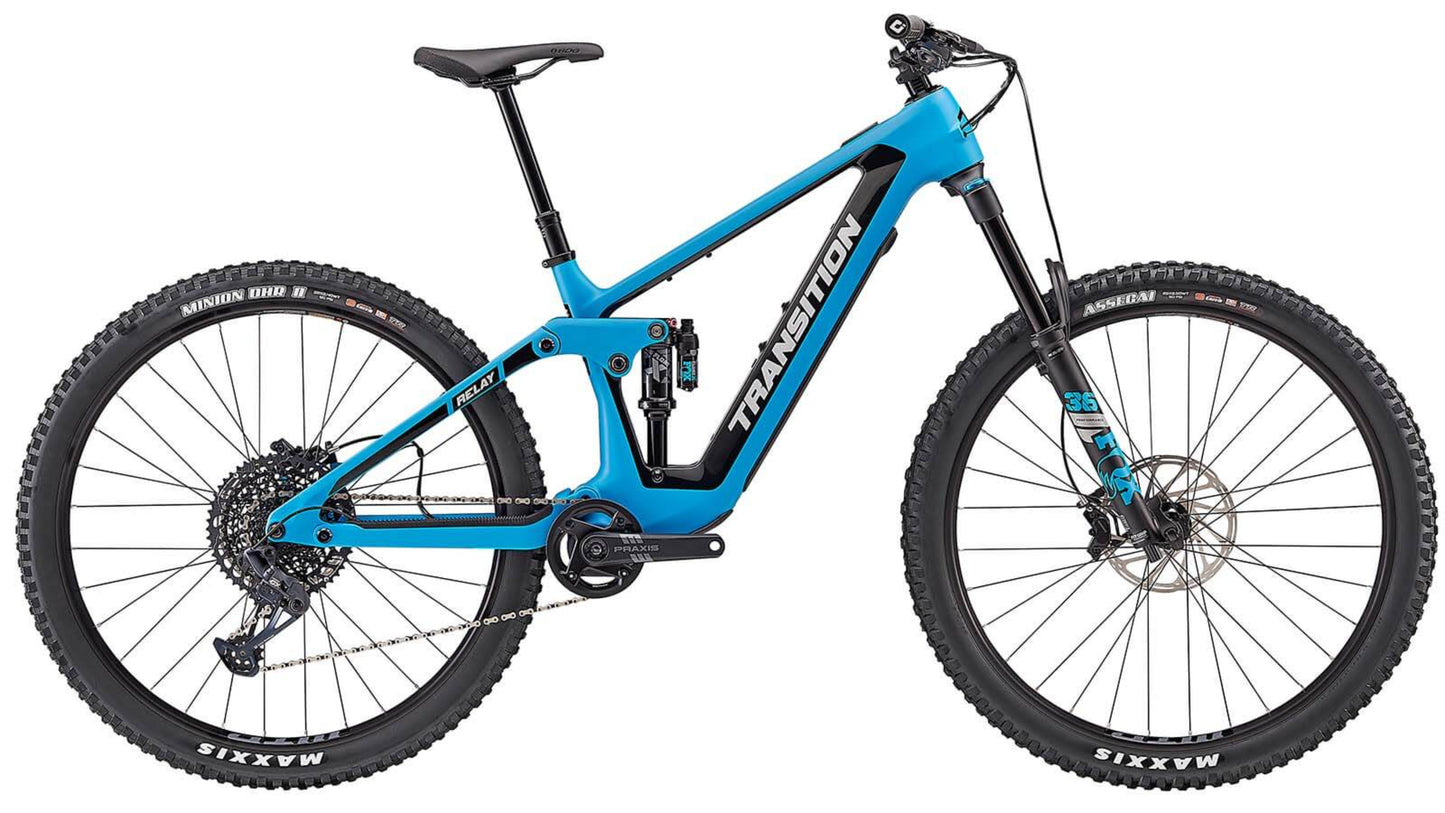

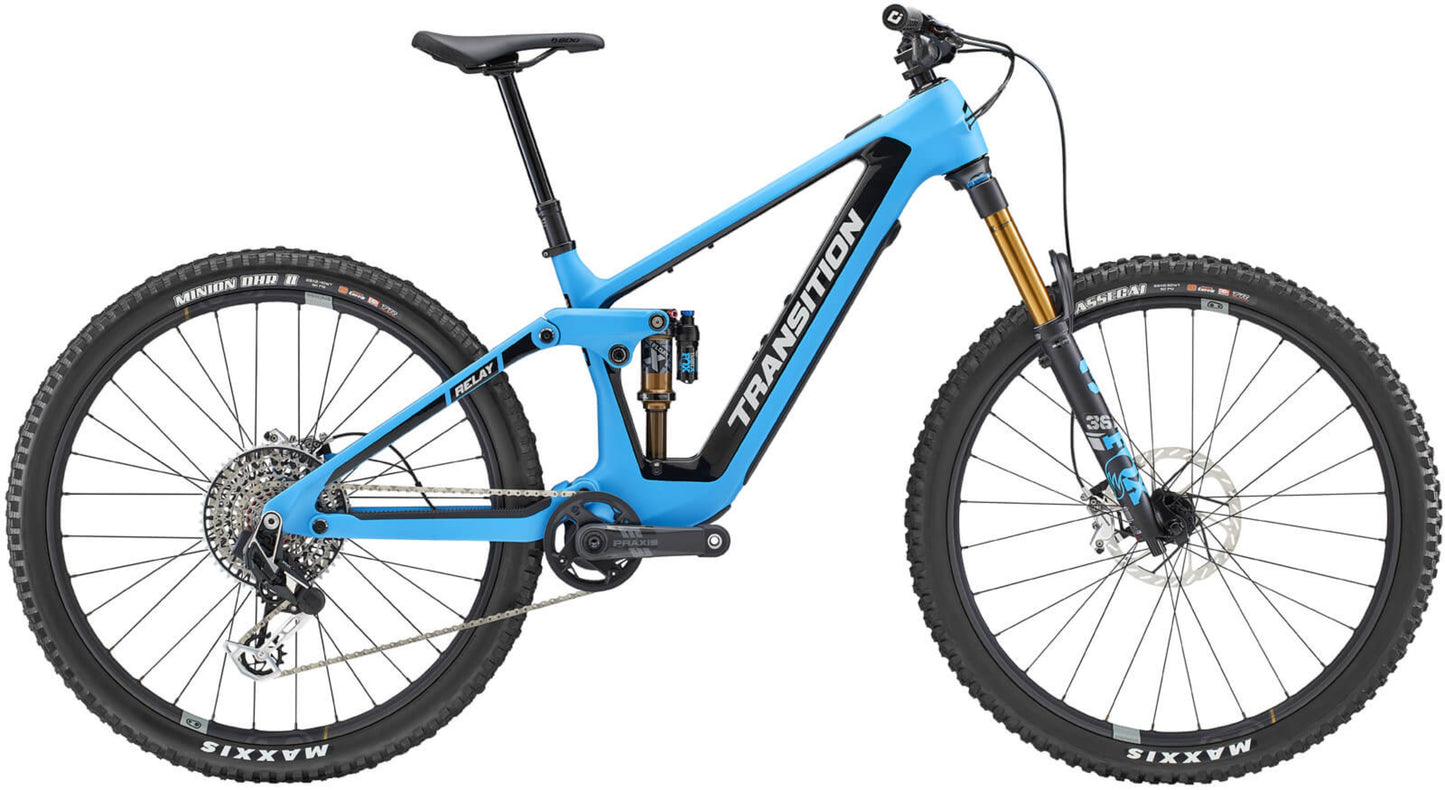

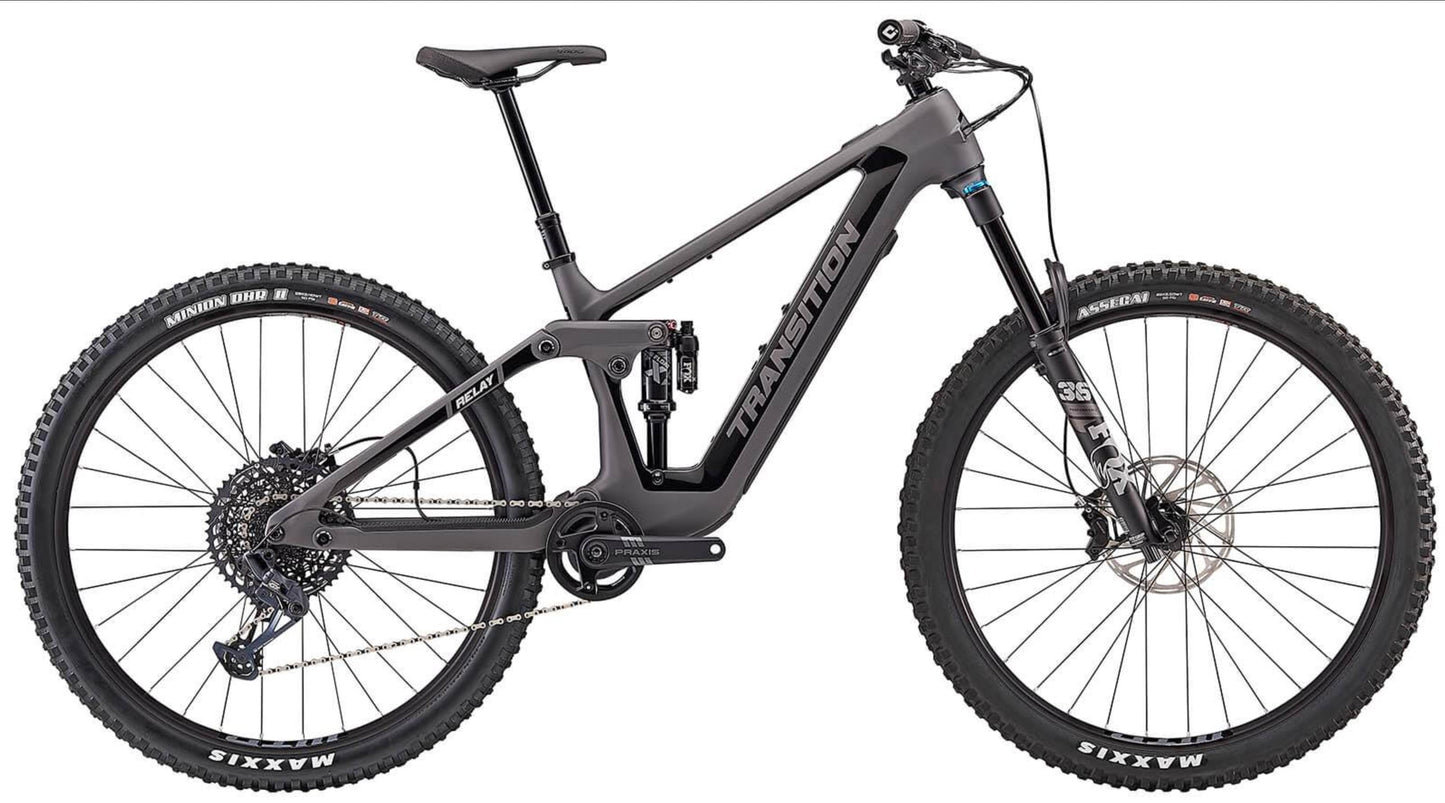

The Relay is a lightweight, long travel, mountain biker's eMTB. Ready to meet all of your mountain biking needs. It is intuitive and lightweight, providing a natural feel on the trail.
*Components subject to manufacturer changes.
| Motor | Fazua Ride 60 |
| Battery | Fazua Energy 430 Take Out |
| Display | LED Hub |
| Charger | Fazua Charger |
| Pedals | Not applicable |
| Front Light | Not applicable |
| Rear Light | Not applicable |
| Kickstand | Not applicable |
| Rear Carrier | Not applicable |
| Fenders | Not applicable |
| Bell | Not applicable |
| Lock | Not applicable |
| Mirror | Not applicable |
| FRAME SIZE | S | M | L | XL | |
|---|---|---|---|---|---|
| D | Seattube length | 380mm | 400mm | 440mm | 470mm |
| C | Toptube length | 551mm | 584mm | 615mm | 654mm |
| J | Bottom bracket drop | 25mm | 25mm | 25mm | 25mm |
| K | Bottom bracket height | 345mm | 345mm | 345mm | 345mm |
| H | Chainstay length | 455mm | 455mm | 455mm | 455mm |
| E | Seat tube angle | 72° | 72° | 72° | 72° |
| E | Effective seattube angle | 79.2° | 78.5° | 78.2° | 77.5° |
| G | Headtube angle | 63.5° | 63.5° | 63.5° | 63.5° |
| M | Fork Offset | 44mm | 44mm | 44mm | 44mm |
| I | Wheelbase | 1230mm | 1262mm | 1292mm | 1326mm |
| F | Headtube length | 110mm | 115mm | 125mm | 135mm |
| A | Reach | 425mm | 455mm | 480mm | 510mm |
| B | Stack | 630mm | 635mm | 643mm | 652mm |
The Full Scoop on the Tranisition Relay
Loamwolf Lightweight eMTB of the Year!
The Relay is a lightweight, long travel, mountain biker's eMTB. Ready to meet all of your mountain biking needs. It is intuitive and lightweight, providing a natural feel on the trail.
*Components subject to manufacturer changes.
Motor System
| Motor | Fazua Ride 60 |
| Battery | Fazua Energy 430 Take Out |
| Display | LED Hub |
| Charger | Fazua Charger |
Extras
| Pedals | Not applicable |
| Front Light | Not applicable |
| Rear Light | Not applicable |
| Kickstand | Not applicable |
| Rear Carrier | Not applicable |
| Fenders | Not applicable |
| Bell | Not applicable |
| Lock | Not applicable |
| Mirror | Not applicable |

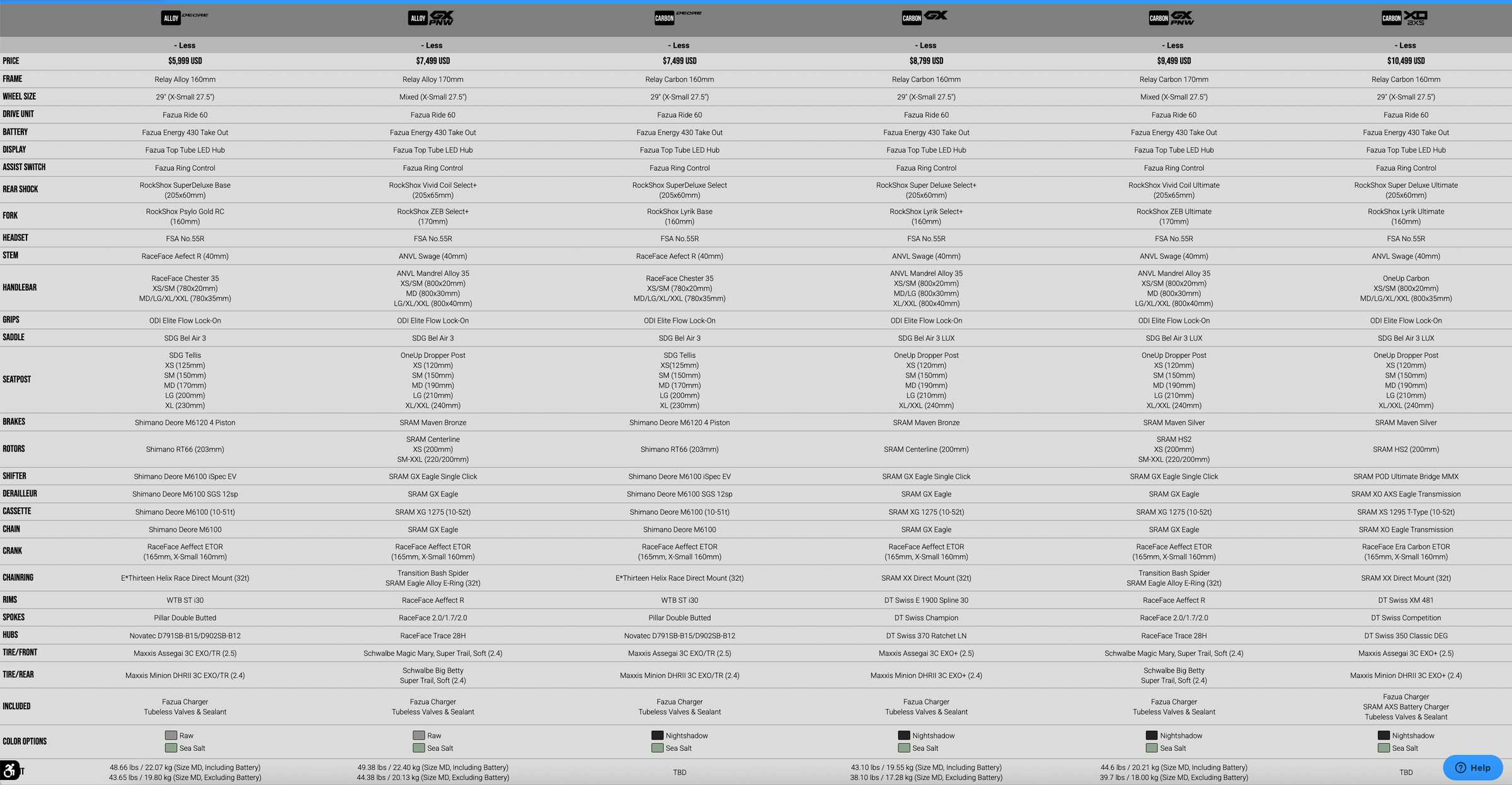

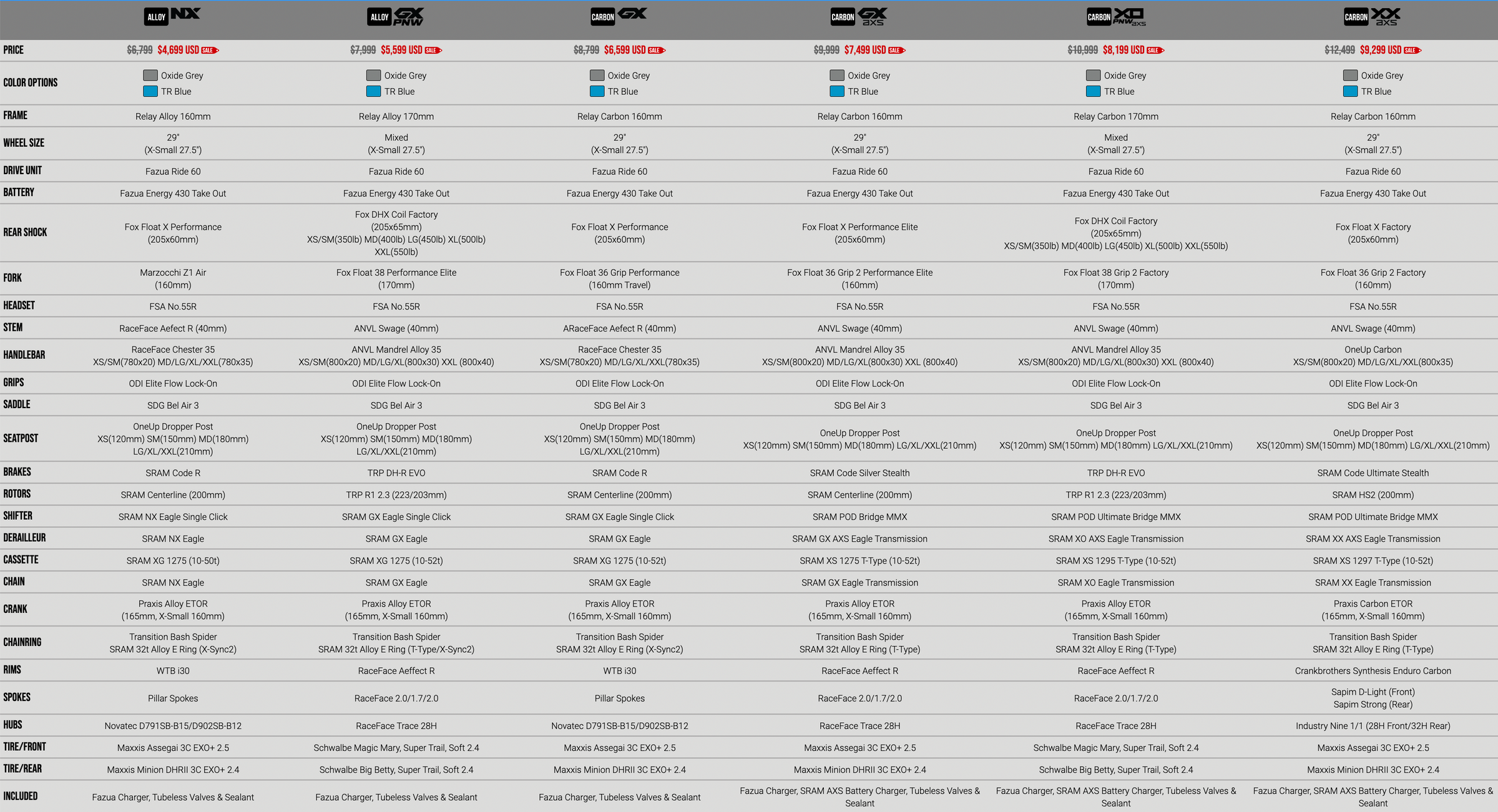

Spec chart & Geometry
| FRAME SIZE | S | M | L | XL | |
|---|---|---|---|---|---|
| D | Seattube length | 380mm | 400mm | 440mm | 470mm |
| C | Toptube length | 551mm | 584mm | 615mm | 654mm |
| J | Bottom bracket drop | 25mm | 25mm | 25mm | 25mm |
| K | Bottom bracket height | 345mm | 345mm | 345mm | 345mm |
| H | Chainstay length | 455mm | 455mm | 455mm | 455mm |
| E | Seat tube angle | 72° | 72° | 72° | 72° |
| E | Effective seattube angle | 79.2° | 78.5° | 78.2° | 77.5° |
| G | Headtube angle | 63.5° | 63.5° | 63.5° | 63.5° |
| M | Fork Offset | 44mm | 44mm | 44mm | 44mm |
| I | Wheelbase | 1230mm | 1262mm | 1292mm | 1326mm |
| F | Headtube length | 110mm | 115mm | 125mm | 135mm |
| A | Reach | 425mm | 455mm | 480mm | 510mm |
| B | Stack | 630mm | 635mm | 643mm | 652mm |
