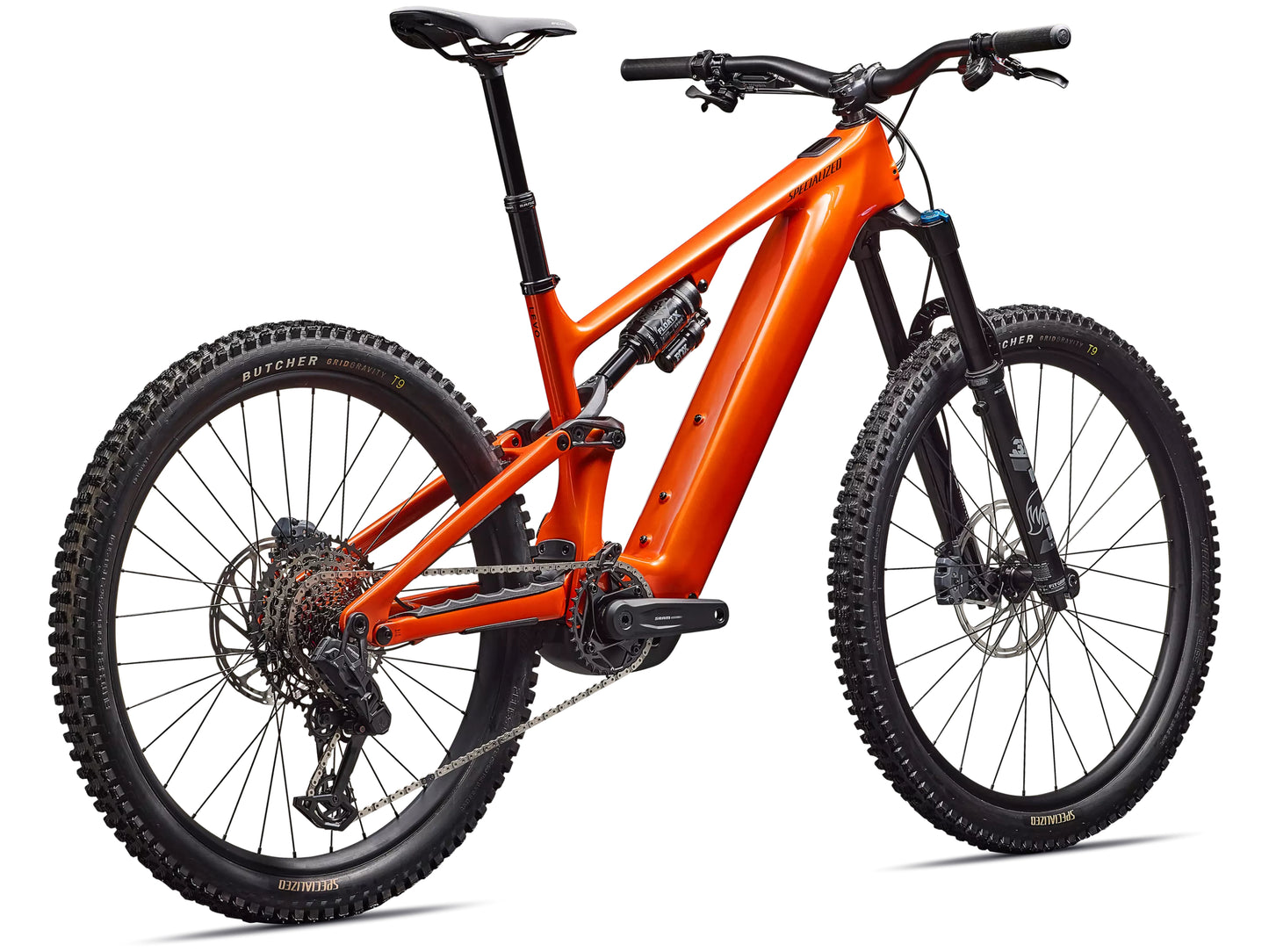

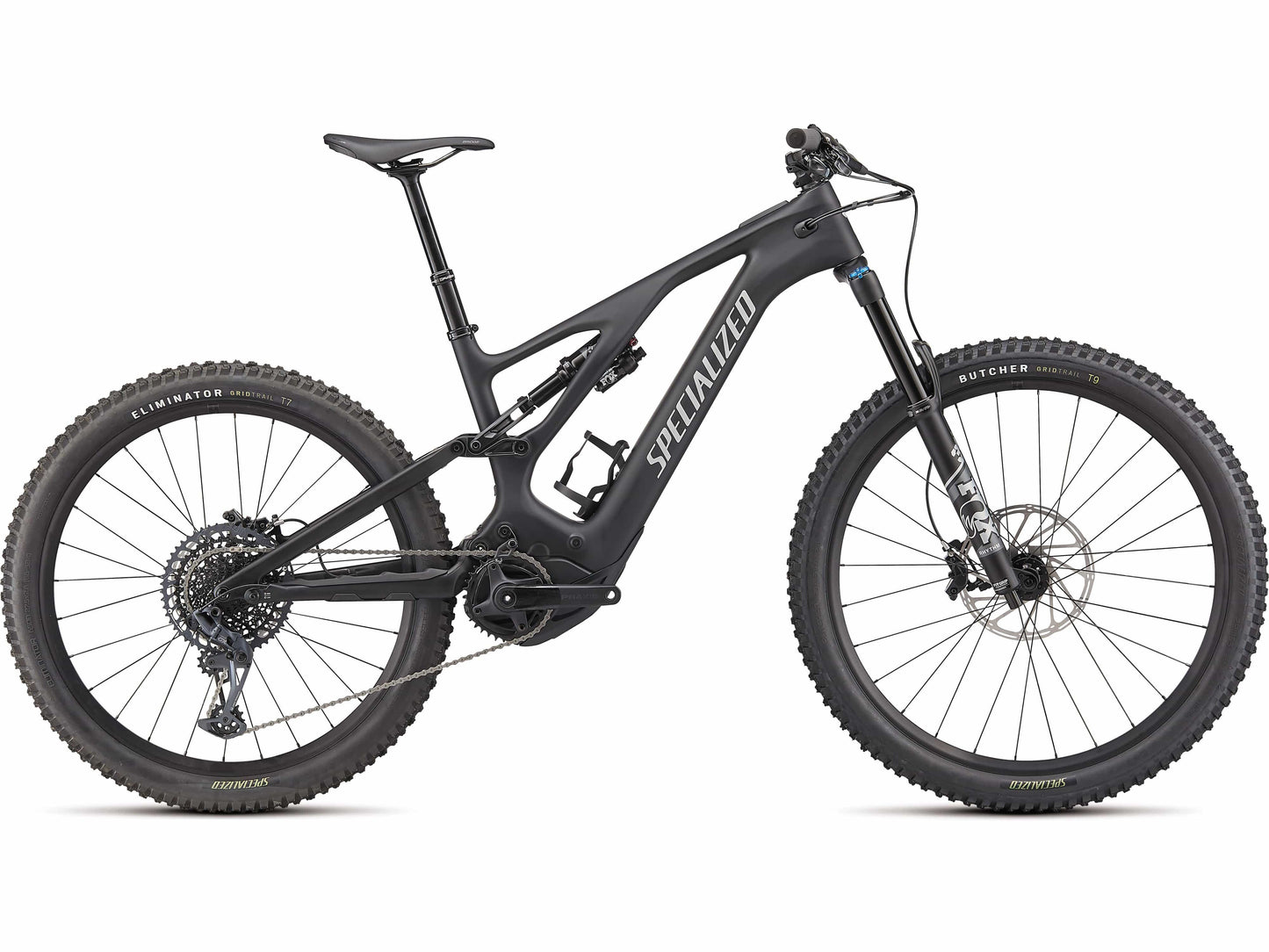

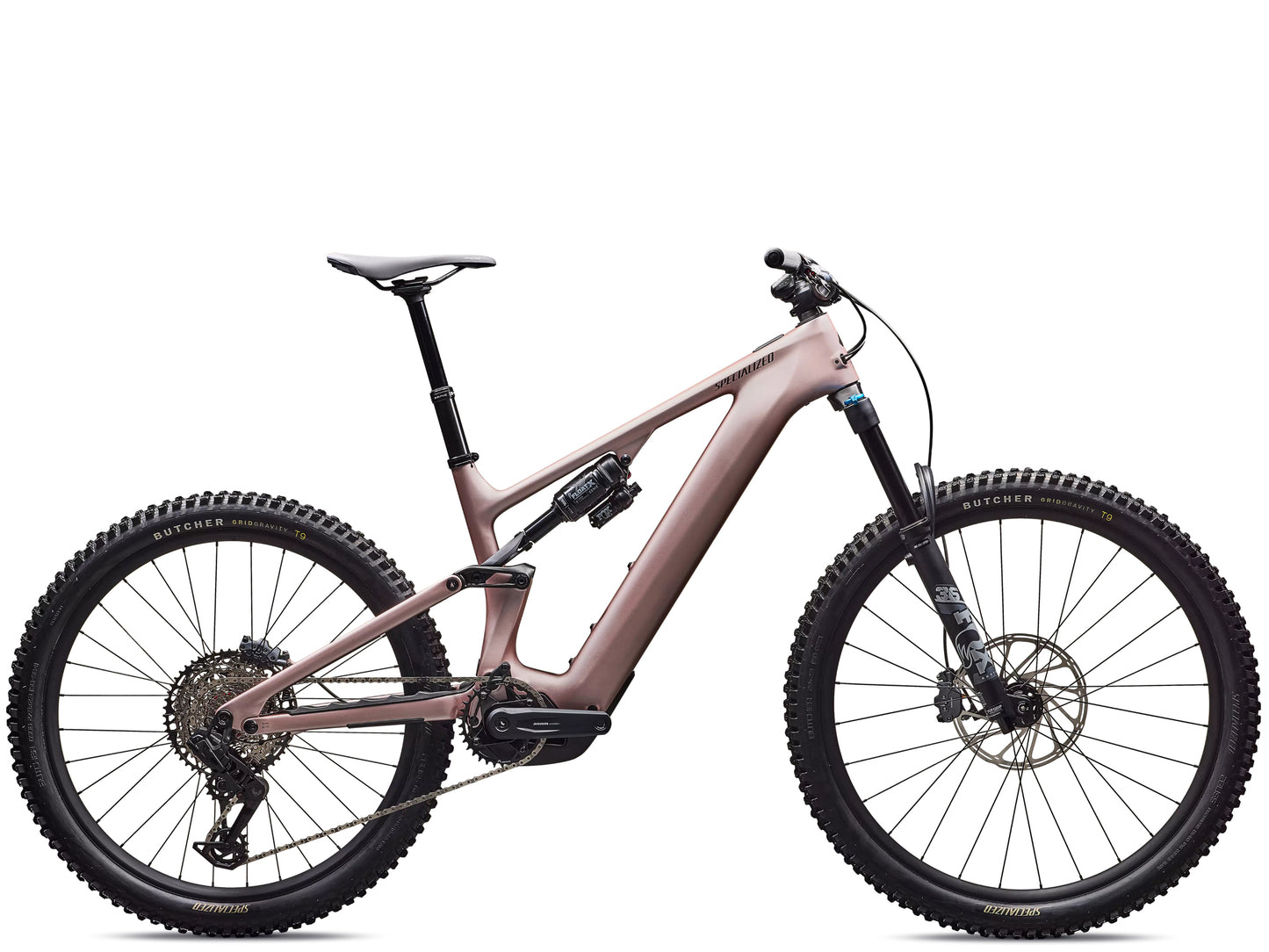

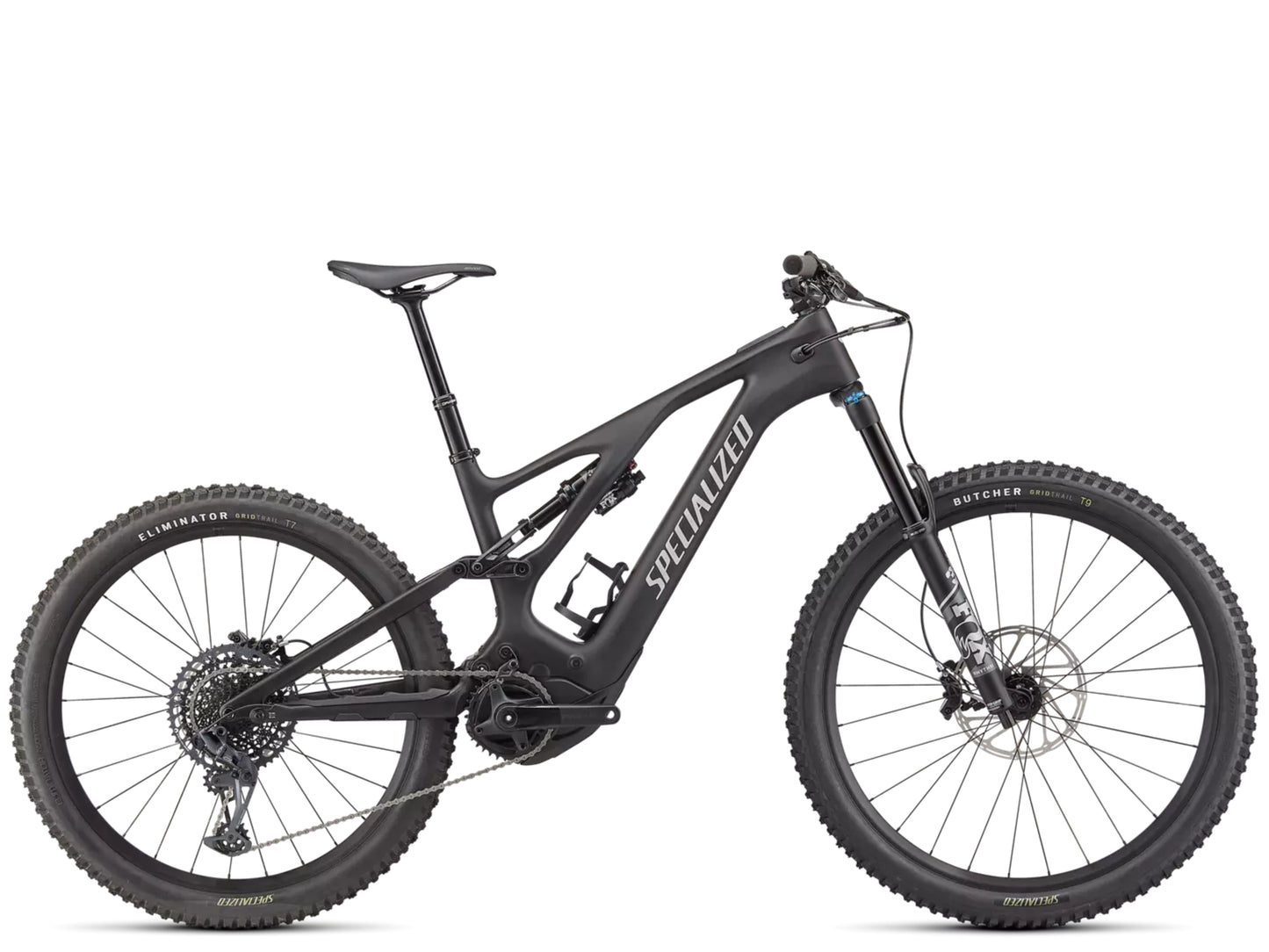

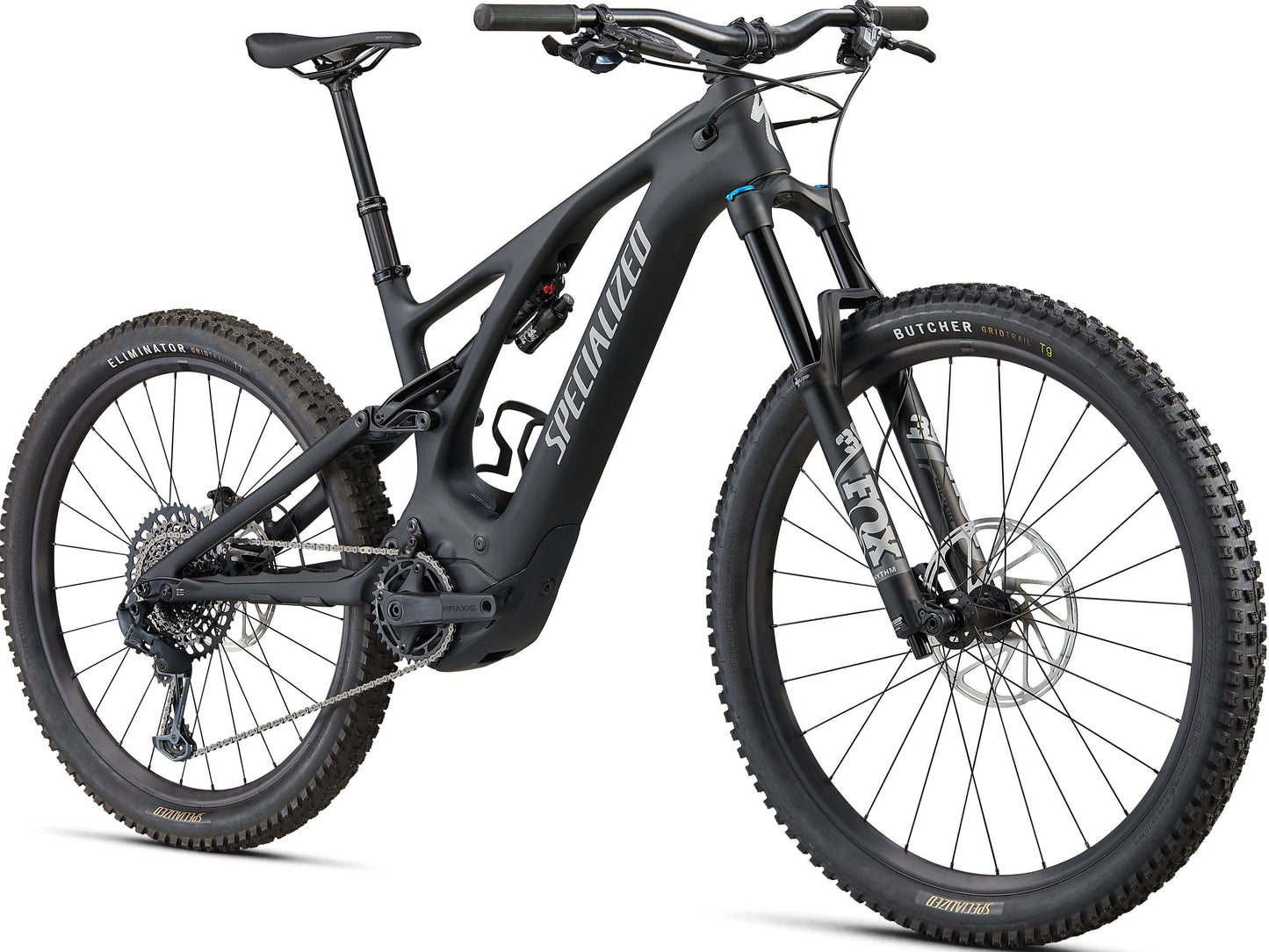

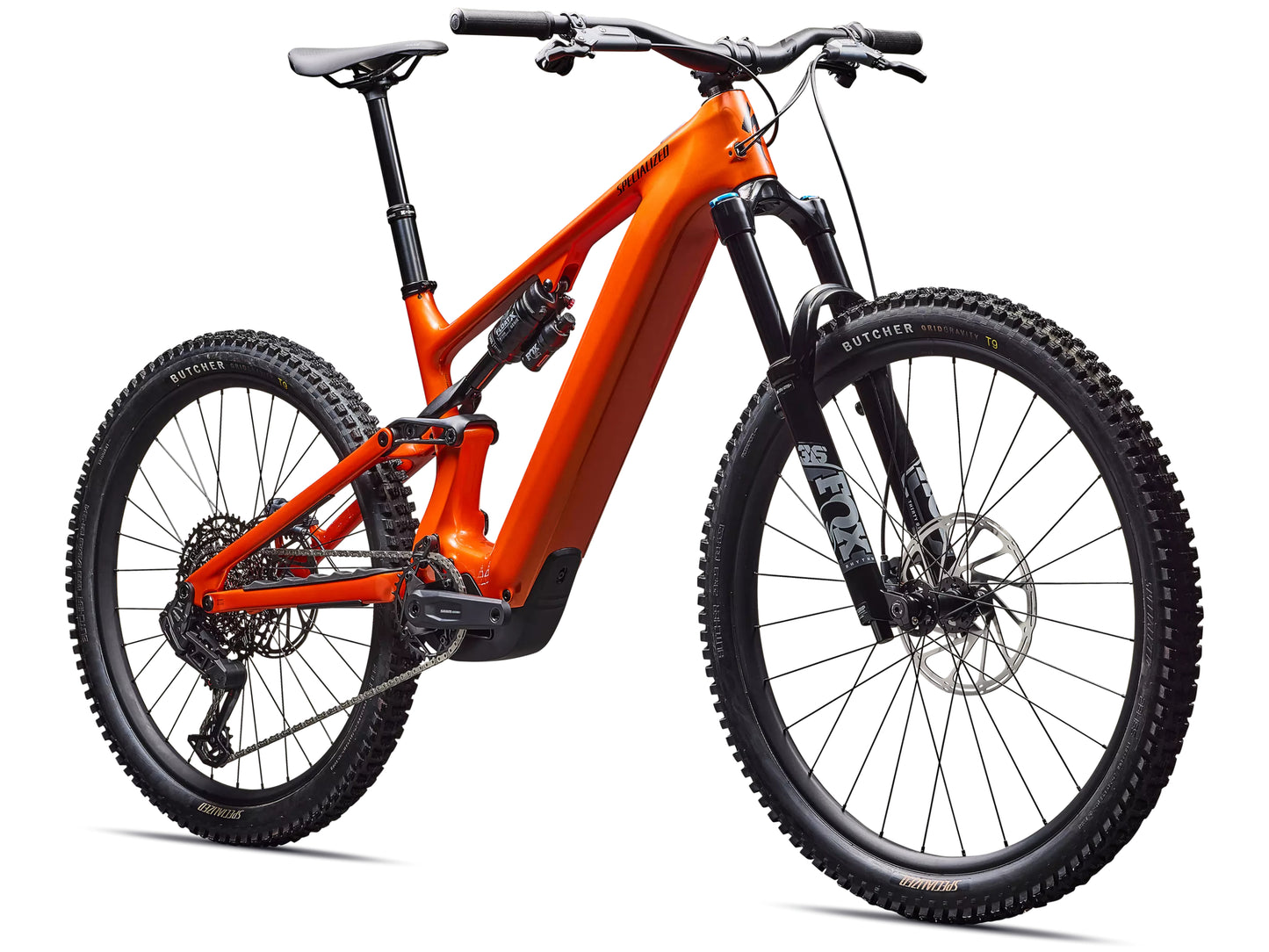

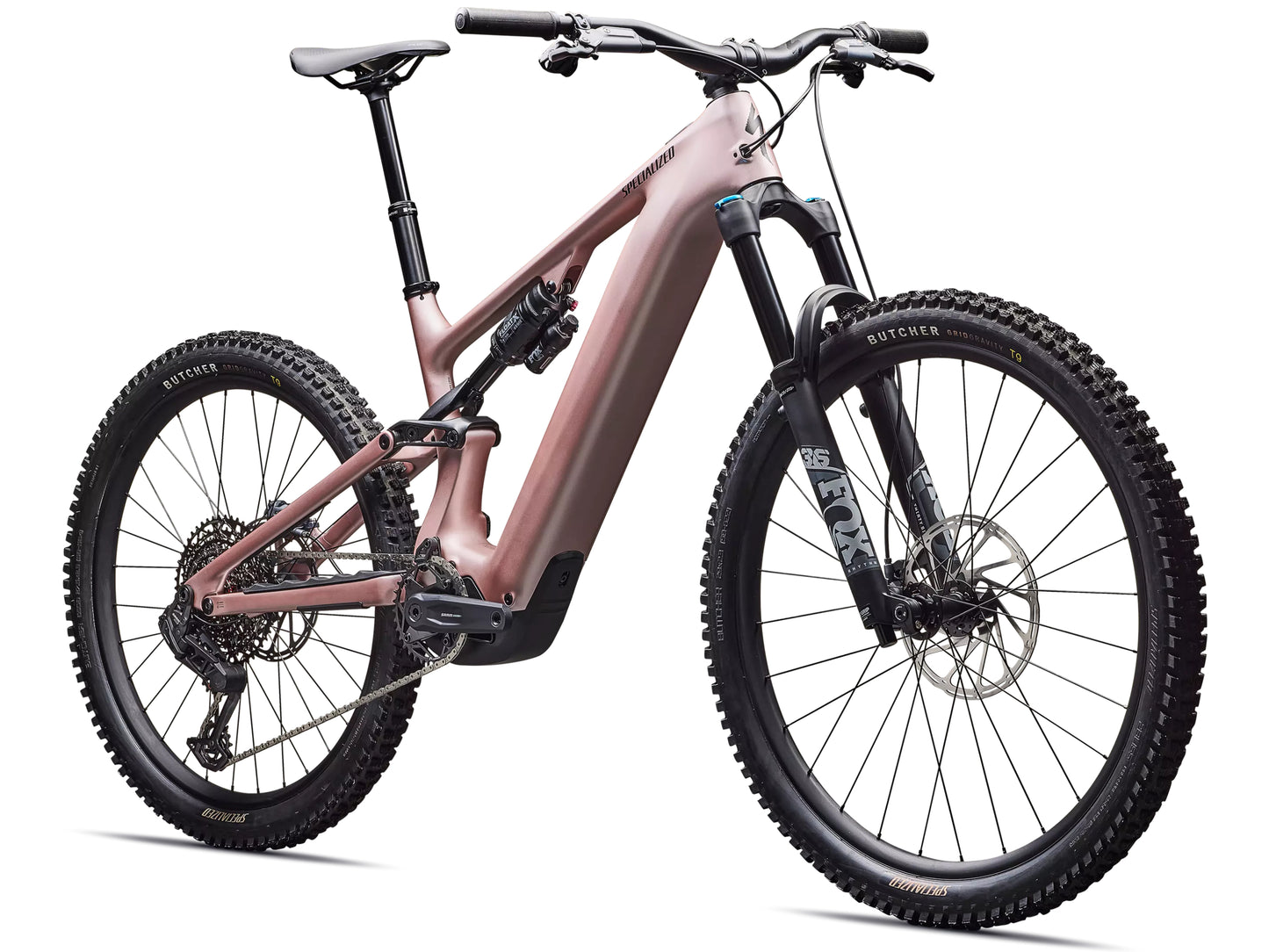

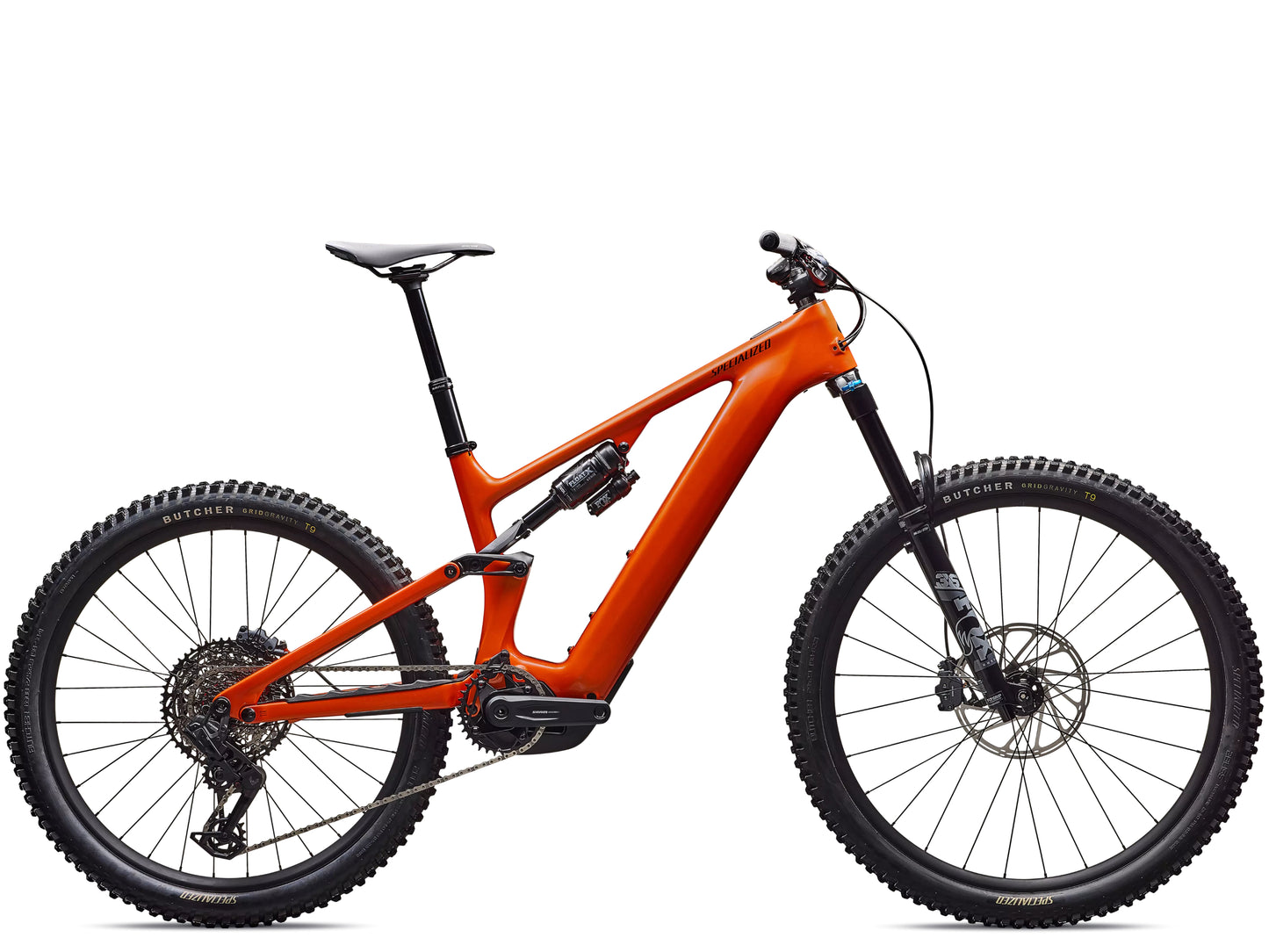

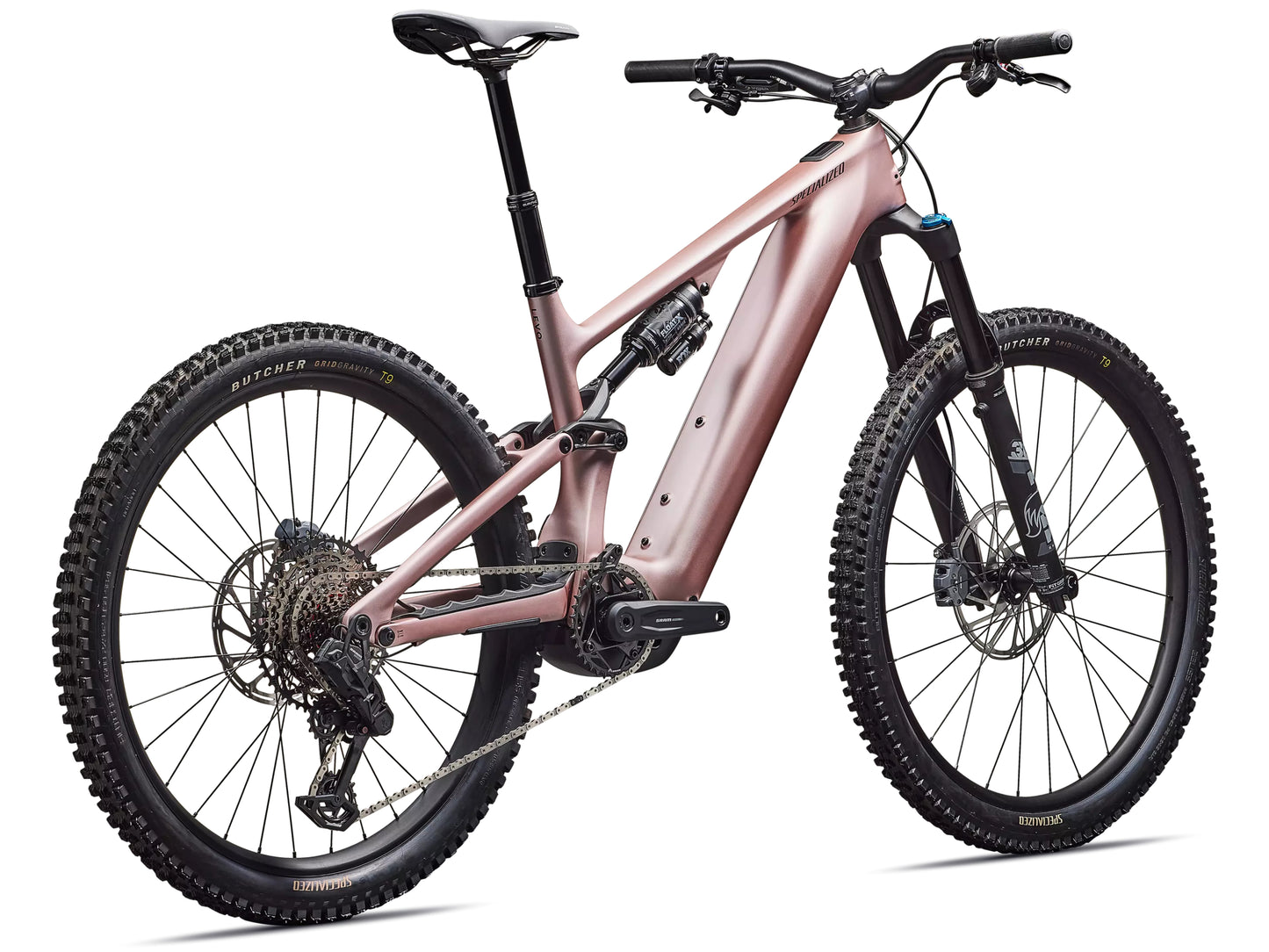

Specialized Turbo Levo Comp Carbon

96422-5006

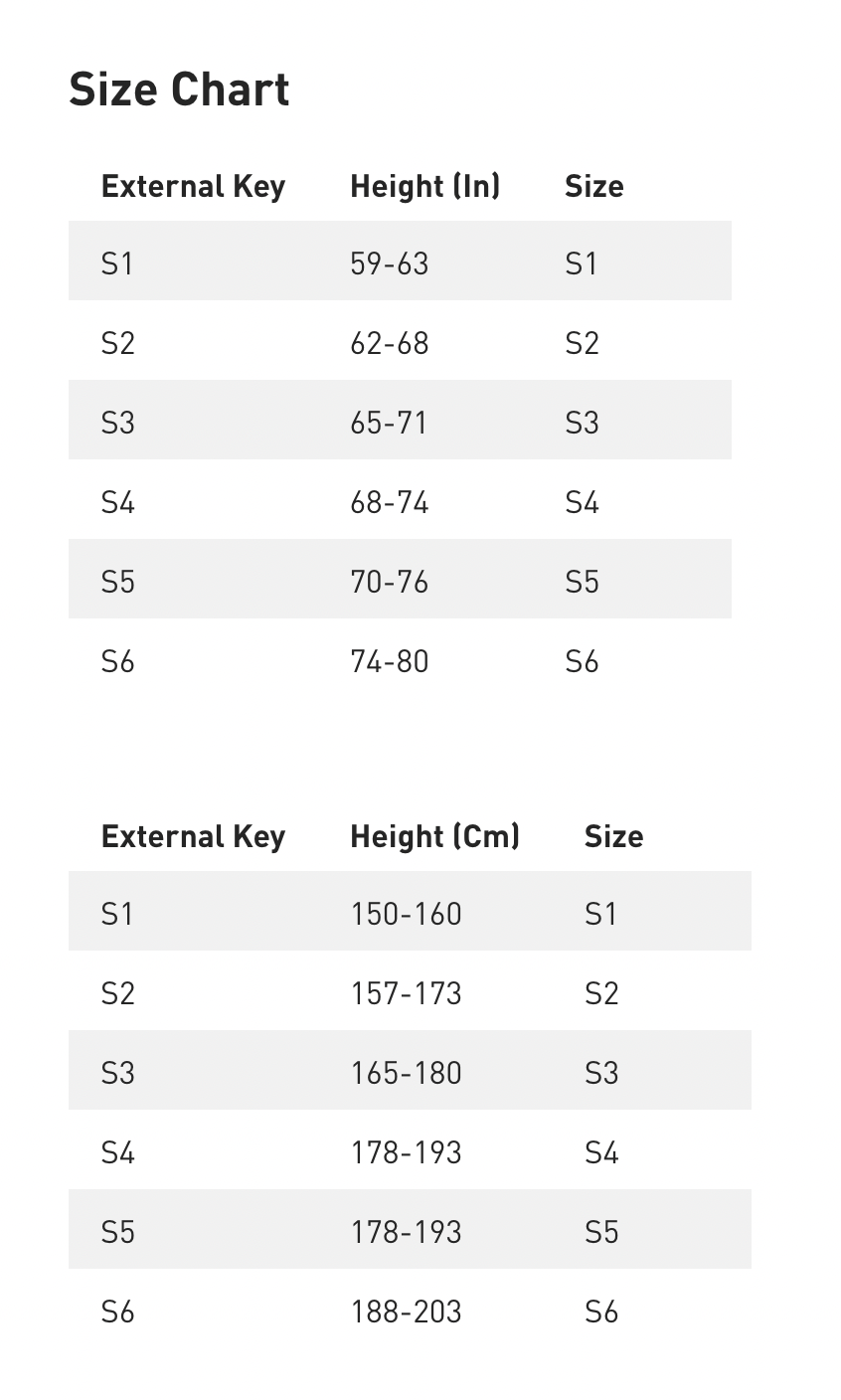

Sizing Guide


The Full Scoop on the Specialized Turbo Levo Comp Carbon

*Specialized models are available for in store pick up only.


  • When you're ripping around the trail on the Turbo Levo Comp Carbon, there's no denying that you're on a fully-fledged trail bike. In fact, the only thing that feels turbo-charged about it is the massive smile on your face. That’s because the new Turbo Levo houses all of the things you know and love about our newest trail bikes, like the Stumpjumper, and also gives you a little more power to the pedals. And with perfectly tuned kinematics, true Trail Geometry, and a new custom battery and motor, the power to ride more trails is yours.

    Specialized has changed the electric bike market making it the best American brand. Whether you're looking for a city cruiser, quick commuter, or a full-suspension mountain bike, Specialized has you covered. Fly Rides has the biggest in store collection of Specialized electric bikes in Southern California. Why? Because electric bikes is what we do! Come check out the full lineup today!

    Check out the full lineup of Specialized electric bikes here!

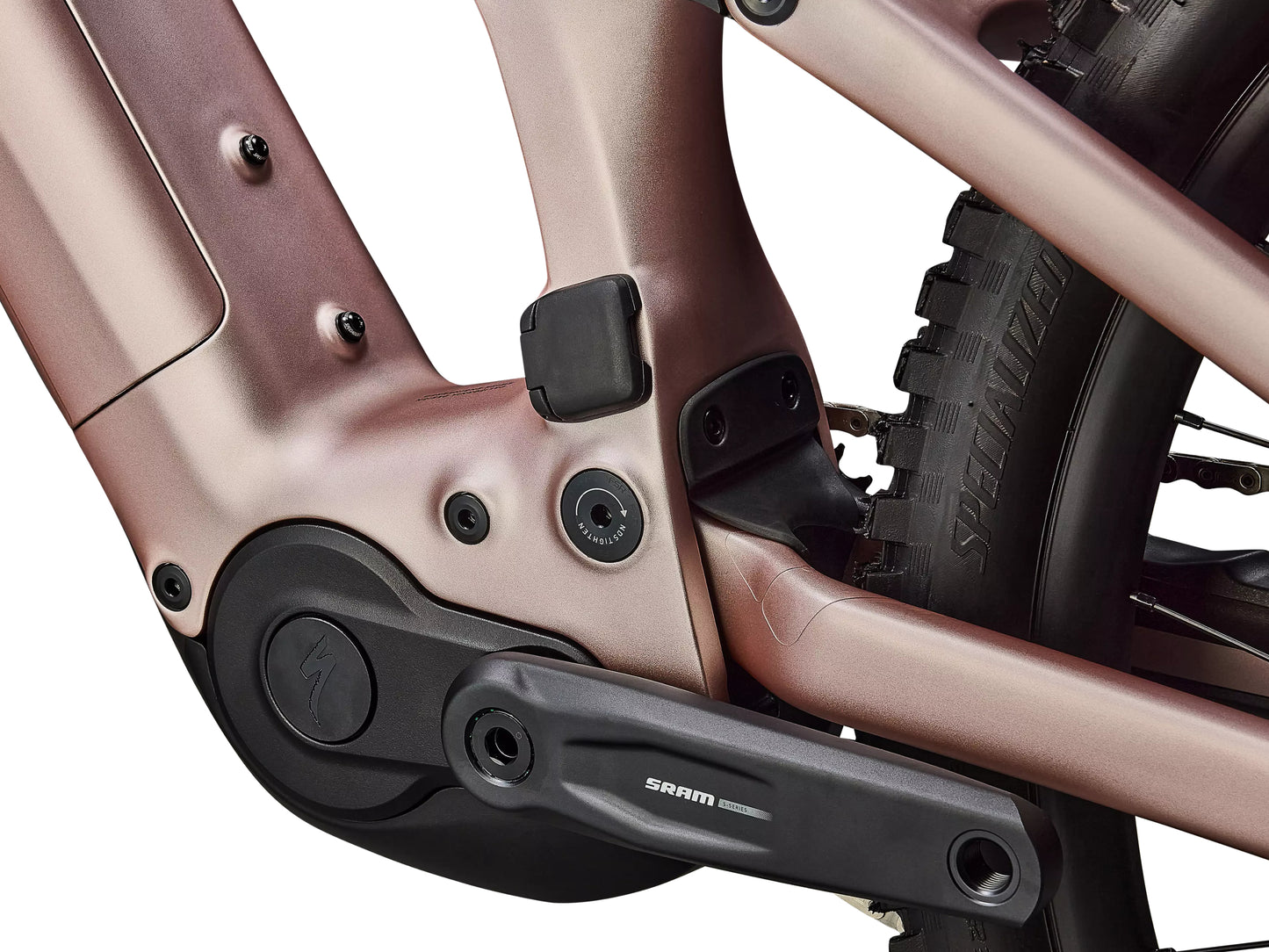

  • Motor Specialized Turbo Full Power System 2.2 Motor
    Battery Specialized M3-700, Integrated battery, 700Wh

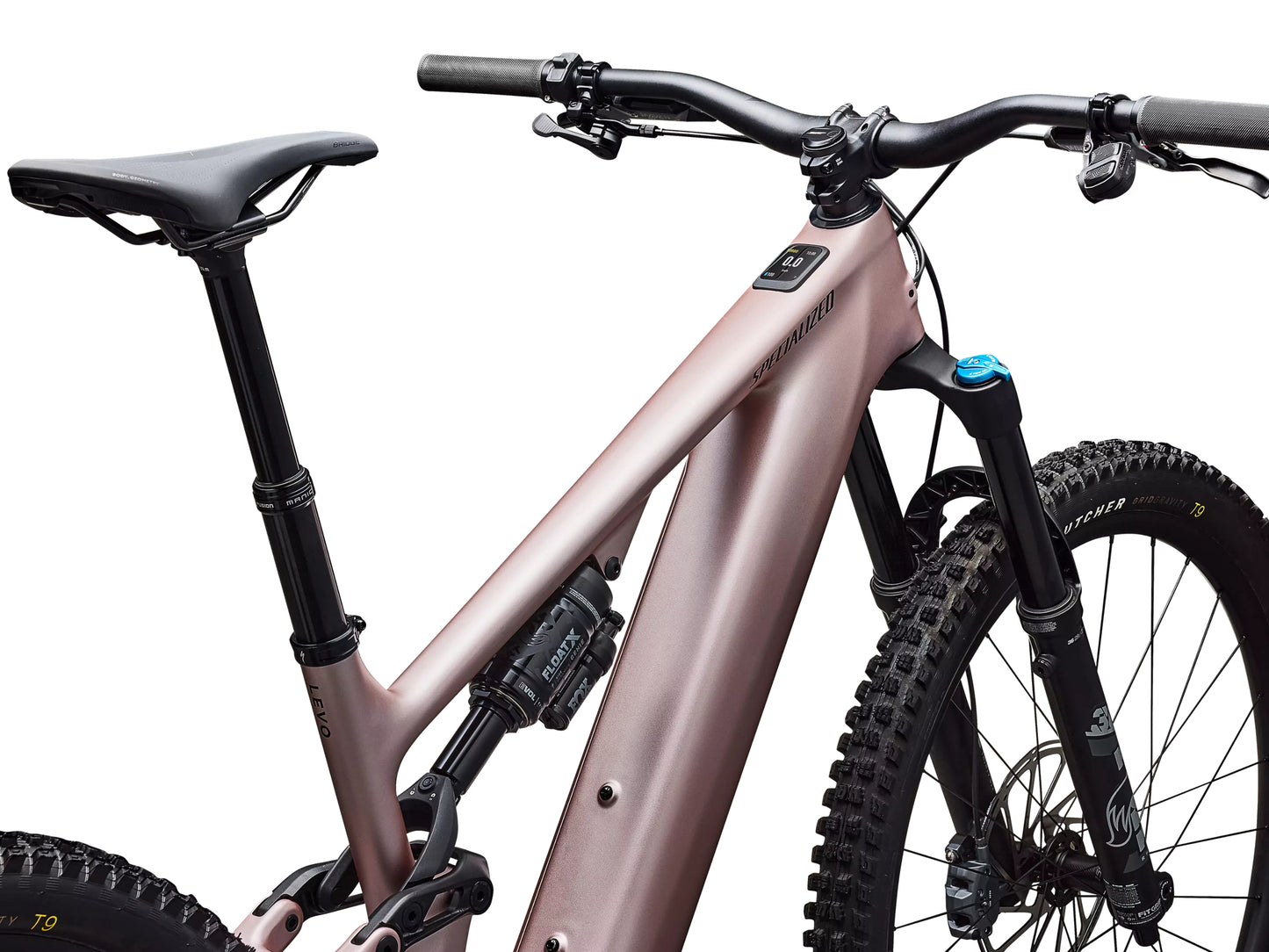

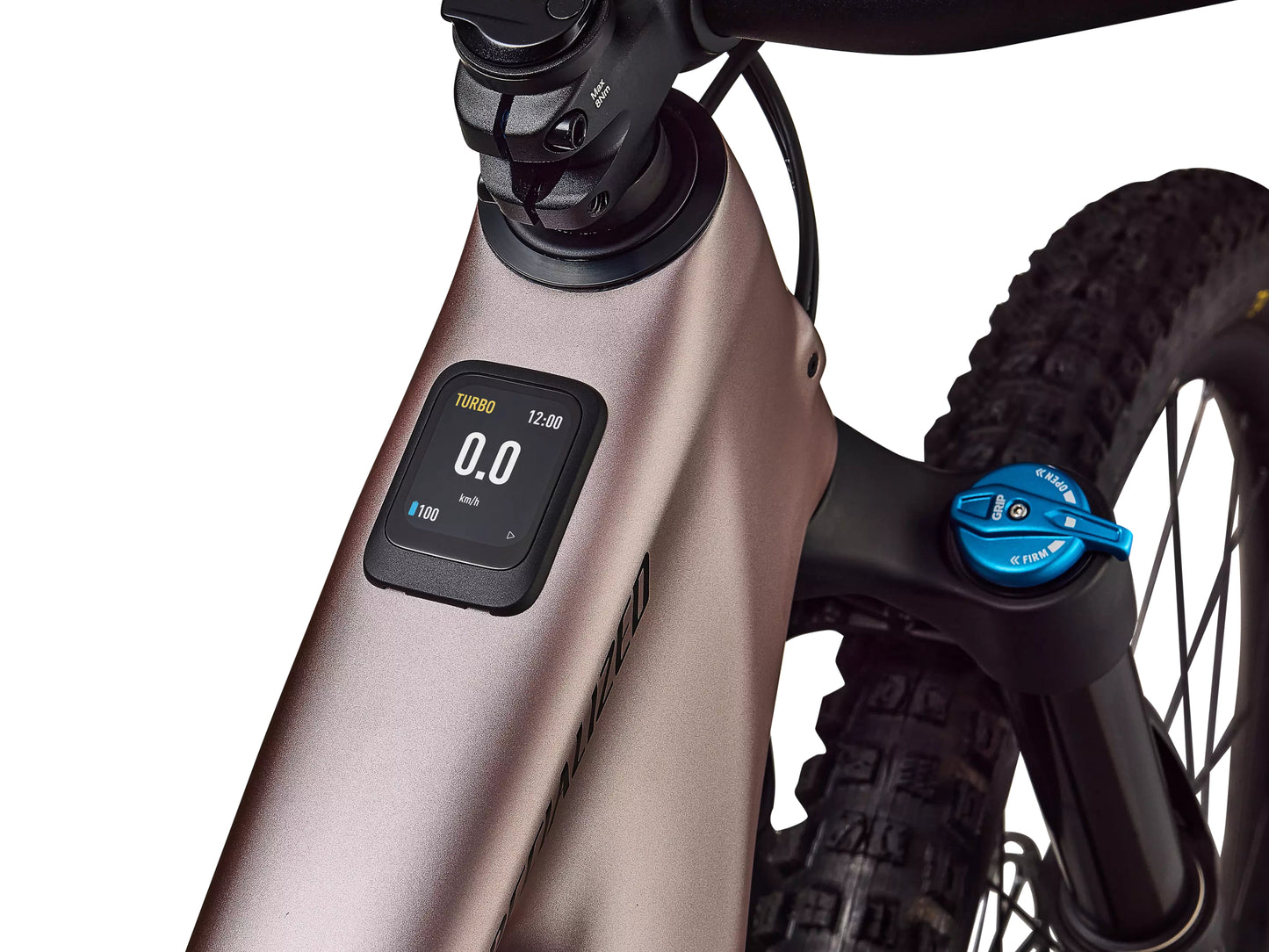

    Display Specialized MasterMind TCU, 10-LED State of charge, 3-LED Ride Mode display, ANT+/Bluetooth®, w/Handlebar remote
    Charger Custom charger, 42V4A w/ Rosenberger plug
  • Frame FACT 11m full carbon, 29" front wheel, 27.5" rear wheel, full internal cable routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel, geo adjust head tube, geo adjust horst pivot
    Fork FOX FLOAT 36 RHYTHM 29, GRIP damper, 44mm offset, 2-position sweep adjust, 15x110mm, 1.5" tapered steerer, 160mm travel

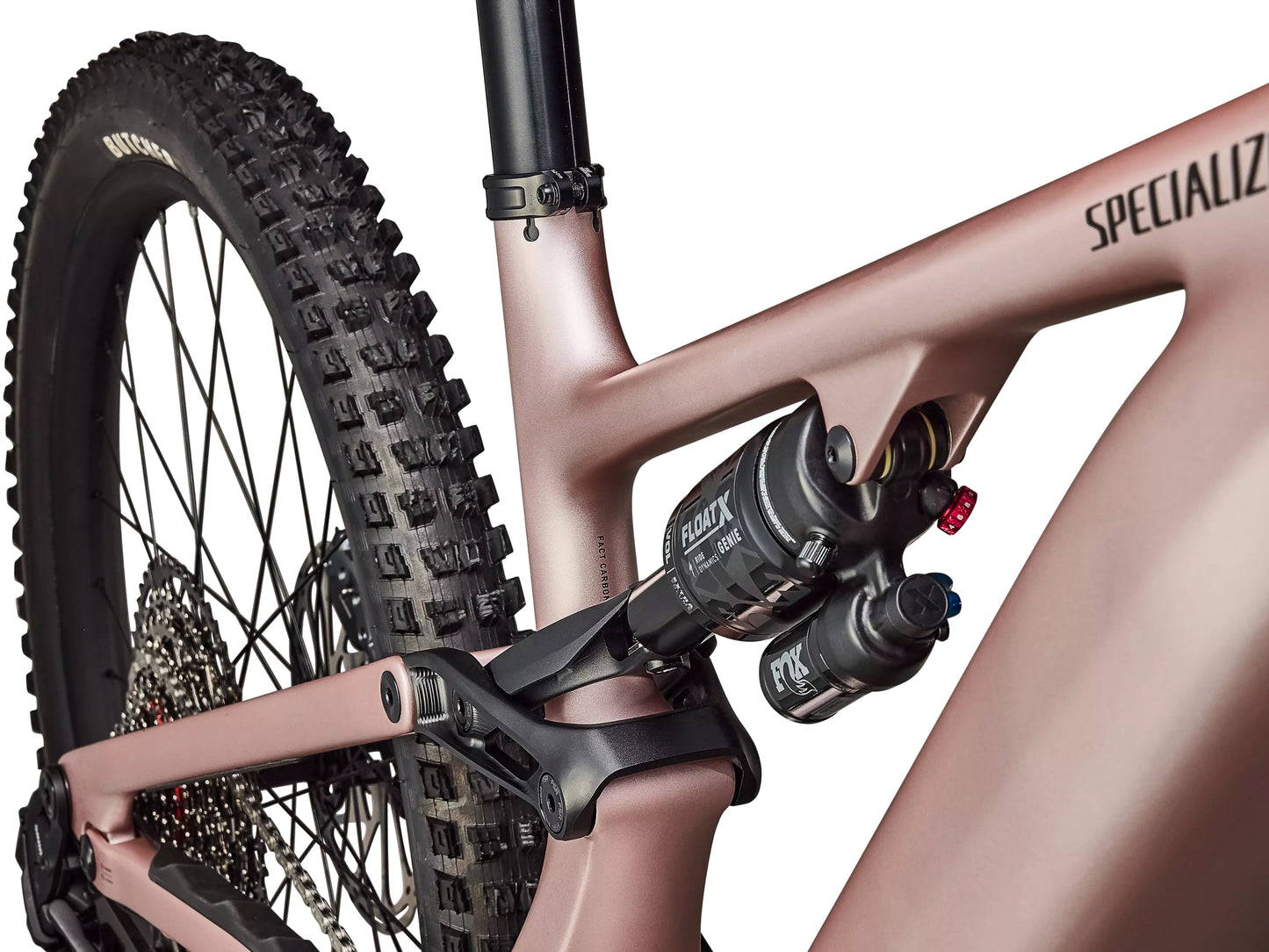

    Rear Shock S1: Fox Float DPS Performance Elite, 3- position adjustment, 52.5x210mm, Rx Trail Tune, S2-S6: FOX FLOAT X2 Performance Elite, LSC, LSR, 2-position lever, 55x210mm
    Front Brake SRAM Code RS, 4-piston caliper, hydraulic disc, S1-S3: 200mm, S4-S6: 220mm
    Rear Brake SRAM Code RS, 4-piston caliper, hydraulic disc, 200mm
    Rear Derailleur

    SRAM GX Eagle, 12-speed

    Shift Levers SRAM GX Eagle, 12-speed
    Chain SRAM NX Eagle, 12-speed
    Cassette SRAM XG-1275, 12-speed, 10-52t
    Crankset Praxis forged M30, custom offset, 160mm
    Chain Ring SRAM X-Sync Eagle, 104 BCD, 32T, steel
    Chain Guard Spec not provided
    Rims Specialized 29, hookless alloy, 30mm inner width, tubeless ready
    Front Hub Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
    Rear Hub Alloy, sealed cartridge bearings, 148mmx12mm thru-axle, 28h
    Front Tire Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.6"
    Rear Tire

    Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.6"

    Handlebar Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm width
    Stem Alloy Trail Stem, 35mm bar bore
    Headset Spec not provided
    Grips Specialized Trail Grips
    Saddle Bridge Comp, Hollow Cr-mo rails, 155/143mm
    Seatpost X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 100mm, S2: 125mm, S3: 150mm, S4/S5: 175mm, S6: 190mm
  • Pedals Not applicable
    Front Light Not applicable
    Rear Light Not applicable
    Kickstand Not applicable
    Rear Carrier Not applicable
    Fenders Not applicable
    Bell Not applicable
    Lock Not applicable
    Mirror Not applicable
  •   S1 S2 S3 S4 S5 S6
    CRANK LENGTH 160mm 160mm 160mm 160mm 160mm 160mm
    STEM LENGTH 40mm 40mm 50mm 50mm 50mm 50mm
    SEATPOST LENGTH 100mm 125mm 150mm 170mm 170mm 190mm
    SADDLE WIDTH 155mm 155mm 143mm 143mm 143mm 143mm
    HANDLEBAR WIDTH 780mm 780mm 780mm 780mm 780mm 780mm
    REACH 412mm 432mm 452mm 477mm 502mm 532mm
    STACK 605mm 617mm 626mm 635mm 644mm 653mm
    WHEELBASE 1179mm 1200mm 1225mm 1255mm 1284mm 1318mm
    CHAINSTAY LENGTH 442mm 442mm 442mm 442mm 442mm 442mm
    FRONT CENTER 738mm 760mm 784mm 814mm 843mm 878mm
    BB DROP 25mm 27mm
    27mm
    27mm
    27mm
    27mm
    BB HEIGHT 352mm 350mm 350mm 350mm 350mm 350mm
    SEAT TUBE ANGLE 78° 77.2° 76.7° 76.2° 76.2° 76.2°
    HEAD TUBE ANGLE 64.5° 64.5° 64.5° 64.5° 64.5° 64.5°
    SEAT TUBE LENGTH 380mm 390mm 405mm 425mm 445mm 465mm
    HEAD TUBE LENGTH 105mm 105mm 115mm 125mm 135mm 145mm
    BIKE STANDOVER HEIGHT 752mm 776mm 783mm 787mm 788mm 790mm
    FORK RAKE/OFFSET 44mm 44mm 44mm 44mm 44mm 44mm
    FORK LENGTH, FULL 557mm 567mm 567mm 567mm 567mm 567mm
    Max Seatpost Insertion 210 220 240 255 275 295
    Min Seatpost Insertion 80 80 80 80 80 80
    TRAIL 130mm 130mm 130mm 130mm 130mm 130mm

Not sure which model is right for you?

Please note: Specs and components are provided by the manufacturer, and are subject to change.
