The Full Scoop on the Aventon Abound SR
The Abound SR is the enhanced cargo ebike built to carry anything and tackle every challenge. Whether you're cruising through the streets or bike pooling with a friend, the Abound SR is always ready for any adventure. Its compact frame keeps you agile, while advanced security† and GPS† features give you total peace of mind. Whether it’s a quick trip or a big haul, the Abound SR is your ride for commanding the road. †Requires a 4G subscription
*Specs are subject to manufacture changes without notice

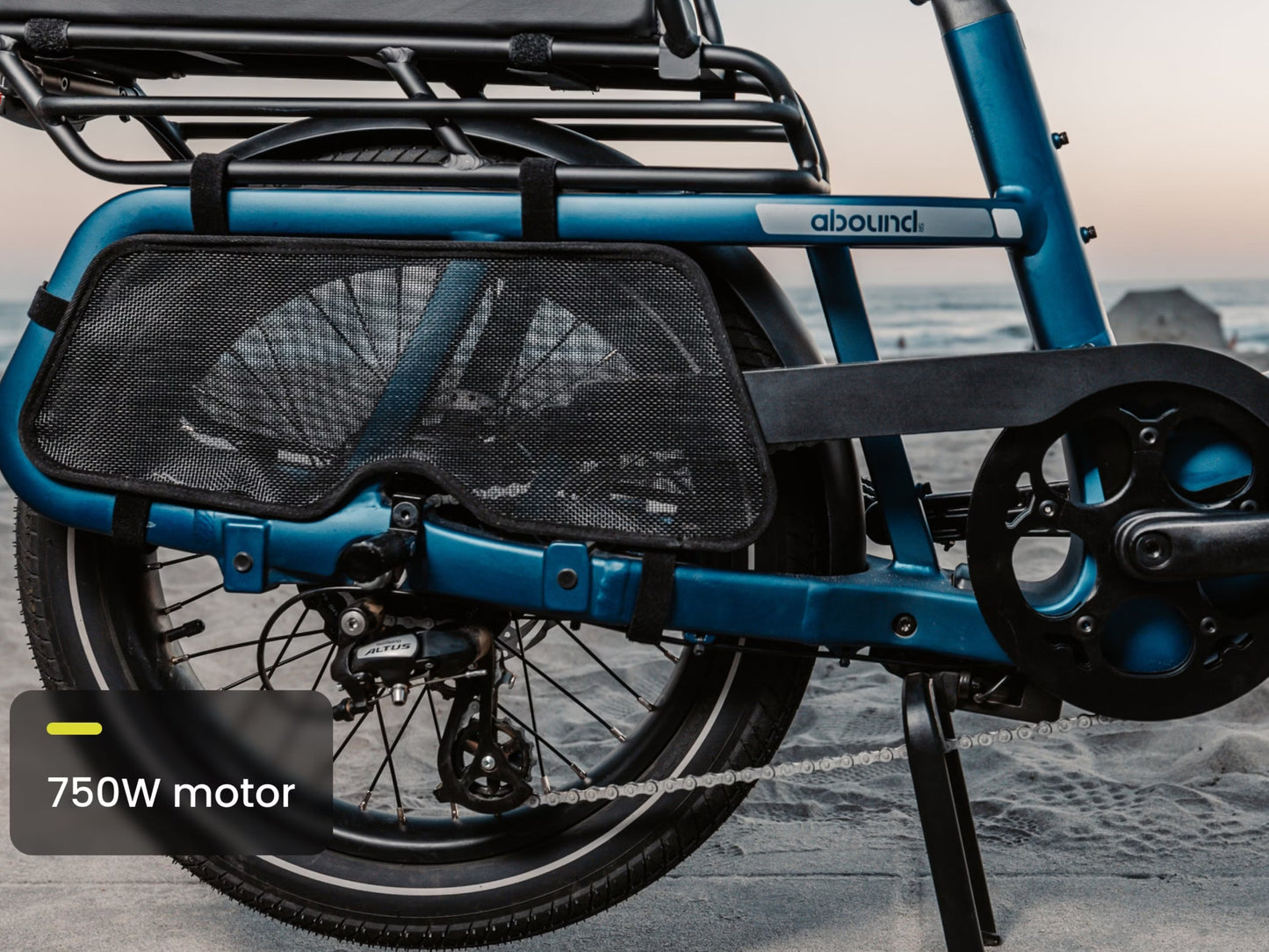

| Motor | 36V 750w Hub Drive with 6 speed sensors |
| Throttle | Aventon LH Handlebar Mounted |
| Battery | Aventon 36V, 20Ah, 708Wh, LG 21700 cells |

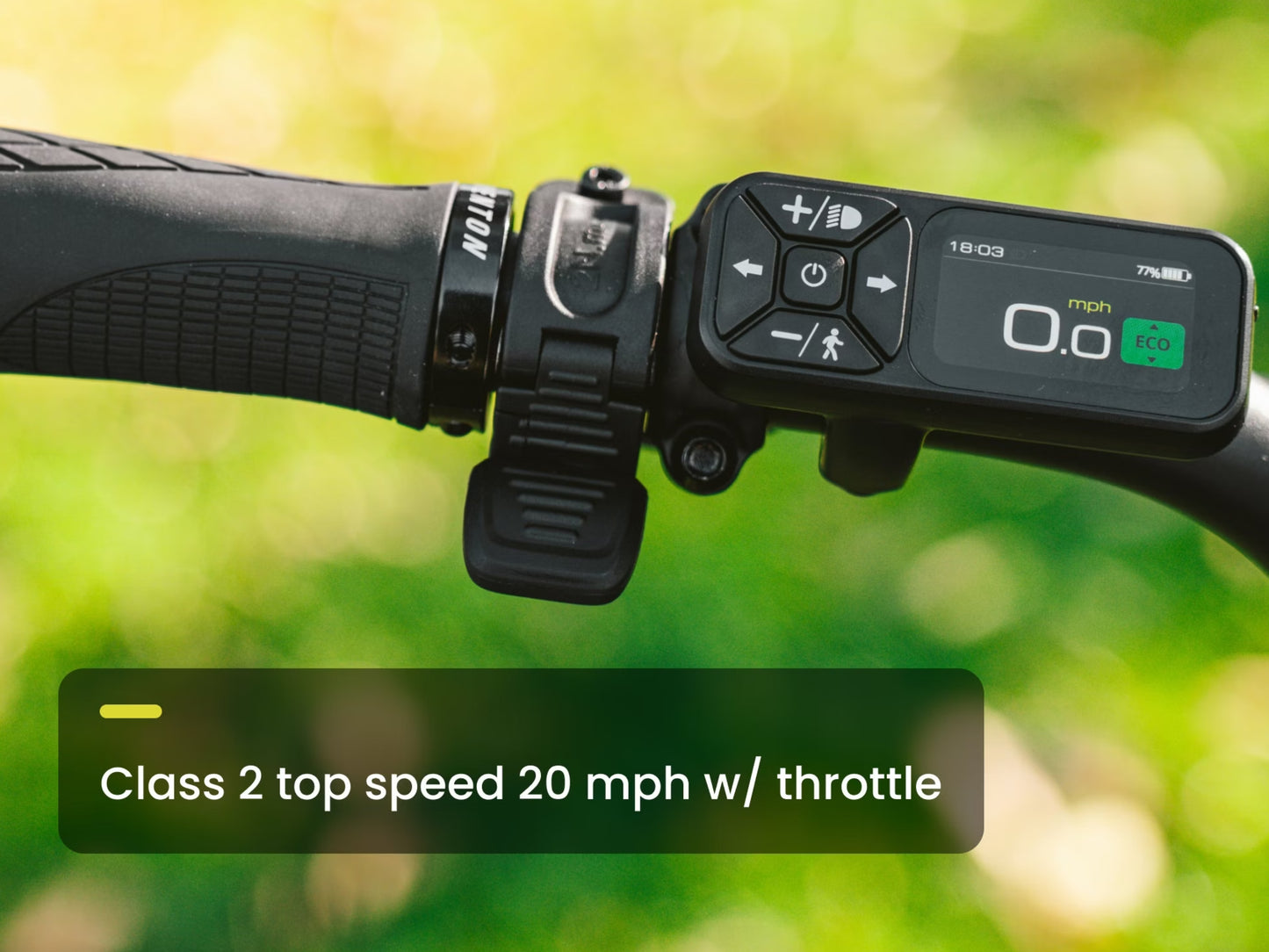

| Display | Aventon BC147 |
| Charger | Aventon 4A 42V |
| Frame | 6061 Aluminum Alloy with Internal Battery. One piece - Diecast aluminum front triangle |
| Fork | Threaded Steerer Tube for Quill Stem 15x110 spacing, 50mm travel, adjustable lockout, black stanchions |
| Rear Shock | Not applicable |
| Front Brake | Tektro HD-E3520 hydraulic disc brakes, Tektro 180mm 6 bolt |
| Rear Brake | Tektro HD-E3520 hydraulic disc brakes, Tektro 203mm 6 bolt |
| Rear Derailleur | Shimano Altus RD-M310 8 Speed |
| Shift Levers | Shimano SL-M315-8R 8 Speed |
| Chain | 122 Link, 8 Speed |
| Cassette | Shimano CS-HG200-8 8 speed Cassette, 12-32T |
| Crankset | 3pc, 165mm crank arm |
| Chain Ring | 52 tooth |
| Chain Guard | Spec not provided |
| Rims | 20-inch, 12-gauge, 36-hole, double-wall aluminum, black |
| Front Hub | Not applicable |
| Rear Hub | Not applicable |
| Front Tire | 20 x 3.0 urban tire with reflective sidewalls |
| Rear Tire | 20 x 3.0 urban tire with reflective sidewalls |
| Handlebar | BMX Style, 31.8mm bar clamp, 680mm width |
| Stem | Quill Stem with 31.8mm bar clamp diameter, 40mm length, and 140mm of vertical adjustmen |
| Headset | Spec not provided |
| Grips | Lock-on ergonomic |
| Saddle | Aventon by SelleRoyal |
| Seatpost | 30.9mm Aventon Suspension Seatpost with 50mm travel |
| Pedals | 9/16" Composite Platform |
| Front Light | Integrated |
| Rear Light | Integrated |
| Kickstand | Included: E-lock |
| Rear Carrier | Included |
| Fenders | Included |
| Bell | Not applicable |
| Lock | Not applicable |
| Mirror | Not applicable |
The Full Scoop on the Aventon Abound SR
The Abound SR is the enhanced cargo ebike built to carry anything and tackle every challenge. Whether you're cruising through the streets or bike pooling with a friend, the Abound SR is always ready for any adventure. Its compact frame keeps you agile, while advanced security† and GPS† features give you total peace of mind. Whether it’s a quick trip or a big haul, the Abound SR is your ride for commanding the road. †Requires a 4G subscription
*Specs are subject to manufacture changes without notice
Motor System
| Motor | 36V 750w Hub Drive with 6 speed sensors |
| Throttle | Aventon LH Handlebar Mounted |
| Battery | Aventon 36V, 20Ah, 708Wh, LG 21700 cells |
| Display | Aventon BC147 |
| Charger | Aventon 4A 42V |
Components
| Frame | 6061 Aluminum Alloy with Internal Battery. One piece - Diecast aluminum front triangle |
| Fork | Threaded Steerer Tube for Quill Stem 15x110 spacing, 50mm travel, adjustable lockout, black stanchions |
| Rear Shock | Not applicable |
| Front Brake | Tektro HD-E3520 hydraulic disc brakes, Tektro 180mm 6 bolt |
| Rear Brake | Tektro HD-E3520 hydraulic disc brakes, Tektro 203mm 6 bolt |
| Rear Derailleur | Shimano Altus RD-M310 8 Speed |
| Shift Levers | Shimano SL-M315-8R 8 Speed |
| Chain | 122 Link, 8 Speed |
| Cassette | Shimano CS-HG200-8 8 speed Cassette, 12-32T |
| Crankset | 3pc, 165mm crank arm |
| Chain Ring | 52 tooth |
| Chain Guard | Spec not provided |
| Rims | 20-inch, 12-gauge, 36-hole, double-wall aluminum, black |
| Front Hub | Not applicable |
| Rear Hub | Not applicable |
| Front Tire | 20 x 3.0 urban tire with reflective sidewalls |
| Rear Tire | 20 x 3.0 urban tire with reflective sidewalls |
| Handlebar | BMX Style, 31.8mm bar clamp, 680mm width |
| Stem | Quill Stem with 31.8mm bar clamp diameter, 40mm length, and 140mm of vertical adjustmen |
| Headset | Spec not provided |
| Grips | Lock-on ergonomic |
| Saddle | Aventon by SelleRoyal |
| Seatpost | 30.9mm Aventon Suspension Seatpost with 50mm travel |
Extras
| Pedals | 9/16" Composite Platform |
| Front Light | Integrated |
| Rear Light | Integrated |
| Kickstand | Included: E-lock |
| Rear Carrier | Included |
| Fenders | Included |
| Bell | Not applicable |
| Lock | Not applicable |
| Mirror | Not applicable |

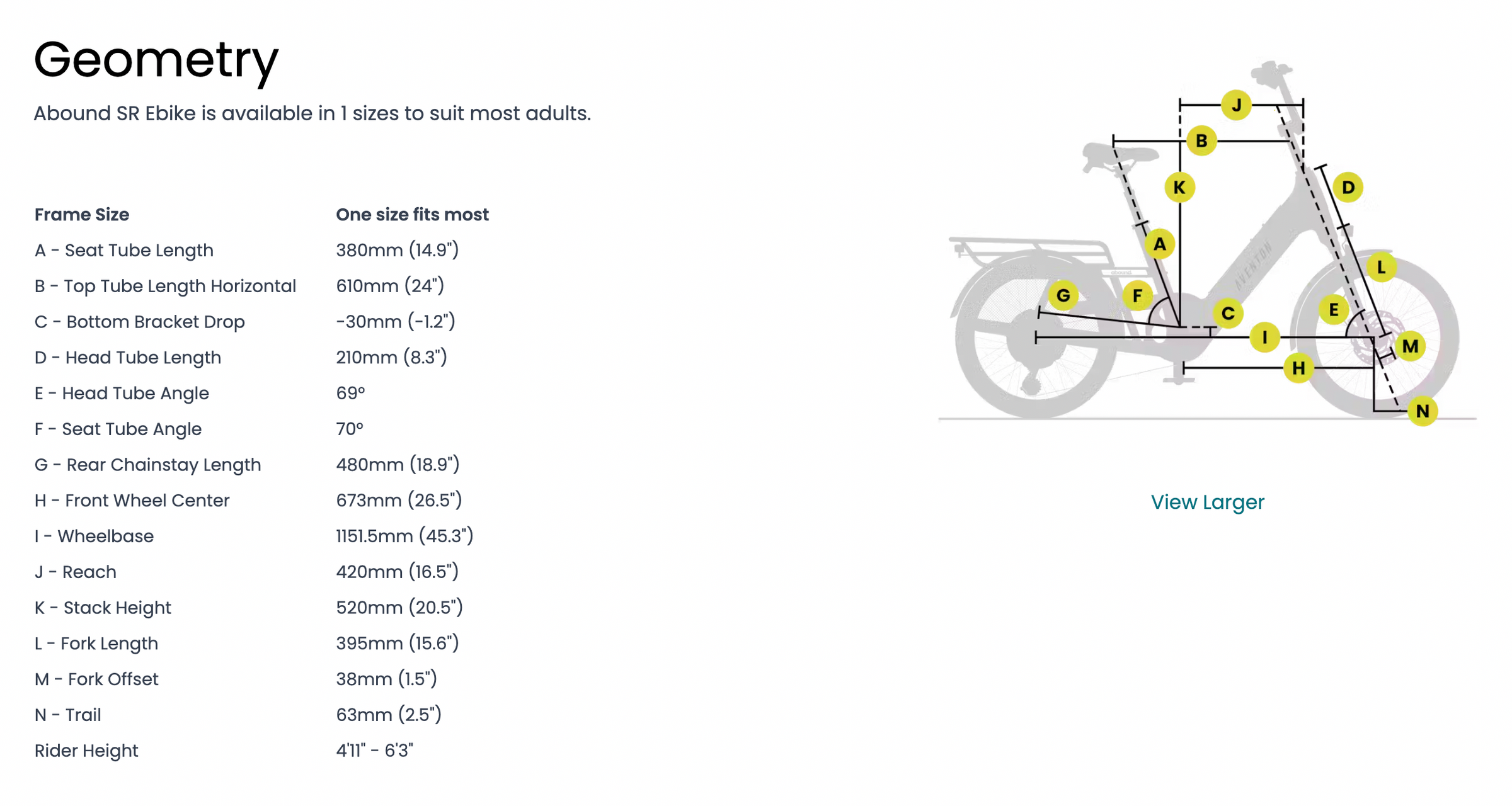

Geometry
