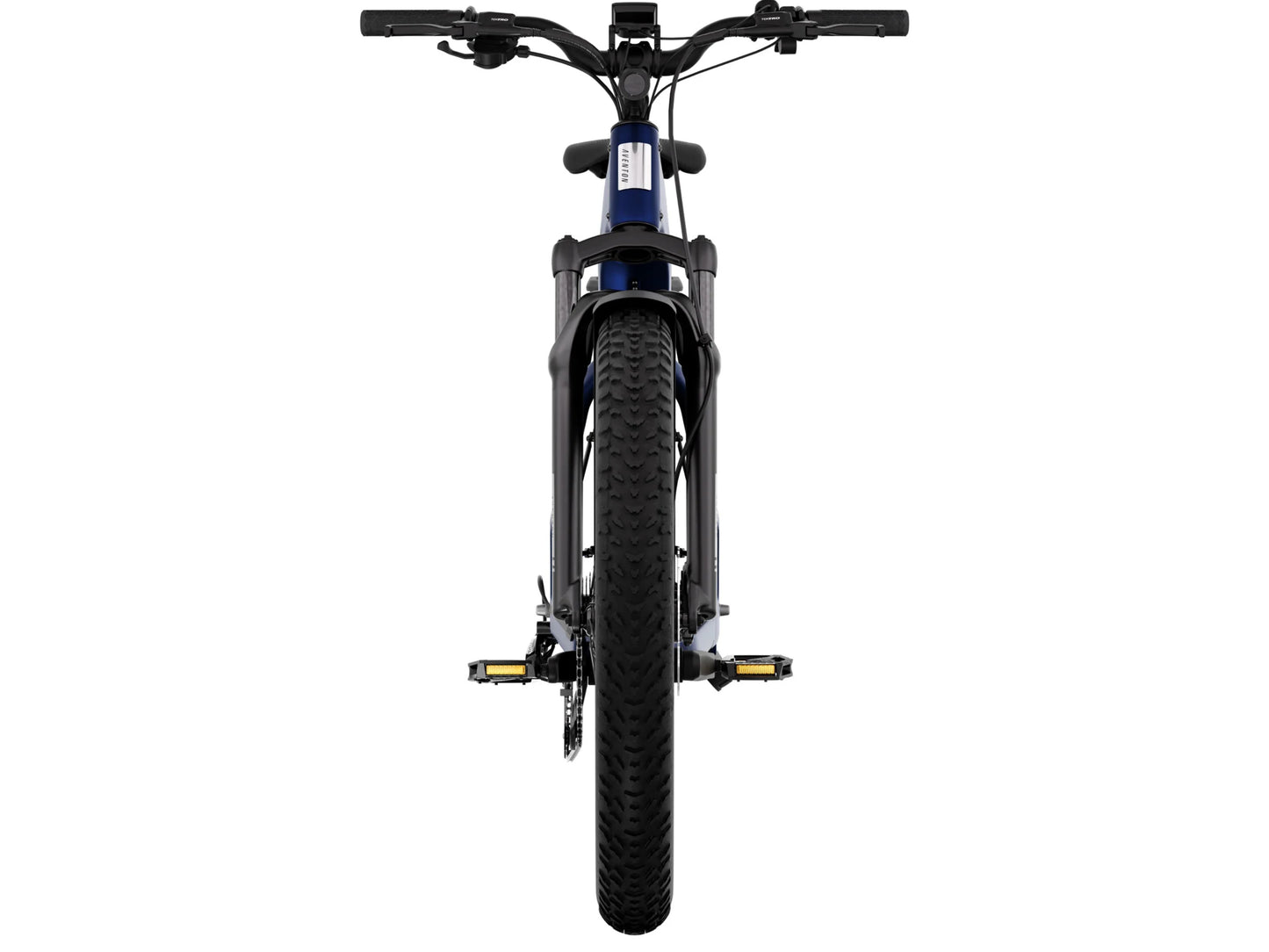

Aventon Aventure 3 Step-Through
Aventon Aventure 3 Step-Through
The Full Scoop on the Aventon Aventure 3
The Aventon Aventure 3 is the ultimate Ebike for adventure seekers, combining rugged performance with cutting-edge technology. Featuring 4" fat tires, a suspension fork, and an added suspension seatpost, the Aventure is built to conquer any terrain with ease. Now equipped with ACU technology that offers 4G/GPS capabilities and advanced anti-theft features, the Aventure 3 keeps you connected and your bike secure so the only thing you have to worry about is where your bike will take you next. Its powerful 750W motor, 65 miles of range, and Ride Tune customization ensures you can get where you want to go, with exactly as much power as you need to get there. No matter where you want to explore, the Aventure is ready to take on the challenge.
*Specs are subject to manufacture changes without notice
| Motor | 36V, 750W Hub Drive |
| Throttle | Aventon LH Handlebar Mounted |
| Battery | Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells |
| Display | Aventon BC280 |
| Charger | 36V Output: 42V/ 4A |
| Frame | 6061 Aluminum, Gravity Cast Front Triangle |
| Fork | Aventon/Zoom Suspension Fork, 80mm travel, with lockout |
| Rear Shock | Not applicable |
| Front Brake | Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire |
| Rear Brake | Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire |
| Rear Derailleur | Shimano Altus 8 speed |
| Shift Levers | Shimano 8 Speed Trigger |
| Chain | 7/8 Speed 118L |
| Cassette | 12-32T / 8 Speed Shimano CS HG200-8 |
| Crankset | 3pc, 170mm crank arm |
| Chain Ring | Spec not provided |
| Chain Guard | Spec not provided |
| Rims | Front = 26", 36 hole, 13g, Double Wall Aluminum Fat Tire Rim, Nutted Axle, Schrader Valve / Rear = 26", 36 hole, 12g, Double Wall Aluminum Fat Tire Rim, Nutted Hub Drive, Schrader Valve |
| Front Hub | 36H Disc Nutted Front and Rear Axles |
| Rear Hub | 36H Disc Nutted Front and Rear Axles |
| Front Tire | Inova 26x4.0 puncture resistant |
| Rear Tire | Inova 26x4.0 puncture resistant |
| Handlebar | Aluminum 31.8mm, 680mm |
| Stem | Spec not provided |
| Headset | Sealed bearing H887 Peilin 28.6mm * 56mm * 56mm H18.6mm 7pcs |
| Grips | Aventon Lock on grips |
| Saddle | Aventon by Velo |
| Seatpost | Aventon Suspension Seatpost, Ø 30.9mm, 350mm Length. 50mm travel |
| Pedals | 9/16" Alloy Platform |
| Front Light | Integrated |
| Rear Light | Integrated |
| Kickstand | Included, rear mount |
| Rear Carrier | Included |
| Fenders | Included |
| Bell | Not applicable |
| Lock | Not applicable |
| Mirror | Not applicable |
The Full Scoop on the Aventon Aventure 3
The Aventon Aventure 3 is the ultimate Ebike for adventure seekers, combining rugged performance with cutting-edge technology. Featuring 4" fat tires, a suspension fork, and an added suspension seatpost, the Aventure is built to conquer any terrain with ease. Now equipped with ACU technology that offers 4G/GPS capabilities and advanced anti-theft features, the Aventure 3 keeps you connected and your bike secure so the only thing you have to worry about is where your bike will take you next. Its powerful 750W motor, 65 miles of range, and Ride Tune customization ensures you can get where you want to go, with exactly as much power as you need to get there. No matter where you want to explore, the Aventure is ready to take on the challenge.
*Specs are subject to manufacture changes without notice
Motor System
| Motor | 36V, 750W Hub Drive |
| Throttle | Aventon LH Handlebar Mounted |
| Battery | Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells |
| Display | Aventon BC280 |
| Charger | 36V Output: 42V/ 4A |
Components
| Frame | 6061 Aluminum, Gravity Cast Front Triangle |
| Fork | Aventon/Zoom Suspension Fork, 80mm travel, with lockout |
| Rear Shock | Not applicable |
| Front Brake | Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire |
| Rear Brake | Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire |
| Rear Derailleur | Shimano Altus 8 speed |
| Shift Levers | Shimano 8 Speed Trigger |
| Chain | 7/8 Speed 118L |
| Cassette | 12-32T / 8 Speed Shimano CS HG200-8 |
| Crankset | 3pc, 170mm crank arm |
| Chain Ring | Spec not provided |
| Chain Guard | Spec not provided |
| Rims | Front = 26", 36 hole, 13g, Double Wall Aluminum Fat Tire Rim, Nutted Axle, Schrader Valve / Rear = 26", 36 hole, 12g, Double Wall Aluminum Fat Tire Rim, Nutted Hub Drive, Schrader Valve |
| Front Hub | 36H Disc Nutted Front and Rear Axles |
| Rear Hub | 36H Disc Nutted Front and Rear Axles |
| Front Tire | Inova 26x4.0 puncture resistant |
| Rear Tire | Inova 26x4.0 puncture resistant |
| Handlebar | Aluminum 31.8mm, 680mm |
| Stem | Spec not provided |
| Headset | Sealed bearing H887 Peilin 28.6mm * 56mm * 56mm H18.6mm 7pcs |
| Grips | Aventon Lock on grips |
| Saddle | Aventon by Velo |
| Seatpost | Aventon Suspension Seatpost, Ø 30.9mm, 350mm Length. 50mm travel |
Extras
| Pedals | 9/16" Alloy Platform |
| Front Light | Integrated |
| Rear Light | Integrated |
| Kickstand | Included, rear mount |
| Rear Carrier | Included |
| Fenders | Included |
| Bell | Not applicable |
| Lock | Not applicable |
| Mirror | Not applicable |

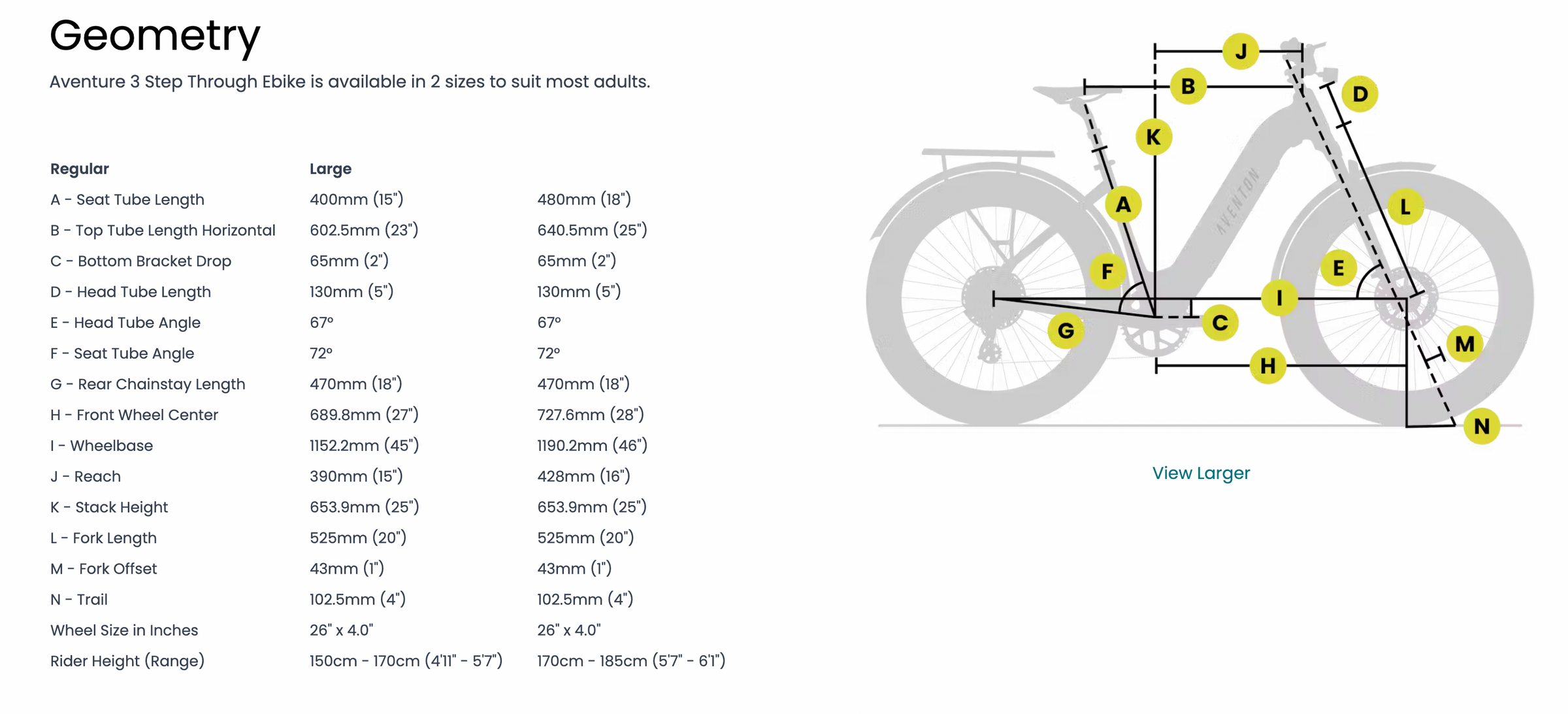

Geometry
