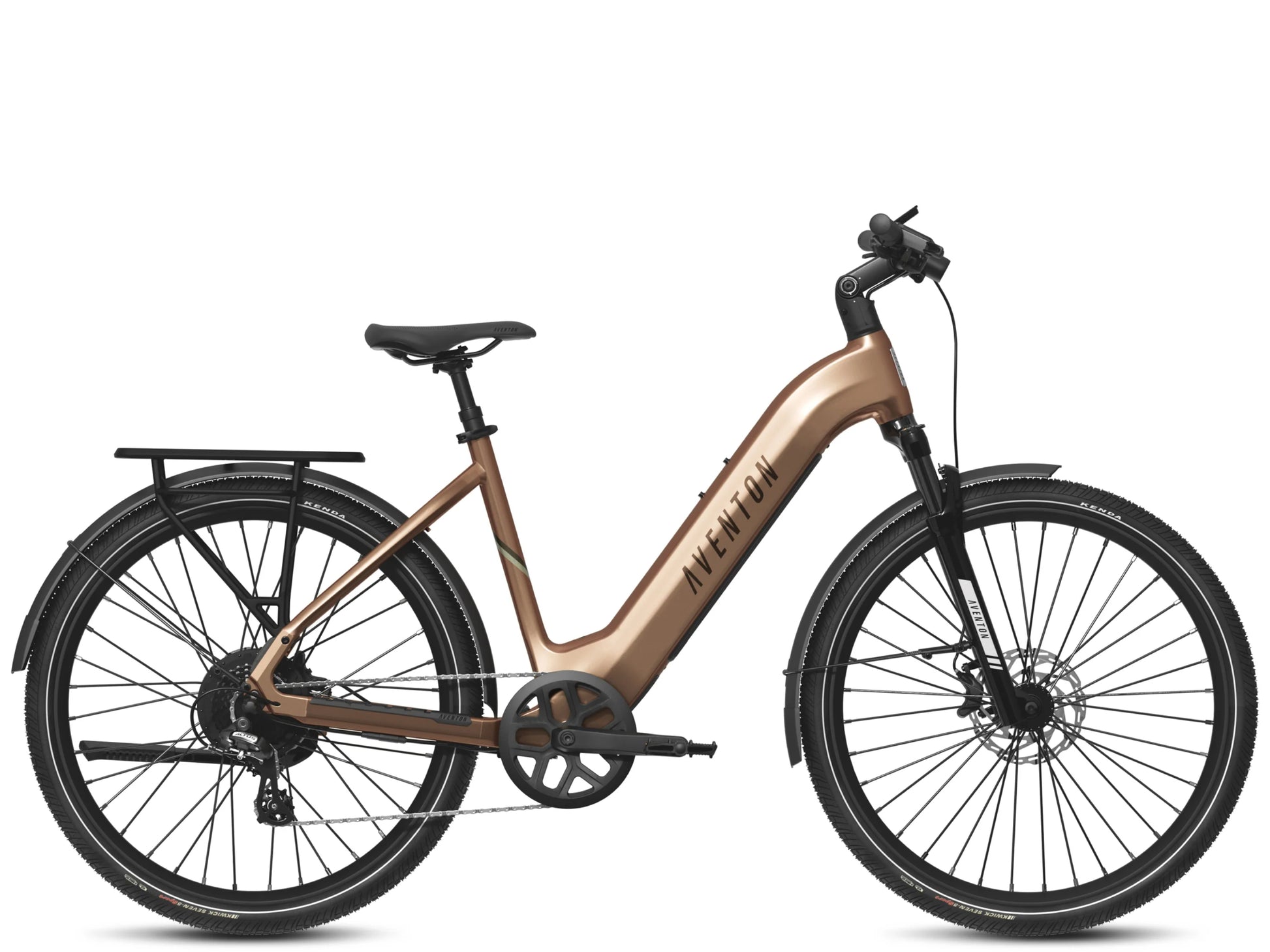

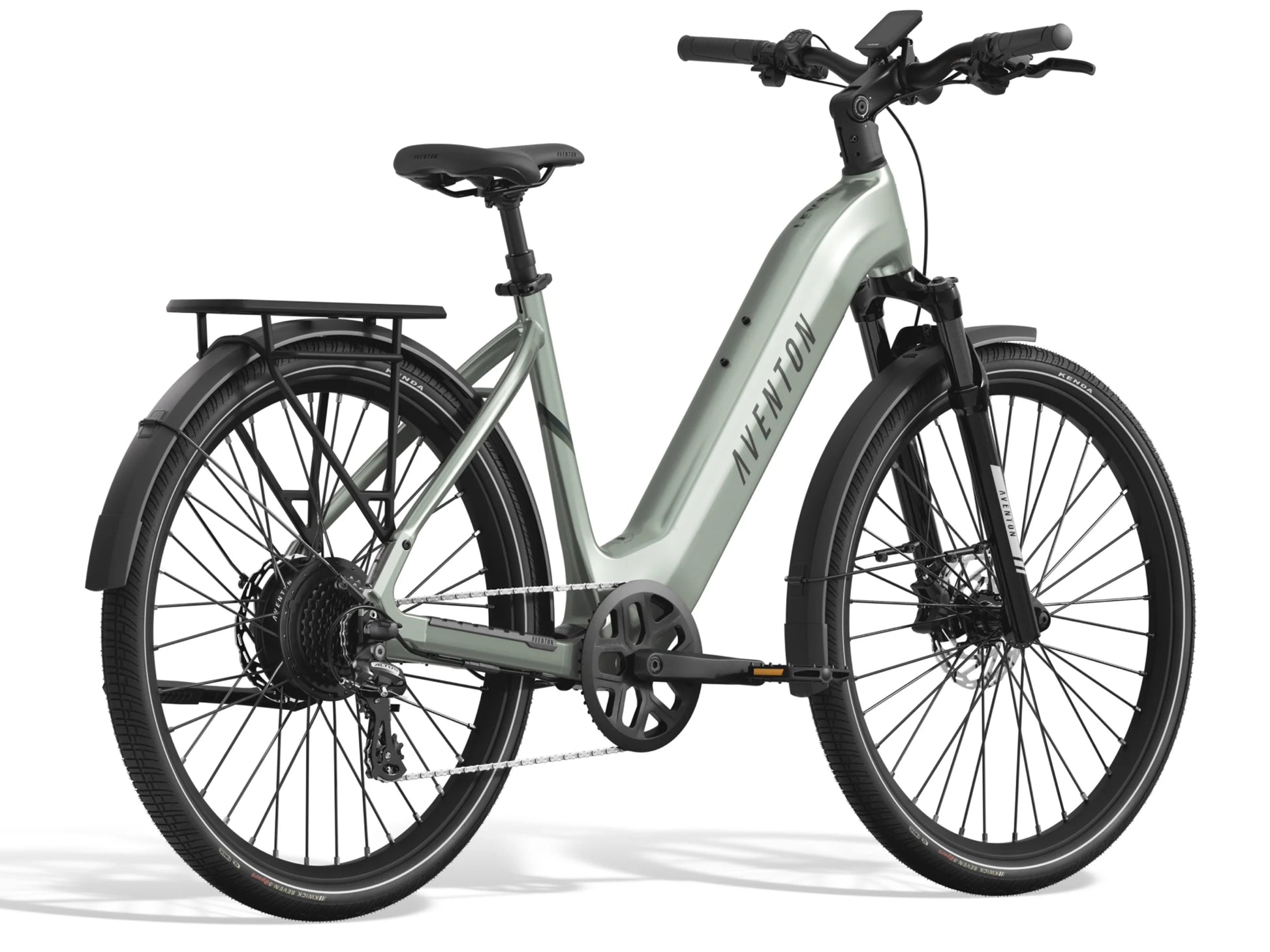

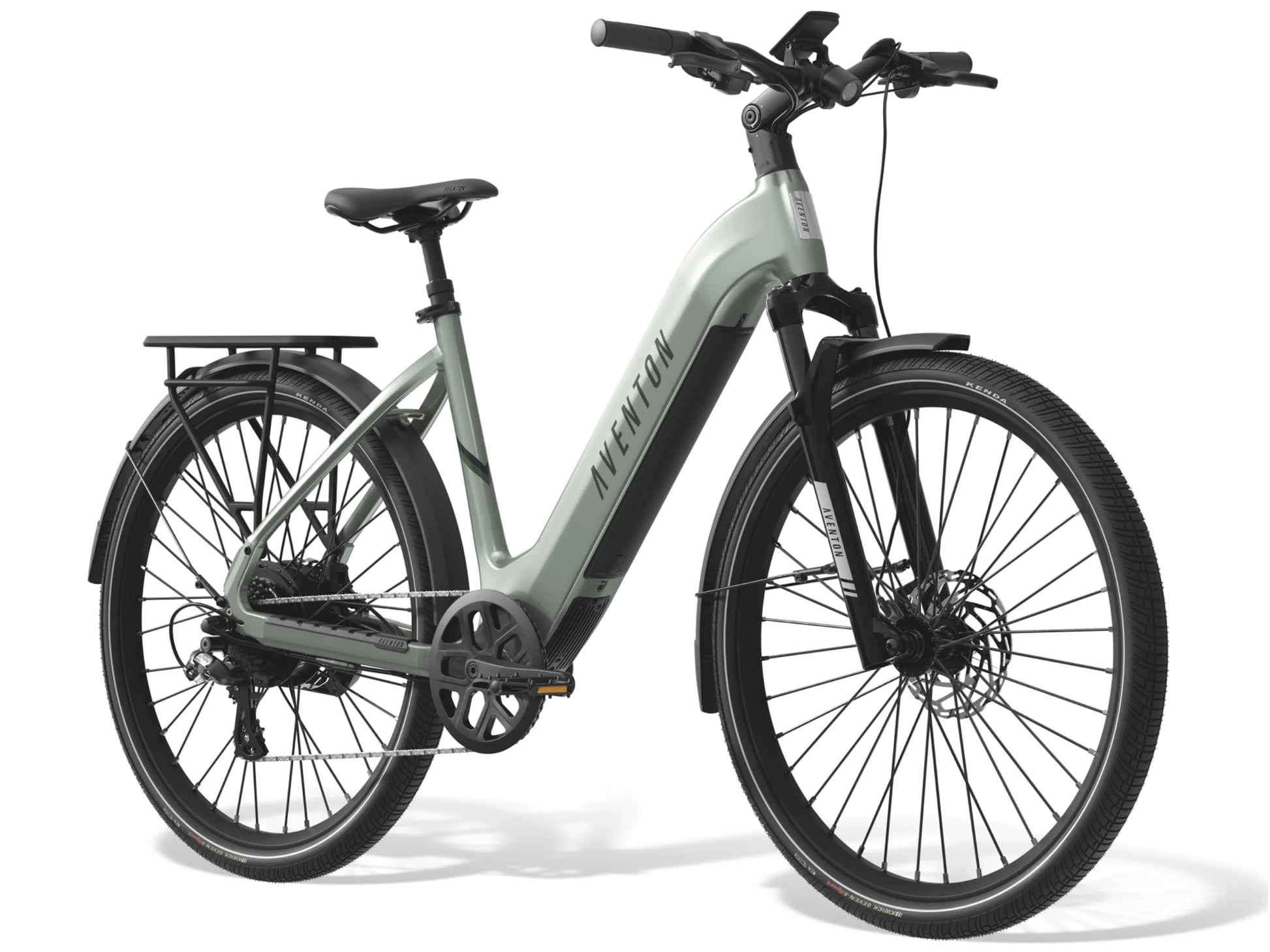

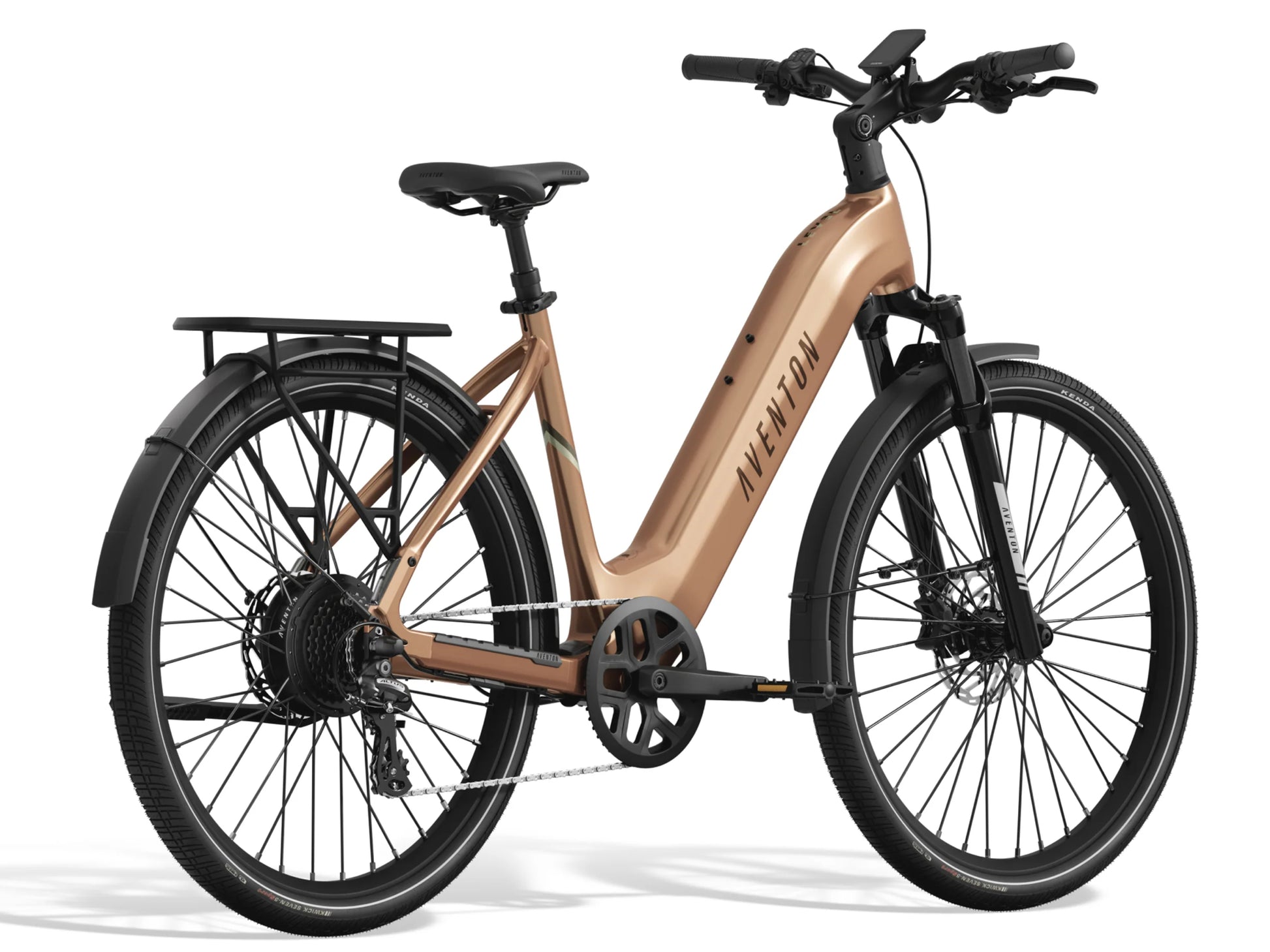

Aventon Level 3 Step-Through
Aventon Level 3 Step-Through
Couldn't load pickup availability

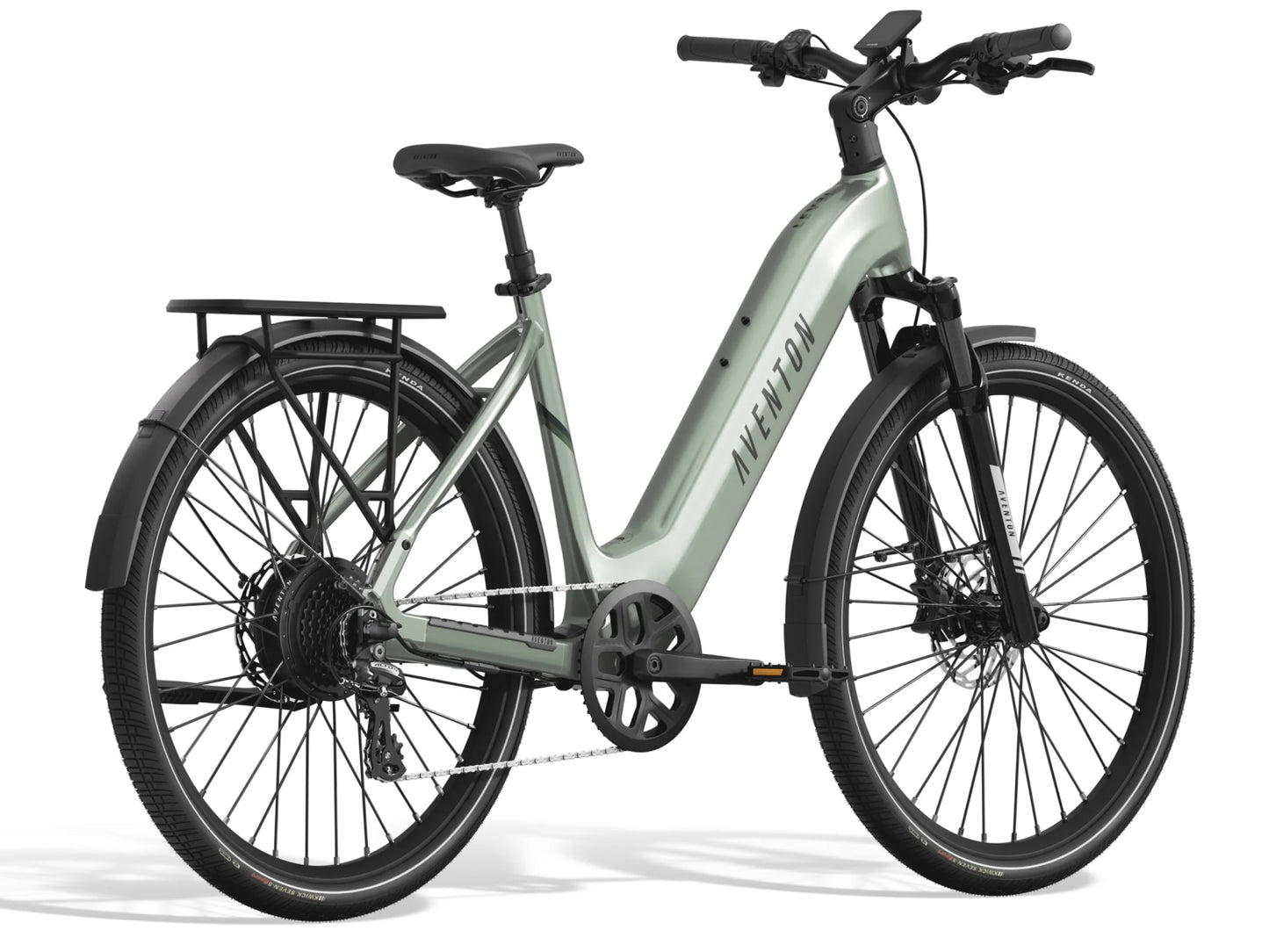

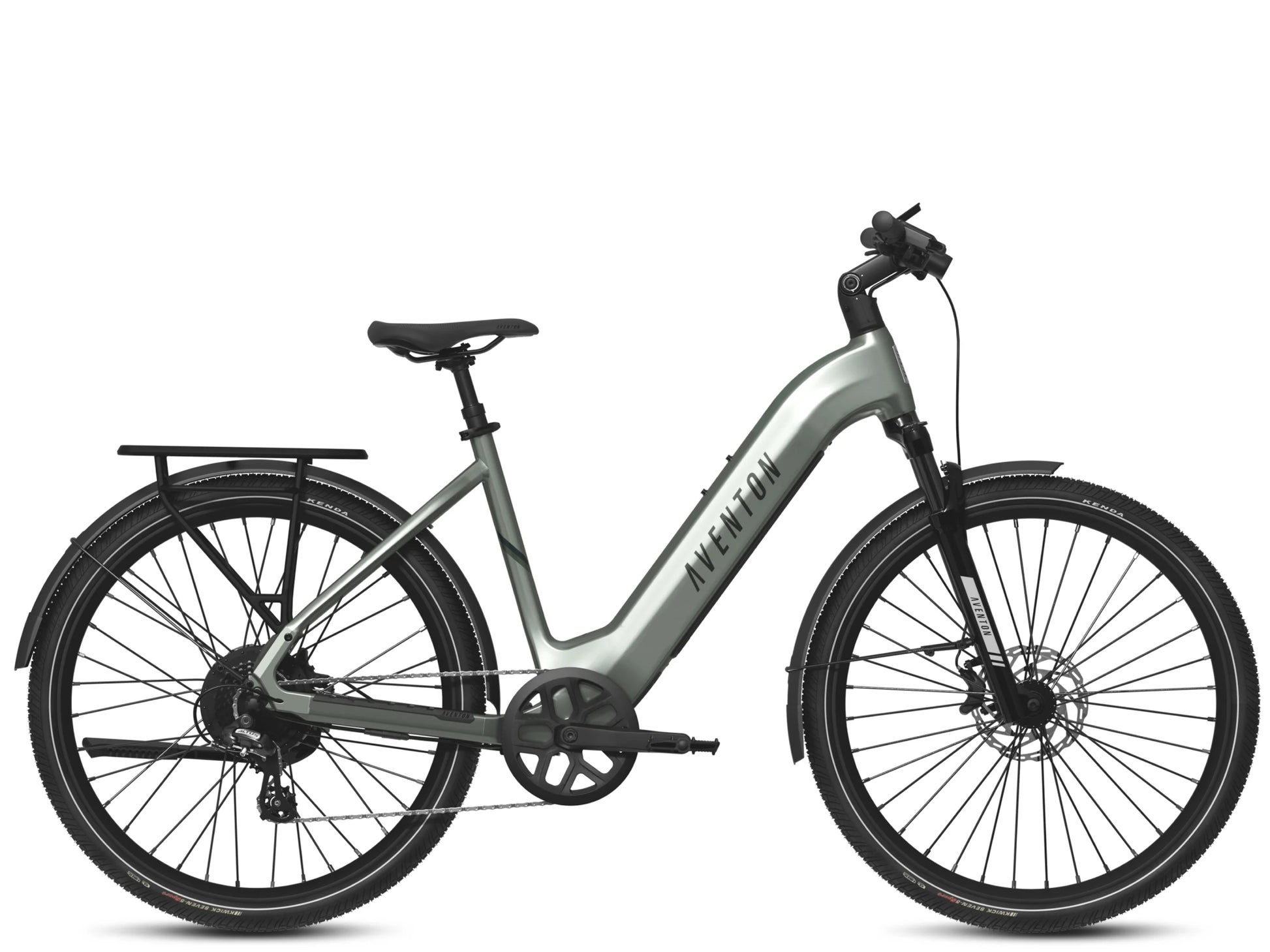

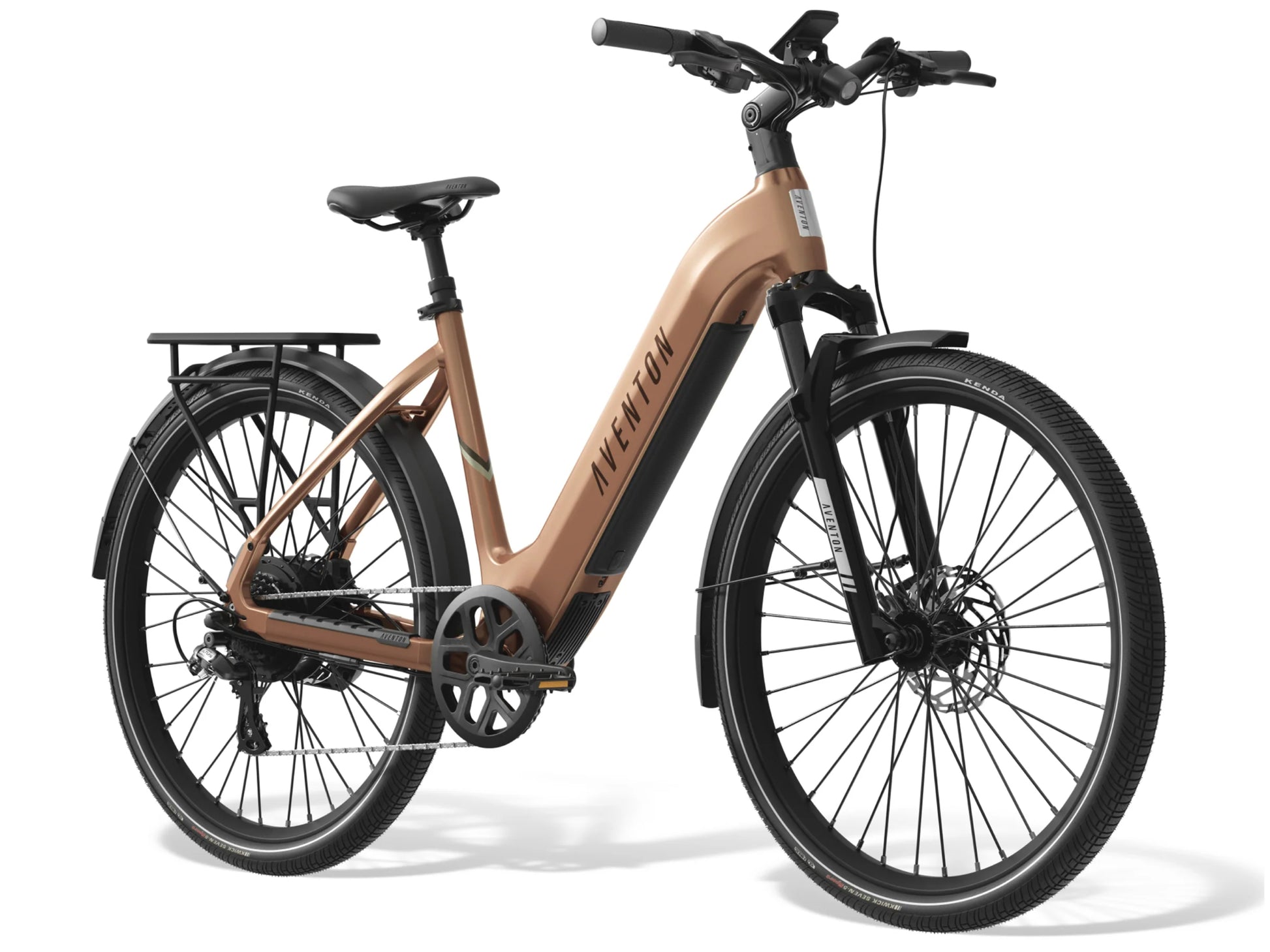

The Full Scoop on the Aventon Level 3 Step-Through
The all new Level 3 comes fully equipped with everything you need to trade your daily drives for daily rides. A rear rack and fenders ensures you can carry necessities while staying clean and dry during your rides. A front suspension fork and suspension seat post provide maximum comfort on rougher terrain. Equipped with GPS tracking, auto-lock, unusual movement detection, alarm system, and much more to keep your bike safe and secure. Comfortable geometry paired with an adjustable stem ensure the perfect fit. Ditch the traffic, and elevate your daily commutes with the Level 3
*Specs are subject to manufacture changes without notice
| Motor | 36V, 500W (sustained), 864W (peak) |
| Throttle | Aventon LH Handlebar Mounted |
| Battery | Removable Internal Lithium-ion. 36V, 20Ah, 708Wh, LG 21700 cells |
| Display | Aventon BC280 |
| Charger | 36V Output: 42V/ 4A |
| Frame | 6061 Aluminum, Gravity Cast Front Triangle |
| Fork | Aventon Suspension Fork, 80mm travel, w/ lockout,coil spring. 15x100mm thru-axle, 43mm offset |
| Rear Shock | Not applicable |
| Front Brake | Magura AT-2 Hydraulic disc brake, Magura MDR-A 180mm 6 Bolt Rotor |
| Rear Brake | Magura AT-2 Hydraulic disc brake, Magura MDR-A 180mm 6 Bolt Rotor |
| Rear Derailleur | Shimano Altus RD-M310 |
| Shift Levers | Shimano 8 Speed Trigger SL-M315-8R |
| Chain | 7/8 speed 120L |
| Cassette | 12-32T / 8 Speed Shimano CS HG200-8 |
| Crankset | 3pc, 170mm crank arm |
| Chain Ring | 48T, 104 |
| Chain Guard | Spec not provided |
| Rims | Front = 27.5in, 13g, 36hole, double wall Aluminum, Thru axle, Schrader Valve, black, Rear = 27.5in, 12g, 36hole, double wall Aluminum, Nutted Hub Drive Motor, Scharder Valve, black |
| Front Hub | Not applicable |
| Rear Hub | Not applicable |
| Front Tire | Kenda Kwick Seven-5 Sport K1052-006 27.5 x 2.20 |
| Rear Tire | Kenda Kwick Seven-5 Sport K1052-006 27.5 x 2.20 |
| Handlebar | Aluminum 31.8mm, 680mm |
| Stem | Adjustable |
| Headset | Sealed Bearing Headset |
| Grips | Aventon Lock on grips |
| Saddle | Aventon |
| Seatpost | 30.9mm Aventon Suspension Seatpost with 50mm travel |
| Pedals | 9/16" Composite Platform |
| Front Light | Integrated |
| Rear Light | Integrated |
| Kickstand | Spec not provided |
| Rear Carrier | Included |
| Fenders | Included |
| Bell | Not applicable |
| Lock | Not applicable |
| Mirror | Not applicable |
The Full Scoop on the Aventon Level 3 Step-Through
The all new Level 3 comes fully equipped with everything you need to trade your daily drives for daily rides. A rear rack and fenders ensures you can carry necessities while staying clean and dry during your rides. A front suspension fork and suspension seat post provide maximum comfort on rougher terrain. Equipped with GPS tracking, auto-lock, unusual movement detection, alarm system, and much more to keep your bike safe and secure. Comfortable geometry paired with an adjustable stem ensure the perfect fit. Ditch the traffic, and elevate your daily commutes with the Level 3
*Specs are subject to manufacture changes without notice
Motor System
| Motor | 36V, 500W (sustained), 864W (peak) |
| Throttle | Aventon LH Handlebar Mounted |
| Battery | Removable Internal Lithium-ion. 36V, 20Ah, 708Wh, LG 21700 cells |
| Display | Aventon BC280 |
| Charger | 36V Output: 42V/ 4A |
Components
| Frame | 6061 Aluminum, Gravity Cast Front Triangle |
| Fork | Aventon Suspension Fork, 80mm travel, w/ lockout,coil spring. 15x100mm thru-axle, 43mm offset |
| Rear Shock | Not applicable |
| Front Brake | Magura AT-2 Hydraulic disc brake, Magura MDR-A 180mm 6 Bolt Rotor |
| Rear Brake | Magura AT-2 Hydraulic disc brake, Magura MDR-A 180mm 6 Bolt Rotor |
| Rear Derailleur | Shimano Altus RD-M310 |
| Shift Levers | Shimano 8 Speed Trigger SL-M315-8R |
| Chain | 7/8 speed 120L |
| Cassette | 12-32T / 8 Speed Shimano CS HG200-8 |
| Crankset | 3pc, 170mm crank arm |
| Chain Ring | 48T, 104 |
| Chain Guard | Spec not provided |
| Rims | Front = 27.5in, 13g, 36hole, double wall Aluminum, Thru axle, Schrader Valve, black, Rear = 27.5in, 12g, 36hole, double wall Aluminum, Nutted Hub Drive Motor, Scharder Valve, black |
| Front Hub | Not applicable |
| Rear Hub | Not applicable |
| Front Tire | Kenda Kwick Seven-5 Sport K1052-006 27.5 x 2.20 |
| Rear Tire | Kenda Kwick Seven-5 Sport K1052-006 27.5 x 2.20 |
| Handlebar | Aluminum 31.8mm, 680mm |
| Stem | Adjustable |
| Headset | Sealed Bearing Headset |
| Grips | Aventon Lock on grips |
| Saddle | Aventon |
| Seatpost | 30.9mm Aventon Suspension Seatpost with 50mm travel |
Extras
| Pedals | 9/16" Composite Platform |
| Front Light | Integrated |
| Rear Light | Integrated |
| Kickstand | Spec not provided |
| Rear Carrier | Included |
| Fenders | Included |
| Bell | Not applicable |
| Lock | Not applicable |
| Mirror | Not applicable |

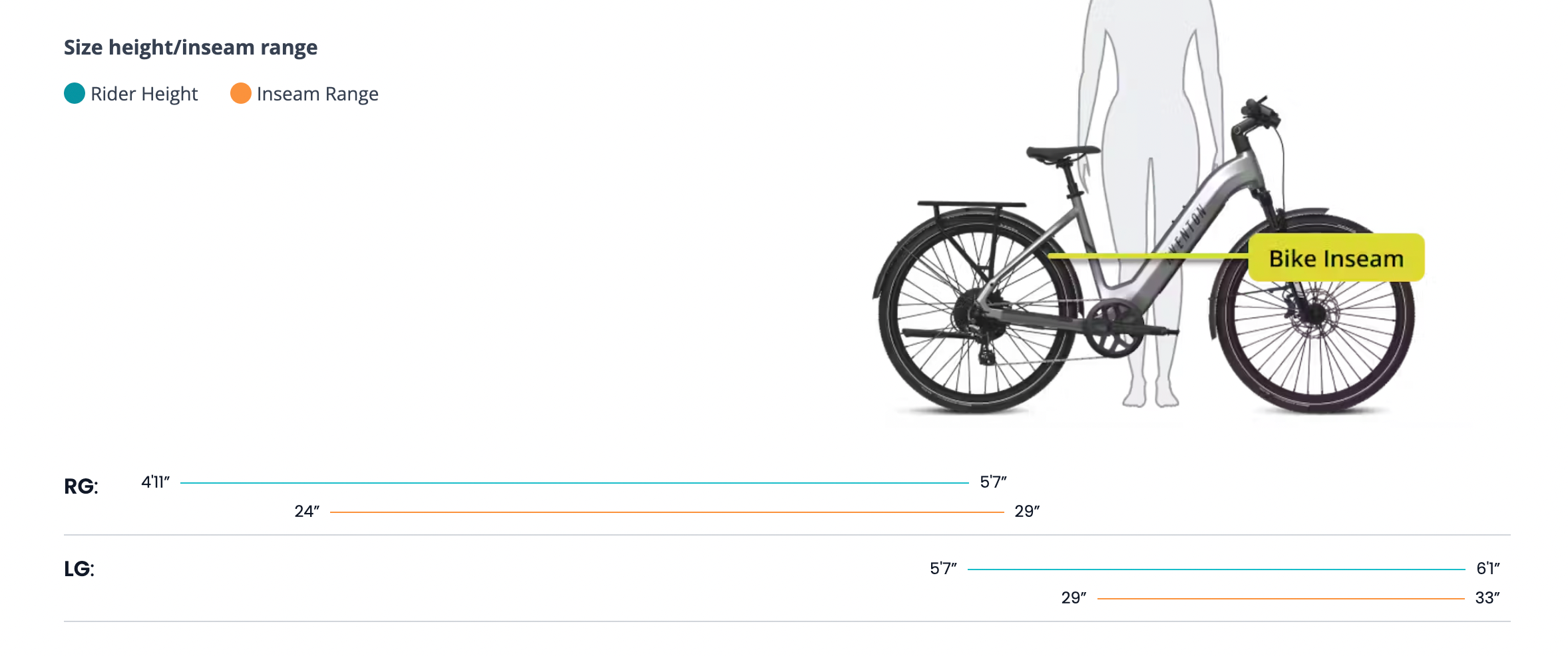

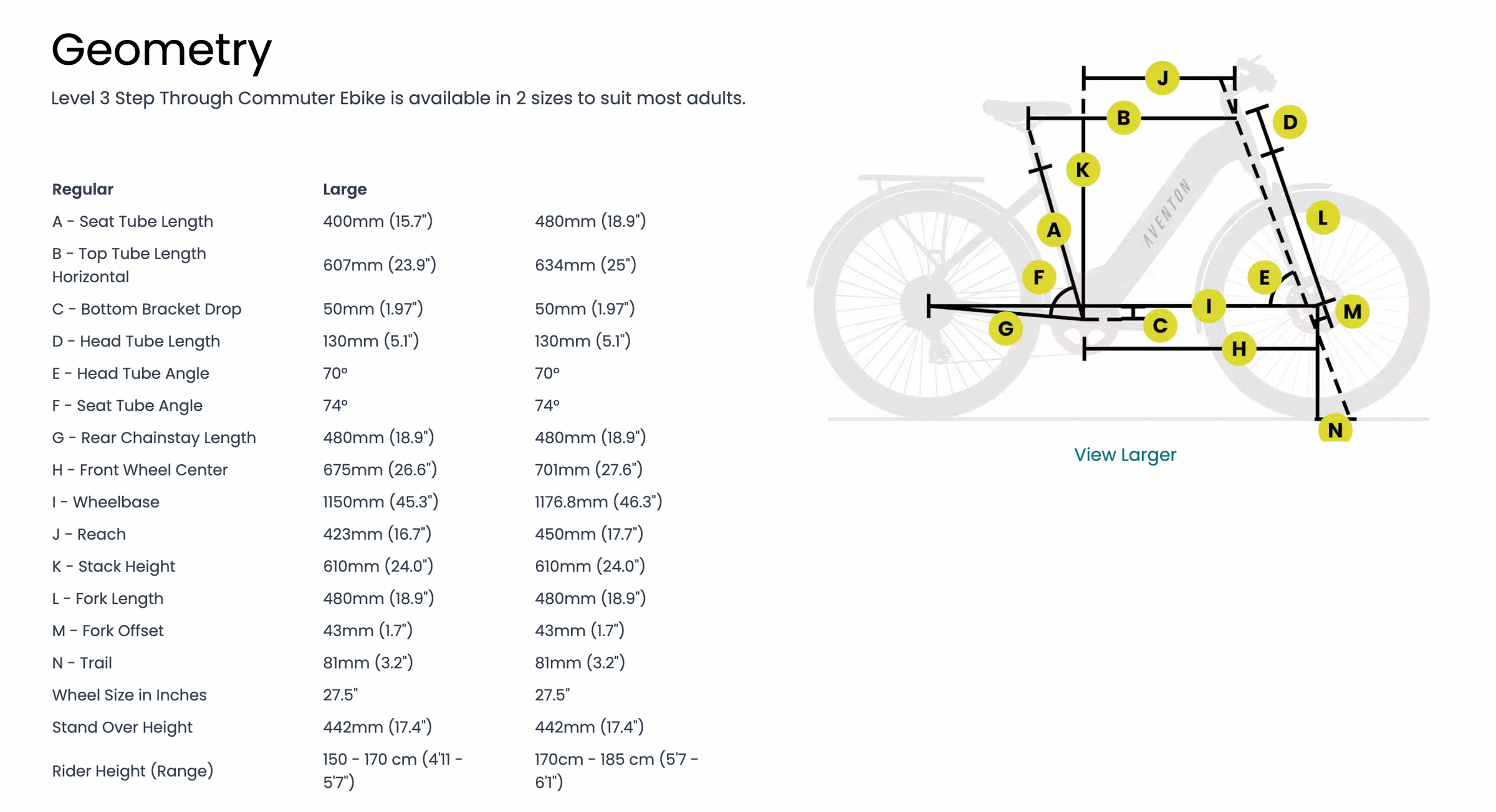

Geometry
