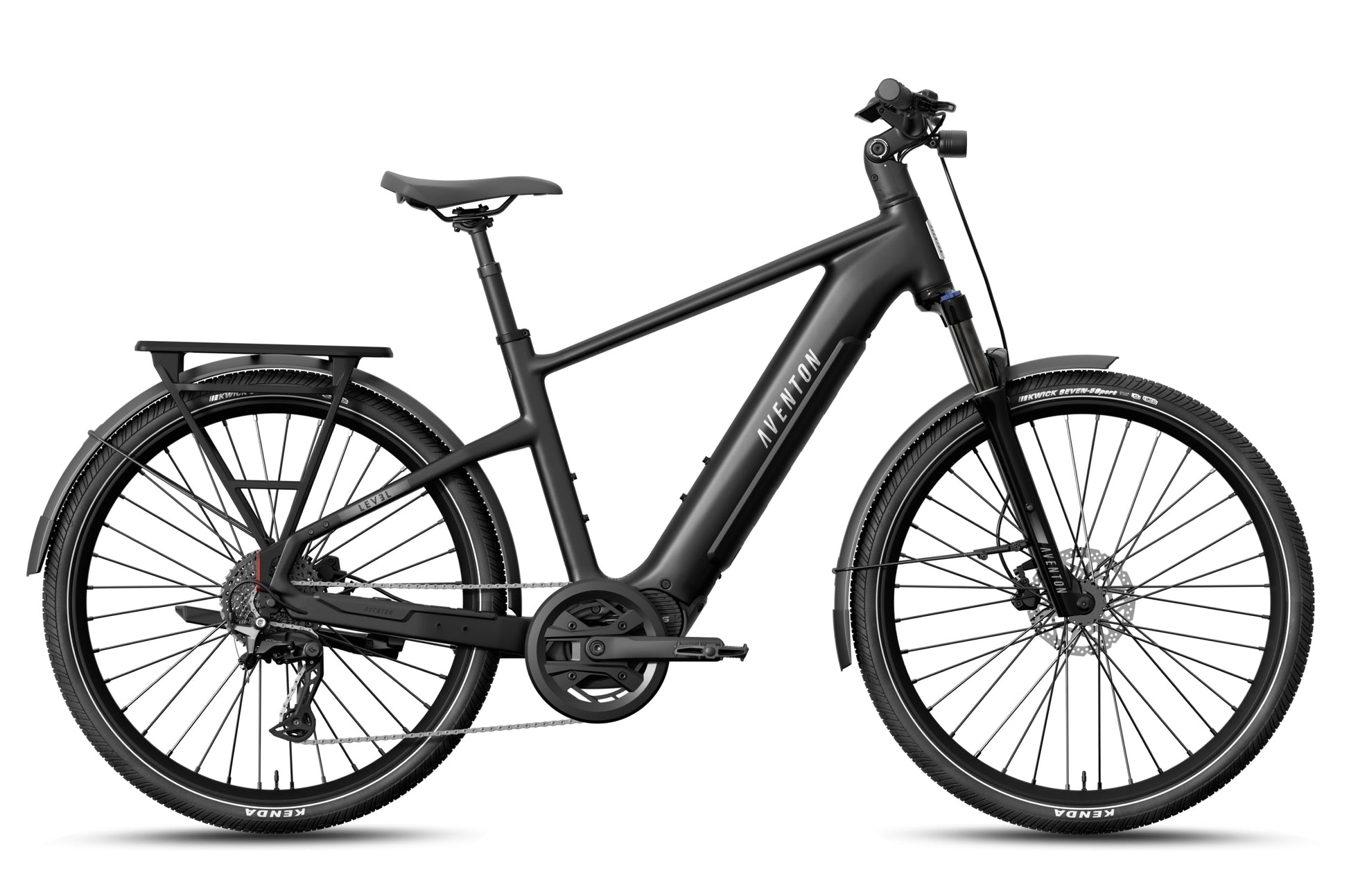

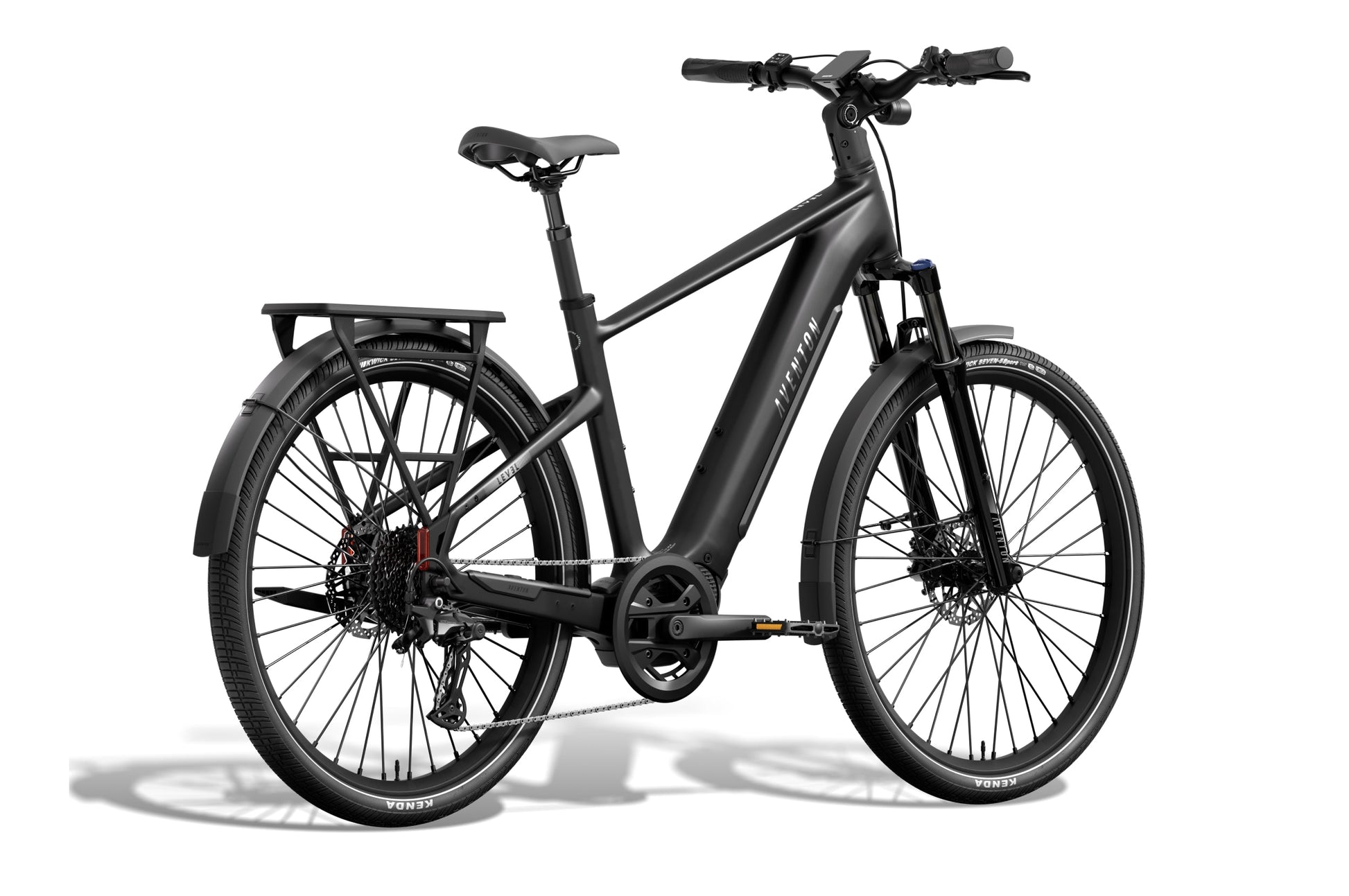

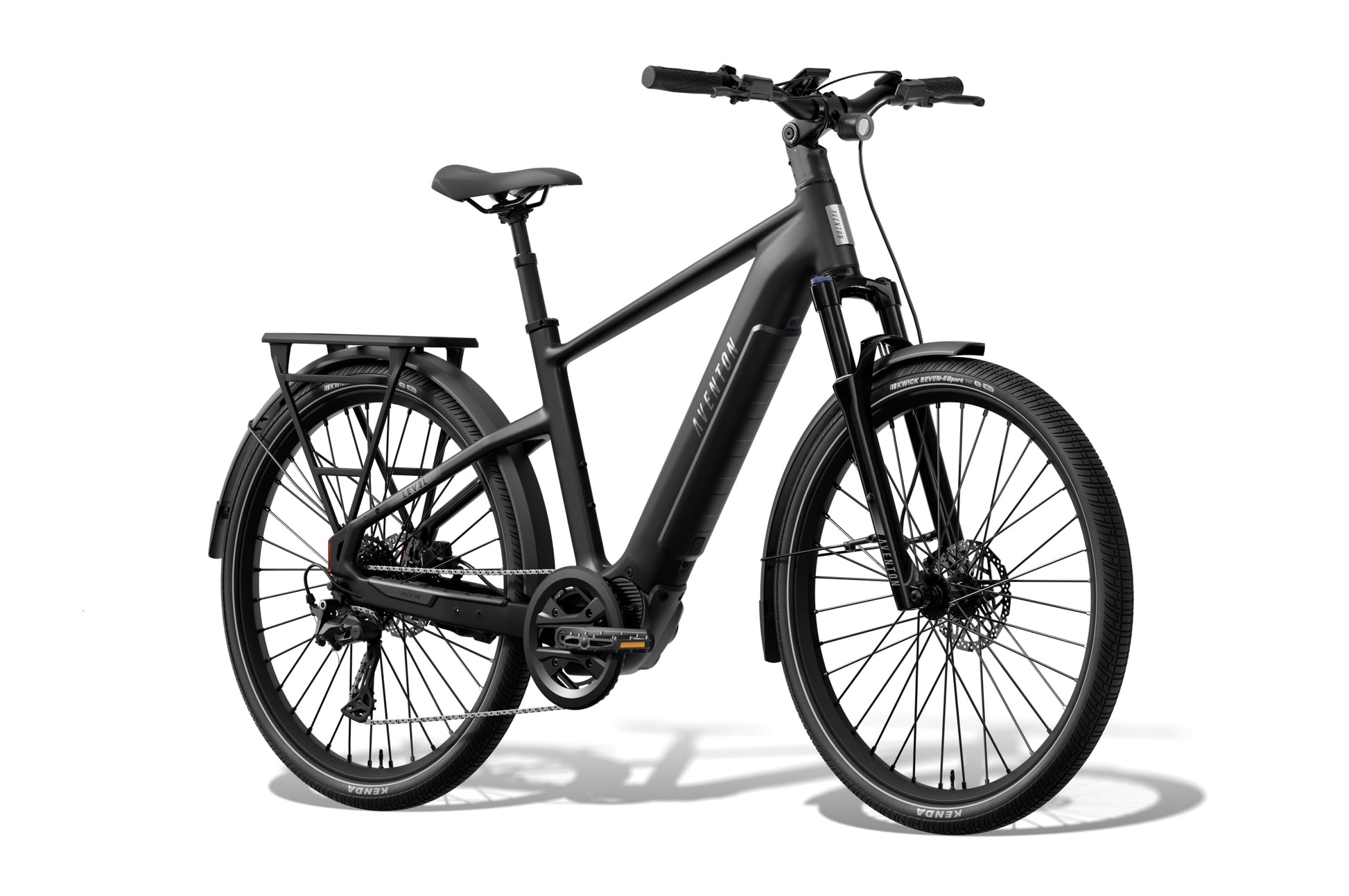

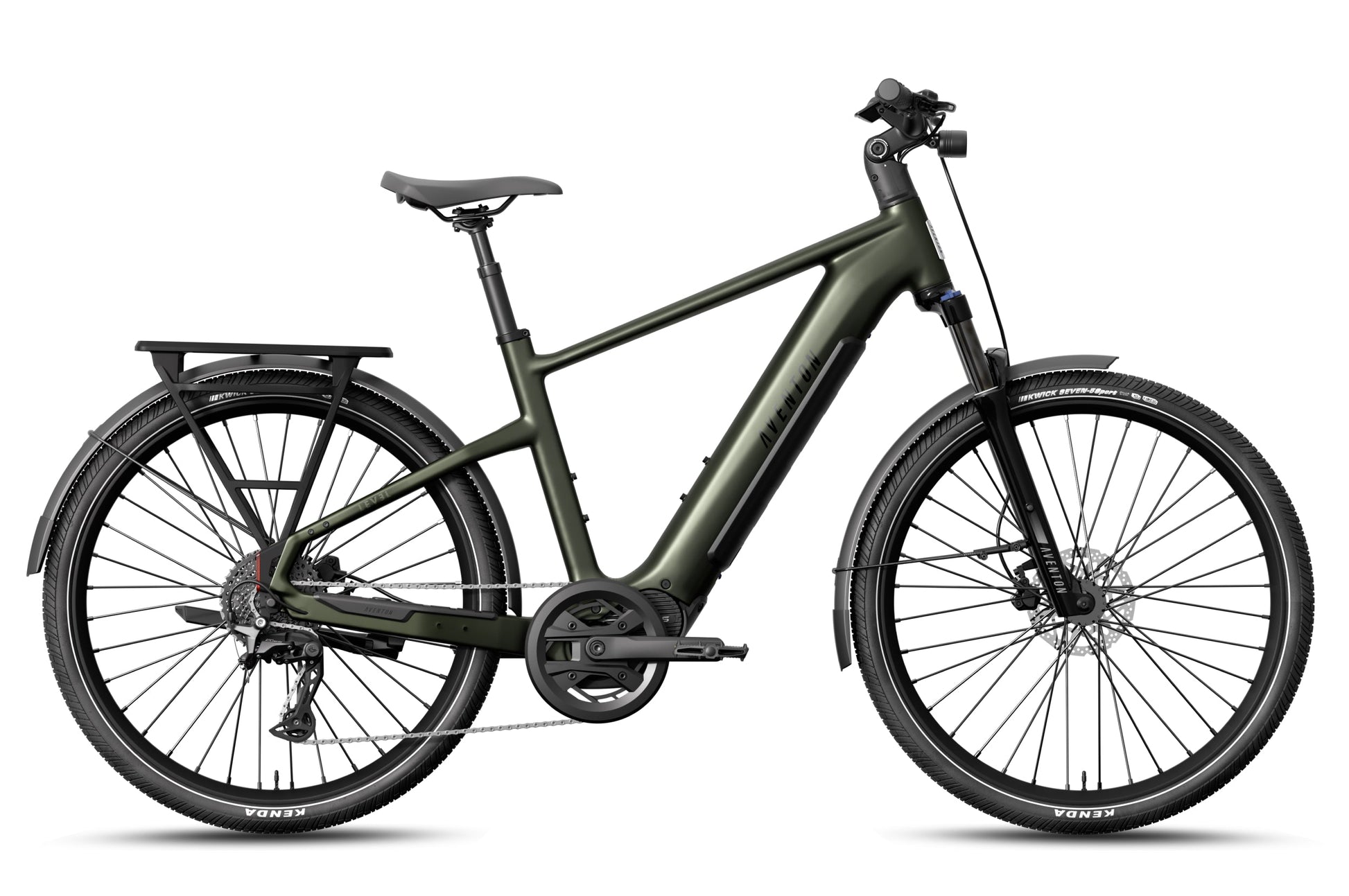

The Full Scoop on the Aventon Level 4 ADV

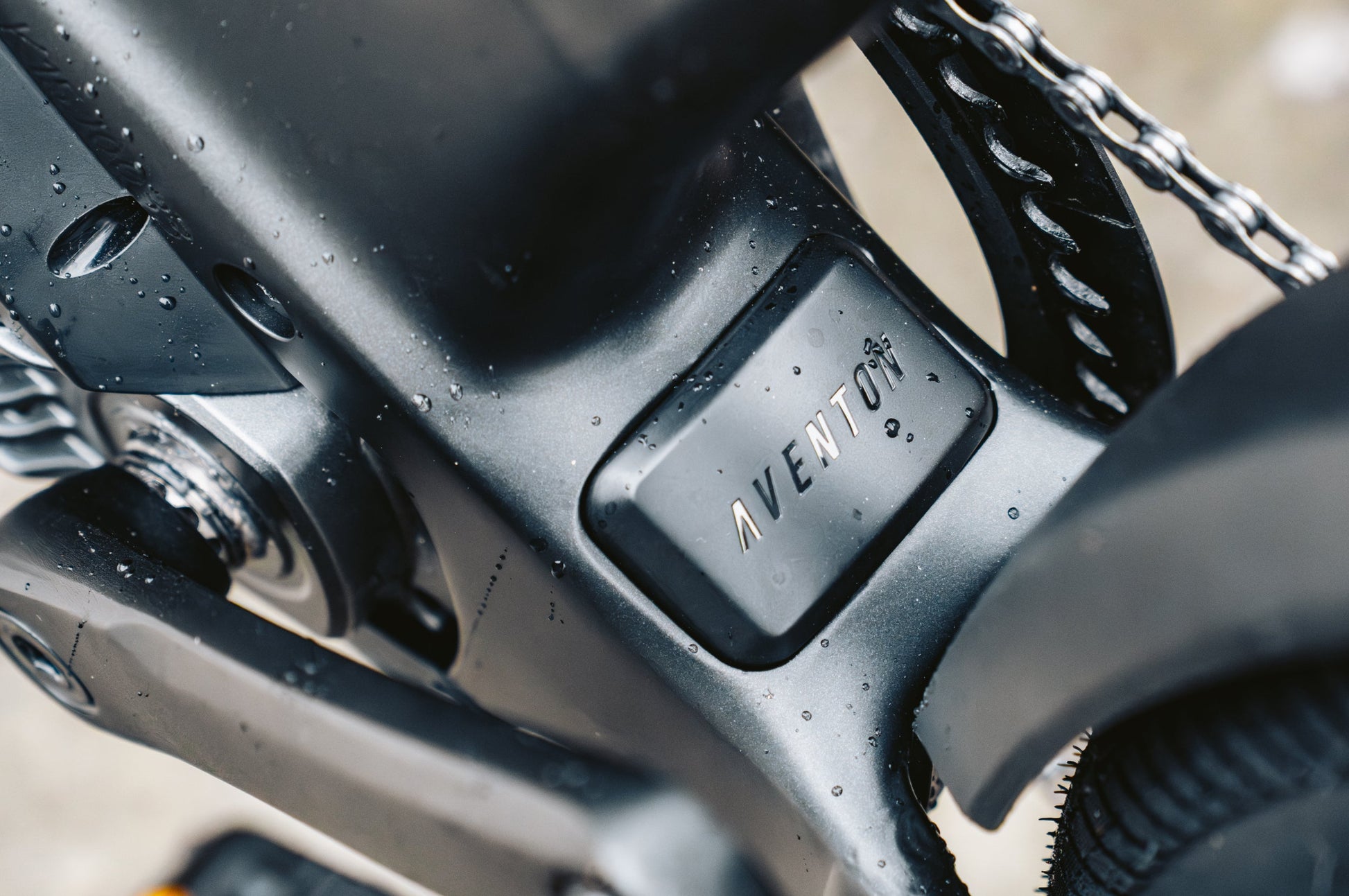

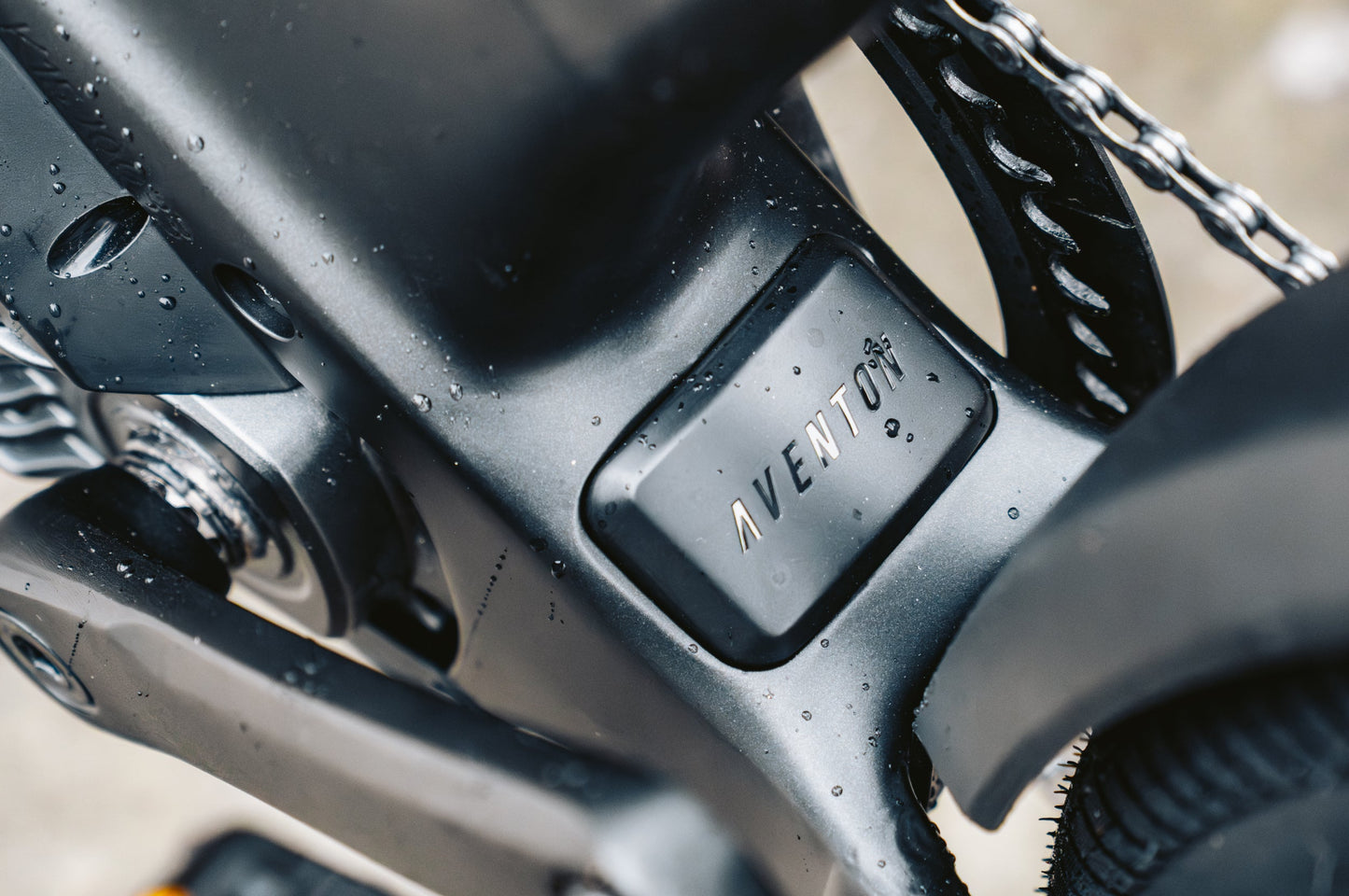

The Level 4 ADV elevates the commuting experience with mid-drive performance and refined control. Powered by Aventon's Ultro S motor delivering 100Nm of torque, paired with a Shimano CUES 10-speed drivetrain featuring E-Shifter and Autoshift technology for a natural pedaling feel and efficient power delivery across varied terrain.
With an 800Wh Samsung battery delivering up to 110 miles of range, 100mm front suspension, and a 50mm suspension seatpost, the ADV offers lightweight balance, responsive handling, and a premium feel for riders who prioritize performance and sophistication without complexity. 4G GPS tracking, geofencing, motion detection alarm, and remote disable keep your bike secure. UL 2849 & UL 2271 certified.
*Specs are subject to manufacturer changes without notice.

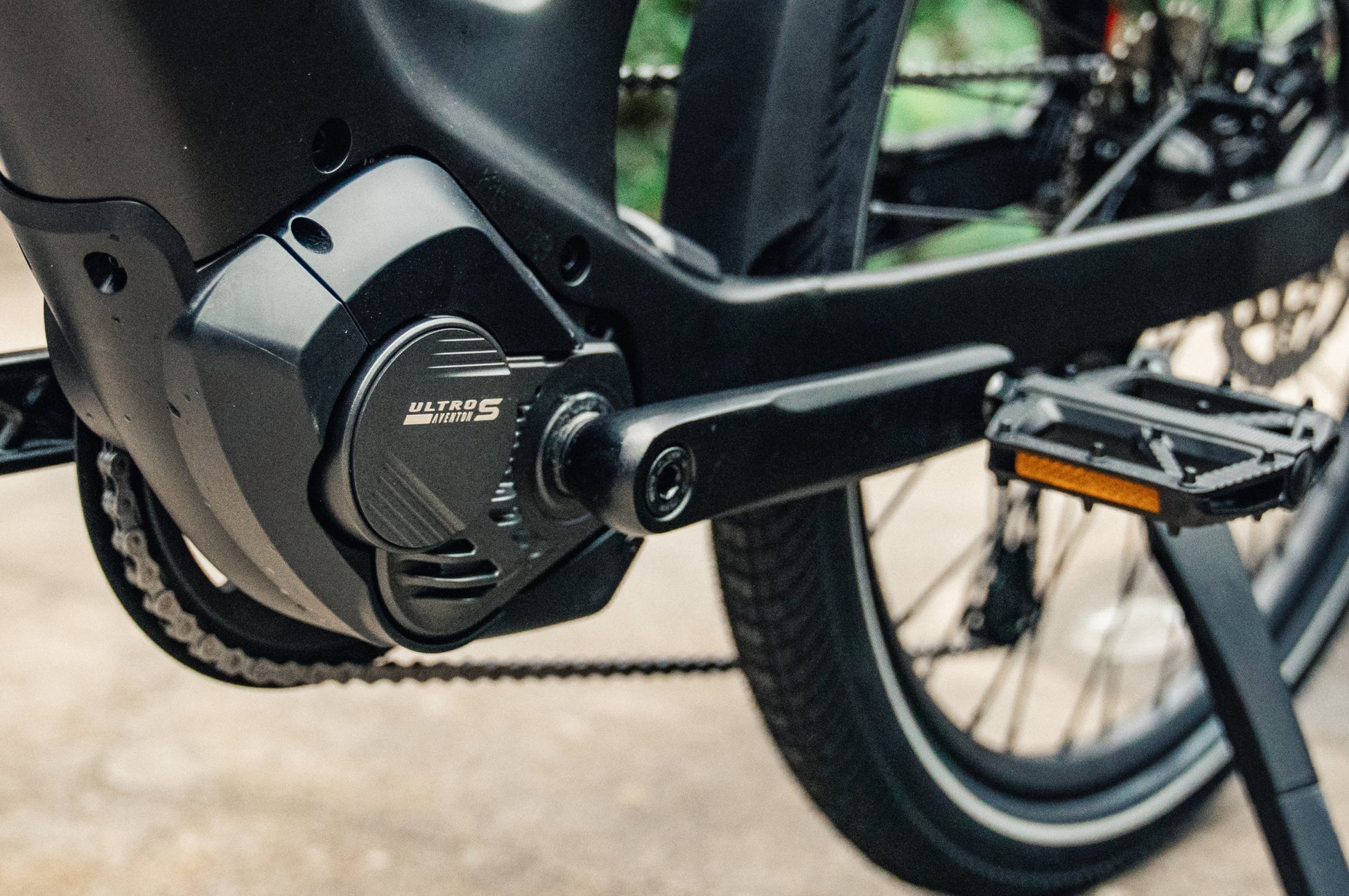

| Motor | Aventon Ultro S Mid-Drive, 250W nominal, 750W peak, 100Nm torque |
| Throttle | Not included (Class 1 pedal assist) |
| Battery | Removable Internal Lithium-ion. 36.4V, 22Ah, 800Wh, Samsung 21700 58E cells |
| Display | Aventon A280 customizable center display |
| Charger | 42V/4A (~5.5 hours to full) |
| Pedal Assist | 3 levels (Eco, Sport, Turbo) + Auto mode |
| Range | Up to 110 miles |
| Max Speed | 28 mph (Class 3) / 20 mph (Class 1) |
| Frame | 6061 Aluminum |
| Fork | 100mm travel suspension fork, 15x100mm thru-axle |
| Front Brake | Tektro HD-M3120 Hydraulic disc, 180mm 6-bolt rotor, 2-piston |
| Rear Brake | Tektro HD-M3120 Hydraulic disc, 180mm 6-bolt rotor, 2-piston |

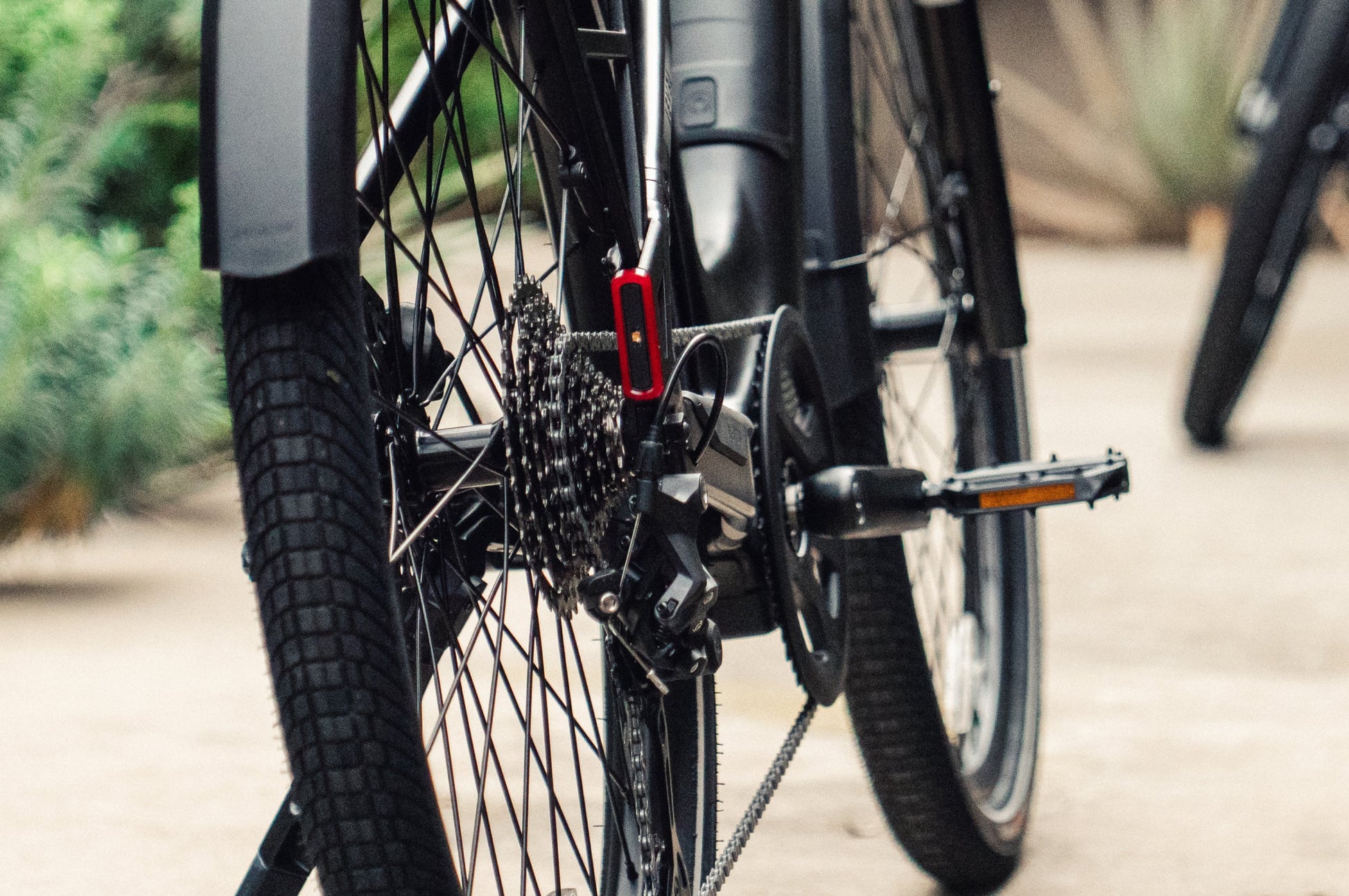

| Drivetrain | Shimano CUES 10-speed with Aventon E-Shifter and Autoshift |
| Cassette | 11-39T / 10 Speed |
| Chain Ring | 48T |
| Rims | 27.5" double wall Aluminum, 36 hole |
| Front Tire | Kenda K1052 Kwick Seven-5 27.5 x 2.20 |
| Rear Tire | Kenda K1052 Kwick Seven-5 27.5 x 2.20 |
| Handlebar | Aluminum 31.8mm, 680mm width, 30mm rise |
| Stem | Adjustable |
| Grips | Aventon Lock-on grips |
| Saddle | Aventon custom sport style |
| Seatpost | 50mm Aventon Suspension Seatpost |
| Pedals | 9/16" Composite Platform |
| Front Light | Integrated LED headlight |
| Rear Light | Integrated LED tail light with turn signals |
| Kickstand | Included |

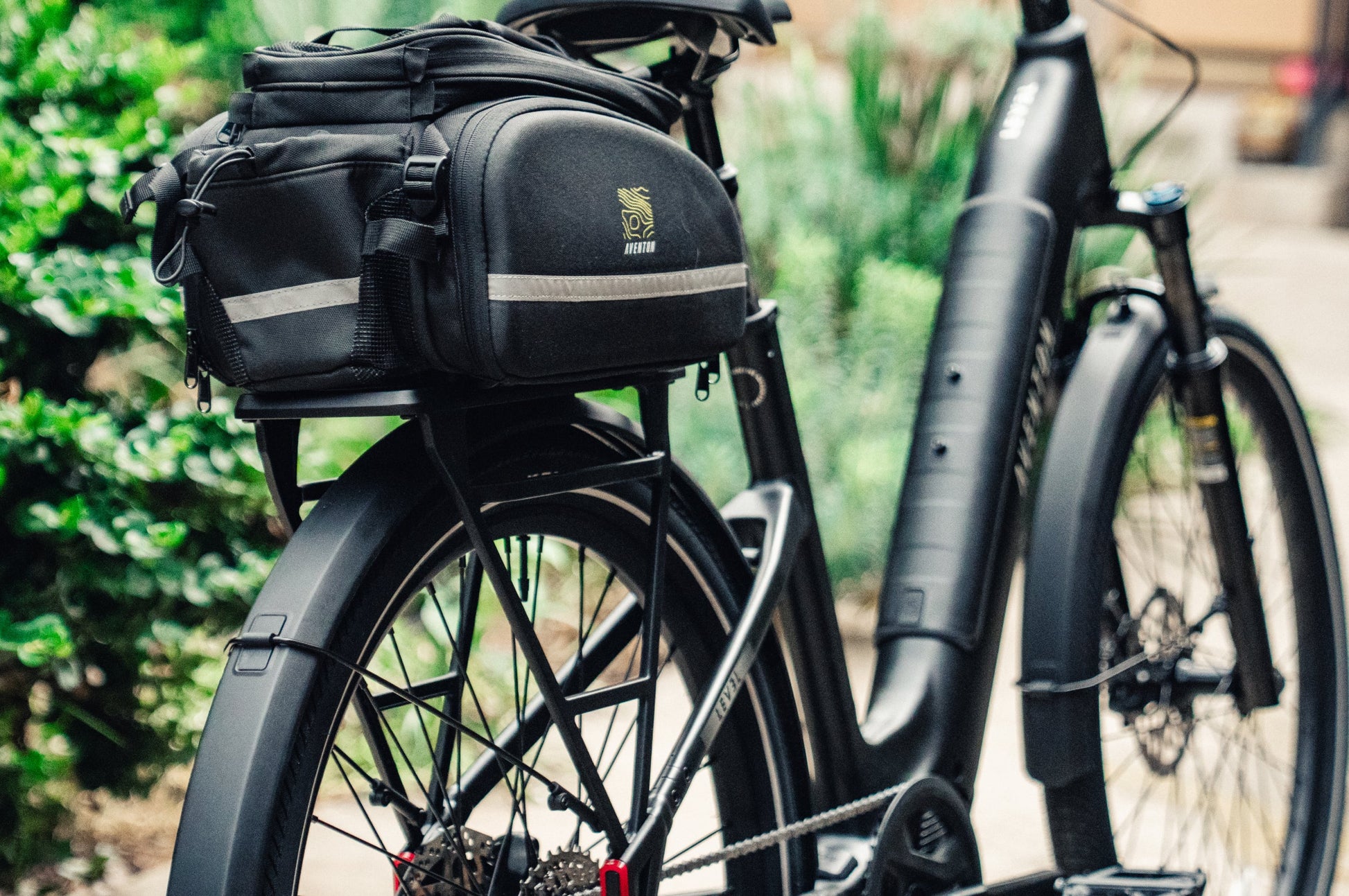

| Rear Carrier | Included (59 lb capacity) |
| Fenders | Full coverage front and rear |
| Connectivity | 4G GPS, Aventon App, OTA updates |
| Security | Remote disable, motion detection alarm, wheel/battery locks, geofencing, passcode startup |
| Certification | UL 2849 & UL 2271 |
The Full Scoop on the Aventon Level 4 ADV
The Level 4 ADV elevates the commuting experience with mid-drive performance and refined control. Powered by Aventon's Ultro S motor delivering 100Nm of torque, paired with a Shimano CUES 10-speed drivetrain featuring E-Shifter and Autoshift technology for a natural pedaling feel and efficient power delivery across varied terrain.
With an 800Wh Samsung battery delivering up to 110 miles of range, 100mm front suspension, and a 50mm suspension seatpost, the ADV offers lightweight balance, responsive handling, and a premium feel for riders who prioritize performance and sophistication without complexity. 4G GPS tracking, geofencing, motion detection alarm, and remote disable keep your bike secure. UL 2849 & UL 2271 certified.
*Specs are subject to manufacturer changes without notice.
Motor System
| Motor | Aventon Ultro S Mid-Drive, 250W nominal, 750W peak, 100Nm torque |
| Throttle | Not included (Class 1 pedal assist) |
| Battery | Removable Internal Lithium-ion. 36.4V, 22Ah, 800Wh, Samsung 21700 58E cells |
| Display | Aventon A280 customizable center display |
| Charger | 42V/4A (~5.5 hours to full) |
| Pedal Assist | 3 levels (Eco, Sport, Turbo) + Auto mode |
| Range | Up to 110 miles |
| Max Speed | 28 mph (Class 3) / 20 mph (Class 1) |
Components
| Frame | 6061 Aluminum |
| Fork | 100mm travel suspension fork, 15x100mm thru-axle |
| Front Brake | Tektro HD-M3120 Hydraulic disc, 180mm 6-bolt rotor, 2-piston |
| Rear Brake | Tektro HD-M3120 Hydraulic disc, 180mm 6-bolt rotor, 2-piston |
| Drivetrain | Shimano CUES 10-speed with Aventon E-Shifter and Autoshift |
| Cassette | 11-39T / 10 Speed |
| Chain Ring | 48T |
| Rims | 27.5" double wall Aluminum, 36 hole |
| Front Tire | Kenda K1052 Kwick Seven-5 27.5 x 2.20 |
| Rear Tire | Kenda K1052 Kwick Seven-5 27.5 x 2.20 |
| Handlebar | Aluminum 31.8mm, 680mm width, 30mm rise |
| Stem | Adjustable |
| Grips | Aventon Lock-on grips |
| Saddle | Aventon custom sport style |
| Seatpost | 50mm Aventon Suspension Seatpost |
Extras
| Pedals | 9/16" Composite Platform |
| Front Light | Integrated LED headlight |
| Rear Light | Integrated LED tail light with turn signals |
| Kickstand | Included |
| Rear Carrier | Included (59 lb capacity) |
| Fenders | Full coverage front and rear |
| Connectivity | 4G GPS, Aventon App, OTA updates |
| Security | Remote disable, motion detection alarm, wheel/battery locks, geofencing, passcode startup |
| Certification | UL 2849 & UL 2271 |
