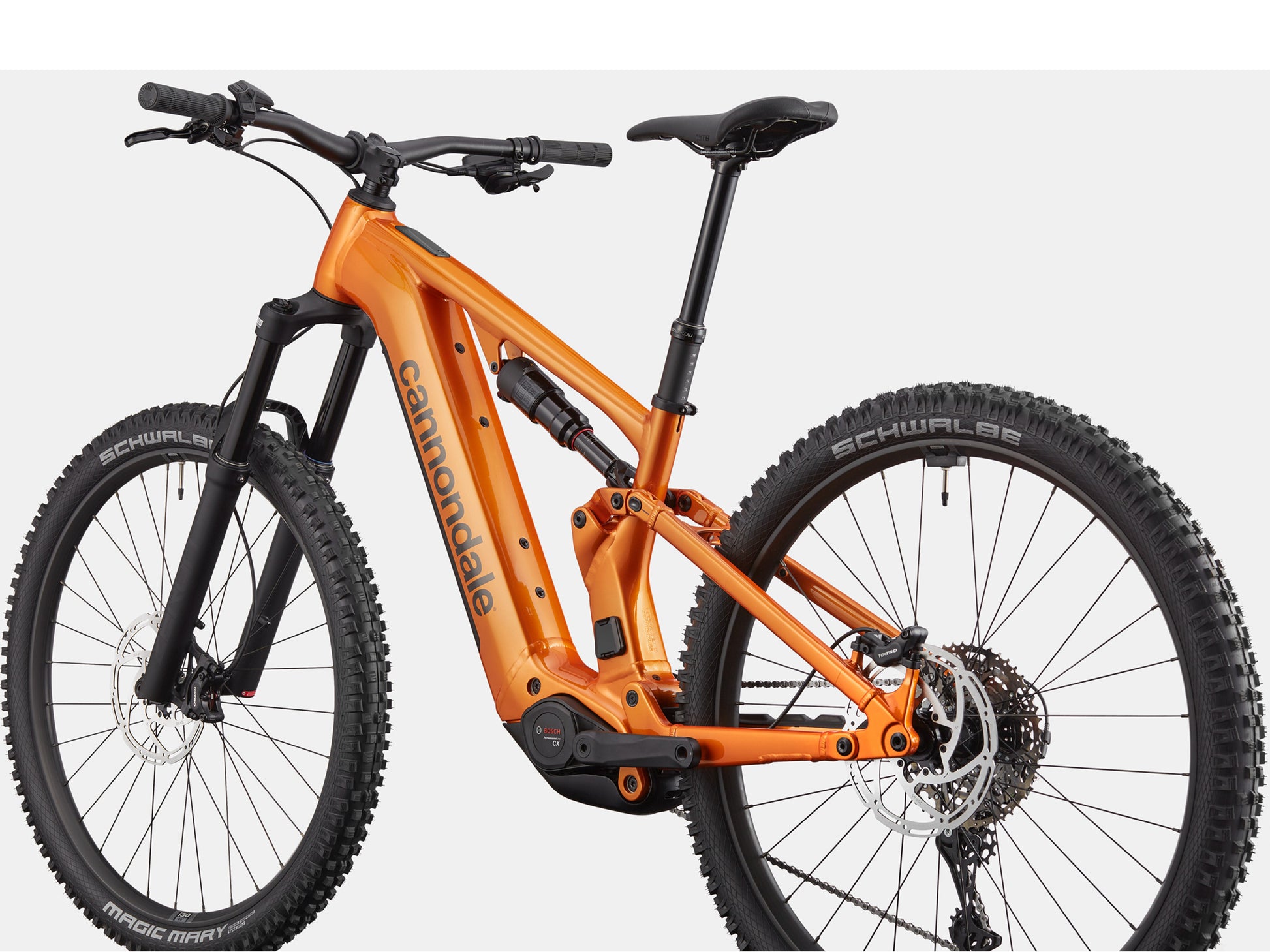

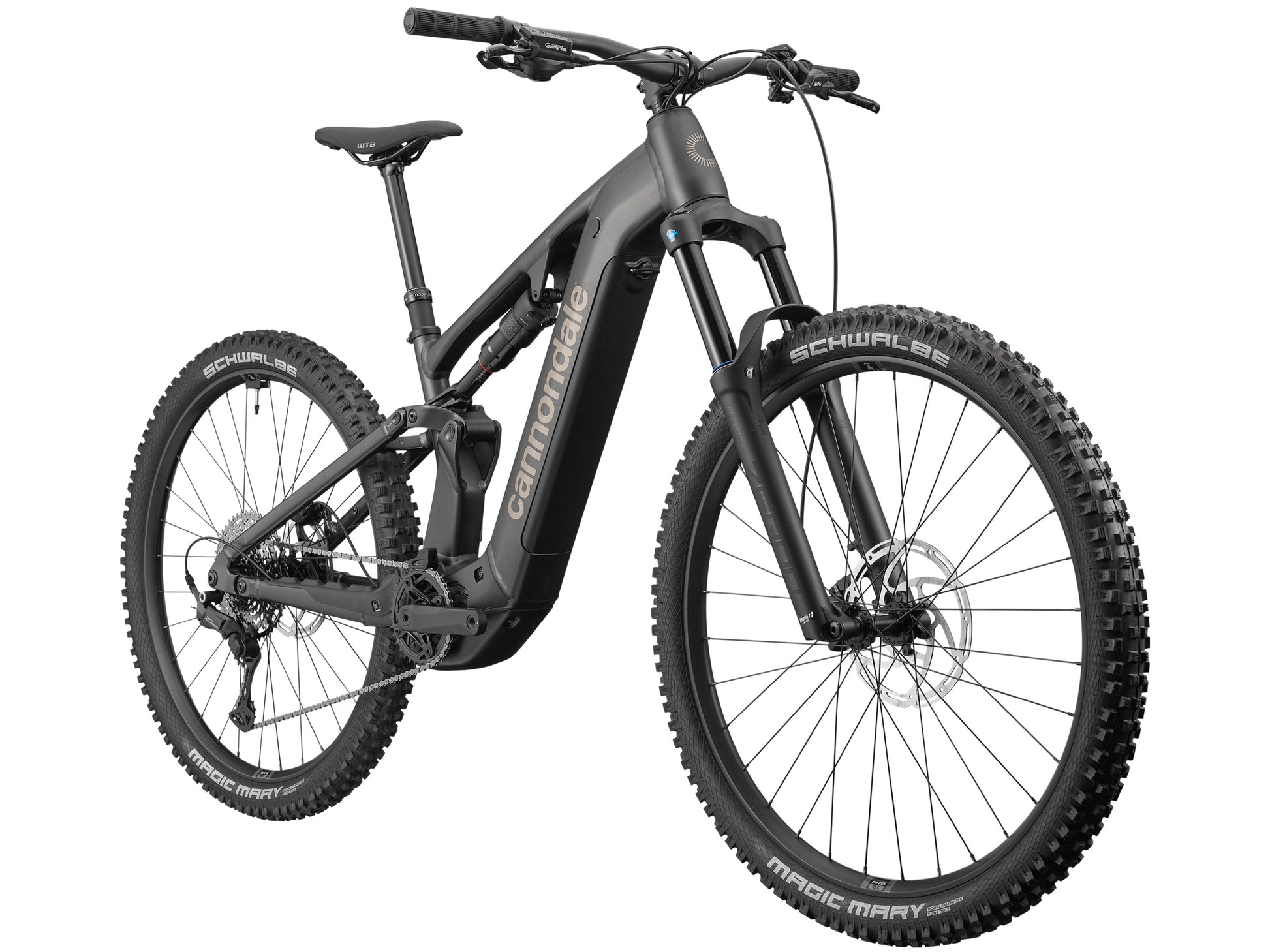

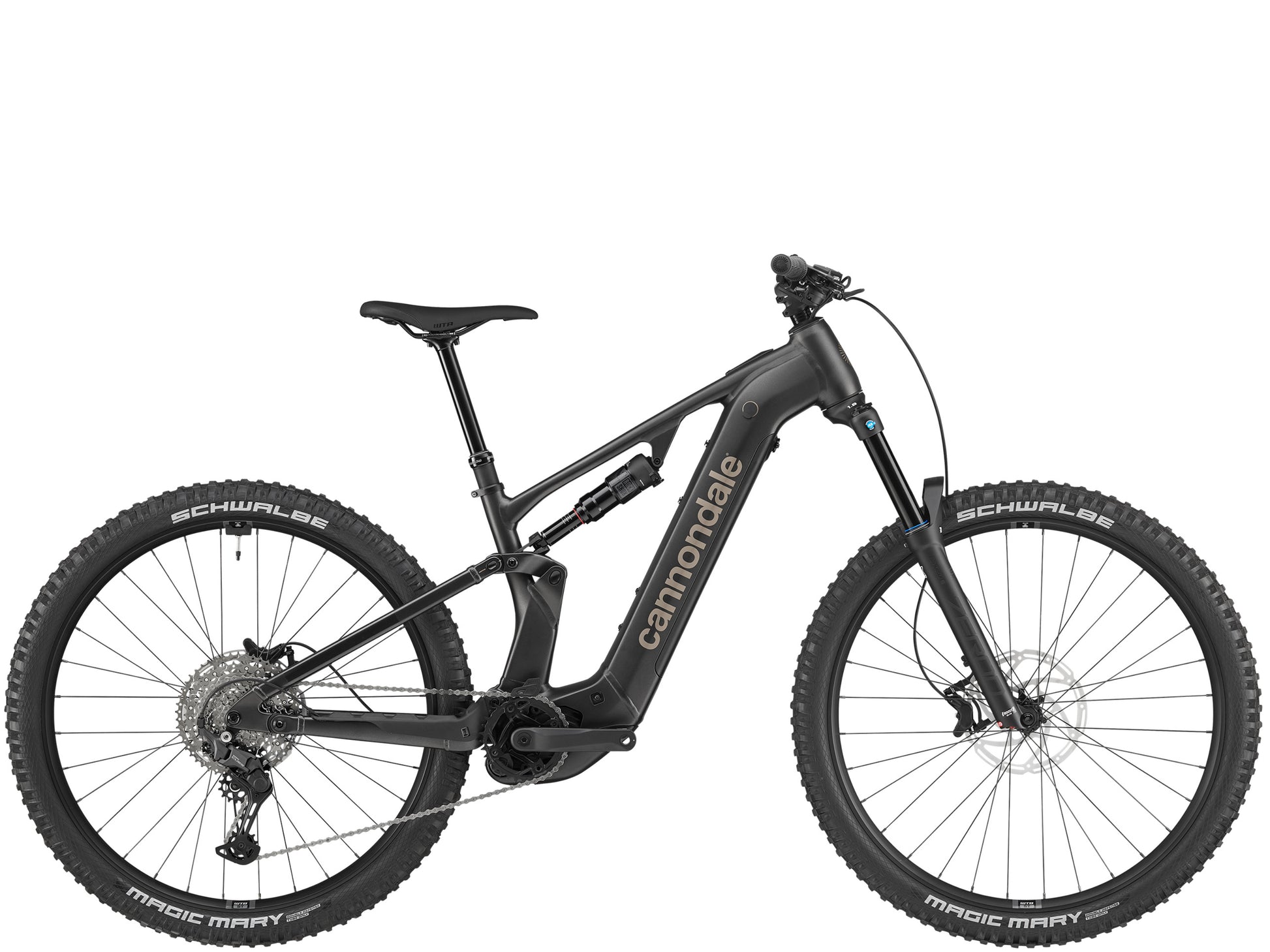

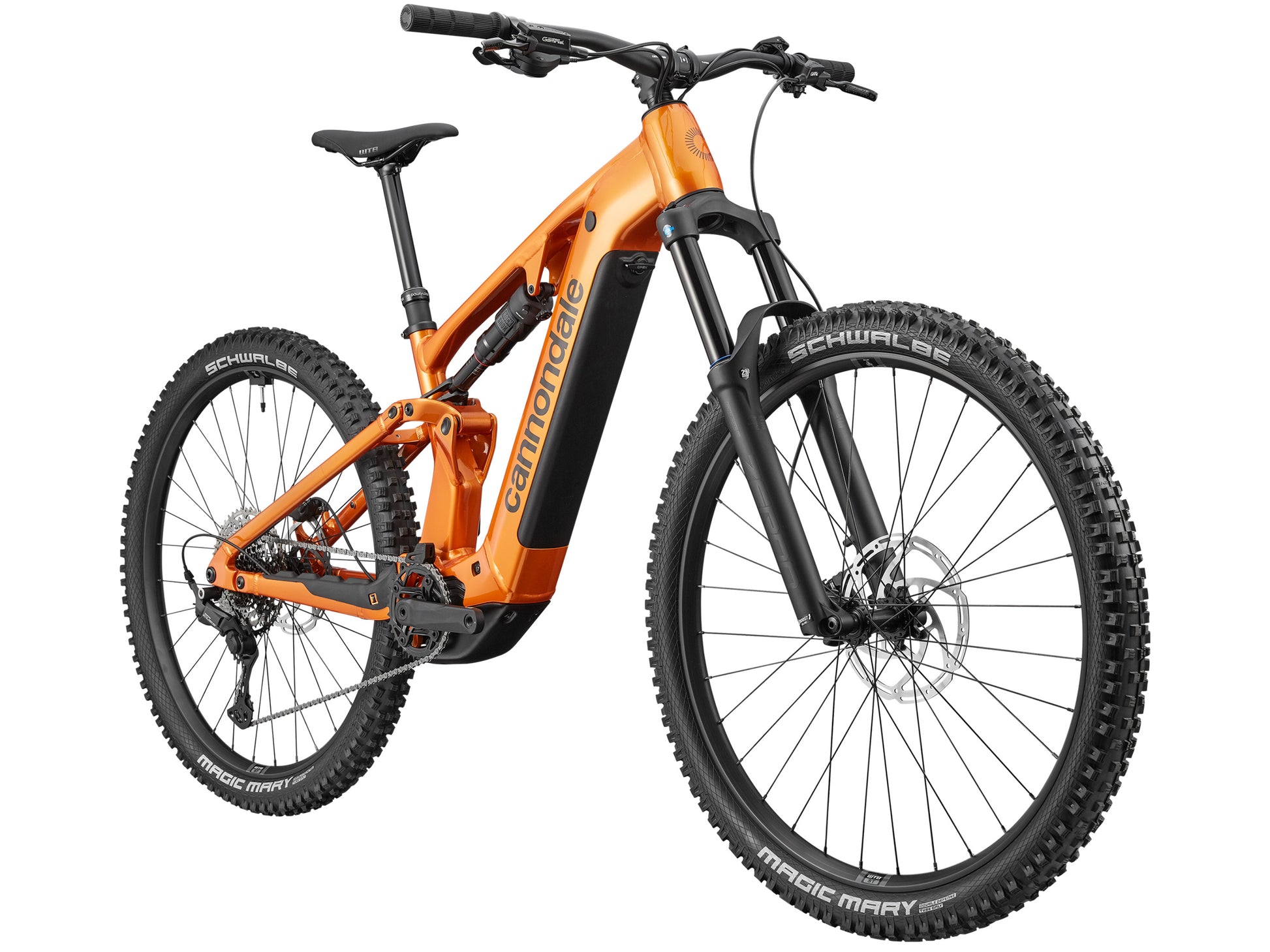

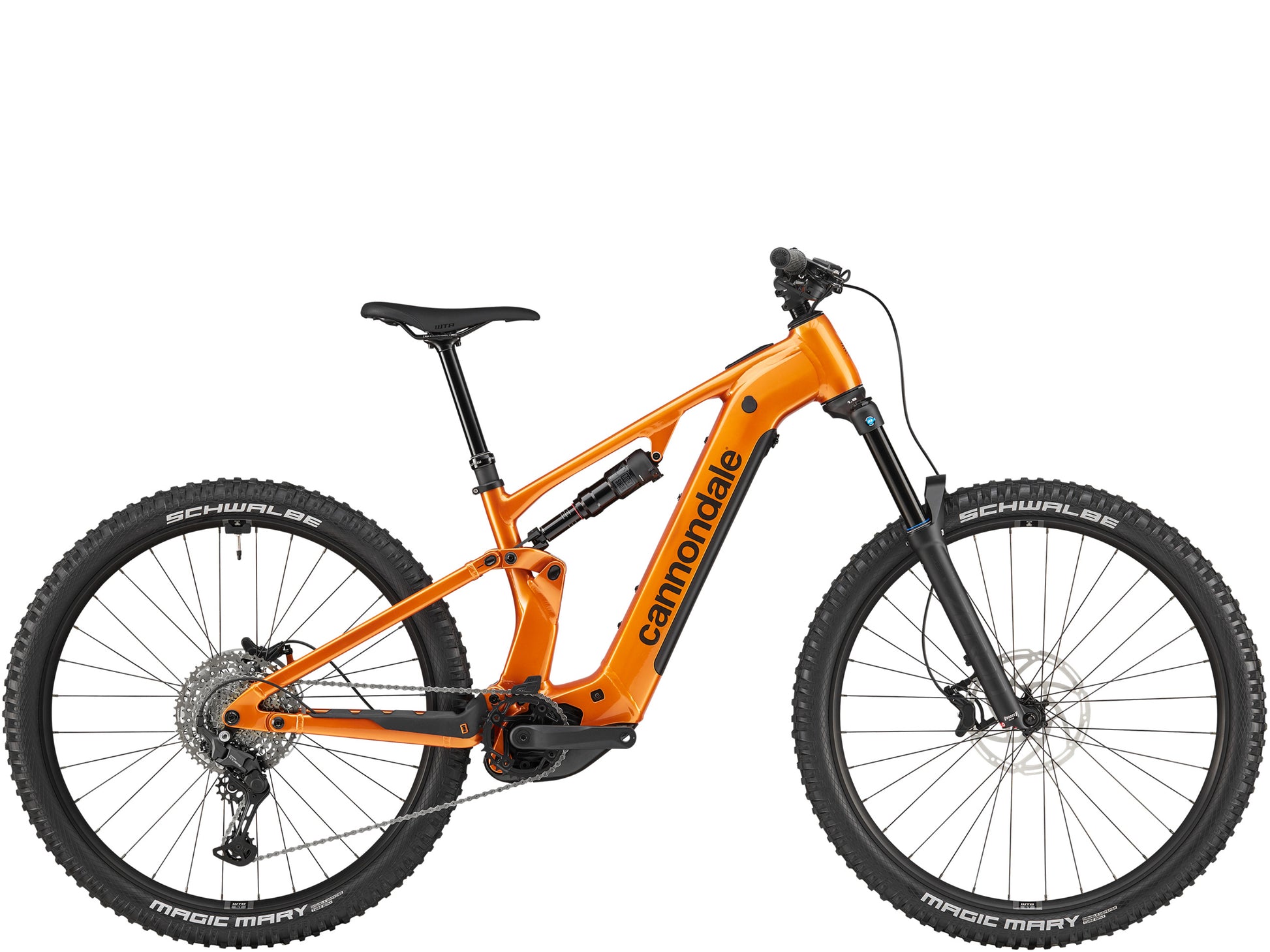

Cannondale Moterra 4
Cannondale Moterra 4
Regular price
$5,499.00
Sale price
$5,499.00
Regular price
$0.00
Unit price
per
Shipping calculated at checkout.
The Full Scoop on the Cannondale Moterra 4
The Moterra dual-suspension eMoutain bikes is built to demolish any boundaries of terrain, distance or time. Incredible agilty and handling, dialed suspenion and the latest drive systems allow you to ride further, faster and better than ever on the Moterra.

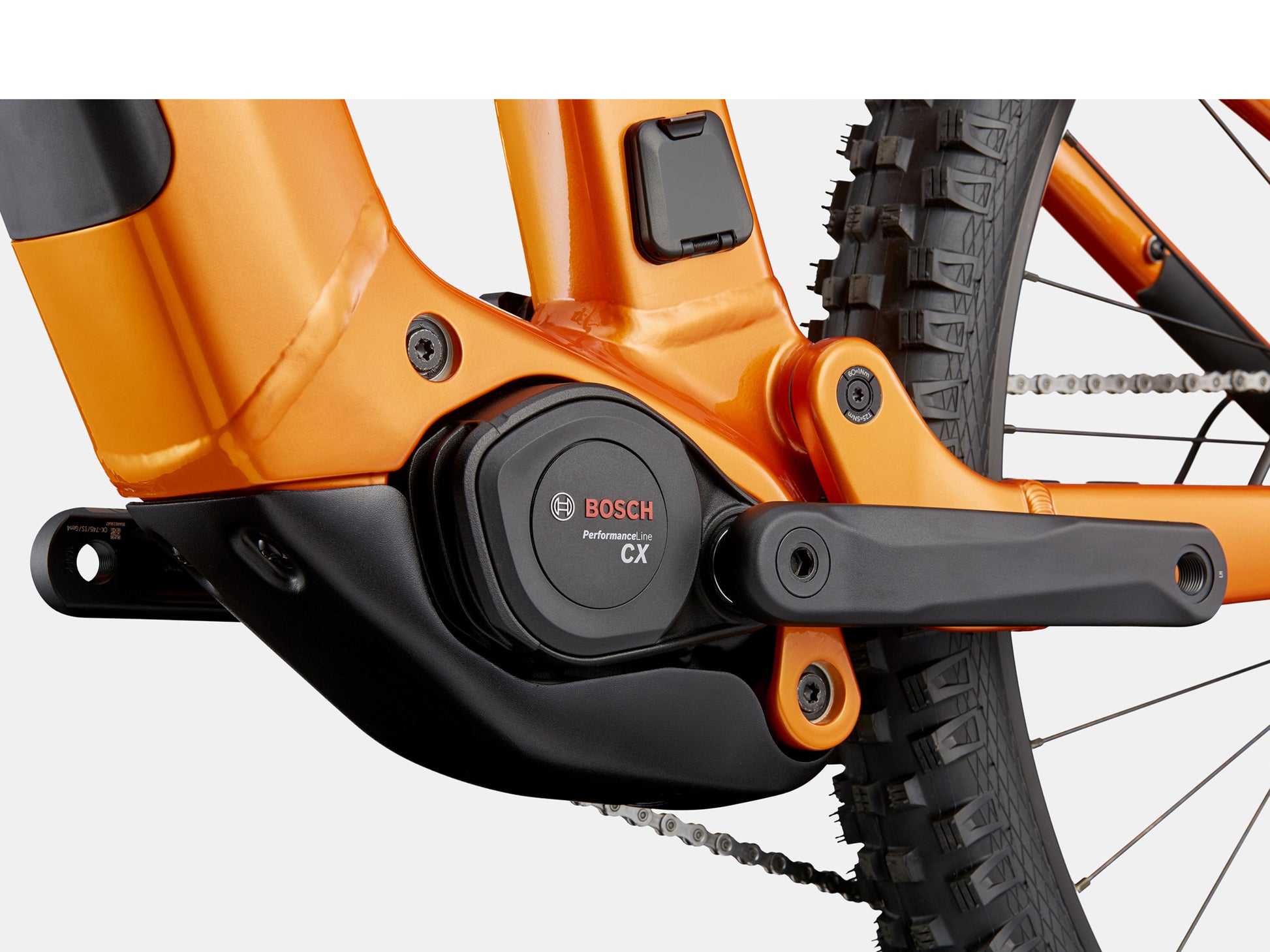

| Motor | Bosch Performance Line CX |
| Battery | Bosch PowerTube, 600Wh |
| Display | Bosch LED Remote |
| Charger | Bosch 4A |
| Frame | Moterra, SmartForm C1 Alloy, 29" wheels, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH, 200mm native post mount brake, 1.5 1.8 tapered headtube, 40mm two-bolt kickstand compatible, integrated Moterra rear rack and fender mounts |
| Fork | SR Suntour Zeron 36-X Boost, 160mmm, EQ Air, compression & rebound adjust, 15x110mm thru-axle, tapered steerer, 44mm offset |
| Rear Shock | RockShox Deluxe Select, DebonAir+, adjustable rebound, 230x62.5mm |
| Front Brake | Tektro M535 4-piston hydraulic disc, 203mm rotors |
| Rear Brake | Tektro M535 4-piston hydraulic disc, 203mm rotors |
| Rear Derailleur | Shimano CUES U6000, LinkGlide |
| Shift Levers | Shimano CUES U6000, 11-speed, LinkGlide |
| Chain | Shimano LG500, LinkGlide, 11-speed |
| Cassette | Shimano CUES LG400, LinkGlide, 11-50, 11-speed |
| Crankset | FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T |
| Chain Ring | Spec not provided |
| Chain Guard | Spec not provided |
| Rims | WTB ST i30 TCS, 30mm inner width, 32h, tubeless ready |
| Front Hub | Shimano TC500, 15x110mm thru-axle |
| Rear Hub | Shimano TC500, 12x148mm thru-axle, centerlock |
| Front Tire | Schwalbe Magic Mary |
| Rear Tire | Schwalbe Magic Mary |

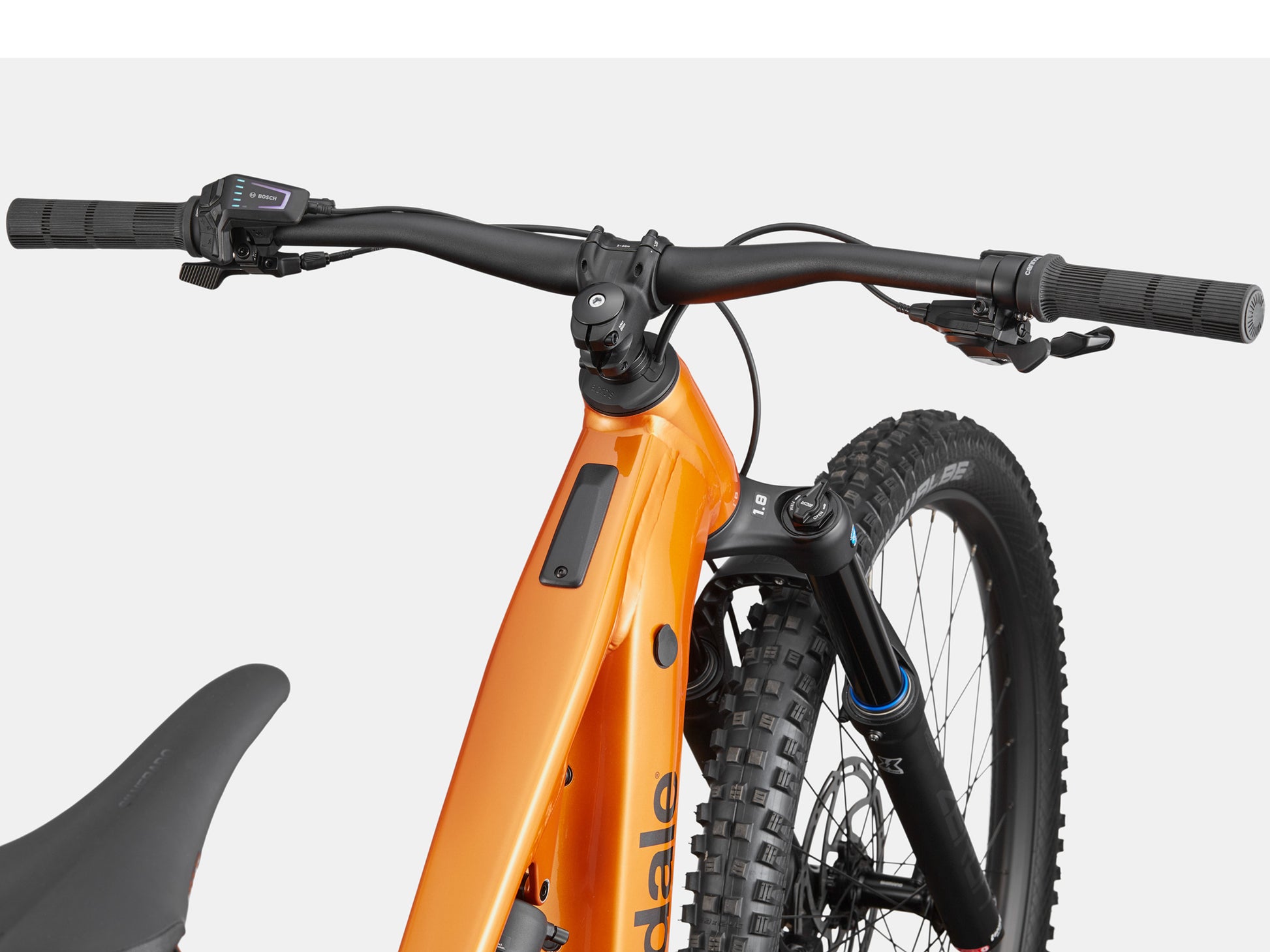

| Handlebar | Cannondale 3 riser, 6061 Alloy, 25mm rise, 8° sweep, 4° rise, 800mm |
| Stem | Cannondale 1, 6061 Alloy, 35.0, 40mm, 0° |
| Headset | Acros ICR, 1.5" to 1.8", sealed bearings |
| Grips | Cannondale TaperRidge |
| Saddle | WTB Silverado Medium |
| Seatpost | Cannondale DownLow Dropper, internal routing, 34.9, 150mm (S), 170mm (M), 200mm (L), 230mm (XL) |
| Pedals | Not applicable |
| Front Light | Not applicable |
| Rear Light | Not applicable |
| Kickstand | Not applicable |
| Rear Carrier | Not applicable |
| Fenders | Not applicable |
| Bell | Not applicable |
| Lock | Not applicable |
| Mirror | Not applicable |
The Full Scoop on the Cannondale Moterra 4
The Moterra dual-suspension eMoutain bikes is built to demolish any boundaries of terrain, distance or time. Incredible agilty and handling, dialed suspenion and the latest drive systems allow you to ride further, faster and better than ever on the Moterra.
Motor System
| Motor | Bosch Performance Line CX |
| Battery | Bosch PowerTube, 600Wh |
| Display | Bosch LED Remote |
| Charger | Bosch 4A |
Components
| Frame | Moterra, SmartForm C1 Alloy, 29" wheels, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH, 200mm native post mount brake, 1.5 1.8 tapered headtube, 40mm two-bolt kickstand compatible, integrated Moterra rear rack and fender mounts |
| Fork | SR Suntour Zeron 36-X Boost, 160mmm, EQ Air, compression & rebound adjust, 15x110mm thru-axle, tapered steerer, 44mm offset |
| Rear Shock | RockShox Deluxe Select, DebonAir+, adjustable rebound, 230x62.5mm |
| Front Brake | Tektro M535 4-piston hydraulic disc, 203mm rotors |
| Rear Brake | Tektro M535 4-piston hydraulic disc, 203mm rotors |
| Rear Derailleur | Shimano CUES U6000, LinkGlide |
| Shift Levers | Shimano CUES U6000, 11-speed, LinkGlide |
| Chain | Shimano LG500, LinkGlide, 11-speed |
| Cassette | Shimano CUES LG400, LinkGlide, 11-50, 11-speed |
| Crankset | FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T |
| Chain Ring | Spec not provided |
| Chain Guard | Spec not provided |
| Rims | WTB ST i30 TCS, 30mm inner width, 32h, tubeless ready |
| Front Hub | Shimano TC500, 15x110mm thru-axle |
| Rear Hub | Shimano TC500, 12x148mm thru-axle, centerlock |
| Front Tire | Schwalbe Magic Mary |
| Rear Tire | Schwalbe Magic Mary |
| Handlebar | Cannondale 3 riser, 6061 Alloy, 25mm rise, 8° sweep, 4° rise, 800mm |
| Stem | Cannondale 1, 6061 Alloy, 35.0, 40mm, 0° |
| Headset | Acros ICR, 1.5" to 1.8", sealed bearings |
| Grips | Cannondale TaperRidge |
| Saddle | WTB Silverado Medium |
| Seatpost | Cannondale DownLow Dropper, internal routing, 34.9, 150mm (S), 170mm (M), 200mm (L), 230mm (XL) |
Extras
| Pedals | Not applicable |
| Front Light | Not applicable |
| Rear Light | Not applicable |
| Kickstand | Not applicable |
| Rear Carrier | Not applicable |
| Fenders | Not applicable |
| Bell | Not applicable |
| Lock | Not applicable |
| Mirror | Not applicable |

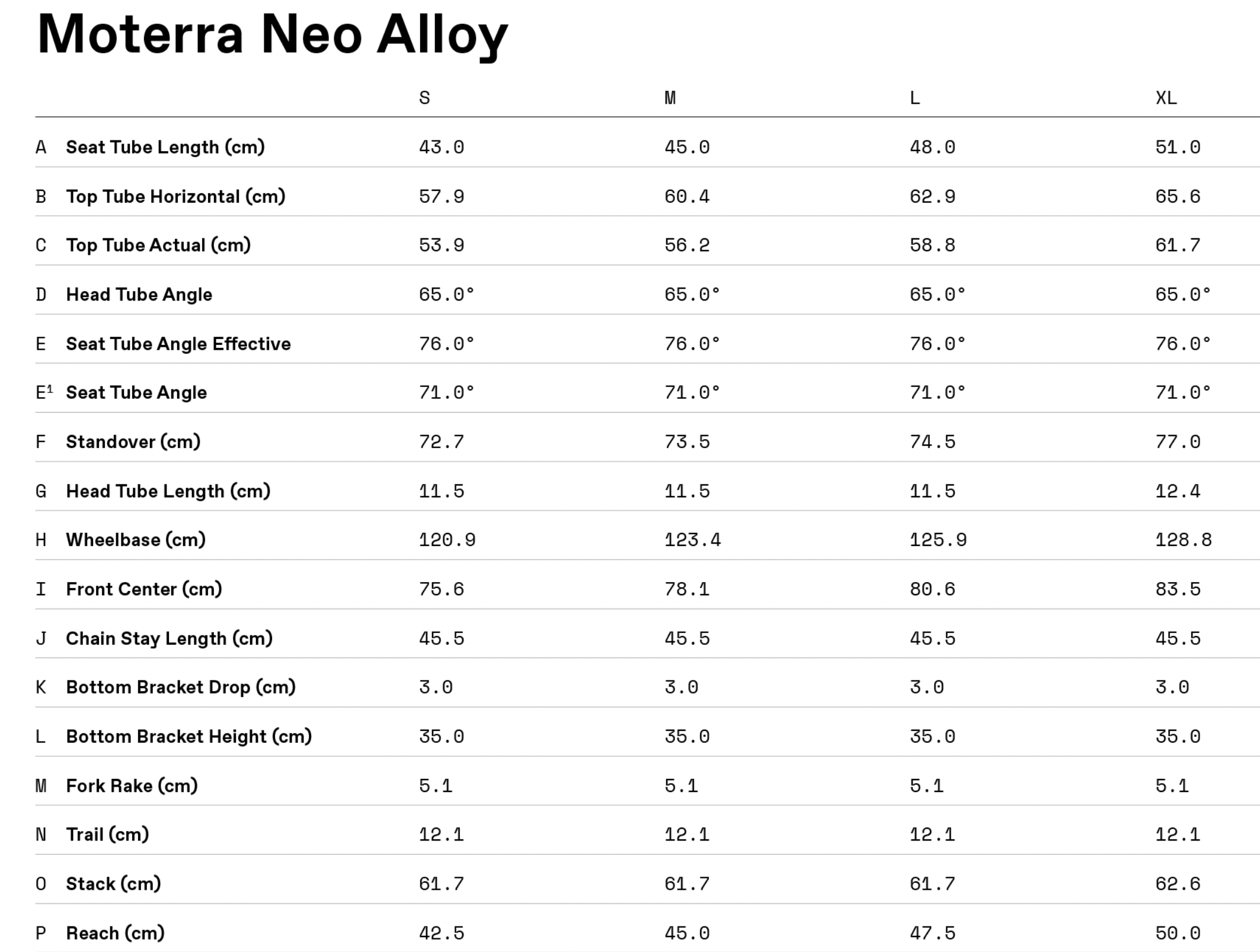

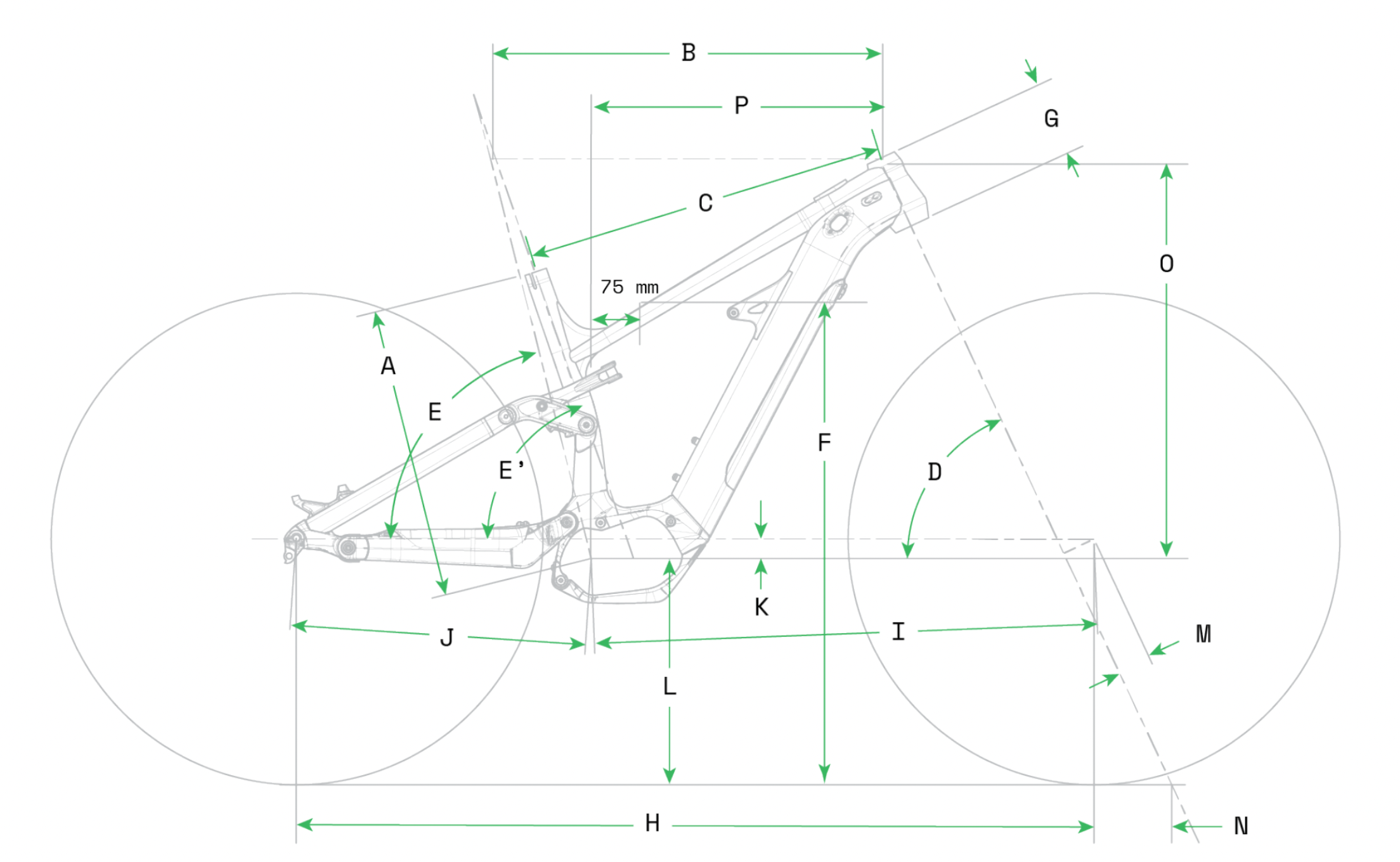

Geometry
