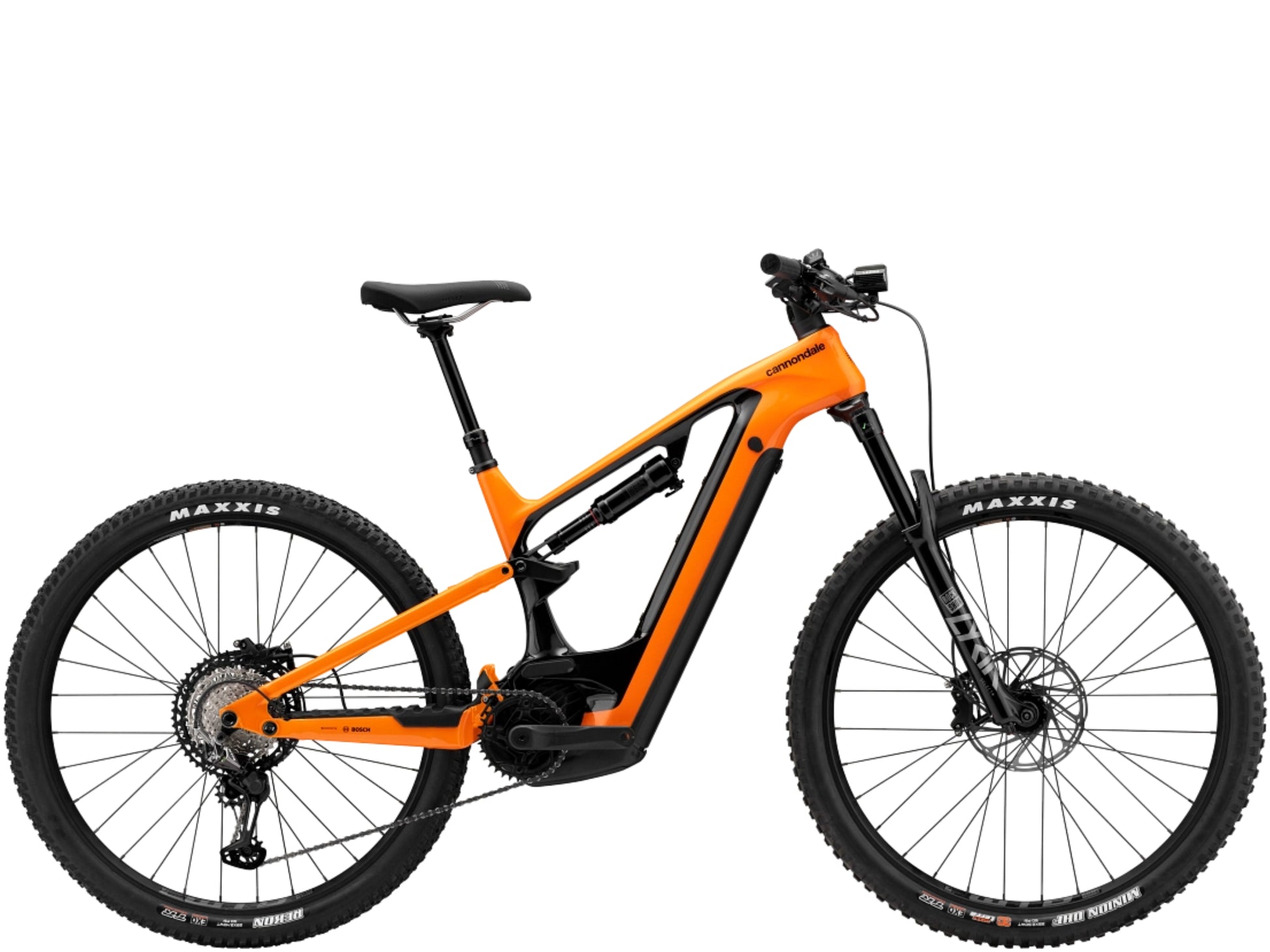

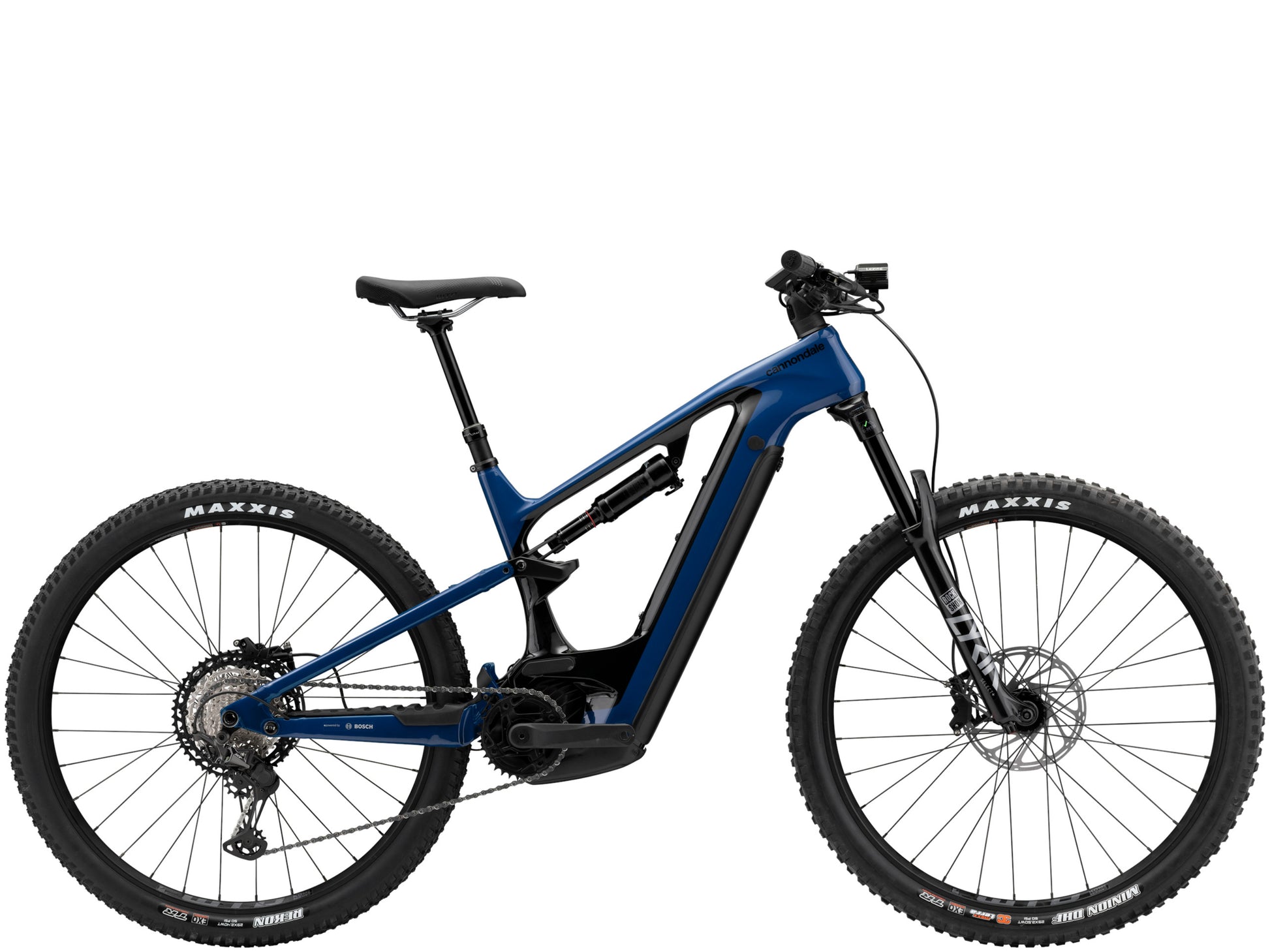

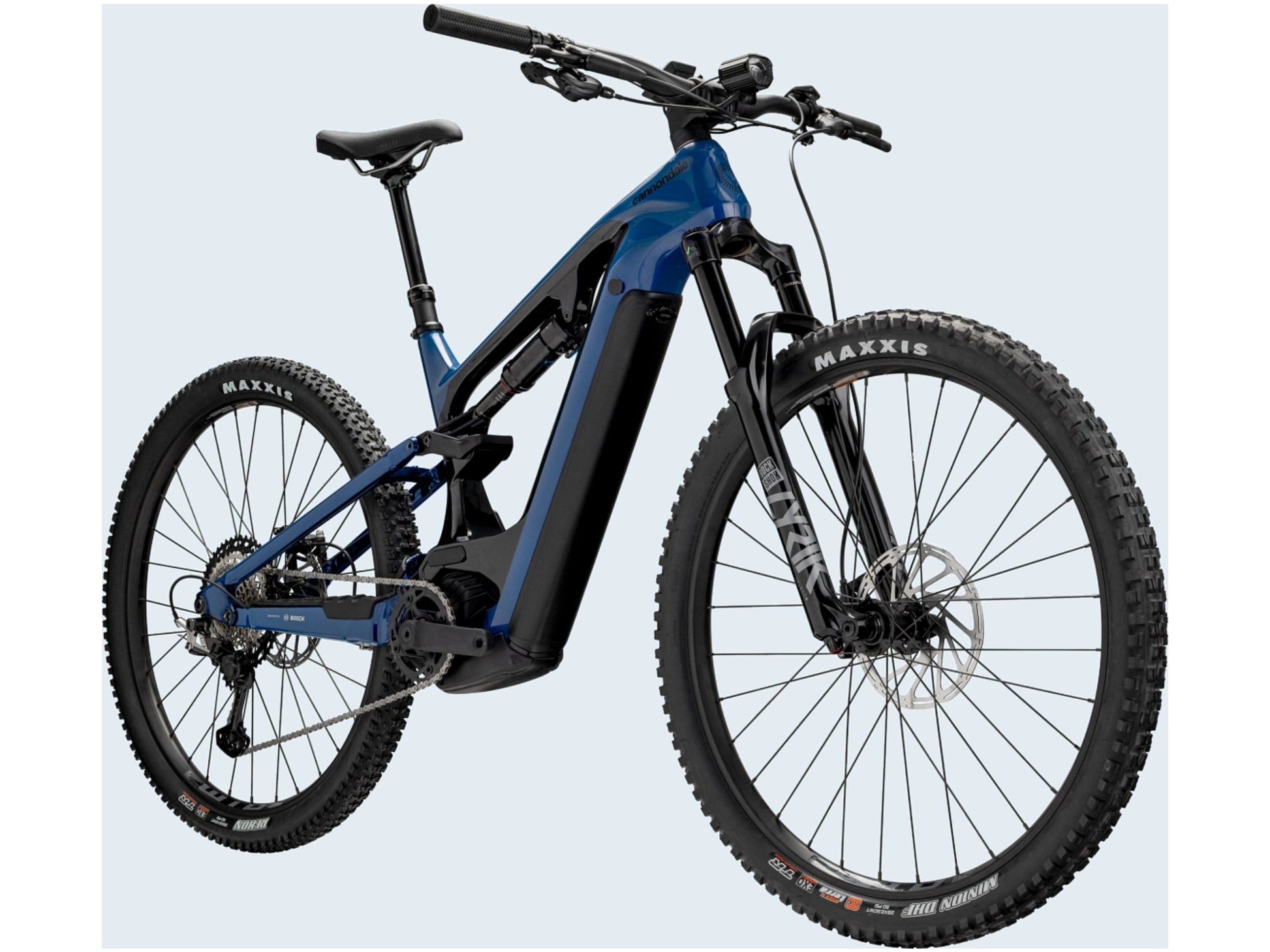

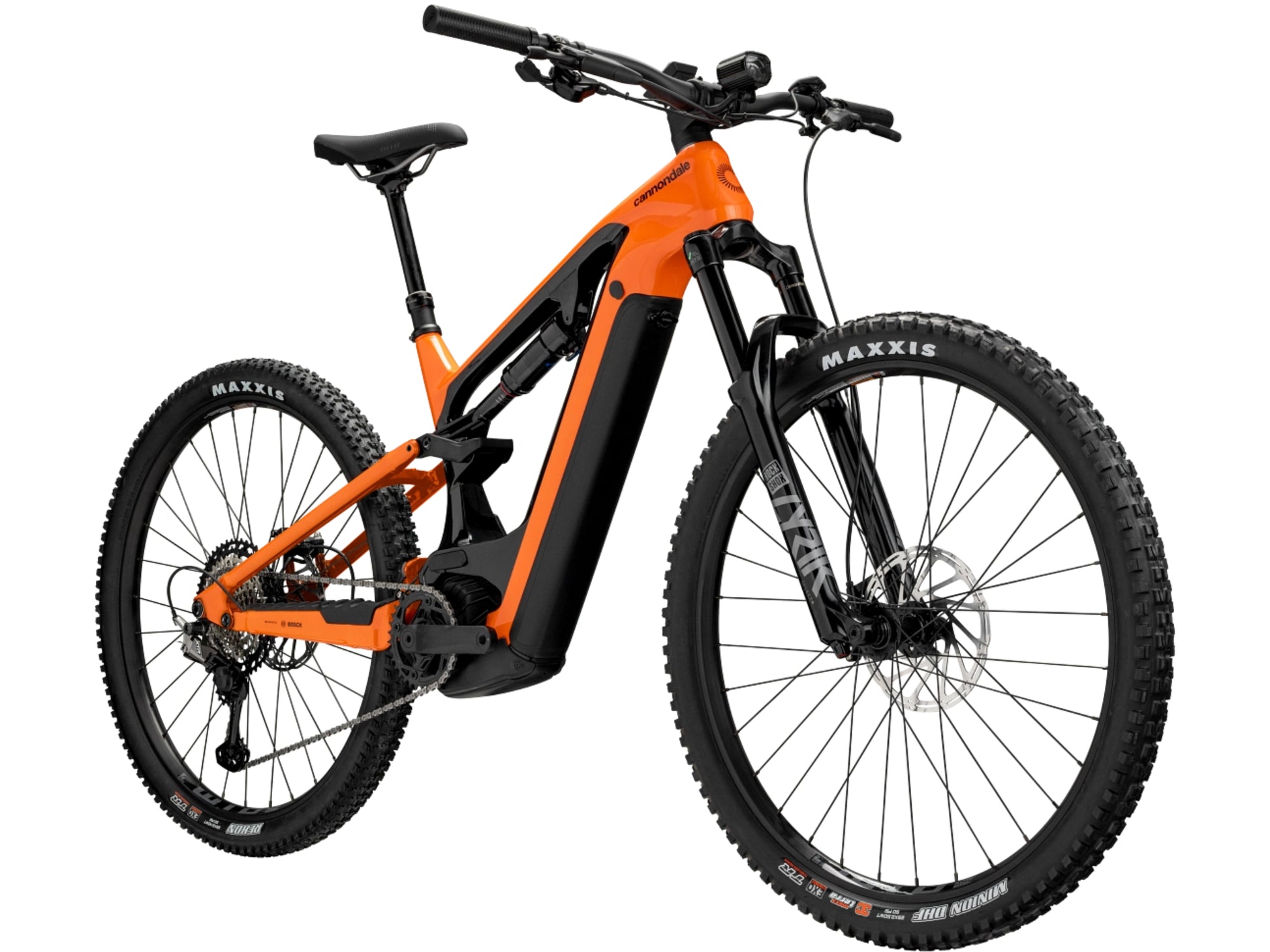

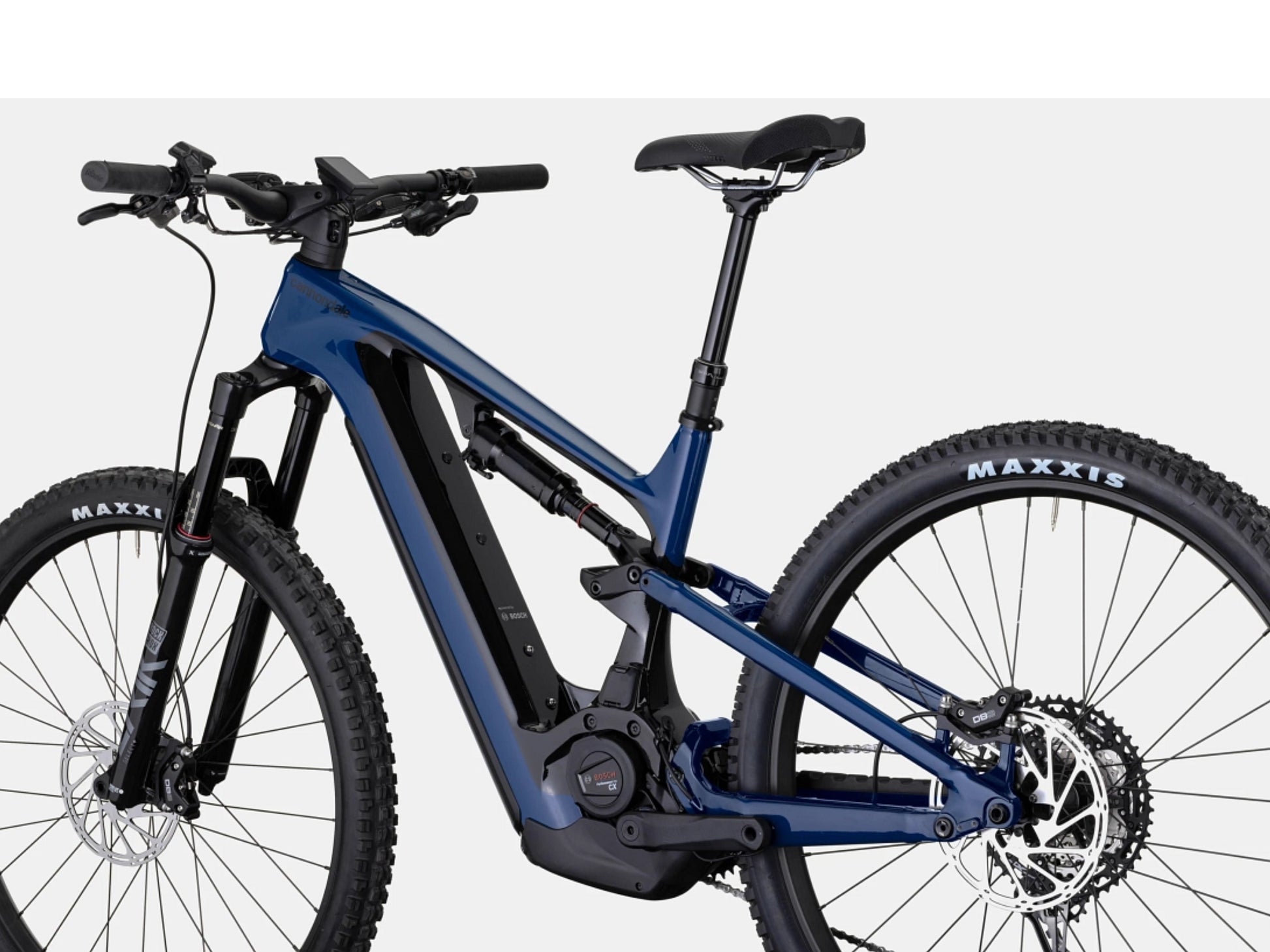

Cannondale Moterra Carbon 1
Cannondale Moterra Carbon 1
Regular price
$6,450.00
Sale price
$6,450.00
Regular price
$8,600.00
Unit price
per
Shipping calculated at checkout.
The Full Scoop on the Cannondale Moterra Carbon 1
The Moterra dual-suspension eMoutain bikes is built to demolish any boundaries of terrain, distance or time. Incredible agilty and handling, dialed suspenion and the latest drive systems allow you to ride further, faster and better than ever on the Moterra.
*Components subject to change without notice
| Motor | Bosch Performance Line CX 250W |
| Battery | Bosch PowerTube, 750Wh / UL 2849 |

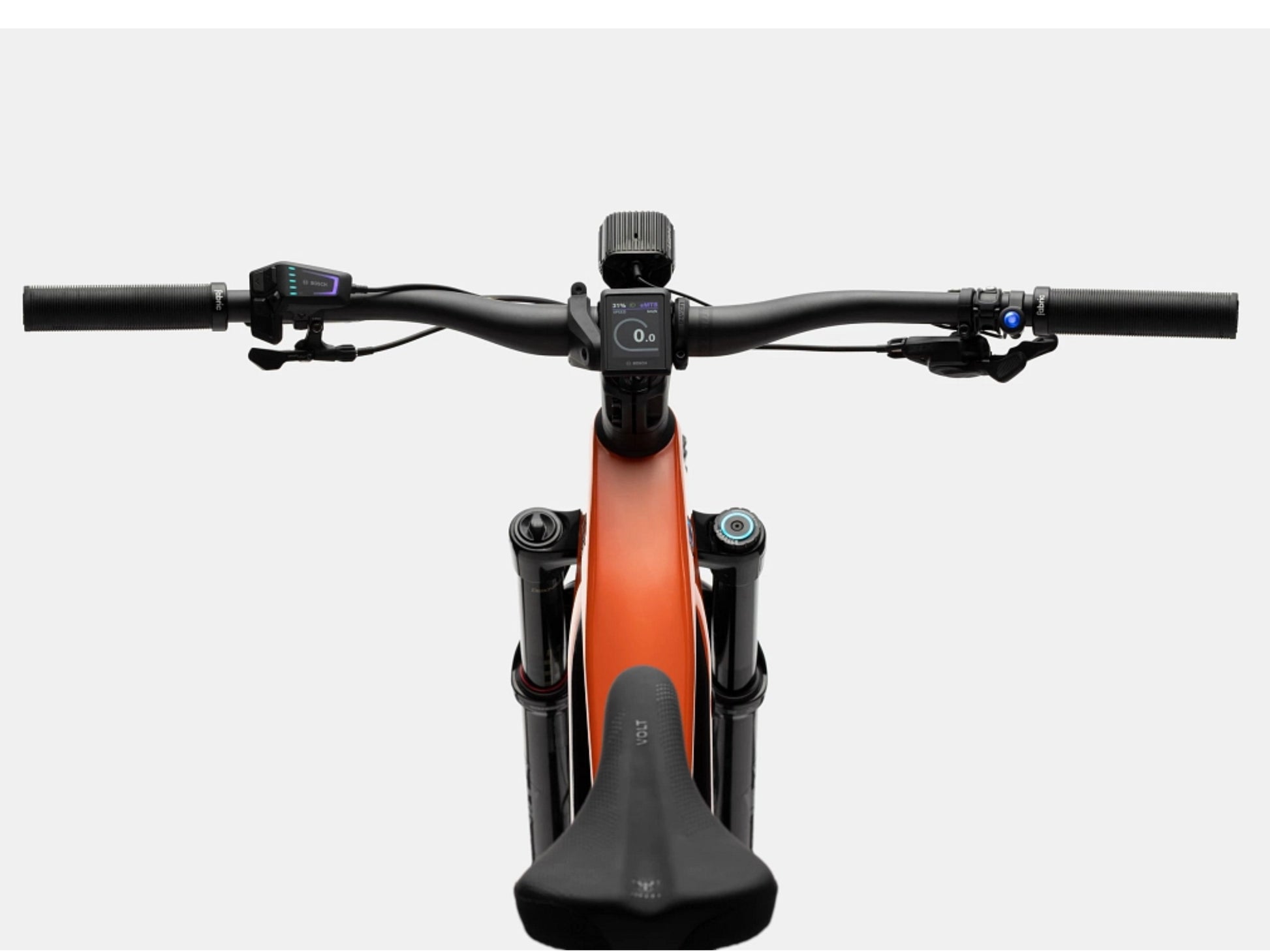

| Display | Bosch Kiox 300 w/ LED remote |
| Charger | Bosch 4A |
| Frame | Moterra Carbon Front Triangle, SmartForm C1 Alloy Swingarm, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH hanger, post mount brake, 1.5” – 1.8” tapered headtube, 18mm two-bolt kickstand mount |
| Fork | RockShox Lyrik Select+, 150mm, DebonAir, 15x110mm thru-axle, tapered steered, 44mm offset |

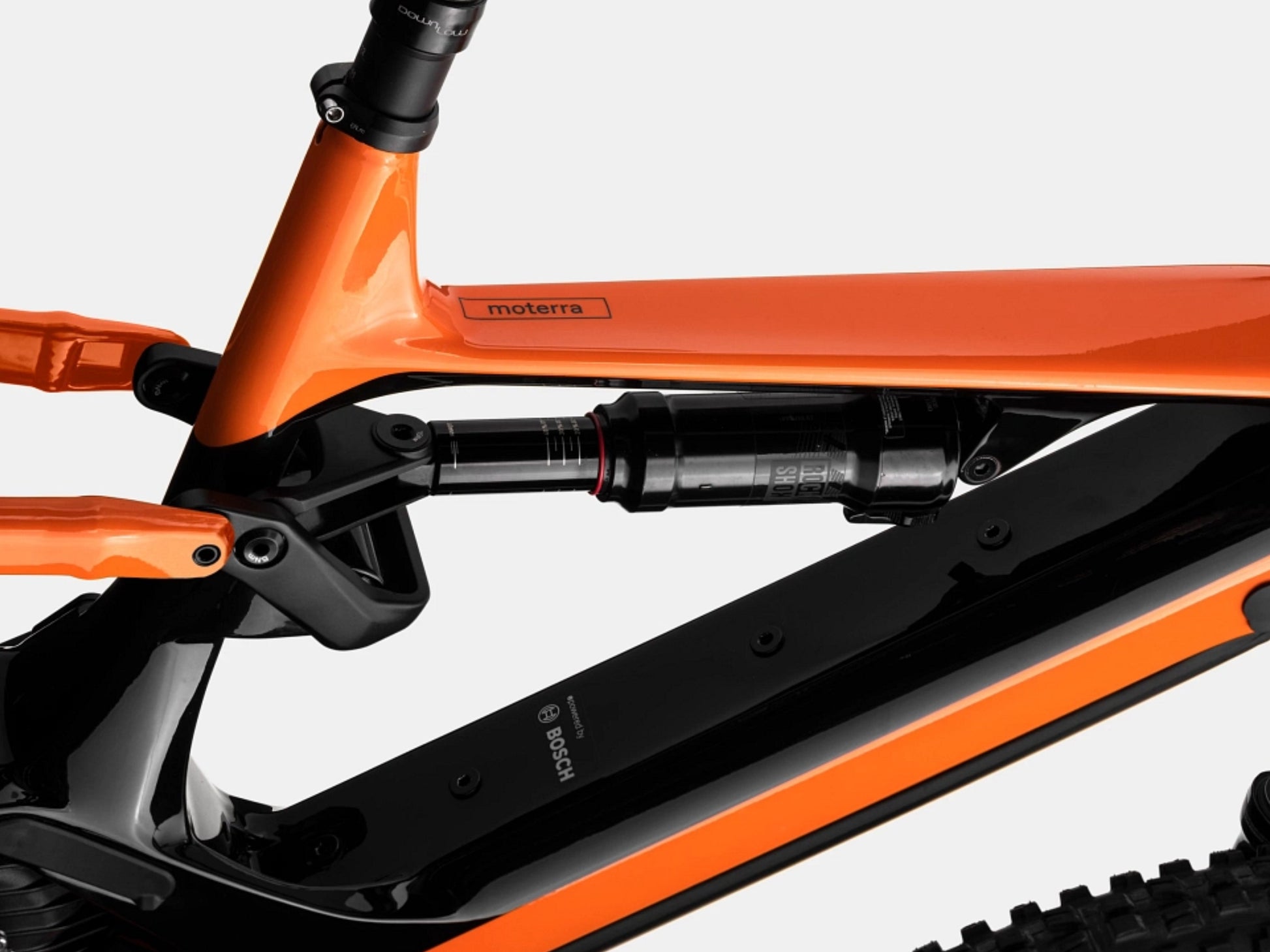

| Rear Shock | RockShox Deluxe Select+, DebonAir, 2-Pos mode adjust, adjustable rebound |
| Front Brake | Shimano XT 8120 4-piston hydraulic disc, 203mm RT76 rotors |
| Rear Brake | Shimano XT 8120 4-piston hydraulic disc, 203mm RT76 rotors |
| Rear Derailleur | Shimano XTR |
| Shift Levers | Shimano XT, 12-speed |
| Chain | Shimano XT, 12-speed |
| Cassette | Shimano XT, 10-51, 12-speed |
| Crankset | FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T |
| Chain Ring | Spec not provided |
| Chain Guard | Spec not provided |
| Rims | WTB KOM Trail i30 TCS, 32h, tubeless ready |
| Front Hub | Formula 15x110mm thru-axle |
| Rear Hub | DT Swiss, 12x148mm thru-axle |
| Front Tire | Maxxis Minion DHF, 29x2.6", EXO, tubeless ready |
| Rear Tire | Maxxis Rekon, 29x2.6" (27.5x2.6" - size Small), EXO, tubeless ready |
| Handlebar | HollowGram SAVE riser bar, Carbon, 35mm clamp, 30mm rise, 8° sweep, 5° rise, 780mm |
| Stem | Cannondale 2, 6061 Alloy, 35mm, 0° |
| Headset | Acros integrated sealed bearing, tapered |
| Grips | Fabric FunGuy |
| Saddle | Fabric Scoop Shallow Elite, cro-mo rails |
| Seatpost | Cannondale DownLow Dropper, internal routing, 31.6, 125mm (S), 150mm (M), 170mm (L-XL) |
| Pedals | Not applicable |

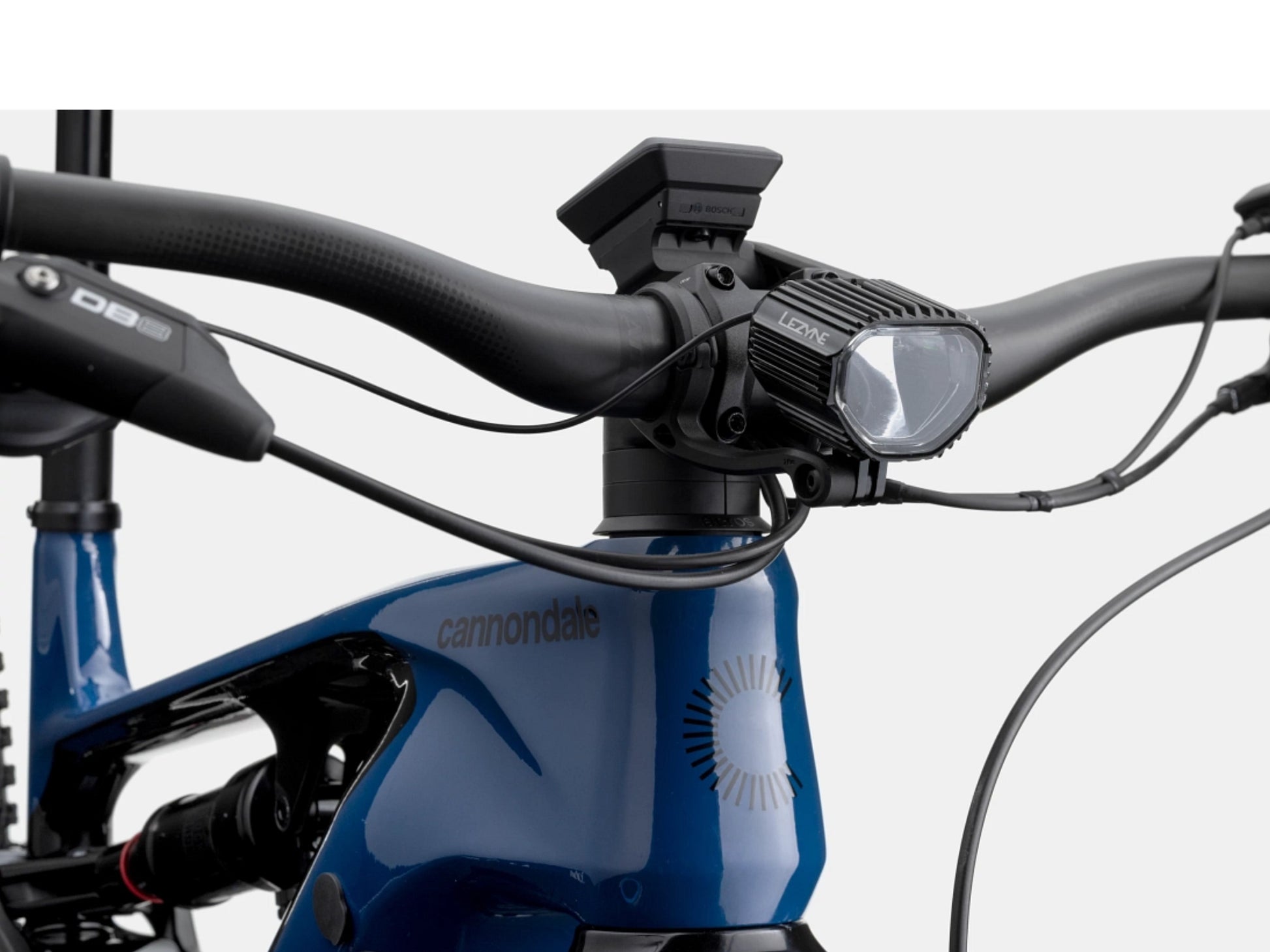

| Front Light | Lezyne Super HB E1000 w/ remote high beam switch. (Note: this model is not compatible with Bosch Range Extender) |
| Rear Light | Not applicable |
| Kickstand | Not applicable |
| Rear Carrier | Not applicable |
| Fenders | Not applicable |
| Bell | Not applicable |
| Lock | Not applicable |
| Mirror | Not applicable |
| FRAME SIZE (in cm) | S | M | L | XL |
|---|---|---|---|---|
| Seattube length | 40 | 43 | 46 | 49 |
| Toptube length | 54 | 55.5 | 58.5 | 62.1 |
| Headtube length | 10.5 | 11.5 | 12.5 | 13.5 |
| Chainstay length | 45.2 | 45.5 | 45.5 | 45.5 |
| Bottom bracket height | 35 | 35 | 35 | 35 |
| BB Drop | 1.8 | 3 | 3 | 3 |
| Wheelbase | 120.9 | 123.5 | 127 | 130.9 |
| Headtube angle | 65° | 65° | 65° | 65° |
| Seat tube angle | 70.5° | 70° | 70.5° | 71° |
| Standover | 75.5 | 75.5 | 76 | 77 |
| Reach | 43.5 | 45.5 | 48.5 | 52 |
| Stack | 61.7 | 62.6 | 63.5 | 64.4 |
| Fork Rake | 4.4 | 4.4 | 4.4 | 4.4 |
The Full Scoop on the Cannondale Moterra Carbon 1
The Moterra dual-suspension eMoutain bikes is built to demolish any boundaries of terrain, distance or time. Incredible agilty and handling, dialed suspenion and the latest drive systems allow you to ride further, faster and better than ever on the Moterra.
*Components subject to change without notice
Motor System
| Motor | Bosch Performance Line CX 250W |
| Battery | Bosch PowerTube, 750Wh / UL 2849 |
| Display | Bosch Kiox 300 w/ LED remote |
| Charger | Bosch 4A |
Components
| Frame | Moterra Carbon Front Triangle, SmartForm C1 Alloy Swingarm, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH hanger, post mount brake, 1.5” – 1.8” tapered headtube, 18mm two-bolt kickstand mount |
| Fork | RockShox Lyrik Select+, 150mm, DebonAir, 15x110mm thru-axle, tapered steered, 44mm offset |
| Rear Shock | RockShox Deluxe Select+, DebonAir, 2-Pos mode adjust, adjustable rebound |
| Front Brake | Shimano XT 8120 4-piston hydraulic disc, 203mm RT76 rotors |
| Rear Brake | Shimano XT 8120 4-piston hydraulic disc, 203mm RT76 rotors |
| Rear Derailleur | Shimano XTR |
| Shift Levers | Shimano XT, 12-speed |
| Chain | Shimano XT, 12-speed |
| Cassette | Shimano XT, 10-51, 12-speed |
| Crankset | FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T |
| Chain Ring | Spec not provided |
| Chain Guard | Spec not provided |
| Rims | WTB KOM Trail i30 TCS, 32h, tubeless ready |
| Front Hub | Formula 15x110mm thru-axle |
| Rear Hub | DT Swiss, 12x148mm thru-axle |
| Front Tire | Maxxis Minion DHF, 29x2.6", EXO, tubeless ready |
| Rear Tire | Maxxis Rekon, 29x2.6" (27.5x2.6" - size Small), EXO, tubeless ready |
| Handlebar | HollowGram SAVE riser bar, Carbon, 35mm clamp, 30mm rise, 8° sweep, 5° rise, 780mm |
| Stem | Cannondale 2, 6061 Alloy, 35mm, 0° |
| Headset | Acros integrated sealed bearing, tapered |
| Grips | Fabric FunGuy |
| Saddle | Fabric Scoop Shallow Elite, cro-mo rails |
| Seatpost | Cannondale DownLow Dropper, internal routing, 31.6, 125mm (S), 150mm (M), 170mm (L-XL) |
Extras
| Pedals | Not applicable |
| Front Light | Lezyne Super HB E1000 w/ remote high beam switch. (Note: this model is not compatible with Bosch Range Extender) |
| Rear Light | Not applicable |
| Kickstand | Not applicable |
| Rear Carrier | Not applicable |
| Fenders | Not applicable |
| Bell | Not applicable |
| Lock | Not applicable |
| Mirror | Not applicable |
Geometry
| FRAME SIZE (in cm) | S | M | L | XL |
|---|---|---|---|---|
| Seattube length | 40 | 43 | 46 | 49 |
| Toptube length | 54 | 55.5 | 58.5 | 62.1 |
| Headtube length | 10.5 | 11.5 | 12.5 | 13.5 |
| Chainstay length | 45.2 | 45.5 | 45.5 | 45.5 |
| Bottom bracket height | 35 | 35 | 35 | 35 |
| BB Drop | 1.8 | 3 | 3 | 3 |
| Wheelbase | 120.9 | 123.5 | 127 | 130.9 |
| Headtube angle | 65° | 65° | 65° | 65° |
| Seat tube angle | 70.5° | 70° | 70.5° | 71° |
| Standover | 75.5 | 75.5 | 76 | 77 |
| Reach | 43.5 | 45.5 | 48.5 | 52 |
| Stack | 61.7 | 62.6 | 63.5 | 64.4 |
| Fork Rake | 4.4 | 4.4 | 4.4 | 4.4 |
