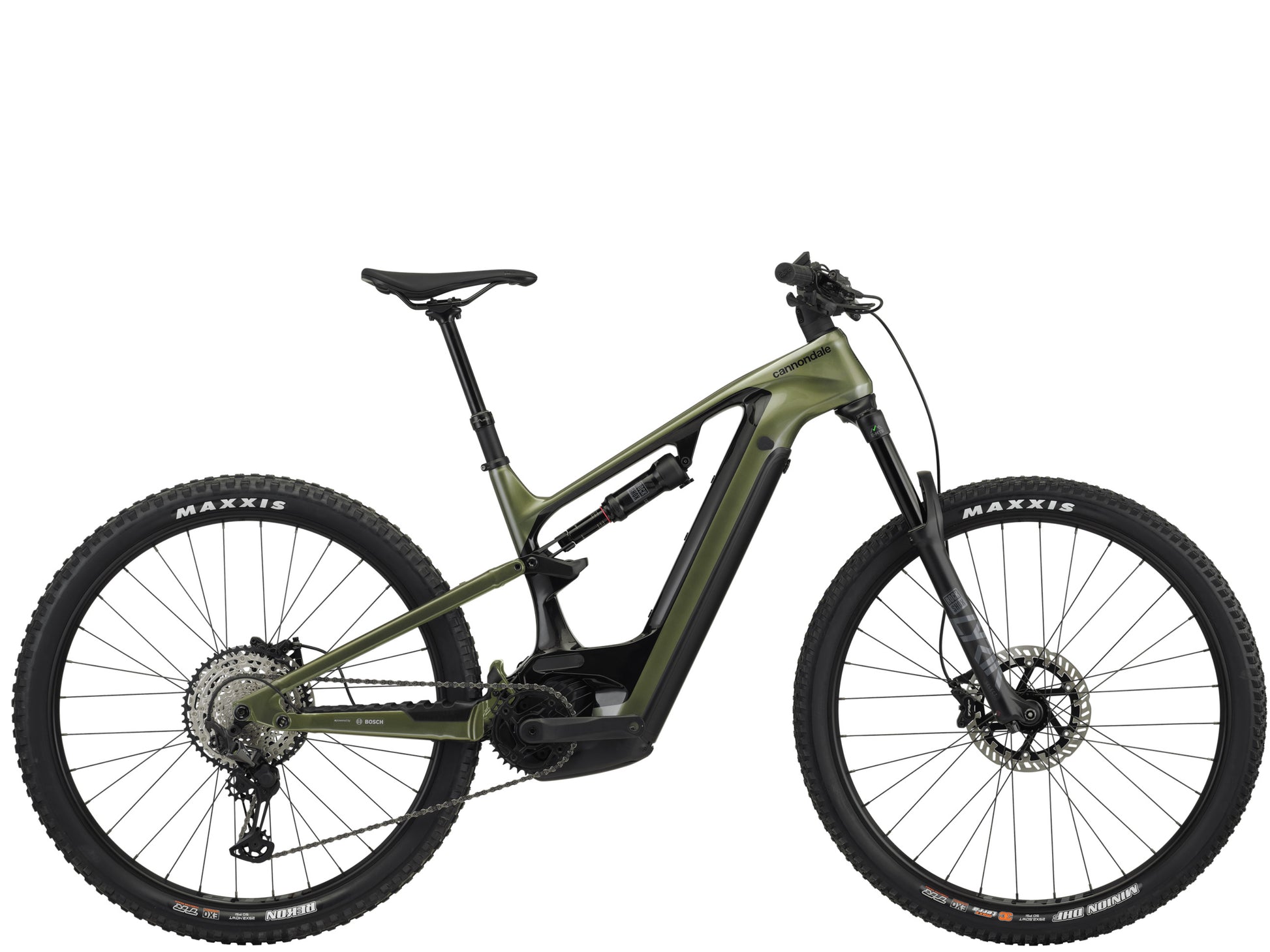

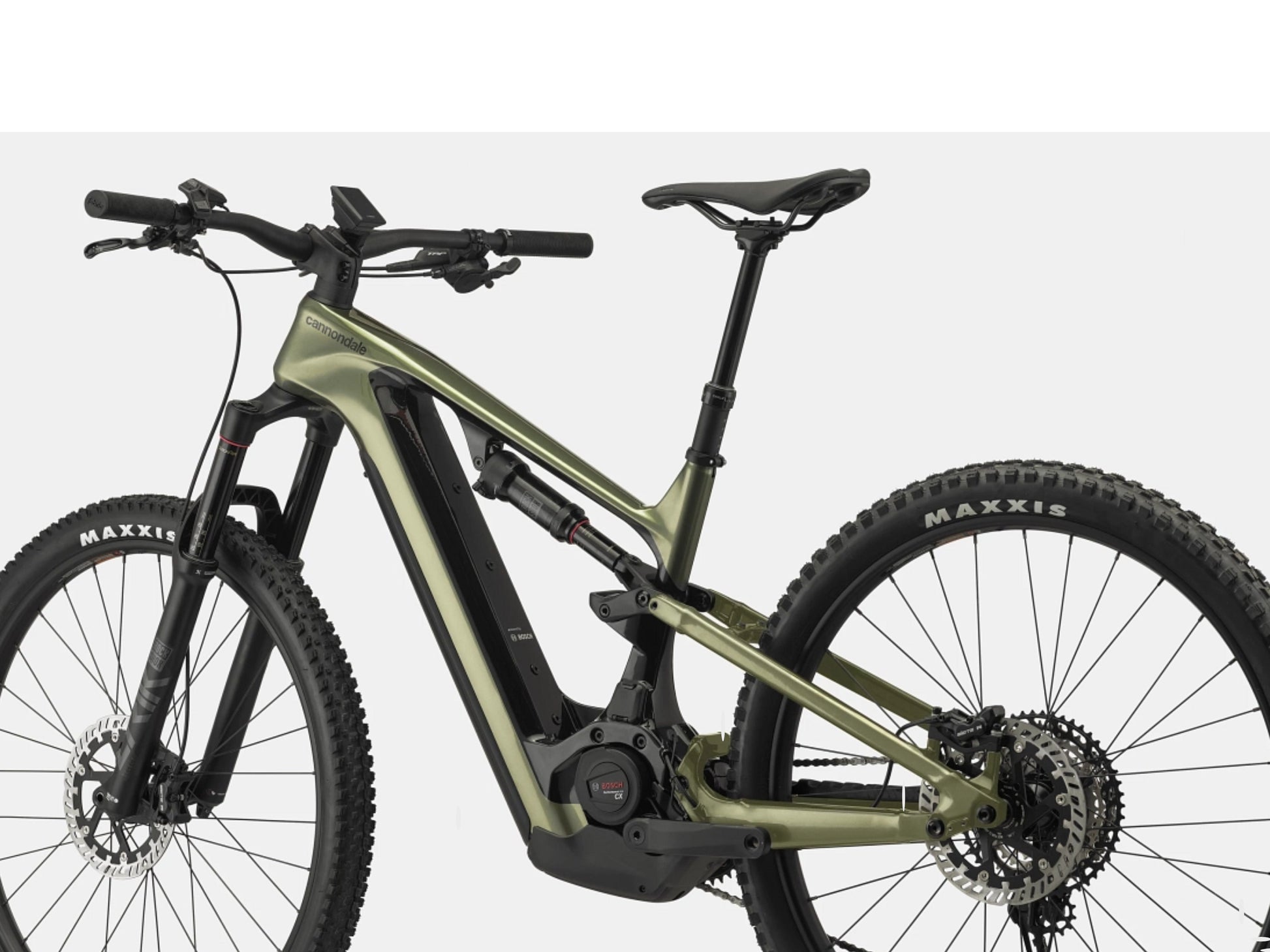

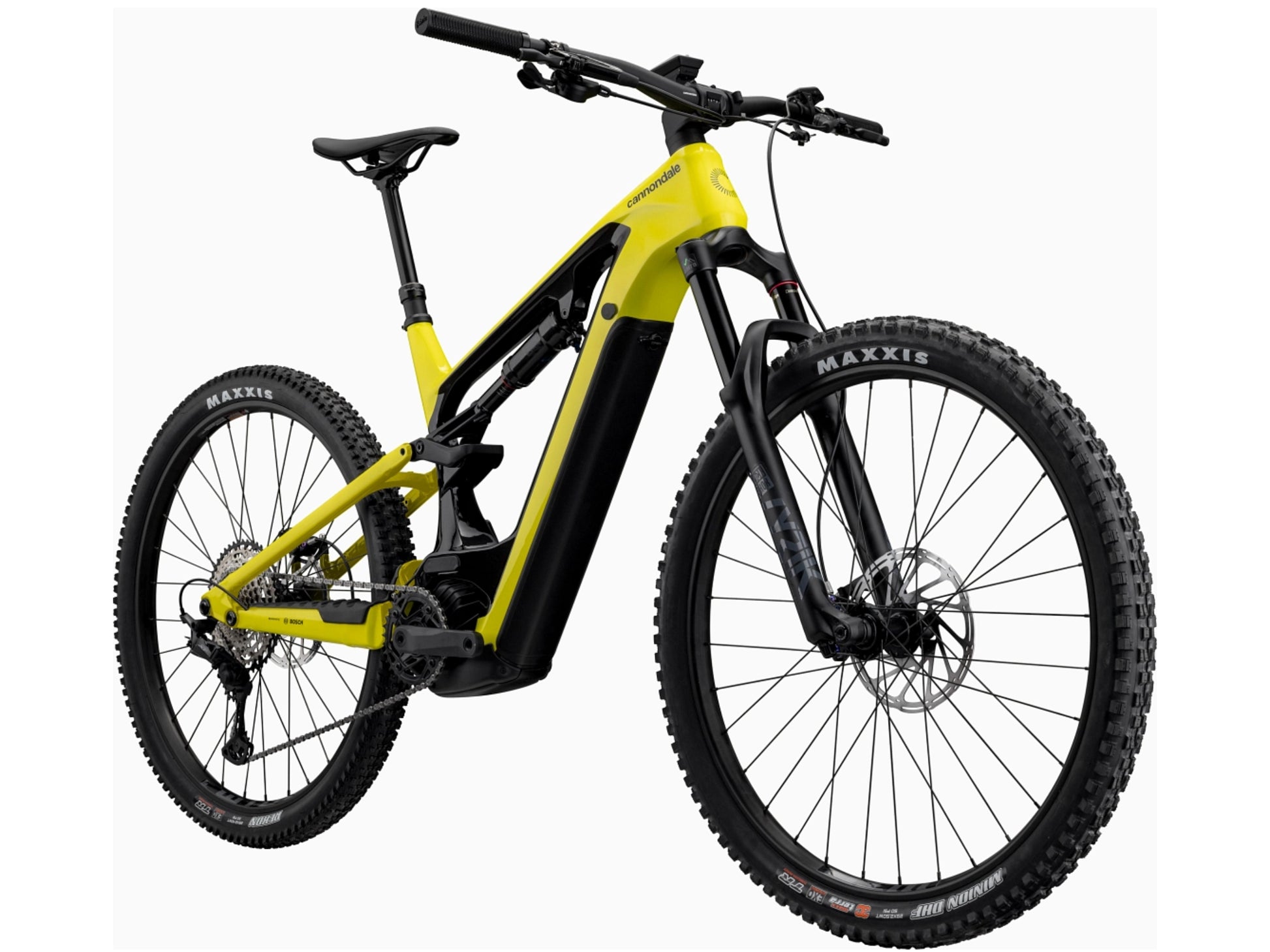

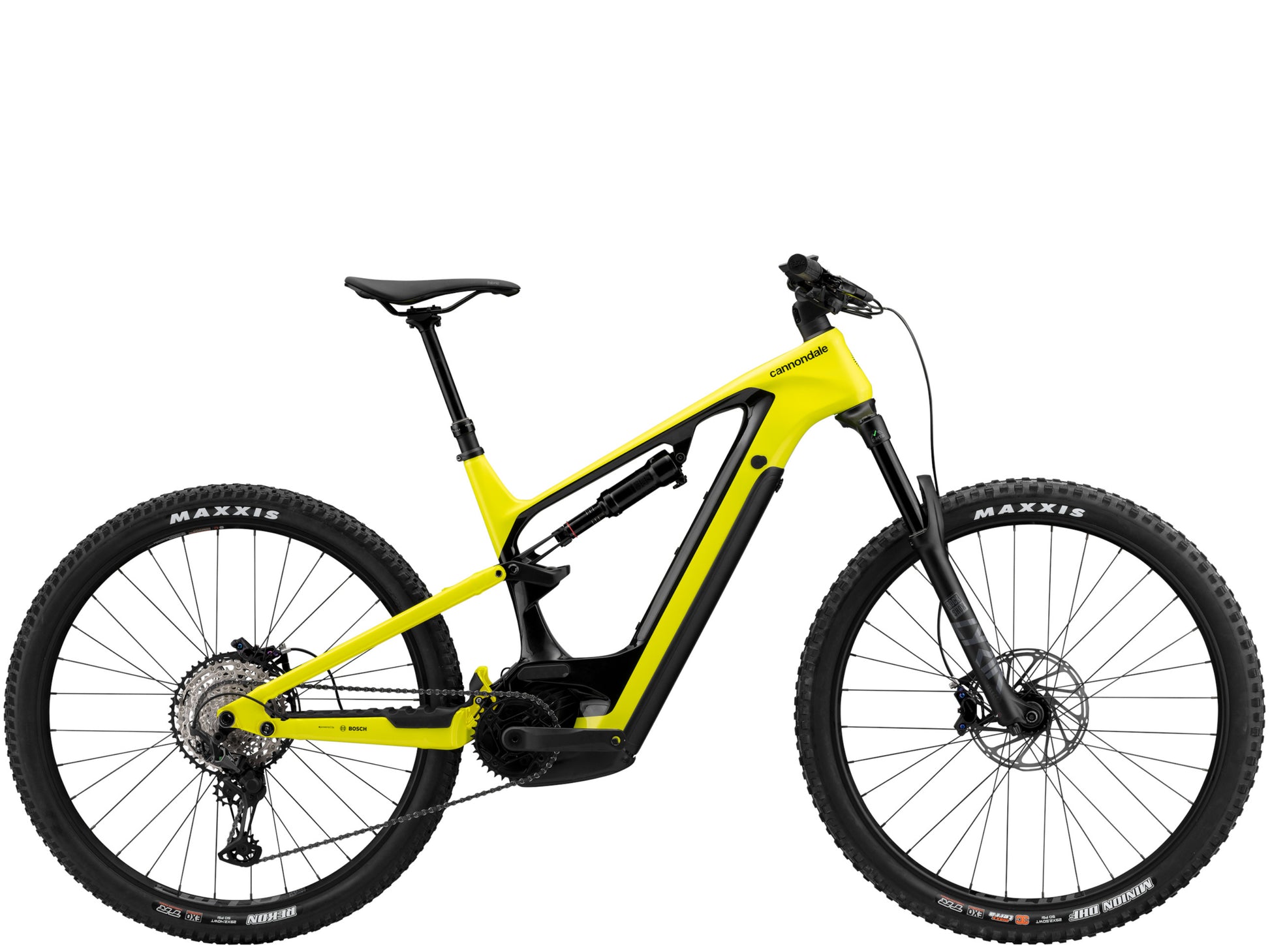

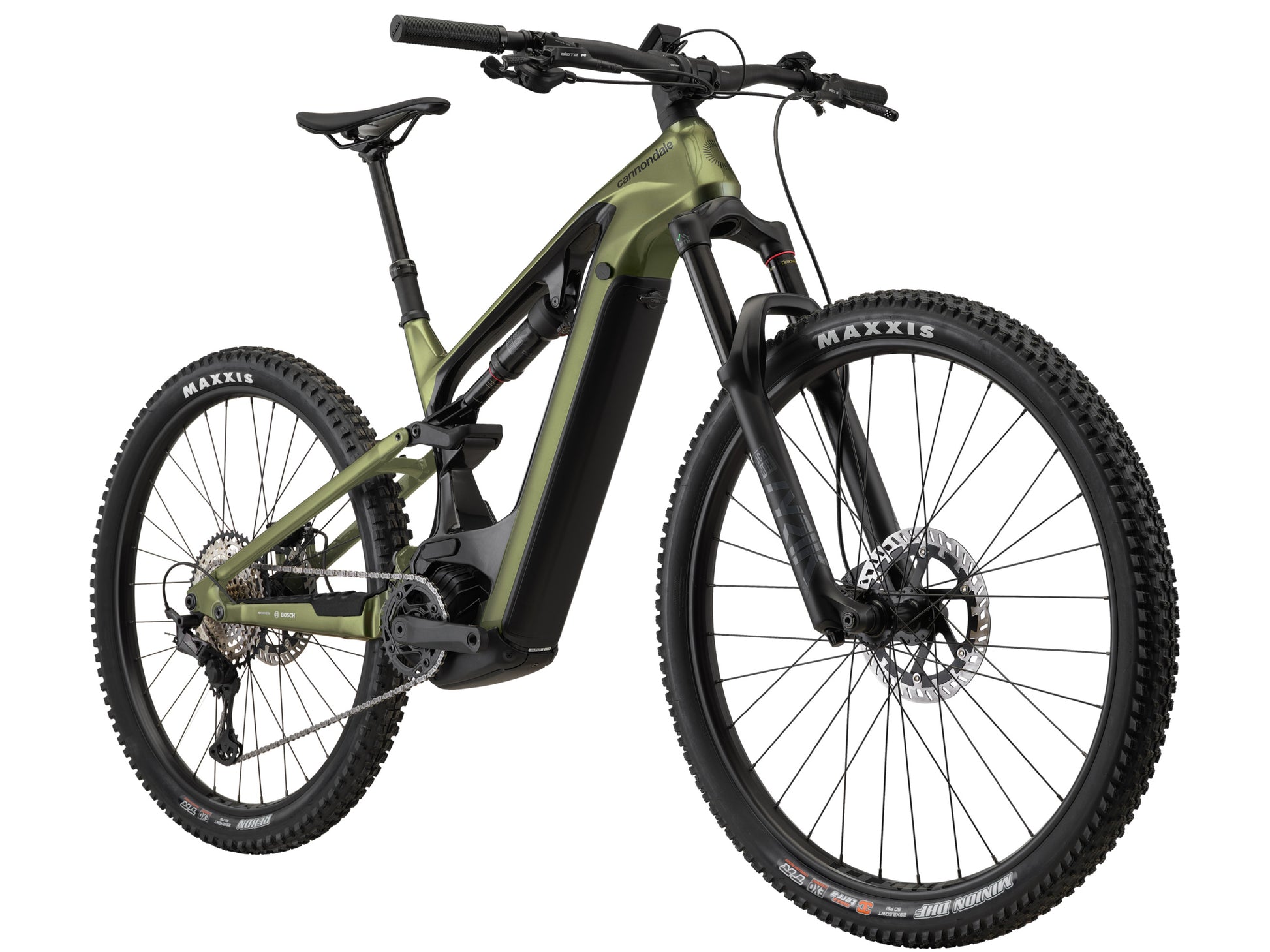

Cannondale Moterra Carbon 2
Cannondale Moterra Carbon 2
Regular price
$5,499.00
Sale price
$5,499.00
Regular price
$7,500.00
Unit price
per
Shipping calculated at checkout.
The Full Scoop on the Cannondale Moterra Carbon 2
The Moterra dual-suspension eMoutain bikes is built to demolish any boundaries of terrain, distance or time. Incredible agilty and handling, dialed suspenion and the latest drive systems allow you to ride further, faster and better than ever on the Moterra.
| Motor | Bosch Performance Line CX 250W |
| Battery | Bosch PowerTube, 750Wh / UL 2849 |
| Display | Bosch Kiox 300 w/ LED remote |
| Charger | Bosch 4A |
| Frame | Moterra Carbon Front Triangle, SmartForm C1 Alloy Swingarm, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH hanger, post mount brake, 1.5” – 1.8” tapered headtube, 18mm two-bolt kickstand mount |
| Fork | RockShox Lyrik Select, 150mm, DebonAir, 15x110mm thru-axle, tapered steered, 44mm offset |

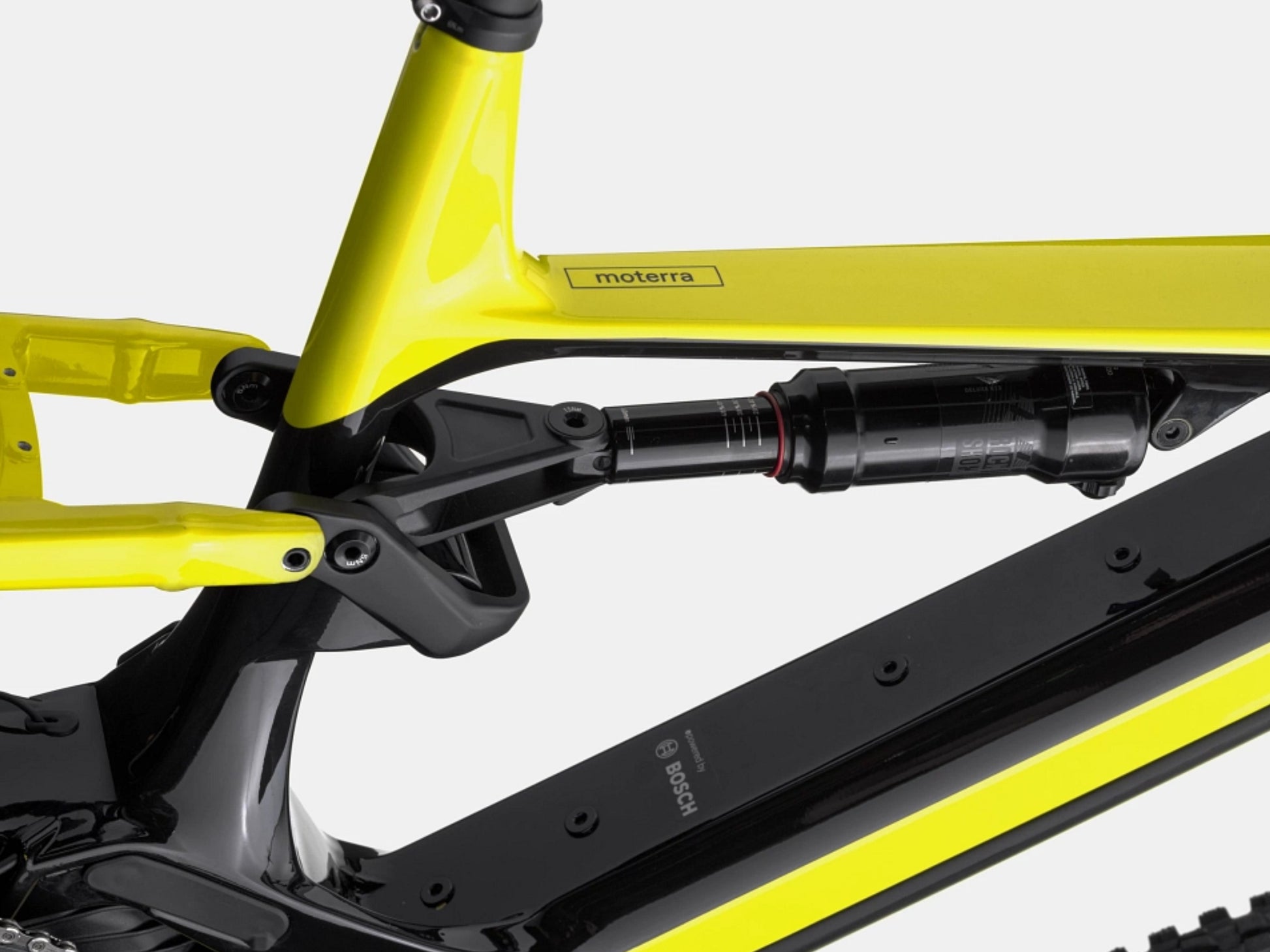

| Rear Shock | RockShox Deluxe Select+, DebonAir, 2-Pos mode adjust, adjustable rebound |
| Front Brake | Shimano MT520 4-piston hydraulic disc, 203mm RT64 rotors |
| Rear Brake | Shimano MT520 4-piston hydraulic disc, 203mm RT64 rotors |
| Rear Derailleur | Shimano XT |
| Shift Levers | Shimano SLX, 12-speed |
| Chain | Shimano SLX, 12-speed |
| Cassette | Shimano SLX, 10-51, 12-speed |
| Crankset | FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T |
| Chain Ring | Spec not provided |
| Chain Guard | Spec not provided |
| Rims | WTB ST i30 TCS, 32h, tubeless ready |
| Front Hub | Formula 15x110mm thru-axle |
| Rear Hub | Shimano MT410, 12x148mm thru-axle |
| Front Tire | Maxxis Minion DHF, 29x2.6", EXO, tubeless ready |
| Rear Tire | Maxxis Rekon, 29x2.6" (27.5x2.6" - size Small), EXO, tubeless ready |
| Handlebar | Cannondale 3 Riser, 6061 Alloy, 25mm rise, 8° sweep, 5° rise, 800mm |
| Stem | Cannondale 2, 6061 Alloy, 35mm, 0° |
| Headset | Acros integrated sealed bearing, tapered |
| Grips | Fabric FunGuy |
| Saddle | Fabric Scoop Shallow sport, steel rails |
| Seatpost | Cannondale DownLow Dropper, internal routing, 31.6, 125mm (S), 150mm (M), 170mm (L-XL) |
| Pedals | Not applicable |
| Front Light | Not applicable |
| Rear Light | Not applicable |
| Kickstand | Not applicable |
| Rear Carrier | Not applicable |
| Fenders | Not applicable |
| Bell | Not applicable |
| Lock | Not applicable |
| Mirror | Not applicable |
| FRAME SIZE (in cm) | S | M | L | XL |
|---|---|---|---|---|
| Seattube length | 40 | 43 | 46 | 49 |
| Toptube length | 54 | 55.5 | 58.5 | 62.1 |
| Headtube length | 10.5 | 11.5 | 12.5 | 13.5 |
| Chainstay length | 45.2 | 45.5 | 45.5 | 45.5 |
| Bottom bracket height | 35 | 35 | 35 | 35 |
| BB Drop | 1.8 | 3 | 3 | 3 |
| Wheelbase | 120.9 | 123.5 | 127 | 130.9 |
| Headtube angle | 65° | 65° | 65° | 65° |
| Seat tube angle | 70.5° | 70° | 70.5° | 71° |
| Standover | 75.5 | 75.5 | 76 | 77 |
| Reach | 43.5 | 45.5 | 48.5 | 52 |
| Stack | 61.7 | 62.6 | 63.5 | 64.4 |
| Fork Rake | 4.4 | 4.4 | 4.4 | 4.4 |
The Full Scoop on the Cannondale Moterra Carbon 2
The Moterra dual-suspension eMoutain bikes is built to demolish any boundaries of terrain, distance or time. Incredible agilty and handling, dialed suspenion and the latest drive systems allow you to ride further, faster and better than ever on the Moterra.
Motor System

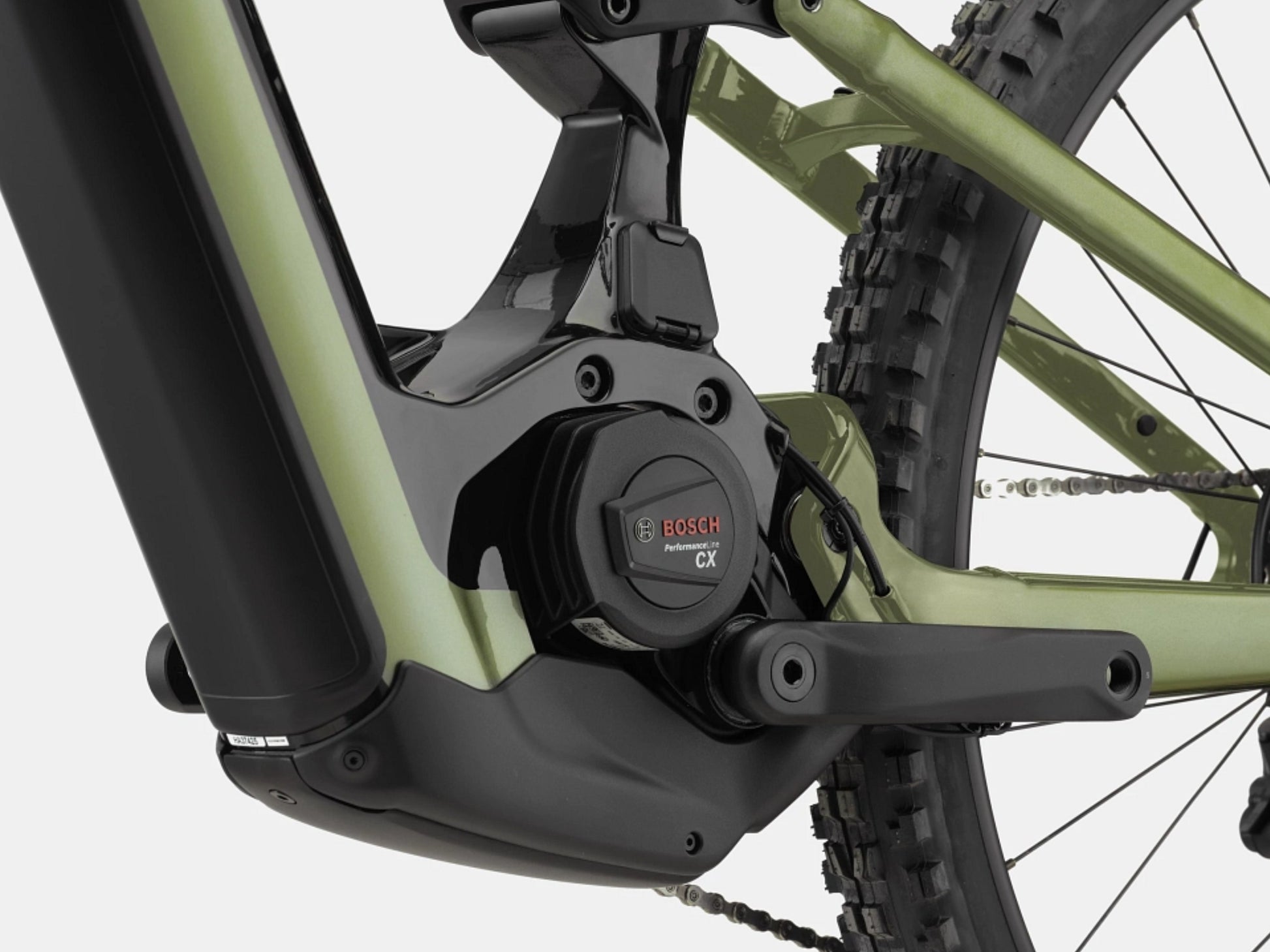

| Motor | Bosch Performance Line CX 250W |
| Battery | Bosch PowerTube, 750Wh / UL 2849 |
| Display | Bosch Kiox 300 w/ LED remote |
| Charger | Bosch 4A |
Components
| Frame | Moterra Carbon Front Triangle, SmartForm C1 Alloy Swingarm, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH hanger, post mount brake, 1.5” – 1.8” tapered headtube, 18mm two-bolt kickstand mount |
| Fork | RockShox Lyrik Select, 150mm, DebonAir, 15x110mm thru-axle, tapered steered, 44mm offset |
| Rear Shock | RockShox Deluxe Select+, DebonAir, 2-Pos mode adjust, adjustable rebound |
| Front Brake | Shimano MT520 4-piston hydraulic disc, 203mm RT64 rotors |
| Rear Brake | Shimano MT520 4-piston hydraulic disc, 203mm RT64 rotors |

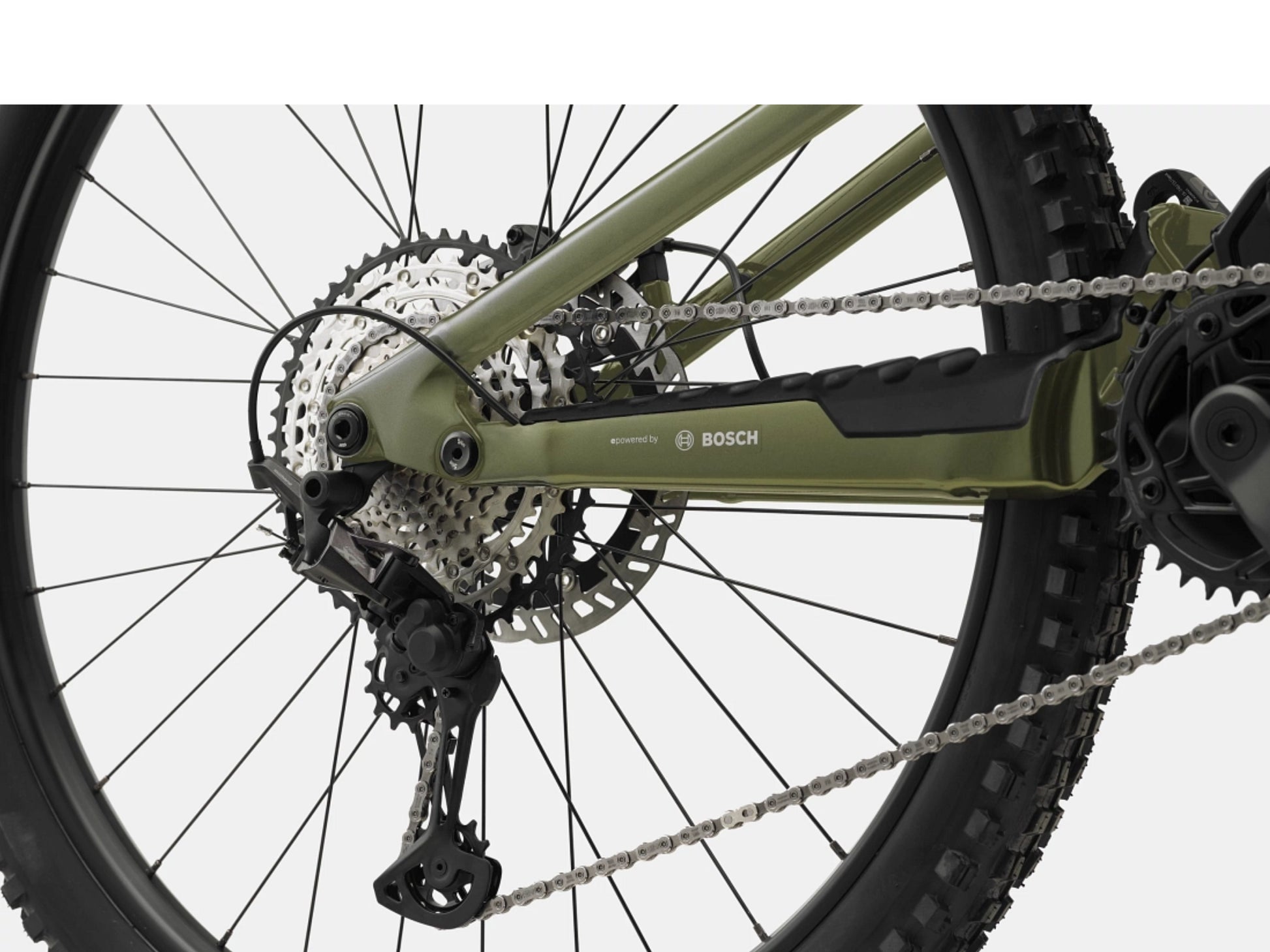

| Rear Derailleur | Shimano XT |
| Shift Levers | Shimano SLX, 12-speed |
| Chain | Shimano SLX, 12-speed |
| Cassette | Shimano SLX, 10-51, 12-speed |
| Crankset | FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T |
| Chain Ring | Spec not provided |
| Chain Guard | Spec not provided |
| Rims | WTB ST i30 TCS, 32h, tubeless ready |
| Front Hub | Formula 15x110mm thru-axle |
| Rear Hub | Shimano MT410, 12x148mm thru-axle |
| Front Tire | Maxxis Minion DHF, 29x2.6", EXO, tubeless ready |
| Rear Tire | Maxxis Rekon, 29x2.6" (27.5x2.6" - size Small), EXO, tubeless ready |

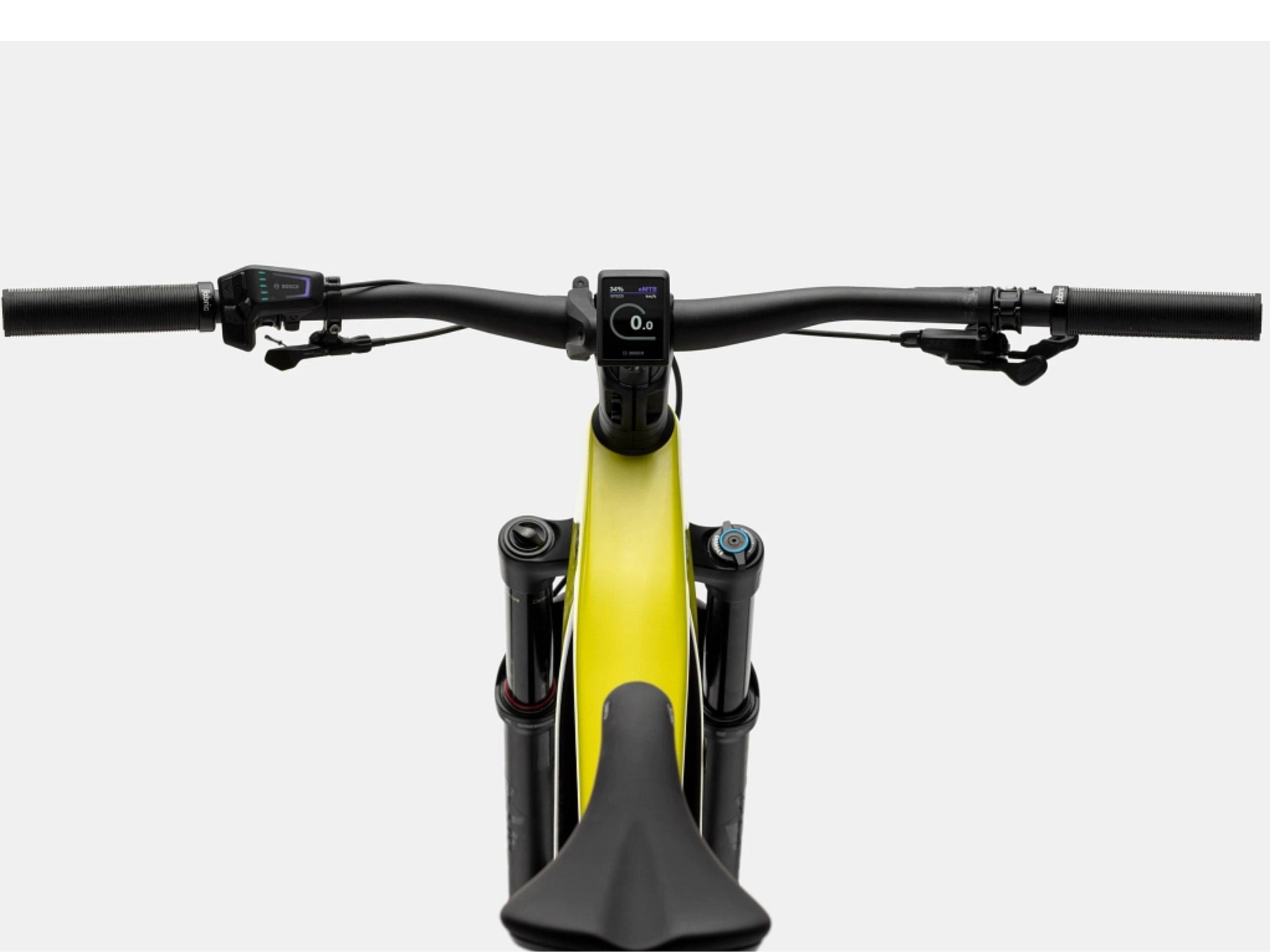

| Handlebar | Cannondale 3 Riser, 6061 Alloy, 25mm rise, 8° sweep, 5° rise, 800mm |
| Stem | Cannondale 2, 6061 Alloy, 35mm, 0° |
| Headset | Acros integrated sealed bearing, tapered |
| Grips | Fabric FunGuy |
| Saddle | Fabric Scoop Shallow sport, steel rails |
| Seatpost | Cannondale DownLow Dropper, internal routing, 31.6, 125mm (S), 150mm (M), 170mm (L-XL) |
Extras
| Pedals | Not applicable |
| Front Light | Not applicable |
| Rear Light | Not applicable |
| Kickstand | Not applicable |
| Rear Carrier | Not applicable |
| Fenders | Not applicable |
| Bell | Not applicable |
| Lock | Not applicable |
| Mirror | Not applicable |
Geometry
| FRAME SIZE (in cm) | S | M | L | XL |
|---|---|---|---|---|
| Seattube length | 40 | 43 | 46 | 49 |
| Toptube length | 54 | 55.5 | 58.5 | 62.1 |
| Headtube length | 10.5 | 11.5 | 12.5 | 13.5 |
| Chainstay length | 45.2 | 45.5 | 45.5 | 45.5 |
| Bottom bracket height | 35 | 35 | 35 | 35 |
| BB Drop | 1.8 | 3 | 3 | 3 |
| Wheelbase | 120.9 | 123.5 | 127 | 130.9 |
| Headtube angle | 65° | 65° | 65° | 65° |
| Seat tube angle | 70.5° | 70° | 70.5° | 71° |
| Standover | 75.5 | 75.5 | 76 | 77 |
| Reach | 43.5 | 45.5 | 48.5 | 52 |
| Stack | 61.7 | 62.6 | 63.5 | 64.4 |
| Fork Rake | 4.4 | 4.4 | 4.4 | 4.4 |
