Cube Kathmandu Hybrid One 500 | Trapeze Frame

The Full Scoop on the Cube Kathmandu Hybrid One 500 | Trapeze Frame

• Description
• Motor System
• Components
• Extras
• Geometry

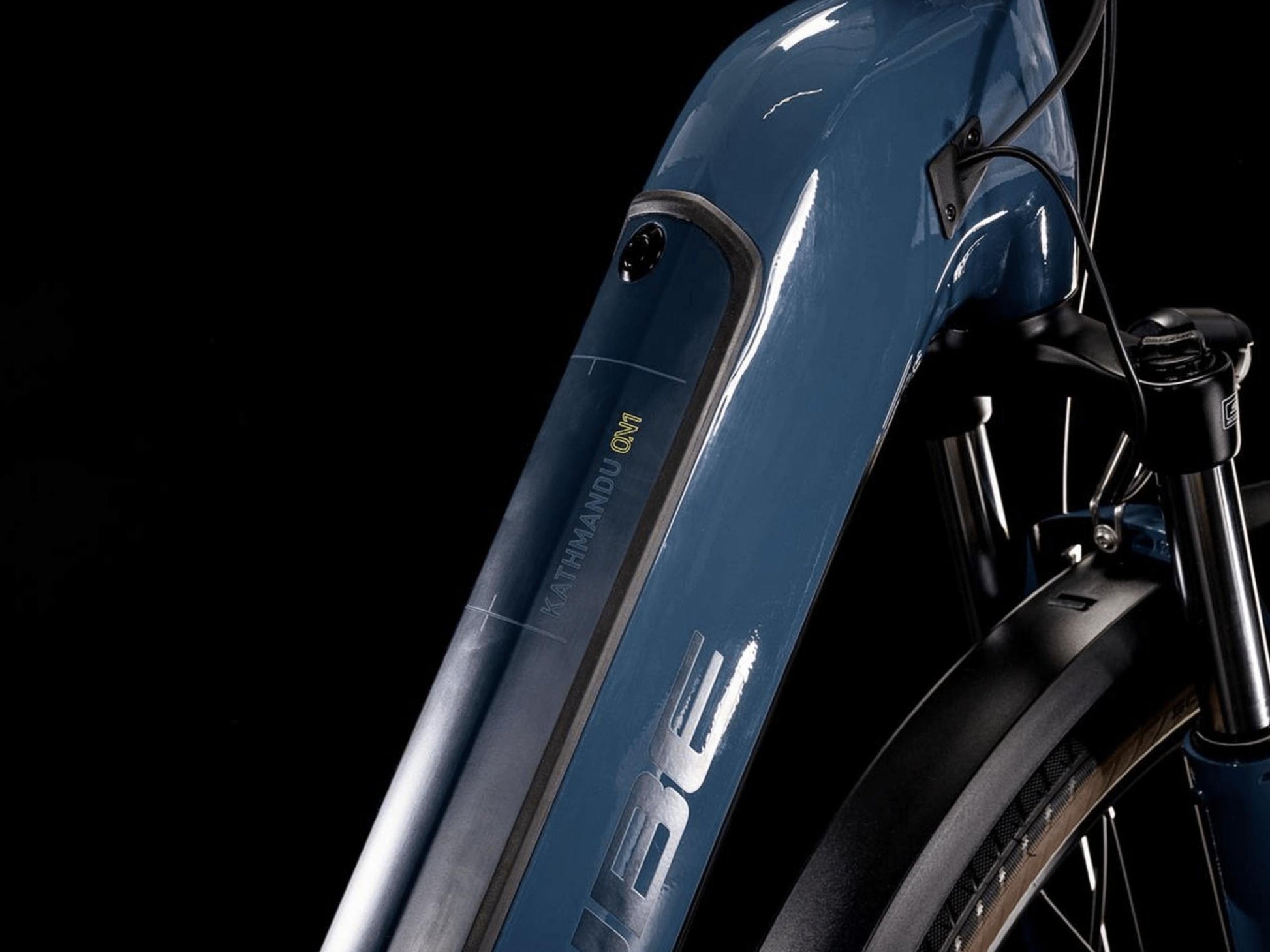

• Whether you're an occasional commuter or regular cyclist; whether you ride to get around the city or to escape into the countryside on the weekend, the Cube Kathmandu Hybrid One 500 with Trapeze Frame is the bike to feed your sense of adventure. Cube Kathmandu Hybrid One 500's elegant trapeze frame design completely encloses the Bosch battery for sleek looks and better protection. A tapered head tube ensures accurate steering whether you're riding laden or unladen, so you can be assured of a ride that's comfortable and safe.




• Components subject to manufacturer changes

• Motor	Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt)
  Battery	Bosch PowerTube 500
  Display	Bosch Purion
  Charger	Bosch 2a

• Frame	Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Tapered Headtube, Full Integrated Battery, Integrated Carrier 2.0
  Fork	SR Suntour NVX30 Coil, 100mm
  Rear Shock	Not applicable
  Front Brake	Shimano BR-MT200, Hydr. Disc Brake (180/180)
  Rear Brake	Shimano BR-MT200, Hydr. Disc Brake (180/180)
  Rear Derailleur	Shimano Deore RD-M4120-SGS, 10-Speed
  Shift Levers	Shimano Deore SL-M4100, Rapidfire-Plus
  Chain	KMC X10
  Cassette	Shimano Deore CS-M4100, 11-42T
  Crankset	ACID E-Crank, 38T, 175mm (EE: 170mm)
  Chain Ring	Spec not provided
  Chain Guard	Spec not provided
  Rims	CUBE EX23, 36H, Disc, Tubeless ready
  Front Hub	Shimano HB-TX505, QR, Centerlock
  Rear Hub	Shimano FH-TX505, QR, Centerlock
  Front Tire	Schwalbe Big Ben, Performance, 55-622
  Rear Tire	Schwalbe Big Ben, Performance, 55-622
  Handlebar	CUBE Comfort Trail Bar, 700mm
  Stem	CUBE Comfort Stem Pro, 31.8mm, Adjustable
  Headset	M/Z: ACROS AZF-1039, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // EE: ACROS AZX-1041, BlockLock 135°, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
  Grips	Natural Fit Comfort

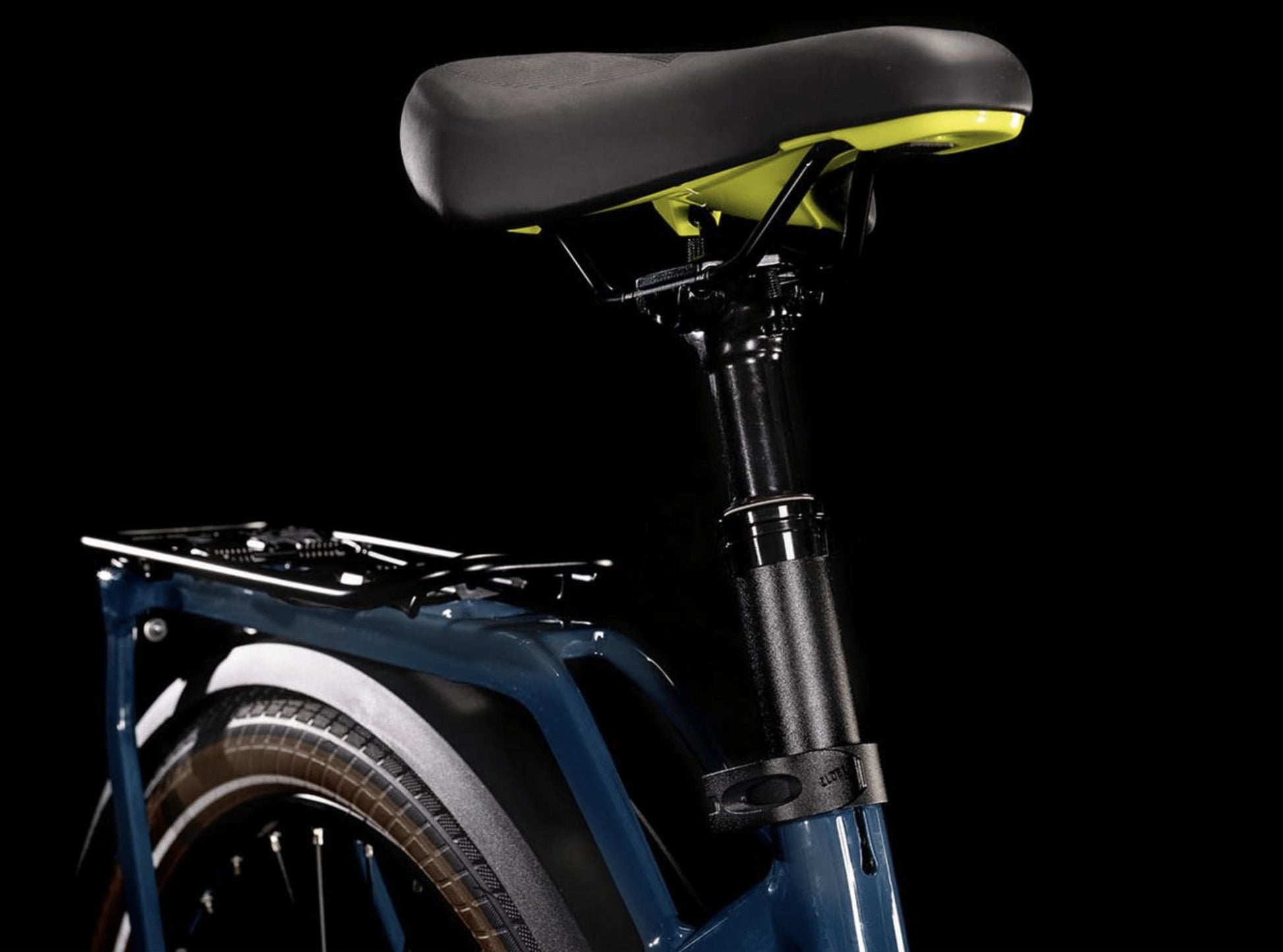

  Saddle	Natural Fit Sequence Comfort
  Seat post	CUBE Suspension Seatpost HD, 30.9mm

• Pedals	ACID PP Trekking
  Front light	CUBE Shiny 50 Lux, 12V, DC

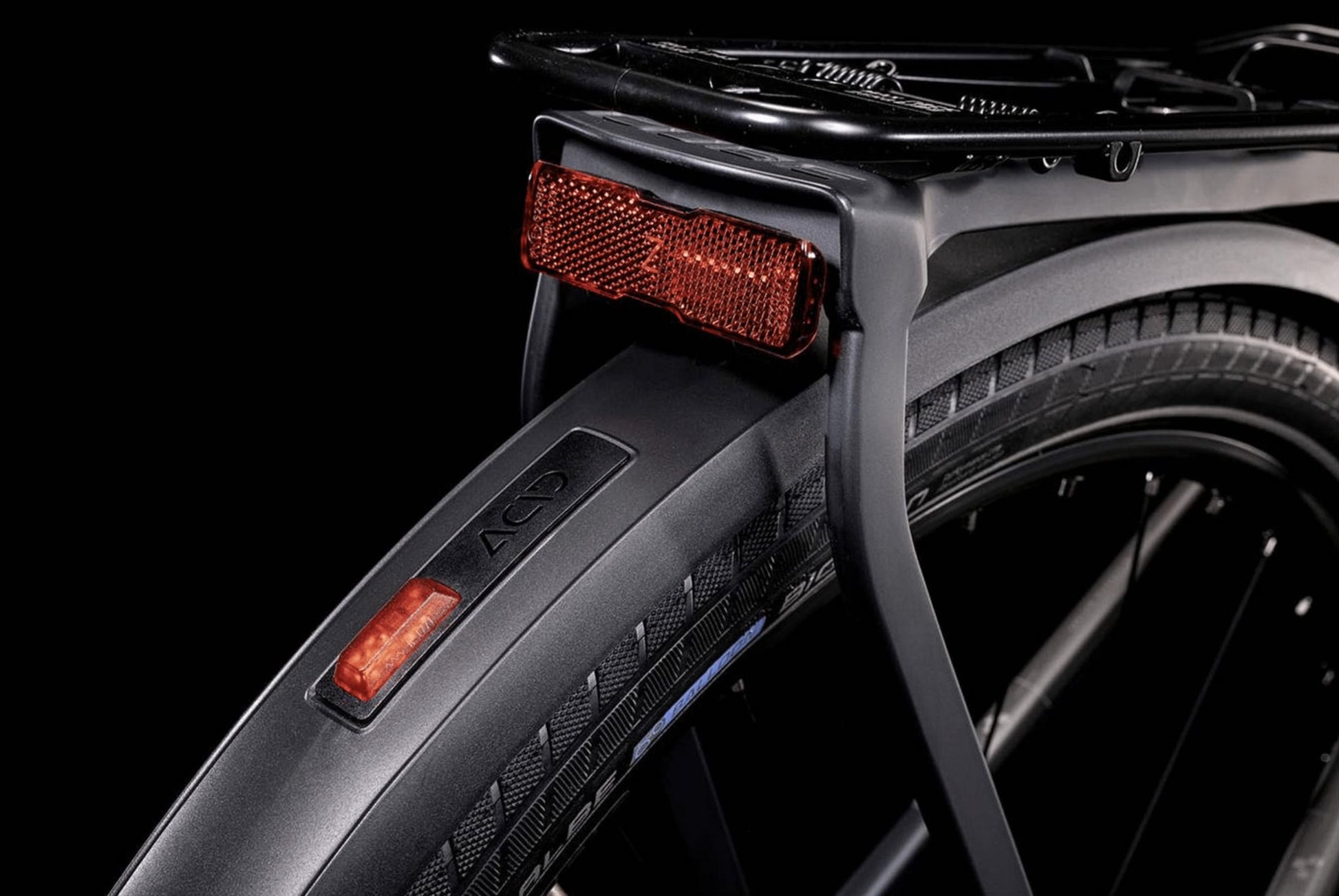

  Rear light	ACID Mudguard Rear Light PRO-E, 12V, DC
  Kickstand	CUBEstand Cmpt
  Rear Carrier	CUBE Integrated Carrier 2.0, ACID RILink Adapter Compatible, SnapIt Compatible
  Fenders	ACID 65 BB-Mount
  Bell	Easy Bell
  Lock	Not applicable
  Mirror	Not applicable

• X-small	46 cm - Trapeze, Easy entry
  Small	50 cm - Men's, Trapeze, Easy entry
  Medium	54 cm - Men's, Trapeze, Easy entry
  Large	58 cm - Easy entry
  X-large	62 cm - Men's
