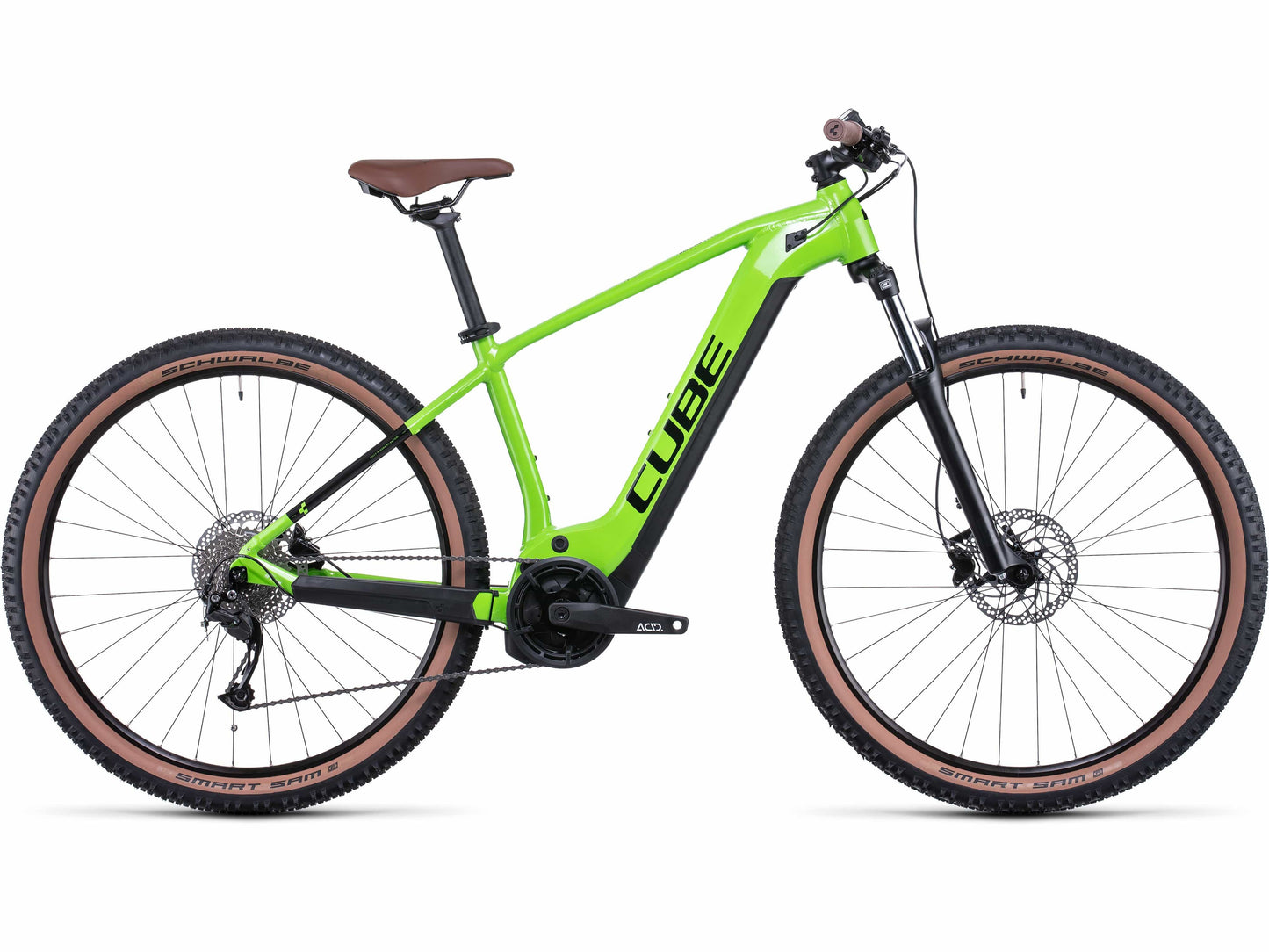

Cube Reaction Hybrid Performance 500

The Full Scoop on the Cube Reaction Hybrid Performance 500

• Description
• Motor System
• Components
• Extras
• Geometry
• Previous Model Year Specs

•
  Take the road less travelled, and see where it takes you. The Cube Reaction Hybrid Performance 500 takes the power of Bosch's Performance Line Motor and adds sophisticated PowerTube design and easy-to-use Shimano 9-speed gears. A comfy saddle and lock-on grips with a 100m Suntour suspension fork ensure you're comfortable for the long haul. The Cube Reaction Hybrid Performance 500 is fitted with Shimano hydraulic disc brakes for safe, all-weather control. Follow your curiosity...
  *Components subject to manufacturer changes

• Motor	Bosch Drive Unit Performance Generation 3 (75Nm) Cruise (250Watt), Smart System
  Battery	Bosch PowerTube 500

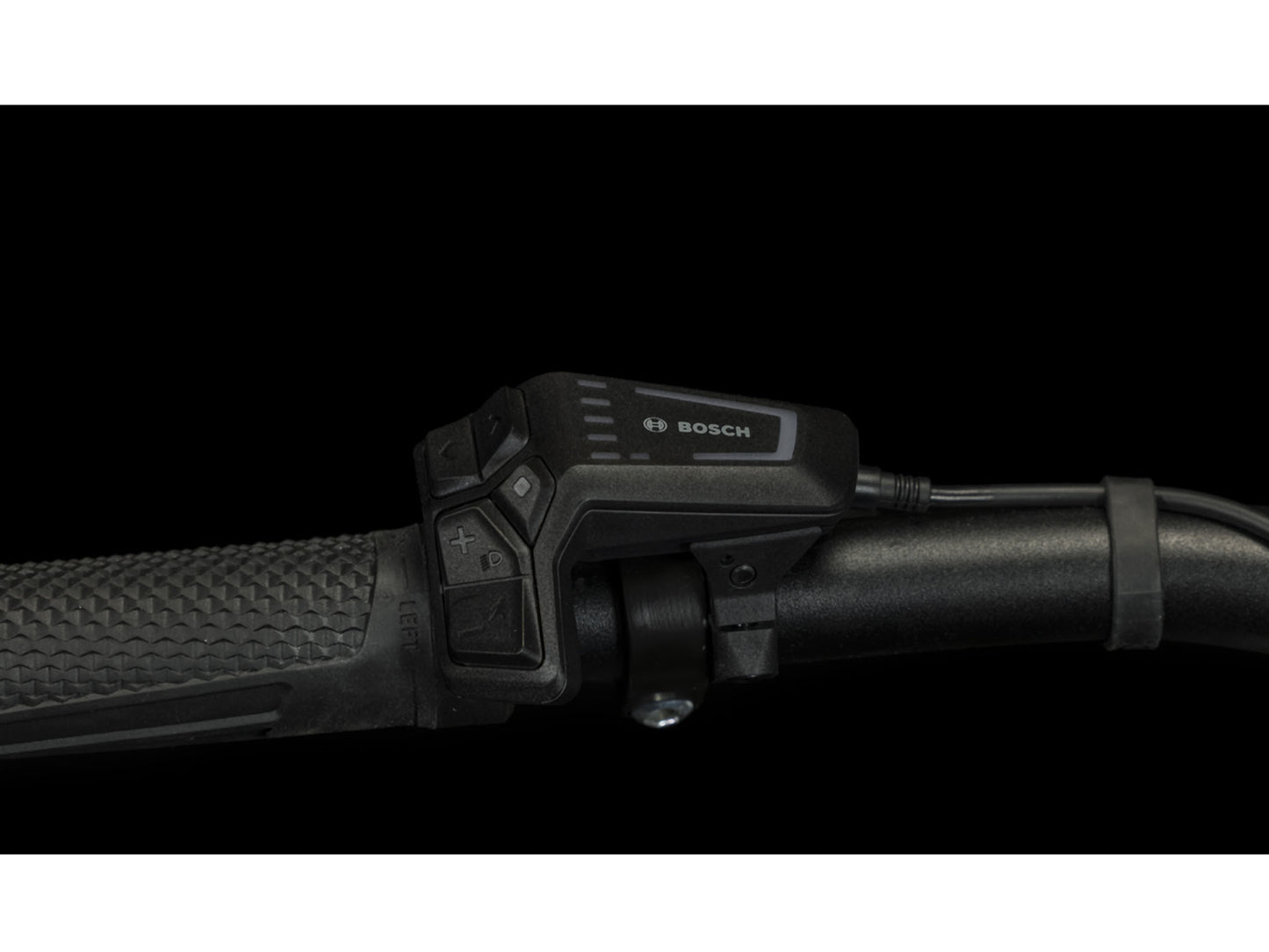

  Display	Bosch LED Remote
  Charger	Bosch 4A

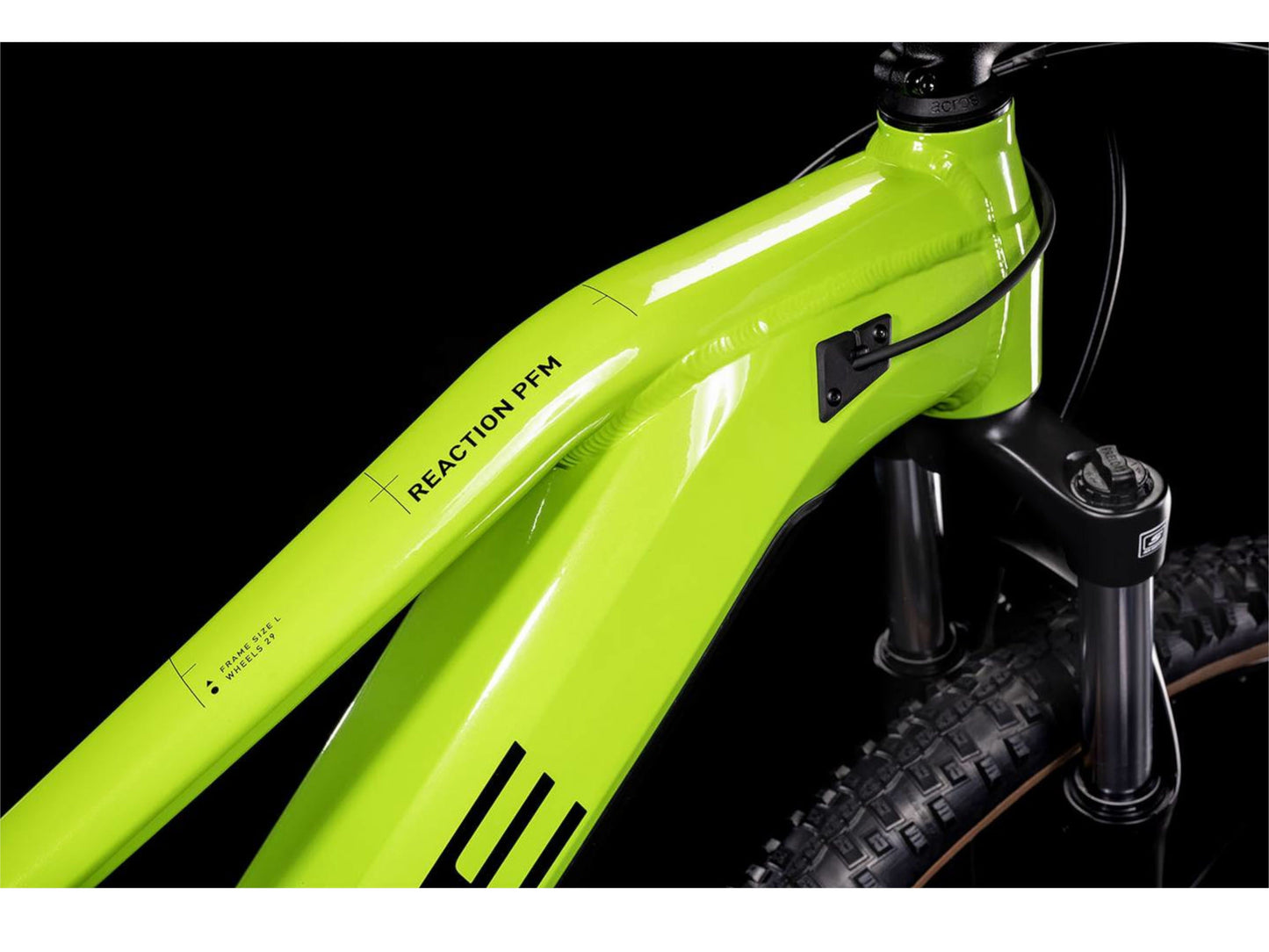

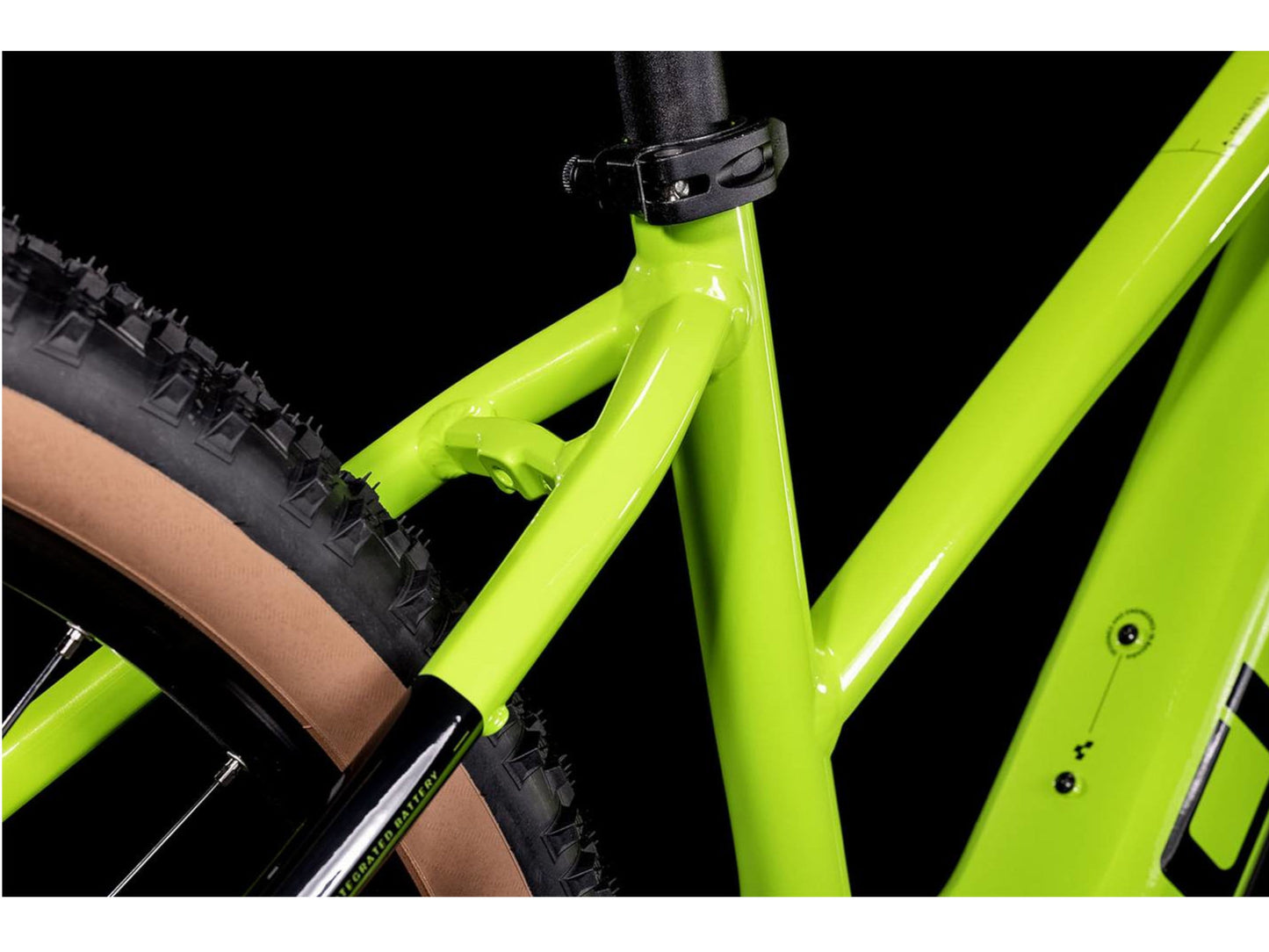

• Frame	Aluminium Superlite, Gravity Casting, Agile Ride Geometry, 1.5 Headtube, Full Integrated Battery, Internal Cable Routing, Kickstand/Fender/Carrier Mounting Parts

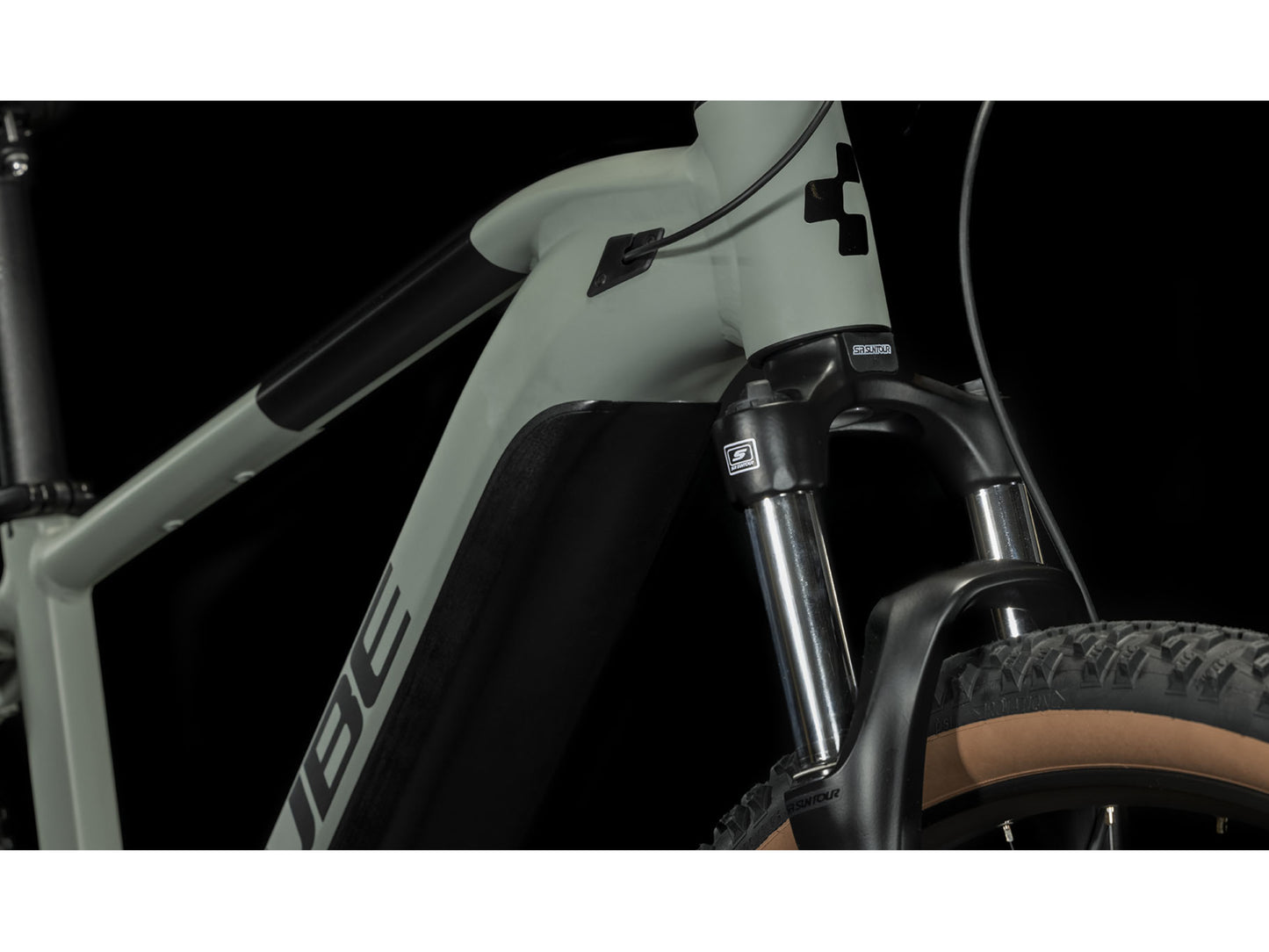

  Fork	SR Suntour NVX30 Coil, 100mm
  Rear Shock	Not applicable
  Front Brake	Shimano BR-MT200/UR300, Hydr. Disc Brake, PM/FM (180/180)
  Rear Brake	Shimano BR-MT200/UR300, Hydr. Disc Brake, PM/FM (180/180)
  Rear Derailleur	Shimano RD-M3100-SGS, 9-Speed
  Shift Levers	Shimano SL-M3100-R, Rapidfire-Plus
  Chain	KMC X9
  Cassette	Shimano CS-HG201, 11-36T

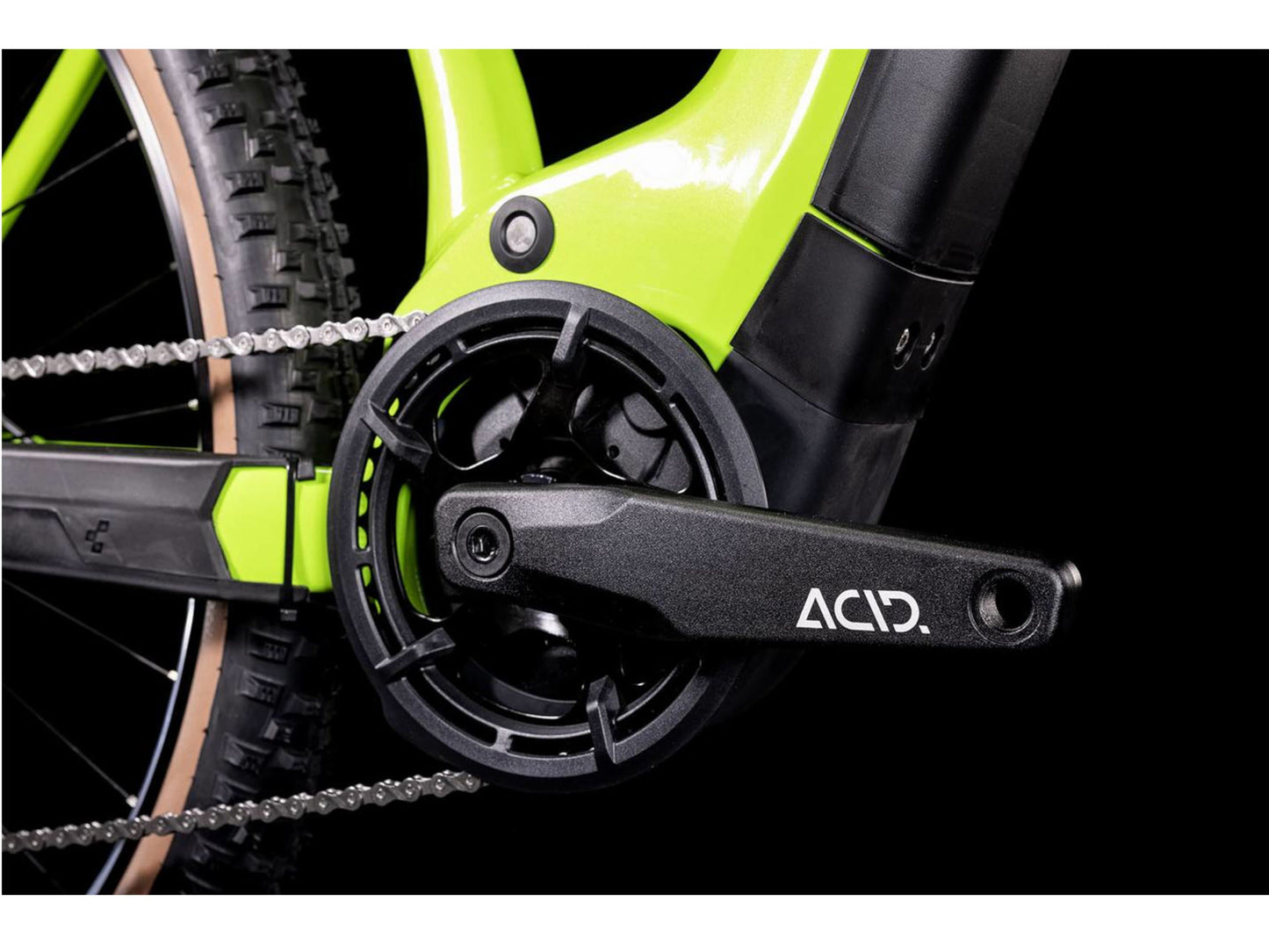

  Crankset	ACID E-Crank, 175mm, 38T
  Chain Ring	Spec not provided
  Chain Guard	Spec not provided
  Rims	Rodi Blackrock 23, 32H, Disc, Tubeless Ready
  Front Hub	Shimano HB-TX505, QR, Centerlock
  Rear Hub	Shimano FH-TX505, QR, Centerlock
  Front Tire	Schwalbe Smart Sam, Active, 2.35
  Rear Tire	Schwalbe Smart Sam, Active, 2.35
  Handlebar	Cube Rise Trail Bar, 720mm
  Stem	CUBE Performance Stem E-MTB, 31.8mm
  Headset	ACROS AZF-1031, 1 1/8" straight, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)

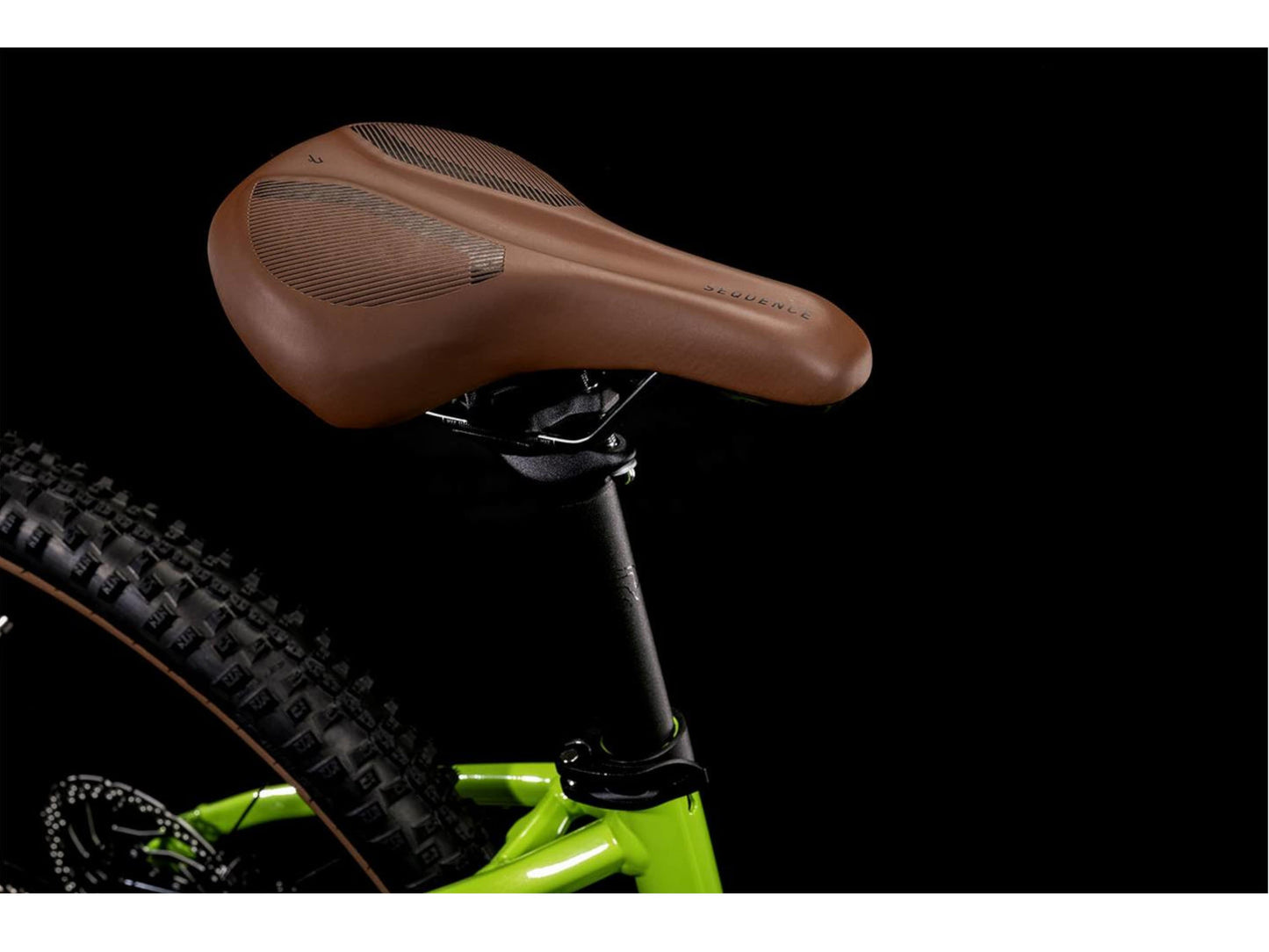

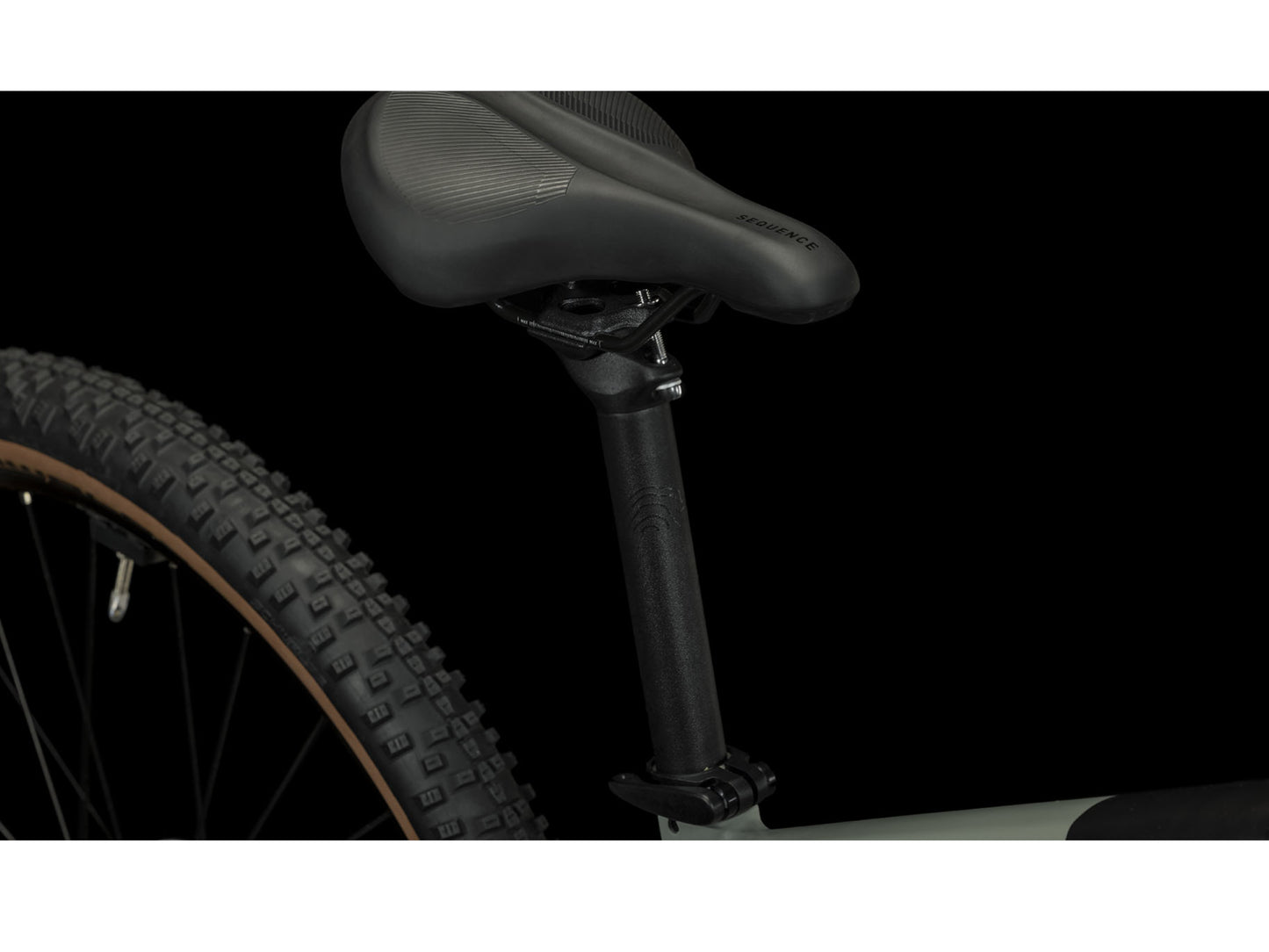

  Saddle	Natural Fit Sequence
  Seatpost	Cube Performance Post, 30.9mm

• Pedals	ACID PP MTB
  Front Light	Not applicable
  Rear Light	Not applicable
  Kickstand	Not applicable
  Rear Carrier	Not applicable
  Fenders	Not applicable
  Bell	Not applicable
  Lock	Not applicable
  Mirror	Not applicable

• Chart/mm
  14" / 27.5 / XS
  16" / 27.5 / S
  18" / 29 / M
  20" / 29 / L
  22" / 29 / XL
  24" / 29 / XXL

• Motor	Bosch Drive Unit Performance Generation 3 (65Nm) Cruise (250Watt)
  Battery	Bosch PowerTube 500
  Display	Bosch Purion
  Charger	Bosch 2A

  Frame	Aluminium Superlite, Gravity Casting, Agile Ride Geometry, Tapered Headtube, Internal Cable Routing, Full Integrated Battery, Kickstand/Fender/Carrier Mounting Points
  Fork	SR Suntour NVX30 Coil, 100mm
  Rear Shock	Not applicable
  Front Brake	Shimano BR-MT200, Hydr. Disc Brake (180/180)
  Rear Brake	Shimano BR-MT200, Hydr. Disc Brake (180/180)
  Rear Derailleur	Shimano RD-M3100-SGS, 9-Speed
  Shift Levers	Shimano SL-M3100-R, Rapidfire-Plus
  Chain	KMC X9
  Cassette	Shimano CS-HG201, 11-36T
  Crankset	ACID E-Crank, 175mm, 38T
  Chain Ring	Spec not provided
  Chain Guard	Spec not provided
  Rims	Rodi Blackrock 23, 32H, Disc, Tubeless Ready
  Front Hub	Shimano HB-TX505, QR, Centerlock
  Rear Hub	Shimano FH-TX505, QR, Centerlock
  Front Tire	Schwalbe Smart Sam, Active, K-Guard, 2.35
  Rear Tire	Schwalbe Smart Sam, Active, K-Guard, 2.35
  Handlebar	Cube Rise Trail Bar, 720mm
  Stem	CUBE Performance Stem Pro, 31.8mm
  Headset	27.5: ACROS AZX-1041, BlockLock 135°, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // 29: ACROS AZF-1039, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
  Saddle	Natural Fit Sequence
  Seatpost	Cube Performance Post, 30.9mm<

  Pedals	ACID PP MTB
  Front Light	Not applicable
  Rear Light	Not applicable
  Kickstand	Not applicable
  Rear Carrier	Not applicable
  Fenders	Not applicable
  Bell	Not applicable
  Lock	Not applicable
  Mirror	Not applicable
