Cube Reaction Hybrid Pro 500

The Full Scoop on the Cube Reaction Hybrid Pro 500

• Description
• Motor System
• Components
• Extras
• Geometry

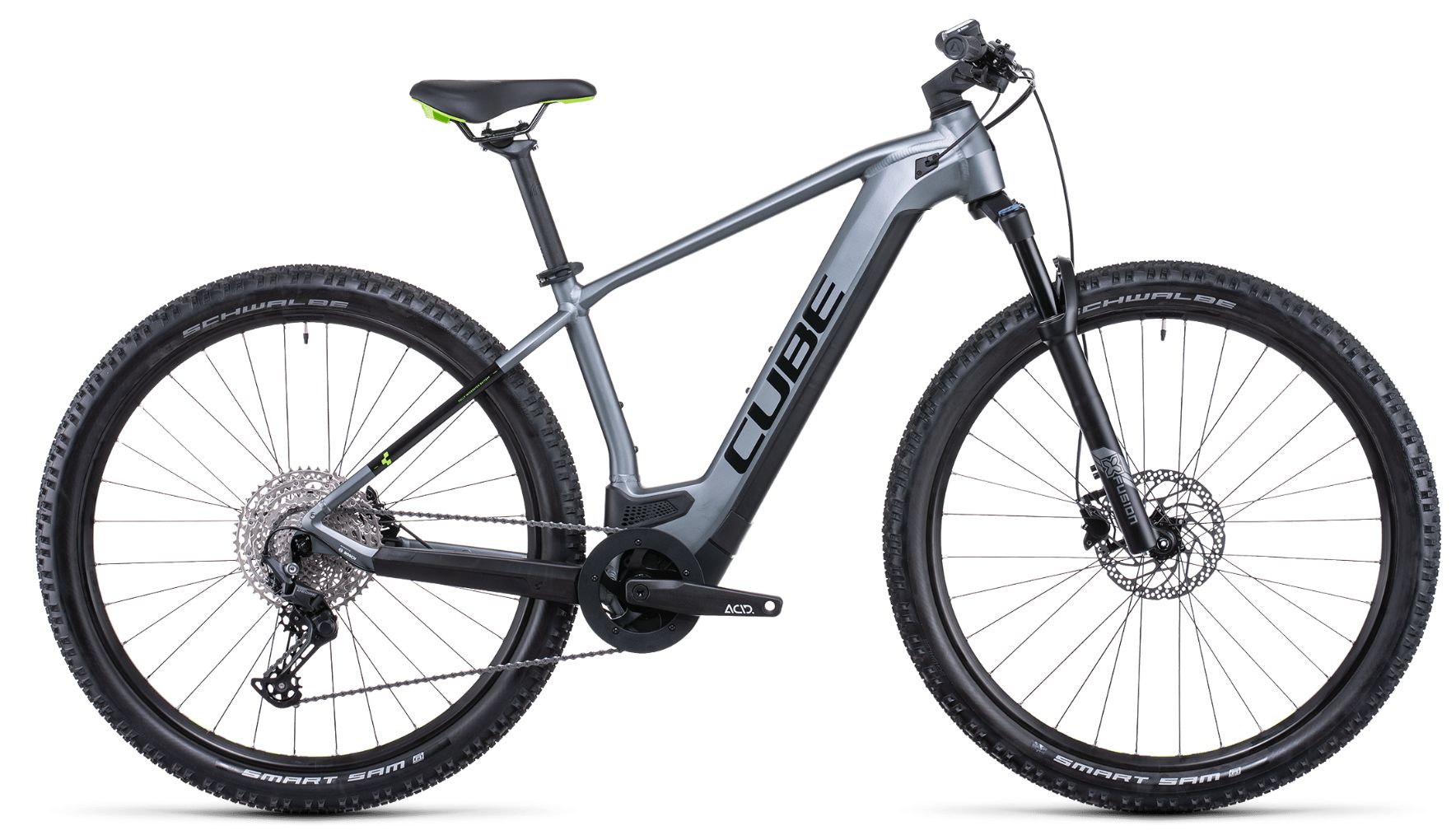

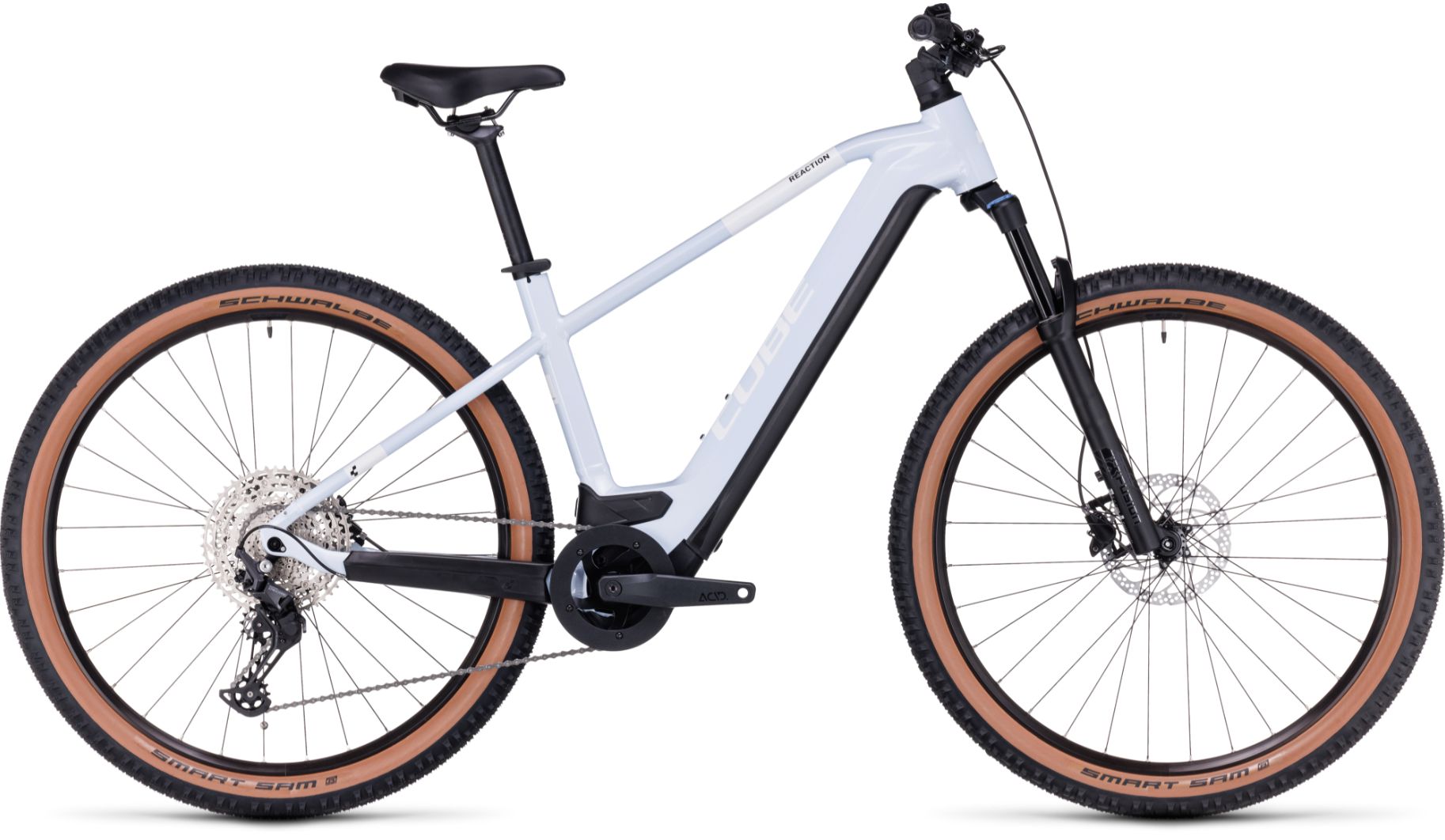

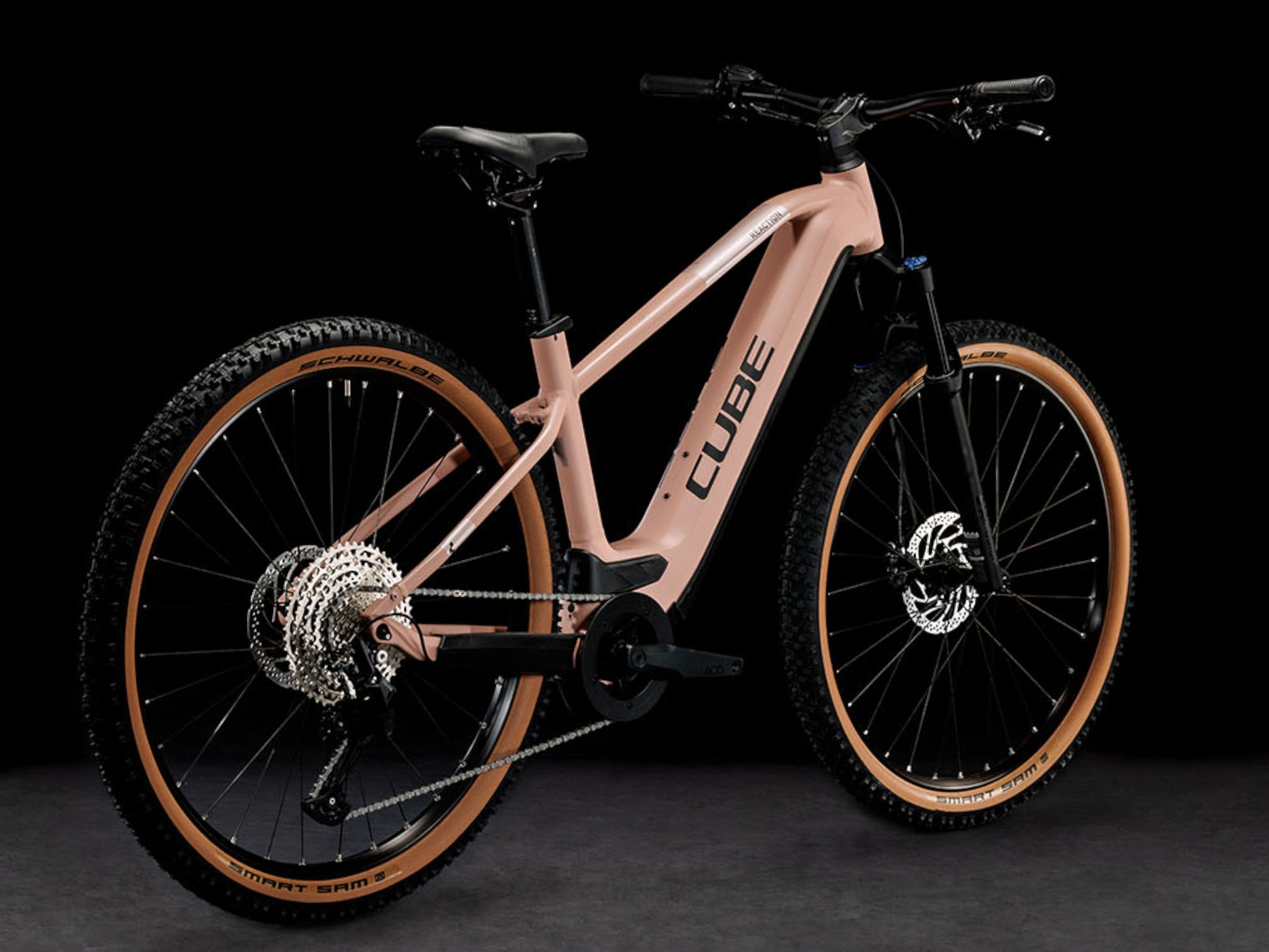

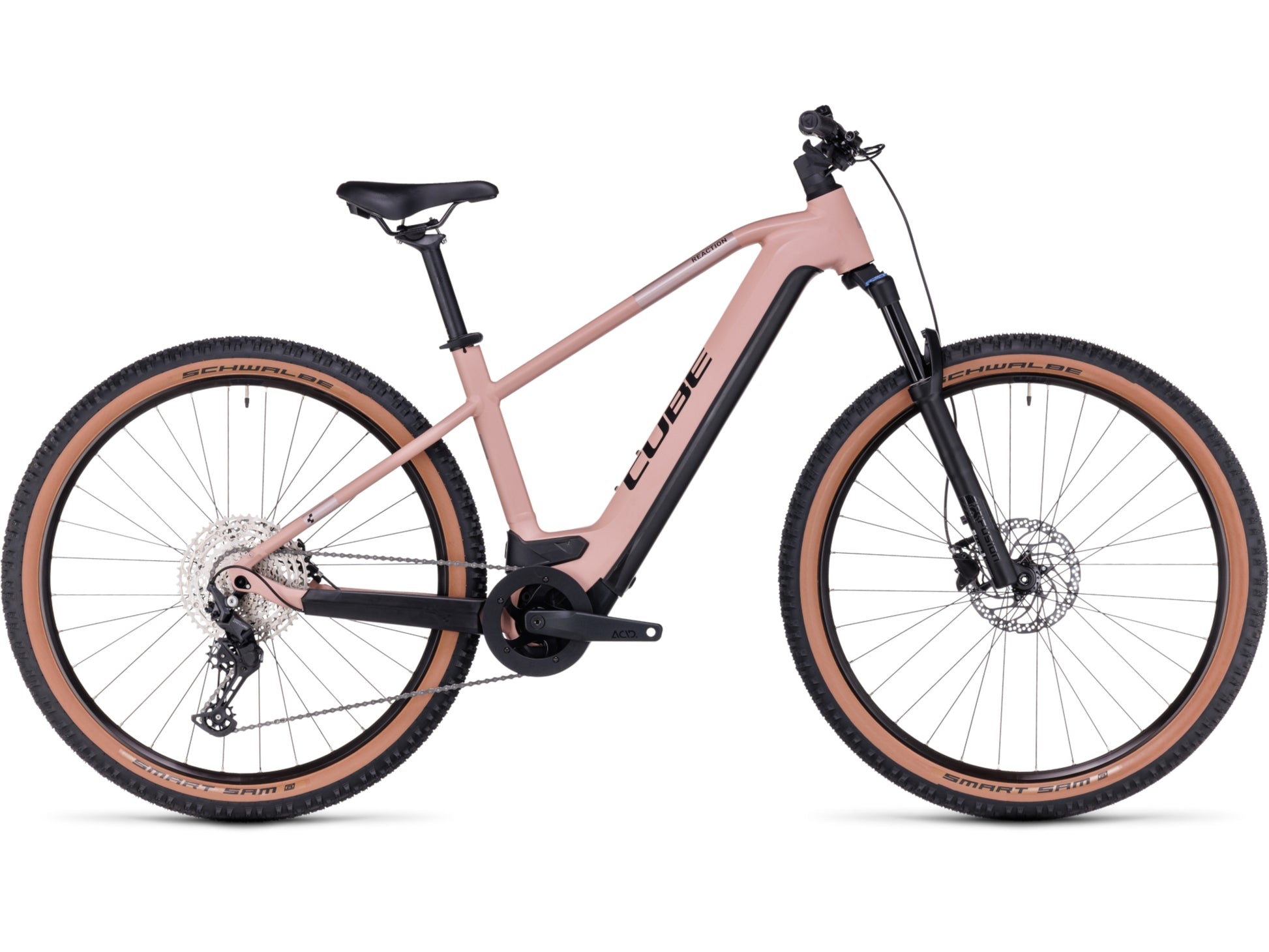

• The Cube Reaction Hybrid Pro 500 is a super fun hardtail, electric cross-country mountain bike. The Cube Reaction Hybrid Pro 500's PowerTube frame design is so sleek, you'll barely notice the high-capacity Bosch battery and sophisticated, Smart System Bosch CX motor. But you'll definitely recognize the power. Cube Reaction Hybrid Pro 500's internally routed cables reduce maintenance and help keep gear shifts clean and precise.

• *Components subject to manufacturer changes.

• Motor	Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
  Battery	Bosch PowerTube 500

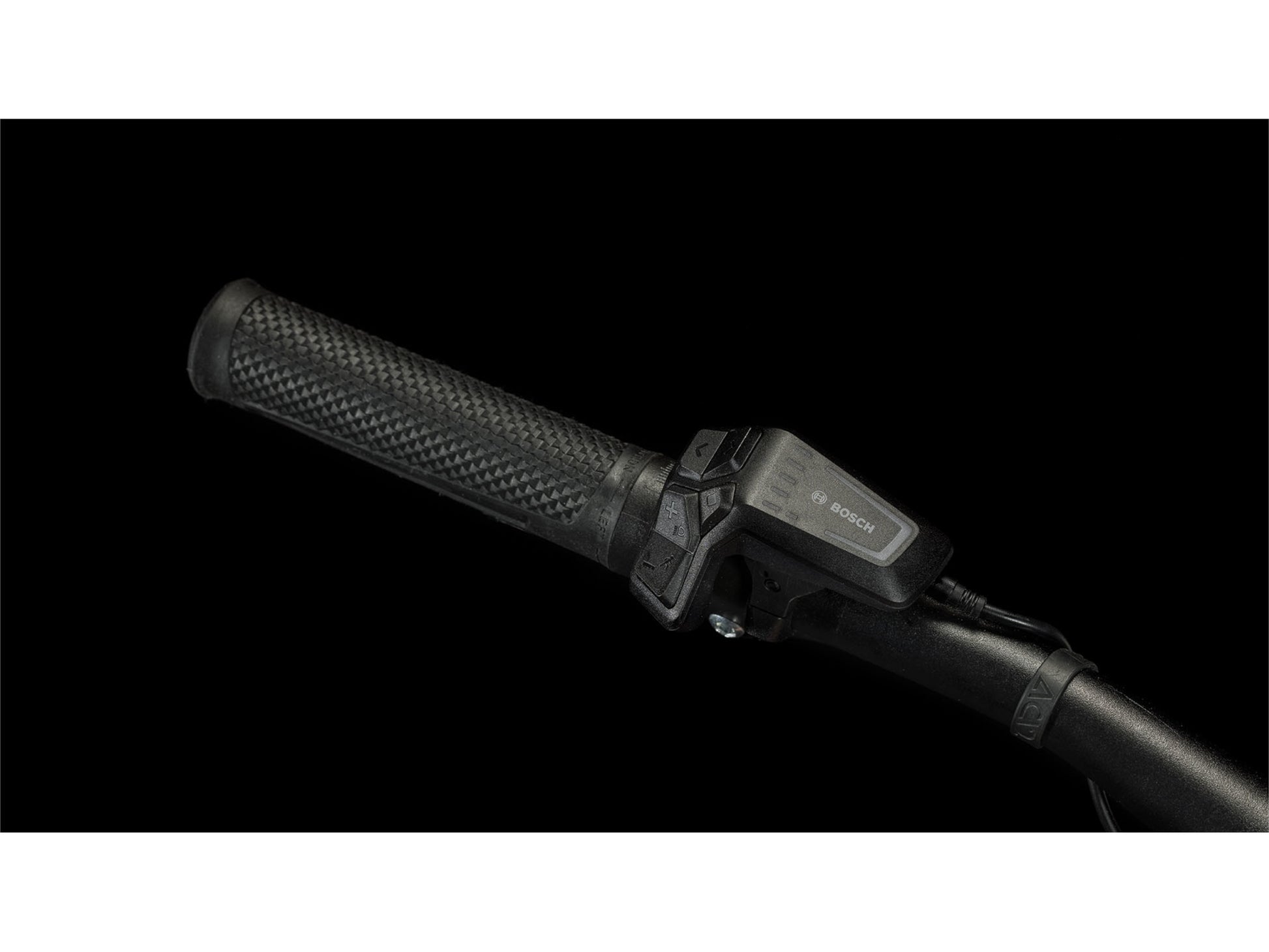

  Display	Bosch LED Remote
  Charger	Bosch 4A

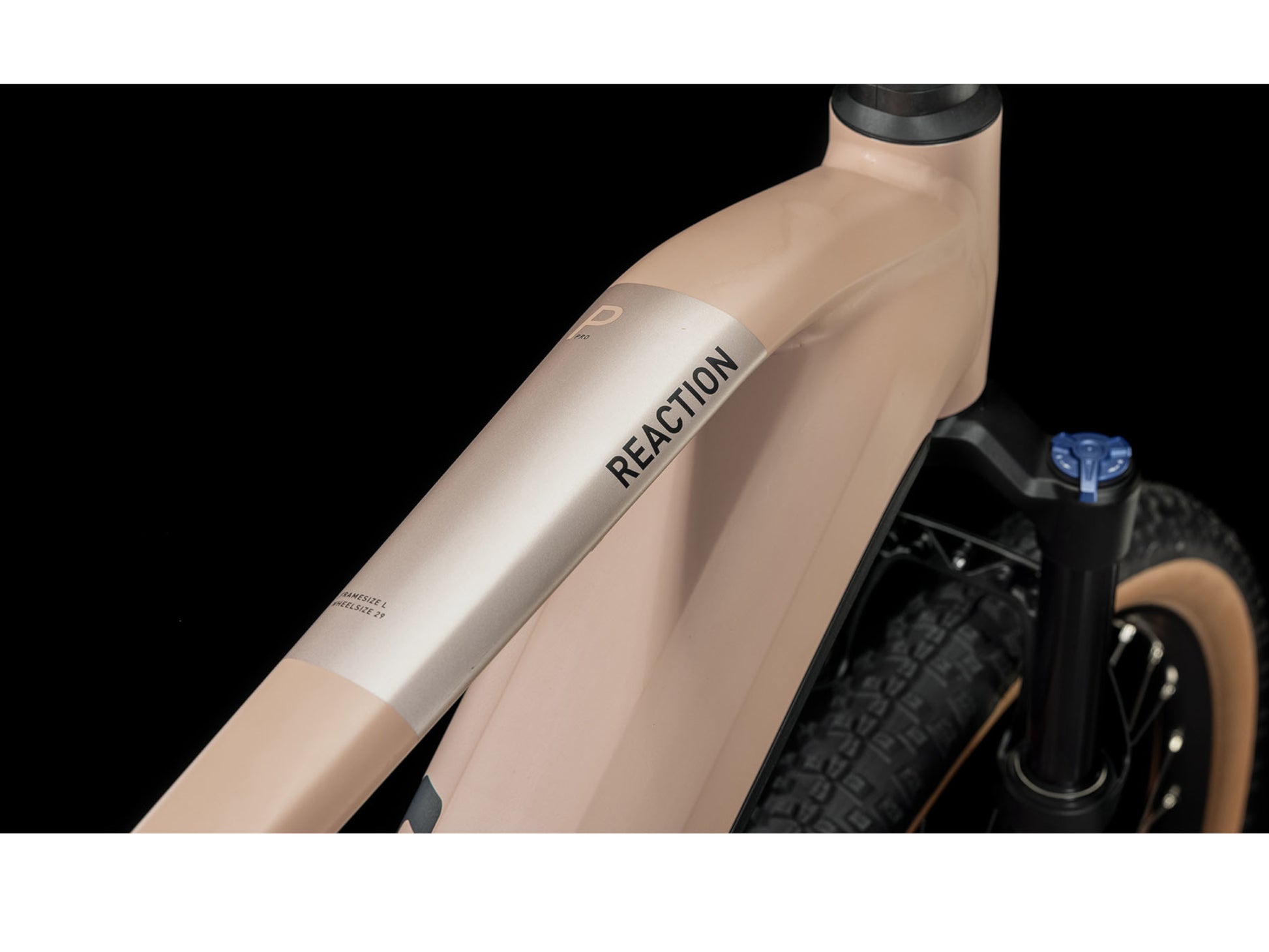

• Frame	Aluminium Superlite, Gravity Casting, Agile Ride Geometry, 1.5 Headtube, Boost 148, Full Integrated Battery, Advanced Internal Cable Routing, Kickstand/Fender/Carrier Mounting Points

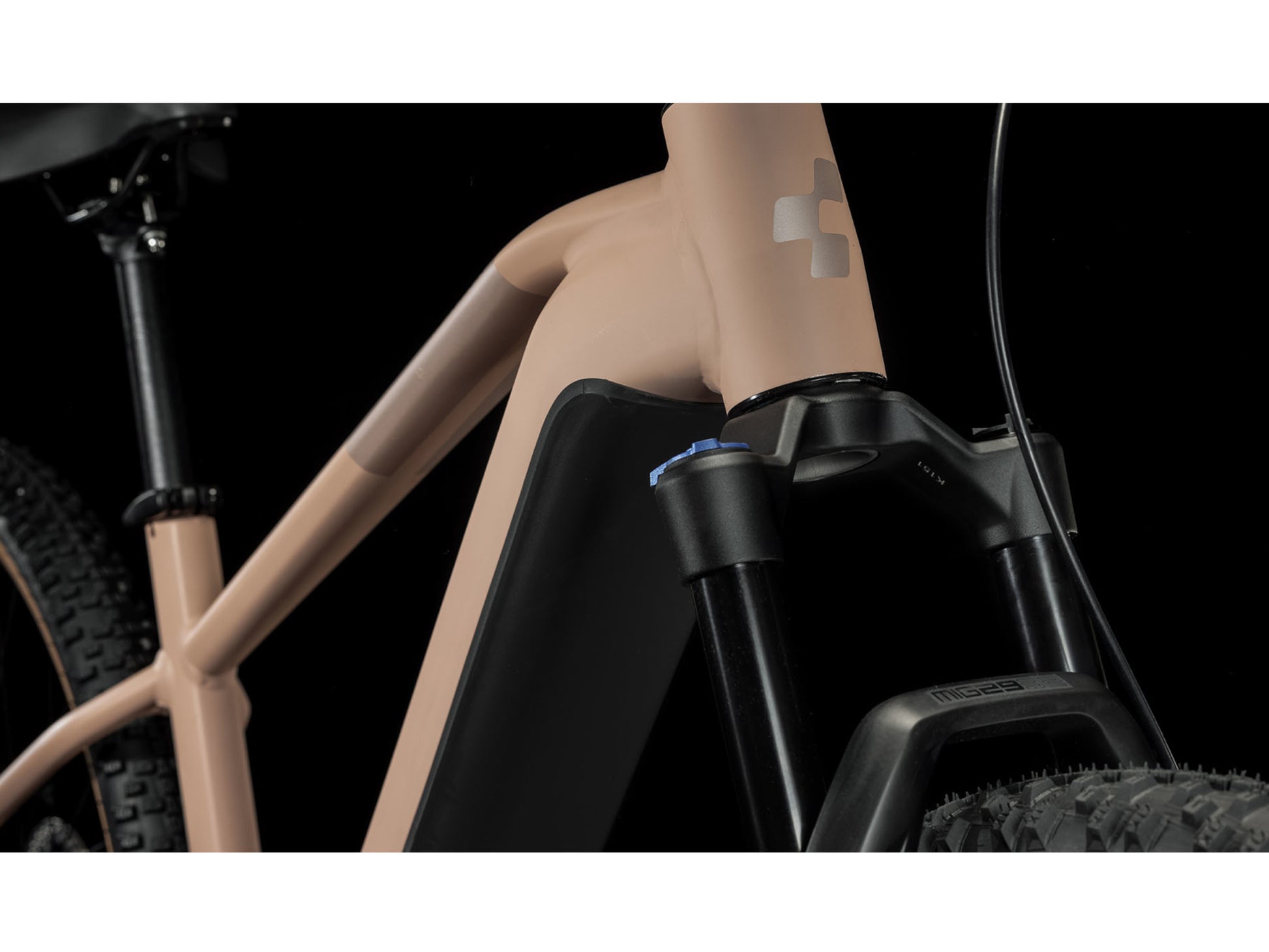

  Fork	X-Fusion MIG32 Air, Tapered, 15x110mm, 120mm, Lockout (EE: 100mm)
  Rear Shock	Not applicable
  Front Brake	Shimano BR-MT200, Hydr. Disc Brake (180/180)
  Rear Brake	Shimano BR-MT200, Hydr. Disc Brake (180/180)
  Rear Derailleur	Shimano Deore RD-M5100-SGS, 11-Speed
  Shift Levers	Shimano Deore SL-M5100, Direct attach, Rapidfire-Plus
  Chain	KMC X11

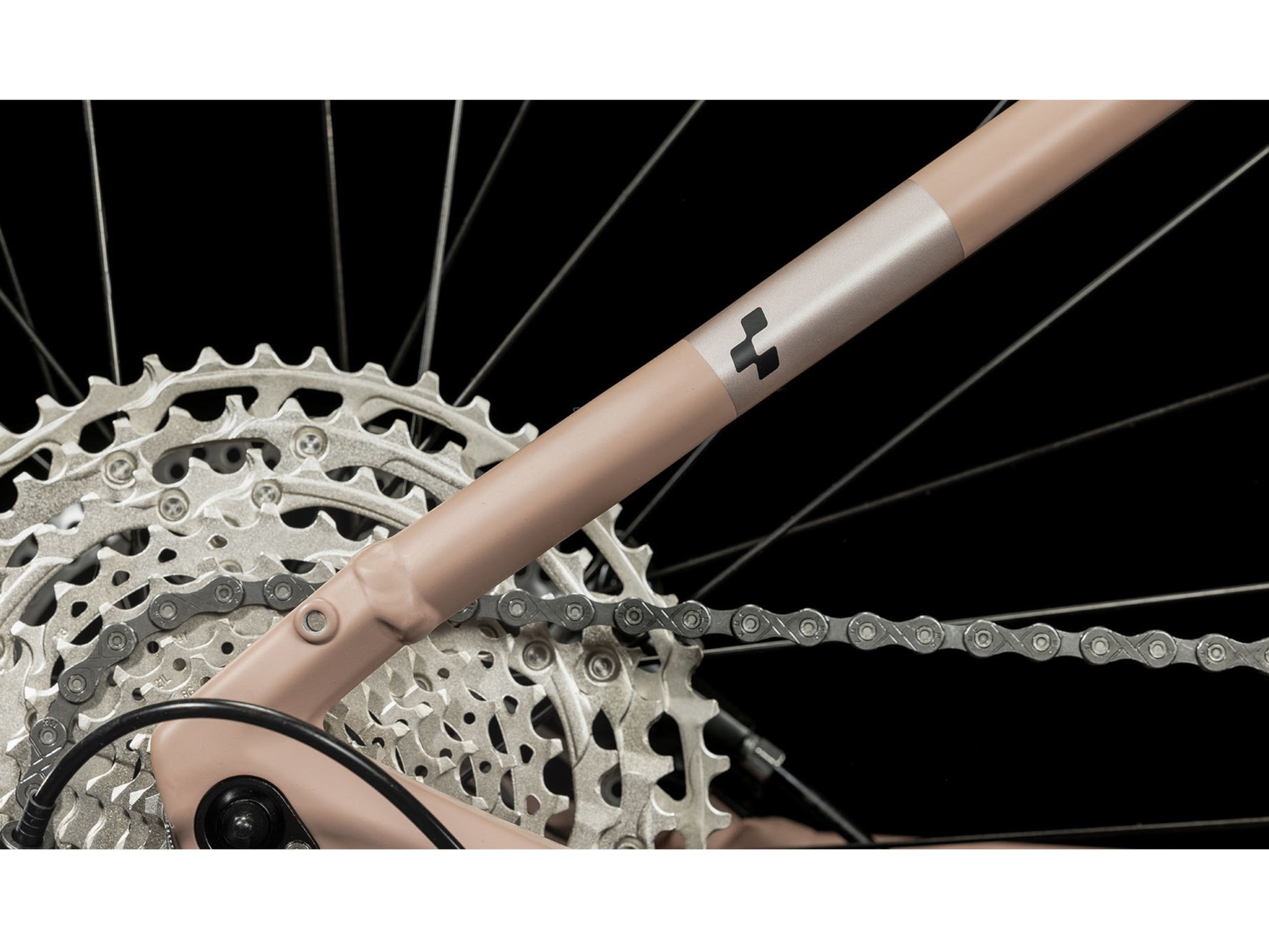

  Cassette	Shimano Deore CS-M5100, 11-51T
  Crankset	ACID E-Crank, 175mm, 38T
  Chain Ring	Spec not provided
  Chain Guard	Spec not provided
  Rims	Rodi Tryp 30, 32H, Disc, Tubeless Ready
  Front Hub	Shimano HB-MT400-B, 15mm, Boost, Centerlock
  Rear Hub	Shimano FH-MT400-B, 12mm, Boost, Centerlock
  Front Tire	Schwalbe Smart Sam, Active, 2.6
  Rear Tire	Schwalbe Smart Sam, Active, 2.6
  Handlebar	CUBE Rise Trail Bar Pro, 740mm
  Stem	CUBE Performance Stem, E-MTB, 31.8 mm
  Headset	ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
  Grips	ACID React Pro
  Saddle	Natural Fit Sequence

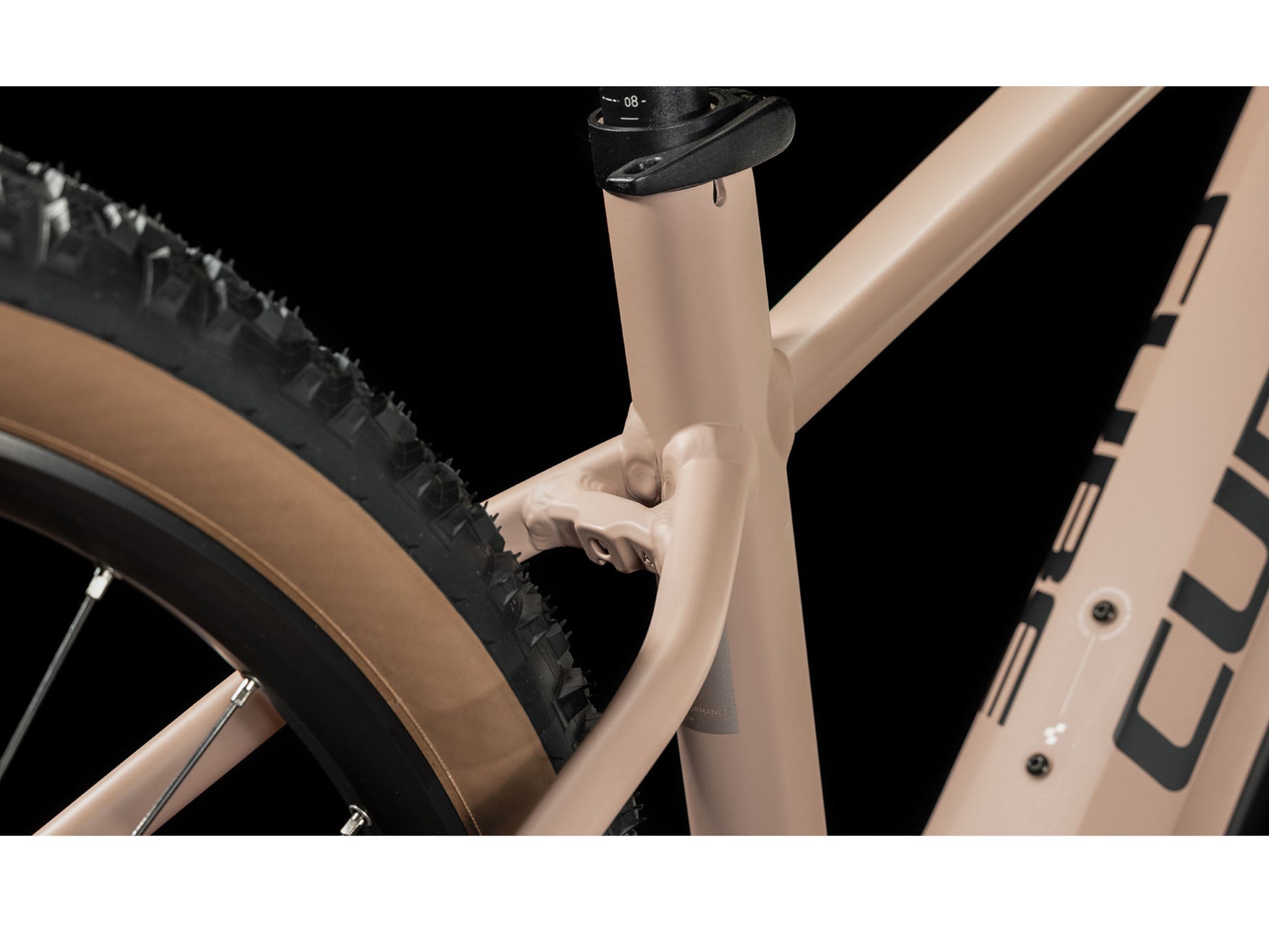

  Seatpost	CUBE Performance Post, 30.9mm

• Pedals	ACID PP MTB
  Front Light	Not applicable
  Rear Light	Not applicable
  Kickstand	Not applicable
  Rear Carrier	Not applicable
  Fenders	Not applicable
  Bell	Not applicable
  Lock	Not applicable
  Mirror	Not applicable

• Chart/mm
  15"
  17"
  19"
  21"
  23"
