Cube Stereo Hybrid 160 HPC TM

Sizing Guide

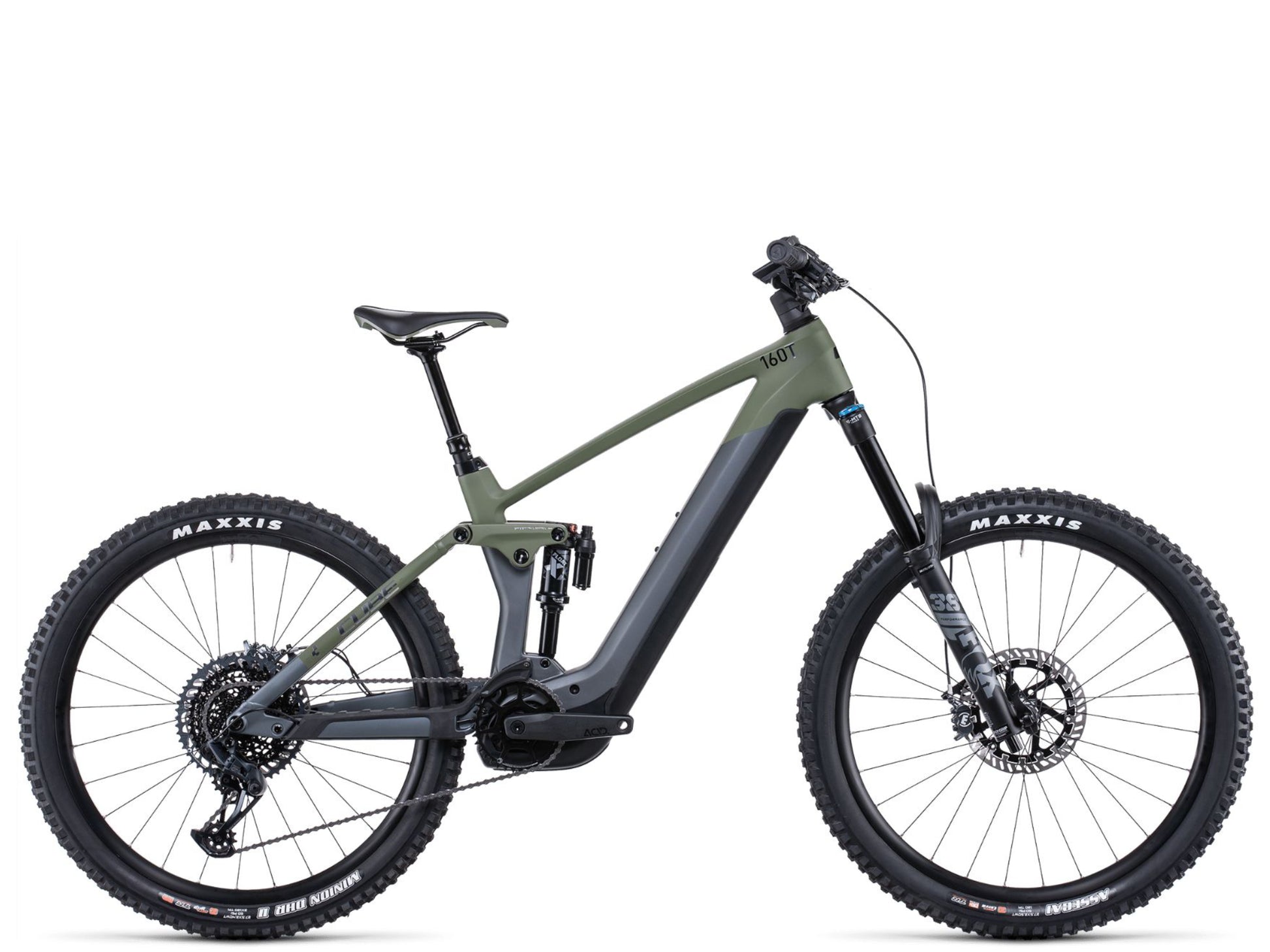

The Full Scoop on the Cube Stereo Hybrid 160 HPC TM

  • Completely new for 2022, the Cube Stereo Hybrid 160 HPC TM's frame is designed to blend world-class trail-taming abilities with superb handling and more range than ever before. With the high-capacity 750Wh battery and fourth-generation Bosch drive unit housed entirely inside the down tube, the Cube Stereo Hybrid 160 HPC TM as powerful as it is good to look at. Hidden by a cover with shock protection, push-button access and a hidden lock, the battery is both secure and easy to access. Integrated cable routing removes cable holes from the head tube area for greater strength and a neater appearance. The Cube Stereo Hybrid 160 HPC TM's race-inspired geometry gives you the advantage you need to show the trail exactly who's boss.

    *Components subject to manufacturer changes
  • Motor Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
    Battery Bosch PowerTube 750 (*625Wh for 16")

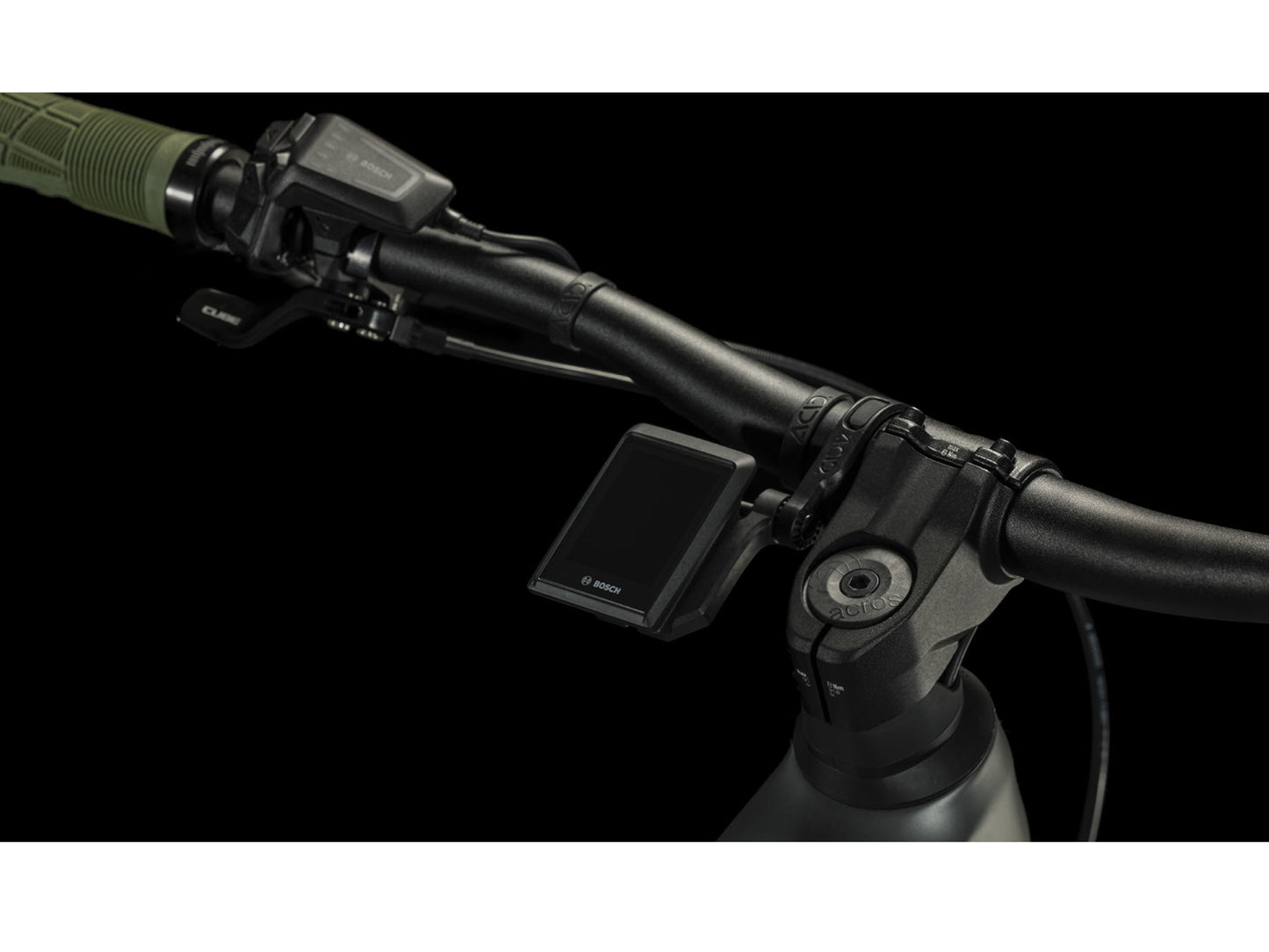

    Display Bosch Kiox 300
    Charger Bosch 4A
  • Frame

    C:62 Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing
    Fork Fox 38 Float Performance GRIP, 3-Position w/Micro Adjust, Tapered, 15x110mm, E-Bike Tune, 170mm

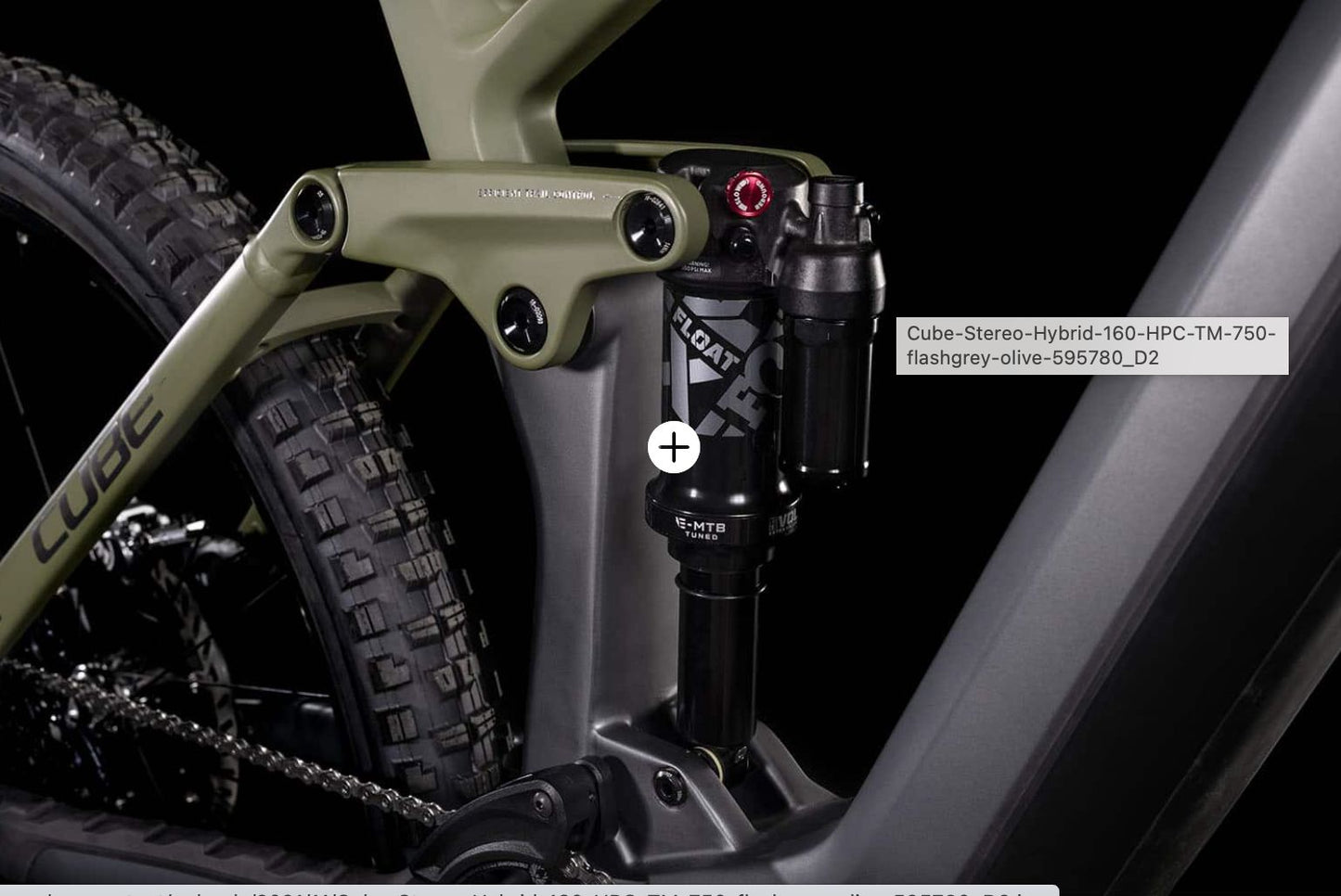

    Rear Shock Fox Float X, 205x65mm, Trunnion Mount, Adjustable LSR w/ 2-Pos. Lever
    Front Brake Magura MT7, Hydr. Disc Brake (203/203)
    Rear Brake Magura MT7, Hydr. Disc Brake (203/203)

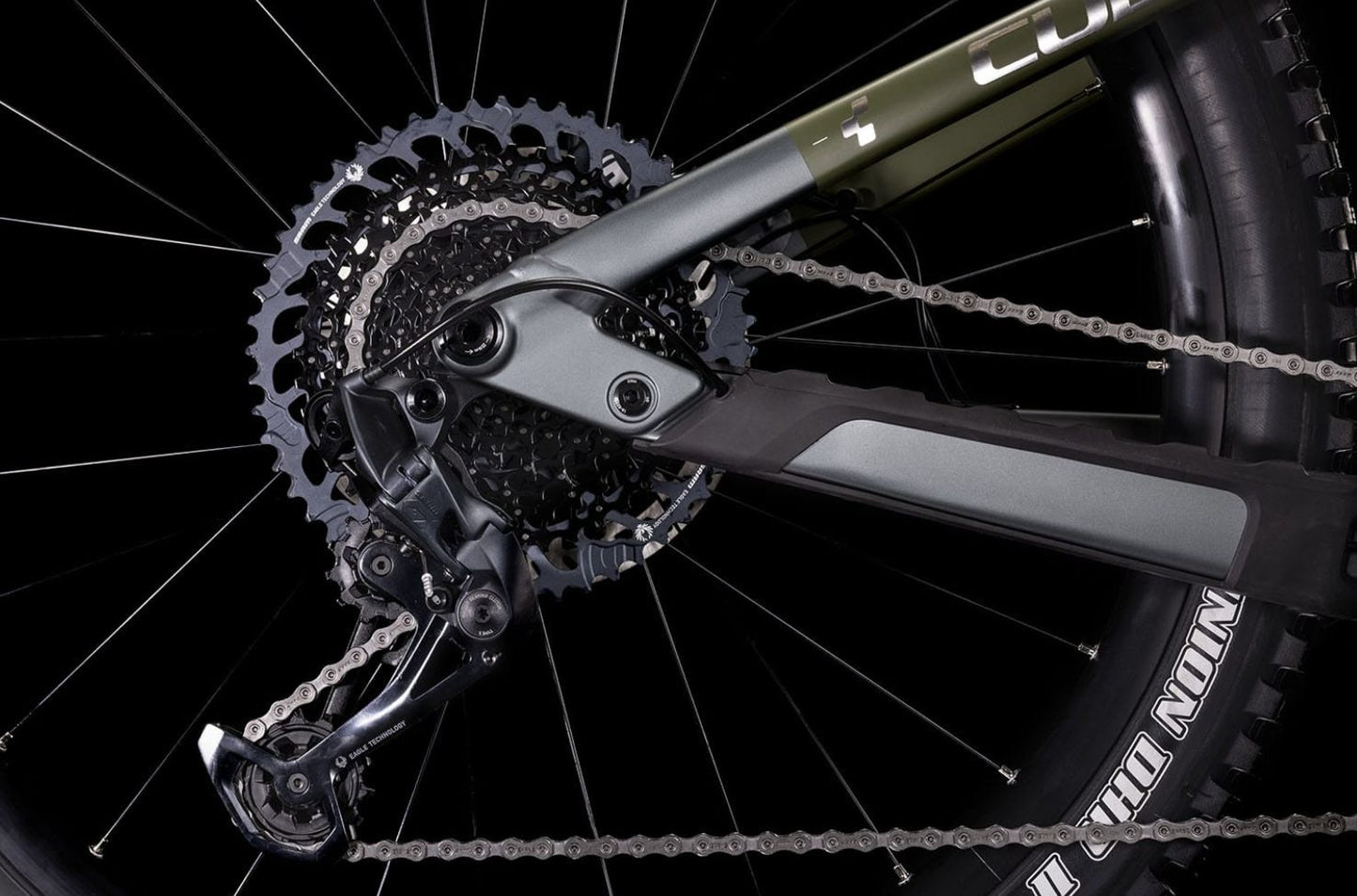

    Rear Derailleur Sram GX Eagle™, 12-Speed
    Shift Levers Sram GX Eagle™ Trigger, Single Click
    Chain Sram NX Eagle™
    Cassette Sram XG-1275 Eagle™, 10-52T
    Crankset ACID E-Crank, 165mm, 36T
    Chain Ring Spec not provided
    Chain Guard Spec not provided
    Rims Newmen Performance 30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
    Front Hub Spec not provided
    Rear Hub Spec not provided
    Front Tire Maxxis Assegai, MaxxGrip/EXO+, Tubeless Ready, 2.5 WT
    Rear Tire
    Maxxis Minion DHR II, MaxxGrip/DoubleDown, Tubeless Ready, 2.4 WT
    Handlebar Newmen Evolution SL 318.25,Carbon, 780mm
    Stem CUBE Performance Stem, E-MTB, 31.8 mm
    Headset ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
    Grips ACID Disrupt, Soft Compound

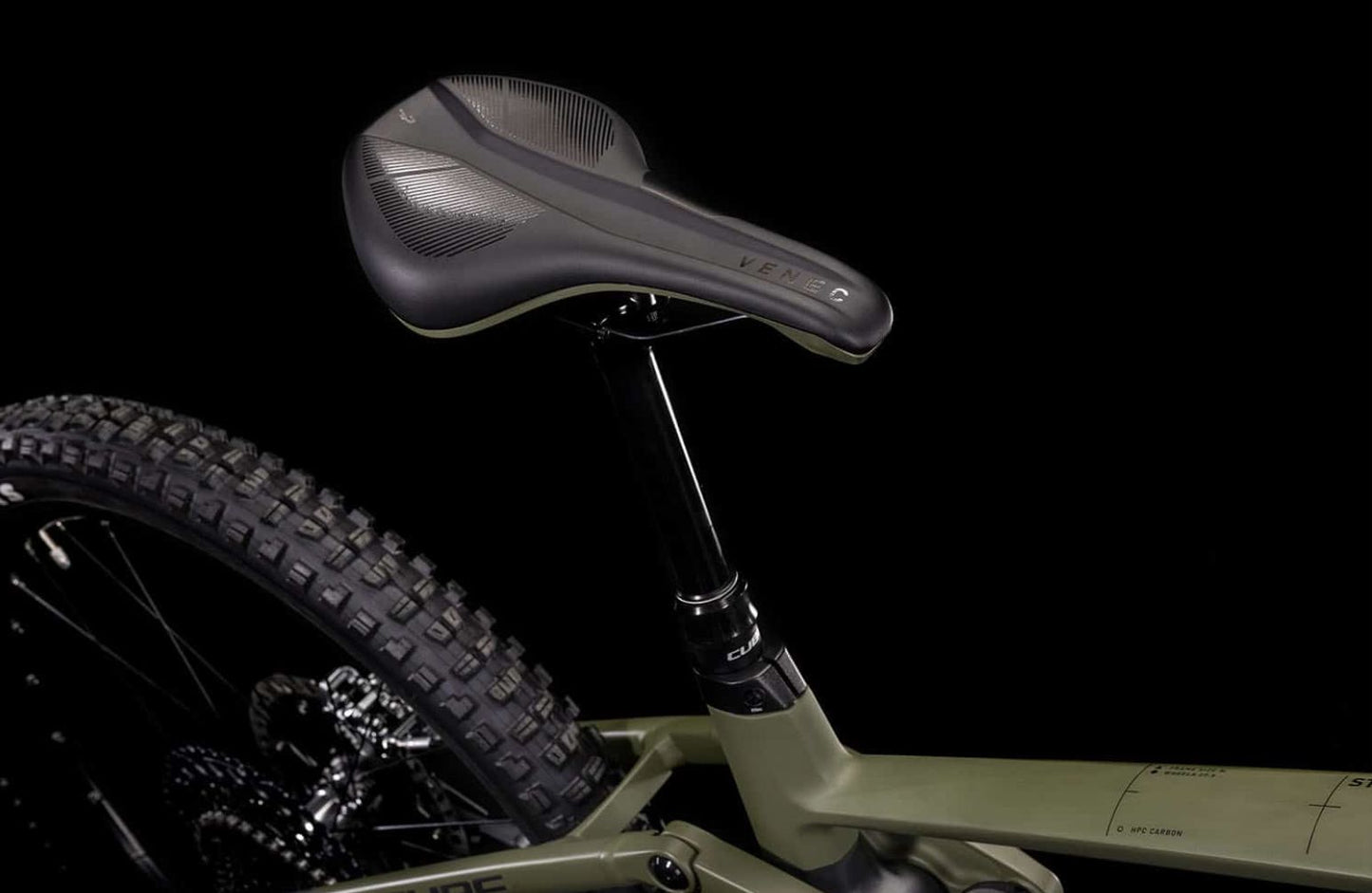

    Saddle Natural Fit Venec
    Seatpost CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm (M: 125mm, L,XL: 150mm)
  • Pedals Not applicable
    Front Light Not applicable
    Rear Light Not applicable
    Kickstand Not applicable
    Rear Carrier Not applicable
    Fenders Not applicable
    Bell Not applicable
    Lock Not applicable
    Mirror Not applicable
  • Chart/mm
    Medium 18"
    Large 20"
    X-large 22"
  • Fork Fox 38 Float Performance GRIP, 3-Position w/Micro Adjust, Tapered, 15x110 mm, 170 mm
    Shock Fox Float DPX2 EVOL, 205x60 mm, Open/Medium/Firm mode, Trunnion Mount
    Drivetrain Sram NX Eagle, 12-speed
    Shifters Sram NX Eagle™ Trigger, Single Click
    Headset Acros AZX-1030, Top Zero-Stack 1 1/2" (ZS 56 mm) , Bottom Zero-Stack 1 1/2" (ZS 56 mm)
    Stem CUBE Performance Stem, E-MTB, 31.8 mm
    Handlebar
    Newmen Evolution SL 318.25, 800 mm
    Grips CUBE Race Grip 31 mm, 1-Clamp
    Brakes Magura MT7, Hydr. Disc Brake (203/203)
    Crankset eACID E-Crank, 36T, 165 mm
    Chain Sram NX Eagle™
    Chain Guide e*thirteen Plus e*spec
    Cassette Sram XG-1275 Eagle, 10-50T
    Wheelset Newmen Evolution SL E.30, 28/28 Spokes, 15x110/12x148mm, Tubeless-Ready
    Rear Tire Maxxis Minion  DHR II, MaxxGrip/DoubleDown, Tubeless-ready, 2.4 WT
    Front Tire Maxxis Assegai, MaxxGrip/EXO+, Tubeless ready, 2.5 WT
    Saddle Natural Fit Venec
    Seat post CUBE Dropper Post
