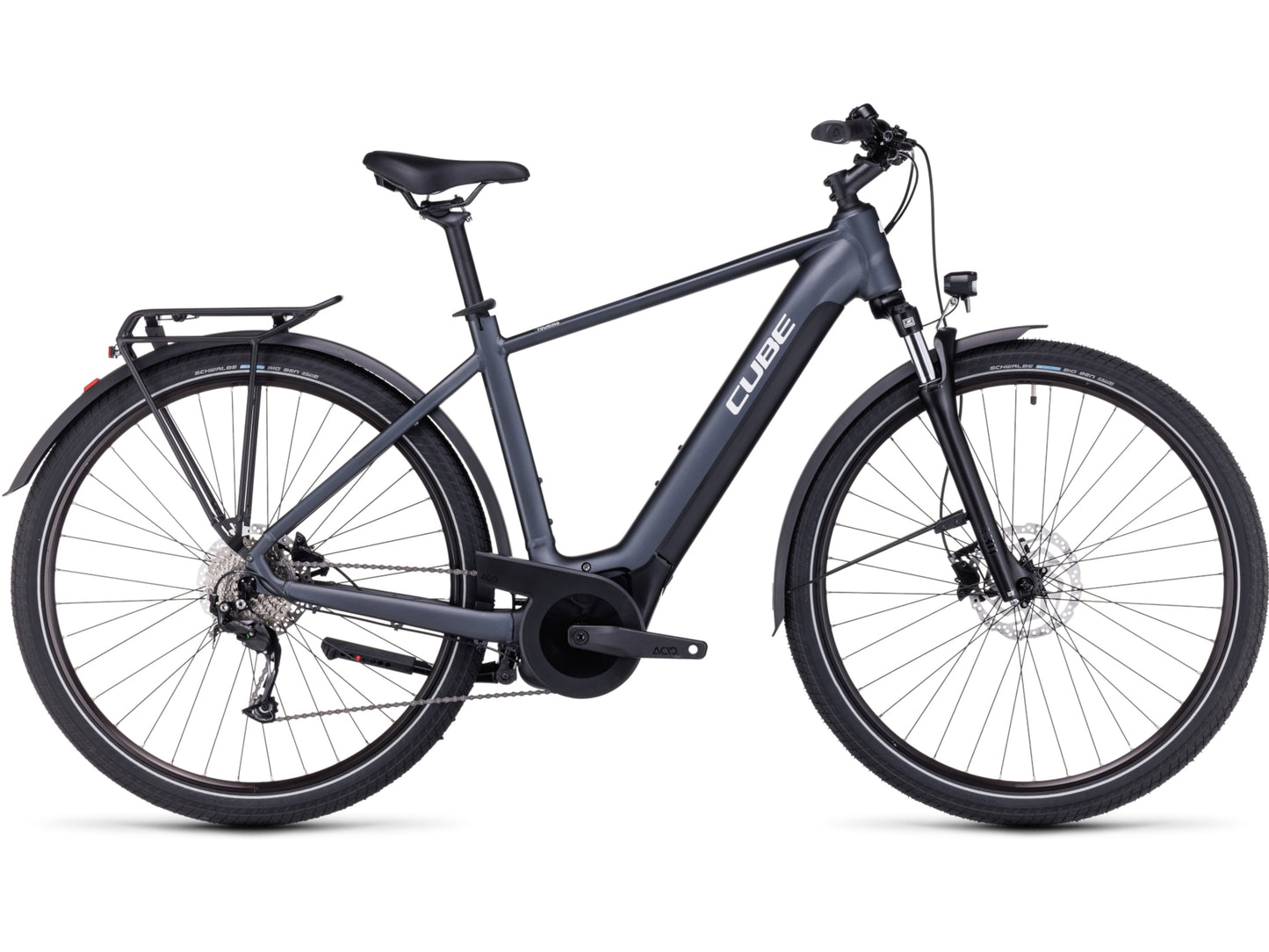

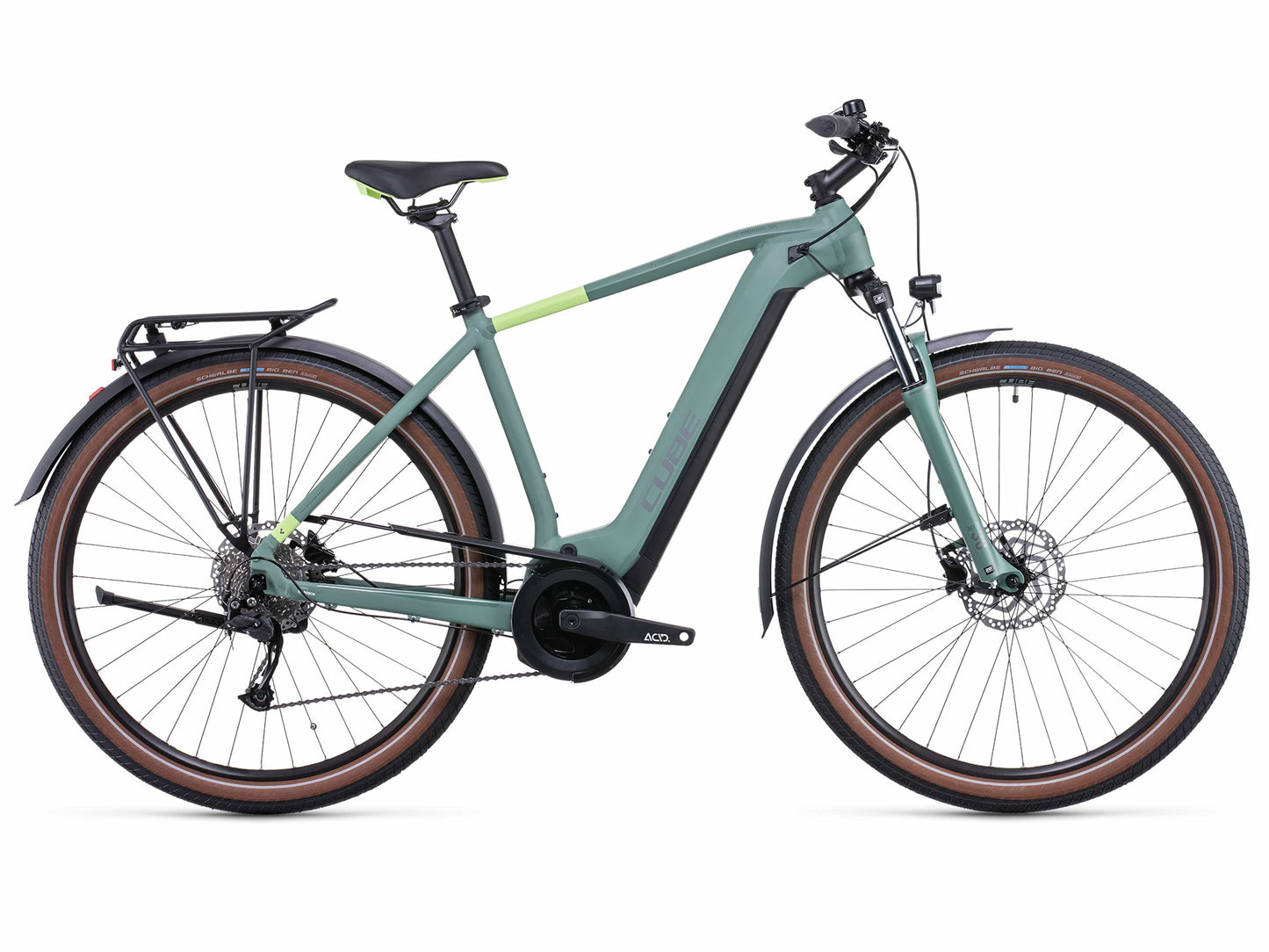

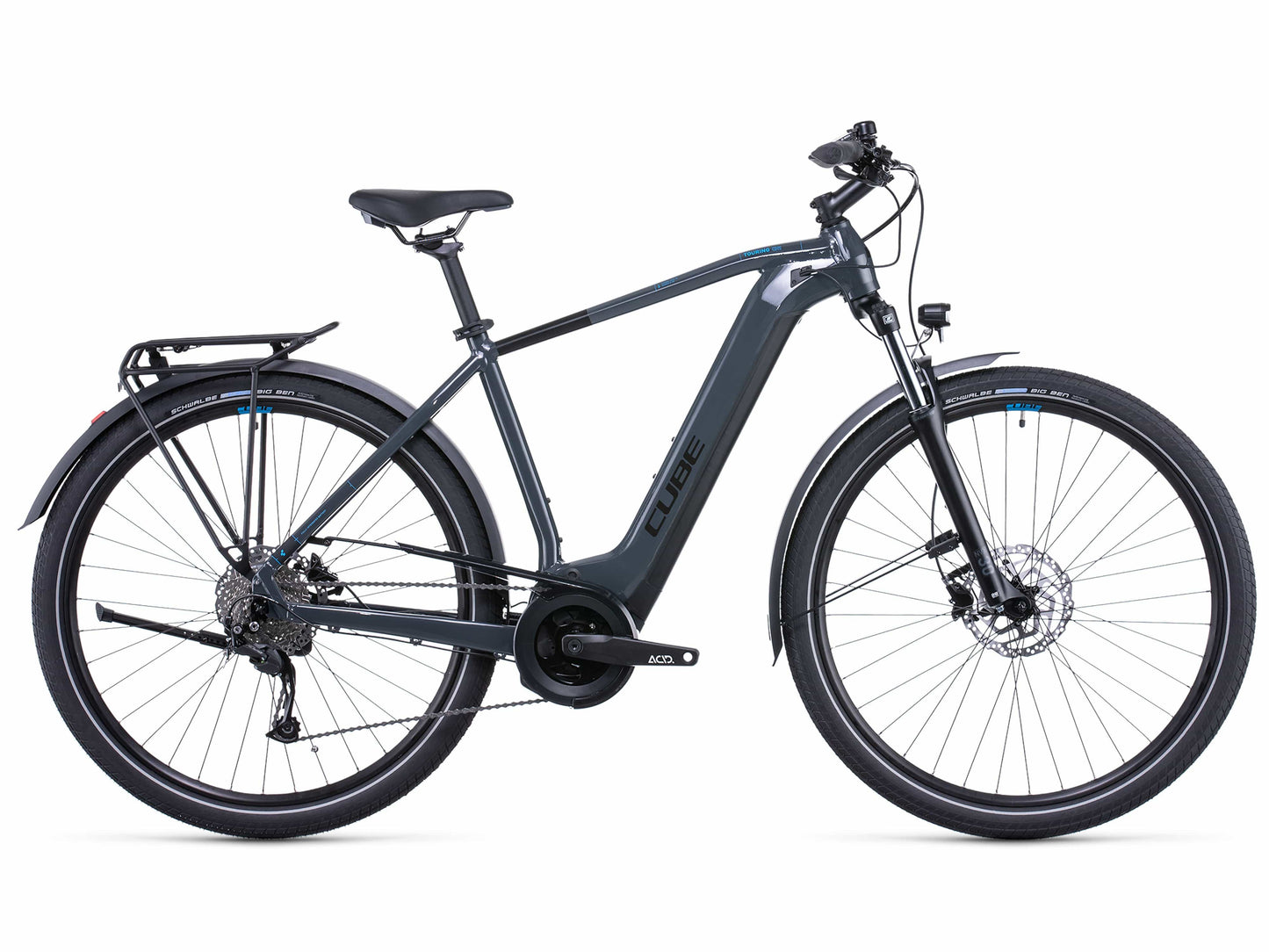

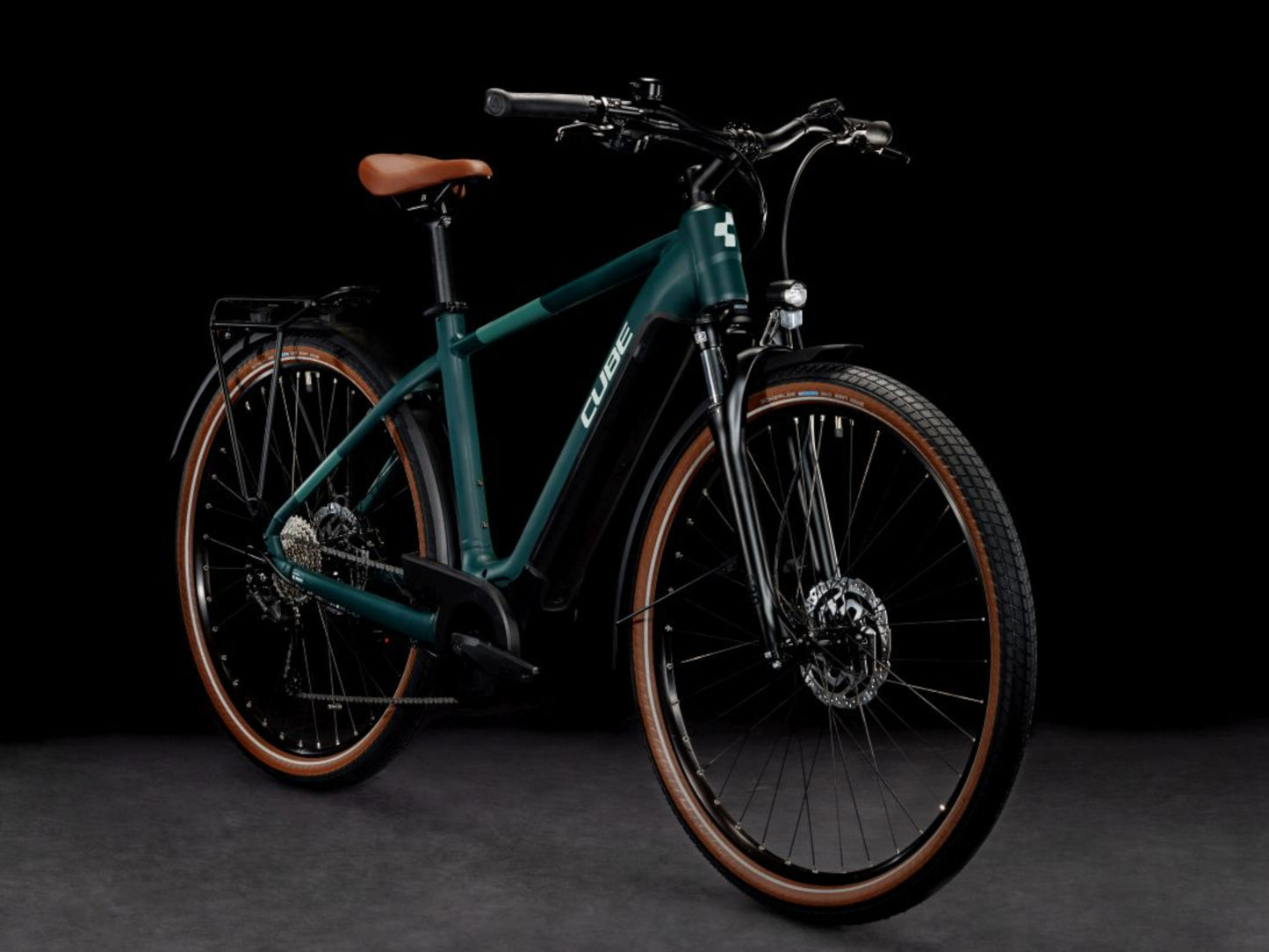

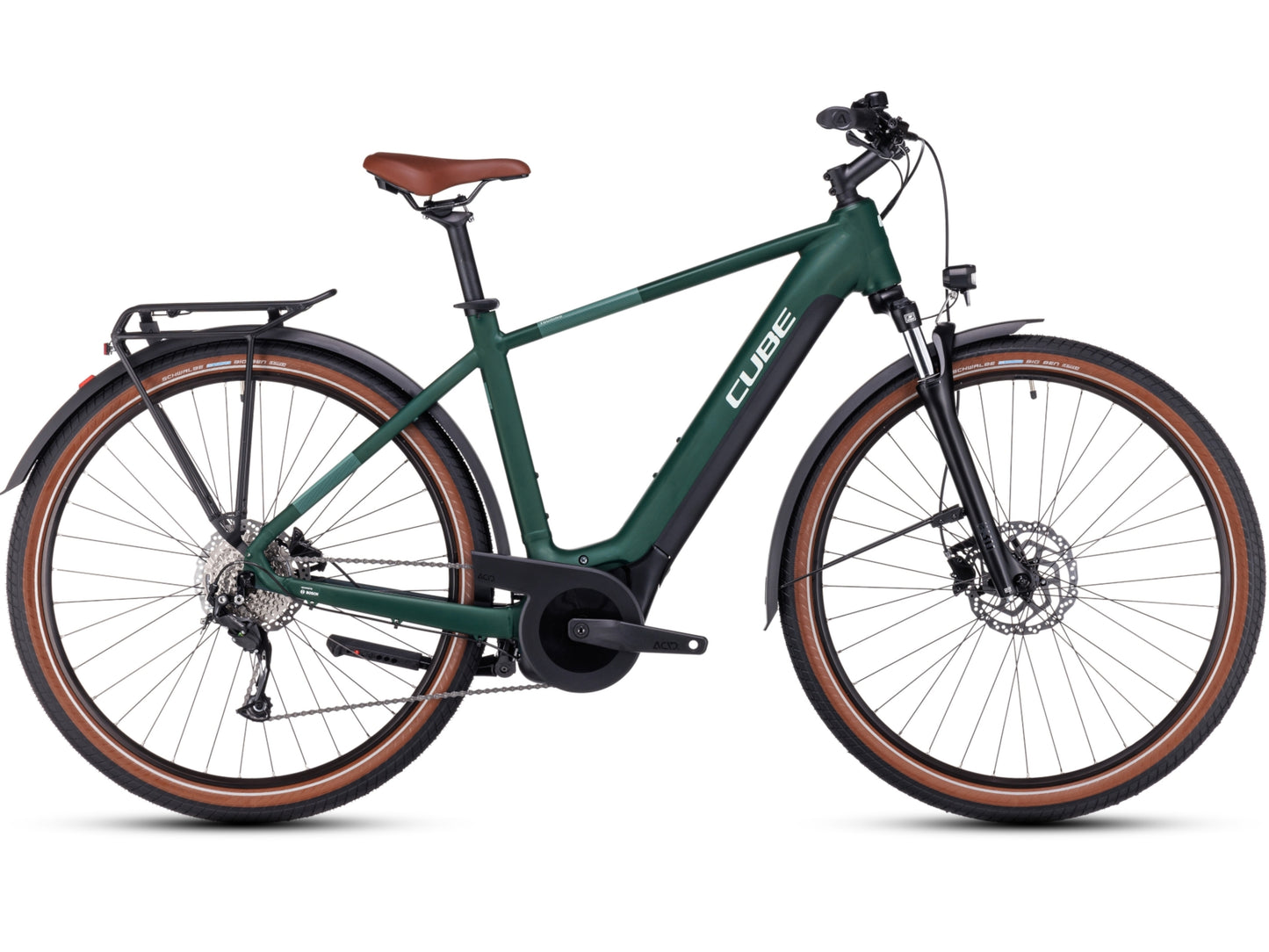

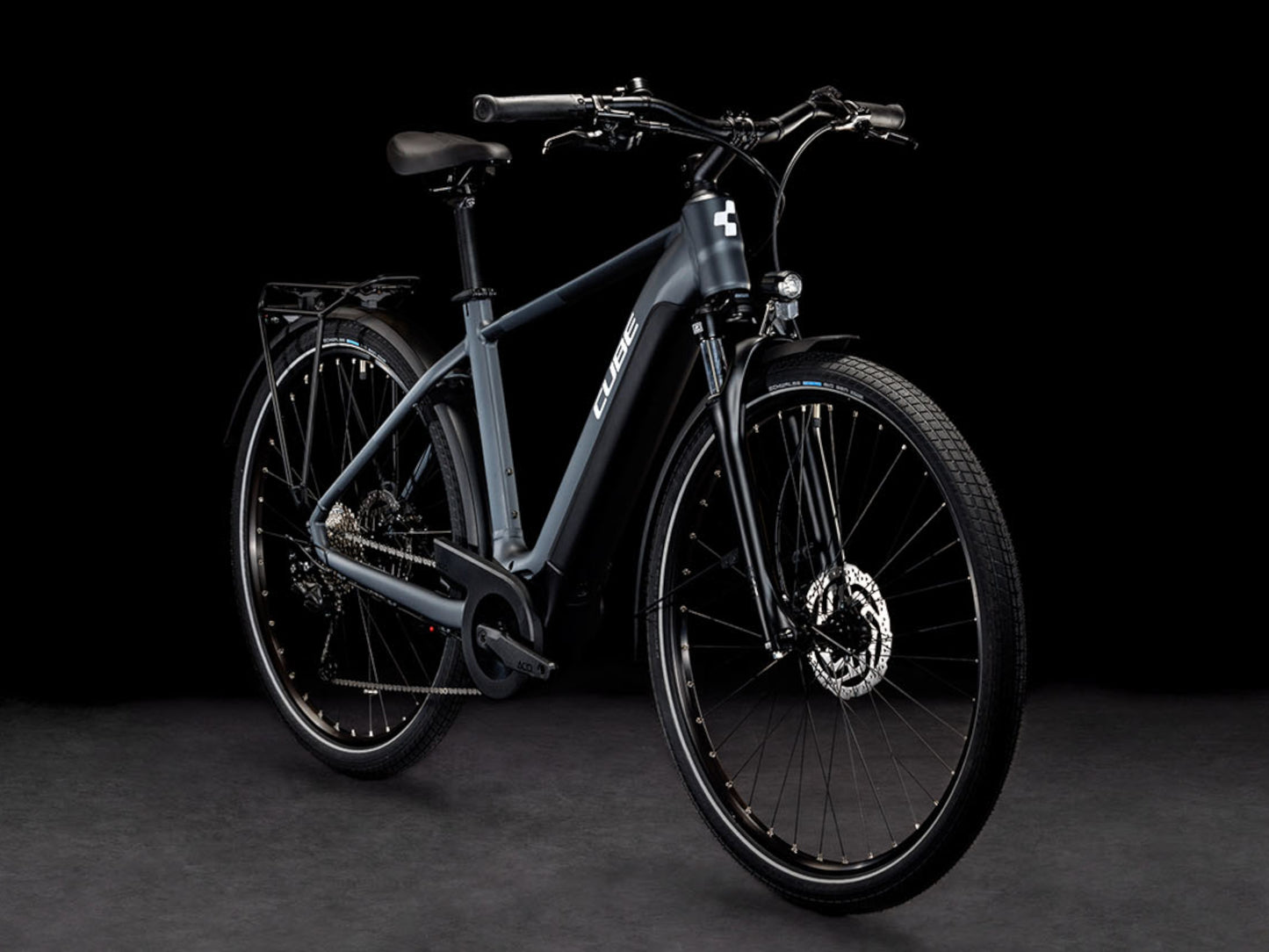

Cube Touring Hybrid ONE 500

Sizing Guide


The Full Scoop on the Cube Touring Hybrid ONE 500

  • Wherever you're heading, the Cube Touring Hybrid ONE 500 will help you get there in comfort and style. The powerful Bosch drive unit, PowerTube battery and reliable, easy-to-use Shimano 9-speed gears make light work of any journey. Carrying your stuff with you is easy and safe, thanks to the included luggage carrier. Cube Touring Hybrid ONE 500's Powerful Shimano hydraulic disc brakes and full-length mudguards shrug off bad weather, and the 100mm suspension fork and wide, grippy tires make even rough city streets a pleasure to ride. The Cube Touring Hybrid ONE 500 even includes an integrated lighting system and kickstand. Travel often, ride adventurously.


  • Components subject to manufacturer changes
  • Motor Bosch Drive Unit Performance Generation 3 (75Nm) Cruise (250Watt), Smart System
    Battery Bosch PowerTube 500
    Display Bosch LED Remote
    Charger Bosch 4A

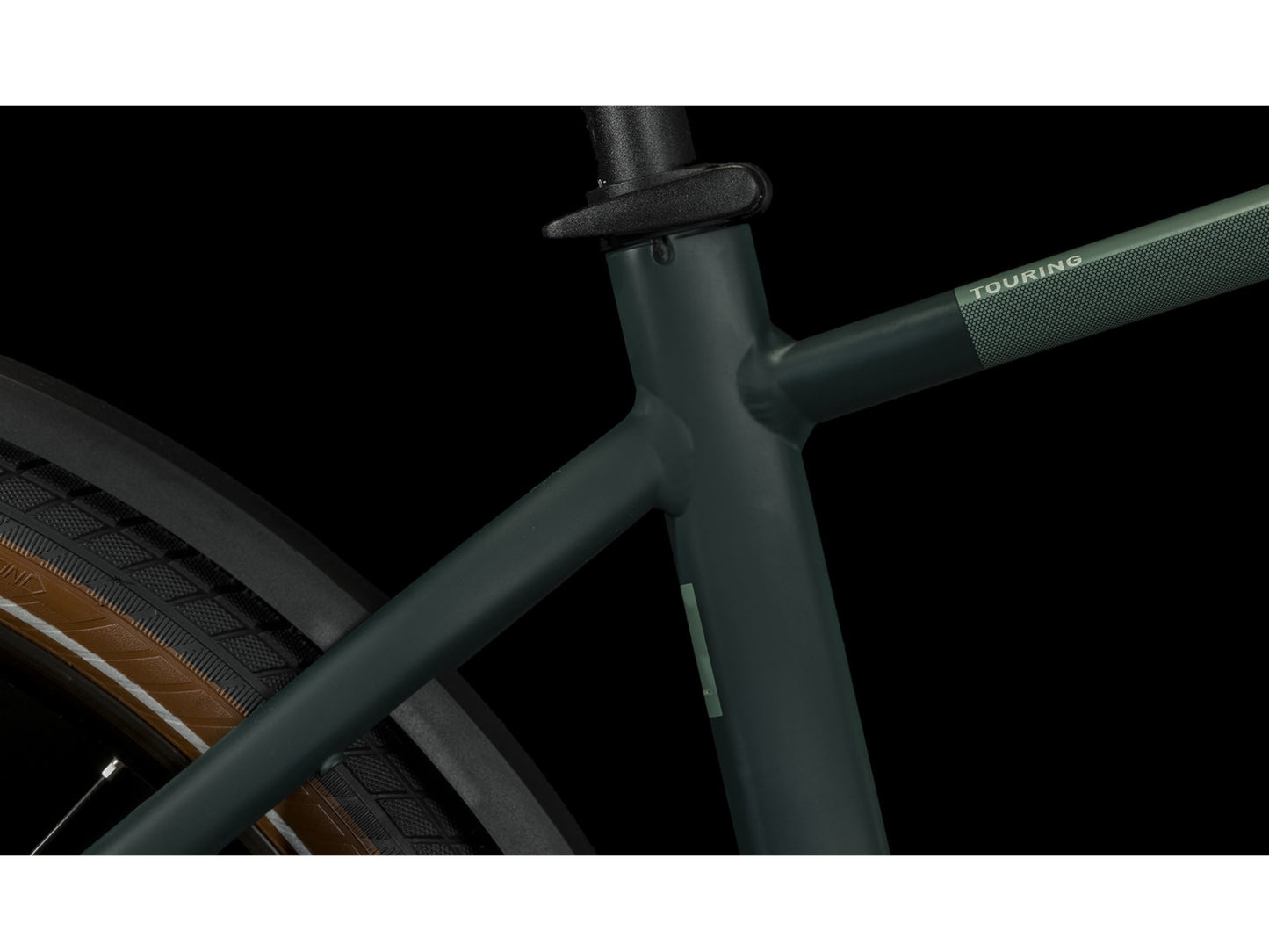

  • Frame   Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Tapered Headtube, Full Integrated Battery, 1.5 Headtube, Semi-Integrated Carrier

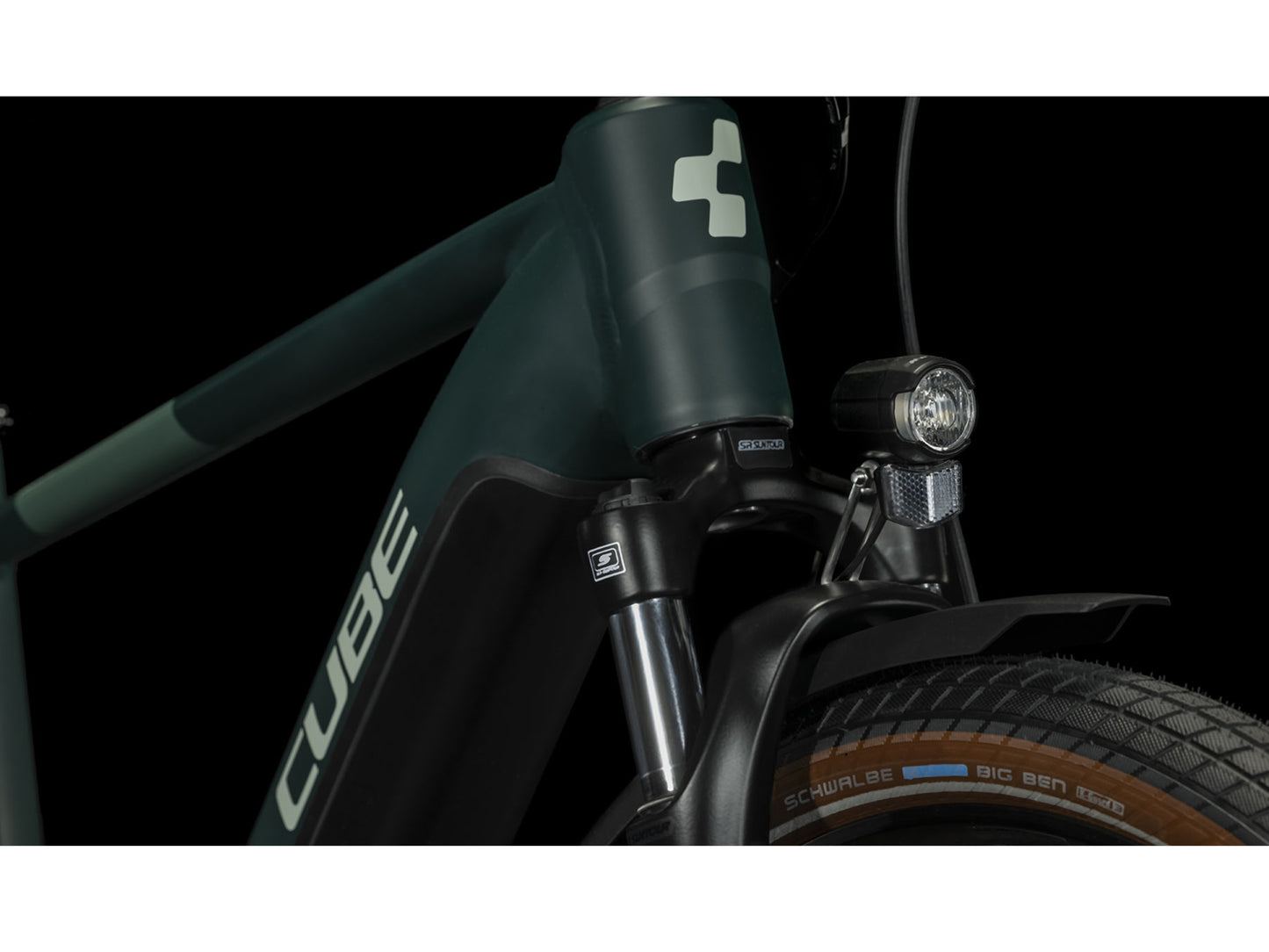

    Fork SR Suntour NVX30 Coil, 63mm
    Rear Shock Not applicable
    Front Brake Shimano BR-MT200, Hydr. Disc Brake (180/180)
    Rear Brake Shimano BR-MT200, Hydr. Disc Brake (180/180)
    Rear Derailleur
    Shimano RD-M3100-SGS, 9-Speed
    Shift Levers Shimano SL-M3100-R, Rapidfire-Plus
    Chain KMC X9
    Cassette Shimano CS-HG201, 11-36T
    Crankset ACID E-Crank, 40T, 170mm
    Chain Ring Spec not provided
    Chain Guard Spec not provided
    Rims Rodi Blackrock 23, 36H, Disc, Tubeless Ready
    Front Hub Shimano HB-TX505, QR, Centerlock
    Rear Hub Shimano FH-TX505, QR, Centerlock
    Front Tire Schwalbe Big Ben, Active, K-Guard, 55-622
    Rear Tire
    Schwalbe Big Ben, Active, K-Guard, 55-622
    Handlebar CUBE Comfort Trail Bar, 700mm
    Stem CUBE Performance Stem Pro, 31.8 mm
    Headset

    ACROS AZF-1031, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)

    Grips ACID Travel Comfort

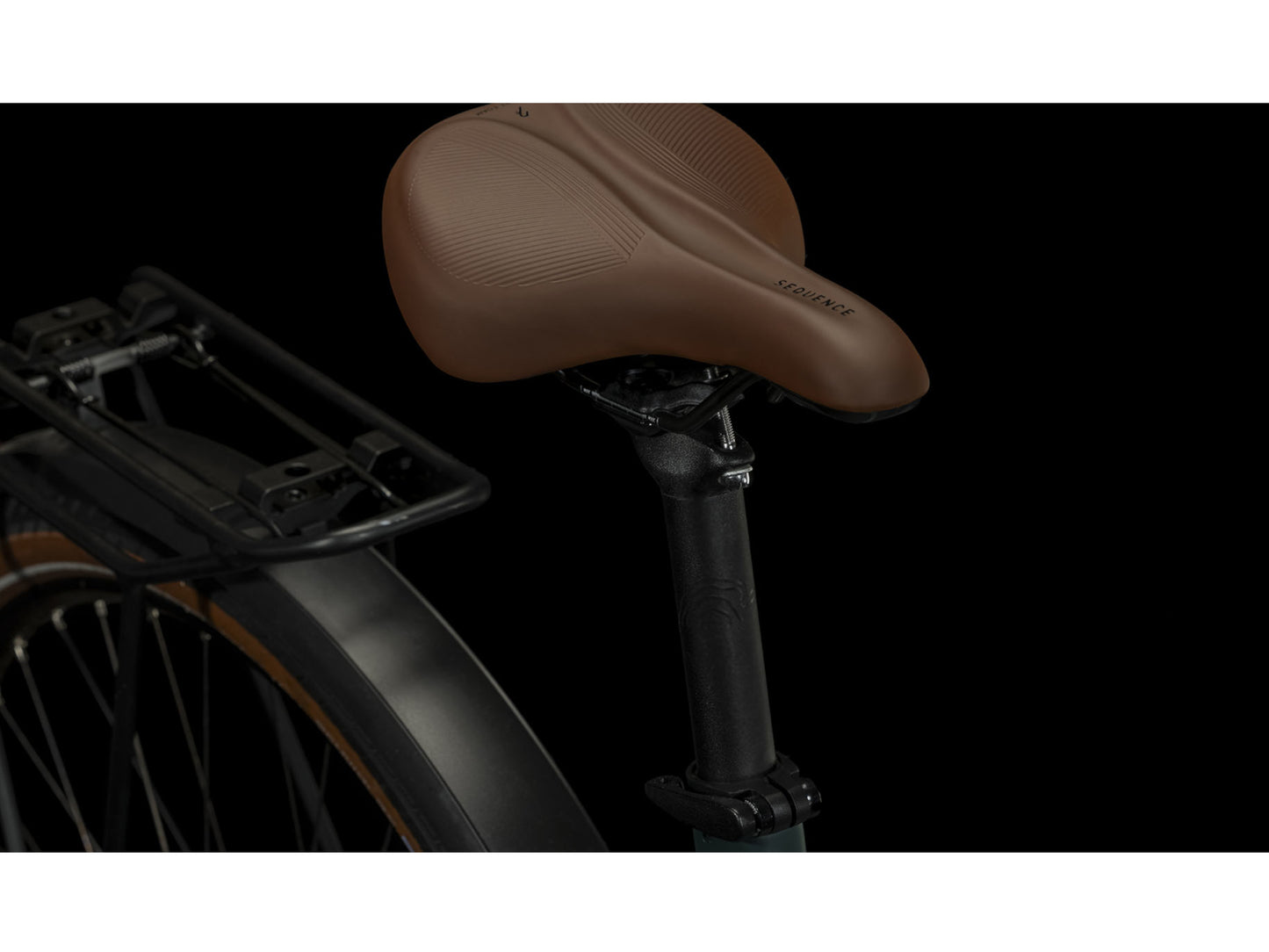

    Saddle Natural Fit Sequence Comfort

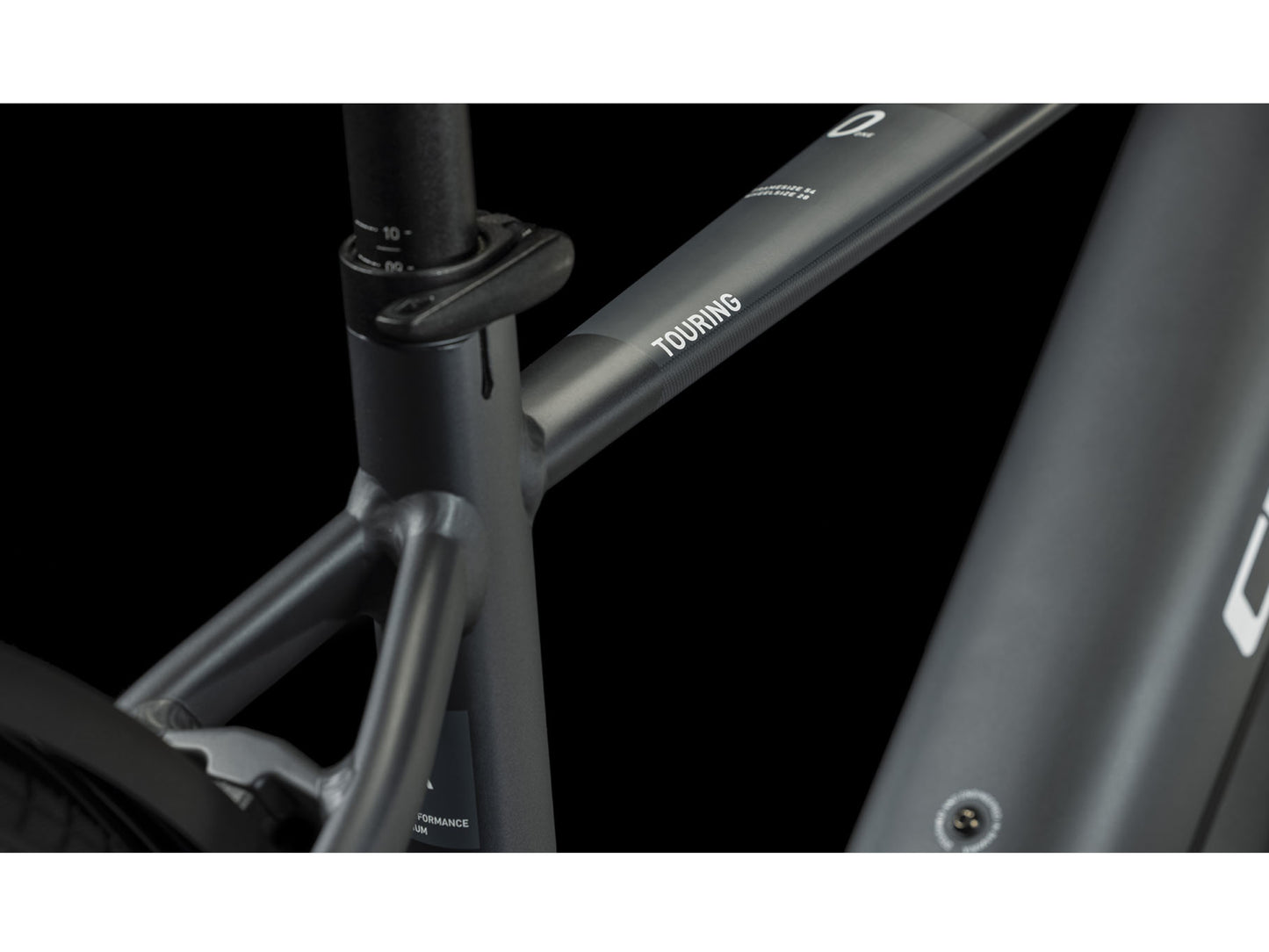

    Seatpost  CUBE Performance Post, 30.9 mm
  • Pedals ACID PP Trekking

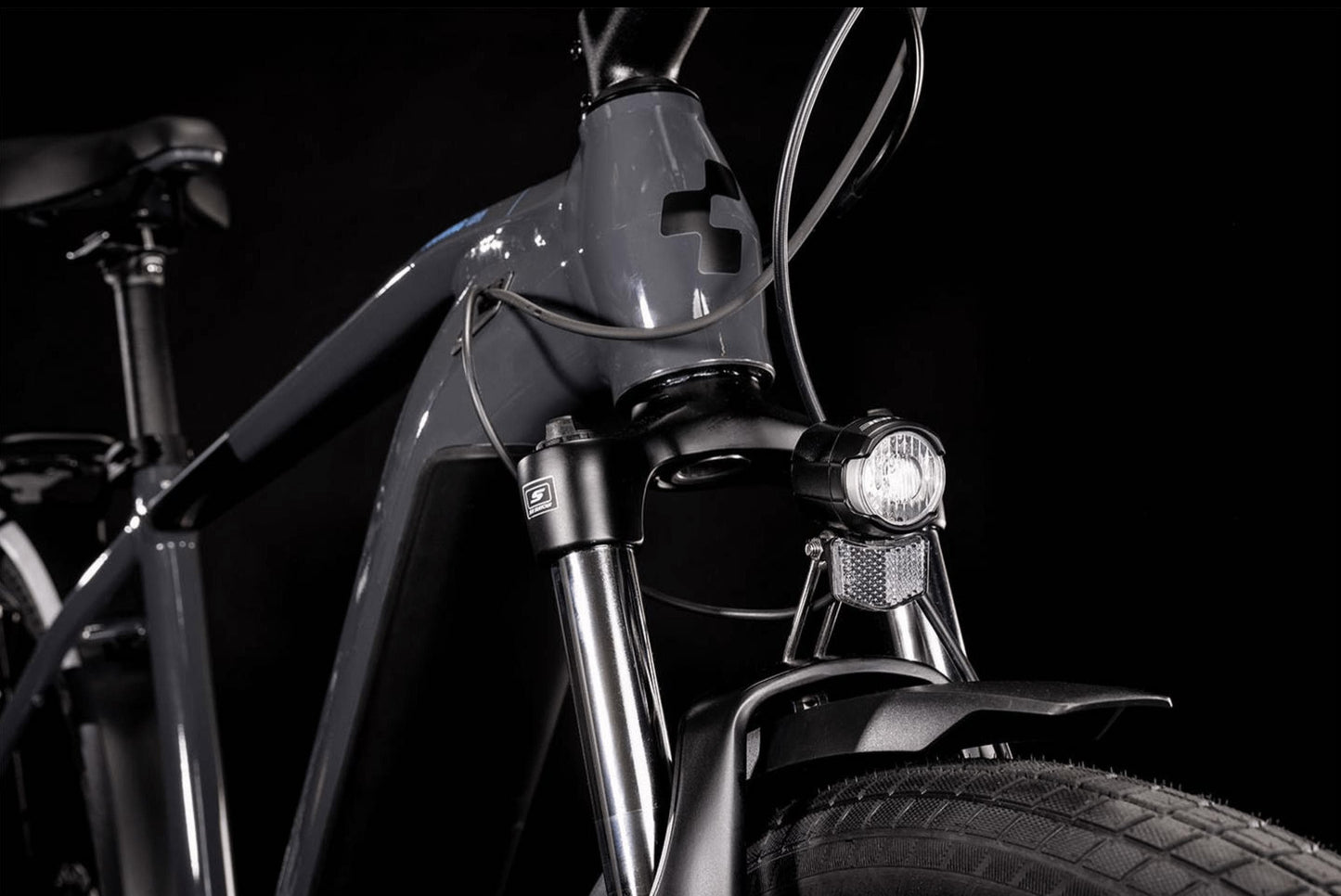

    Front Light CUBE Shiny 50 Lux, 12V, DC

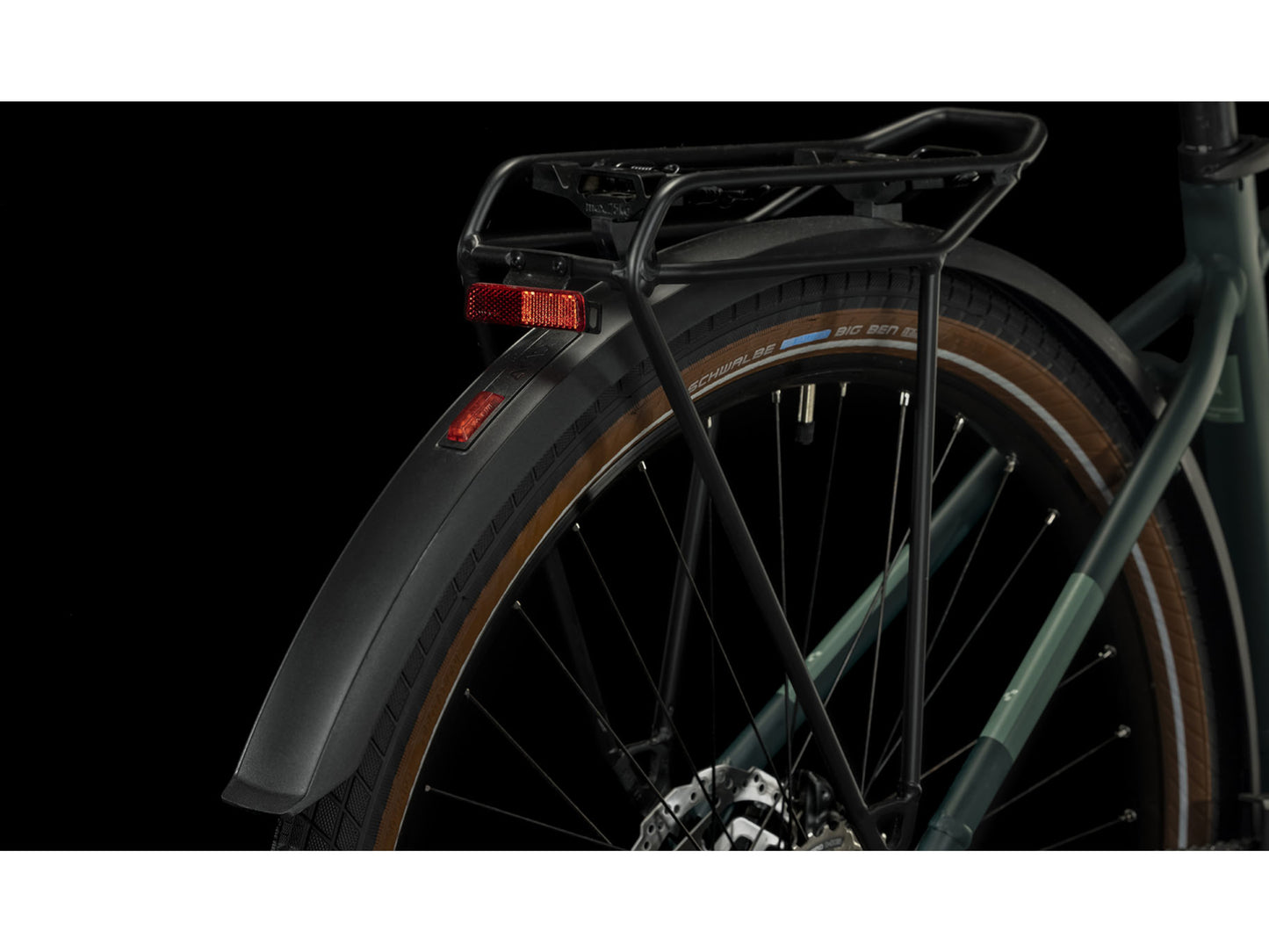

    Rear Light ACID Mudguard Rear Light PRO-E, 12V, DC
    Kickstand ACID FM Pure Kickstand
    Rear Carrier ACID Semi-Integrated Carrier, ACID RILink Adapter Compatible

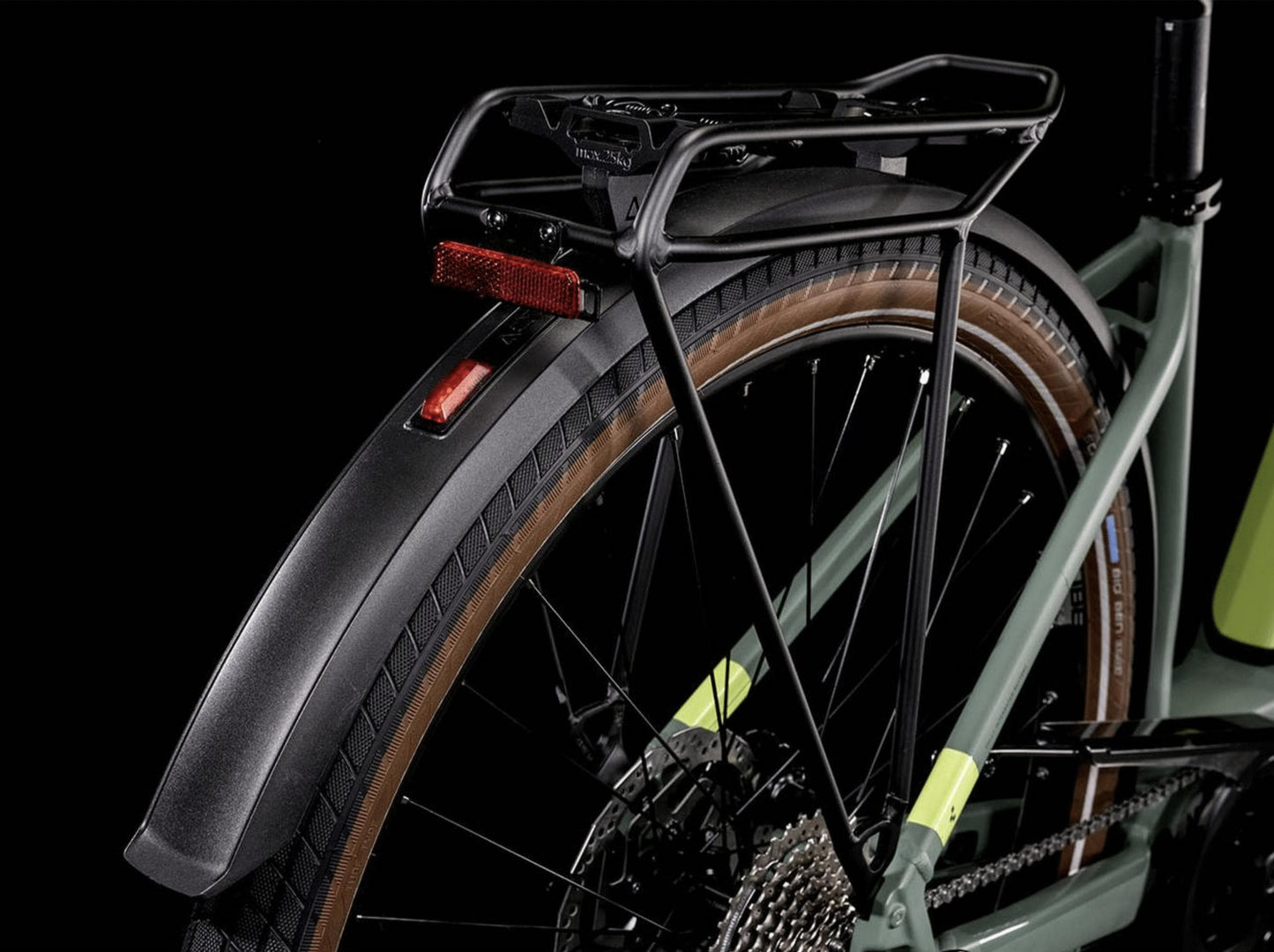

    Fenders ACID 65 BB-Mount
    Bell Easy Bell
    Lock Not applicable
    Mirror Not applicable

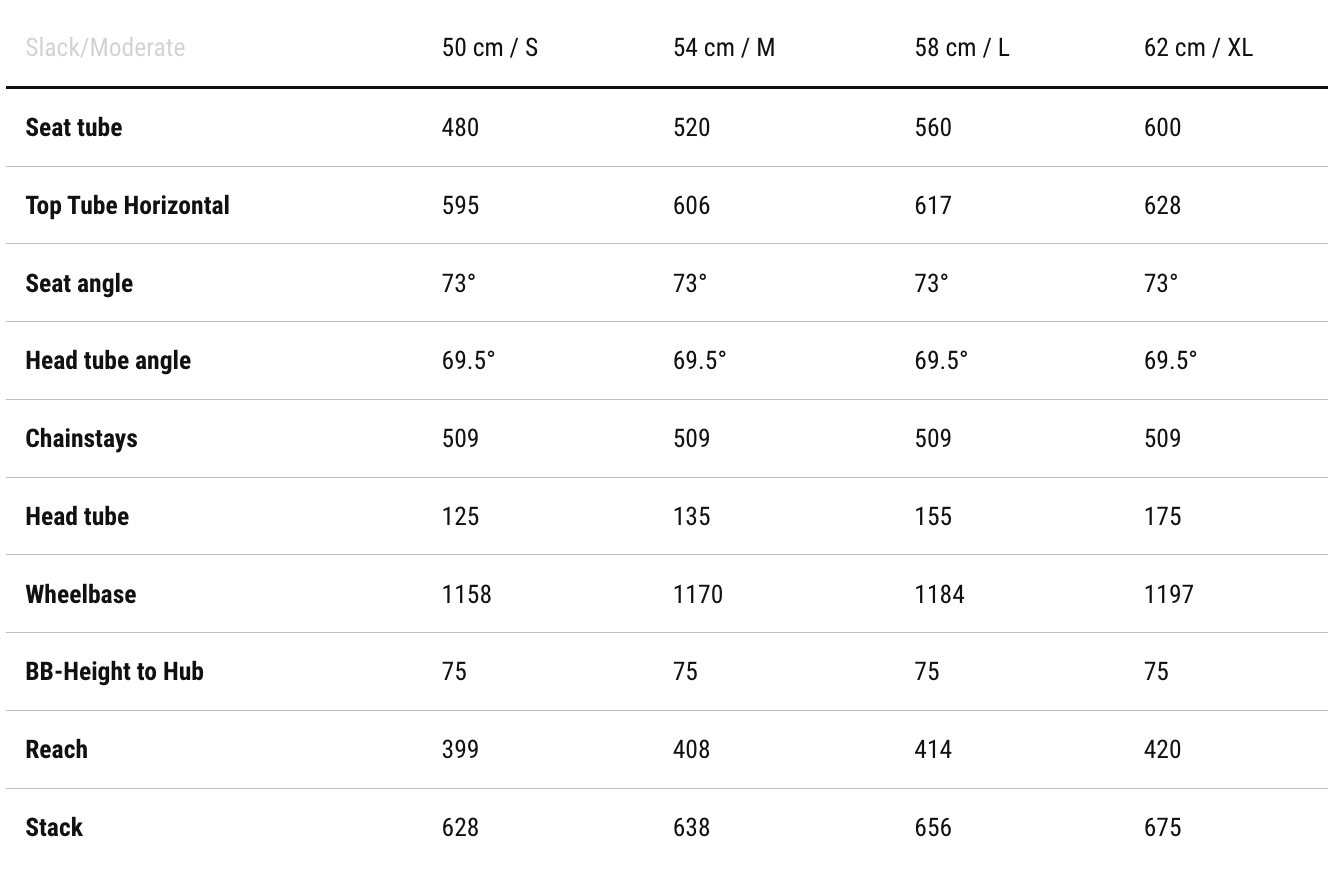

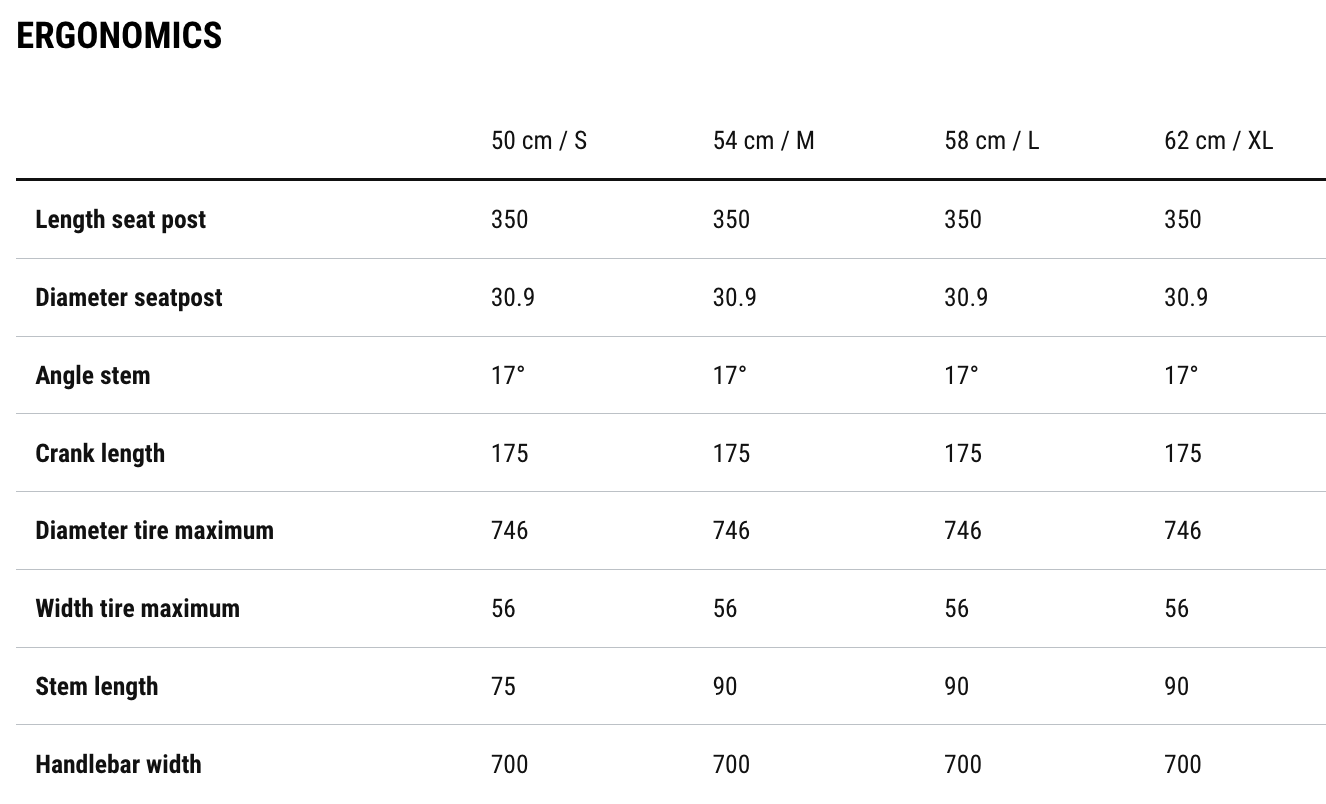

  • Chart/mm
    Cube Touring Hybrid ONE 500 eMTB hardtail geometry chart
    50 cm / S
    Cube Touring Hybrid ONE 500 eMTB hardtail geometry image 50 cm / S

    54 cm / M
    Cube Touring Hybrid ONE 500 eMTB hardtail geometry image 54 cm / M

    58 cm / L
    Cube Touring Hybrid ONE 500 eMTB hardtail geometry image 58 cm / L

    62 cm / XL
  • Motor Bosch Drive Unit Performance Generation 3 (75Nm) Cruise (250Watt)
    Battery Bosch PowerTube 500
    Display Bosch Purion
    Charger Bosch 2A
    Frame Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Tapered Headtube, Full Integrated Battery, 1.5 Headtube, Semi-Integrated Carrier
    Fork SR Suntour NVX30 Coil, 100mm
    Rear Shock Not applicable
    Front Brake Shimano BR-MT200, Hydr. Disc Brake (180/180)
    Rear Brake Shimano BR-MT200, Hydr. Disc Brake (180/180)
    Rear Derailleur
    Shimano RD-M3100-SGS, 9-Speed
    Shift Levers Shimano SL-M3100-R, Rapidfire-Plus
    Chain KMC X9
    Cassette Shimano CS-HG201, 11-36T
    Crankset ACID E-Crank, 40T, 175mm (EE: 170mm)
    Chain Ring Spec not provided
    Chain Guard Spec not provided
    Rims CUBE EX23, 36H, Disc, Tubeless Ready
    Front Hub Shimano HB-TX505, QR, Centerlock
    Rear Hub Shimano FH-TX505, QR, Centerlock
    Front Tire Schwalbe Big Ben, Active, 55-622
    Rear Tire
    Schwalbe Big Ben, Active, 55-622
    Handlebar CUBE Comfort Trail Bar, 700mm
    Stem CUBE Performance Stem Pro, 31.8 mm
    Headset

    M/Z: ACROS AZF-1039, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // EE: ACROS AZX-1041, BlockLock 135°, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)

    Grips Natural Fit Comfort
    Saddle Natural Fit Sequence Comfort
    Seatpost CUBE Performance Post, 30.9 mm
    Pedals ACID PP Trekking
    Front Light CUBE Shiny 50 Lux, 12V, DC
    Rear Light ACID Mudguard Rear Light PRO-E, 12V, DC
    Kickstand CUBEstand Cmpt
    Rear Carrier ACID Semi-Integrated Carrier, ACID RILink Adapter Compatible
    Fenders ACID 65 BB-Mount
    Bell Easy Bell
    Lock Not applicable
    Mirror Not applicable
