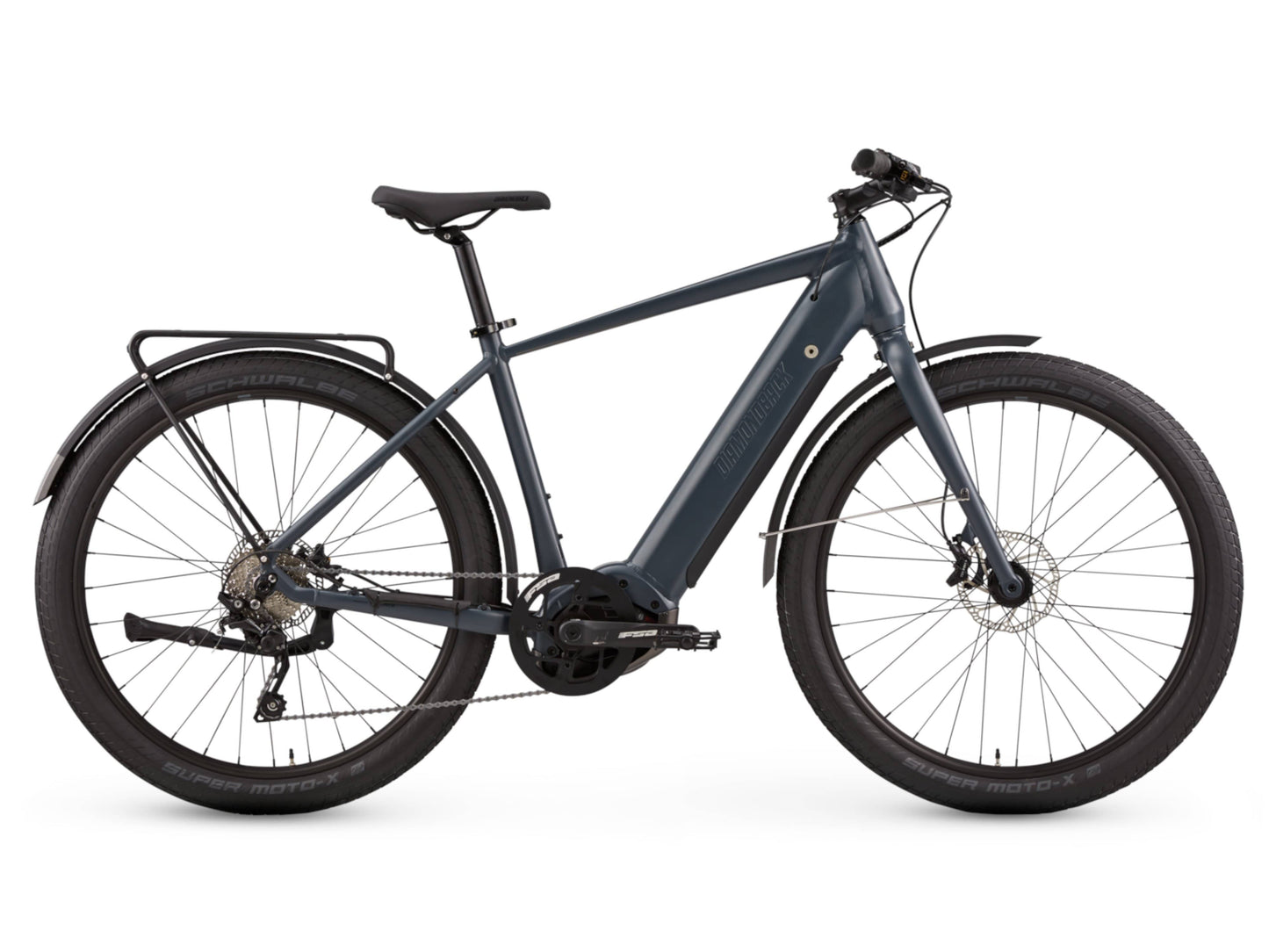

Diamondback Union 1

The Full Scoop on the Diamondback Response

• Description
• Motor System
• Components
• Extras
• Geometry

• The Class 3 Union 1 gets things done. Built on a sleek aluminum frame with internal cable routing, this e-bike is powered by a Bosch Performance Line Speed motor and a powertube integrated 400Wh battery. The Bosch Purion on-board computer lets you focus on the important things with a minimalist design but the data you need at the touch of a button. A 10-speed Shimano drivetrain fine-tunes your pedaling, while Tektro hydraulic disc brakes keep your speed under control. Wide tires on 27.5-inch wheels take the sting out of rough pavement. With built-in lights, an integrated rack, and fenders, the Union 1 lets you cut through city traffic with ease and confidence.

  • Components subject to manufacturer changes

• Motor	Bosch Performance Speed, 85Nm Torque, 28mph
  Battery	Bosch PowerTube 400
  Display	Bosch Purion

• Frame	Formed 6061 T6 Oversize Aluminum Alloy Thru Axle Dropout, Disc Brake Specific, Powertube Integrated Battery
  Fork	Formed 6061 T6 w/ Integrated Crown, Disc Brake, Thru Axle
  Headset	Integrated, Sealed Bearing
  Cranks	FSA Forged Aluminum for Bosch system
  Sprocket	FSA Forged Spider, 42 tooth, steel w/chainguard
  Drivetrain	Shimano Deore M610, SGS
  Shifter	Shimano Deore SL-M6000, 10 Speed
  Cassette	Shimano 11-32 Tooth, 10 Speed
  Chain	KMC x10ePT Ebike Specific
  Front Hub	Formula, Sealed Bearing, Thru Axle
  Rear Hub	Formula, Sealed Bearing, Thru Axle
  Rims	Aluminium 27.5", Black Annodized, 25mm ID, Disc Specific, 32 Hole
  Tires	27.5" x 2.4" Schwalbe Super Moto
  Brakes	Tektro M735, 4 Piston Front 180mm Rotor, 2 Piston Rear 160mm Rotor
  Brake Levers	Tektro M735, 2 finger lever
  Handlebar	Aluminum Alloy 3D Forged
  Stem	Aluminum Alloy 3D Forged, +/-7 Degree
  Seat	Custom Ergo Performance
  Seatpost	Aluminum Forged Head, 350mm
  Pedals	Shoe friendly Urban design, resin body

• Grips

  Ergo comfort control

• Medium	5'7" - 5'10"
  Large	5'10" - 6'1"
  X-large	6'1" - 6'4"
