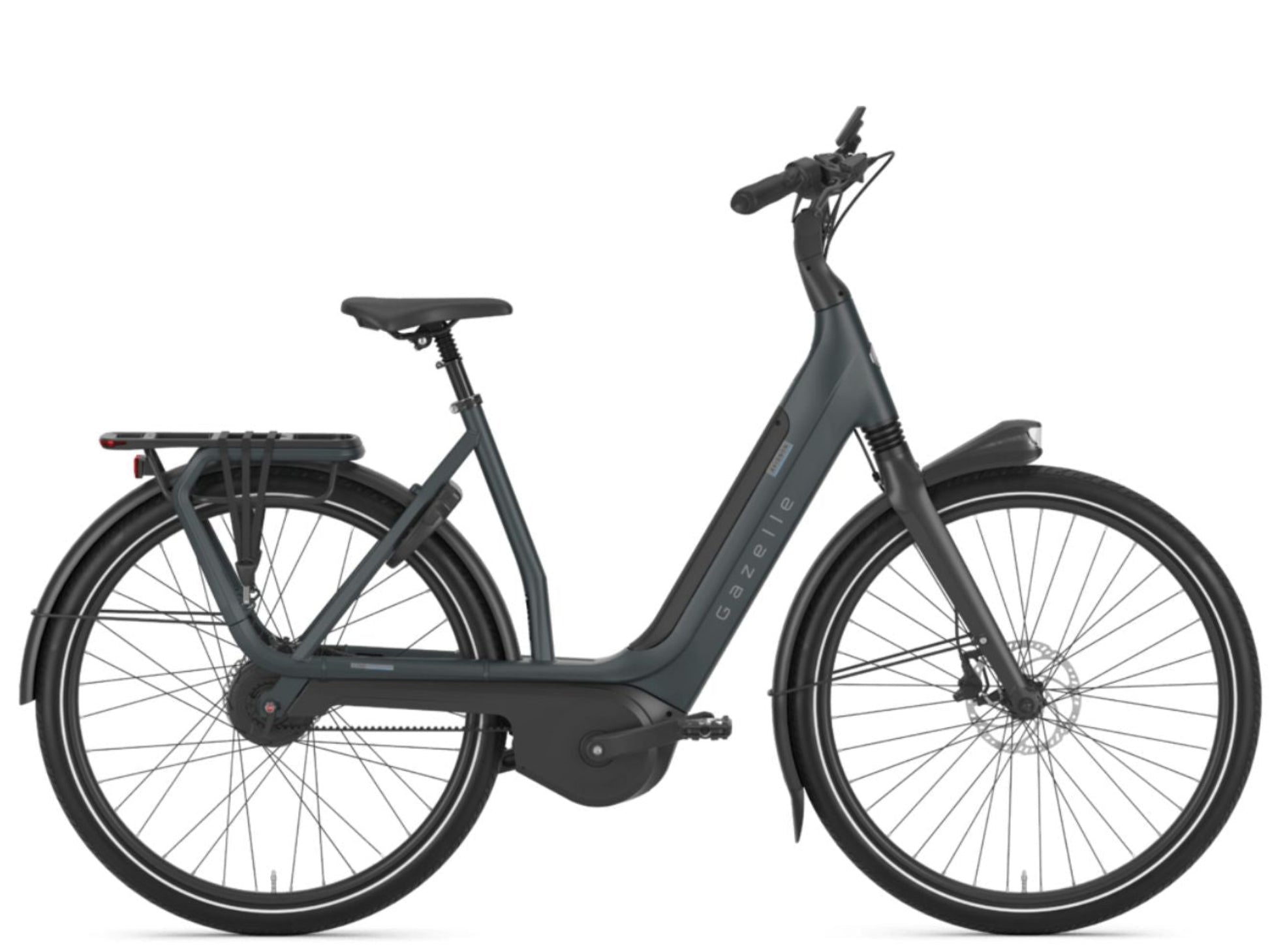

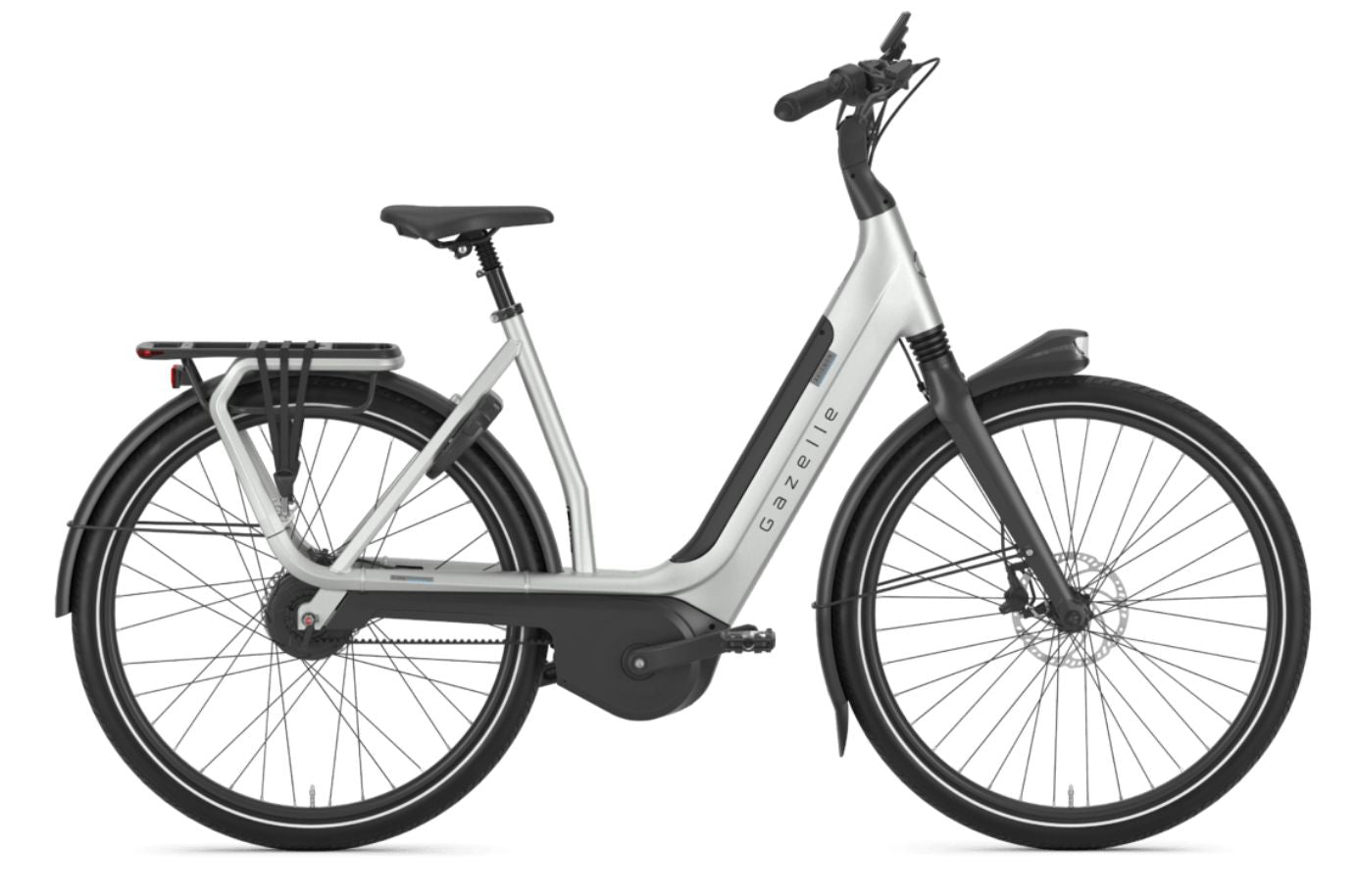

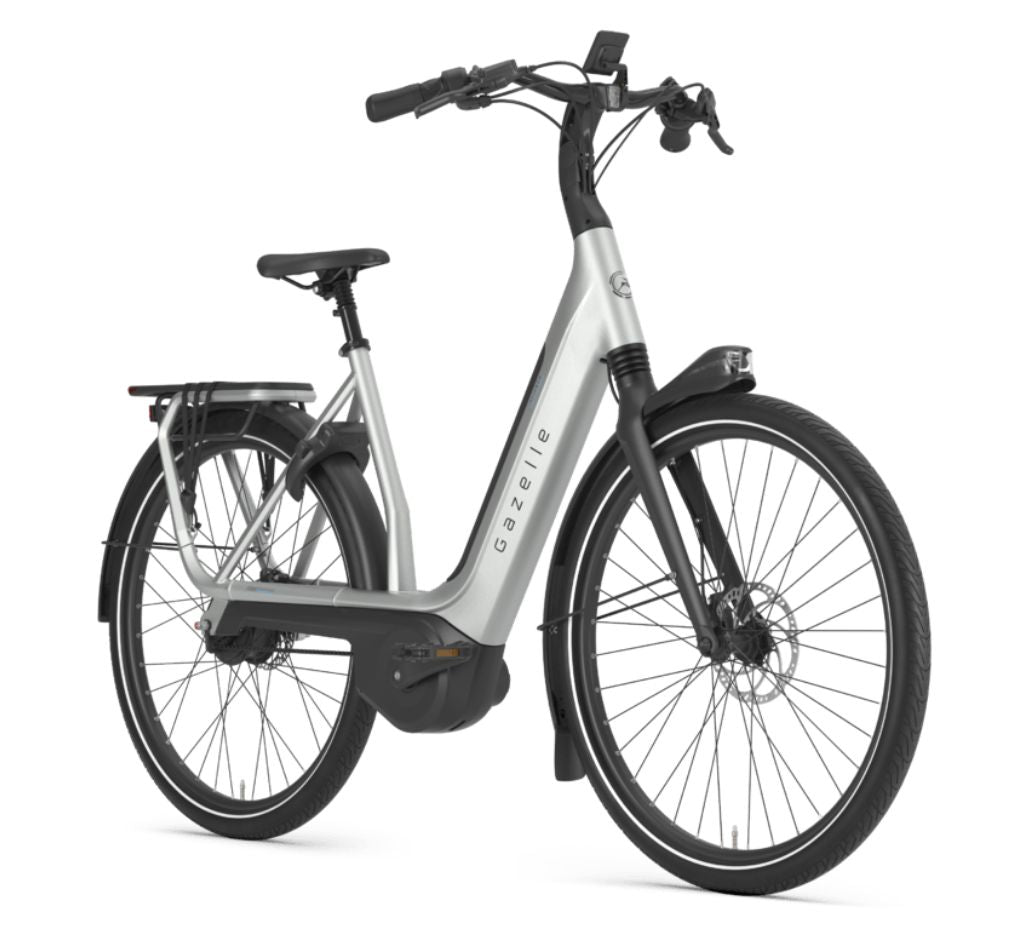

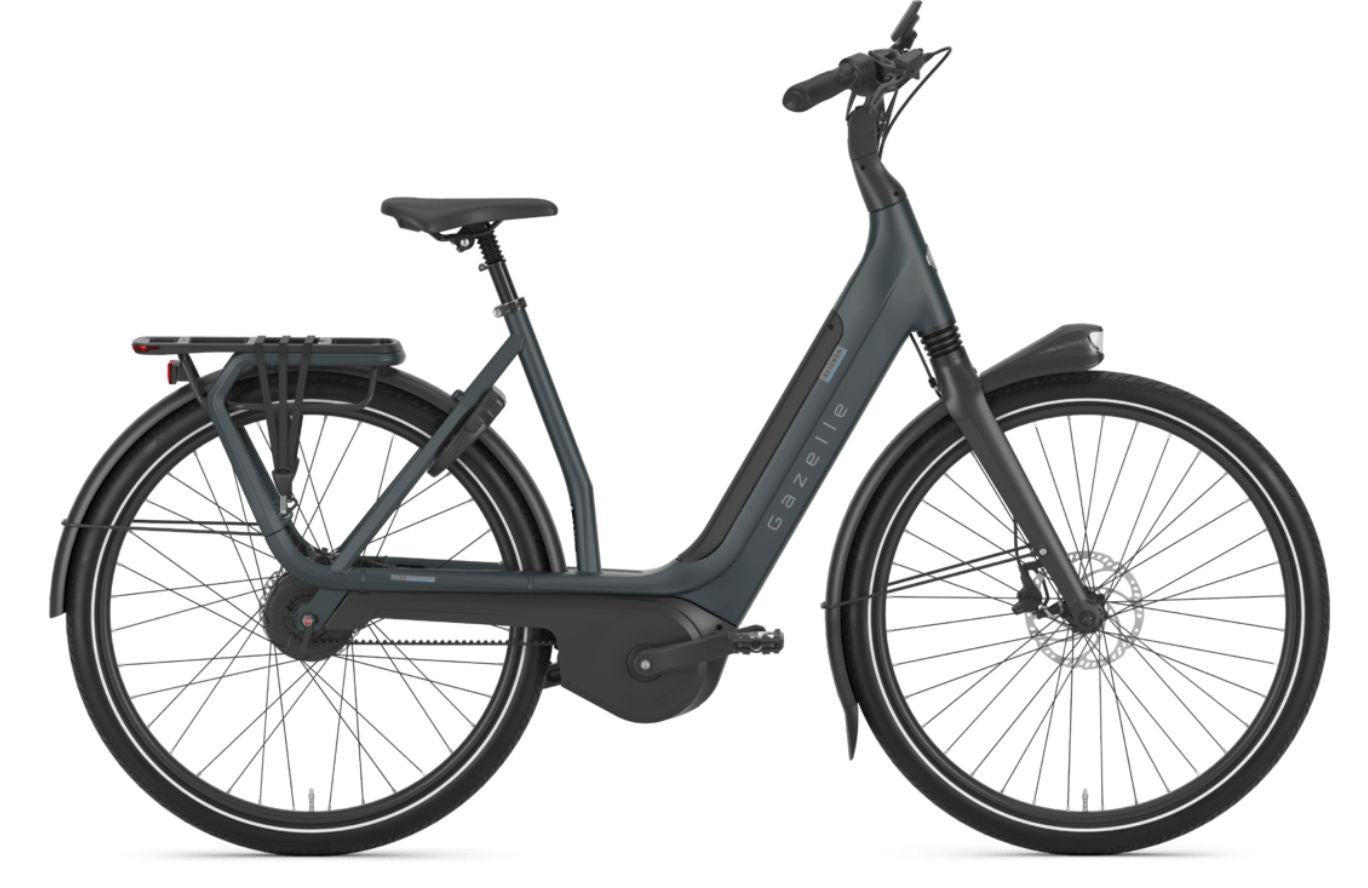

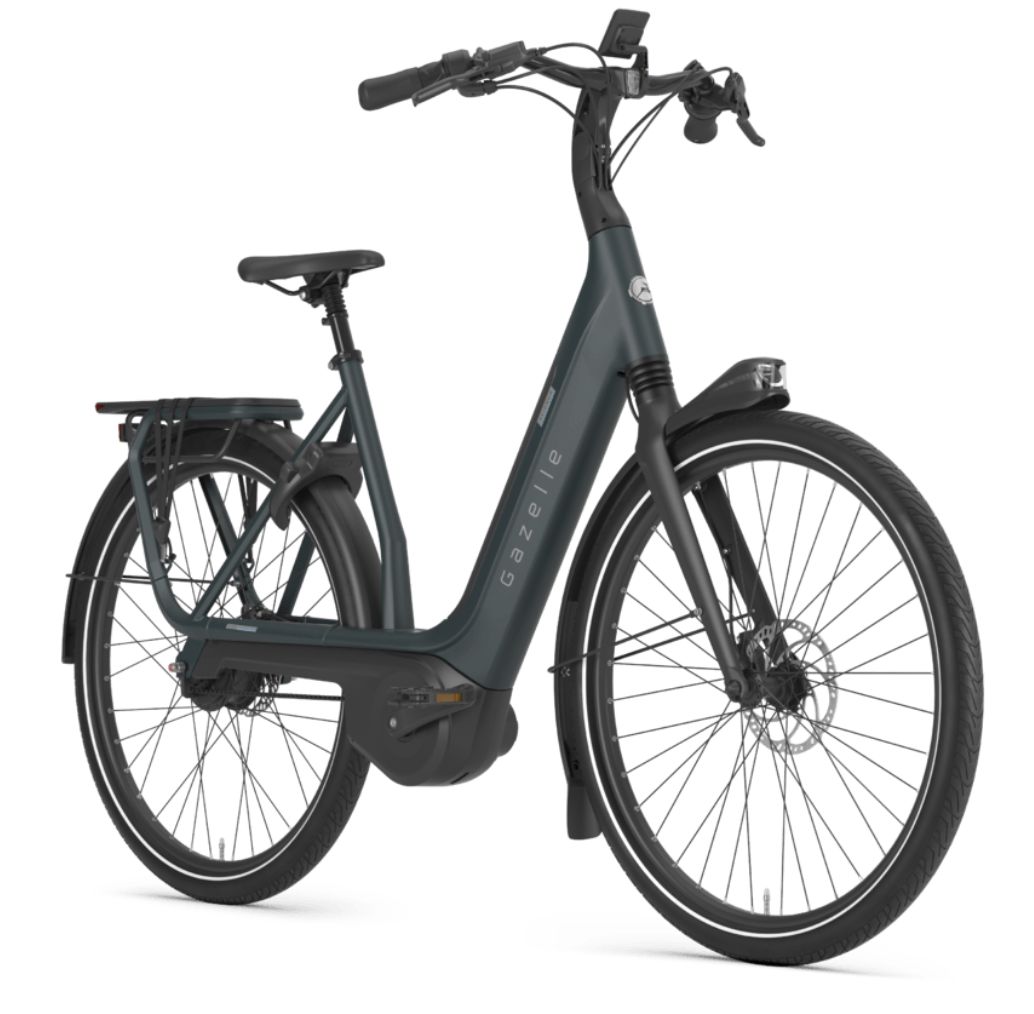

Gazelle Avignon C380

The Full Scoop on the Gazelle Avignon C380

• Description
• Motor System
• Components
• Extras
• Geometry

•
  The Gazelle Avignon C380 HMB, provides ultimate comfort. It is truly Gazelle's most comfortable e-bike, and you notice this in every detail. You see it in the relaxed upright sitting position, the suspension and the extrawide tires. But also in the spacious and low step-through, the intuitive display, and the low-maintenance belt drive. The powerful daytime running lights and 625 Wh battery complete the comfort.

• Motor	Bosch Smart Performance motor (75Nm) Smart System
  Battery	Bosch 625Wh Integrated into frame
  Display	Bosch Intuvia
  Charger	4Ah

•


  Frame	Stable aluminum frame with 68.5° head tube angle and 69.5° saddle tube angle. Cables are nicely concealed through the unique cable integration system. Battery integrated in the frame for large capacity (625 Wh)
  Fork	Aluminum. springing in headset, 40mm
  Rear Shock	Not applicable
  Front Brake	Disc brake; Magura CT4, 2 piston 180 mm • Shifter: Enviolo Twist Pure
  Rear Brake	Disc brake with hydraulic control; Magura CT4, 2 piston 160 mm
  Drivetrain / Rear Derailleur	Belt
  Shift Levers	Enviolo Twist Pure
  Chain	Gates CDX belt drive, with Centertrack
  Cassette	Spec not provided
  Crankset	Spec not provided
  Chain Ring	Front chainwheel 46 / Rear chainwheel 22
  Chain Guard	100% recycled plastic with auto tensioner
  Rims	Ryde Zac 25, Double-walled aluminum for extra strong and e!cient cycling performance
  Front Hub	Shimano
  Rear Hub	Enviolo 380 Trekking Manual continuously variable gears, freewhee
  Front Tire	Scalato Mondano, 55-622
  Rear Tire	Scalato Mondano, 55-622
  Handlebar	Aluminum, comfort curved model
  Stem	Steeplessly adjustable
  Headset	Spec not provided
  Grips	Gazelle Aero leather
  Saddle	Selle Royal Essenza Plus Gel
  Seatpost	Sprung

• Pedals	Spec not provided
  Front Light	Gazelle Fendervision, LED headlight with daytime running lights, always on, 70 lux
  Rear Light	Spanninga Commuter Glow, LED, battery supply, always on
  Kickstand	Drop-down rear stand, Ursus Mooi
  Rear Carrier	Aluminum MIK HD system carrier
  Fenders	Aluminum
  Bell	Spec not provided
  Lock	Abus 4750L, Ring lock with an option for a plug-in cable to attach your bike to a fixed object for extra protection against theft
  Mirror	Not applicable

• 46cm	Height = 4'10" - 5'6"
  53cm	Height = 5'6" - 5'10"
  57cm	Height = 5'10" - 6'3"
