Gazelle Eclipse T11+ High Step
Gazelle Eclipse T11+ High Step
The Full Scoop on the Gazelle Eclipse T11+ High Step
Introducing the all new Gazelle Eclipse T11+, an ebike that combines power, design and precision for an extraordinary ride. Equal parts sporty urban bike and comfortable touring bike, powered by Bosch’s Performance Line Speed motor; this Gazelle goes the distance. The exquisitely-formed frame, elegant lines, and integrated battery offer a sleek look and capable handling. The Gazelle Eclipse T11+ turns every ride into an adventure.
*Components subject to manufacturer changes.
| Motor | Bosch Performance Line Speed Smart System (85 Nm), 36V |

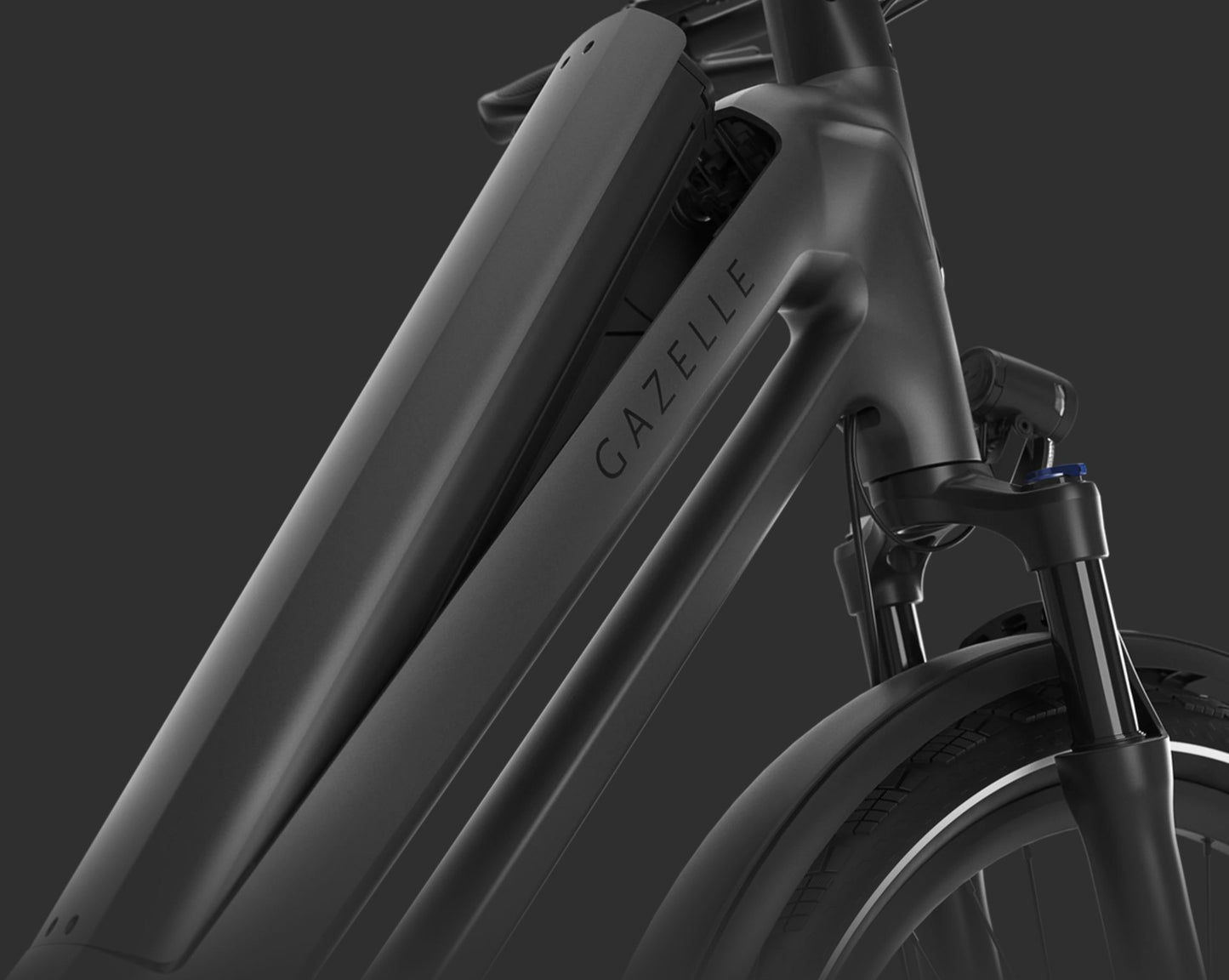

| Battery | Integrated into frame 750Wh |

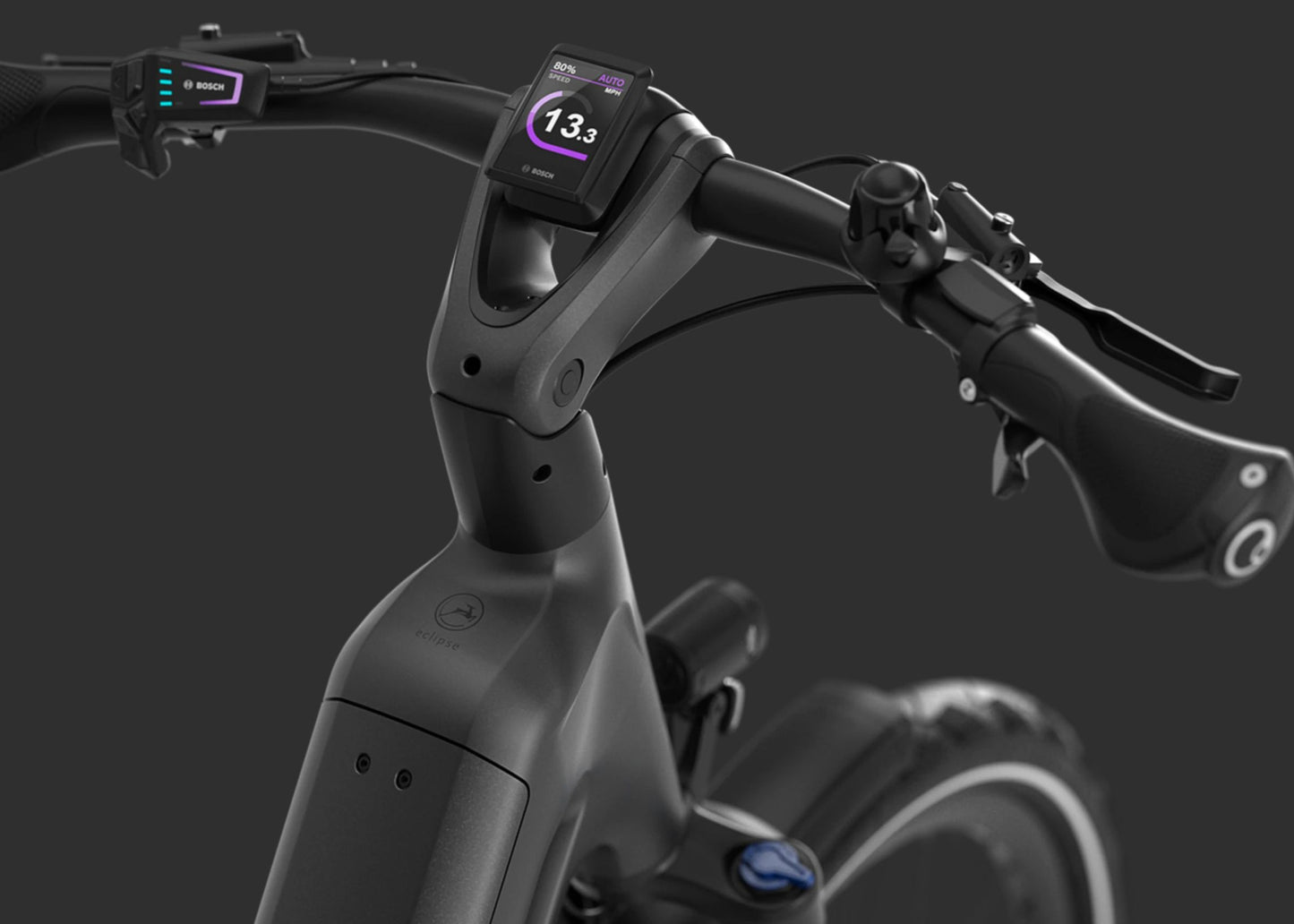

| Display | Bosch Kiox 300 |
| Charger | Bosch 4Ah |
| Frame | Aluminium frame with 71.5° seat tube angle and 70.5° head tube angle. Integrated cables |
| Fork | Suntour Mobie 45, Thru axle. Lockout, 75mm |
| Rear Shock | Not applicable |
| Front Brake | Shimano BR-MT420, 4 piston 180mm, disc brake with hydraulic control |
| Rear Brake | Shimano BR-MT420, 4 piston 160mm, disc brake with hydraulic control |
| Rear Derailleur | Shimano Deore XT M8130iolo Trekking Controller |
| Chain | chain |
| Cassette | 11 Shimano Deore XT |
| Crankset | Shimano |
| Chain Ring | 11-50 |
| Chain Guard | Plastic |
| Rims | Ryde Zac 25, Double-walled aluminium for extra strong and efficient cycling performance |
| Front Hub | Spec not provided |
| Rear Hub | Spec not provided |

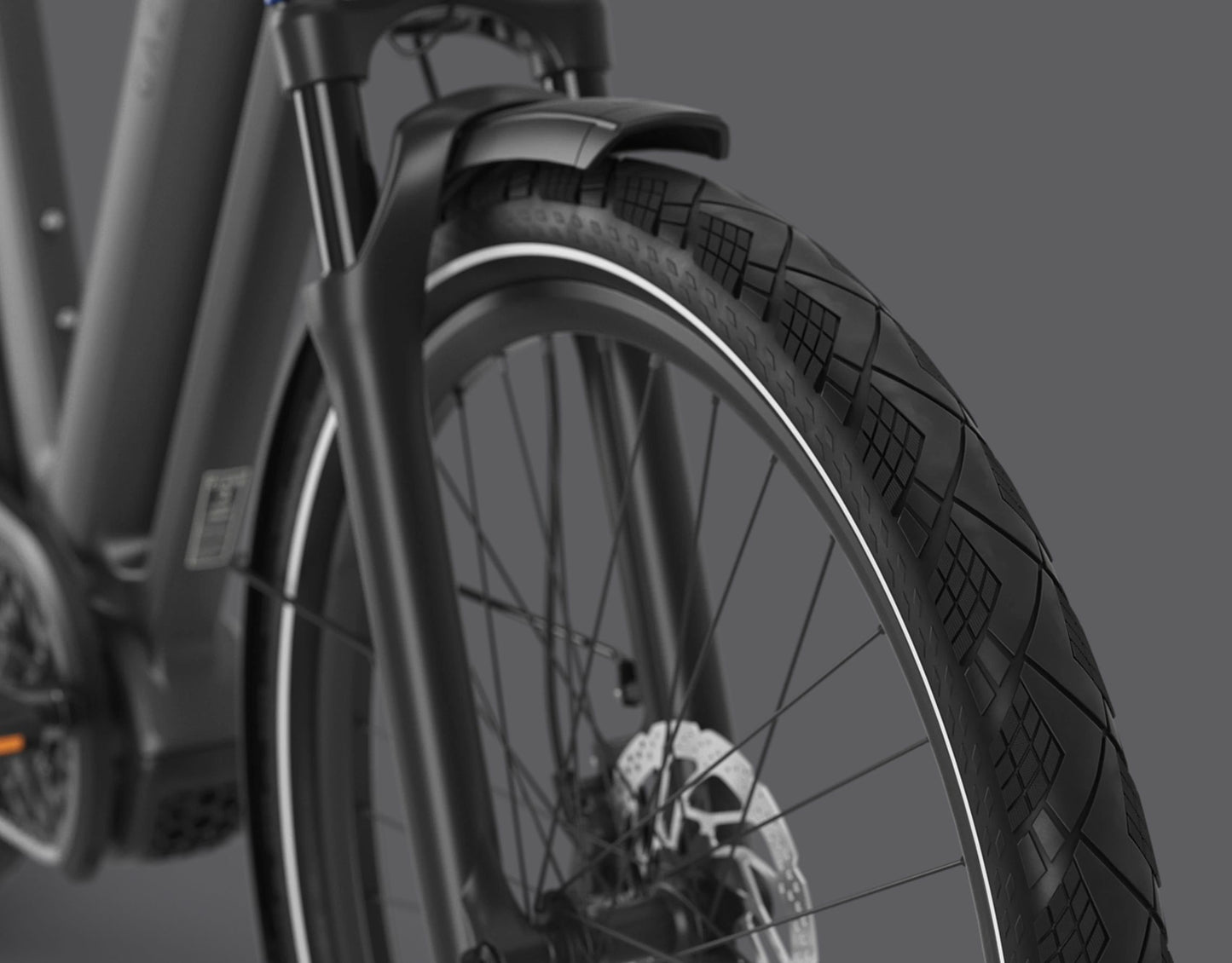

| Front Tire | Schwalbe Marathon Efficiency, 60-584 |
| Rear Tire | Schwalbe Marathon Efficiency, 60-584 |
| Handlebar | Aluminum slightly curved model |
| Stem | Steplessly adjustable |
| Headset | Spec not provided |

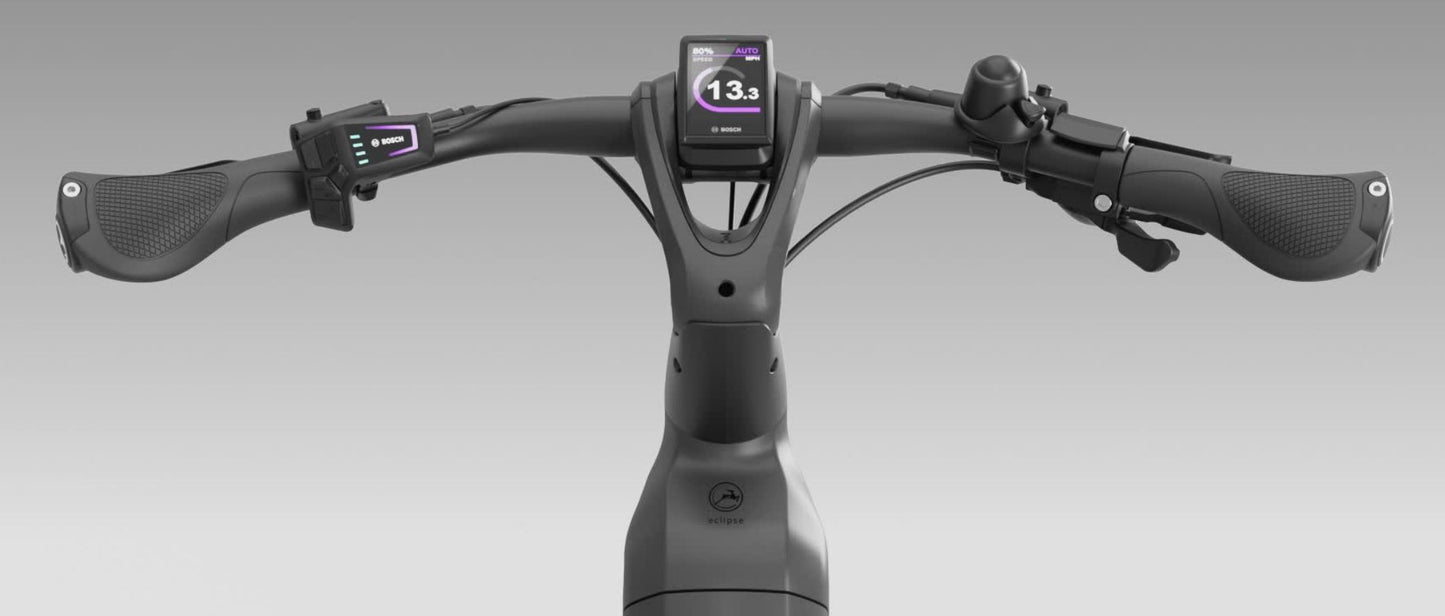

| Grips | Ergon GP1-L, ergonomic |
| Saddle | Selle Royal Essenza Plus gel |
| Seatpost | Fixed |
| Pedals | Spec not provided |
| Front Light | Axa Blue Line 50, LED headlamp, 50 lux, on/off switching via display |

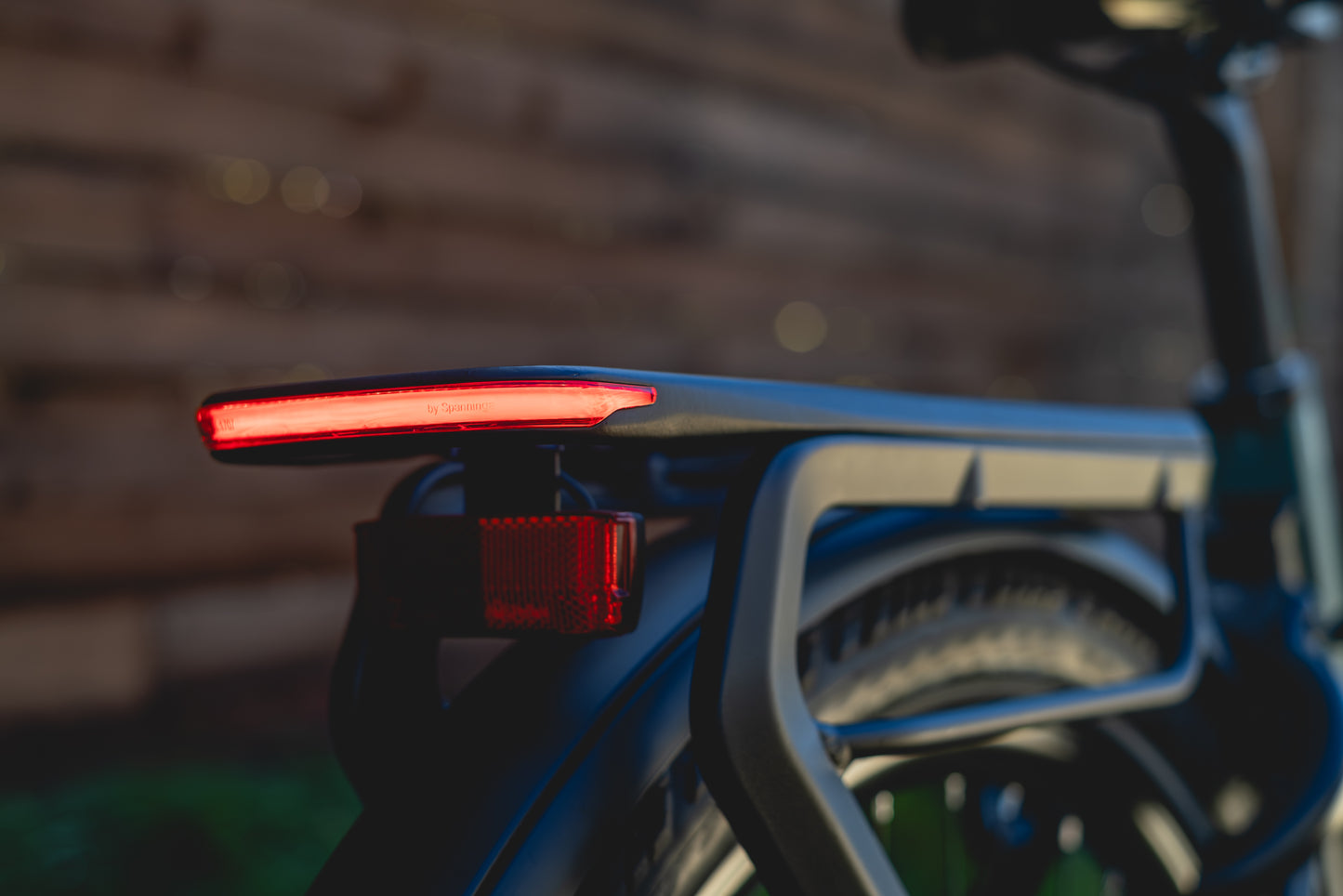

| Rear Light | Herrmans H-Cargo, LED battery supply, on/off switching via display |
| Kickstand | Drop-down rear stand, Ursus Mooi |
| Rear Carrier | Aluminum |
| Fenders | Aluminum |
| Bell | Spec not provided |
| Lock | AXA Defender, ART ** certified |
| Mirror | Not applicable |
The Full Scoop on the Gazelle Eclipse T11+ High Step
Introducing the all new Gazelle Eclipse T11+, an ebike that combines power, design and precision for an extraordinary ride. Equal parts sporty urban bike and comfortable touring bike, powered by Bosch’s Performance Line Speed motor; this Gazelle goes the distance. The exquisitely-formed frame, elegant lines, and integrated battery offer a sleek look and capable handling. The Gazelle Eclipse T11+ turns every ride into an adventure.
*Components subject to manufacturer changes.
Motor System
| Motor | Bosch Performance Line Speed Smart System (85 Nm), 36V |
| Battery | Integrated into frame 750Wh |
| Display | Bosch Kiox 300 |
| Charger | Bosch 4Ah |
Components
| Frame | Aluminium frame with 71.5° seat tube angle and 70.5° head tube angle. Integrated cables |
| Fork | Suntour Mobie 45, Thru axle. Lockout, 75mm |
| Rear Shock | Not applicable |
| Front Brake | Shimano BR-MT420, 4 piston 180mm, disc brake with hydraulic control |
| Rear Brake | Shimano BR-MT420, 4 piston 160mm, disc brake with hydraulic control |
| Rear Derailleur | Shimano Deore XT M8130iolo Trekking Controller |
| Chain | chain |
| Cassette | 11 Shimano Deore XT |
| Crankset | Shimano |
| Chain Ring | 11-50 |
| Chain Guard | Plastic |
| Rims | Ryde Zac 25, Double-walled aluminium for extra strong and efficient cycling performance |
| Front Hub | Spec not provided |
| Rear Hub | Spec not provided |
| Front Tire | Schwalbe Marathon Efficiency, 60-584 |
| Rear Tire | Schwalbe Marathon Efficiency, 60-584 |
| Handlebar | Aluminum slightly curved model |
| Stem | Steplessly adjustable |
| Headset | Spec not provided |
| Grips | Ergon GP1-L, ergonomic |
| Saddle | Selle Royal Essenza Plus gel |
| Seatpost | Fixed |
Extras
| Pedals | Spec not provided |
| Front Light | Axa Blue Line 50, LED headlamp, 50 lux, on/off switching via display |
| Rear Light | Herrmans H-Cargo, LED battery supply, on/off switching via display |
| Kickstand | Drop-down rear stand, Ursus Mooi |
| Rear Carrier | Aluminum |
| Fenders | Aluminum |
| Bell | Spec not provided |
| Lock | AXA Defender, ART ** certified |
| Mirror | Not applicable |
