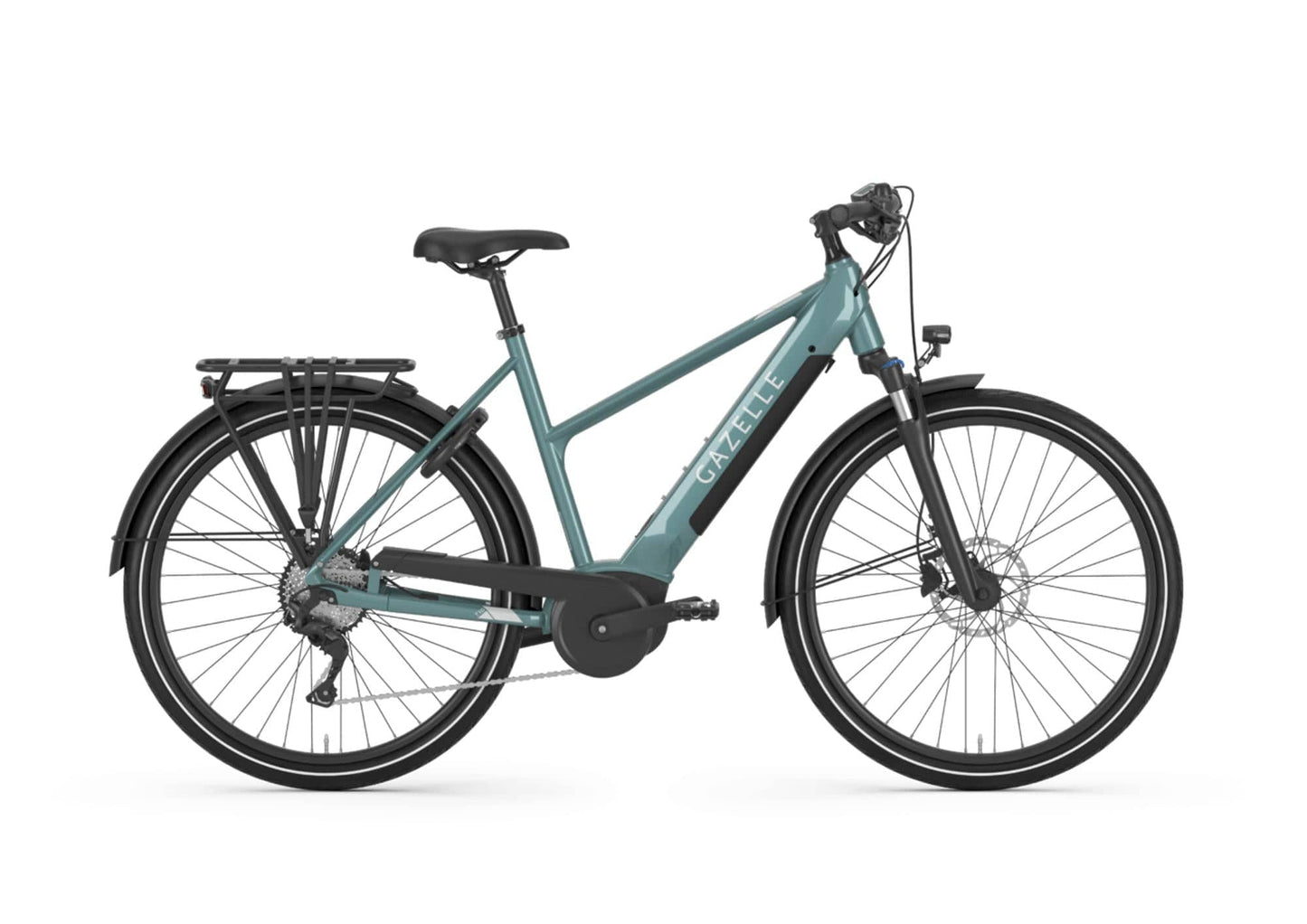

Gazelle Medeo T10 Mid Step
Gazelle Medeo T10 Mid Step
The Full Scoop on the Gazelle Medeo T10 Mid Step

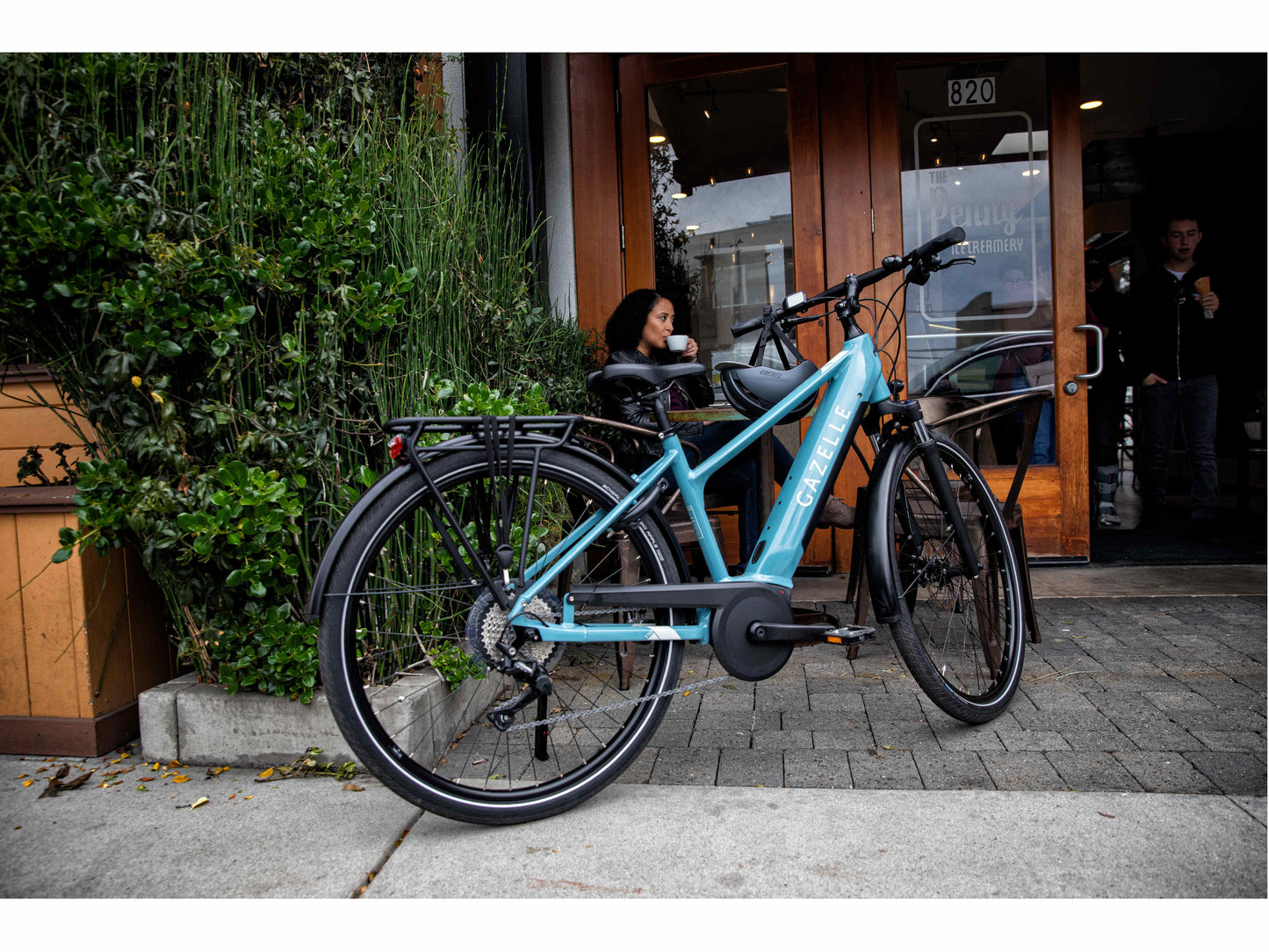

The Medeo T10 HMB is the highly versatile and functional electric bike to tackle everything from the rat race to the farmer’s market and everything in between. The artfully designed sloping frame boasts a stylish down tube that integrates with the head tube to create a striking silhouette that will leave your friends envious. With trusted frame geometry and stable handling, combined with wide tires, a suspension front fork and ergonomic handlebar grips, the Medeo T10 HMB is the electric bike to complement your cosmopolitan life.
*Components subject to manufacturer changes.
| Motor | Bosch Performance Line (65 Nm), 36V |
| Battery | 500Wh, integrated into frame |

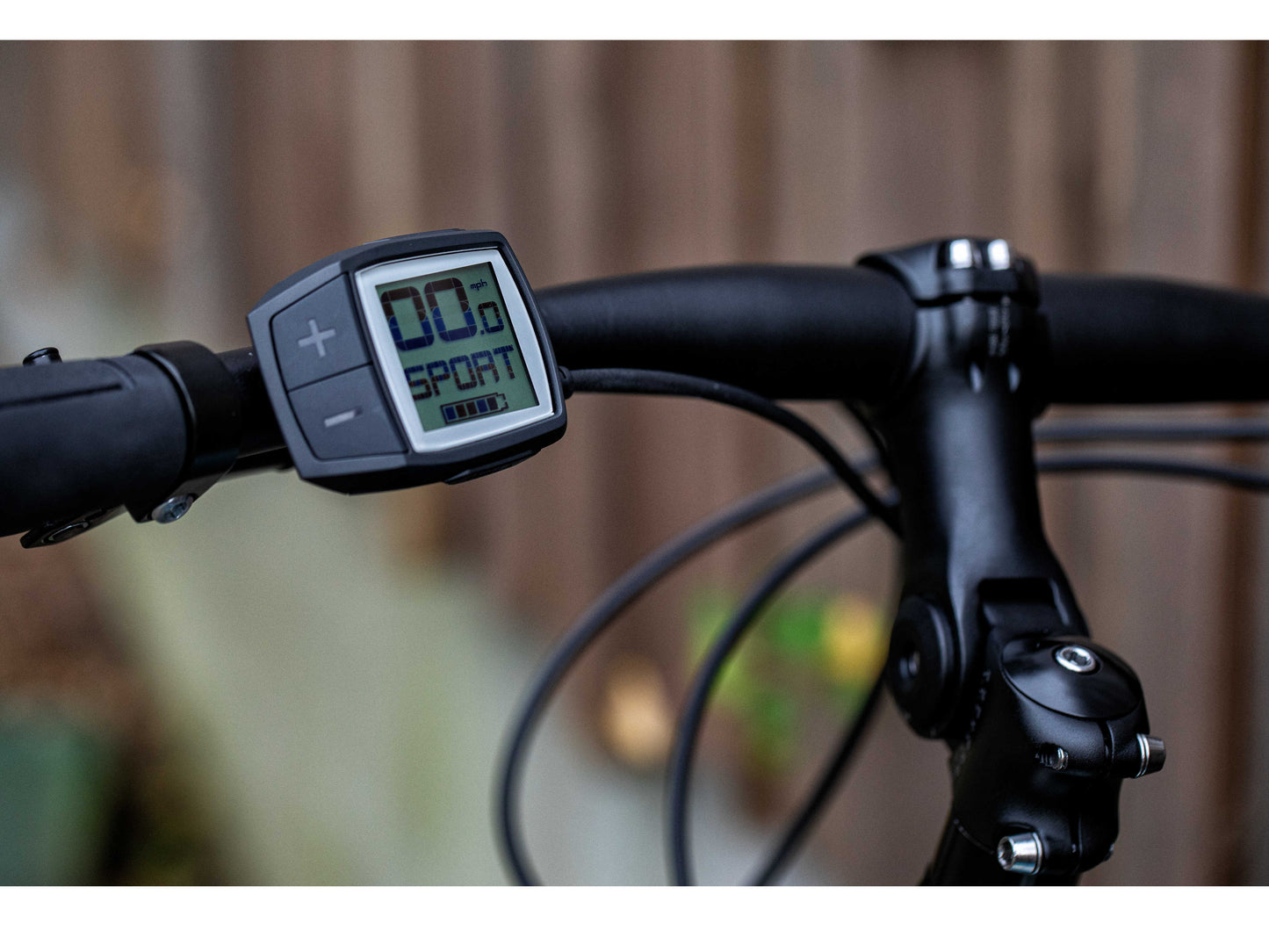

| Display | Bosch Purion LCD |
| Charger | 4Ah |

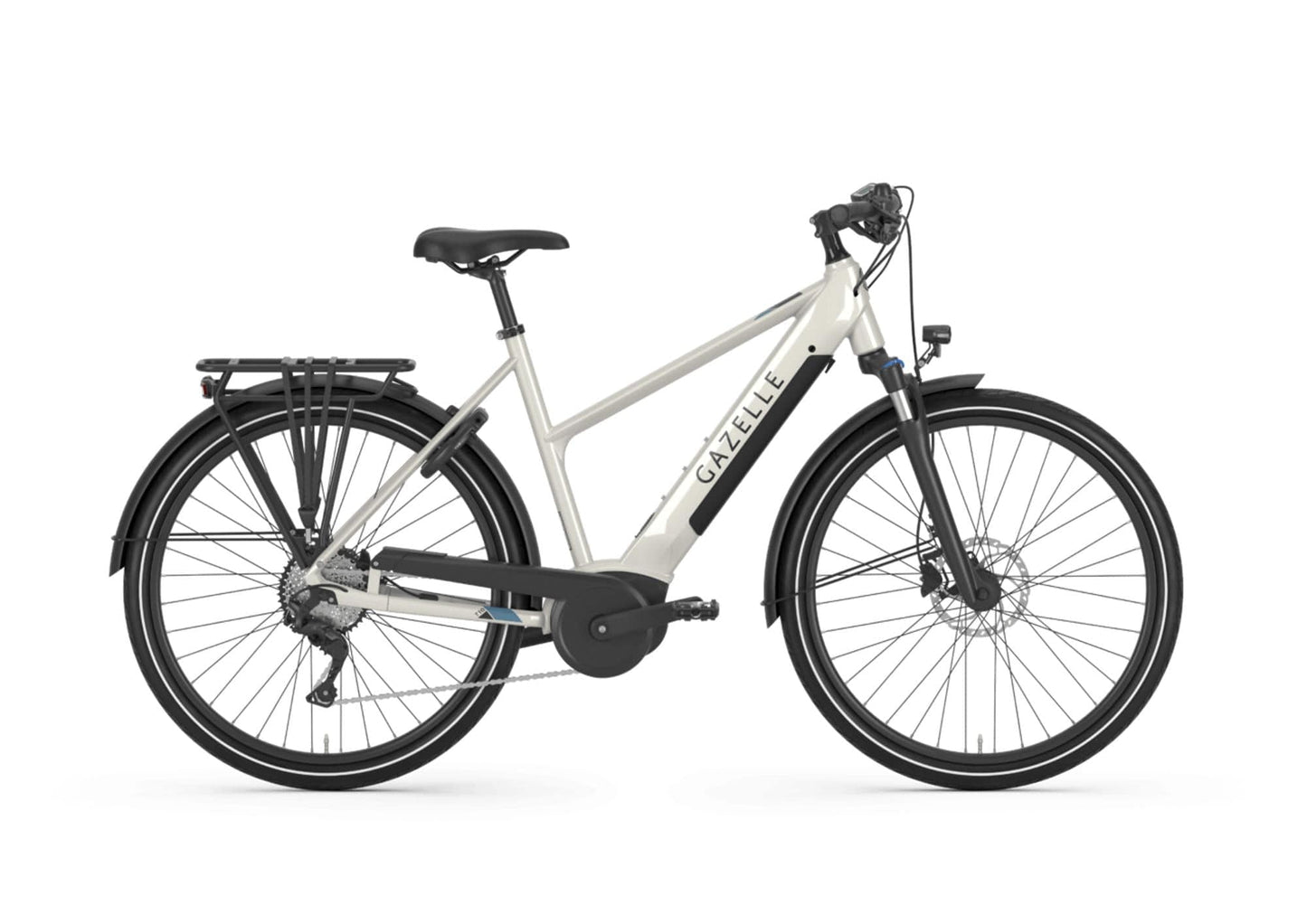

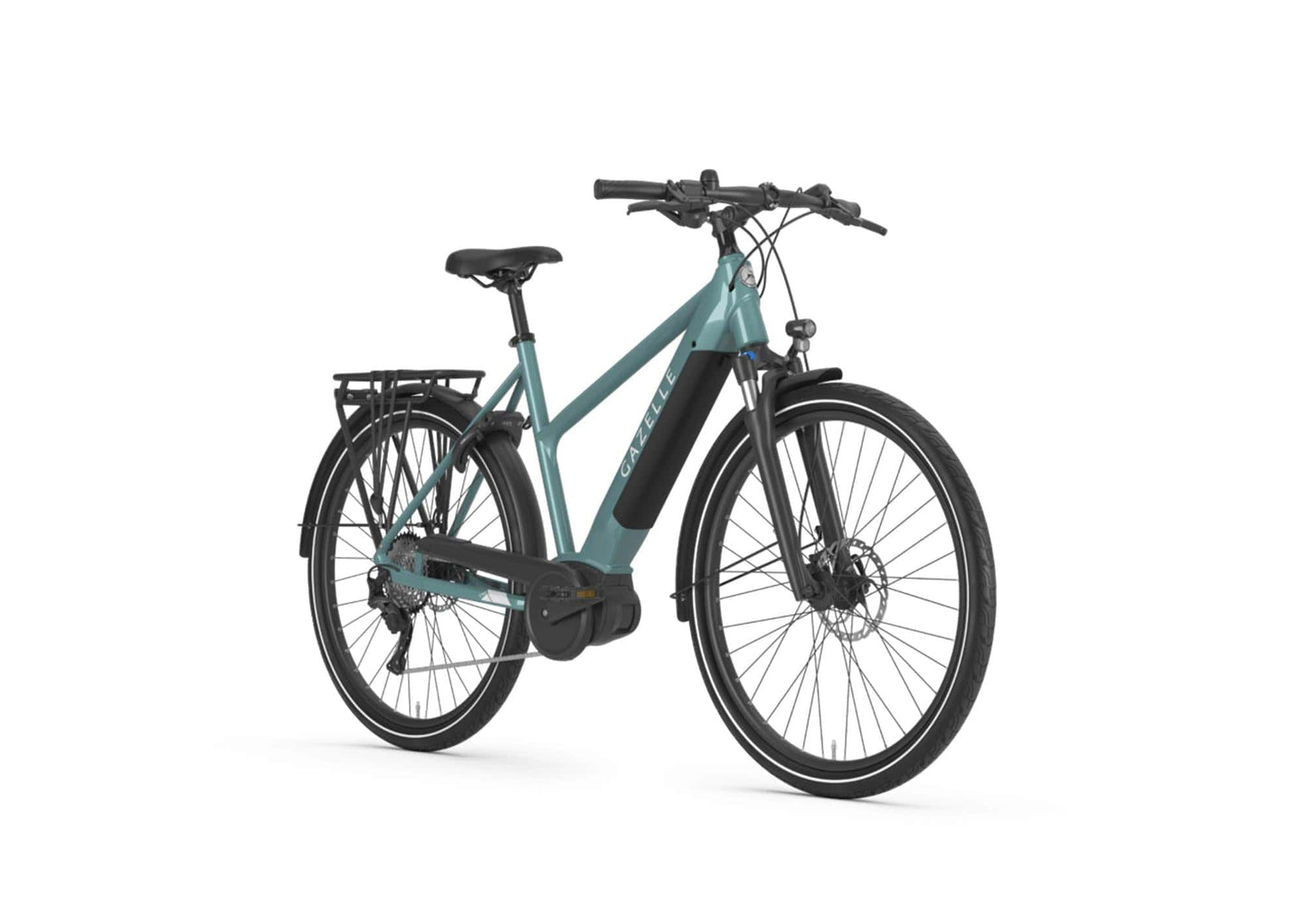

| Frame | Stable lightweight aluminium sloping frame with 70.5°headset angle and 73° saddle tube angle for a sporty posture and precise handling. Cables beautifully integrated into the frame |
| Fork | Suntour NEX E25 HLO 50 mm, lockout |
| Rear Shock | Not applicable |

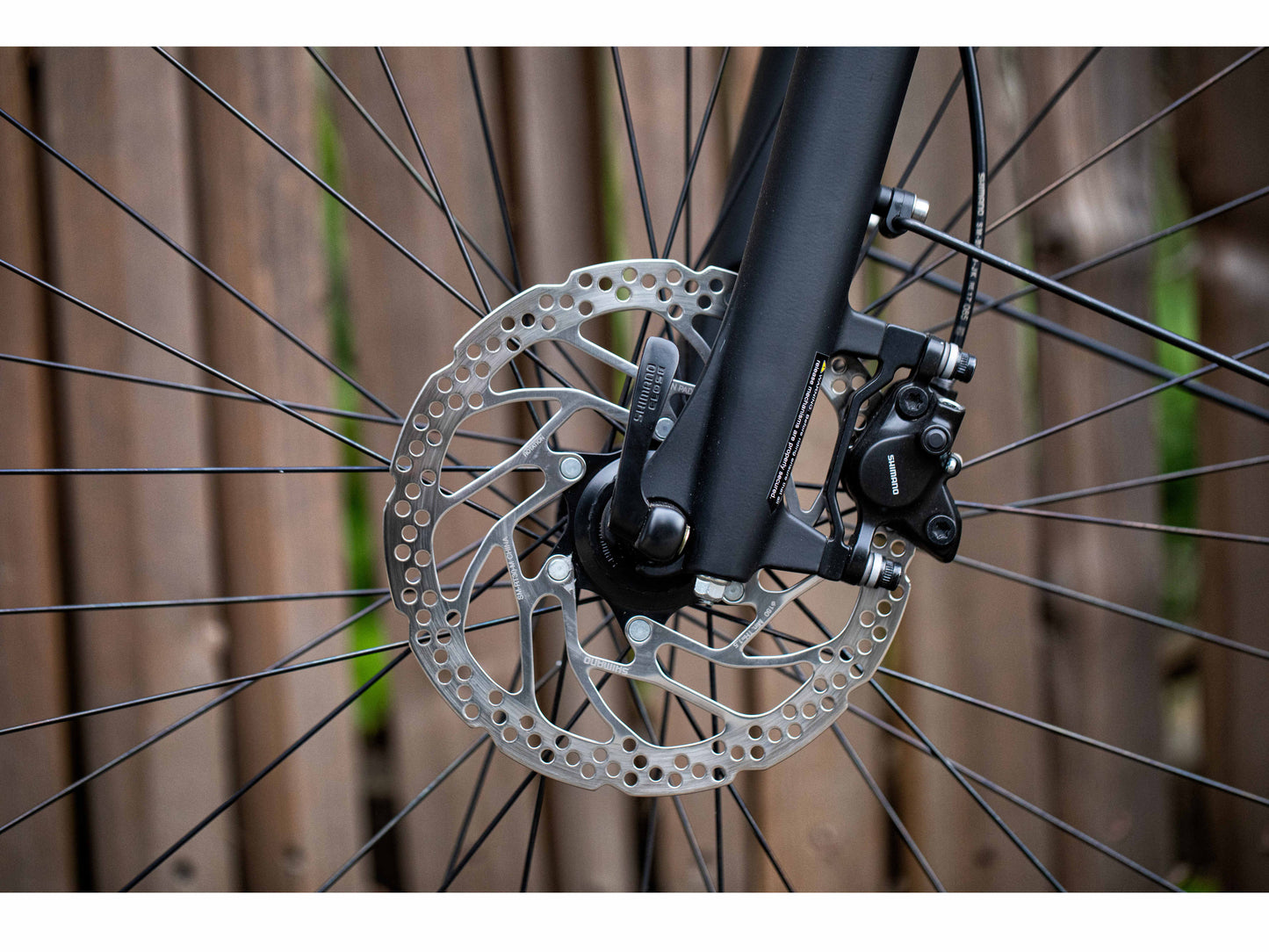

| Front Brake | Disc brake with hydraulic control; Shimano BR-MT200, 2 piston 180 mm |
| Rear Brake | Disc brake with hydraulic control; Shimano BR-MT200, 2 piston 160 mm |
| Rear Derailleur | Shimano Deore |
| Shift Levers | Shimano Deore |
| Chain | KMC extra strong, special for e-bike |
| Cassette | 10-speed Shimano Deore |
| Crankset | Spec not provided |
| Chain Ring | 38, 11-42 |
| Chain Guard | Plastic |
| Rims | Mach1 ER-10, 28", double walled, aluminum |
| Front Hub | Shimano |
| Rear Hub | Spec not provided |
| Front Tire | Schwalbe Energizer Plus, 47-622 |
| Rear Tire | Schwalbe Energizer Plus, 47-622 |
| Handlebar | Aluminum slightly curved model |
| Stem | Steplessly adjustable |
| Headset | Spec not provided |
| Grips | Hermans DD36 |
| Saddle | DDK, sportive |
| Seatpost | Fixed |
| Pedals | Spec not provided |
| Front Light | Axa Compactline 35, LED headlamp, 35 lux, on/off switching via display |
| Rear Light | Axa Blueline, LED battery supply, on/off switching via display |
| Kickstand | Drop-down rear stand, Ursus Mooi |
| Rear Carrier | Aluminum MIK system carrier |
| Fenders | Stainlesss Steel |
| Bell | Gazelle Compact Bell |

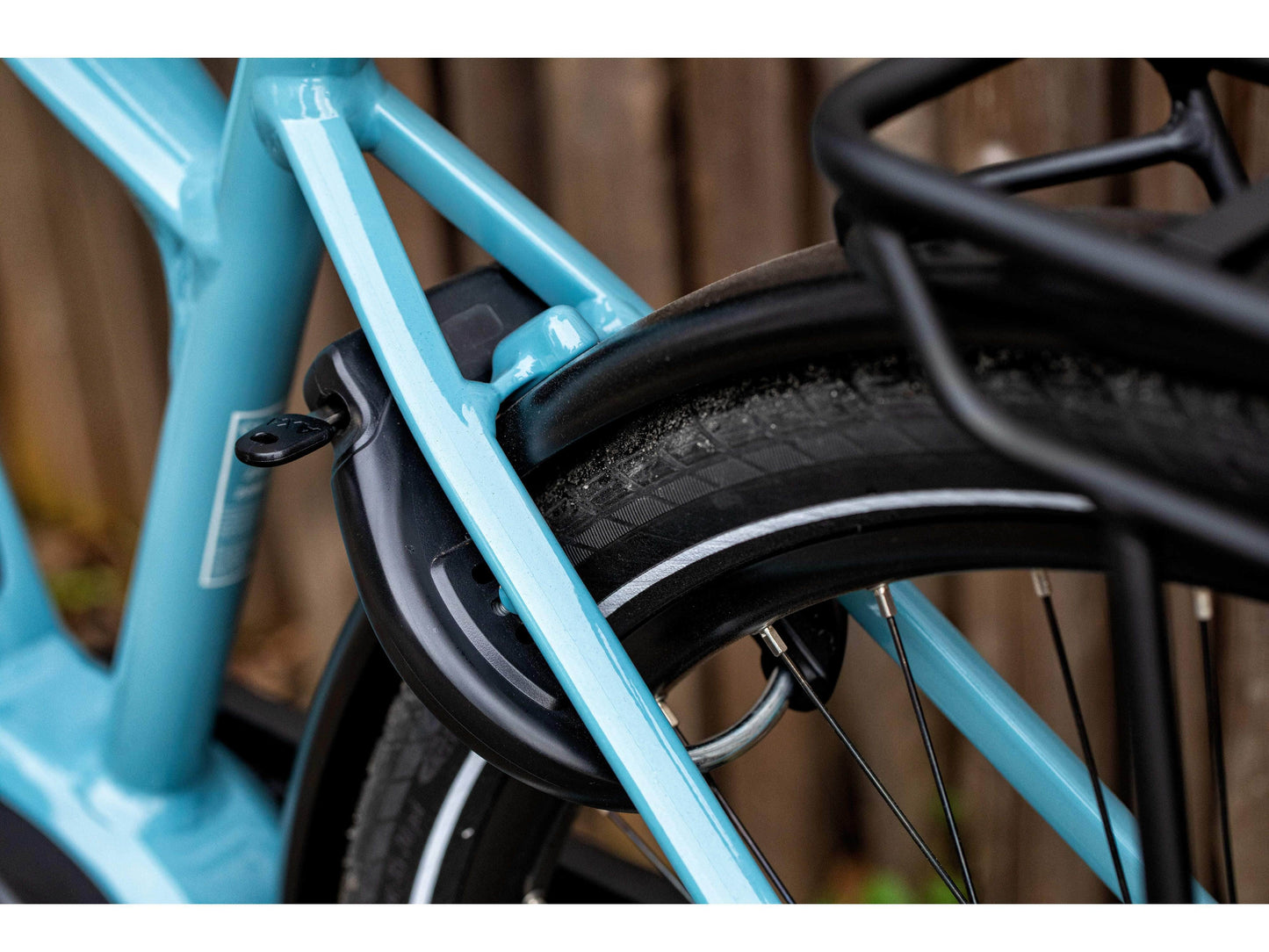

| Lock | AXA Block XXL ** certified |
| Mirror | Not applicable |
The Full Scoop on the Gazelle Medeo T10 Mid Step
Description
The Medeo T10 HMB is the highly versatile and functional electric bike to tackle everything from the rat race to the farmer’s market and everything in between. The artfully designed sloping frame boasts a stylish down tube that integrates with the head tube to create a striking silhouette that will leave your friends envious. With trusted frame geometry and stable handling, combined with wide tires, a suspension front fork and ergonomic handlebar grips, the Medeo T10 HMB is the electric bike to complement your cosmopolitan life.
*Components subject to manufacturer changes.
Motor System
| Motor | Bosch Performance Line (65 Nm), 36V |
| Battery | 500Wh, integrated into frame |
| Display | Bosch Purion LCD |
| Charger | 4Ah |
Components
| Frame | Stable lightweight aluminium sloping frame with 70.5°headset angle and 73° saddle tube angle for a sporty posture and precise handling. Cables beautifully integrated into the frame |
| Fork | Suntour NEX E25 HLO 50 mm, lockout |
| Rear Shock | Not applicable |
| Front Brake | Disc brake with hydraulic control; Shimano BR-MT200, 2 piston 180 mm |
| Rear Brake | Disc brake with hydraulic control; Shimano BR-MT200, 2 piston 160 mm |
| Rear Derailleur | Shimano Deore |
| Shift Levers | Shimano Deore |
| Chain | KMC extra strong, special for e-bike |
| Cassette | 10-speed Shimano Deore |
| Crankset | Spec not provided |
| Chain Ring | 38, 11-42 |
| Chain Guard | Plastic |
| Rims | Mach1 ER-10, 28", double walled, aluminum |
| Front Hub | Shimano |
| Rear Hub | Spec not provided |
| Front Tire | Schwalbe Energizer Plus, 47-622 |
| Rear Tire | Schwalbe Energizer Plus, 47-622 |
| Handlebar | Aluminum slightly curved model |
| Stem | Steplessly adjustable |
| Headset | Spec not provided |
| Grips | Hermans DD36 |
| Saddle | DDK, sportive |
| Seatpost | Fixed |
Extras
| Pedals | Spec not provided |
| Front Light | Axa Compactline 35, LED headlamp, 35 lux, on/off switching via display |
| Rear Light | Axa Blueline, LED battery supply, on/off switching via display |
| Kickstand | Drop-down rear stand, Ursus Mooi |
| Rear Carrier | Aluminum MIK system carrier |
| Fenders | Stainlesss Steel |
| Bell | Gazelle Compact Bell |
| Lock | AXA Block XXL ** certified |
| Mirror | Not applicable |
