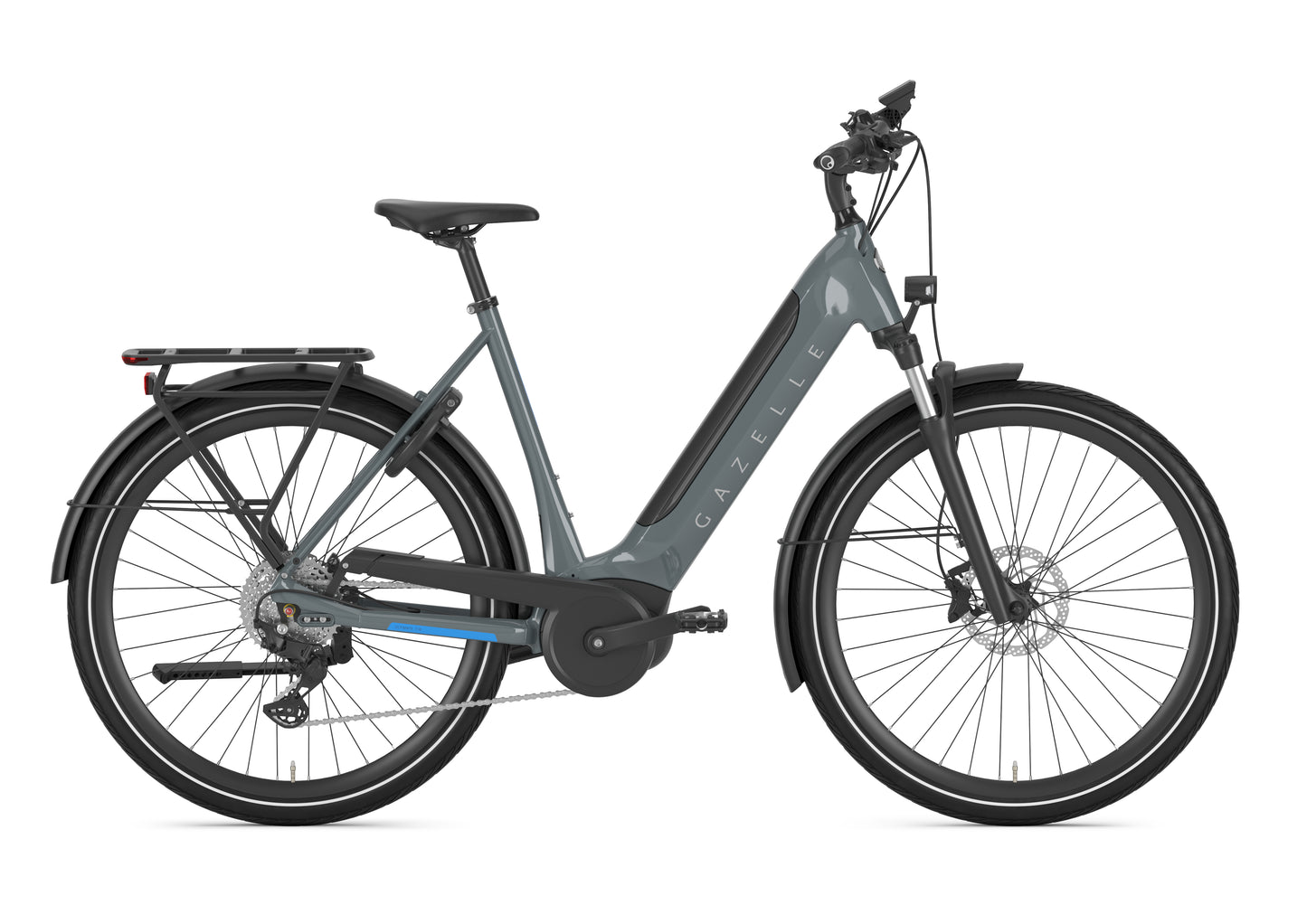

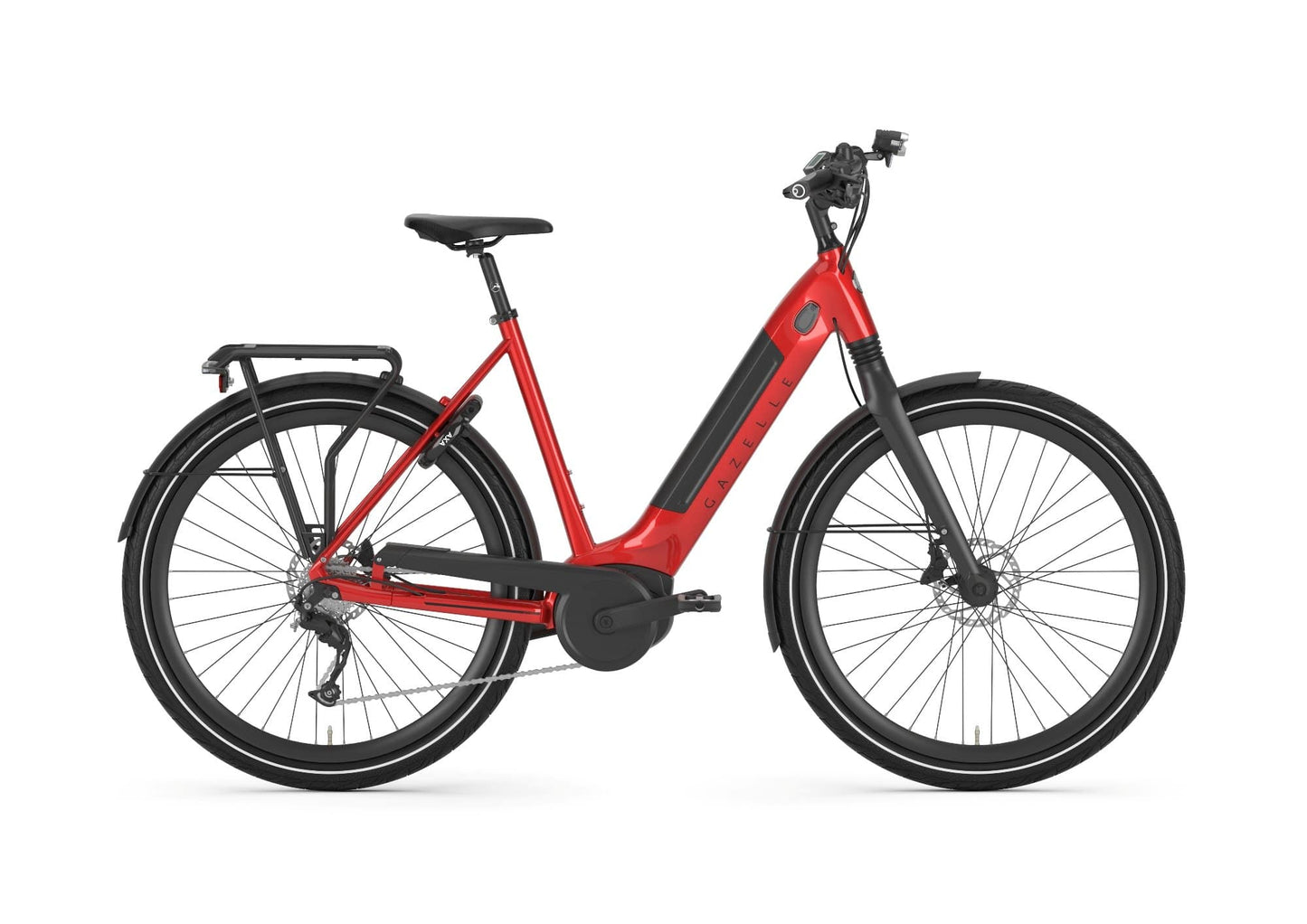

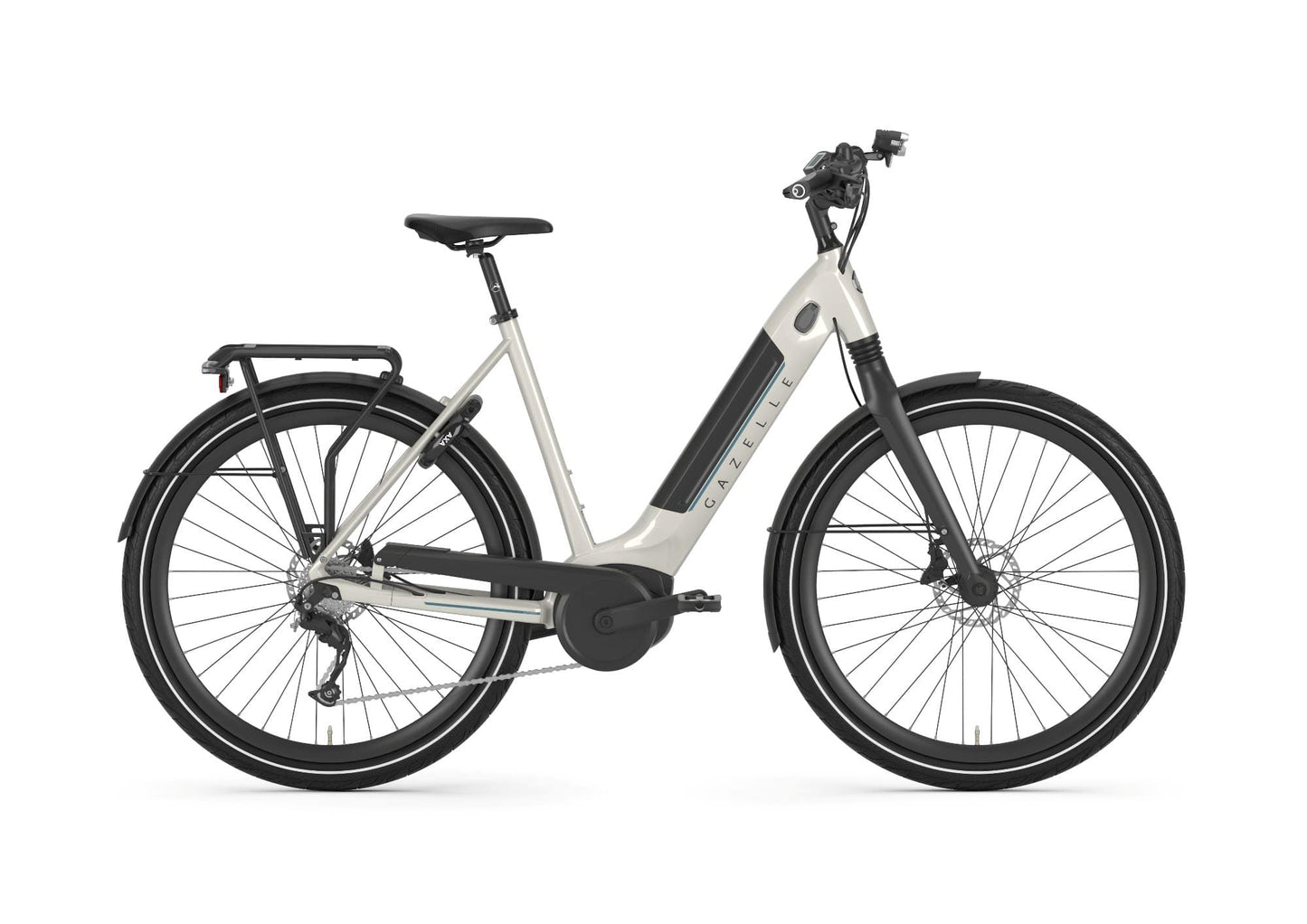

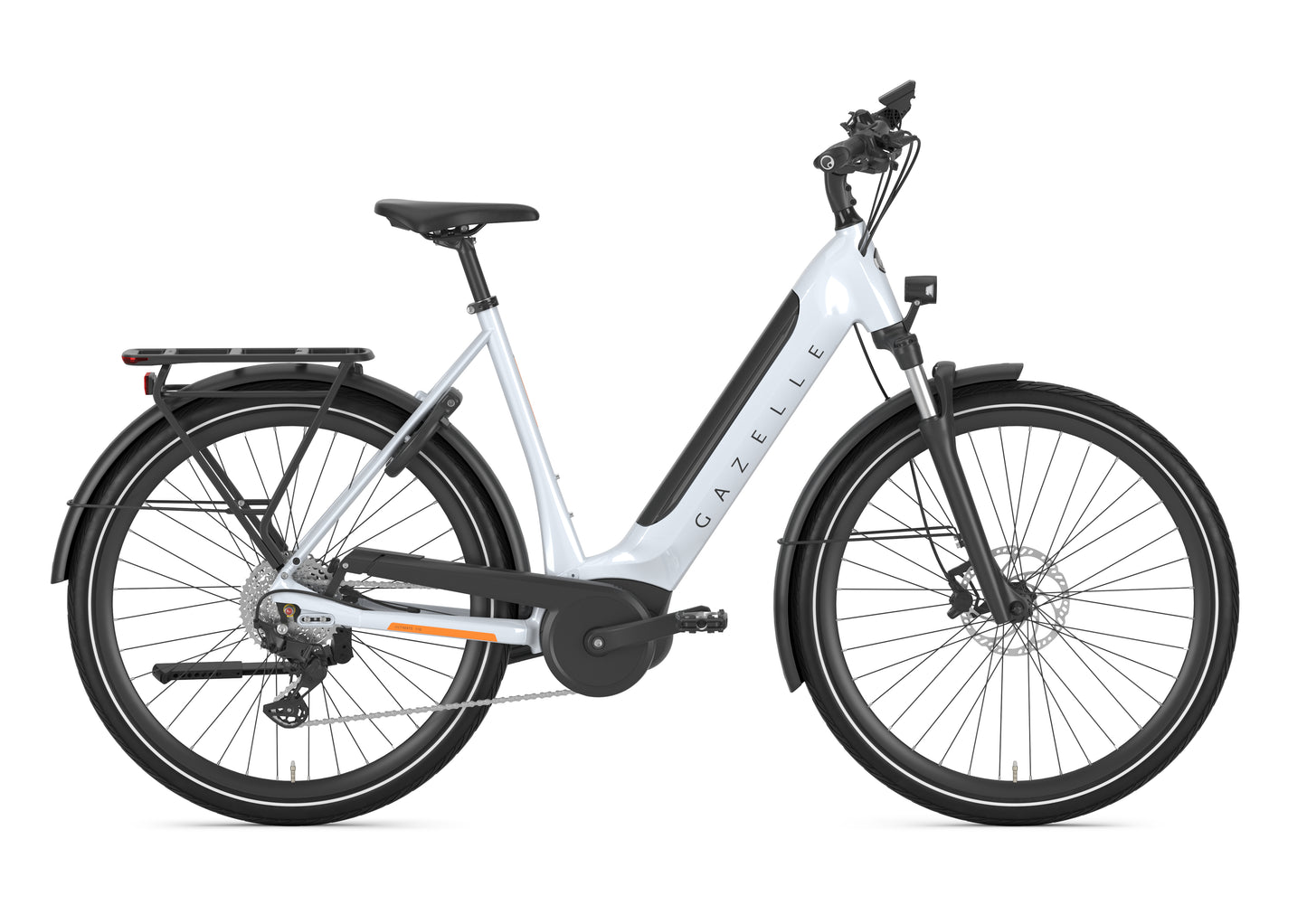

Gazelle Ultimate T10 Low Step

The Full Scoop on the Gazelle Ultimate T10 Low Step

• Description
• Motor System
• Components
• Extras
• Geometry

•
  A top of the line trekking e-bike, refined down to the last detail. The Gazelle Ultimate T10 gives comfortable yet sporty cycling with powerful assistance up to 20 mph. It offers a high comfort level on poor road surfaces thanks an integrated suspension in the front fork. Its relaxed rider posture combined with powerful performance mean that no trip is too far. Design, integration and comfort: the Ultimate T10 has it all.

• Components subject to manufacturer changes

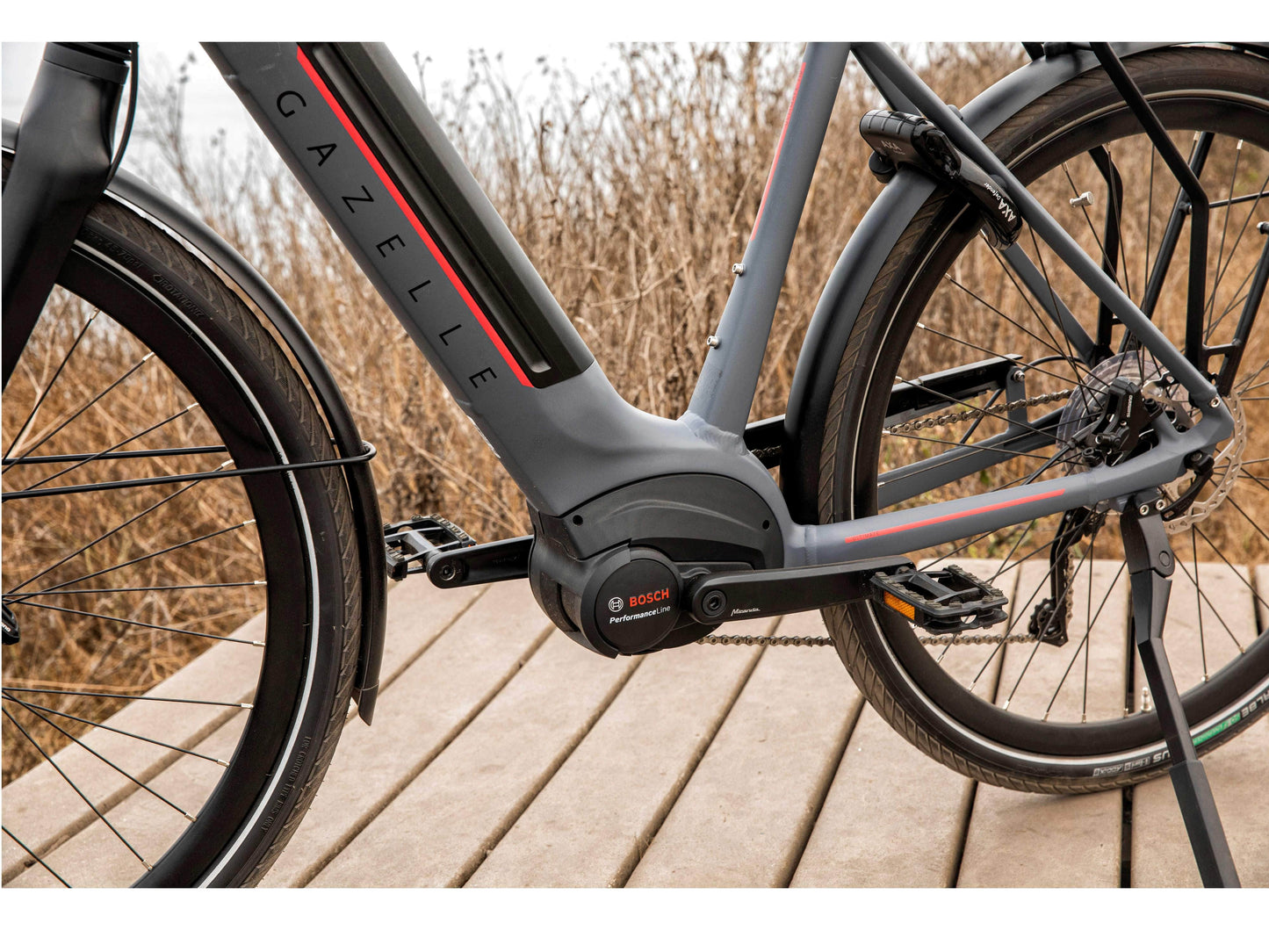

• Motor	Bosch Performance Line 3.0 (65 Nm), 36V, 500Wh
  Battery	Integrated into frame

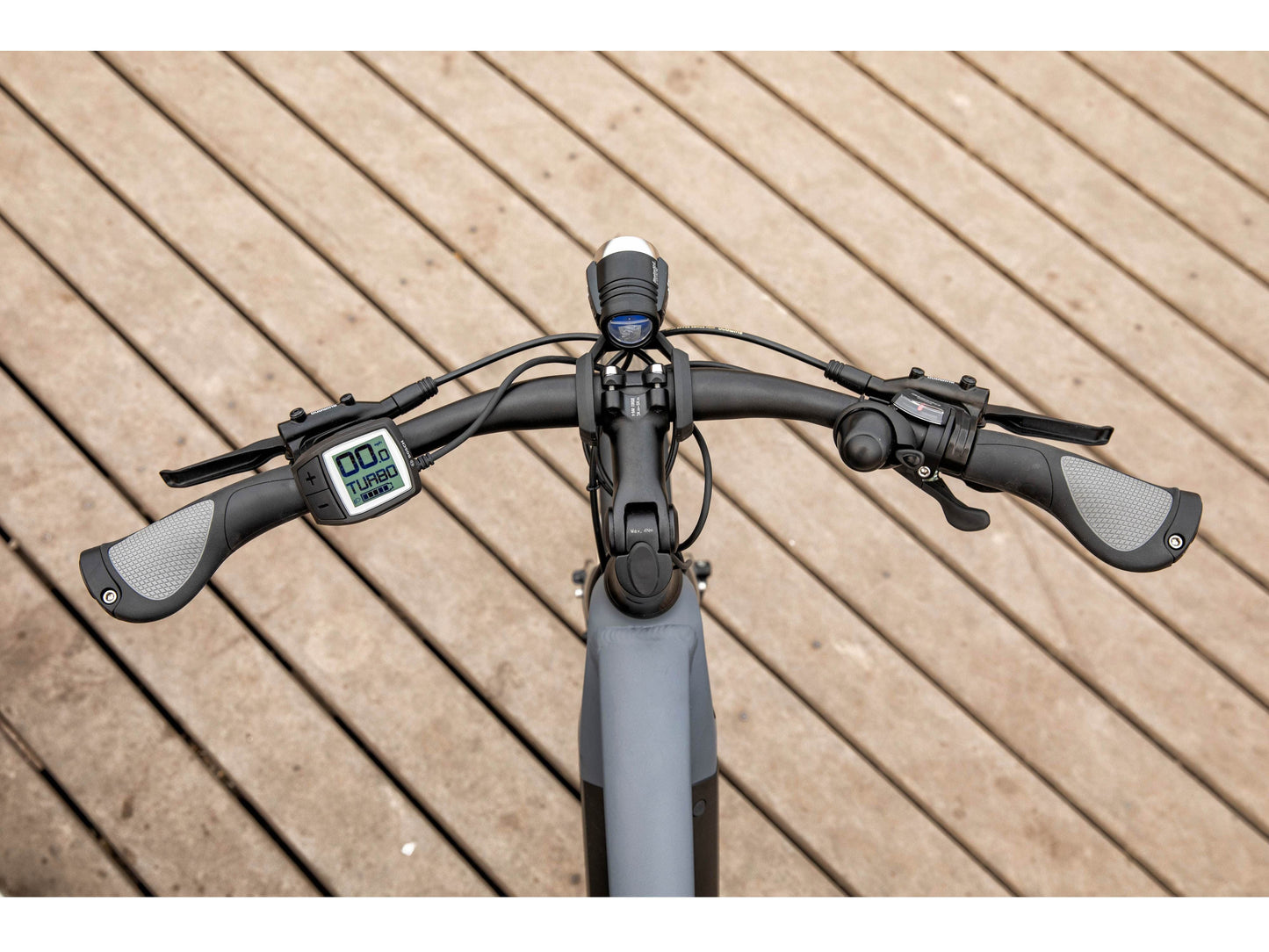

  Display	Bosch Purion
  Charger	Bosch 4Ah

• Frame	Aluminium, integrated cables
  Fork	Aluminum, springing in headset, lightweight, 40mm travel
  Rear Shock	Not applicable
  Front Brake	Shimano BR-MT420, 4 piston 180mm, disc brake with hydraulic control
  Rear Brake	Shimano BR-MT420, 4 piston 160mm, disc brake with hydraulic control
  Rear Derailleur	Shimano Deore
  Shift Levers	Shimano Deore
  Chain	KMC extra strong, e-bike-specific
  Cassette	Spec not provided
  Crankset	Miranda Delta
  Chain Ring	38, 11-36
  Chain Guard	Aluminum
  Rims	Ryde Dutch 19, 28"
  Front Hub	Shimano
  Rear Hub	Shimano Deore
  Front Tire	Schwalbe Energizer Plus, 47-622
  Rear Tire	Schwalbe Energizer Plus, 47-622
  Handlebar	Aluminum slightly curved model
  Stem	Steplessly adjustable
  Headset	Spec not provided
  Grips	Ergon GP1-L, ergonomic
  Saddle	Selle Royal Loire
  Seatpost	Fixed

• Pedals	Spec not provided
  Front Light	Axa Blue Line 50, LED headlamp, 50 lux, on/off switching via display
  Rear Light	Herrmans H-Cargo, LED battery supply, on/off switching via display
  Kickstand	Drop-down rear stand, Ursus Mooi
  Rear Carrier	Aluminum
  Fenders	Aluminum
  Bell	Handlebar bell Decibel XXL
  Lock	AXA Defender, ART ** certified
  Mirror	Not applicable

• 53 cm
  57 cm
