Haibike AllMtn 5

Sizing Guide

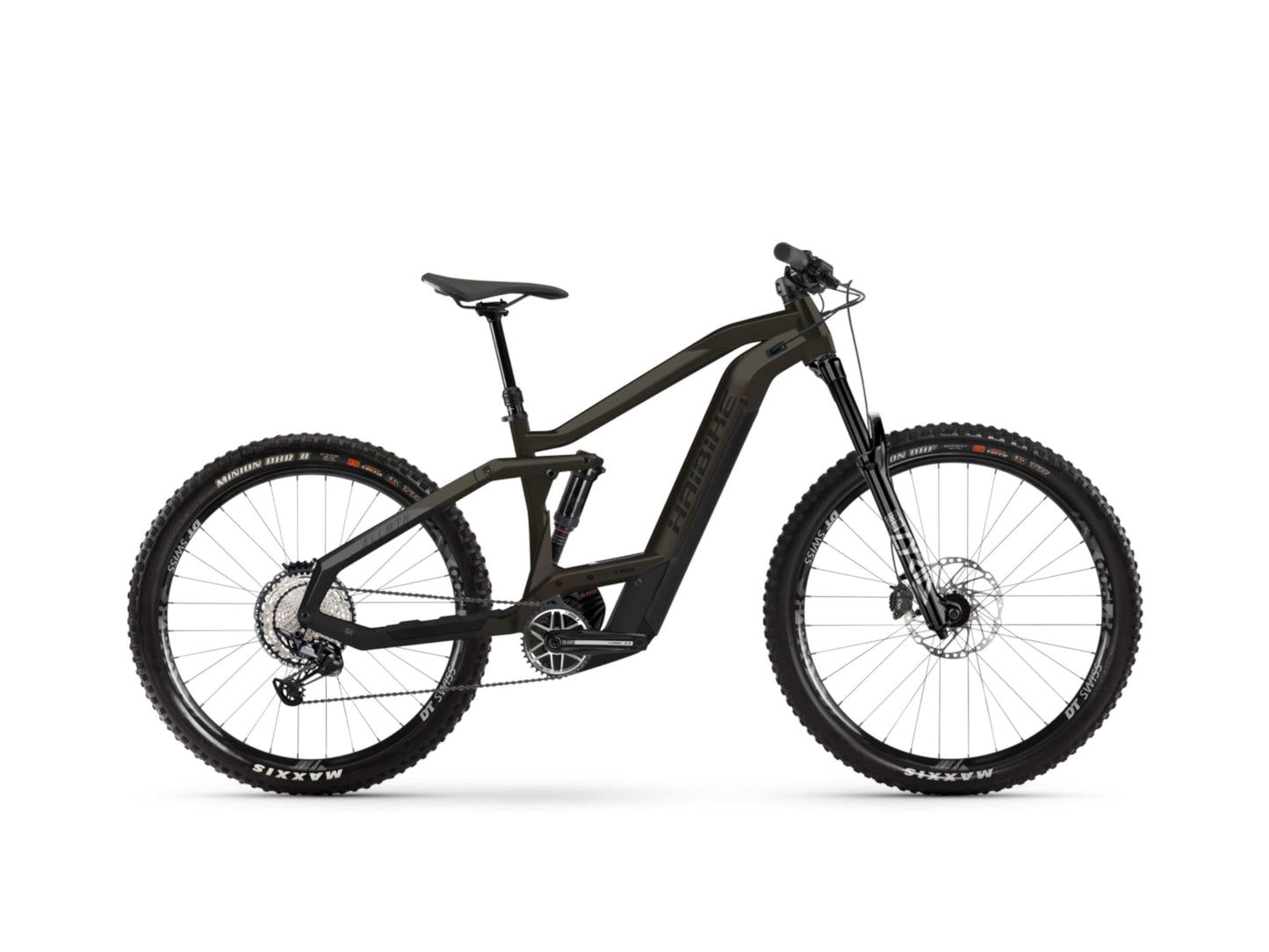

The Full Scoop on the 2021 Haibike AllMtn 5


  • The AllMtn 5. Getting uphill easily and downhill quickly.  Giving you the ability to get the most out of yourself and your bike.

  • Components subject to manufacturer changes
  • Motor Bosch Gen4 Performance CX, 250W, 75Nm, 20 mph
    Battery Bosch PowerTube 625Wh
    Display Bosch Purion
  • Frame Aluminum 6061, thru-axle M12 (1.75) x 148mm, disc brake Post Mount, Travel: 150mm
    Rear Shock RockShox Deluxe Select + RT, air
    Fork Rockshox, Lyrik Ultimate RC2, air, Travel: 160mm, aluminum steerer tube 1 1/8 ̋ - 1 1/2 ̋ tapered, thru-axle
    Headset A-Head, Tapered
    Cranks Haibike Forged Aluminum
    Drivetrain Shimano M8100SGS XT, 12-speed, Shadow Type
    Shifter Shimano SLX, rapidfire plus
    Cassette Shimano, M7100, SLX, 10-51 teeth
    Chain Shimano M7100, SLX
    Front Hub DT Swiss H1900, 110mm boost, 15mm thru axle
    Rear Hub DT Swiss H1900, 148mm boost, 12mm thru axle, 3 pawl stainless steel freehub
    Rims DT Swiss H1900, 29", 35mm width
    Tires Maxxis Minion DHF, 29 ̋ x 2.50 ̋
    Maxxis Minion DHR II, 27 ̋ x 2.80 ̋
    Brakes Shimano M8020, XT, 203mm / TRP G-Spec rear, 180mm
    Brake Levers Shimano M8000
    Handlebar Haibike Components TheBar +++ Gravity 780mm
    Stem Haibike Components TheStem 2, A-head, Bar bore: 31.8mm
    Seat Selle Royale Vivo
    Seatpost JD-YSP18JL, telescope, 31.6mm
    Pedals MTB Freeride pedal aluminum
  • Grips

    Haibike MTB

  • 41cm Small
    44cm Medium
    47cm Large
    50cm X-Large


Not sure which model is right for you?

Please note: Specs and components are provided by the manufacturer, and are subject to change.
