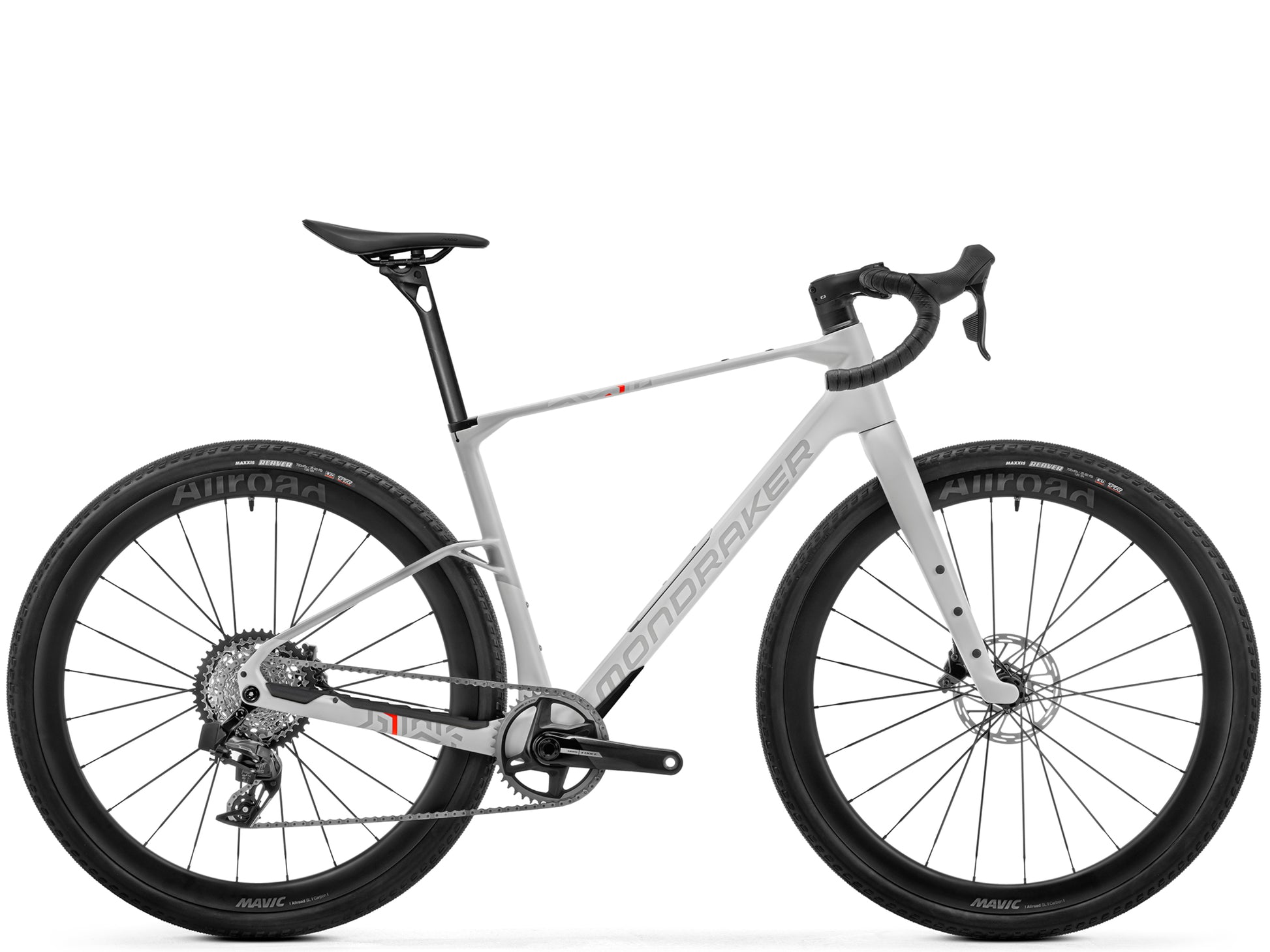

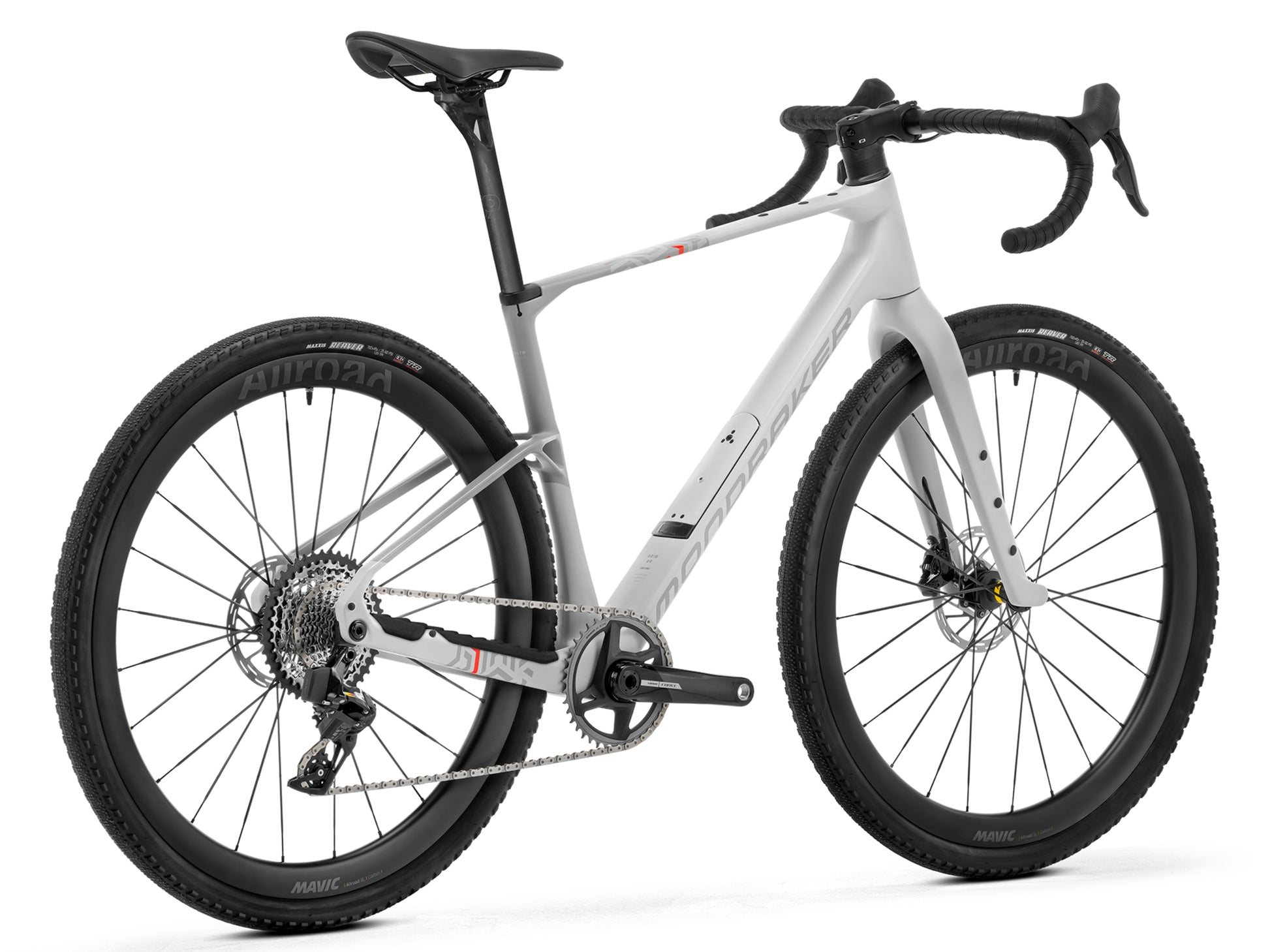

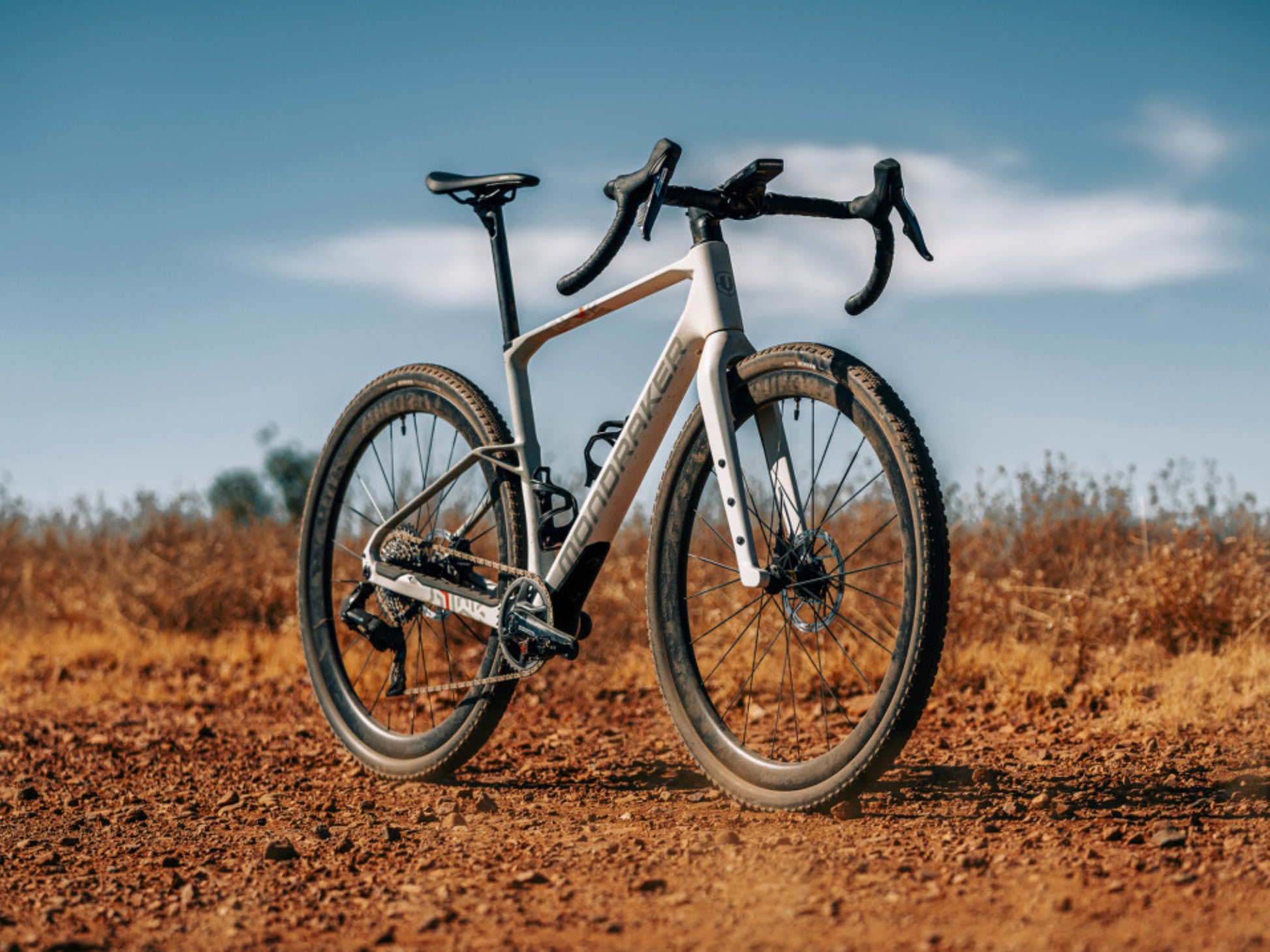

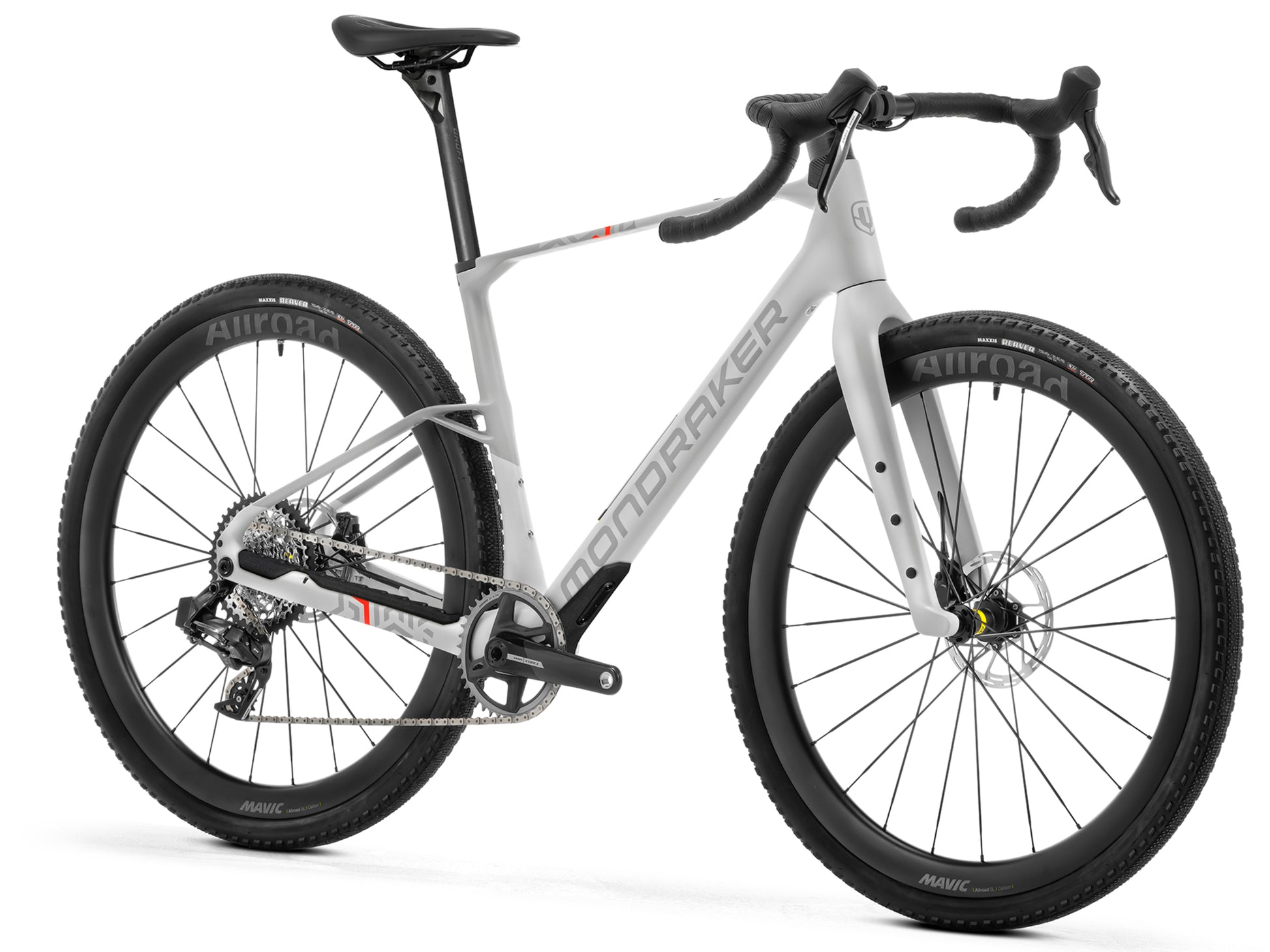

Mondraker Arid Carbon RR
Mondraker Arid Carbon RR
Regular price
$6,499.00
Sale price
$6,499.00
Regular price
Unit price
per
Shipping calculated at checkout.
The Full Scoop on the Mondraker Arid Carbon RR
Gravel as a category can be a super exciting world to discover for beginners and a true return to the roots for those who have been pedaling for a lifetime. Mondraker has applied their superior technology to replicate the most primal and emotional sensation of unassisted pedaling. The result is Arid.
*Components subject to manufacturer changes.
| Frame | Arid Stealth Air Carbon, in-tube storage, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142mm rear axle, 1X drivetrain design, Flatmount brake compatible |
| Fork | Steatlh Air Carbon tapered steerer tube, HHG, flat mount integrated fork |
| Rear Shock | Not applicable. |
| Front Brake | SRAM Force Etap AXS 2 piece caliper, Paceline 160mm Centerlock rotor, steel-backed organic pad |
| Rear Brake | SRAM Force Etap AXS 2 piece caliper, Paceline 160mm Centerlock rotor, steel-backed organic pad |
| Rear Derailleur | Sram Force XPLR Etap AXS, 12s |
| Shift Levers | Sram Force Etap AXS 12s |
| Chain | Sram Force, 12v, Powerlock |
| Cassette | Sram XG-1271, 10-44T, 12s |
| Crankset | SRAM Force 1 Carbon, Power meter, DUB axle, S size: 170mm M size: 170mm ML size: 172.5mm L size: 172.5mm XL size: 175mm, CL 47.5 |
| Chain Ring | Sram X-Sync Eagle 40T direct mount, alloy, narrow-wide |
| Chain Guard | Spec not provided |
| Rims | Mavic Allroad Pro Carbon SL, UST, 25mm internal width, 42mm rim depth, hookless, infinity hubs, 24 spokes |
| Front Hub | Mavic, 12x100mm, IS 6 bolts |
| Rear Hub | Mavic infinity hub, 12x142mm, XD ID360 Ratchet system, IS 6 bolts, XDR Freehub |
| Front Tire | Maxxis Reaver 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead |
| Rear Tire | Maxxis Reaver 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead |
| Handlebars | OnOff S9 GR CARBON 16º bar flare. Width sizes S size: 440mm M size: 440mm ML size: 460mm L size: 460mm XL size: 460mm |
| Stem | Onoff Semi-Integrated, 31.8mm barbore, rise: -7º, length: S size: 60mm, M size: 70mm, ML size 70mm, L size: 80mm, XL size: 90mm |
| Headset | Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, Internal cable routing. |
| Grips | OnOff HEX Bartape |
| Saddle | FIZIK Terra Argo X5 140mm |
| Seatpost | Onoff S9 Carbon 15-R, 15mm offset, diameter 27.2mm, length: S size: 400mm, M size: 400mm, ML size 400mm, L size: 450m, XL size: 450mm |
| Pedals | Not applicable |
| Front Light | Not applicable |
| Rear Light | Not applicable |
| Kickstand | Not applicable |
| Rear Carrier | Not applicable |
| Fenders | Not applicable |
| Bell | Not applicable |
| Lock | Not applicable |
| Mirror | Not applicable |
The Full Scoop on the Mondraker Arid Carbon RR
Gravel as a category can be a super exciting world to discover for beginners and a true return to the roots for those who have been pedaling for a lifetime. Mondraker has applied their superior technology to replicate the most primal and emotional sensation of unassisted pedaling. The result is Arid.
*Components subject to manufacturer changes.
Components
| Frame | Arid Stealth Air Carbon, in-tube storage, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142mm rear axle, 1X drivetrain design, Flatmount brake compatible |
| Fork | Steatlh Air Carbon tapered steerer tube, HHG, flat mount integrated fork |
| Rear Shock | Not applicable. |
| Front Brake | SRAM Force Etap AXS 2 piece caliper, Paceline 160mm Centerlock rotor, steel-backed organic pad |
| Rear Brake | SRAM Force Etap AXS 2 piece caliper, Paceline 160mm Centerlock rotor, steel-backed organic pad |
| Rear Derailleur | Sram Force XPLR Etap AXS, 12s |
| Shift Levers | Sram Force Etap AXS 12s |
| Chain | Sram Force, 12v, Powerlock |
| Cassette | Sram XG-1271, 10-44T, 12s |
| Crankset | SRAM Force 1 Carbon, Power meter, DUB axle, S size: 170mm M size: 170mm ML size: 172.5mm L size: 172.5mm XL size: 175mm, CL 47.5 |
| Chain Ring | Sram X-Sync Eagle 40T direct mount, alloy, narrow-wide |
| Chain Guard | Spec not provided |
| Rims | Mavic Allroad Pro Carbon SL, UST, 25mm internal width, 42mm rim depth, hookless, infinity hubs, 24 spokes |
| Front Hub | Mavic, 12x100mm, IS 6 bolts |
| Rear Hub | Mavic infinity hub, 12x142mm, XD ID360 Ratchet system, IS 6 bolts, XDR Freehub |
| Front Tire | Maxxis Reaver 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead |
| Rear Tire | Maxxis Reaver 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead |
| Handlebars | OnOff S9 GR CARBON 16º bar flare. Width sizes S size: 440mm M size: 440mm ML size: 460mm L size: 460mm XL size: 460mm |
| Stem | Onoff Semi-Integrated, 31.8mm barbore, rise: -7º, length: S size: 60mm, M size: 70mm, ML size 70mm, L size: 80mm, XL size: 90mm |
| Headset | Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, Internal cable routing. |
| Grips | OnOff HEX Bartape |
| Saddle | FIZIK Terra Argo X5 140mm |
| Seatpost | Onoff S9 Carbon 15-R, 15mm offset, diameter 27.2mm, length: S size: 400mm, M size: 400mm, ML size 400mm, L size: 450m, XL size: 450mm |
Extras
| Pedals | Not applicable |
| Front Light | Not applicable |
| Rear Light | Not applicable |
| Kickstand | Not applicable |
| Rear Carrier | Not applicable |
| Fenders | Not applicable |
| Bell | Not applicable |
| Lock | Not applicable |
| Mirror | Not applicable |
Geometry
