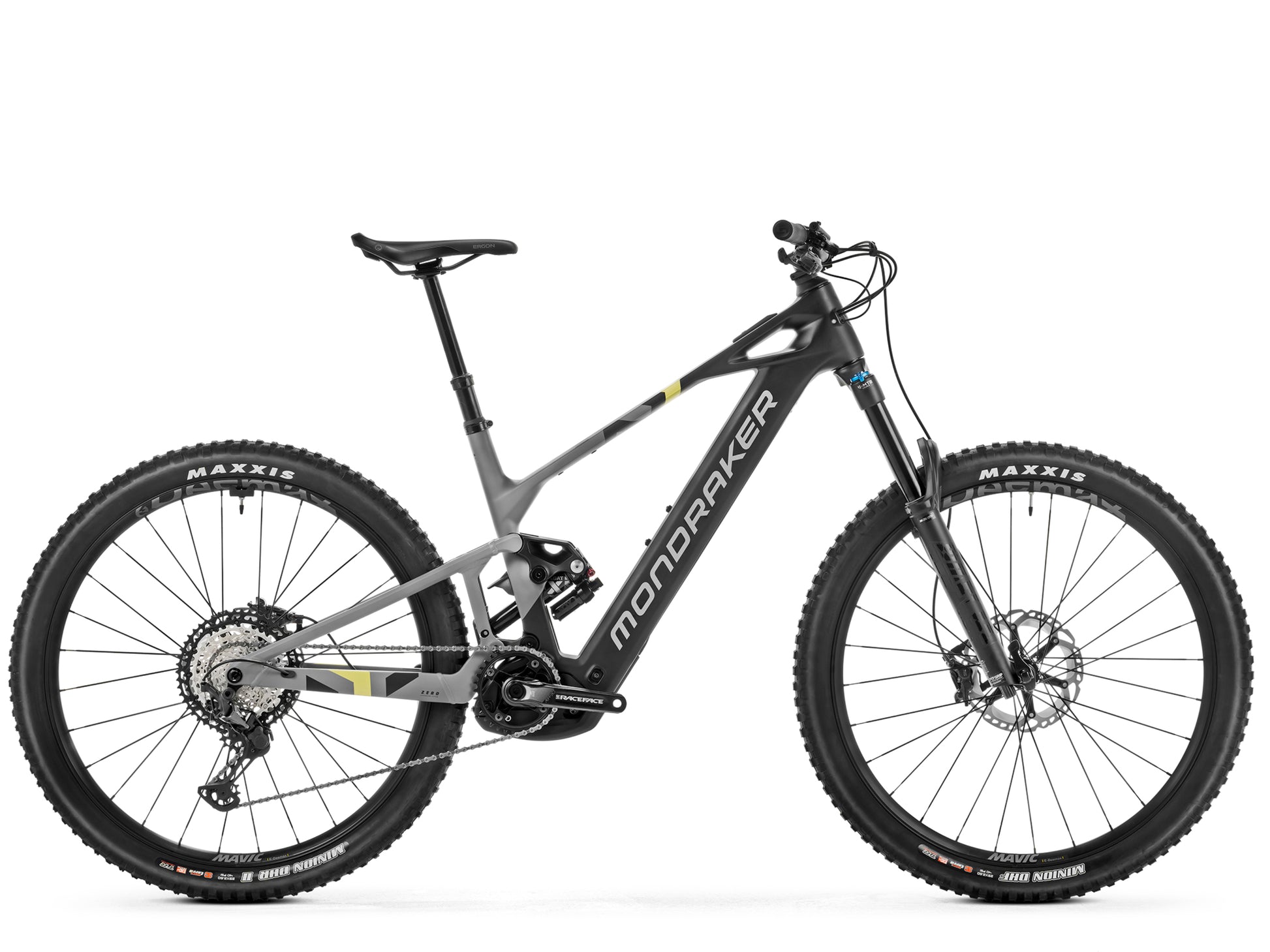

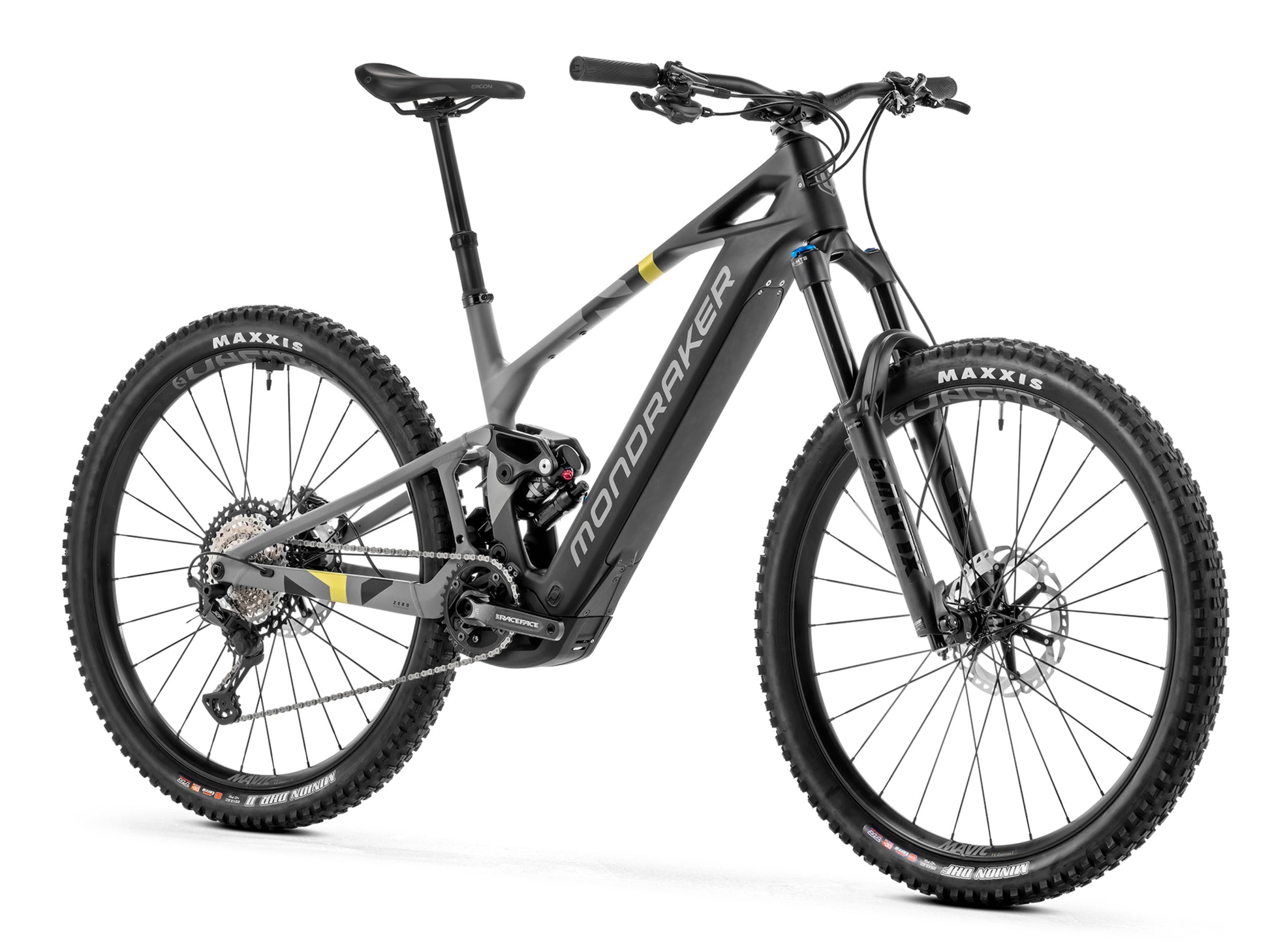

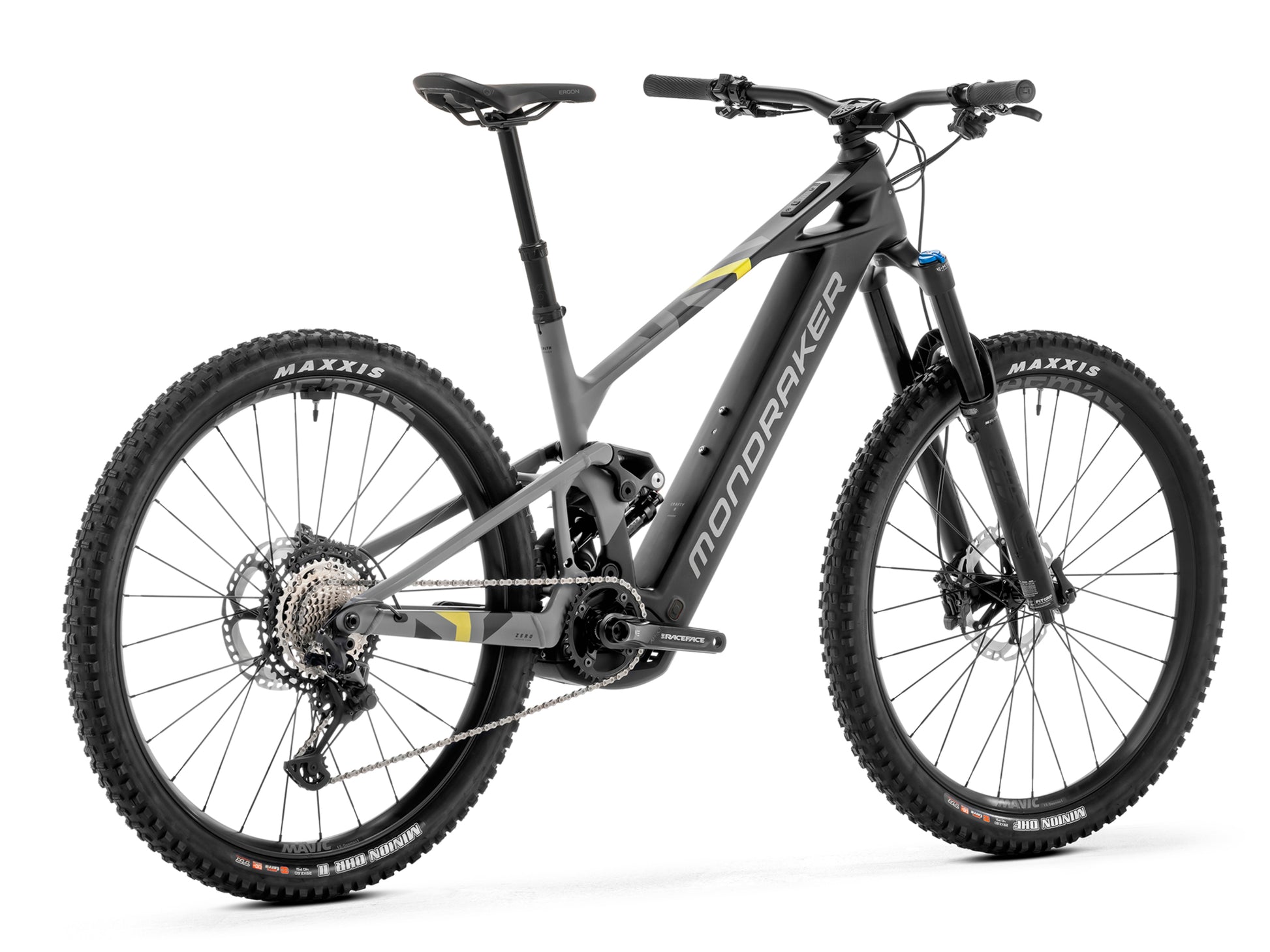

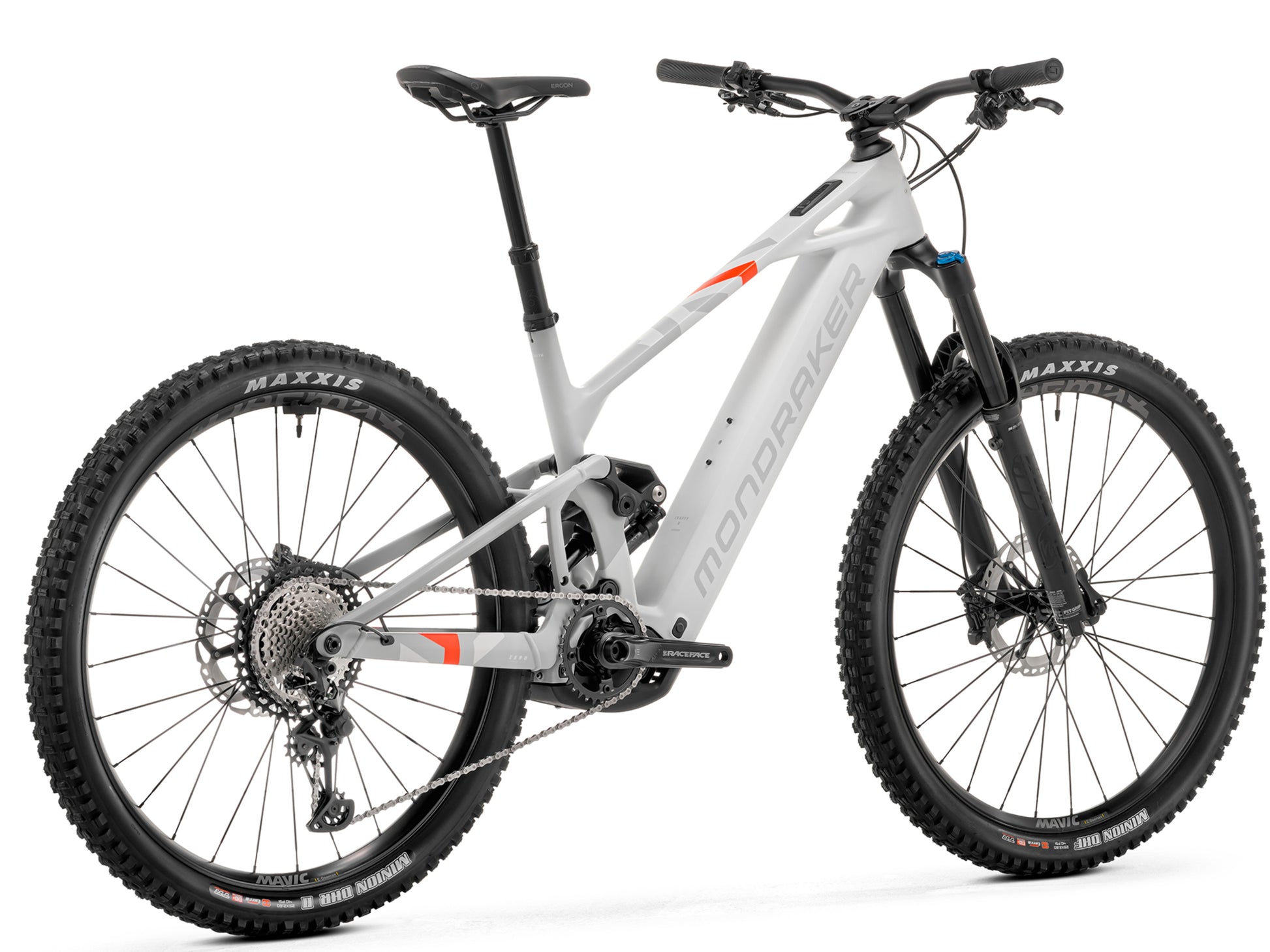

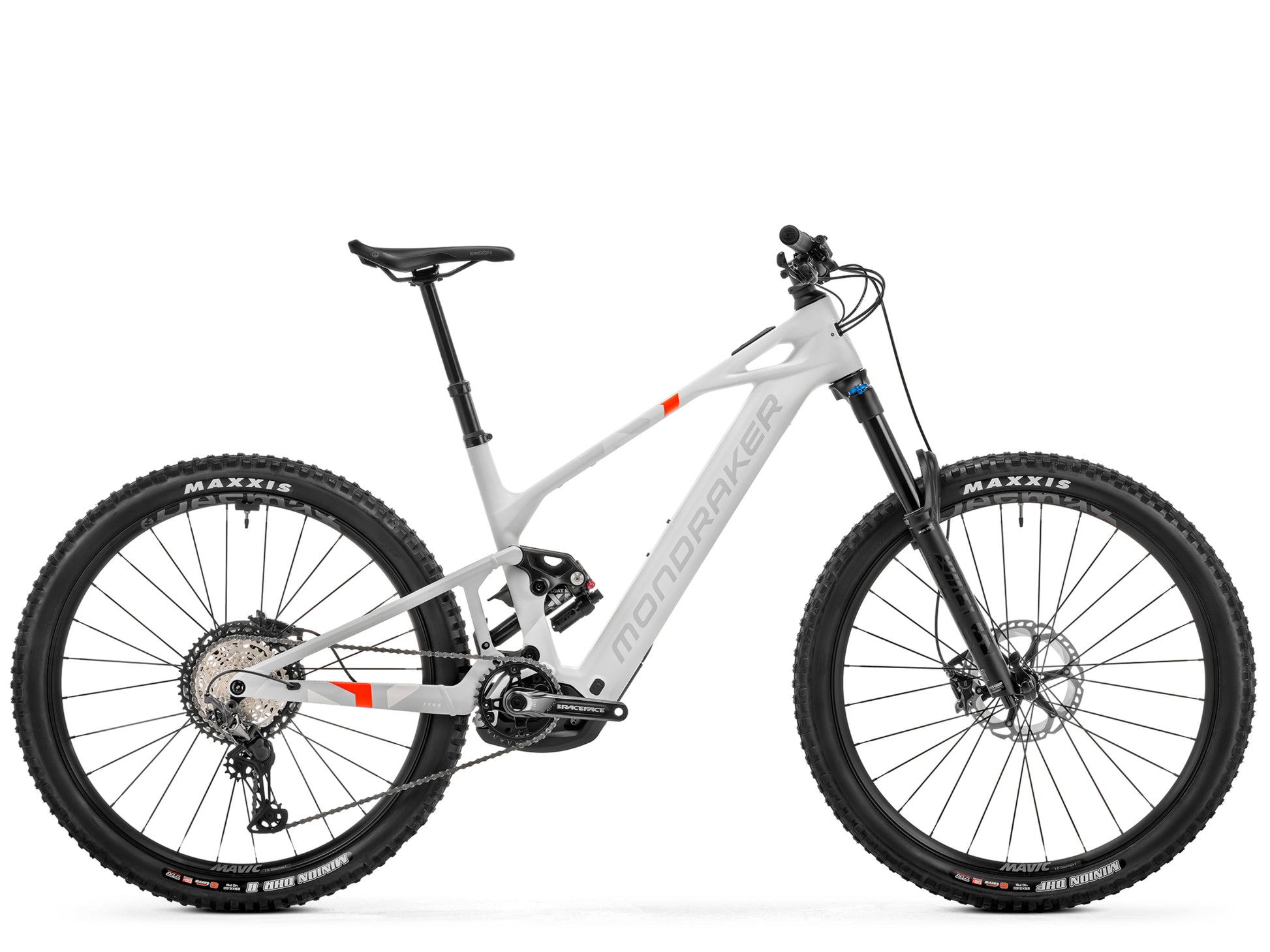

Mondraker Crafty Carbon R
Mondraker Crafty Carbon R
The Full Scoop on the Mondraker Crafty Carbon R
The CRAFTY family debuts the Bosch Smart System motor with the minimalist Mini Remote wireless remote control and the System Controller, which will allow you to see the mode used, the remaining battery and even change the assistance mode without having to mount the display if you want. Mondraker makes world leading enduros, connecting you to nature and sport.
*Manufacture components subject to change
Motor | Bosch Performance Line CX Cruise (25 km/h) GEN4 SMART SYSTEM |
Battery | Bosch Powertube 750Wh |
Display | Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller |
Charger | Bosch 4A |
Frame | Crafty Air full Carbon, Zero Suspension System optimized for e-bike, 150mm travel, Forward Geometry, non-removable internal battery, 12x148mm Boost rear axle, tapered head tube, one-piece Monobloc upper link, HHG internal cabling system, MAX sealed bearings, oversized 17mm axles, speed sensor integrated into the toe, exclusive plastic motor covers. |
Fork | Fox 38 29 Float GRIP Performance, 160mm, optimized for e-bike, tapered head tube, 15x110mm Boost axle, 44mm offset, 68mm outer diameter crown.Adjustments: three-position compression with micro-adjustment, low-speed rebound, air preload. |
Rear Shock | Fox Float-X LV Performance, 205x65mm.Adjustments: two-position compression lever, low speed rebound, air preload.Trunnion upper anchor, 25x10mm lower bushings. |
Front Brake | SRAM DB8, 4-piston caliper, 200mm Centerline one-piece IS 6-bolt disc, organic sheet steel pads. |
Rear Brake | SRAM DB8, 4-piston caliper, 200mm Centerline one-piece IS 6-bolt disc, organic sheet steel pads. |
Rear Derailleur | SRAM UDH |
Shift Levers | SRAM Trigger NX Eagle, 12v, X-Actuation 1:1, one-click speed change |
Chain | SRAM NX Eagle, 12s, Powerlock |
Cassette | SRAM PG-1230 11-50 teeth, 12v |
Crankset | Race Face Aeffect ebike, 165mm |
Chain Ring | SRAM X-Sync 2 Eagle, 34 teeth, alloy, narrow and wide design, 104 BCD |
Chain Guard | Spec not provided |
Rims | Mavic, offset bi-butted spokes, spoke contactless spokes |
Front Hub | Mavic, 15x110mm Boost, 6-bolt IS |
Rear Hub | Mavic, 12x148mm Boost, ID360 Ratchet system, 6-bolt IS, HG freehub |
Front Tire | Maxxis Minion DHF 29x2.6;tubeless ready, 3C MAXX TERRA, EXO+ casing, 120TPI, folding rim |
Rear Tire | Maxxis Minion DHR II 29x2.6;tubeless ready, 3C MAXX TERRA, EXO+ casing, 120TPI, folding rim |
Handlebars | ONOFF Krypton 1.0 double-butted in 7075-T6 alloy, rise: 20mm, width: 800mm, rear sweep: 9º, upsweep: 5º, diameter 31.8mm |
Stem | Spec not provided |
Headset | Spec not provided |
Grips | ONOFF Desert, 1 lock-on, 135mm |
Saddle | Fizik Terra Aidon X5 145mm |
Seatpost | ONOFF Internal wiring harness, diameter 31.6mm, 1 remote control with bearing, size S: 405x95-125mm, M: 458x120-150mm, L: 498x140-170mm, XL: 558x170-200mm |
Pedals | Not applicable |
Front Light | Not applicable |
Rear Light | Not applicable |
Kickstand | Not applicable |
Rear Carrier | Not applicable |
Fenders | Not applicable |
Bell | Not applicable |
Lock | Not applicable |
Mirror | Not applicable |
FRAME SIZE | S | M | L | XL | |
---|---|---|---|---|---|
A | Seattube length | 380mm | 420mm | 450mm | 480mm |
B | Toptube length | 605mm | 625mm | 650mm | 670mm |
C | Bottom bracket drop | -25mm | -25mm | -25mm | -25mm |
D | Bottom bracket height | 350mm | 350mm | 350mm | 350mm |
E | Chainstay length | 455mm | 455mm | 455mm | 455mm |
F | Seat tube angle | 73.5° | 73.5° | 72.5° | 73.5° |
G | Effective seattube angle | 76° | 76° | 75° | 76° |
H | Headtube angle | 65.5° | 65.5° | 65.5° | 65.5° |
I | Fork Offset | 44mm | 44mm | 44mm | 44mm |
J | Wheelbase | 1225mm | 1245mm | 1265mm | 1285mm |
K | Headtube length | 110mm | 110mm | 130mm | 130mm |
L | Reach | 450mm | 470mm | 490mm | 510mm |
M | Stack | 622mm | 622mm | 640mm | 640mm |
The Full Scoop on the Mondraker Crafty Carbon R
The CRAFTY family debuts the Bosch Smart System motor with the minimalist Mini Remote wireless remote control and the System Controller, which will allow you to see the mode used, the remaining battery and even change the assistance mode without having to mount the display if you want. Mondraker makes world leading enduros, connecting you to nature and sport.
*Manufacture components subject to change
Motor System
Motor | Bosch Performance Line CX Cruise (25 km/h) GEN4 SMART SYSTEM |
Battery | Bosch Powertube 750Wh |
Display | Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller |
Charger | Bosch 4A |
Components
Frame | Crafty Air full Carbon, Zero Suspension System optimized for e-bike, 150mm travel, Forward Geometry, non-removable internal battery, 12x148mm Boost rear axle, tapered head tube, one-piece Monobloc upper link, HHG internal cabling system, MAX sealed bearings, oversized 17mm axles, speed sensor integrated into the toe, exclusive plastic motor covers. |
Fork | Fox 38 29 Float GRIP Performance, 160mm, optimized for e-bike, tapered head tube, 15x110mm Boost axle, 44mm offset, 68mm outer diameter crown.Adjustments: three-position compression with micro-adjustment, low-speed rebound, air preload. |
Rear Shock | Fox Float-X LV Performance, 205x65mm.Adjustments: two-position compression lever, low speed rebound, air preload.Trunnion upper anchor, 25x10mm lower bushings. |
Front Brake | SRAM DB8, 4-piston caliper, 200mm Centerline one-piece IS 6-bolt disc, organic sheet steel pads. |
Rear Brake | SRAM DB8, 4-piston caliper, 200mm Centerline one-piece IS 6-bolt disc, organic sheet steel pads. |
Rear Derailleur | SRAM UDH |
Shift Levers | SRAM Trigger NX Eagle, 12v, X-Actuation 1:1, one-click speed change |
Chain | SRAM NX Eagle, 12s, Powerlock |
Cassette | SRAM PG-1230 11-50 teeth, 12v |
Crankset | Race Face Aeffect ebike, 165mm |
Chain Ring | SRAM X-Sync 2 Eagle, 34 teeth, alloy, narrow and wide design, 104 BCD |
Chain Guard | Spec not provided |
Rims | Mavic, offset bi-butted spokes, spoke contactless spokes |
Front Hub | Mavic, 15x110mm Boost, 6-bolt IS |
Rear Hub | Mavic, 12x148mm Boost, ID360 Ratchet system, 6-bolt IS, HG freehub |
Front Tire | Maxxis Minion DHF 29x2.6;tubeless ready, 3C MAXX TERRA, EXO+ casing, 120TPI, folding rim |
Rear Tire | Maxxis Minion DHR II 29x2.6;tubeless ready, 3C MAXX TERRA, EXO+ casing, 120TPI, folding rim |
Handlebars | ONOFF Krypton 1.0 double-butted in 7075-T6 alloy, rise: 20mm, width: 800mm, rear sweep: 9º, upsweep: 5º, diameter 31.8mm |
Stem | Spec not provided |
Headset | Spec not provided |
Grips | ONOFF Desert, 1 lock-on, 135mm |
Saddle | Fizik Terra Aidon X5 145mm |
Seatpost | ONOFF Internal wiring harness, diameter 31.6mm, 1 remote control with bearing, size S: 405x95-125mm, M: 458x120-150mm, L: 498x140-170mm, XL: 558x170-200mm |
Extras
Pedals | Not applicable |
Front Light | Not applicable |
Rear Light | Not applicable |
Kickstand | Not applicable |
Rear Carrier | Not applicable |
Fenders | Not applicable |
Bell | Not applicable |
Lock | Not applicable |
Mirror | Not applicable |
Geometry
FRAME SIZE | S | M | L | XL | |
---|---|---|---|---|---|
A | Seattube length | 380mm | 420mm | 450mm | 480mm |
B | Toptube length | 605mm | 625mm | 650mm | 670mm |
C | Bottom bracket drop | -25mm | -25mm | -25mm | -25mm |
D | Bottom bracket height | 350mm | 350mm | 350mm | 350mm |
E | Chainstay length | 455mm | 455mm | 455mm | 455mm |
F | Seat tube angle | 73.5° | 73.5° | 72.5° | 73.5° |
G | Effective seattube angle | 76° | 76° | 75° | 76° |
H | Headtube angle | 65.5° | 65.5° | 65.5° | 65.5° |
I | Fork Offset | 44mm | 44mm | 44mm | 44mm |
J | Wheelbase | 1225mm | 1245mm | 1265mm | 1285mm |
K | Headtube length | 110mm | 110mm | 130mm | 130mm |
L | Reach | 450mm | 470mm | 490mm | 510mm |
M | Stack | 622mm | 622mm | 640mm | 640mm |
