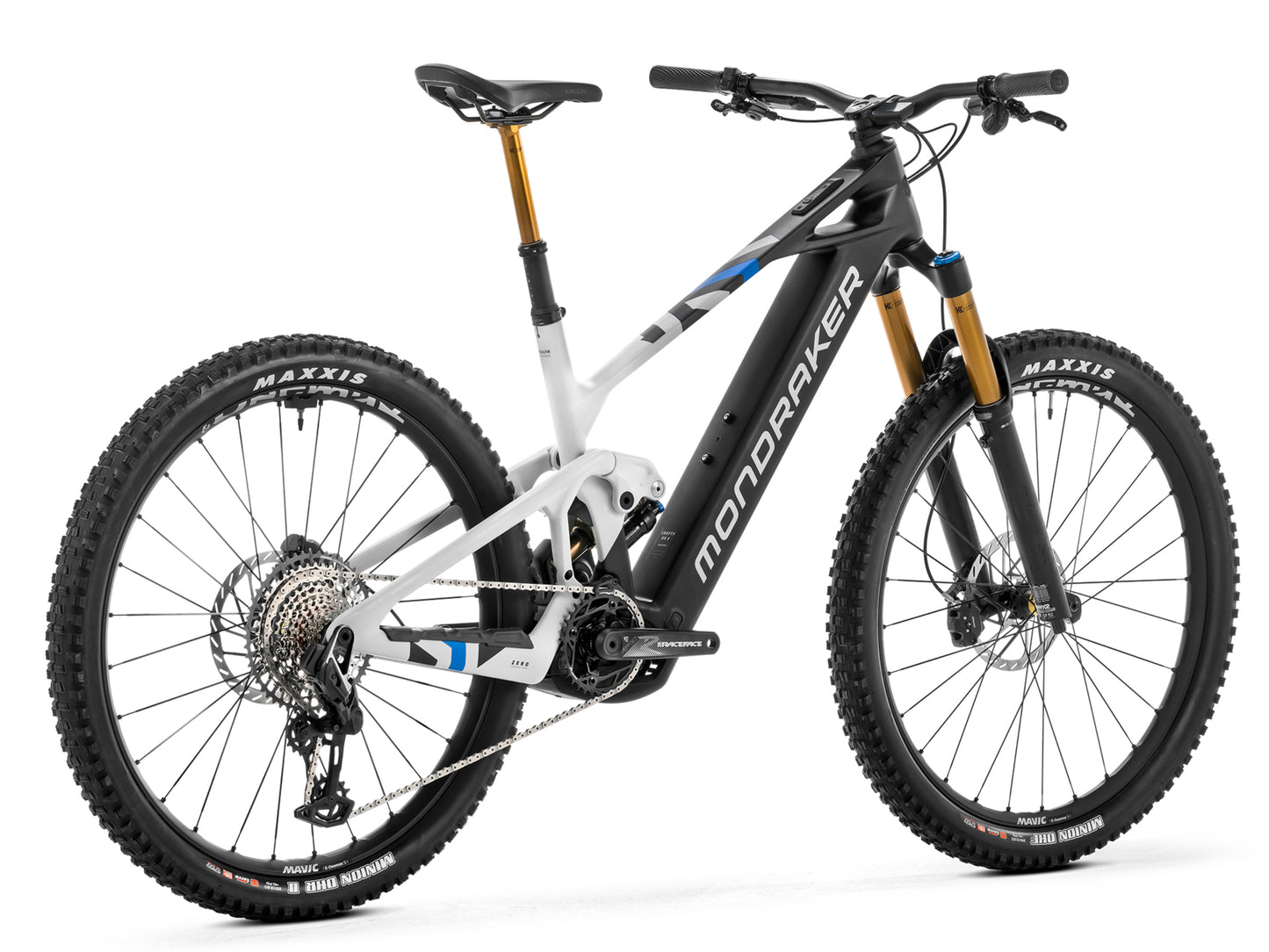

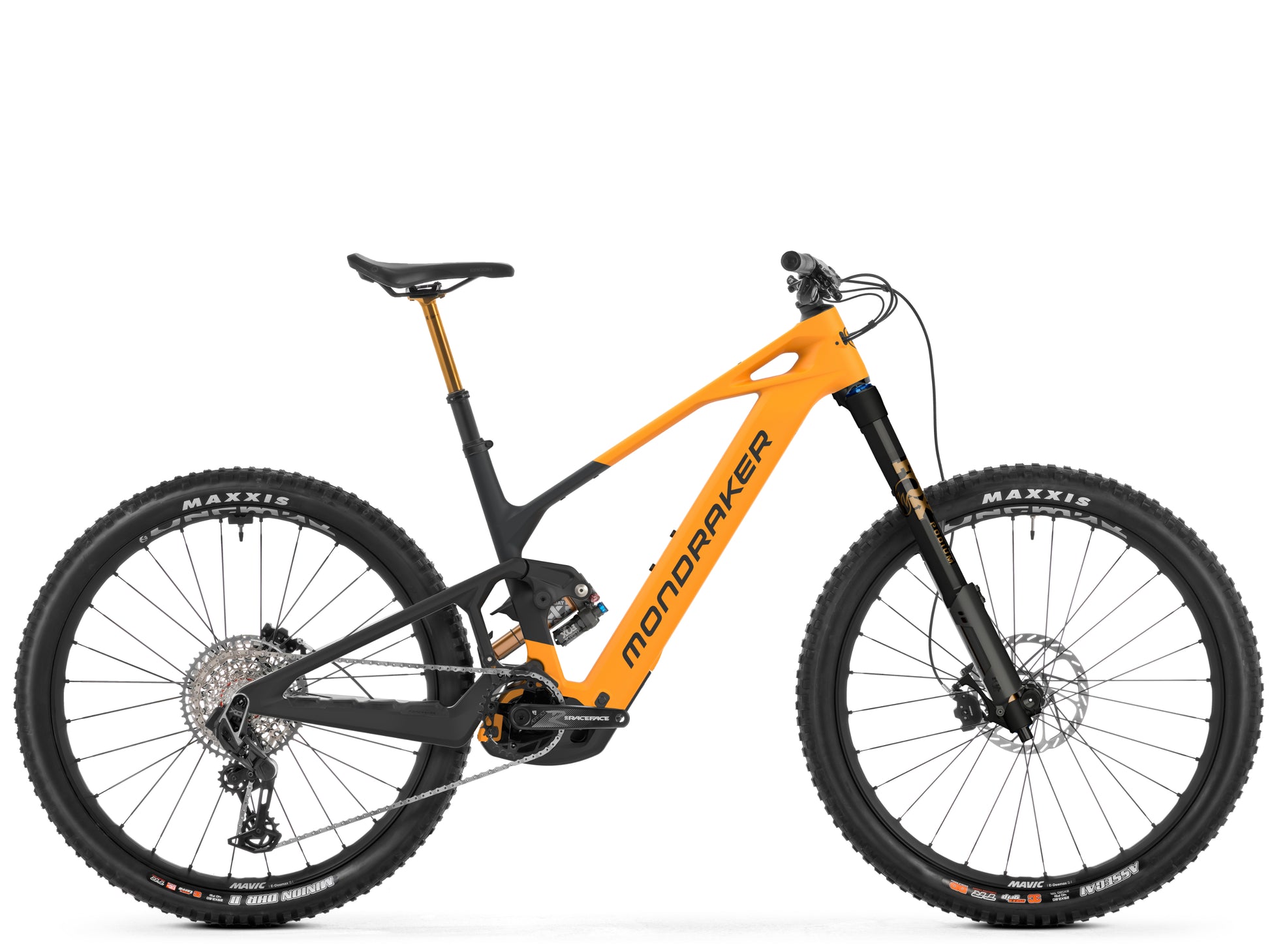

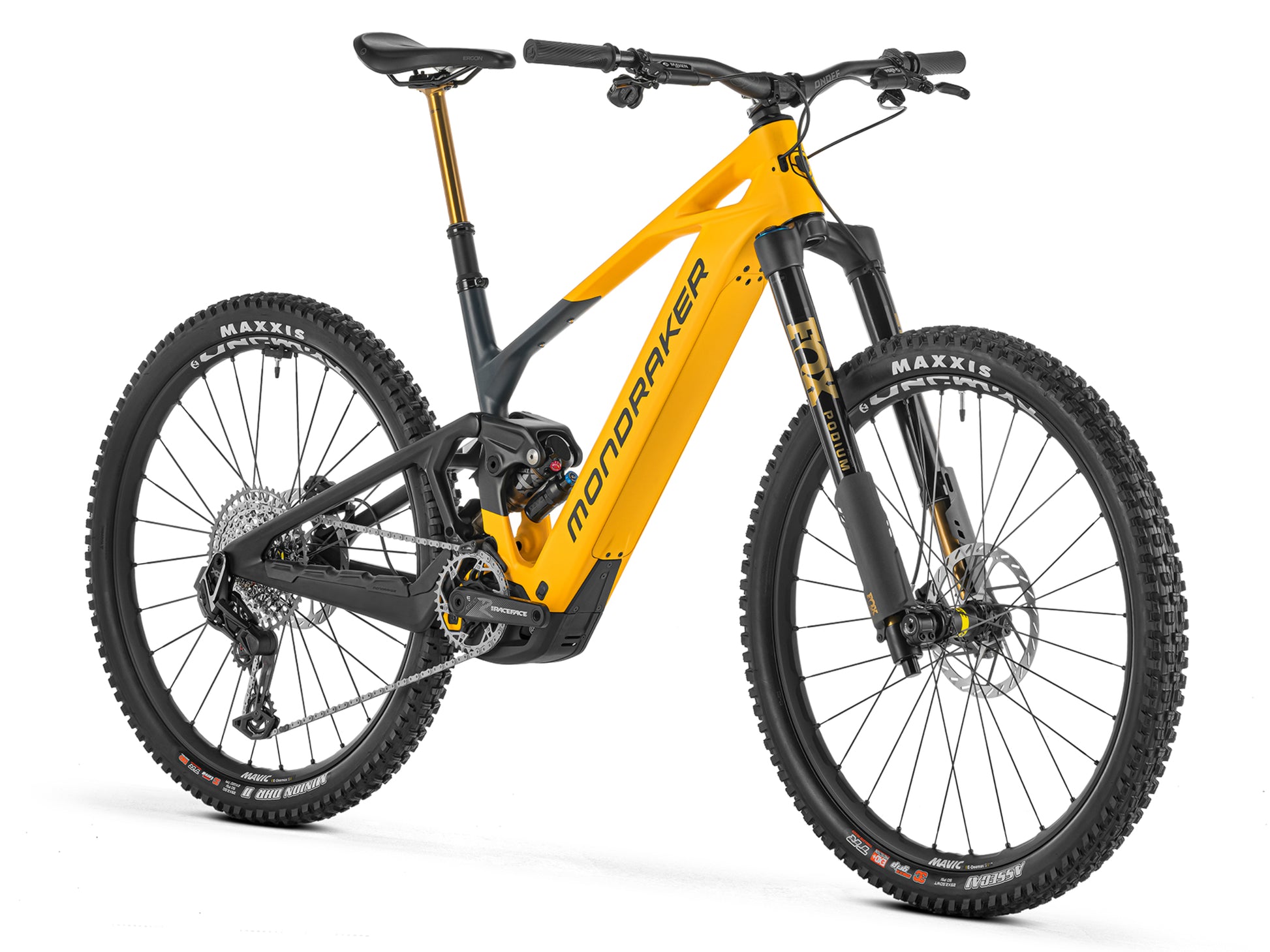

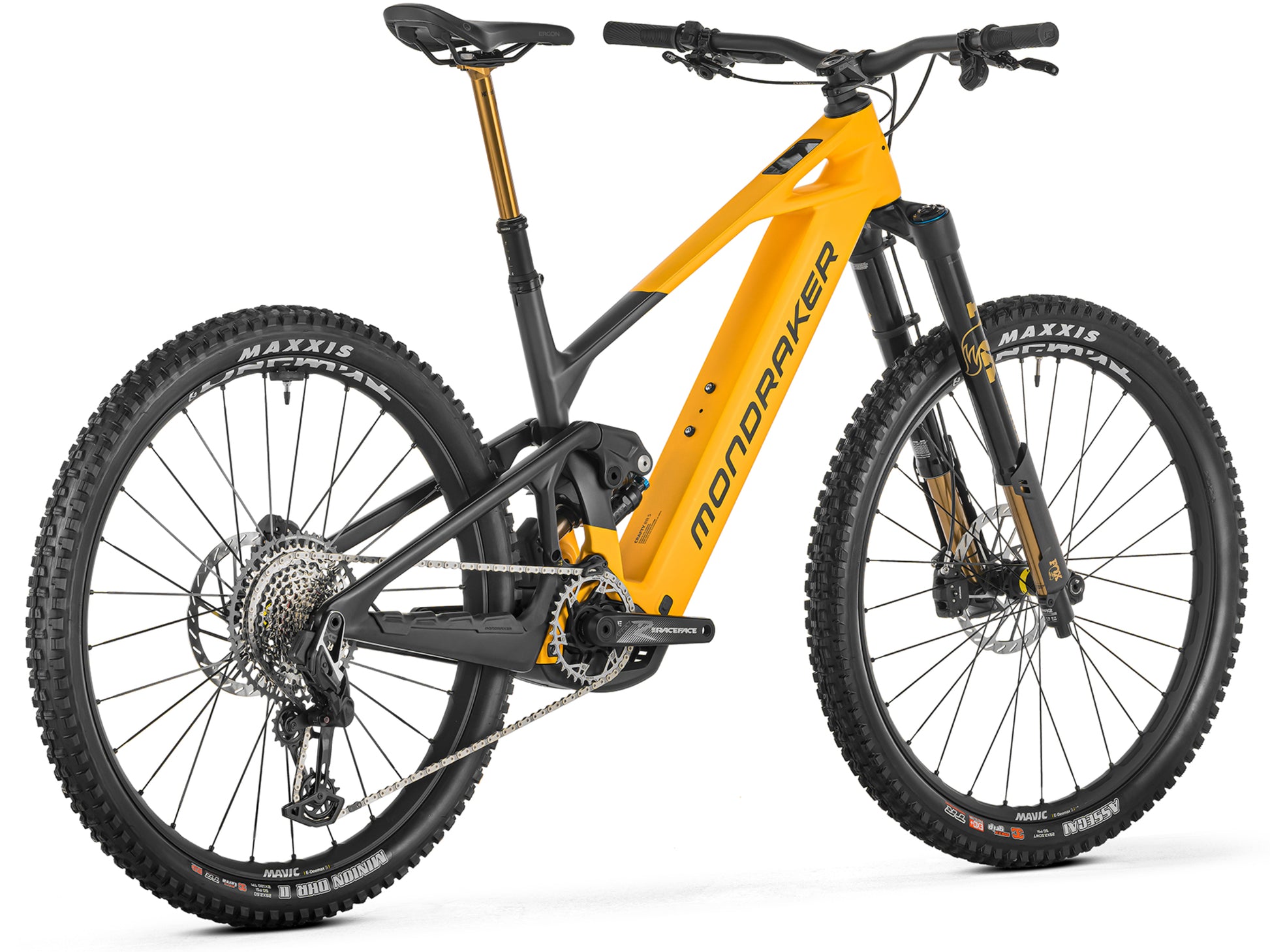

Mondraker Crafty Carbon RR S
Mondraker Crafty Carbon RR S
Regular price
$8,999.00
Sale price
$8,999.00
Regular price
Unit price
per
Couldn't load pickup availability
The Full Scoop on the Mondraker Crafty Carbon RR S

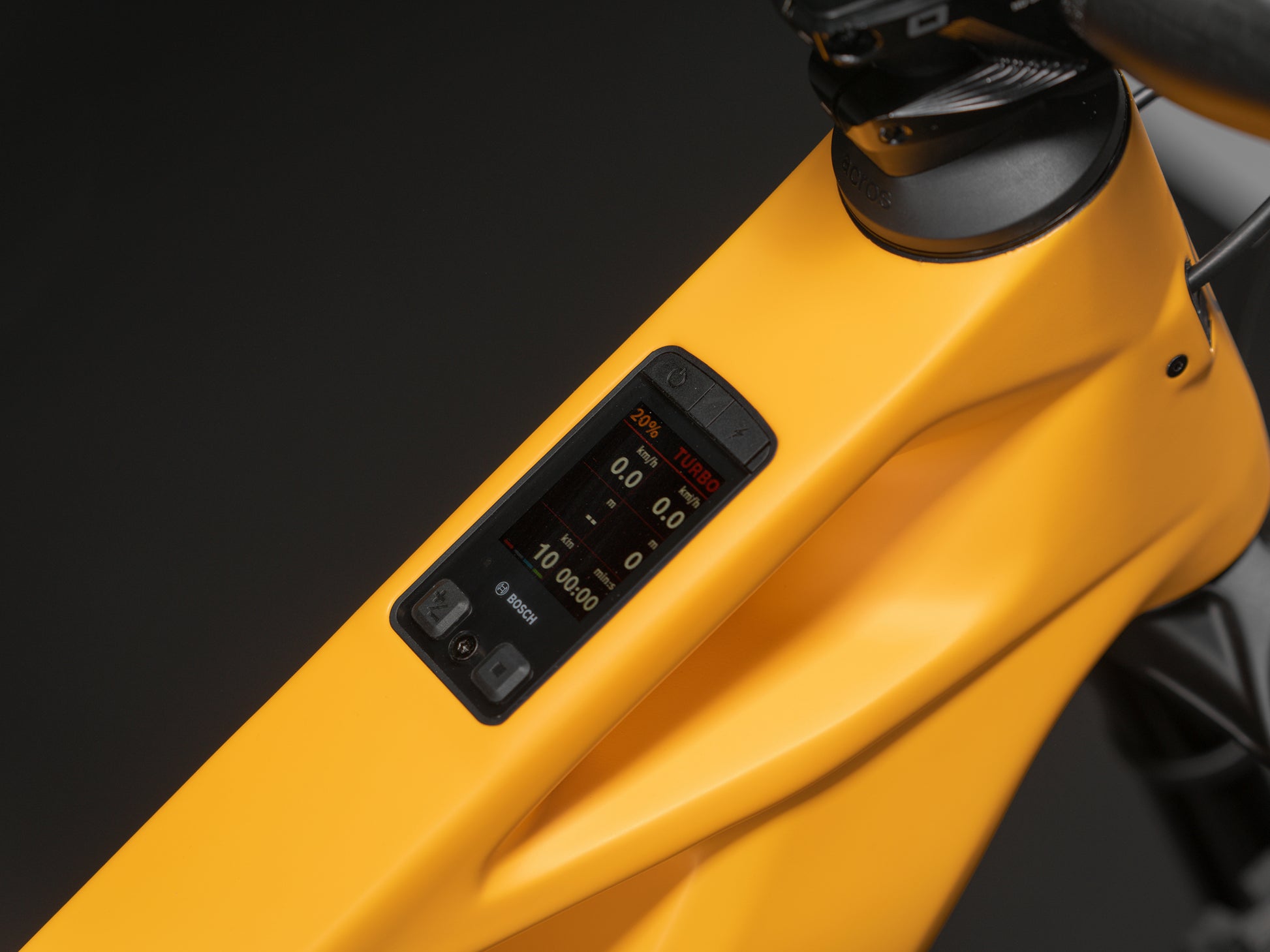

The CRAFTY family debuts the Bosch Smart System motor with the minimalist Mini Remote wireless remote control and the System Controller, which will allow you to see the mode used, the remaining battery and even change the assistance mode without having to mount the display if you want. Mondraker makes world leading enduros, connecting you to nature and sport.
*Manufacture components subject to change
| Motor | Bosch Performance Line CX Cruise (20 mph) SMART SYSTEM |
| Battery | Bosch Powertube 600Wh |
| Display | Purion 400 / Bosch Mini Remote / Bosch System Controller |
| Charger | Bosch 4Ah |
| Frame | Crafty Stealth Air full Carbon, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers. |
| Fork | Fox 38 29 Float GRIPX2 Factory Kashima, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload |

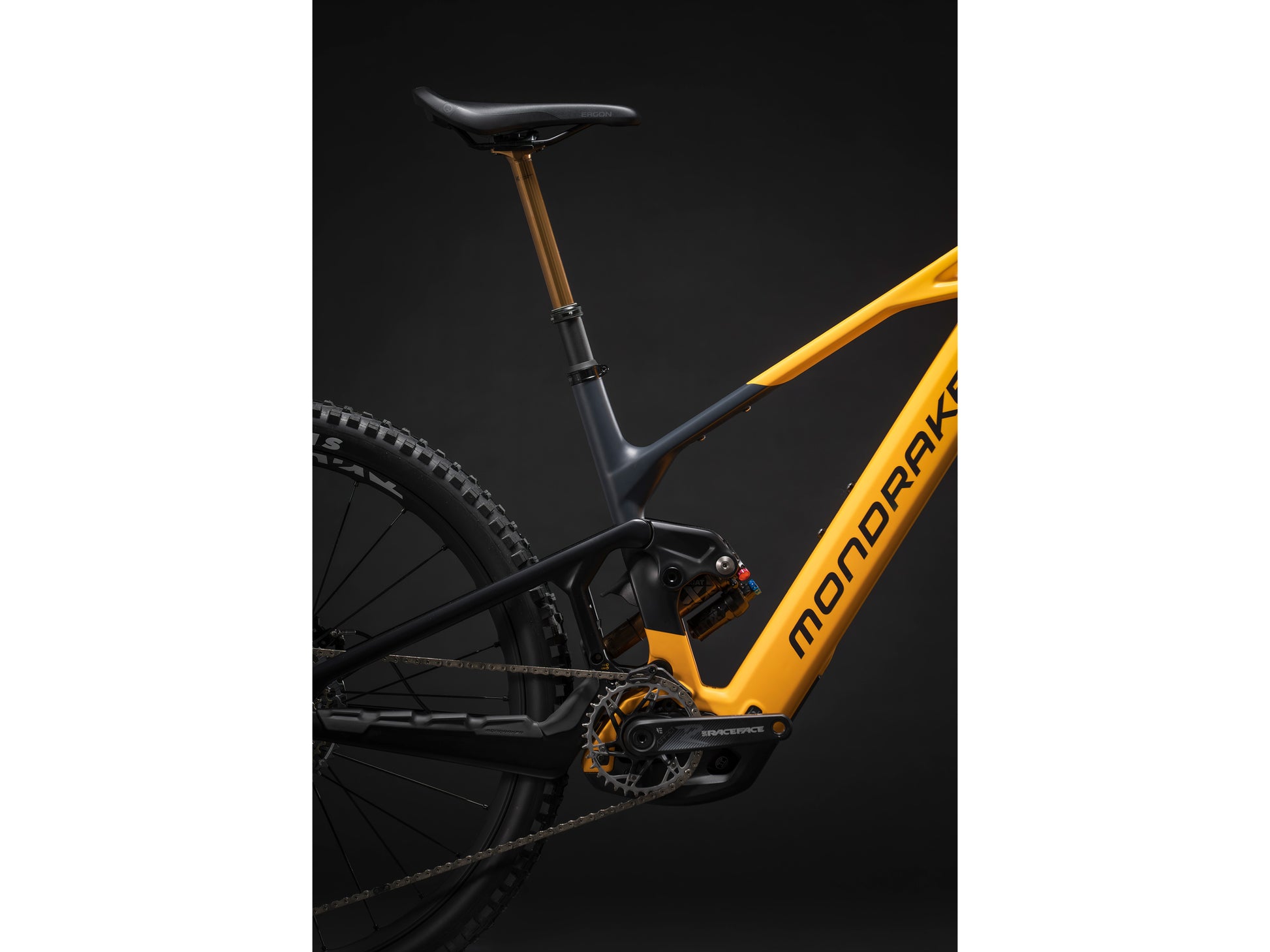

| Rear Shock | Fox Float X Factory Kashima EVOL, 185x55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings |
| Front Brake | Sram Maven Silver, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
| Rear Brake | Sram Maven Silver, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
| Rear Derailleur | Sram X0 Eagle AXS, T-Type, 12s |
| Shift Levers | Sram Eagle AXS Pod MMX, 12s |
| Chain | Sram GX Eagle T-Type, 12s, Powerlock |
| Cassette | Sram XS-1295, 10-52T, T-Type, 12s |
| Crankset | Race Face Aeffect-R ebike, 160mm |
| Chain Ring | Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55 |
| Chain Guard | Spec not provided |
| Rims | Mavic E-Deemax S 29, 30mm internal width, Maxtal welded, PFP, tubeless, 28 spokes |
| Front Hub | Mavic, Boost 15x110mm, IS 6 bolts |
| Rear Hub | Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, XD freehub |
| Front Tire | Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |
| Rear Tire | Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |
| Handlebars | Onoff S6 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise. |
| Stem | Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore |
| Headset | Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock |
| Grips | Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size |
| Saddle | Ergon SM-10 |
| Seatpost | Fox Transfer Factory Kashima internal, adjustable travel, diameter 31.6mm, S size: 95mm -120mm, M size: 125mm -150mm, ML size L size: 155mm -180mm, L size: 155mm -180mm, XL size: 185mm -210mm |
| Pedals | Not applicable |
| Front Light | Not applicable |
| Rear Light | Not applicable |
| Kickstand | Not applicable |
| Rear Carrier | Not applicable |
| Fenders | Not applicable |
| Bell | Not applicable |
| Lock | Not applicable |
| Mirror | Not applicable |
| FRAME SIZE | S | M | L | XL | |
|---|---|---|---|---|---|
| A | Seattube length | 380mm | 420mm | 450mm | 490mm |
| B | Toptube length | 605mm | 625mm | 650mm | 670mm |
| C | Bottom bracket drop | -25mm | -25mm | -25mm | -25mm |
| D | Bottom bracket height | 350mm | 350mm | 350mm | 350mm |
| E | Chainstay length | 455mm | 455mm | 455mm | 455mm |
| F | Seat tube angle | 73.5° | 73.5° | 73.5° | 73.5° |
| G | Effective seattube angle | 76° | 76° | 76° | 76° |
| H | Headtube angle | 65.5° | 65.5° | 65.5° | 65.5° |
| I | Fork Offset | 44mm | 44mm | 44mm | 44mm |
| J | Wheelbase | 1225mm | 1245mm | 1265mm | 1285mm |
| K | Headtube length | 110mm | 110mm | 130mm | 130mm |
| L | Reach | 450mm | 470mm | 490mm | 510mm |
| M | Stack | 622mm | 622mm | 640mm | 640mm |
The Full Scoop on the Mondraker Crafty Carbon RR S
The CRAFTY family debuts the Bosch Smart System motor with the minimalist Mini Remote wireless remote control and the System Controller, which will allow you to see the mode used, the remaining battery and even change the assistance mode without having to mount the display if you want. Mondraker makes world leading enduros, connecting you to nature and sport.
*Manufacture components subject to change
Motor System
| Motor | Bosch Performance Line CX Cruise (20 mph) SMART SYSTEM |
| Battery | Bosch Powertube 600Wh |
| Display | Purion 400 / Bosch Mini Remote / Bosch System Controller |
| Charger | Bosch 4Ah |
Components
| Frame | Crafty Stealth Air full Carbon, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers. |
| Fork | Fox 38 29 Float GRIPX2 Factory Kashima, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload |
| Rear Shock | Fox Float X Factory Kashima EVOL, 185x55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings |
| Front Brake | Sram Maven Silver, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
| Rear Brake | Sram Maven Silver, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
| Rear Derailleur | Sram X0 Eagle AXS, T-Type, 12s |
| Shift Levers | Sram Eagle AXS Pod MMX, 12s |
| Chain | Sram GX Eagle T-Type, 12s, Powerlock |
| Cassette | Sram XS-1295, 10-52T, T-Type, 12s |
| Crankset | Race Face Aeffect-R ebike, 160mm |
| Chain Ring | Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55 |
| Chain Guard | Spec not provided |
| Rims | Mavic E-Deemax S 29, 30mm internal width, Maxtal welded, PFP, tubeless, 28 spokes |
| Front Hub | Mavic, Boost 15x110mm, IS 6 bolts |
| Rear Hub | Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, XD freehub |
| Front Tire | Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |
| Rear Tire | Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |
| Handlebars | Onoff S6 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise. |
| Stem | Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore |
| Headset | Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock |
| Grips | Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size |
| Saddle | Ergon SM-10 |
| Seatpost | Fox Transfer Factory Kashima internal, adjustable travel, diameter 31.6mm, S size: 95mm -120mm, M size: 125mm -150mm, ML size L size: 155mm -180mm, L size: 155mm -180mm, XL size: 185mm -210mm |
Extras
| Pedals | Not applicable |
| Front Light | Not applicable |
| Rear Light | Not applicable |
| Kickstand | Not applicable |
| Rear Carrier | Not applicable |
| Fenders | Not applicable |
| Bell | Not applicable |
| Lock | Not applicable |
| Mirror | Not applicable |
Geometry
| FRAME SIZE | S | M | L | XL | |
|---|---|---|---|---|---|
| A | Seattube length | 380mm | 420mm | 450mm | 490mm |
| B | Toptube length | 605mm | 625mm | 650mm | 670mm |
| C | Bottom bracket drop | -25mm | -25mm | -25mm | -25mm |
| D | Bottom bracket height | 350mm | 350mm | 350mm | 350mm |
| E | Chainstay length | 455mm | 455mm | 455mm | 455mm |
| F | Seat tube angle | 73.5° | 73.5° | 73.5° | 73.5° |
| G | Effective seattube angle | 76° | 76° | 76° | 76° |
| H | Headtube angle | 65.5° | 65.5° | 65.5° | 65.5° |
| I | Fork Offset | 44mm | 44mm | 44mm | 44mm |
| J | Wheelbase | 1225mm | 1245mm | 1265mm | 1285mm |
| K | Headtube length | 110mm | 110mm | 130mm | 130mm |
| L | Reach | 450mm | 470mm | 490mm | 510mm |
| M | Stack | 622mm | 622mm | 640mm | 640mm |
