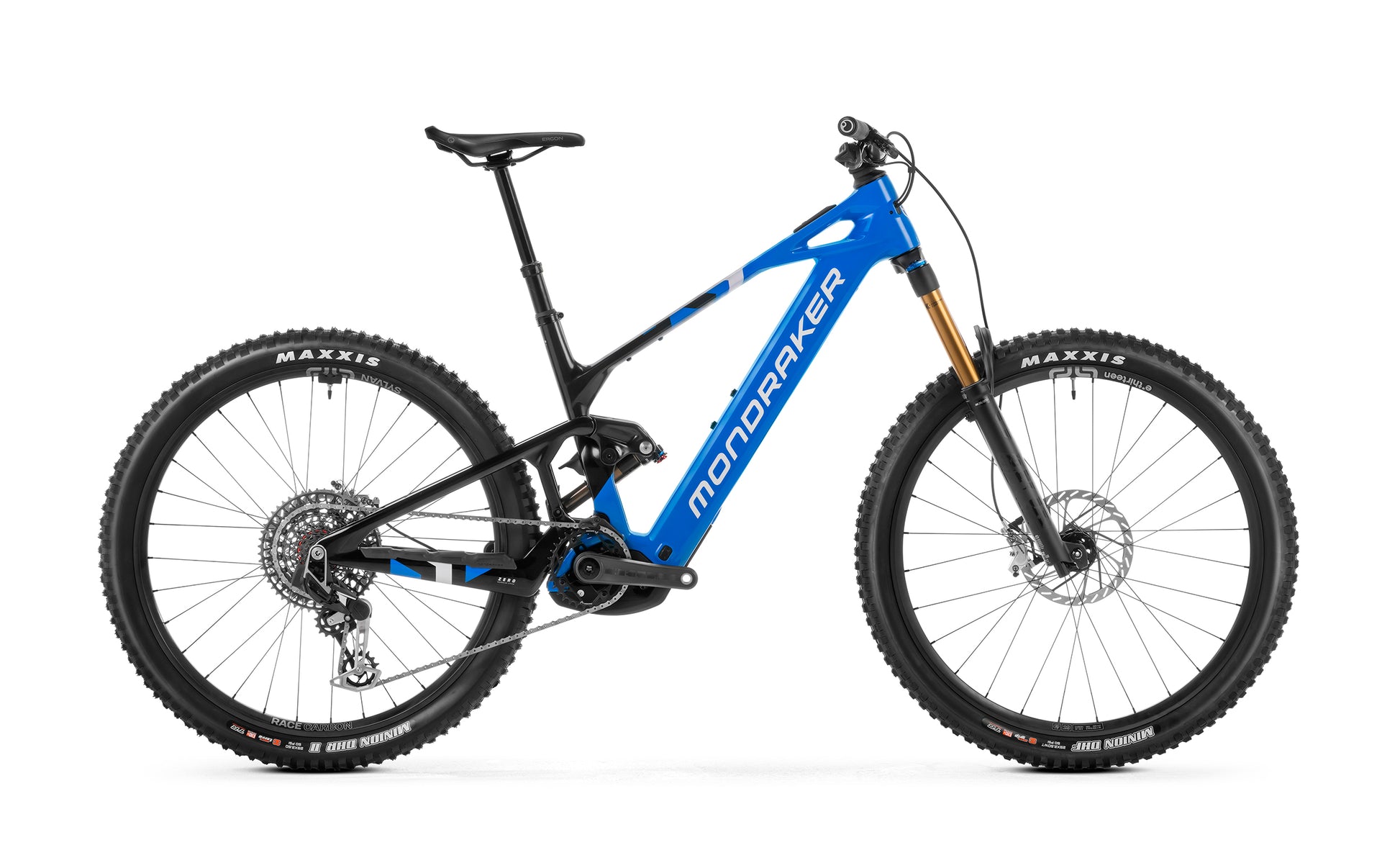

The Full Scoop on the Mondraker Crafty Carbon RR SL
The Crafty Carbon RR SL e-MTB bike is designed for enduro, trail and all-mountain riding! This high-end bike boasts updated suspension kinematics and amazing pedaling efficiency. Mondraker’s optimized zero suspension uses large bearings on a one-piece monoblock link for extreme bump absorption for plusher rides.

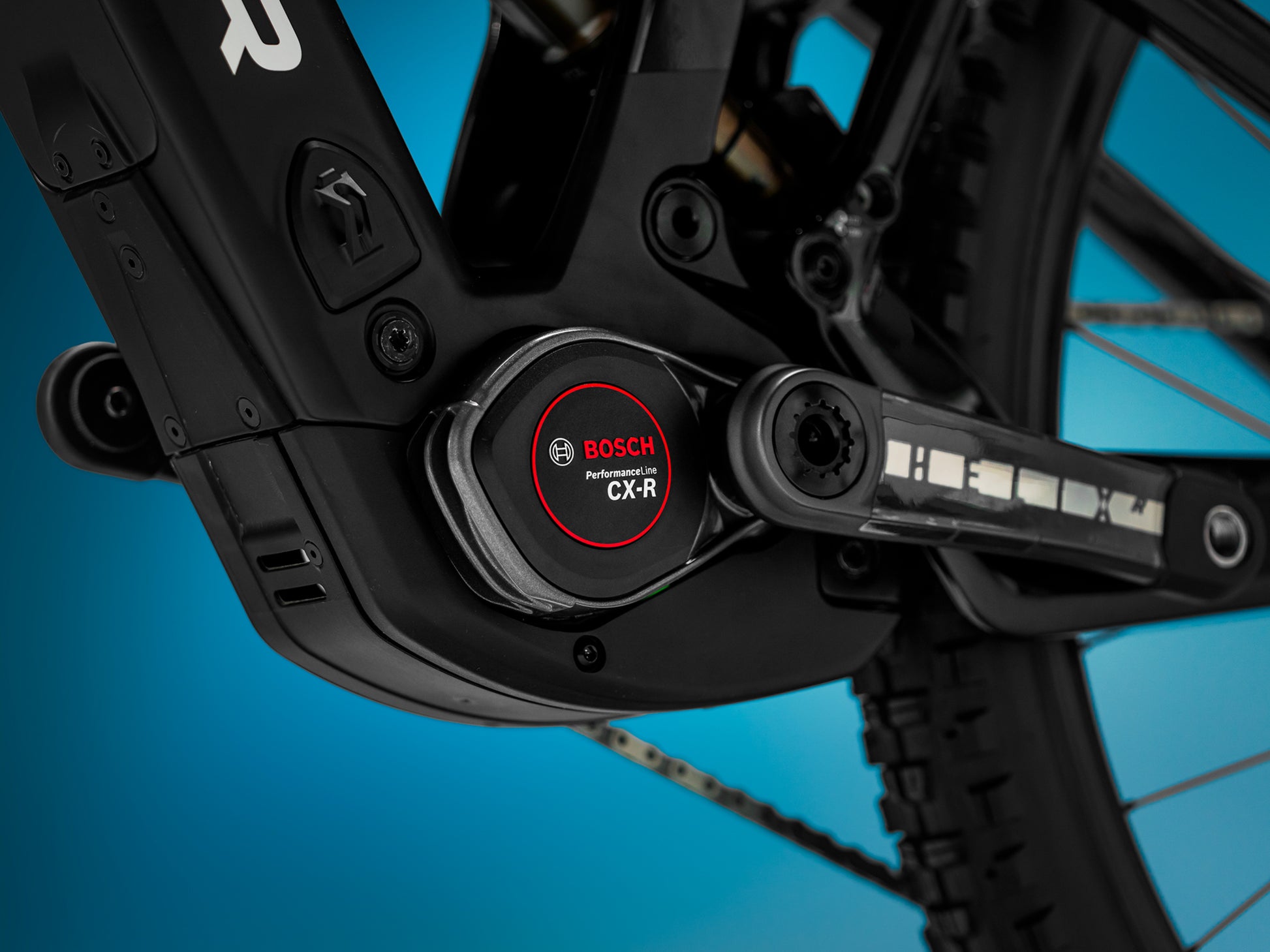

The Crafty Carbon RR SL’s upgraded Bosch Performance Line CX GEN4 engine, backed by an integrated 750 Wh Power Tube battery, both seamlessly concealed inside a durable frame to handle the rigors of mountain bike riding. The Crafty Carbon RR SL also includes a new display unit and handlebar mounted control module.

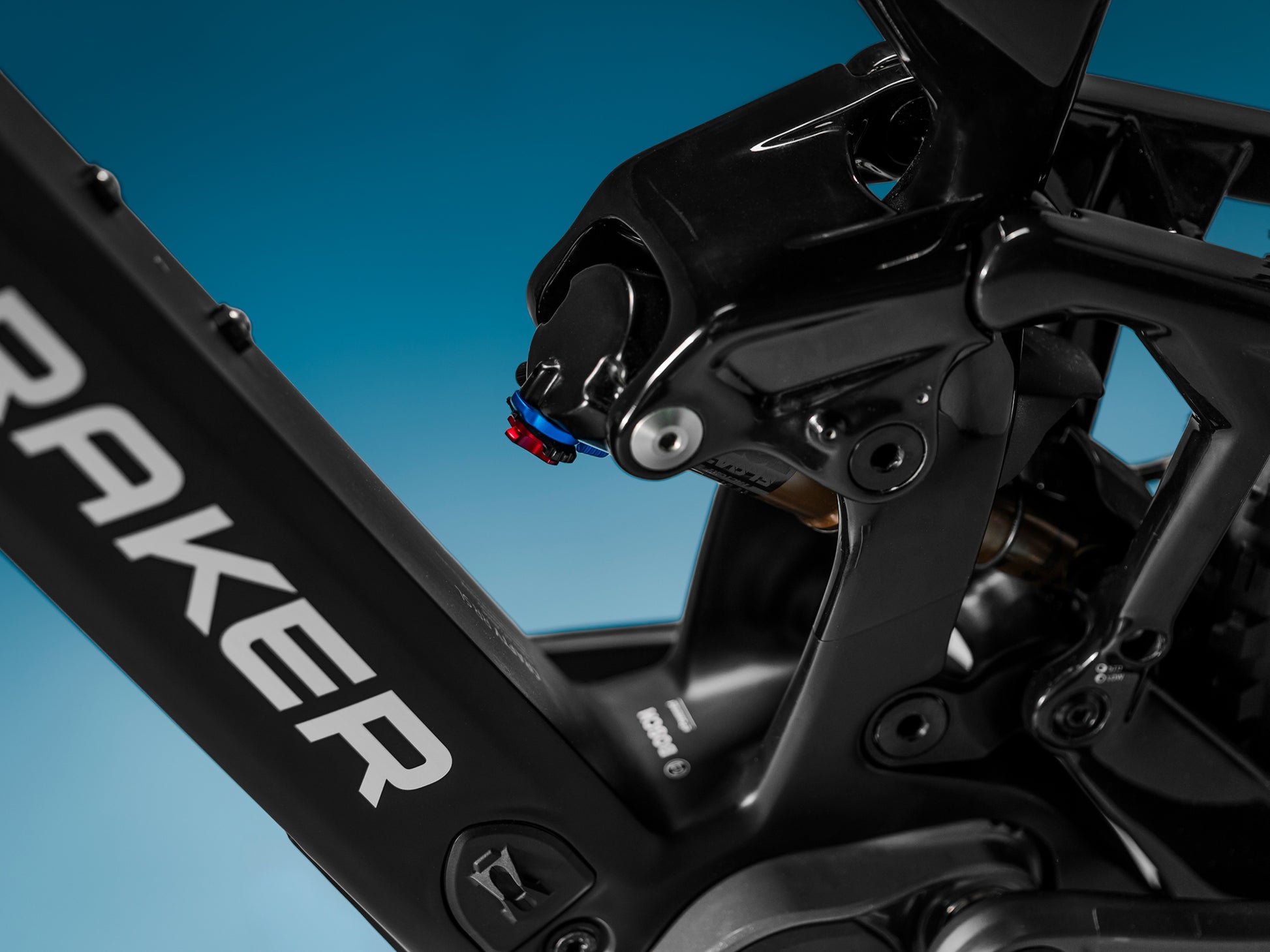

Mondraker Crafty Carbon RR SL's unique zero suspension system helps with stability and control by absorbing the strongest vibrations and keeping your wheels planted on the ground even on the most aggressive trails. The zero suspension design offers zero power loss for pedaling stability, zero pedal kickback for minimum chain growth throughout travel, zero brake jack for isolated braking & suspension forces, and zero bumps for absorbing even the slightest bumps for extreme rear wheel stability.
Aggressive MTB riders will love the safety and confidence offered by Crafty Carbon RR SL’s proprietary forward geometry design. Forward geometry also helps with improved handling, overall control, uphill precision, and stability in tough and technical terrains.
- Components subject to manufacturer changes
Motor Bosch Performance Line CX Cruise (20 mph) GEN4 BS3 Battery Bosch Powertube 750Wh Display Bosch Kiox 300 Charger Bosch 4Ah

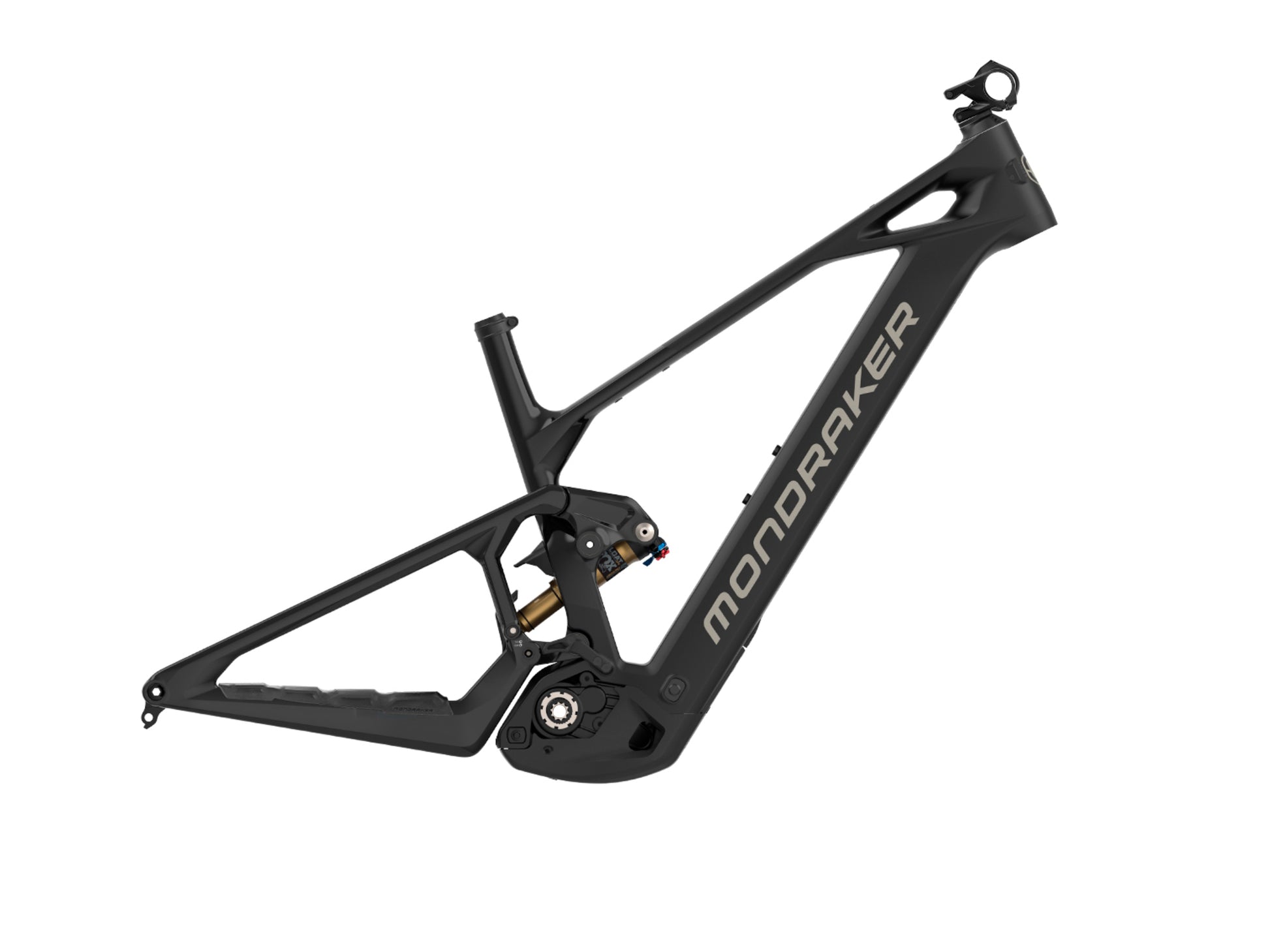

Frame Crafty Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers ForkFox 36 29 Float GRIP2 Factory Kashima, 160mm, e-bike optimized, tapered steerer tube, Boost 15x110mm axle, 44mm oset, 68mm OD crown. Settings: high and low-speed compression, high and low-speed rebound, air preload Rear ShockFox Float DPS Factory Kashima, 205x65mm. Settings: Compression 3 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
Front Brake Sram G2 Ultimate, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads Rear Brake Sram G2 RUltimate, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads Rear Derailleur Sram XX1 Eagle AXS, Type 2.1 roller bearing clutch, cage lock, long carbon cage, 1x12s, X-actuation 1:1 Shift Levers Sram Eagle AXS, 12s Chain Sram GX Eagle, 12s, Powerlock Cassette Sram XG-1295, 10-52T, 12s Crankset E.13 TRS Race carbon ebike, 165mm Chain Ring Sram X-Sync 2 Eagle 34T, alloy, narrow-wide, 104 BCD Chain Guard
Spec not provided Rims
DT Swiss HXC1501 Carbon Spline 29, 30mm internal width, hookless, tubeless ready, 28 spokes Front Hub
DT 240, Boost 15x110mm, CenterLock Rear Hub
DT 240, Boost 12x148mm, 24T Ratchet system, CenterLock , XD freehub Front Tire Maxxis Rekon 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead Rear Tire Maxxis Rekon 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead Handlebar Onoff Krypton Carbon 1.0, rise: 25mm, width: 780mm, 9° backsweep, 5° upsweep, 31.8mm barbore StemOnoff Krypton FG 30mm, 6061 forged alloy, 31.8mm barbore Headset Acros custom for 1-1/2” head tube, angular contact bearings 40x52x7, Internal cable routing Grips Ono Diamond, 1lock-on, 135mm Saddle Fizik Antares Large R1 Seatpost RockShox Reverb Stealth AXS, diameter 31.6mm, S size: 390x125mm, M size: 440x150mm, L/XL size: 440x170mm
Pedals Not applicable
Front Light Not applicable Rear Light Not applicable Kickstand Not applicable Rear Carrier Not applicable Fenders Not applicable Bell Not applicable Lock Not applicable Mirror

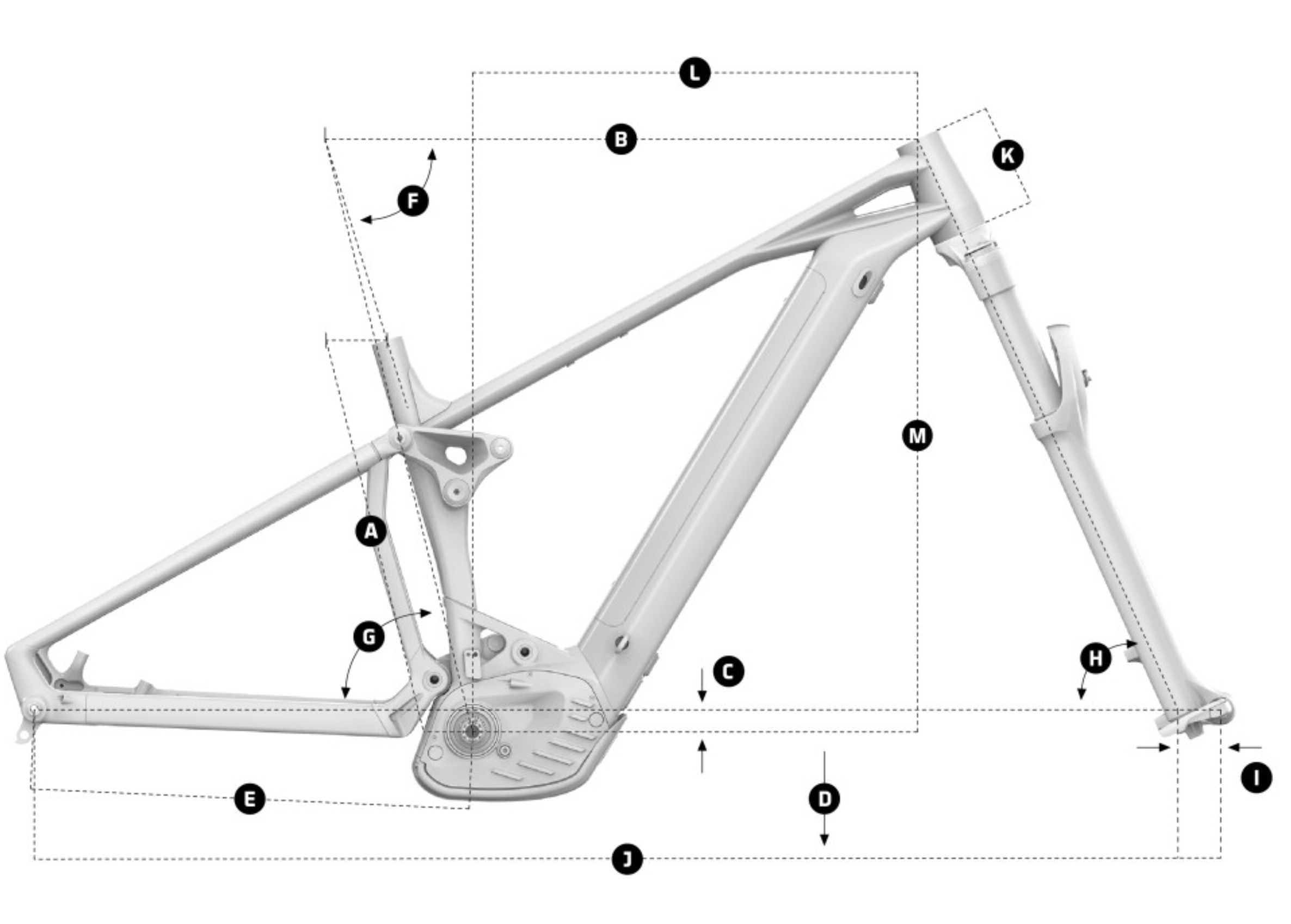

S M L XL Seattube length
Toptube length B
Bottom bracket drop C
Bottom bracket height D
Chainstay length E
455mm 455mm 455mm 455mm Seat tube angle F
73.5° 73.5° 73.5° Effective seattube angle G
76° 76° 76° 76° Headtube angle H
Fork Offset I
44mm 44mm 44mm 44mm Wheelbase J
1225mm 1245mm 1265mm 1285mm Headtube length K
622mm 622mm 640mm 640mm
