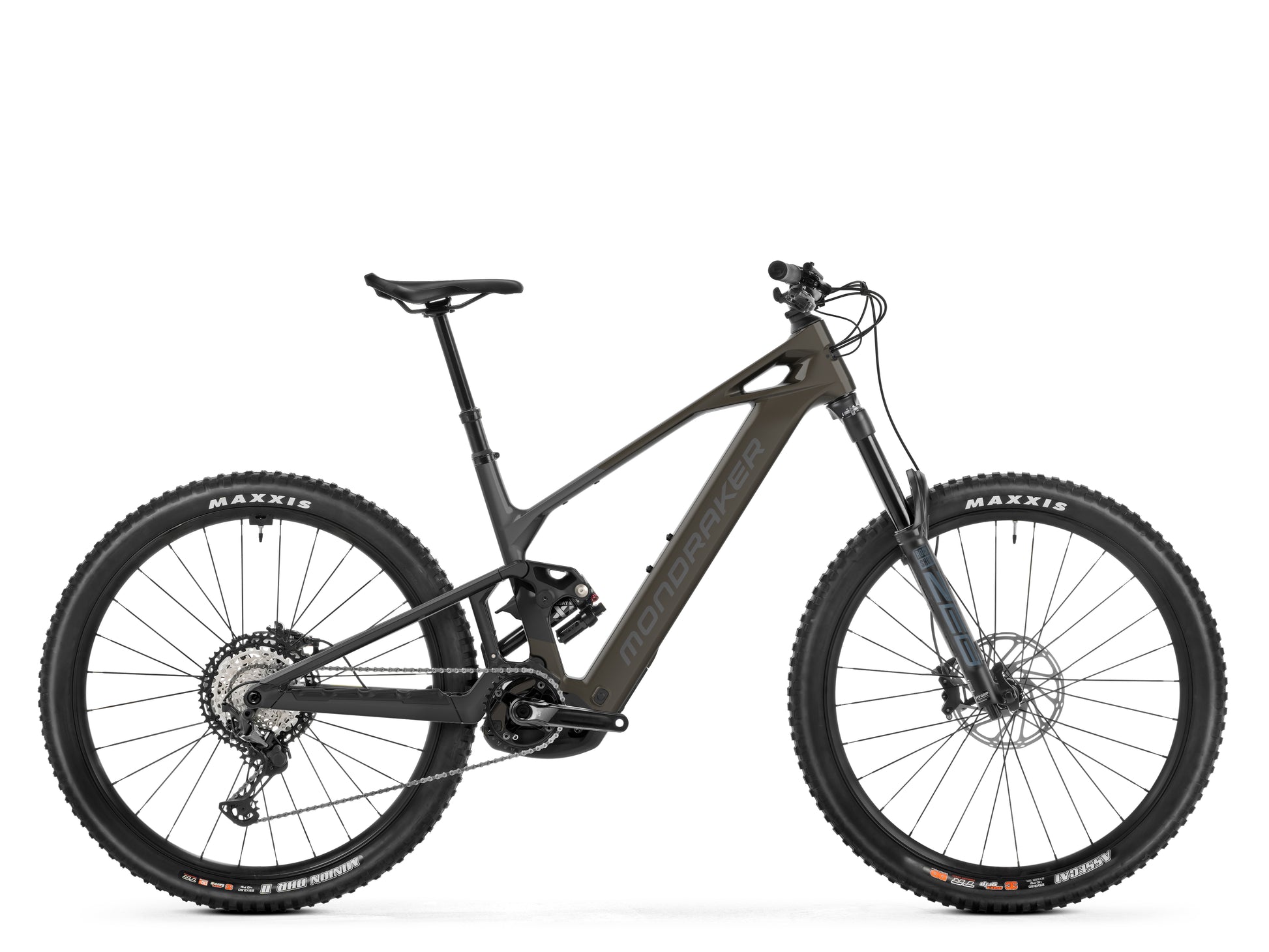

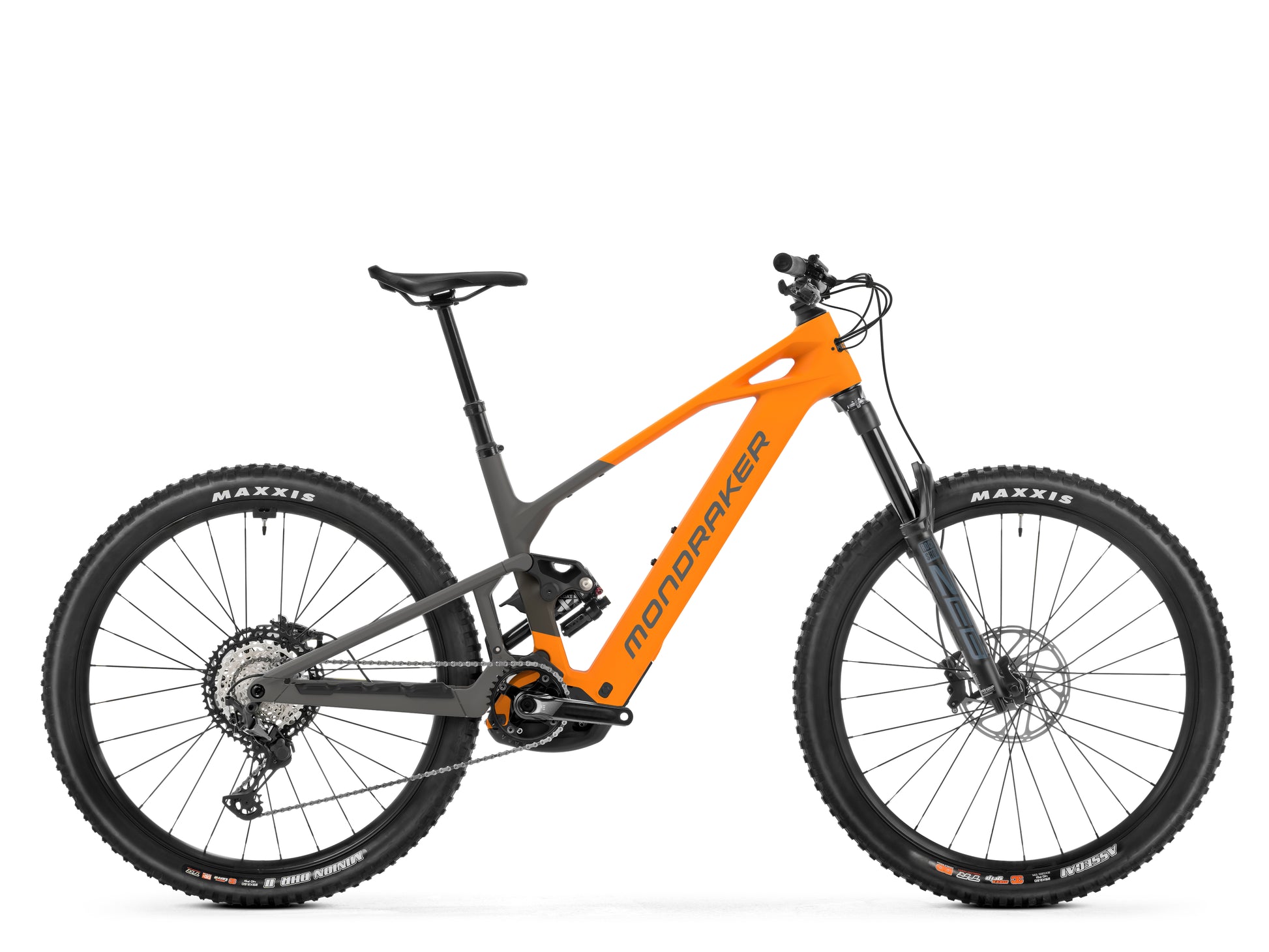

Mondraker Crafty Carbon S
Mondraker Crafty Carbon S
The Full Scoop on the Mondraker Crafty Carbon S
Key Features
-
Bosch Smart System Power: The latest Performance Line CX Gen5 (BDU384Y) motor delivers powerful assists out on the trail. Paired with a removable 800 Wh Bosch Powertube battery, this eMTB gives you long rides with strong, consistent torque.
-
Suspension & Geometry: 150 mm rear and 160 mm front travel, via Mondraker’s updated Zero Suspension System. Forward Geometry frame design keeps things stable, confident, and ready for aggressive trail, enduro, and all-mountain riding.
-
All-round Components:
• Fox Float-X LV Performance rear shock (185×55 mm) with two-position compression, low-speed rebound and air preload tweaks.
• RockShox ZEB Base Rush RC 29 fork with 160 mm travel up front.
• Hydraulic 4-piston SRAM DB8 brakes, stout Maxxis 29×2.5 WT tires (Assegai front, Minion DHR II rear) tubeless ready. -
Frame Details & Sizing: Full-carbon front triangle (Stealth Air) paired with an alloy rear triangle, internal (removable) battery, UDH dropout, Boost 12×148 mm rear axle, tapered head tube, oversize sealed bearings. Available in five sizes (S, M, ML, L, XL).
Ride Experience
If you’re chasing thrilling descents without sacrificing climb efficiency, the Crafty Carbon S delivers. Thanks to the beefy Bosch motor, the large battery, and refined suspension, you’ll notice strong climbs, stable high-speed cornering, and firm composure over technical rock gardens. The Forward Geometry gives a “sit up and over the front wheel” feel that enhances grip and confidence when things get steep or loose.
Who It’s For
-
Riders who want enduro-level performance with the freedom of electric assist.
-
Trail enthusiasts who cover both steep climbs and demanding descents.
-
Those wanting modern geometry, high-end suspension, and a bike that’s built tough but still nimble.
| Motor | Bosch Performance Line CX (25Km/h) SMART SYSTEM |
| Battery | Bosch Powertube 800Wh |
| Display | Kiox 400C / Bosch Mini Remote |
| Charger | Bosch 4Ah |
| Frame | Crafty Stealth Air full Carbon, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers. |
| Fork | RockShox ZEB Base Rush RC 29, 160mm, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: low-speed compression, Extl rebound, air preload |
| Rear Shock | Fox Float-X LV Performance, 185x55mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings |
| Front Brake | Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Rear Brake | Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Rear Derailleur | Sram 70 Eagle, T-Type, 12s |
| Shift Levers | Sram Trigger 70, 12s, T-Type Actuation |
| Chain | Sram 70 T-Type, 12s Flattop, PowerLock |
| Cassette | Sram XS-1270, 10-52T, 12s |
| Crankset | E.13 Helix Core E*Spec Plus, All sizes: 160mm |
| Chain Ring | Sram Eagle 34T T-Type, direct mount, steel, CL55 |
| Rims | WTB Sportterra Tough,6061 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes |
| Front Hub | WTB Frequenzy Sport Boost 15x110mm, fully machined aluminum, IS 6 bolts |
| Rear Hub | WTB Frequenzy Sport Boost 12x148mm, fully machined aluminum, IS 6 bolts, HG freehub |
| Front Tire | Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead |
| Rear Tire | Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead |
| Handlebars | Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise. |
| Stem | Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore |
| Headset | Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock |
| Grips | Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size |
| Saddle | Ergon SM-10 |
| Seatpost | X-Fusion Manic diameter 31.6mm,1X Remote lever, S size: 361x125mm, M size: 425x150mm, ML size: 469x170mm, L size: 521x190mm, XL size: 531x200 |
| Pedals | Not applicable |
| Front Light | Not applicable |
| Rear Light | Not applicable |
| Kickstand | Not applicable |
| Rear Carrier | Not applicable |
| Fenders | Not applicable |
| Bell | Not applicable |
| Lock | Not applicable |
| Mirror | Not applicable |
The Full Scoop on the Mondraker Crafty Carbon S
Key Features
-
Bosch Smart System Power: The latest Performance Line CX Gen5 (BDU384Y) motor delivers powerful assists out on the trail. Paired with a removable 800 Wh Bosch Powertube battery, this eMTB gives you long rides with strong, consistent torque.
-
Suspension & Geometry: 150 mm rear and 160 mm front travel, via Mondraker’s updated Zero Suspension System. Forward Geometry frame design keeps things stable, confident, and ready for aggressive trail, enduro, and all-mountain riding.
-
All-round Components:
• Fox Float-X LV Performance rear shock (185×55 mm) with two-position compression, low-speed rebound and air preload tweaks.
• RockShox ZEB Base Rush RC 29 fork with 160 mm travel up front.
• Hydraulic 4-piston SRAM DB8 brakes, stout Maxxis 29×2.5 WT tires (Assegai front, Minion DHR II rear) tubeless ready. -
Frame Details & Sizing: Full-carbon front triangle (Stealth Air) paired with an alloy rear triangle, internal (removable) battery, UDH dropout, Boost 12×148 mm rear axle, tapered head tube, oversize sealed bearings. Available in five sizes (S, M, ML, L, XL).
Ride Experience
If you’re chasing thrilling descents without sacrificing climb efficiency, the Crafty Carbon S delivers. Thanks to the beefy Bosch motor, the large battery, and refined suspension, you’ll notice strong climbs, stable high-speed cornering, and firm composure over technical rock gardens. The Forward Geometry gives a “sit up and over the front wheel” feel that enhances grip and confidence when things get steep or loose.
Who It’s For
-
Riders who want enduro-level performance with the freedom of electric assist.
-
Trail enthusiasts who cover both steep climbs and demanding descents.
-
Those wanting modern geometry, high-end suspension, and a bike that’s built tough but still nimble.
Motor System
| Motor | Bosch Performance Line CX (25Km/h) SMART SYSTEM |
| Battery | Bosch Powertube 800Wh |
| Display | Kiox 400C / Bosch Mini Remote |
| Charger | Bosch 4Ah |
Components
| Frame | Crafty Stealth Air full Carbon, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers. |
| Fork | RockShox ZEB Base Rush RC 29, 160mm, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: low-speed compression, Extl rebound, air preload |
| Rear Shock | Fox Float-X LV Performance, 185x55mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings |
| Front Brake | Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Rear Brake | Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Rear Derailleur | Sram 70 Eagle, T-Type, 12s |
| Shift Levers | Sram Trigger 70, 12s, T-Type Actuation |
| Chain | Sram 70 T-Type, 12s Flattop, PowerLock |
| Cassette | Sram XS-1270, 10-52T, 12s |
| Crankset | E.13 Helix Core E*Spec Plus, All sizes: 160mm |
| Chain Ring | Sram Eagle 34T T-Type, direct mount, steel, CL55 |
| Rims | WTB Sportterra Tough,6061 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes |
| Front Hub | WTB Frequenzy Sport Boost 15x110mm, fully machined aluminum, IS 6 bolts |
| Rear Hub | WTB Frequenzy Sport Boost 12x148mm, fully machined aluminum, IS 6 bolts, HG freehub |
| Front Tire | Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead |
| Rear Tire | Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead |
| Handlebars | Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise. |
| Stem | Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore |
| Headset | Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock |
| Grips | Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size |
| Saddle | Ergon SM-10 |
| Seatpost | X-Fusion Manic diameter 31.6mm,1X Remote lever, S size: 361x125mm, M size: 425x150mm, ML size: 469x170mm, L size: 521x190mm, XL size: 531x200 |
Extras
| Pedals | Not applicable |
| Front Light | Not applicable |
| Rear Light | Not applicable |
| Kickstand | Not applicable |
| Rear Carrier | Not applicable |
| Fenders | Not applicable |
| Bell | Not applicable |
| Lock | Not applicable |
| Mirror | Not applicable |
