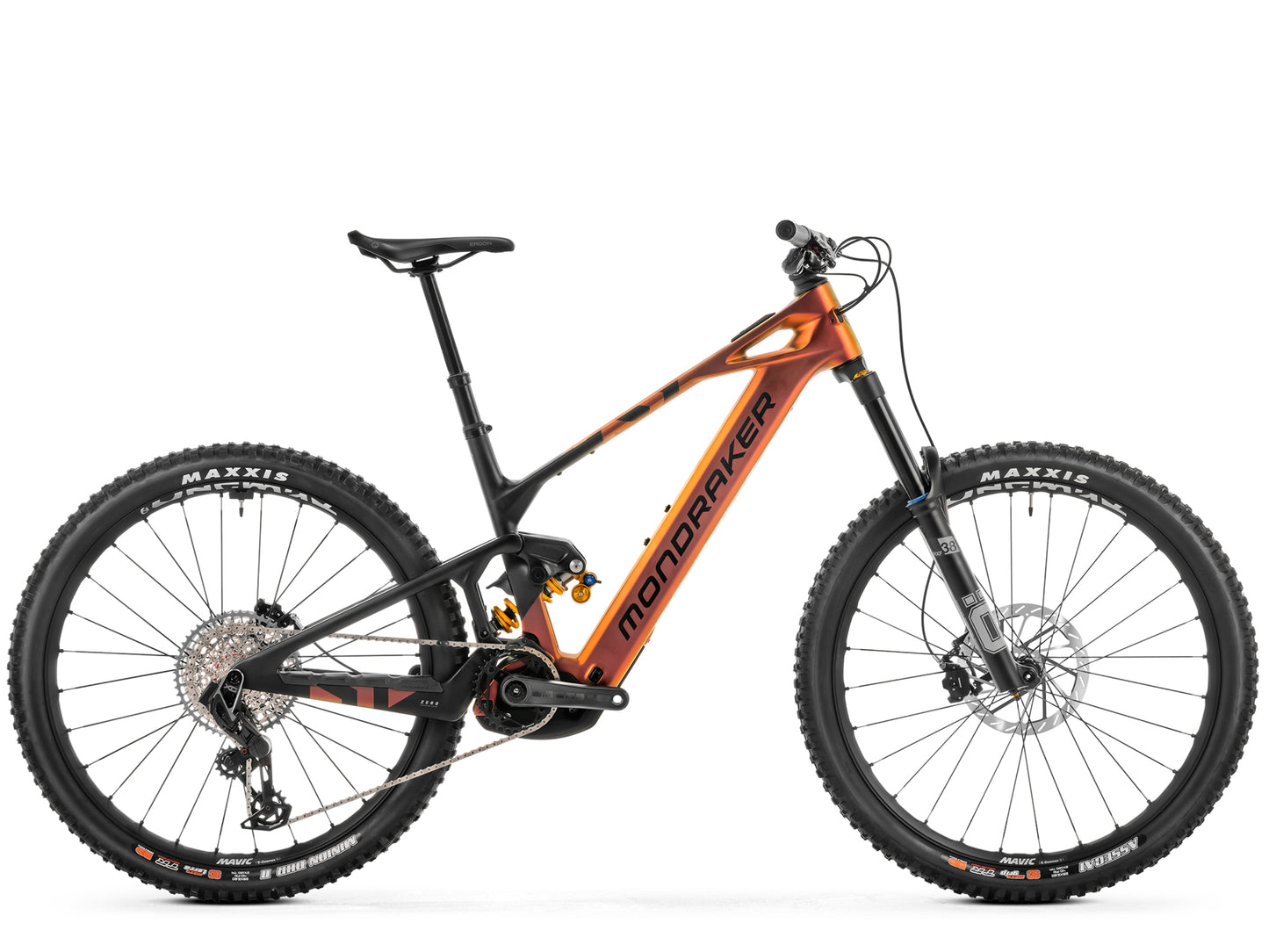

Mondraker Crafty Carbon XR
Mondraker Crafty Carbon XR
Regular price
$9,999.00
Sale price
$9,999.00
Regular price
Unit price
per
Couldn't load pickup availability
The Full Scoop on the Mondraker Crafty Carbon XR
Get ready to experience the thrill with the Crafty Carbon XR e-MTB bike designed for enduro, trail and all-mountain riding! The high-end bike boasts updated suspension kinematics and amazing pedaling efficiency. eBike optimized zero suspension uses large bearings on a one-piece monoblock link for extreme bump absorption for plusher rides.
*Components subject to manufacturer changes.
| Motor | (2025) New Bosch Performance Line CX Cruise (20 Mph) SMART SYSTEM (2024) Bosch Performance Line CX-Race (20 mph) Smart System |
| Battery | (2025) Bosch Powertube 600Wh (2024) Bosch Powertube 750Wh |
| Display | (2025) Purion 400 / Bosch Mini Remote / Bosch System Controller (2024) Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller |
| Charger | 4A |
| Frame | (2025) Crafty Stealth Air full Carbon, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers. (2024) Crafty Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers. |
| Fork | Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber |
| Rear Shock | (2025)Öhlins TTX22M.2 185x55mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings (2024) Öhlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 25x10mm bottom bushings |
| Front Brake | (2025) Sram Maven Silver, 18 and 19.5-millimeter 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads (2024) Sram Code Silver Stealth, oversized 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
| Rear Brake | (2025) Sram Maven Silver, 18 and 19.5-millimeter 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads (2024) Sram Code Silver Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
| Rear Derailleur | (2025) Sram X0 Eagle AXS, T-Type, 12s (2024) Sram X01 Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 |
| Shift Levers | (2025) Sram Trigger GX Eagle, 12s, (2024) X-Actuation 1:1, single click |
| Chain | (2025) Sram GX Eagle T-Type, 12s, Powerlock (2024) Sram NX Eagle, 12s, Powerlock |
| Cassette | (2025) Sram XS-1295, 10-52T, T-Type, 12s (2024) Sram XG-1275, 10-52T, 12s |
| Crankset | (2025) e*Thirteen Helix Race Carbon E*Spec Plus, All sizes: 160mm (2024) E.13 TRS Race carbon ebike, 165mm |
| Chain Ring | Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD |
| Chain Guard | Spec not provided |
| Rims | Mavic E-Deemax S 29, 30mm internal width, Maxtal welded, PFP, tubeless, 28 spokes |
| Front Hub | Mavic, Boost 15x110mm, IS 6 bolts |
| Rear Hub | Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, XD freehub |
| Front Tire | (2025) Maxxis Assegai 29x2.6WT, tubeless ready, 3C MAXX GRIP compound, DD protection, DH casing, 60x2TPI, folding bead (2024) Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |
| Rear Tire | (2025) Maxxis Minion DHR II 29x2.6 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead (2024) Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |
| Handlebars | (2025) Onoff S6 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise. (2024) Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
| Stem | (2025)Onoff S9 30mm 0º, Full CNC, 31.8mm barbore (2024) Onoff Krypton FG 30mm, CNC, 31.8mm barbore |
| Headset | (2025) Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock (2024) Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing |
| Grips | (2025) Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size(2024) Onoff Desert, 1lock-on, 135mm |
| Saddle | (2025) Ergon SM-10 (2024) Fizik Terra Aidon X5 145mm |
| Seatpost | (2025) Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm) (2024) Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm |
| Pedals | Not applicable |
| Front Light | Not applicable |
| Rear Light | Not applicable |
| Kickstand | Not applicable |
| Rear Carrier | Not applicable |
| Fenders | Not applicable |
| Bell | Not applicable |
| Lock | Not applicable |
| Mirror | Not applicable |
| FRAME SIZE | S | M | L | XL | |
|---|---|---|---|---|---|
| A | Seattube length | 380mm | 420mm | 450mm | 490mm |
| B | Toptube length | 605mm | 625mm | 650mm | 670mm |
| C | Bottom bracket drop | -25mm | -25mm | -25mm | -25mm |
| D | Bottom bracket height | 350mm | 350mm | 350mm | 350mm |
| E | Chainstay length | 455mm | 455mm | 455mm | 455mm |
| F | Seat tube angle | 73.5° | 73.5° | 73.5° | 73.5° |
| G | Effective seattube angle | 76° | 76° | 76° | 76° |
| H | Headtube angle | 65.5° | 65.5° | 65.5° | 65.5° |
| I | Fork Offset | 44mm | 44mm | 44mm | 44mm |
| J | Wheelbase | 1225mm | 1245mm | 1265mm | 1285mm |
| K | Headtube length | 110mm | 110mm | 130mm | 130mm |
| L | Reach | 450mm | 470mm | 490mm | 510mm |
| M | Stack | 622mm | 622mm | 640mm | 640mm |
The Full Scoop on the Mondraker Crafty Carbon XR
Get ready to experience the thrill with the Crafty Carbon XR e-MTB bike designed for enduro, trail and all-mountain riding! The high-end bike boasts updated suspension kinematics and amazing pedaling efficiency. eBike optimized zero suspension uses large bearings on a one-piece monoblock link for extreme bump absorption for plusher rides.
*Components subject to manufacturer changes.
Motor System
| Motor | (2025) New Bosch Performance Line CX Cruise (20 Mph) SMART SYSTEM (2024) Bosch Performance Line CX-Race (20 mph) Smart System |
| Battery | (2025) Bosch Powertube 600Wh (2024) Bosch Powertube 750Wh |
| Display | (2025) Purion 400 / Bosch Mini Remote / Bosch System Controller (2024) Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller |
| Charger | 4A |
Components
| Frame | (2025) Crafty Stealth Air full Carbon, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers. (2024) Crafty Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers. |
| Fork | Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber |
| Rear Shock | (2025)Öhlins TTX22M.2 185x55mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings (2024) Öhlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 25x10mm bottom bushings |
| Front Brake | (2025) Sram Maven Silver, 18 and 19.5-millimeter 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads (2024) Sram Code Silver Stealth, oversized 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
| Rear Brake | (2025) Sram Maven Silver, 18 and 19.5-millimeter 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads (2024) Sram Code Silver Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
| Rear Derailleur | (2025) Sram X0 Eagle AXS, T-Type, 12s (2024) Sram X01 Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 |
| Shift Levers | (2025) Sram Trigger GX Eagle, 12s, (2024) X-Actuation 1:1, single click |
| Chain | (2025) Sram GX Eagle T-Type, 12s, Powerlock (2024) Sram NX Eagle, 12s, Powerlock |
| Cassette | (2025) Sram XS-1295, 10-52T, T-Type, 12s (2024) Sram XG-1275, 10-52T, 12s |
| Crankset | (2025) e*Thirteen Helix Race Carbon E*Spec Plus, All sizes: 160mm (2024) E.13 TRS Race carbon ebike, 165mm |
| Chain Ring | Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD |
| Chain Guard | Spec not provided |
| Rims | Mavic E-Deemax S 29, 30mm internal width, Maxtal welded, PFP, tubeless, 28 spokes |
| Front Hub | Mavic, Boost 15x110mm, IS 6 bolts |
| Rear Hub | Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, XD freehub |
| Front Tire | (2025) Maxxis Assegai 29x2.6WT, tubeless ready, 3C MAXX GRIP compound, DD protection, DH casing, 60x2TPI, folding bead (2024) Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |
| Rear Tire | (2025) Maxxis Minion DHR II 29x2.6 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead (2024) Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |
| Handlebars | (2025) Onoff S6 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise. (2024) Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
| Stem | (2025)Onoff S9 30mm 0º, Full CNC, 31.8mm barbore (2024) Onoff Krypton FG 30mm, CNC, 31.8mm barbore |
| Headset | (2025) Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock (2024) Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing |
| Grips | (2025) Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size(2024) Onoff Desert, 1lock-on, 135mm |
| Saddle | (2025) Ergon SM-10 (2024) Fizik Terra Aidon X5 145mm |
| Seatpost | (2025) Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm) (2024) Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm |
Extras
| Pedals | Not applicable |
| Front Light | Not applicable |
| Rear Light | Not applicable |
| Kickstand | Not applicable |
| Rear Carrier | Not applicable |
| Fenders | Not applicable |
| Bell | Not applicable |
| Lock | Not applicable |
| Mirror | Not applicable |
Geometry
| FRAME SIZE | S | M | L | XL | |
|---|---|---|---|---|---|
| A | Seattube length | 380mm | 420mm | 450mm | 490mm |
| B | Toptube length | 605mm | 625mm | 650mm | 670mm |
| C | Bottom bracket drop | -25mm | -25mm | -25mm | -25mm |
| D | Bottom bracket height | 350mm | 350mm | 350mm | 350mm |
| E | Chainstay length | 455mm | 455mm | 455mm | 455mm |
| F | Seat tube angle | 73.5° | 73.5° | 73.5° | 73.5° |
| G | Effective seattube angle | 76° | 76° | 76° | 76° |
| H | Headtube angle | 65.5° | 65.5° | 65.5° | 65.5° |
| I | Fork Offset | 44mm | 44mm | 44mm | 44mm |
| J | Wheelbase | 1225mm | 1245mm | 1265mm | 1285mm |
| K | Headtube length | 110mm | 110mm | 130mm | 130mm |
| L | Reach | 450mm | 470mm | 490mm | 510mm |
| M | Stack | 622mm | 622mm | 640mm | 640mm |
