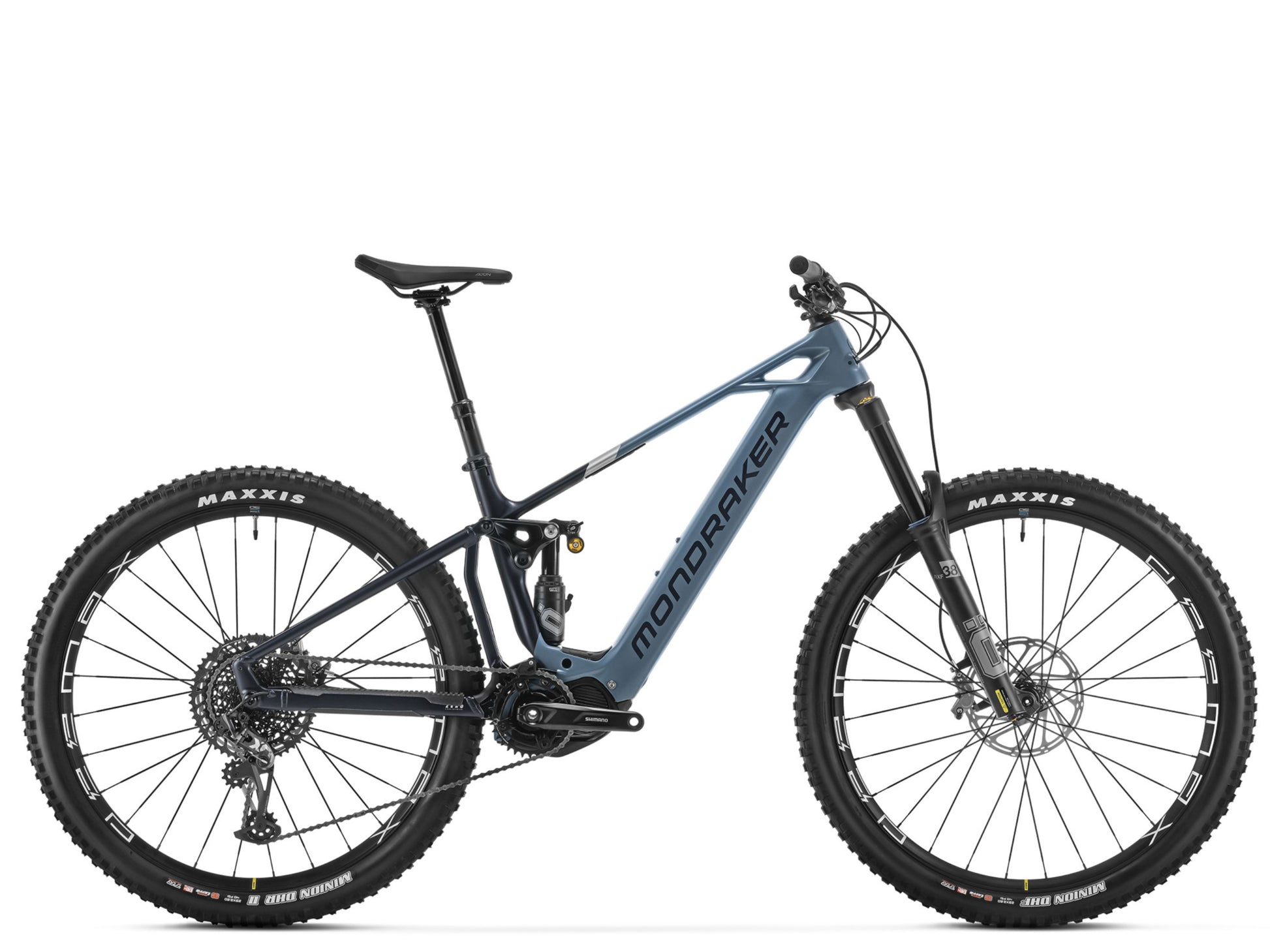

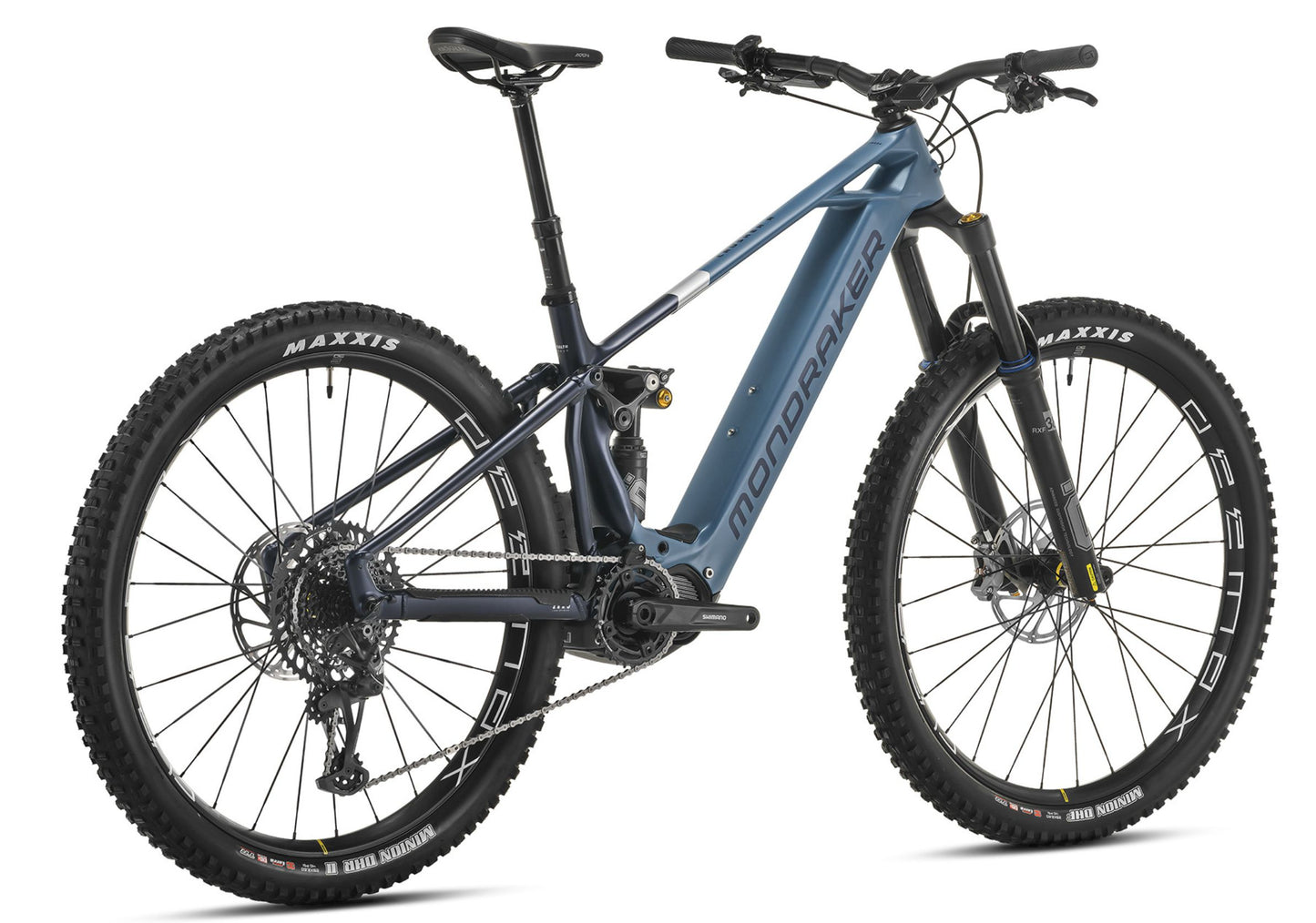

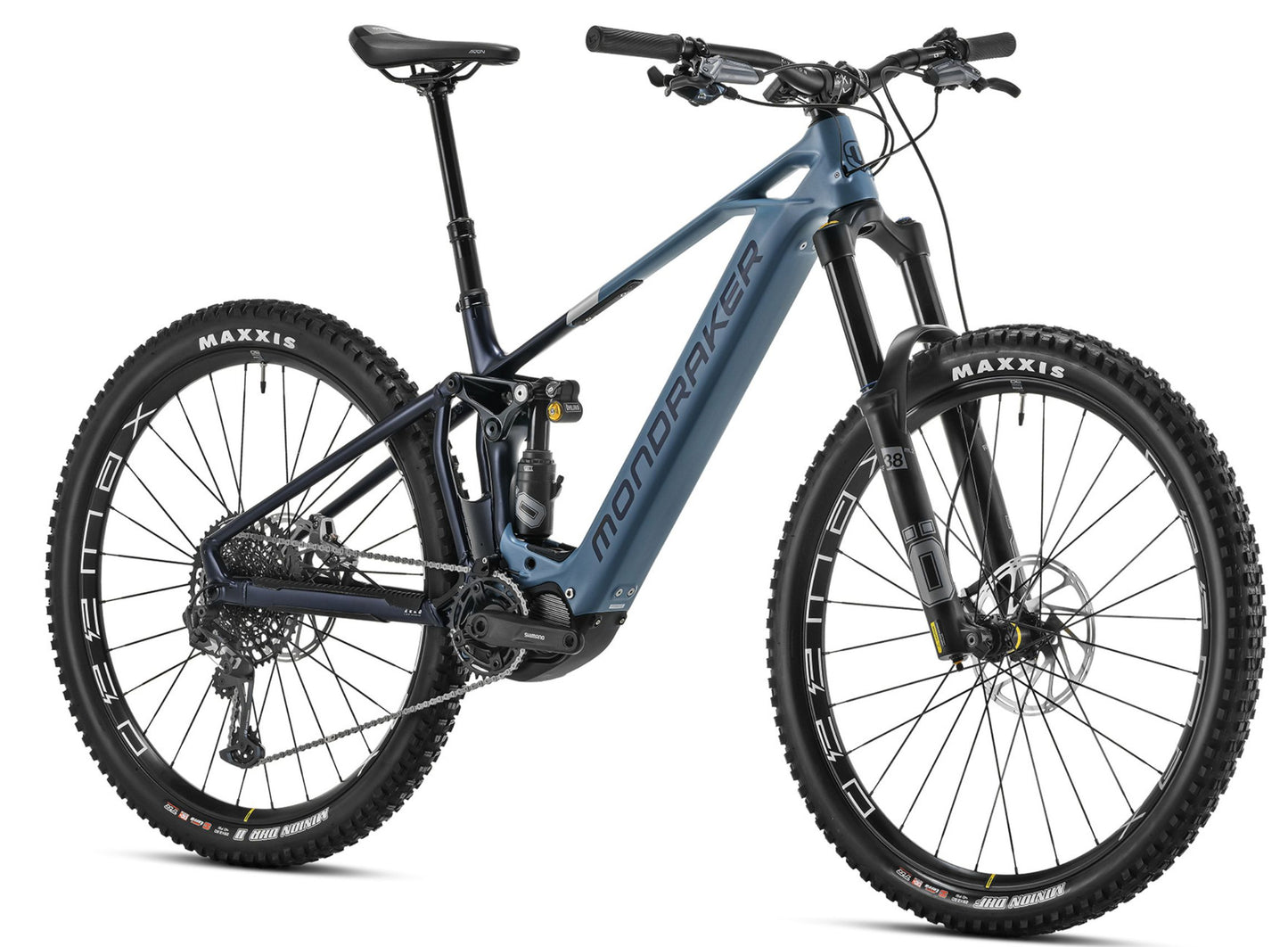

Mondraker Crusher R
Mondraker Crusher R
The Full Scoop on the Mondraker Crusher
The Crusher e-MTB is a stop at nothing bike, designed for enduro, trail and all-mountain riding! This bike is jammed packed with great components like the Fox 38 29 Float FIT GRIP EVO Perfomance fork, Sram chainset, SRAM brakes, ONOFF dropper seatpost and Maxxis Minion tires. The Crusher is aimed at aggressive enduro riding and long rides in the saddle.
*Components subject to manufacturer changes.
Motor | Shimano STEPS EP801 |
Battery | Simplo internal 720Wh G3 |
Display | Shimano EN600 |
Charger | Spec not provided |
Frame | Crusher Stealth Air Carbon front triangle, Stealth Alloy rear triangle, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, integrated internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers. |
Fork | Öhlins RXF 38 M.2 29, 160mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber |
Rear Shock | Öhlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 25x10mm bottom bushings |
Front Brake | Sram Code Bronze Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
Rear Brake | Sram Code Bronze Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
Rear Derailleur | Sram X01 Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 |
Shift Levers | Sram Trigger GX Eagle, 12s, X-Actuation 1:1, single click |
Chain | Sram NX Eagle, 12s, Powerlock |
Cassette | Sram XG-1275, 10-52T, 12s |
Crankset | Shimano Steps FC-EM600 ebike, 165mm |
Chain Ring | Sram X-Sync 2 Eagle 34T, alloy, narrow-wide, 104 BCD |
Chain Guard | Spec not provided |
Rims | Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes |
Front Hub | Mavic, Boost 15x110mm, IS 6 bolts |
Rear Hub | Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts, HG freehub |
Front Tire | Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |
Rear Tire | Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |
Handlebars | Onoff Krypton 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
Stem | Onoff Krypton FG 30mm, CNC, 31.8mm barbore |
Headset | Acros AZF-601 R1 Block Lock 120°, ZS44/28.6 top, ZS56/40 bottom |
Grips | Onoff Desert, 1lock-on, 135mm |
Saddle | FIZIK Terra Aidon X5 145mm |
Seatpost | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm |
Pedals | Not applicable |
Front Light | Not applicable |
Rear Light | Not applicable |
Kickstand | Not applicable |
Rear Carrier | Not applicable |
Fenders | Not applicable |
Bell | Not applicable |
Lock | Not applicable |
Mirror | Not applicable |
FRAME SIZE | S | M | L | XL | |
---|---|---|---|---|---|
A | Seattube length | 380mm | 420mm | 450mm | 490mm |
B | Toptube length | 605mm | 625mm | 650mm | 670mm |
C | Bottom bracket drop | -25mm | -25mm | -25mm | -25mm |
D | Bottom bracket height | 350mm | 350mm | 350mm | 350mm |
E | Chainstay length | 455mm | 455mm | 455mm | 455mm |
F | Seat tube angle | 73.5° | 73.5° | 73.5° | 73.5° |
G | Effective seattube angle | 76° | 76° | 76° | 76° |
H | Headtube angle | 65.5° | 65.5° | 65.5° | 65.5° |
I | Fork Offset | 44mm | 44mm | 44mm | 44mm |
J | Wheelbase | 1225mm | 1245mm | 1265mm | 1285mm |
K | Headtube length | 110mm | 110mm | 130mm | 130mm |
L | Reach | 450mm | 470mm | 490mm | 510mm |
M | Stack | 622mm | 622mm | 640mm | 640mm |
The Full Scoop on the Mondraker Crusher
The Crusher e-MTB is a stop at nothing bike, designed for enduro, trail and all-mountain riding! This bike is jammed packed with great components like the Fox 38 29 Float FIT GRIP EVO Perfomance fork, Sram chainset, SRAM brakes, ONOFF dropper seatpost and Maxxis Minion tires. The Crusher is aimed at aggressive enduro riding and long rides in the saddle.
*Components subject to manufacturer changes.
Motor System
Motor | Shimano STEPS EP801 |
Battery | Simplo internal 720Wh G3 |
Display | Shimano EN600 |
Charger | Spec not provided |
Components
Frame | Crusher Stealth Air Carbon front triangle, Stealth Alloy rear triangle, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, integrated internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers. |
Fork | Öhlins RXF 38 M.2 29, 160mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber |
Rear Shock | Öhlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 25x10mm bottom bushings |
Front Brake | Sram Code Bronze Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
Rear Brake | Sram Code Bronze Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
Rear Derailleur | Sram X01 Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 |
Shift Levers | Sram Trigger GX Eagle, 12s, X-Actuation 1:1, single click |
Chain | Sram NX Eagle, 12s, Powerlock |
Cassette | Sram XG-1275, 10-52T, 12s |
Crankset | Shimano Steps FC-EM600 ebike, 165mm |
Chain Ring | Sram X-Sync 2 Eagle 34T, alloy, narrow-wide, 104 BCD |
Chain Guard | Spec not provided |
Rims | Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes |
Front Hub | Mavic, Boost 15x110mm, IS 6 bolts |
Rear Hub | Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts, HG freehub |
Front Tire | Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |
Rear Tire | Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |
Handlebars | Onoff Krypton 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
Stem | Onoff Krypton FG 30mm, CNC, 31.8mm barbore |
Headset | Acros AZF-601 R1 Block Lock 120°, ZS44/28.6 top, ZS56/40 bottom |
Grips | Onoff Desert, 1lock-on, 135mm |
Saddle | FIZIK Terra Aidon X5 145mm |
Seatpost | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm |
Extras
Pedals | Not applicable |
Front Light | Not applicable |
Rear Light | Not applicable |
Kickstand | Not applicable |
Rear Carrier | Not applicable |
Fenders | Not applicable |
Bell | Not applicable |
Lock | Not applicable |
Mirror | Not applicable |
Geometry
FRAME SIZE | S | M | L | XL | |
---|---|---|---|---|---|
A | Seattube length | 380mm | 420mm | 450mm | 490mm |
B | Toptube length | 605mm | 625mm | 650mm | 670mm |
C | Bottom bracket drop | -25mm | -25mm | -25mm | -25mm |
D | Bottom bracket height | 350mm | 350mm | 350mm | 350mm |
E | Chainstay length | 455mm | 455mm | 455mm | 455mm |
F | Seat tube angle | 73.5° | 73.5° | 73.5° | 73.5° |
G | Effective seattube angle | 76° | 76° | 76° | 76° |
H | Headtube angle | 65.5° | 65.5° | 65.5° | 65.5° |
I | Fork Offset | 44mm | 44mm | 44mm | 44mm |
J | Wheelbase | 1225mm | 1245mm | 1265mm | 1285mm |
K | Headtube length | 110mm | 110mm | 130mm | 130mm |
L | Reach | 450mm | 470mm | 490mm | 510mm |
M | Stack | 622mm | 622mm | 640mm | 640mm |
