Mondraker Dune R
Mondraker Dune R

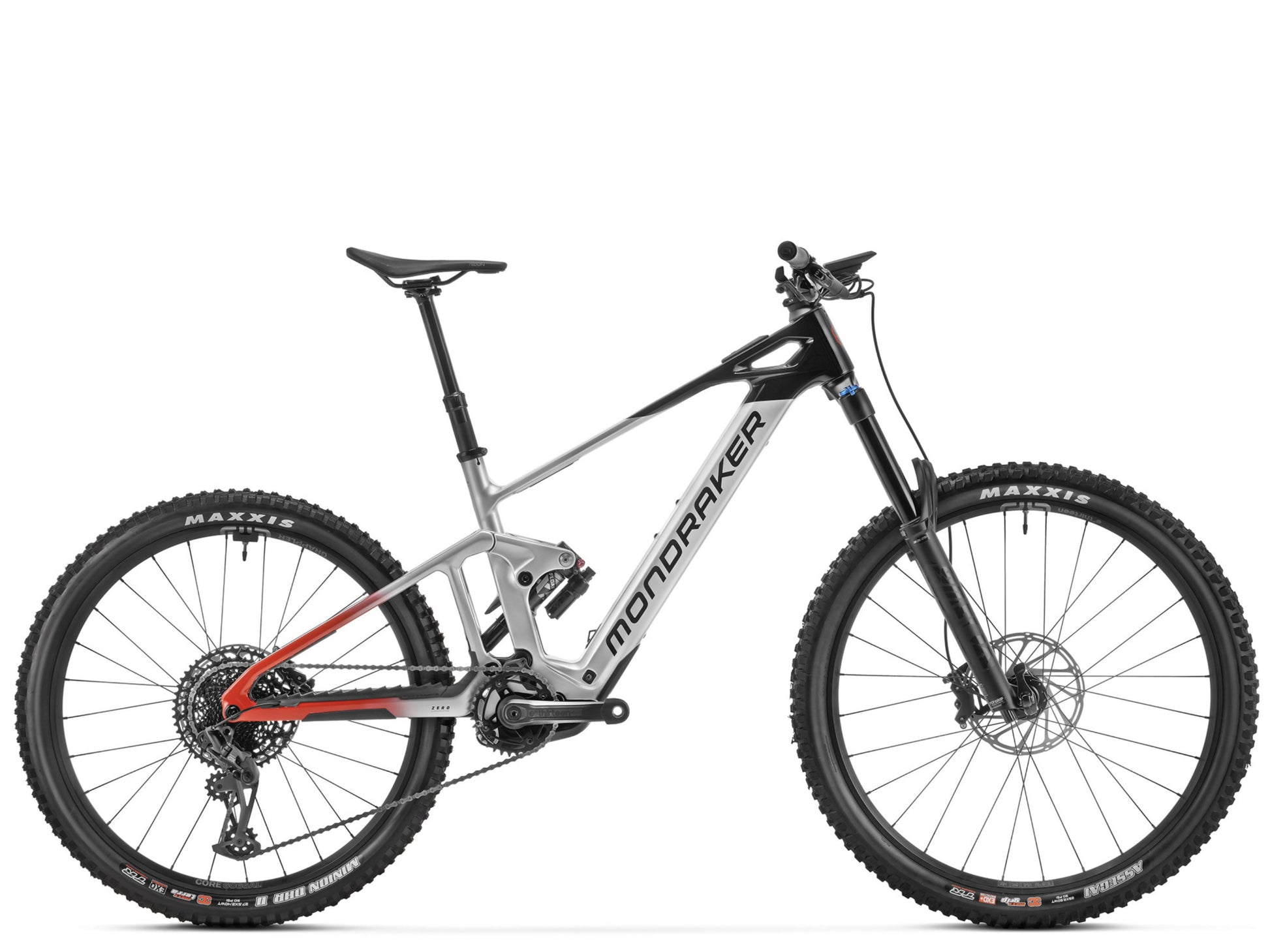

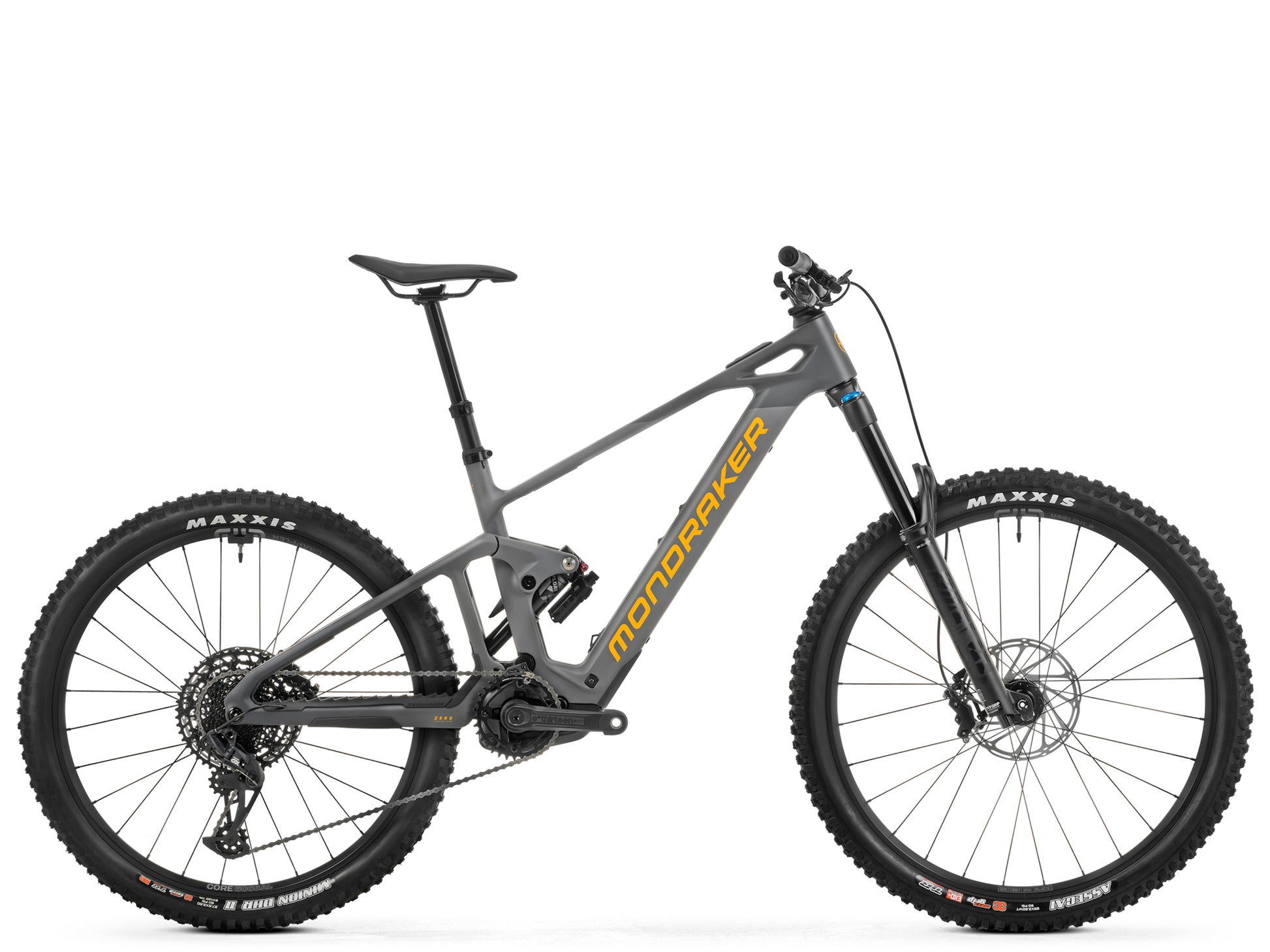

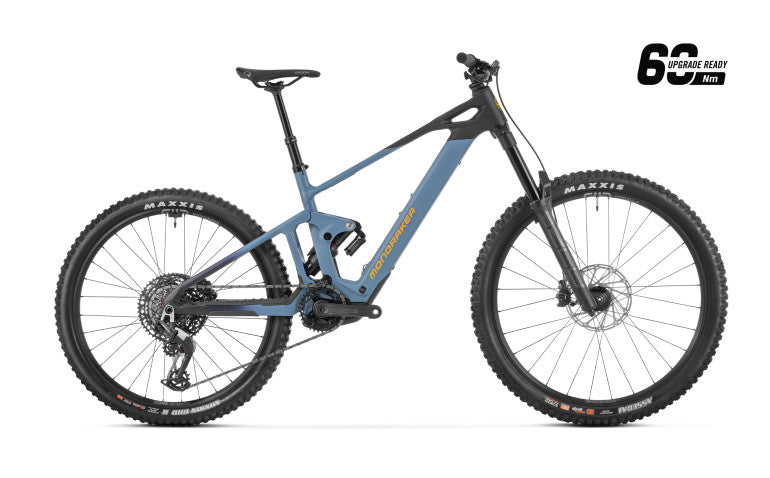

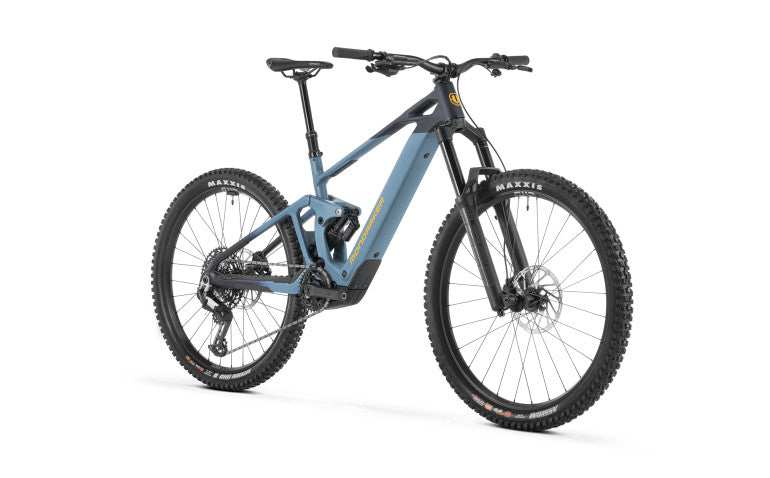

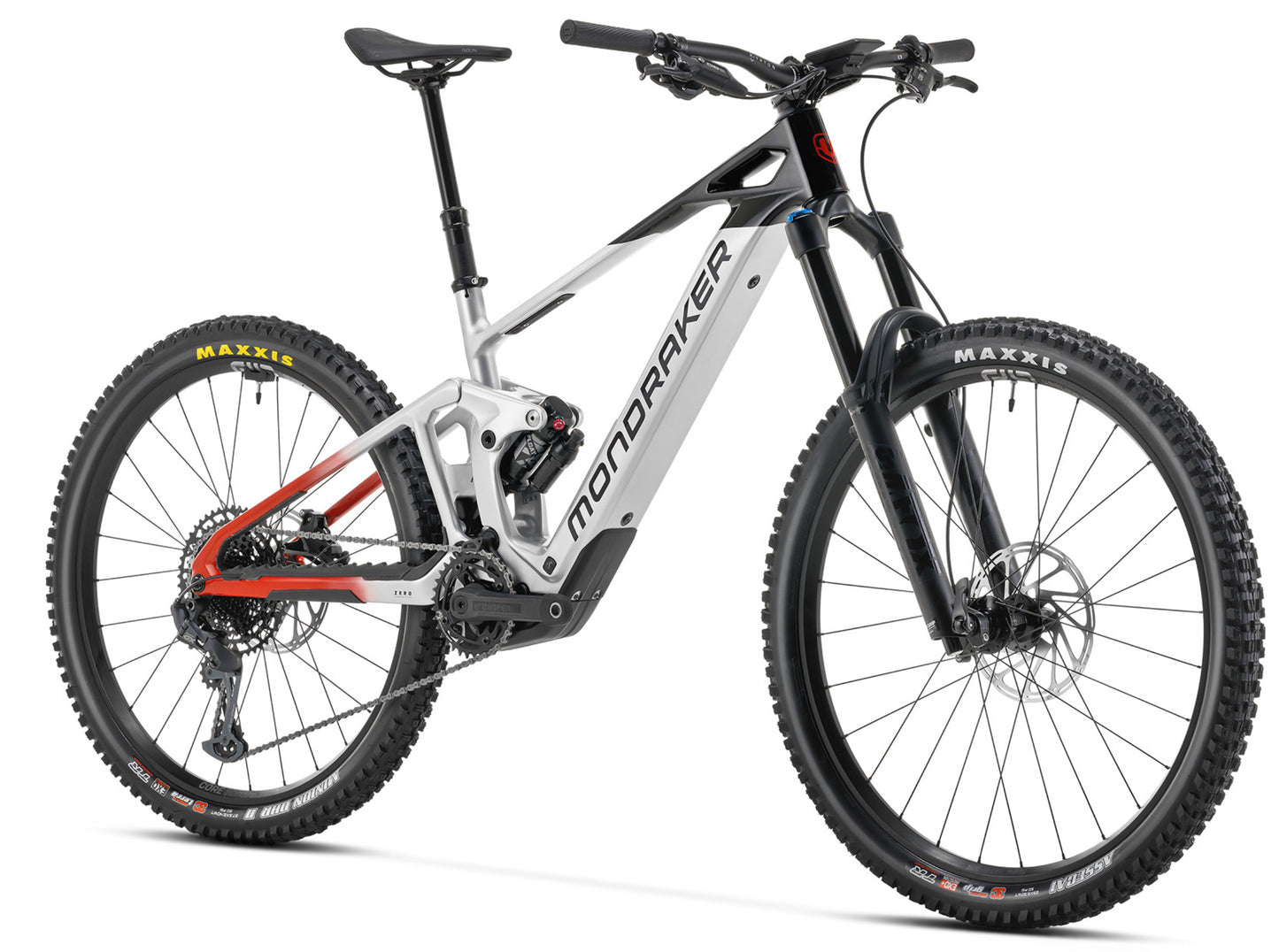

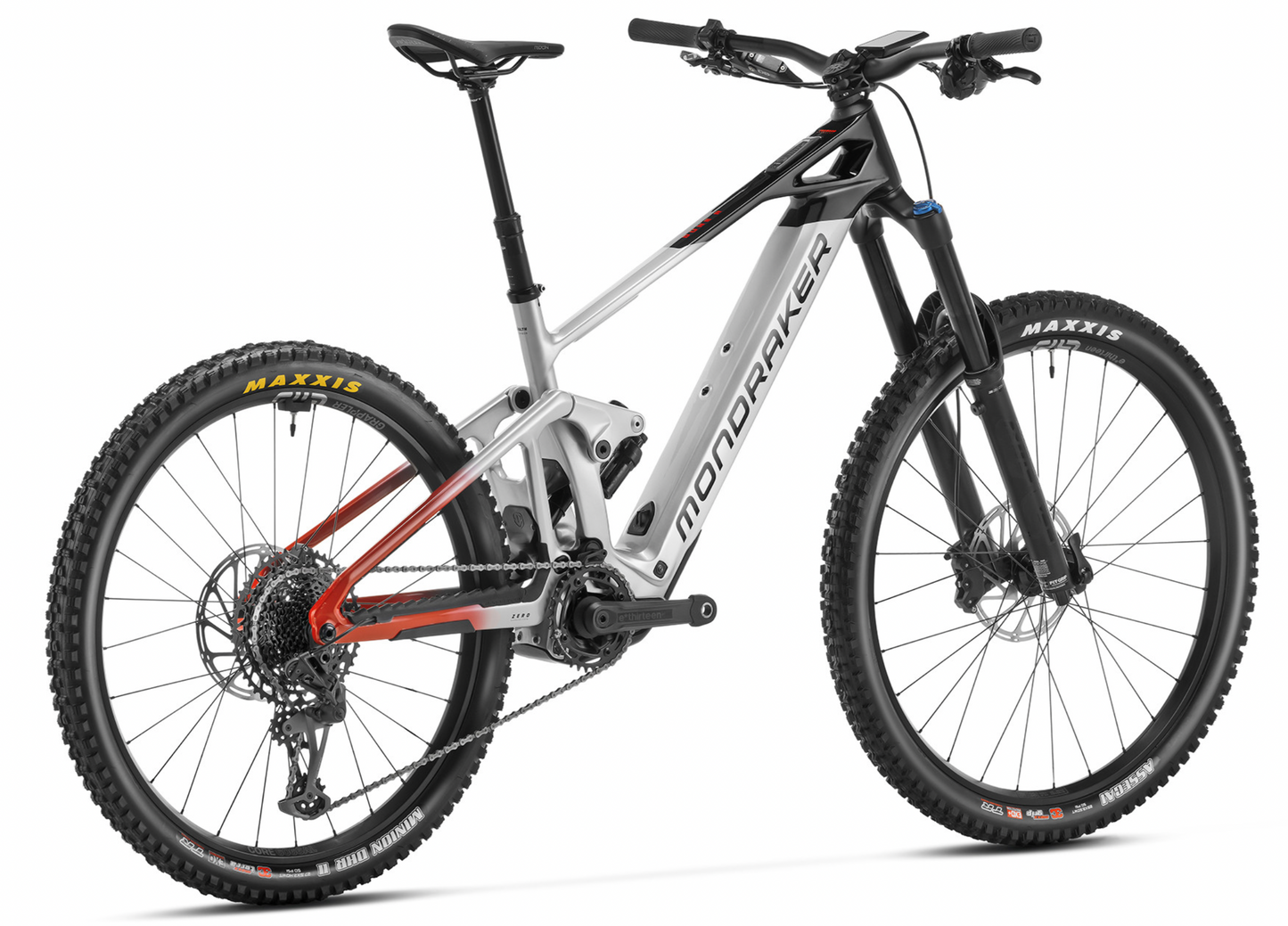

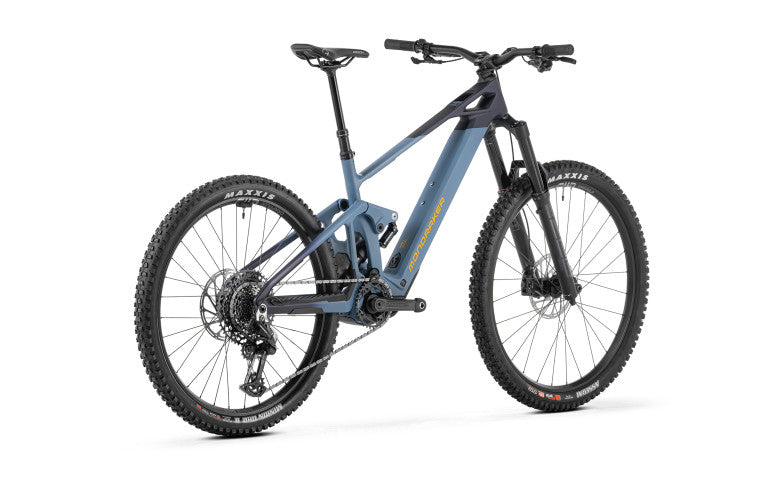

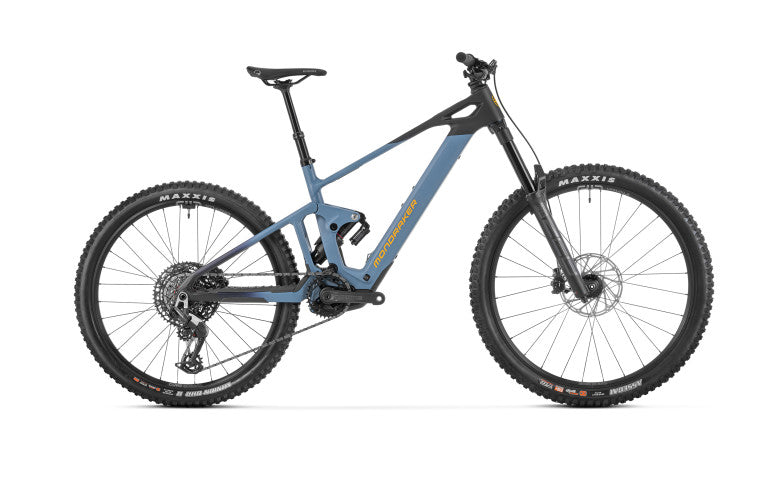

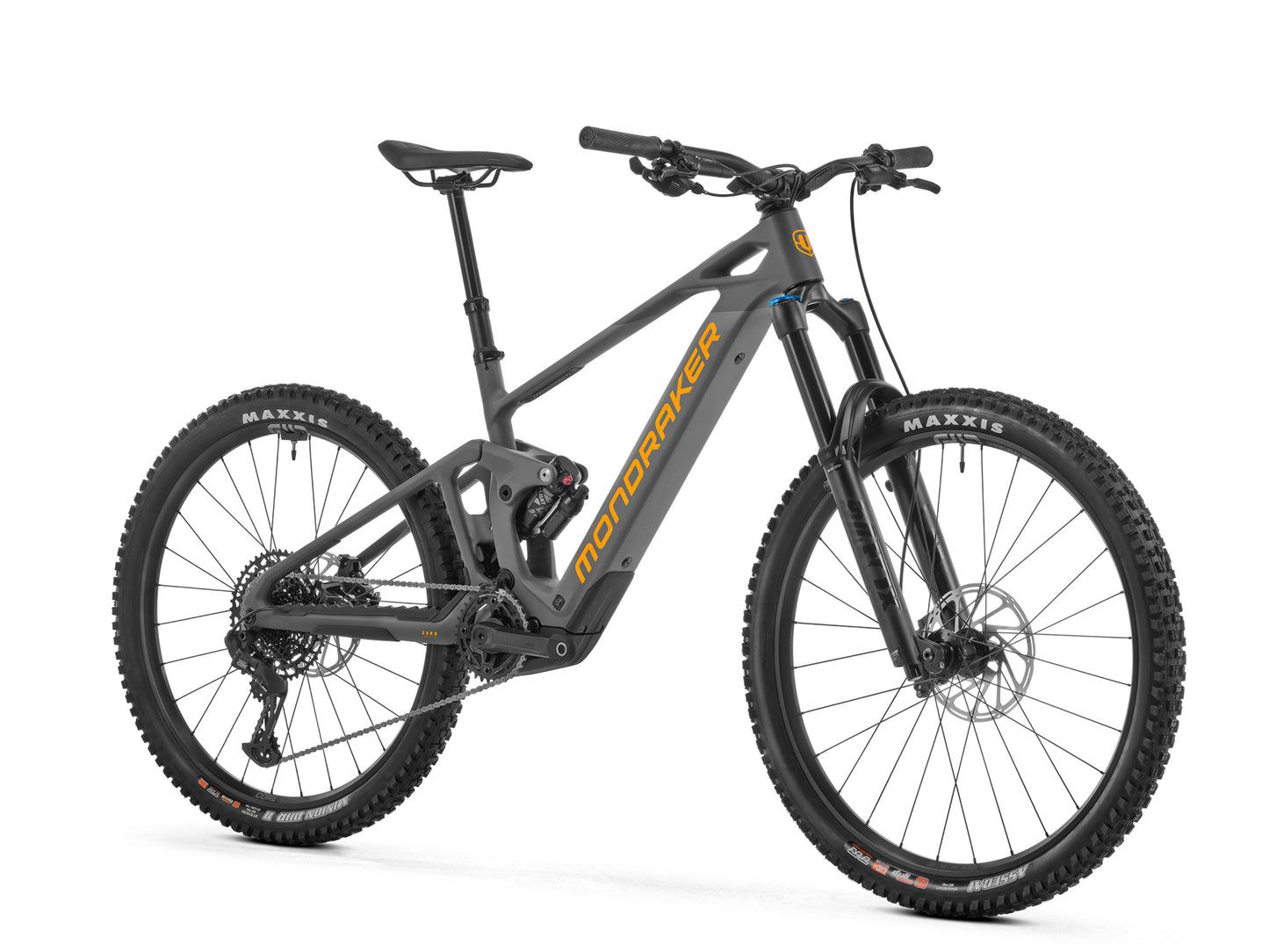

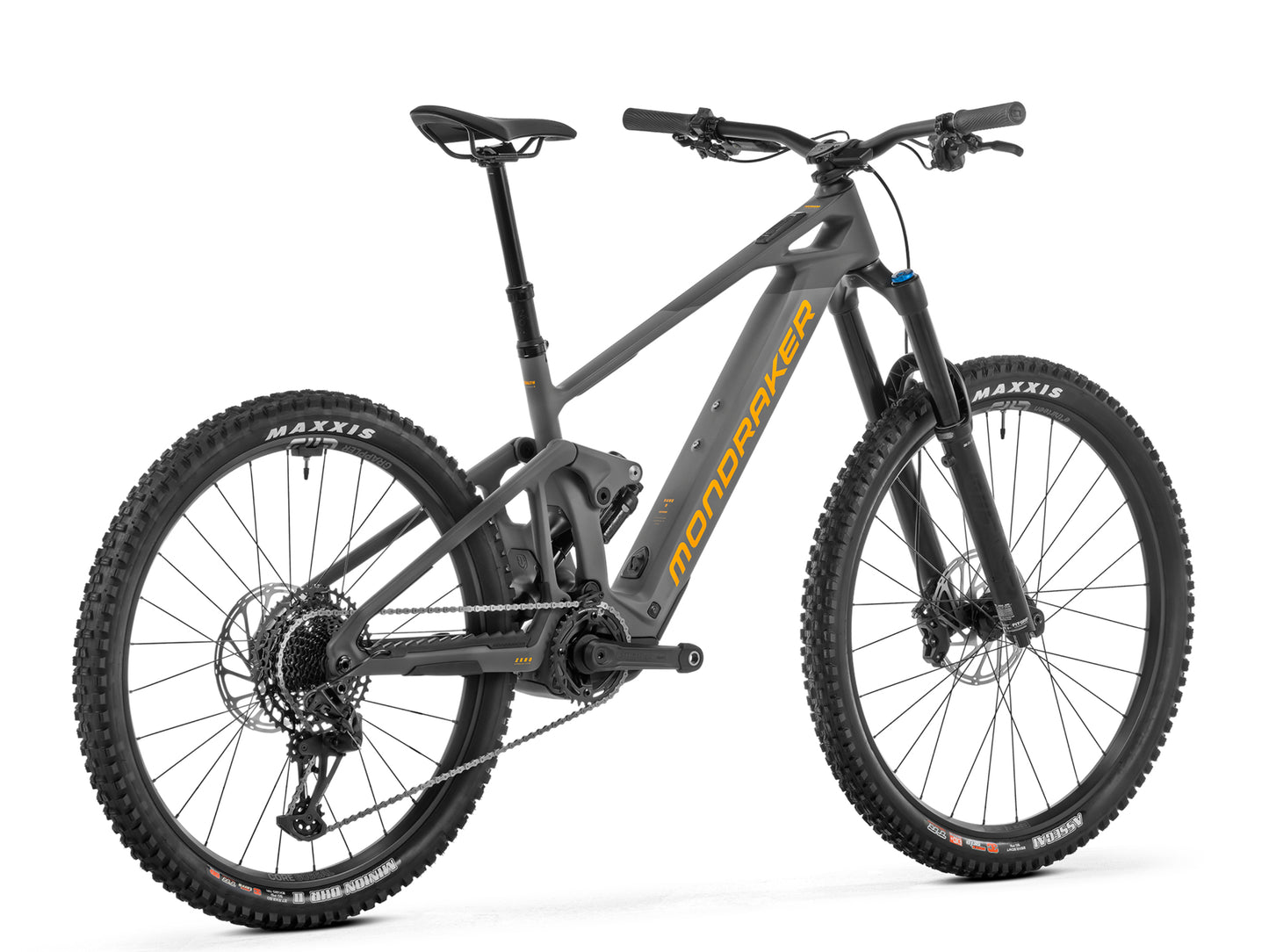

The Full Scoop on Mondraker Dune R
The new Mondraker Dune R is one of the premier lightweight superenduro eMTBs on the market this year. Mondraker, a world-renowned downhill MTB company, excels in delivering agility, speed, and progressive kinematics through their unique platform.
Featuring the patented Zero Suspension, Forward Geometry, and Stealth Air Full Carbon Frame, the Dune R embodies cutting-edge design and performance. Weighing in at approximately 40 pounds, this eMTB is equipped with the brand new Bosch SX lightweight motor, which delivers a peak power of 600 watts, comparable to the CX motor.
The result is an efficient, sophisticated, and exhilarating riding experience.
*Components subject to manufacturer changes. Call for details for 2024 Specs
Motor | Bosch Performance Line SX (20 mph) GEN4 SMART SYSTEM Diagonal, Wide |
Battery | Bosch Compact Powertube 400Wh |
Display | Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller |
Charger | 2Ah |
Frame | Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, Mullet, 165mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers. |
Fork | FOX 38 Float 3P Performance Grip, 170mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload |
Rear Shock | Fox Float X Performance EVOL, 205x65mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings |
Front Brake | Sram DB8, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
Rear Brake | Sram DB8, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
Rear Derailleur | Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 |
Shift Levers | SRAM Trigger NX Eagle, 12s, X-Actuation 1:1, single click |
Chain | SRAM NX Eagle, 12s, Powerlock |
Cassette | SRAM PG-1230, 11-50T, 12s |
Crankset | e*Thirteen Helix Core E*Spec Plus, All sizes: 160mm |
Chain Ring | SRAM X-Sync 2 Eagle, 34 teeth, steel, narrow and wide design, 104 BCD |
Chain Guard | Spec not provided |
Rims | e*thirteen Grappler Core, Hookless 6069 Welded Aluminum 30mm internal width, tubeless ready, 28F spokes 29 front, 27''5 rear |
Front Hub | e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts |
Rear Hub | e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts |
Front Tire | Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead |
Rear Tire | Maxxis Minion DHR II 27’5x2.4 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead |
Handlebars | Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise. |
Stem | Onoff Krypton FG 30mm, CNC, 31.8mm barbore |
Headset | Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing |
Grips | ONOFF Forest, 1 lock-on, 135mm |
Saddle | Fizik Terra Aidon Slim X5 |
Seatpost | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), L size: 180-155mm (468-275mm), XL size: 210-185mm (528-305mm) |
Pedals | Not applicable |
Front Light | Not applicable |
Rear Light | Not applicable |
Kickstand | Not applicable |
Rear Carrier | Not applicable |
Fenders | Not applicable |
Bell | Not applicable |
Lock | Not applicable |
Mirror | Not applicable |
FRAME SIZE | S | M | L | XL | |
---|---|---|---|---|---|
A | Seattube length | 380mm | 420mm | 450mm | 490mm |
B | Toptube length | 600mm | 620mm | 645mm | 665mm |
C | Bottom bracket drop | -21mm | -21mm | -21mm | -21mm |
D | Bottom bracket height | 352mm | 352mm | 352mm | 352mm |
E | Chainstay length | 445mm | 445mm | 445mm | 445mm |
F | Seat tube angle | 74° | 74° | 74° | 74° |
G | Effective seattube angle | 77.5° | 77.5° | 77.5° | 77.5° |
H | Headtube angle | 64° | 64° | 64° | 64° |
I | Fork Offset | 44mm | 44mm | 44mm | 44mm |
J | Wheelbase | 1232mm | 1260mm | 1285mm | 1309mm |
K | Headtube length | 100mm | 110mm | 130mm | 140mm |
L | Reach | 445mm | 465mm | 485mm | 505mm |
M | Stack | 621mm | 630mm | 648mm | 658mm |
The Full Scoop on Mondraker Dune R
The new Mondraker Dune R is one of the premier lightweight superenduro eMTBs on the market this year. Mondraker, a world-renowned downhill MTB company, excels in delivering agility, speed, and progressive kinematics through their unique platform.
Featuring the patented Zero Suspension, Forward Geometry, and Stealth Air Full Carbon Frame, the Dune R embodies cutting-edge design and performance. Weighing in at approximately 40 pounds, this eMTB is equipped with the brand new Bosch SX lightweight motor, which delivers a peak power of 600 watts, comparable to the CX motor.
The result is an efficient, sophisticated, and exhilarating riding experience.
*Components subject to manufacturer changes. Call for details for 2024 Specs
Motor System
Motor | Bosch Performance Line SX (20 mph) GEN4 SMART SYSTEM Diagonal, Wide |
Battery | Bosch Compact Powertube 400Wh |
Display | Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller |
Charger | 2Ah |
Components
Frame | Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, Mullet, 165mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers. |
Fork | FOX 38 Float 3P Performance Grip, 170mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload |
Rear Shock | Fox Float X Performance EVOL, 205x65mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings |
Front Brake | Sram DB8, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
Rear Brake | Sram DB8, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
Rear Derailleur | Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 |
Shift Levers | SRAM Trigger NX Eagle, 12s, X-Actuation 1:1, single click |
Chain | SRAM NX Eagle, 12s, Powerlock |
Cassette | SRAM PG-1230, 11-50T, 12s |
Crankset | e*Thirteen Helix Core E*Spec Plus, All sizes: 160mm |
Chain Ring | SRAM X-Sync 2 Eagle, 34 teeth, steel, narrow and wide design, 104 BCD |
Chain Guard | Spec not provided |
Rims | e*thirteen Grappler Core, Hookless 6069 Welded Aluminum 30mm internal width, tubeless ready, 28F spokes 29 front, 27''5 rear |
Front Hub | e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts |
Rear Hub | e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts |
Front Tire | Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead |
Rear Tire | Maxxis Minion DHR II 27’5x2.4 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead |
Handlebars | Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise. |
Stem | Onoff Krypton FG 30mm, CNC, 31.8mm barbore |
Headset | Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing |
Grips | ONOFF Forest, 1 lock-on, 135mm |
Saddle | Fizik Terra Aidon Slim X5 |
Seatpost | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), L size: 180-155mm (468-275mm), XL size: 210-185mm (528-305mm) |
Extras
Pedals | Not applicable |
Front Light | Not applicable |
Rear Light | Not applicable |
Kickstand | Not applicable |
Rear Carrier | Not applicable |
Fenders | Not applicable |
Bell | Not applicable |
Lock | Not applicable |
Mirror | Not applicable |
Geometry
FRAME SIZE | S | M | L | XL | |
---|---|---|---|---|---|
A | Seattube length | 380mm | 420mm | 450mm | 490mm |
B | Toptube length | 600mm | 620mm | 645mm | 665mm |
C | Bottom bracket drop | -21mm | -21mm | -21mm | -21mm |
D | Bottom bracket height | 352mm | 352mm | 352mm | 352mm |
E | Chainstay length | 445mm | 445mm | 445mm | 445mm |
F | Seat tube angle | 74° | 74° | 74° | 74° |
G | Effective seattube angle | 77.5° | 77.5° | 77.5° | 77.5° |
H | Headtube angle | 64° | 64° | 64° | 64° |
I | Fork Offset | 44mm | 44mm | 44mm | 44mm |
J | Wheelbase | 1232mm | 1260mm | 1285mm | 1309mm |
K | Headtube length | 100mm | 110mm | 130mm | 140mm |
L | Reach | 445mm | 465mm | 485mm | 505mm |
M | Stack | 621mm | 630mm | 648mm | 658mm |
