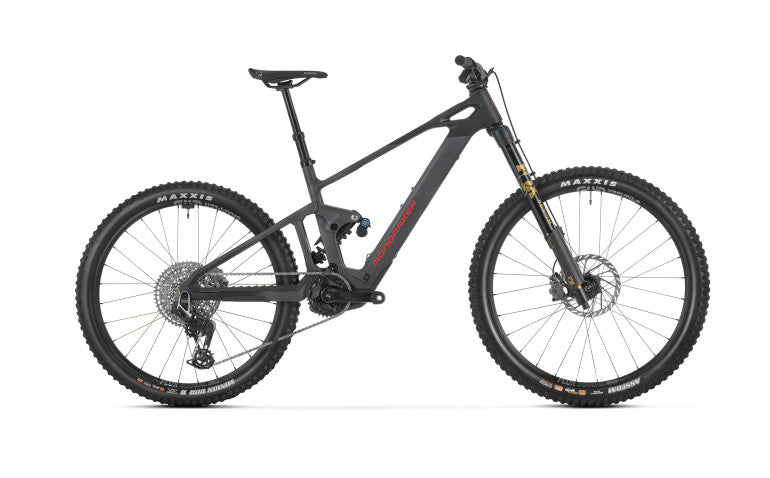

Mondraker Dune RR
Mondraker Dune RR
Couldn't load pickup availability
The Full Scoop on Mondraker Dune RR

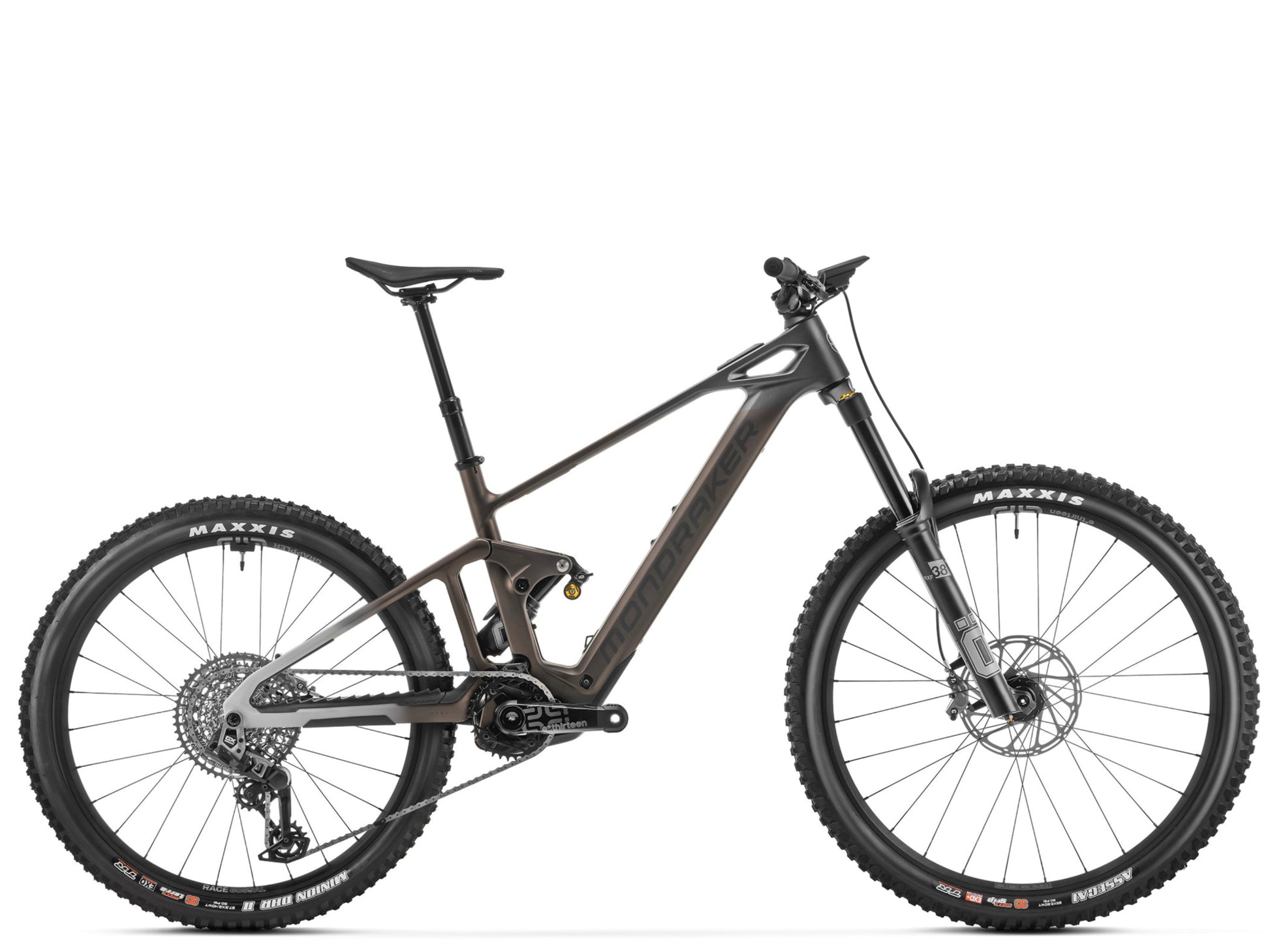

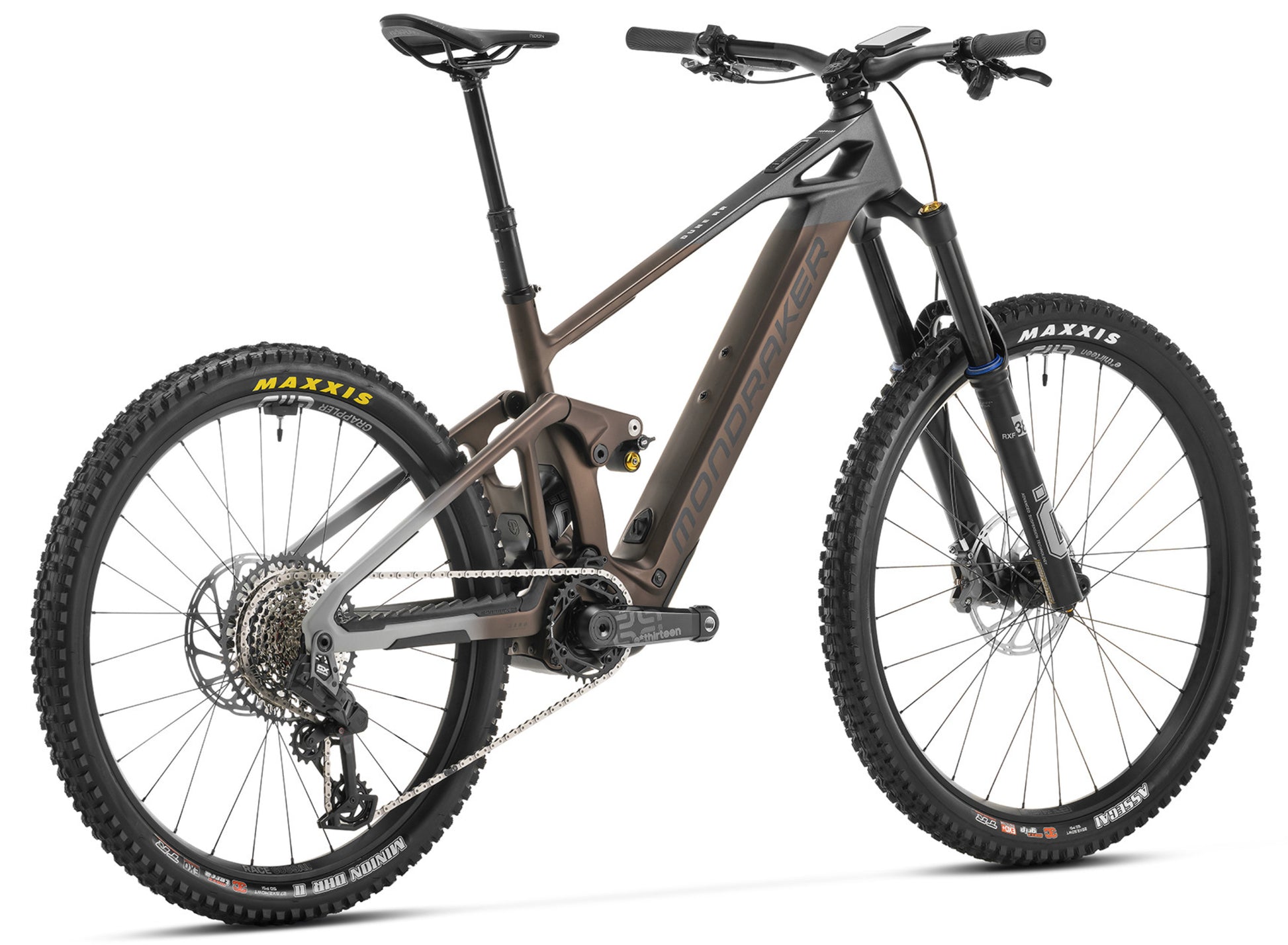

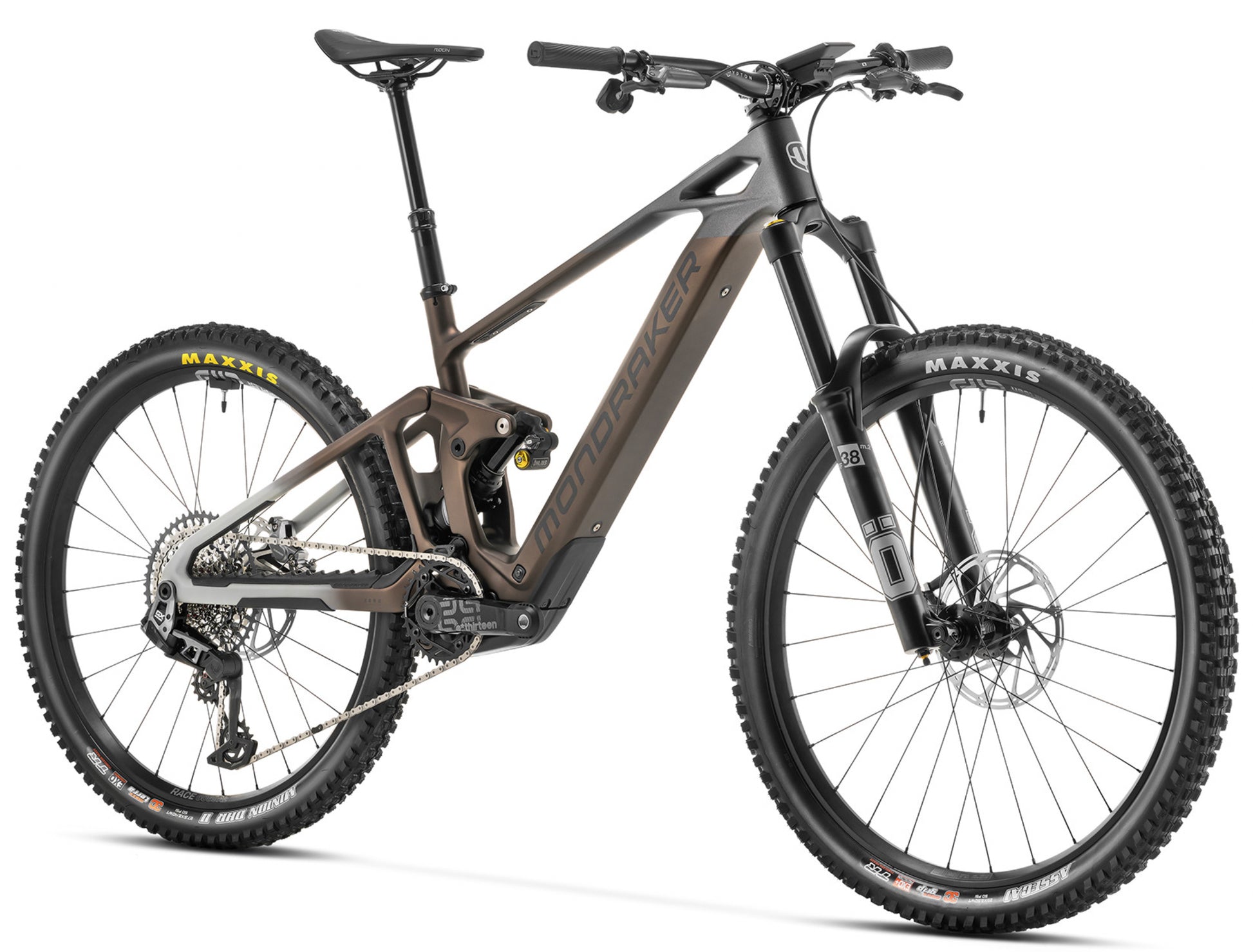

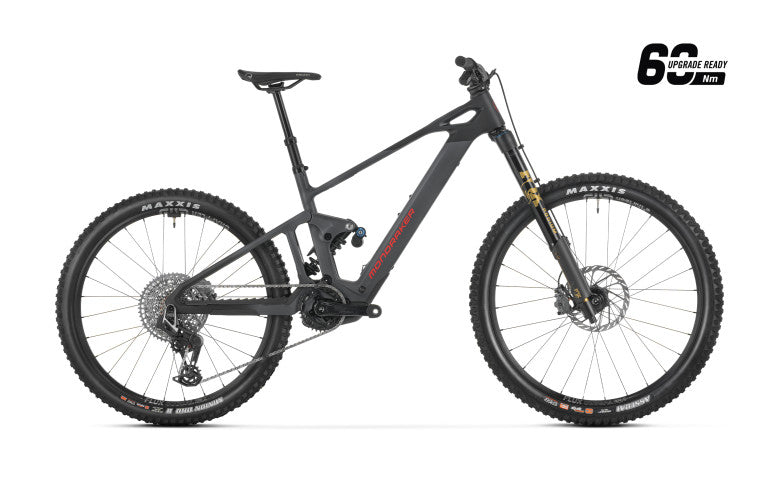

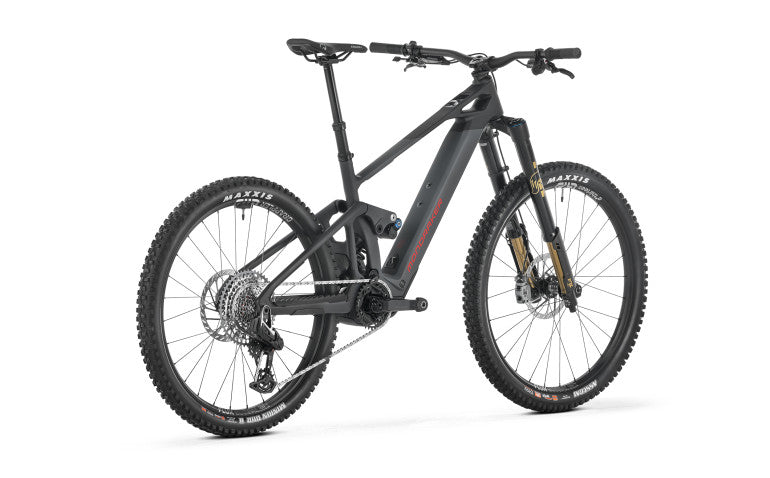

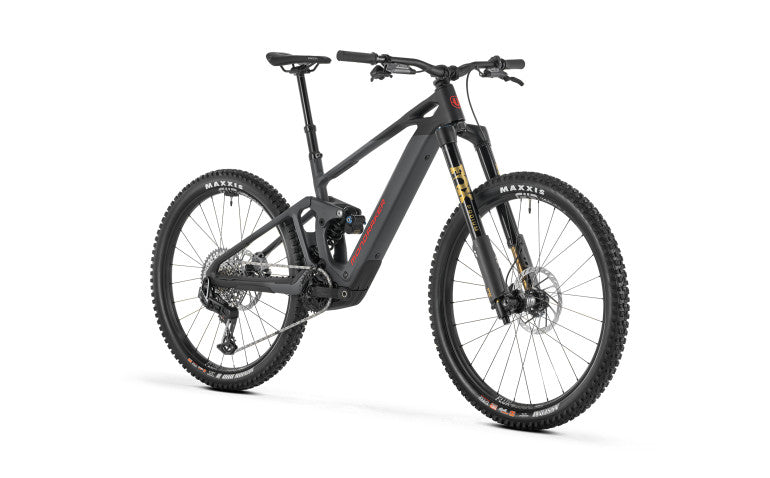

Introducing the Mondraker Dune RR, an upgraded version of the acclaimed Dune R, offering enhanced performance with premium components.
The Dune RR stands out with its Öhlins Suspension, featuring the Öhlins RXF 38 M.2 29 fork with 170mm travel and the Öhlins TTX Air shock with 165mm travel, delivering superior shock absorption and stability. Additionally, the Dune RR is equipped with the SRAM GX AXS Transmission, providing precise, wireless shifting, and SRAM Code Bronze Stealth brakes for exceptional stopping power and control.
This combination of top-tier components ensures the Dune RR delivers an unparalleled superenduro eMTB experience, making it the ultimate choice for serious riders seeking the best in agility, speed, and progressive performance.
*Components subject to manufacturer changes.
| Motor | Bosch Performance Line SX (20 mph) GEN4 SMART SYSTEM Diagonal, Wide |
| Battery | Bosch Compact Powertube 400Wh |
| Display | Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller |
| Charger | 2Ah |
| Frame | Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, Mullet, 165mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers. |
| Fork | Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber |
| Rear Shock | Öhlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 30x8mm bottom bushings |
| Front Brake | Sram Code Bronze Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
| Rear Brake | Sram Code Bronze Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
| Rear Derailleur | Sram GX Eagle AXS, T-Type roller bearing clutch, cage lock, 1x12s |
| Shift Levers | Sram Eagle AXS Pod MMX, 12s |
| Chain | Sram GX Eagle T-Type, 12s, Powerlock |
| Cassette | Sram XS-1275, 10-52T, T-Type, 12s |
| Crankset | E.13 E*Spec Plus,, S size: 165mm M size: 165mm L size: 170mm XL size: 170mm |
| Chain Ring | Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55 |
| Chain Guard | Spec not provided |
| Rims | e*thirteen Grappler Race, Hookless 6069 Welded Aluminum 30mm internal width, tubeless ready, 28F spokes 29 front, 27''5 rear |
| Front Hub | e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts |
| Rear Hub | e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub |
| Front Tire | Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead |
| Rear Tire | Maxxis Minion DHR II 27’5x2.4 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead |
| Handlebars | Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
| Stem | Onoff Krypton FG 30mm, CNC, 31.8mm barbore |
| Headset | Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing |
| Grips | ONOFF Desert, 1 lock-on, 135mm |
| Saddle | Fizik Terra Aidon Slim X5 |
| Seatpost | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm |
| Pedals | Not applicable |
| Front Light | Not applicable |
| Rear Light | Not applicable |
| Kickstand | Not applicable |
| Rear Carrier | Not applicable |
| Fenders | Not applicable |
| Bell | Not applicable |
| Lock | Not applicable |
| Mirror | Not applicable |
| FRAME SIZE | S | M | L | XL | |
|---|---|---|---|---|---|
| A | Seattube length | 380mm | 420mm | 450mm | 490mm |
| B | Toptube length | 600mm | 620mm | 645mm | 665mm |
| C | Bottom bracket drop | -21mm | -21mm | -21mm | -21mm |
| D | Bottom bracket height | 352mm | 352mm | 352mm | 352mm |
| E | Chainstay length | 445mm | 445mm | 445mm | 445mm |
| F | Seat tube angle | 74° | 74° | 74° | 74° |
| G | Effective seattube angle | 77.5° | 77.5° | 77.5° | 77.5° |
| H | Headtube angle | 64° | 64° | 64° | 64° |
| I | Fork Offset | 44mm | 44mm | 44mm | 44mm |
| J | Wheelbase | 1232mm | 1260mm | 1285mm | 1309mm |
| K | Headtube length | 100mm | 110mm | 130mm | 140mm |
| L | Reach | 445mm | 465mm | 485mm | 505mm |
| M | Stack | 621mm | 630mm | 648mm | 658mm |
The Full Scoop on Mondraker Dune RR
Introducing the Mondraker Dune RR, an upgraded version of the acclaimed Dune R, offering enhanced performance with premium components.
The Dune RR stands out with its Öhlins Suspension, featuring the Öhlins RXF 38 M.2 29 fork with 170mm travel and the Öhlins TTX Air shock with 165mm travel, delivering superior shock absorption and stability. Additionally, the Dune RR is equipped with the SRAM GX AXS Transmission, providing precise, wireless shifting, and SRAM Code Bronze Stealth brakes for exceptional stopping power and control.
This combination of top-tier components ensures the Dune RR delivers an unparalleled superenduro eMTB experience, making it the ultimate choice for serious riders seeking the best in agility, speed, and progressive performance.
*Components subject to manufacturer changes.
Motor System
| Motor | Bosch Performance Line SX (20 mph) GEN4 SMART SYSTEM Diagonal, Wide |
| Battery | Bosch Compact Powertube 400Wh |
| Display | Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller |
| Charger | 2Ah |
Components
| Frame | Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, Mullet, 165mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers. |
| Fork | Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber |
| Rear Shock | Öhlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 30x8mm bottom bushings |
| Front Brake | Sram Code Bronze Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
| Rear Brake | Sram Code Bronze Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
| Rear Derailleur | Sram GX Eagle AXS, T-Type roller bearing clutch, cage lock, 1x12s |
| Shift Levers | Sram Eagle AXS Pod MMX, 12s |
| Chain | Sram GX Eagle T-Type, 12s, Powerlock |
| Cassette | Sram XS-1275, 10-52T, T-Type, 12s |
| Crankset | E.13 E*Spec Plus,, S size: 165mm M size: 165mm L size: 170mm XL size: 170mm |
| Chain Ring | Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55 |
| Chain Guard | Spec not provided |
| Rims | e*thirteen Grappler Race, Hookless 6069 Welded Aluminum 30mm internal width, tubeless ready, 28F spokes 29 front, 27''5 rear |
| Front Hub | e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts |
| Rear Hub | e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub |
| Front Tire | Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead |
| Rear Tire | Maxxis Minion DHR II 27’5x2.4 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead |
| Handlebars | Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
| Stem | Onoff Krypton FG 30mm, CNC, 31.8mm barbore |
| Headset | Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing |
| Grips | ONOFF Desert, 1 lock-on, 135mm |
| Saddle | Fizik Terra Aidon Slim X5 |
| Seatpost | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm |
Extras
| Pedals | Not applicable |
| Front Light | Not applicable |
| Rear Light | Not applicable |
| Kickstand | Not applicable |
| Rear Carrier | Not applicable |
| Fenders | Not applicable |
| Bell | Not applicable |
| Lock | Not applicable |
| Mirror | Not applicable |
Geometry
| FRAME SIZE | S | M | L | XL | |
|---|---|---|---|---|---|
| A | Seattube length | 380mm | 420mm | 450mm | 490mm |
| B | Toptube length | 600mm | 620mm | 645mm | 665mm |
| C | Bottom bracket drop | -21mm | -21mm | -21mm | -21mm |
| D | Bottom bracket height | 352mm | 352mm | 352mm | 352mm |
| E | Chainstay length | 445mm | 445mm | 445mm | 445mm |
| F | Seat tube angle | 74° | 74° | 74° | 74° |
| G | Effective seattube angle | 77.5° | 77.5° | 77.5° | 77.5° |
| H | Headtube angle | 64° | 64° | 64° | 64° |
| I | Fork Offset | 44mm | 44mm | 44mm | 44mm |
| J | Wheelbase | 1232mm | 1260mm | 1285mm | 1309mm |
| K | Headtube length | 100mm | 110mm | 130mm | 140mm |
| L | Reach | 445mm | 465mm | 485mm | 505mm |
| M | Stack | 621mm | 630mm | 648mm | 658mm |
