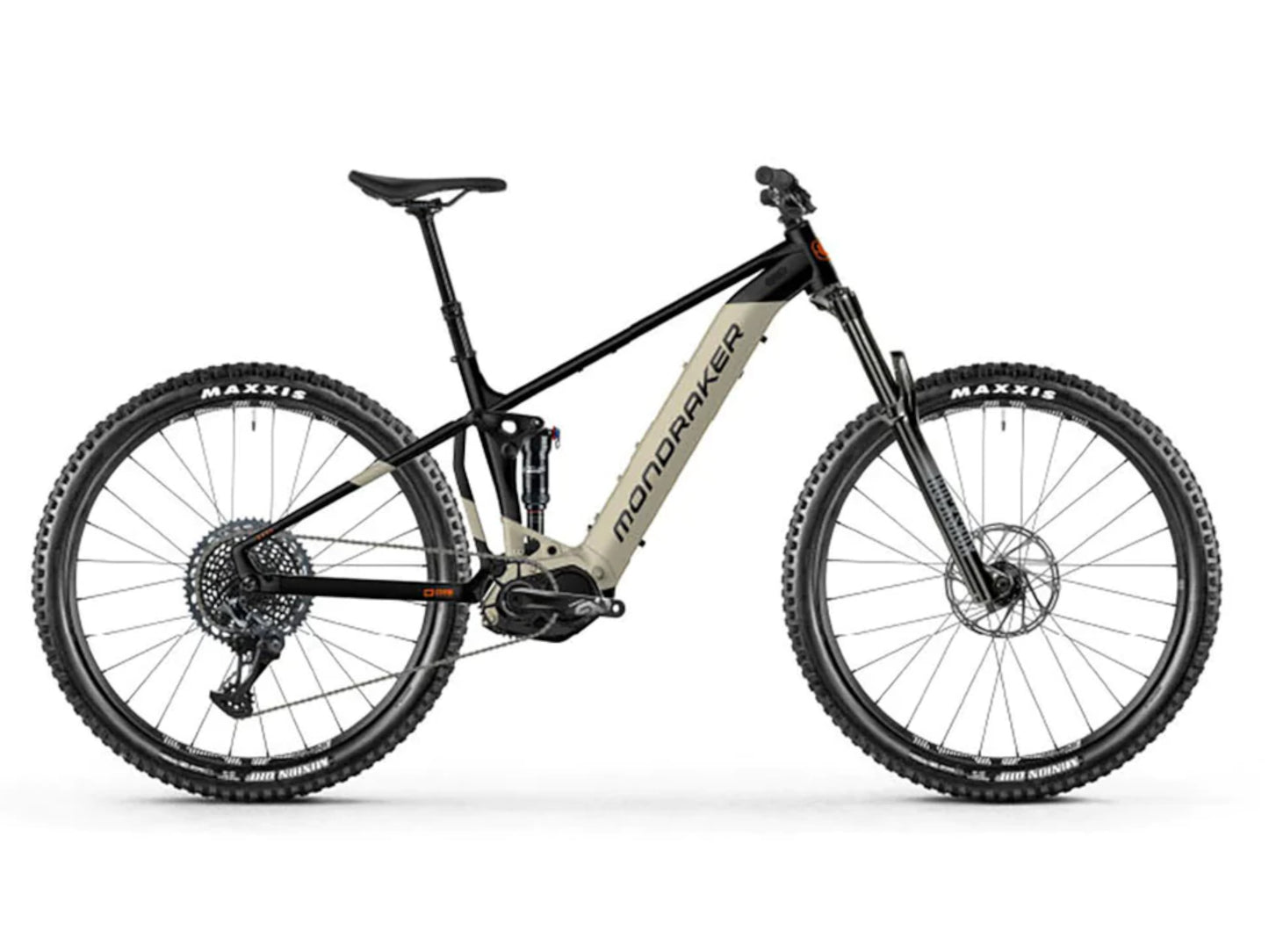

Mondraker Dusk

NOTE: Due to unprecedented demand, many of our incoming eBikes are already spoken for! To reserve the next available of your model of choice, we highly recommend placing a Pre-Order Deposit.

Click the button below to place a deposit today.


*Deposits are transferable to another model.



Sizing Guide


The Full Scoop on the Mondraker Dusk


  • Get ready to experience the thrill with the Dusk e-MTB bike designed for trail and all-mountain riding! The top-end emountain bike with modern geometry is a beauty. eBike optimized zero suspension uses large bearings on a one-piece monoblock link for extreme bump absorption for plusher rides. High-speed riders will love the safety and confidence offered by Mondraker’s proprietary forward geometry design.


  • Components subject to manufacturer changes
  • Motor Shimano STEPS EP800
    Battery Simplo internal 630Wh *optional external battery to extend capacity to 960Wh available
    Display Shimano STEPS E8000
    Charger Spec not provided
  • Frame Dusk 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, integrated internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor. *Optional external battery
    Fork RockShox 35 Silver TK 29, 160mm, TurnKey, Solo Air, tapered steerer tube, Boost 15x110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload
    Rear Shock RockShox Deluxe Select R Debonair, 205x65mm. Settings: Low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
    Front Brake  Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
    Rear Brake  Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic padspads
    Rear Derailleur Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
    Shift Levers Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click
    Chain Sram SX Eagle, 12s, Powerlock
    Cassette Sram PG-1210, 11-50T, 12s
    Crankset FSA, 165mm
    Chain Ring Spec not provided
    Chain Guard Spec not provided
    Rims MDK-HP1 29, 30mm internal width, tubeless ready, 32 spokes
    Front Hub Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts
    Rear Hub Formula EHL148 Boost 12x148mm, sealed bearings, IS 6 bolts
    Front Tire Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead
    Rear Tire Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead
    Handlebars Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 780mm, 9° backsweep, 5° upsweep, 31.8mm barbore
    Stem Onoff Sulfur FG 30mm 0°, 6061 forged alloy, 31.8mm barbore
    Headset Spec not provided
    Grips Onoff Diamond, 1lock-on, 135mm
    Saddle Fizik Terra Aidon X5 145mm
    Seatpost Onoff Pija dropper internal, diameter 31.6mm, S size: 387x125mm, M size: 425x150mm, L/XL size: 465x170mm
  • Pedals Not applicable
    Front Light Not applicable
    Rear Light Not applicable
    Kickstand Not applicable
    Rear Carrier Not applicable
    Fenders Not applicable
    Bell Not applicable
    Lock Not applicable
    Mirror Not applicable


  • S M L XL
    Seattube length
    A
    380mm
    420mm
    450mm
    490mm
    Toptube length B
    605mm
    625mm 650mm
    670mm
    Bottom bracket drop C
    -25mm -25mm
    -25mm
    -25mm
    Bottom bracket height D
    350mm
    350mm
    350mm
    350mm
    Chainstay length E
    455mm 455mm 455mm 455mm
    Seat tube angle F
    73.5°
    73.5° 73.5° 73.5°
    Effective seattube angle G
    76° 76° 76° 76°
    Headtube angle H
    65.5°
    65.5°
    65.5°
    65.5°
    Fork Offset I
    44mm 44mm 44mm 44mm
    Wheelbase J
    1225mm 1245mm 1265mm 1285mm
    Headtube length K
    110mm
    110mm
    130mm
    130mm
    Reach L
    450mm
    470mm 490mm
    510mm
    Stack M
    622mm 622mm 640mm 640mm
