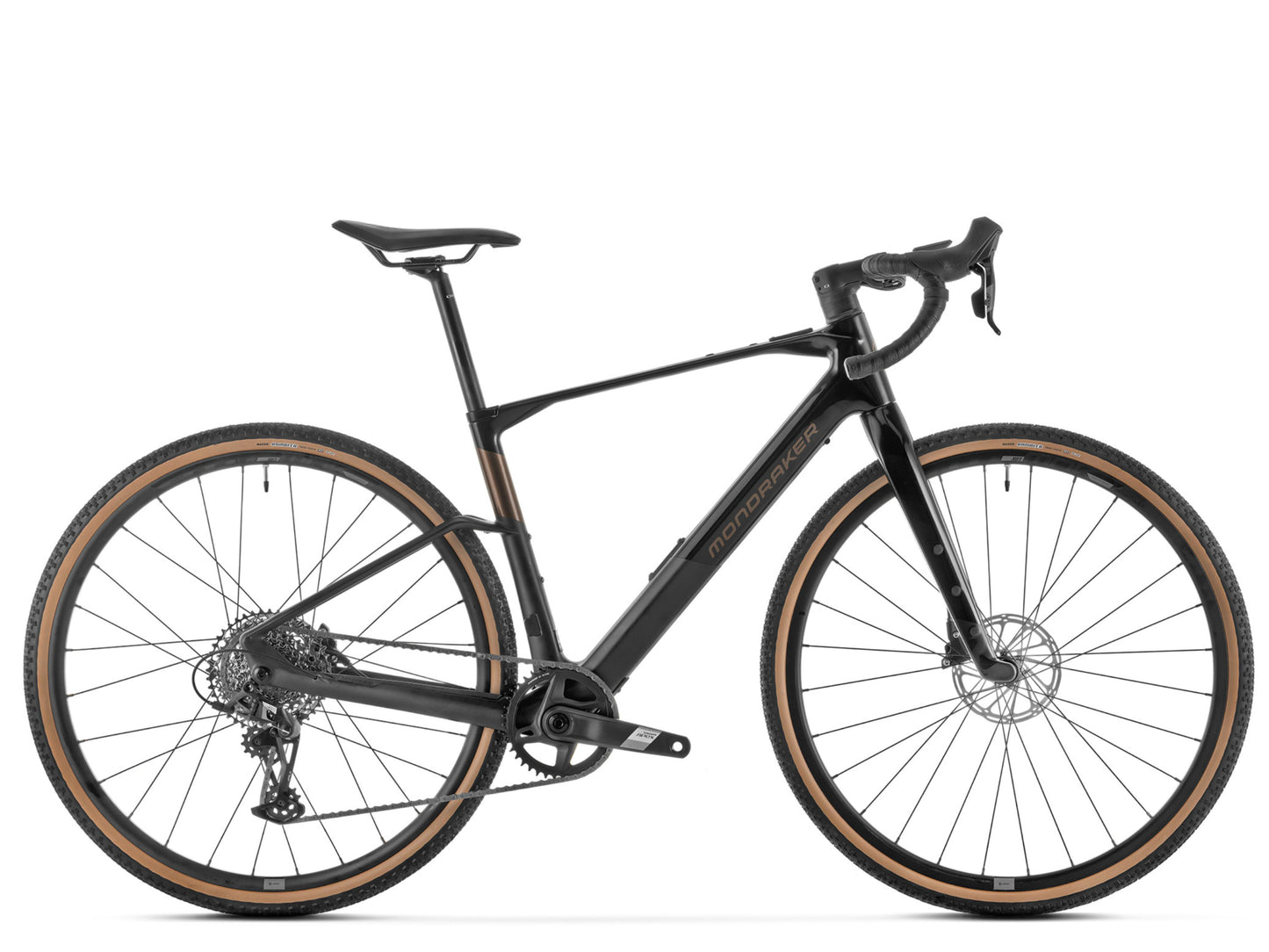

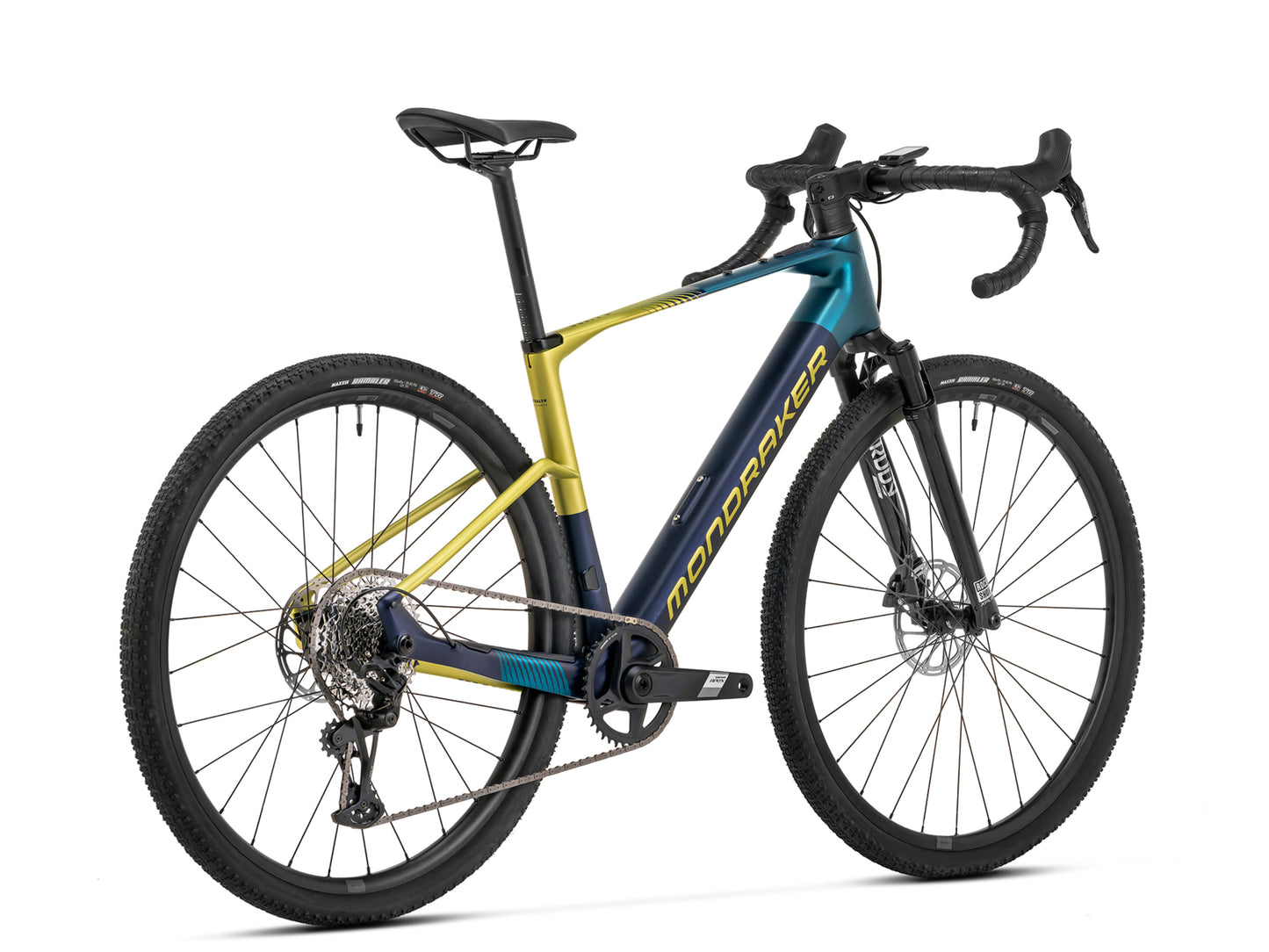

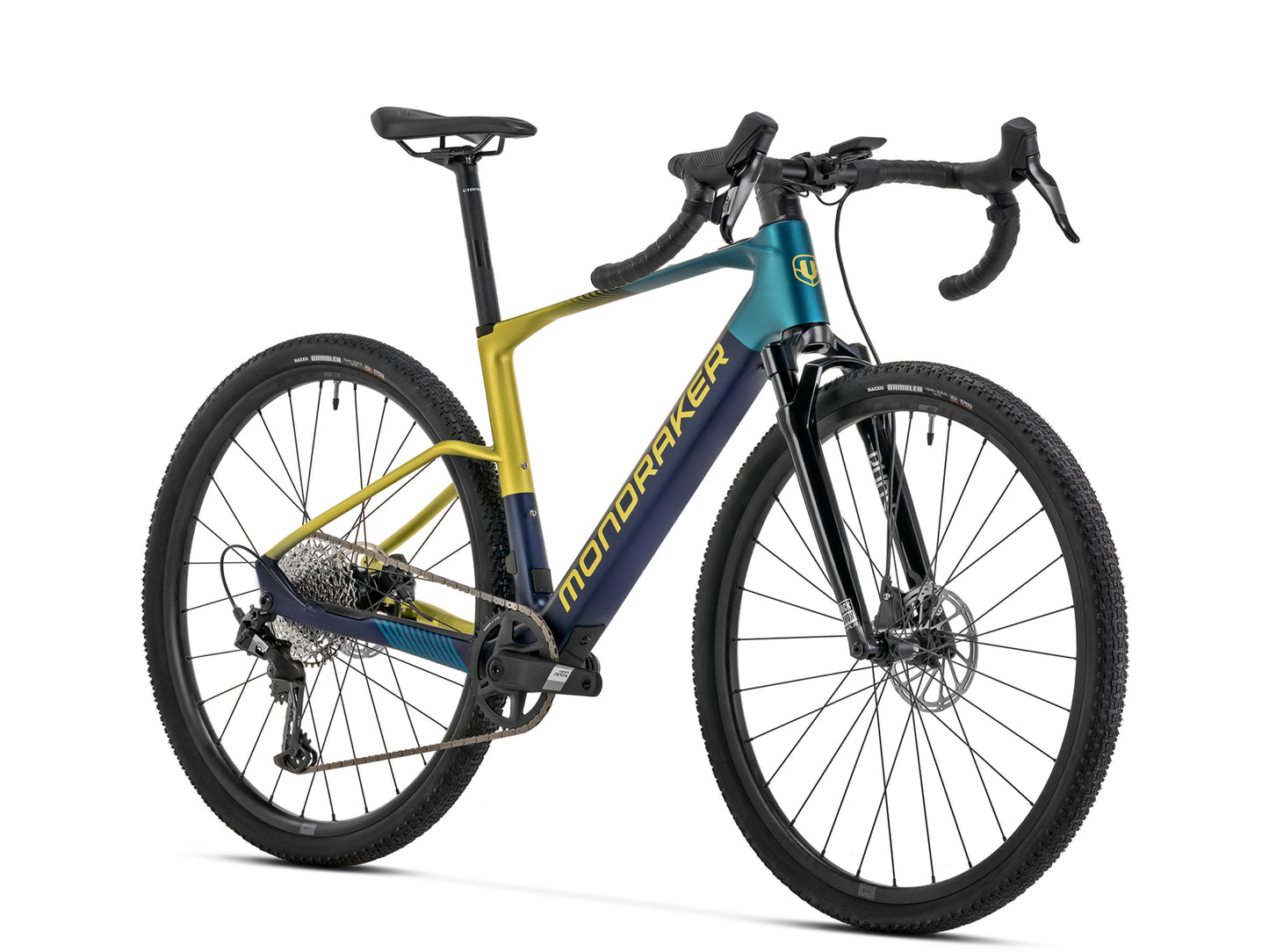

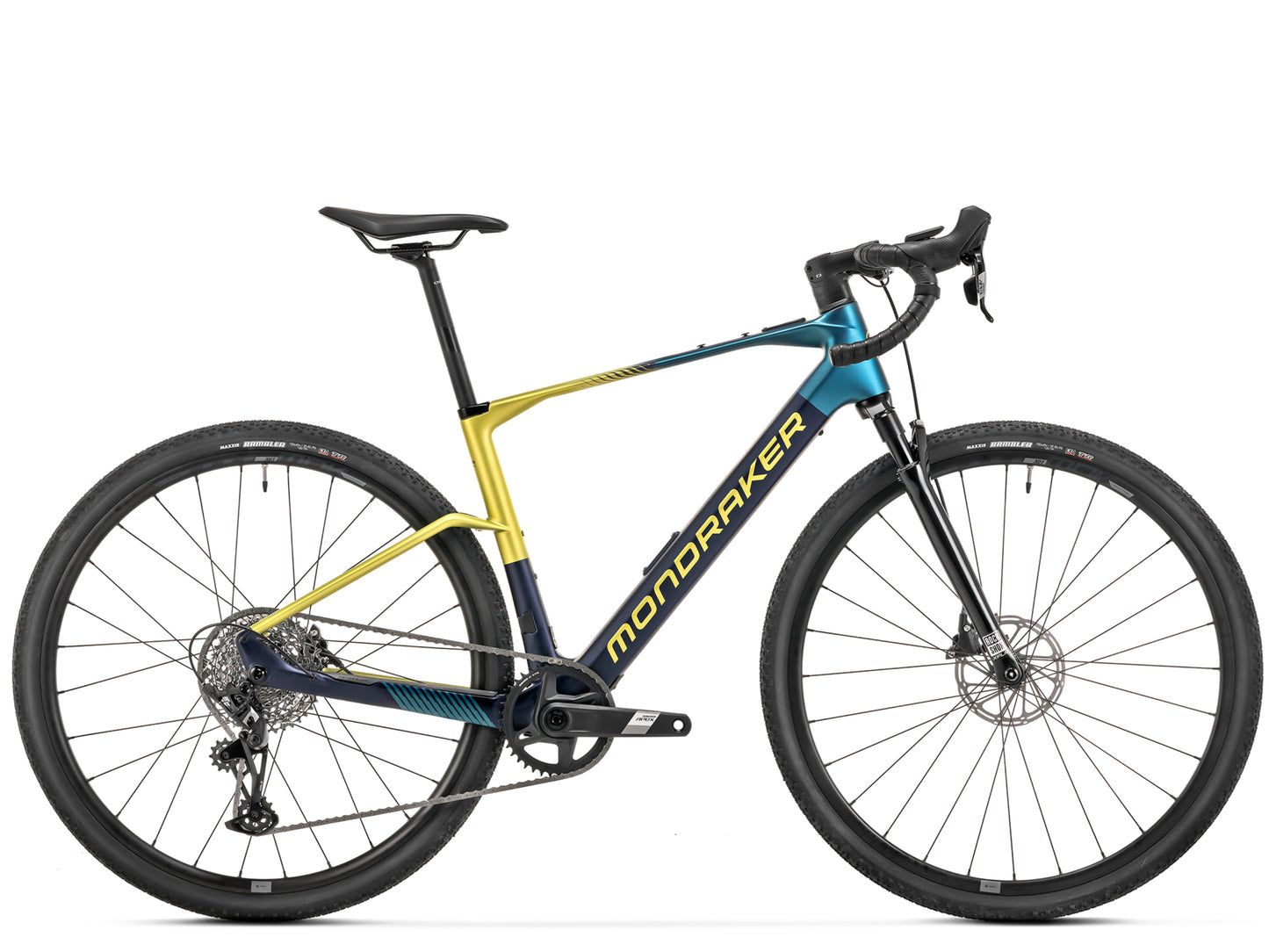

Mondraker Dusty R
Mondraker Dusty R
Regular price
$5,399.00
Sale price
$5,399.00
Regular price
Unit price
per
Shipping calculated at checkout.
The Full Scoop on Mondraker Dusty R
The Mondraker Dusty's origins are based on fun, going further and pedalling over technical terrain. You can expect complete versatility with the Mondraker Dusty.
*Components are subject to manufacturer changes.
| Motor | Mahle X20 Drive Unit |
| Battery | Mahle X20 IX350Wh (Optional external battery: Mahle e185Wh) |
| Display | Pulsar One Wireless / e-shifters |
| Charger | Spec not provided |
| Frame | e-Gravel Stealth Air Carbon, pressfit 386 EVO bottom bracket, tapered head tube, HHG internal cable routing, integrated internal non-removable battery, 12x142mm rear axle, 1X or 2X drivetrain design, Flatmount brake compatible, integrated dropout speed sensor. |
| Fork | (2025) RockShox Rudy Base, 40mm travel, 12x100mm maxle stealth, 45mm offset (2024) Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork |
| Rear Shock | Not applicable |
| Front Brake | SRAM Apex 1, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Rear Brake | Sram Apex, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Rear Derailleur | Sram Apex XPLR 12s |
| Shift Levers | Sram Apex D1 12s, X-Actuation 1:1, single click |
| Chain | SRAM Apex, 12s, Powerlock |
| Cassette | Sram PG-1231 11-44, 12s |
| Crankset | SRAM Apex 1 Wide, S: 170mm, M: 172,5mm, L: 172,5mm, XL: 175mm |
| Chain Ring | Sram X-Sync Eagle 40T direct mount, alloy, narrow-wide |
| Chain Guard | Spec not provided |
| Rims | MDK-XG1, 23mm internal width, tubeless ready, 28 spokes |
| Front Hub | Novatec D041, Boost 12x100mm, sealed bearings, IS 6 bolts |
| Rear Hub | Mahle X20 Drive Unit, HG freehub |
| Front Tire | Maxxis Rambler 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead |
| Rear Tire | Maxxis Rambler 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead |
| Handlebars | OnOff gravel 16º bar flare. Width sizes S size: 440mm M size: 440mm L size: 460mm XL size: 460mm |
| Stem | OnOff e-gravel 6061 T6 Alloy, 31.8mm barbore, rise: -7º, length: S size: 60mm, M size: 70mm L size: 80mm, XL size: 90mm |
| Headset | OnOff e-gravel tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º |
| Grips | Barium gravel dark grey |
| Saddle | FIZIK Terra Argo X7 150mm |
| Seatpost | OnOff Barium gravel microadjust diameter 27.2mm, length 400mm |
| Pedals | Not applicable |
| Front Light | Not applicable |
| Rear Light | Not applicable |
| Kickstand | Not applicable |
| Rear Carrier | Not applicable |
| Fenders | Not applicable |
| Bell | Not applicable |
| Lock | Not applicable |
| Mirror | Not applicable |
| FRAME SIZE | S | M | L | XL | |
|---|---|---|---|---|---|
| A | Seattube length | 440mm | 460mm | 500mm | 530mm |
| B | Toptube length | 550mm | 570mm | 595mm | 620mm |
| C | Bottom bracket drop | -70mm | -70mm | -70mm | -70mm |
| D | Bottom bracket height | 286mm | 286mm | 286mm | 286mm |
| E | Chainstay length | 425mm | 425mm | 425mm | 425mm |
| F | Seat tube angle | 74° | 74° | 74° | 74° |
| G | Effective seattube angle | 74° | 74° | 74° | 74° |
| H | Headtube angle | 70° | 70° | 70° | 70° |
| I | Fork Offset | 45mm | 45mm | 45mm | 45mm |
| J | Wheelbase | 1034mm | 1056mm | 1082mm | 1110mm |
| K | Headtube length | 125mm | 150mm | 175mm | 210mm |
| L | Reach | 393mm | 405mm | 424mm | 440mm |
| M | Stack | 548mm | 576mm | 595mm | 628mm |
The Full Scoop on Mondraker Dusty R
The Mondraker Dusty's origins are based on fun, going further and pedalling over technical terrain. You can expect complete versatility with the Mondraker Dusty.
*Components are subject to manufacturer changes.
Motor System
| Motor | Mahle X20 Drive Unit |
| Battery | Mahle X20 IX350Wh (Optional external battery: Mahle e185Wh) |
| Display | Pulsar One Wireless / e-shifters |
| Charger | Spec not provided |
Components
| Frame | e-Gravel Stealth Air Carbon, pressfit 386 EVO bottom bracket, tapered head tube, HHG internal cable routing, integrated internal non-removable battery, 12x142mm rear axle, 1X or 2X drivetrain design, Flatmount brake compatible, integrated dropout speed sensor. |
| Fork | (2025) RockShox Rudy Base, 40mm travel, 12x100mm maxle stealth, 45mm offset (2024) Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork |
| Rear Shock | Not applicable |
| Front Brake | SRAM Apex 1, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Rear Brake | Sram Apex, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Rear Derailleur | Sram Apex XPLR 12s |
| Shift Levers | Sram Apex D1 12s, X-Actuation 1:1, single click |
| Chain | SRAM Apex, 12s, Powerlock |
| Cassette | Sram PG-1231 11-44, 12s |
| Crankset | SRAM Apex 1 Wide, S: 170mm, M: 172,5mm, L: 172,5mm, XL: 175mm |
| Chain Ring | Sram X-Sync Eagle 40T direct mount, alloy, narrow-wide |
| Chain Guard | Spec not provided |
| Rims | MDK-XG1, 23mm internal width, tubeless ready, 28 spokes |
| Front Hub | Novatec D041, Boost 12x100mm, sealed bearings, IS 6 bolts |
| Rear Hub | Mahle X20 Drive Unit, HG freehub |
| Front Tire | Maxxis Rambler 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead |
| Rear Tire | Maxxis Rambler 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead |
| Handlebars | OnOff gravel 16º bar flare. Width sizes S size: 440mm M size: 440mm L size: 460mm XL size: 460mm |
| Stem | OnOff e-gravel 6061 T6 Alloy, 31.8mm barbore, rise: -7º, length: S size: 60mm, M size: 70mm L size: 80mm, XL size: 90mm |
| Headset | OnOff e-gravel tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º |
| Grips | Barium gravel dark grey |
| Saddle | FIZIK Terra Argo X7 150mm |
| Seatpost | OnOff Barium gravel microadjust diameter 27.2mm, length 400mm |
Extras
| Pedals | Not applicable |
| Front Light | Not applicable |
| Rear Light | Not applicable |
| Kickstand | Not applicable |
| Rear Carrier | Not applicable |
| Fenders | Not applicable |
| Bell | Not applicable |
| Lock | Not applicable |
| Mirror | Not applicable |

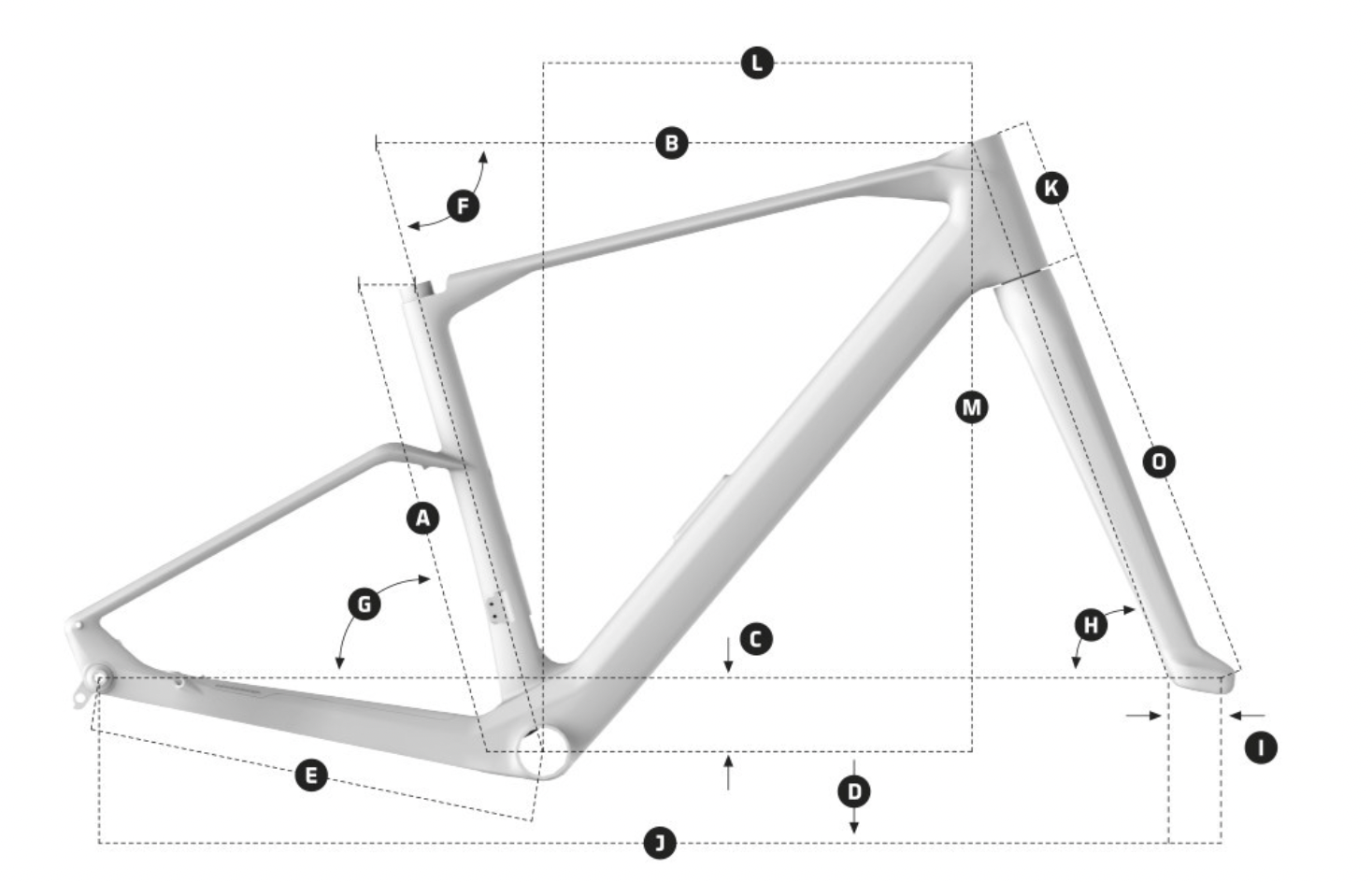

Geometry
| FRAME SIZE | S | M | L | XL | |
|---|---|---|---|---|---|
| A | Seattube length | 440mm | 460mm | 500mm | 530mm |
| B | Toptube length | 550mm | 570mm | 595mm | 620mm |
| C | Bottom bracket drop | -70mm | -70mm | -70mm | -70mm |
| D | Bottom bracket height | 286mm | 286mm | 286mm | 286mm |
| E | Chainstay length | 425mm | 425mm | 425mm | 425mm |
| F | Seat tube angle | 74° | 74° | 74° | 74° |
| G | Effective seattube angle | 74° | 74° | 74° | 74° |
| H | Headtube angle | 70° | 70° | 70° | 70° |
| I | Fork Offset | 45mm | 45mm | 45mm | 45mm |
| J | Wheelbase | 1034mm | 1056mm | 1082mm | 1110mm |
| K | Headtube length | 125mm | 150mm | 175mm | 210mm |
| L | Reach | 393mm | 405mm | 424mm | 440mm |
| M | Stack | 548mm | 576mm | 595mm | 628mm |
