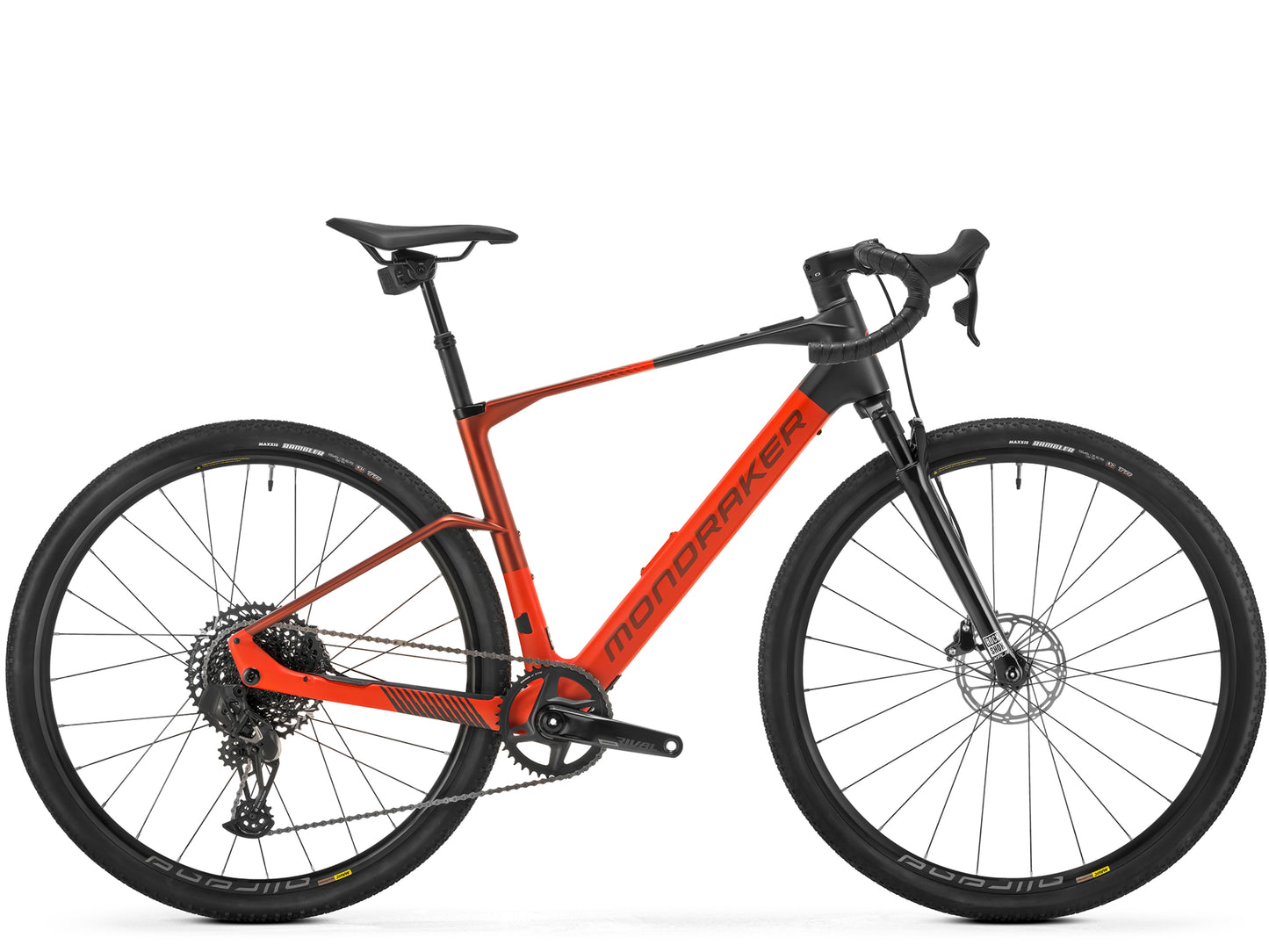

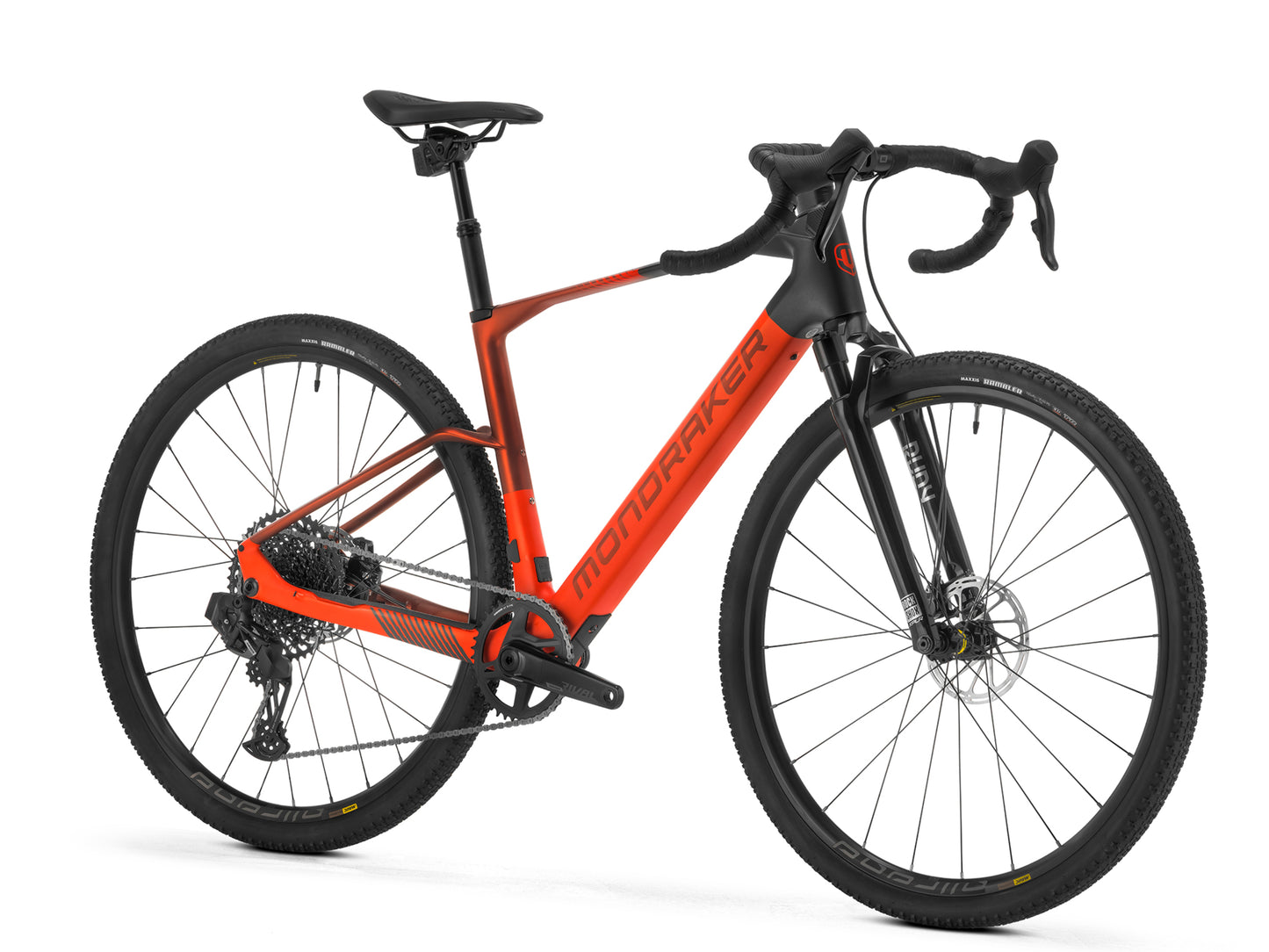

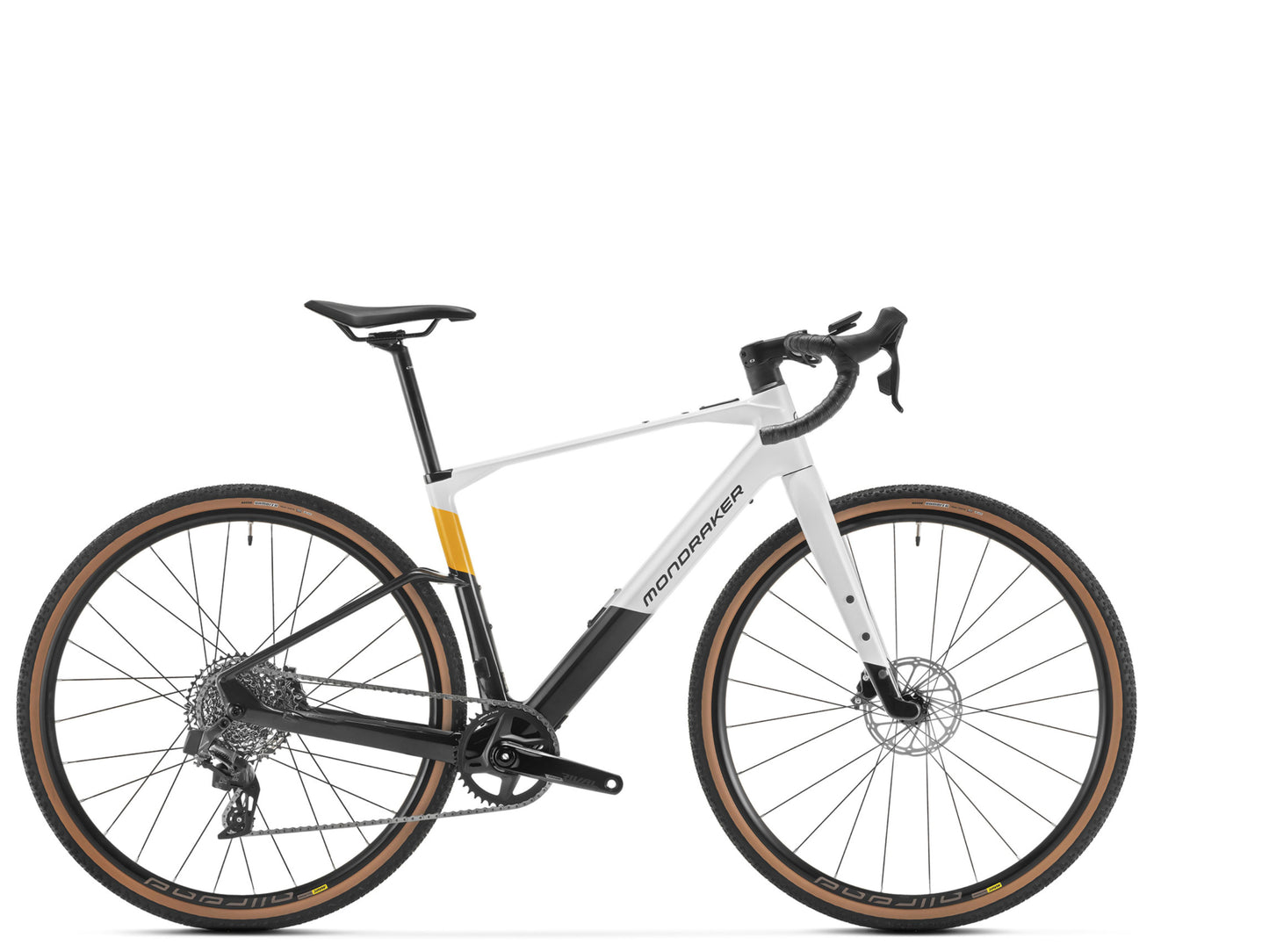

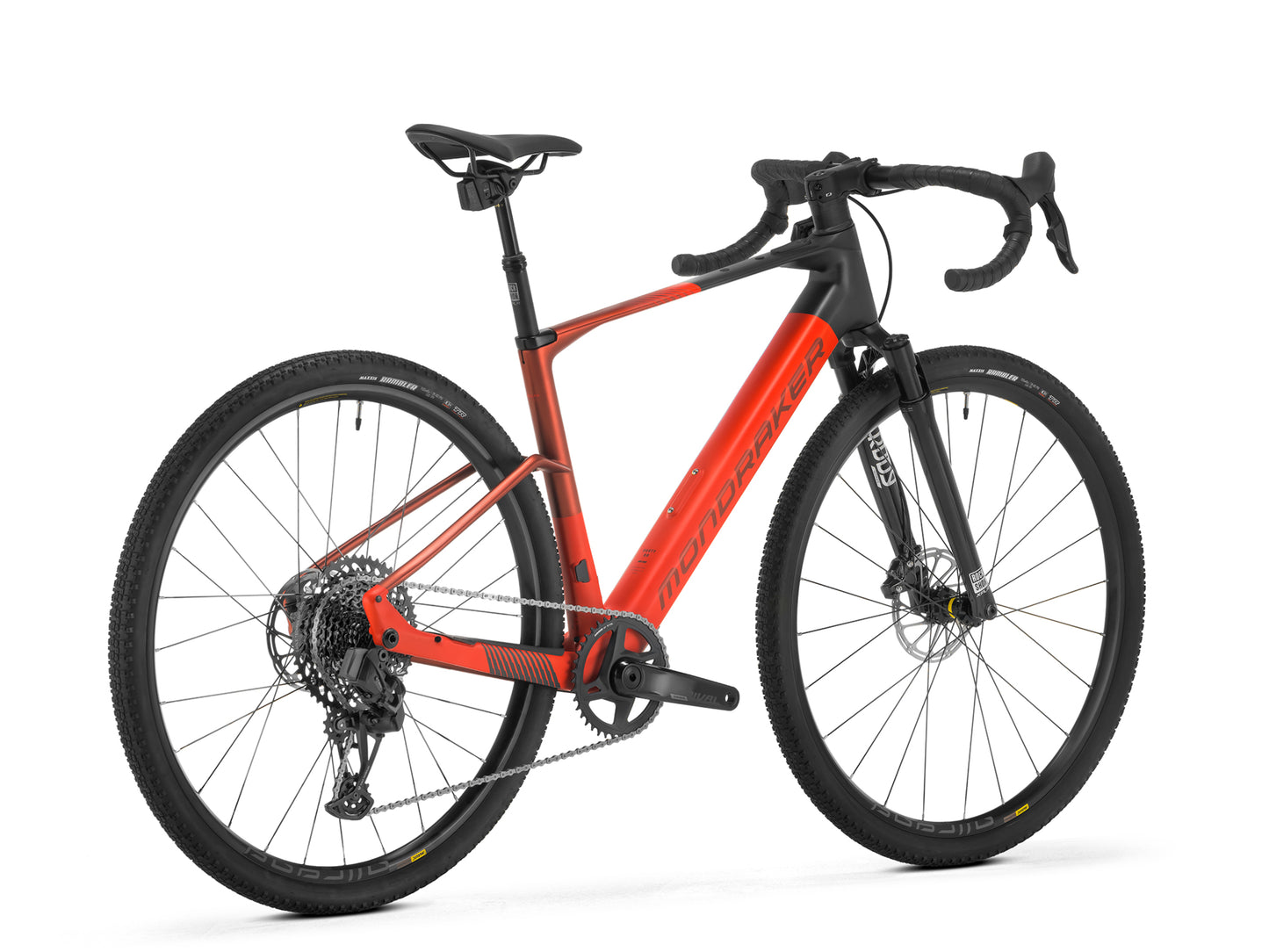

Mondraker Dusty RR
Mondraker Dusty RR
Regular price
$5,999.00
Sale price
$5,999.00
Regular price
Unit price
per
Couldn't load pickup availability
*Note: We will always give you a call before preparing your order! We'll confirm you picked the right size and see if you need any accessories.
The Full Scoop on Mondraker Dusty RR
The Mondraker Dusty's origins are based on fun, going further and pedalling over technical terrain. You can expect complete versatility with the Mondraker Dusty.
*Components are subject to manufacture change.
| Motor | Mahle X20 Drive Unit |
| Battery | Mahle X20 IX350Wh (Optional external battery: Mahle e185Wh) |
| Display | Pulsar One Wireless |
| Charger | Spec not provided |
| Frame | e-Gravel Stealth Air Carbon, pressfit 386 EVO bottom bracket, tapered head tube, HHG internal cable routing, integrated internal non-removable battery, 12x142mm rear axle, 1X or 2X drivetrain design, Flatmount brake compatible, integrated dropout speed sensor. |
| Fork | Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork |
| Rear Shock | Not applicable |
| Front Brake | SRAM Rival Etap AXS 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Rear Brake | Sram Rival Etap AXS, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Rear Derailleur | Sram Rival XPLR Etap AXS 12s |
| Shift Levers | Sram Rival Etap AXS 12s, X-Actuation 1:1, single click |
| Chain | SRAM Rival, 12s, Powerlock |
| Cassette | Sram XG-1251 10-44T, 12s |
| Crankset | SRAM Rival 1 GLS Wide, S: 170mm, M: 172,5mm, L: 172,5mm, XL: 175mm |
| Chain Ring | Sram X-Sync Eagle 40T direct mount, alloy, narrow-wide |
| Chain Guard | Spec not provided |
| Rims | Mavic Allroad Disc, UST, 22mm internal width, hookless, infinity hubs, 24 spokes front, 28 spokers rear |
| Front Hub | Mavic, 12x100mm, IS 6 bolts |
| Rear Hub | Mahle X20 Drive Unit, XDR freehub |
| Front Tire | Maxxis Rambler 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead |
| Rear Tire | Maxxis Rambler 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead |
| Handlebars | OnOff gravel 16º bar flare. Width sizes S size: 440mm M size: 440mm L size: 460mm XL size: 460mm |
| Stem | OnOff e-gravel 6061 T6 Alloy, 31.8mm barbore, rise: -7º, length: S size: 60mm, M size: 70mm L size: 80mm, XL size: 90mm |
| Headset | OnOff e-gravel tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º |
| Grips | Barium gravel dark grey |
| Saddle | FIZIK Terra Argo X7 150mm |
| Seatpost | OnOff Barium gravel microadjust diameter 27.2mm, length 400mm |
| Pedals | Not applicable |
| Front Light | Not applicable |
| Rear Light | Not applicable |
| Kickstand | Not applicable |
| Rear Carrier | Not applicable |
| Fenders | Not applicable |
| Bell | Not applicable |
| Lock | Not applicable |
| Mirror | Not applicable |
| FRAME SIZE | S | M | L | XL | |
|---|---|---|---|---|---|
| A | Seattube length | 440mm | 460mm | 500mm | 530mm |
| B | Toptube length | 550mm | 570mm | 595mm | 620mm |
| C | Bottom bracket drop | -70mm | -70mm | -70mm | -70mm |
| D | Bottom bracket height | 286mm | 286mm | 286mm | 286mm |
| E | Chainstay length | 425mm | 425mm | 425mm | 425mm |
| F | Seat tube angle | 74° | 74° | 74° | 74° |
| G | Effective seattube angle | 74° | 74° | 74° | 74° |
| H | Headtube angle | 70° | 70° | 70° | 70° |
| I | Fork Offset | 45mm | 45mm | 45mm | 45mm |
| J | Wheelbase | 1034mm | 1056mm | 1082mm | 1110mm |
| K | Headtube length | 125mm | 150mm | 175mm | 210mm |
| L | Reach | 393mm | 405mm | 424mm | 440mm |
| M | Stack | 548mm | 576mm | 595mm | 628mm |
The Full Scoop on Mondraker Dusty RR
Description
The Mondraker Dusty's origins are based on fun, going further and pedalling over technical terrain. You can expect complete versatility with the Mondraker Dusty.
*Components are subject to manufacture change.
Motor System
| Motor | Mahle X20 Drive Unit |
| Battery | Mahle X20 IX350Wh (Optional external battery: Mahle e185Wh) |
| Display | Pulsar One Wireless |
| Charger | Spec not provided |
Components
| Frame | e-Gravel Stealth Air Carbon, pressfit 386 EVO bottom bracket, tapered head tube, HHG internal cable routing, integrated internal non-removable battery, 12x142mm rear axle, 1X or 2X drivetrain design, Flatmount brake compatible, integrated dropout speed sensor. |
| Fork | Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork |
| Rear Shock | Not applicable |
| Front Brake | SRAM Rival Etap AXS 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Rear Brake | Sram Rival Etap AXS, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Rear Derailleur | Sram Rival XPLR Etap AXS 12s |
| Shift Levers | Sram Rival Etap AXS 12s, X-Actuation 1:1, single click |
| Chain | SRAM Rival, 12s, Powerlock |
| Cassette | Sram XG-1251 10-44T, 12s |
| Crankset | SRAM Rival 1 GLS Wide, S: 170mm, M: 172,5mm, L: 172,5mm, XL: 175mm |
| Chain Ring | Sram X-Sync Eagle 40T direct mount, alloy, narrow-wide |
| Chain Guard | Spec not provided |
| Rims | Mavic Allroad Disc, UST, 22mm internal width, hookless, infinity hubs, 24 spokes front, 28 spokers rear |
| Front Hub | Mavic, 12x100mm, IS 6 bolts |
| Rear Hub | Mahle X20 Drive Unit, XDR freehub |
| Front Tire | Maxxis Rambler 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead |
| Rear Tire | Maxxis Rambler 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead |
| Handlebars | OnOff gravel 16º bar flare. Width sizes S size: 440mm M size: 440mm L size: 460mm XL size: 460mm |
| Stem | OnOff e-gravel 6061 T6 Alloy, 31.8mm barbore, rise: -7º, length: S size: 60mm, M size: 70mm L size: 80mm, XL size: 90mm |
| Headset | OnOff e-gravel tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º |
| Grips | Barium gravel dark grey |
| Saddle | FIZIK Terra Argo X7 150mm |
| Seatpost | OnOff Barium gravel microadjust diameter 27.2mm, length 400mm |
Extras
| Pedals | Not applicable |
| Front Light | Not applicable |
| Rear Light | Not applicable |
| Kickstand | Not applicable |
| Rear Carrier | Not applicable |
| Fenders | Not applicable |
| Bell | Not applicable |
| Lock | Not applicable |
| Mirror | Not applicable |
Geometry
| FRAME SIZE | S | M | L | XL | |
|---|---|---|---|---|---|
| A | Seattube length | 440mm | 460mm | 500mm | 530mm |
| B | Toptube length | 550mm | 570mm | 595mm | 620mm |
| C | Bottom bracket drop | -70mm | -70mm | -70mm | -70mm |
| D | Bottom bracket height | 286mm | 286mm | 286mm | 286mm |
| E | Chainstay length | 425mm | 425mm | 425mm | 425mm |
| F | Seat tube angle | 74° | 74° | 74° | 74° |
| G | Effective seattube angle | 74° | 74° | 74° | 74° |
| H | Headtube angle | 70° | 70° | 70° | 70° |
| I | Fork Offset | 45mm | 45mm | 45mm | 45mm |
| J | Wheelbase | 1034mm | 1056mm | 1082mm | 1110mm |
| K | Headtube length | 125mm | 150mm | 175mm | 210mm |
| L | Reach | 393mm | 405mm | 424mm | 440mm |
| M | Stack | 548mm | 576mm | 595mm | 628mm |
