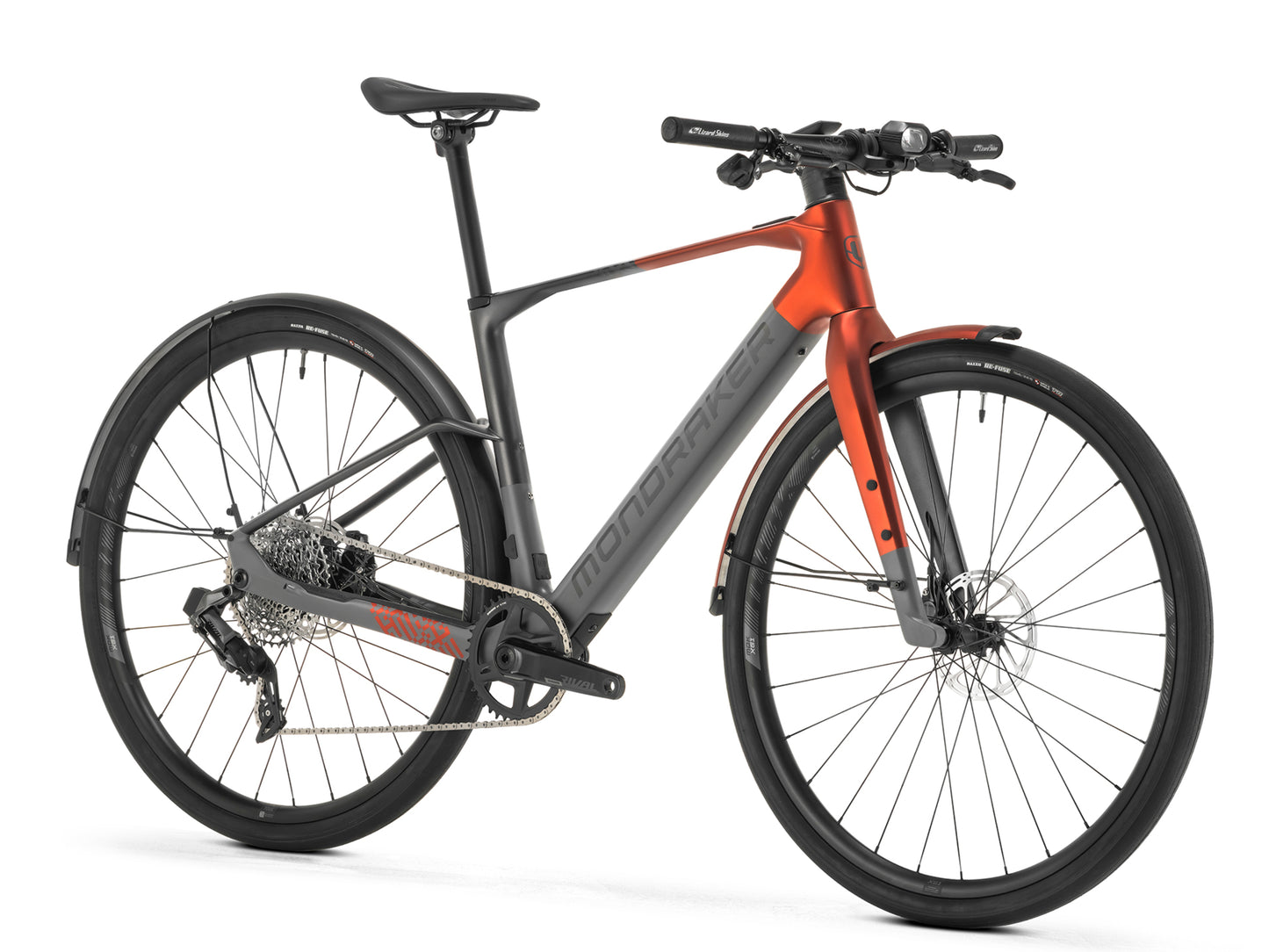

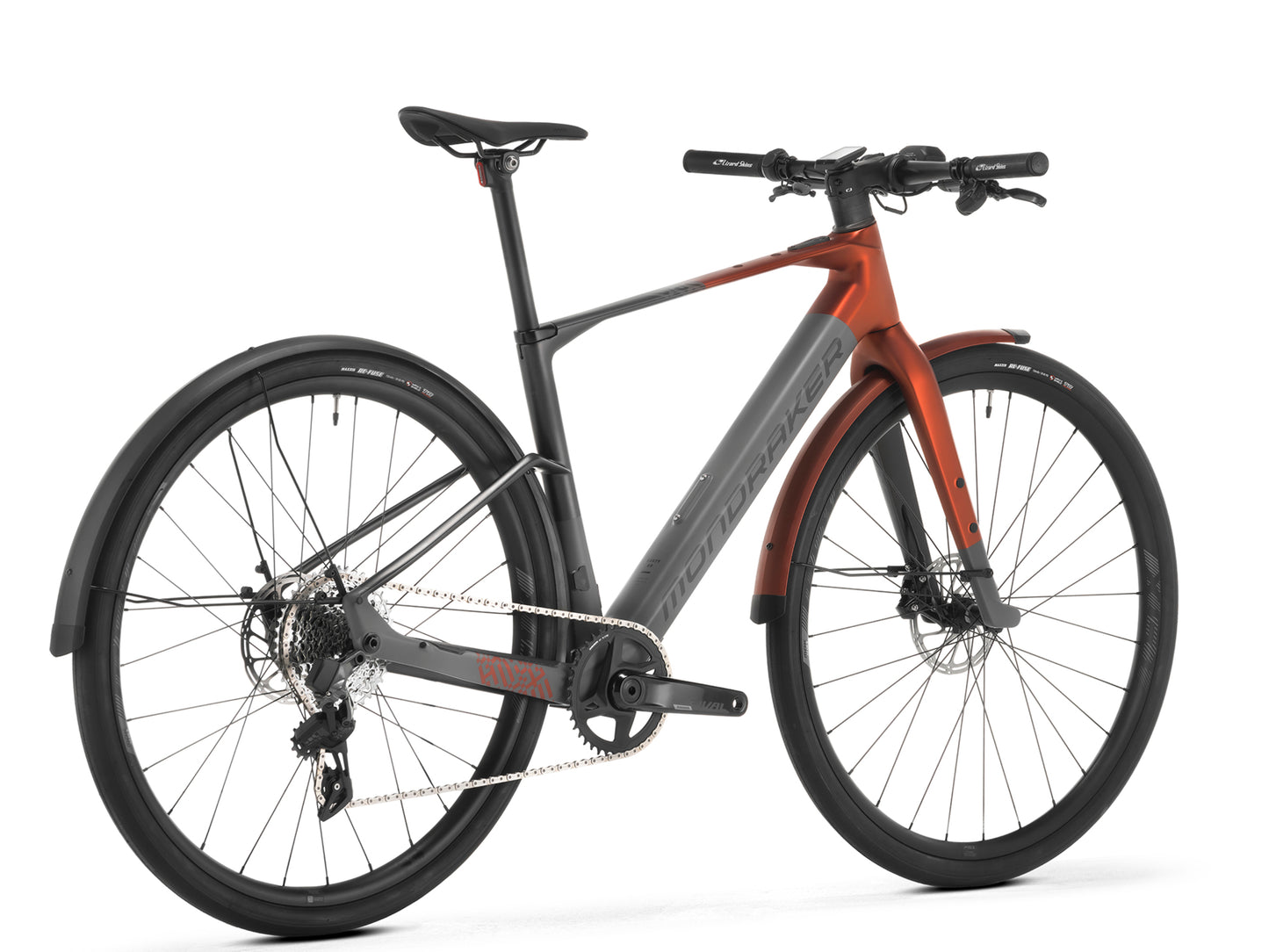

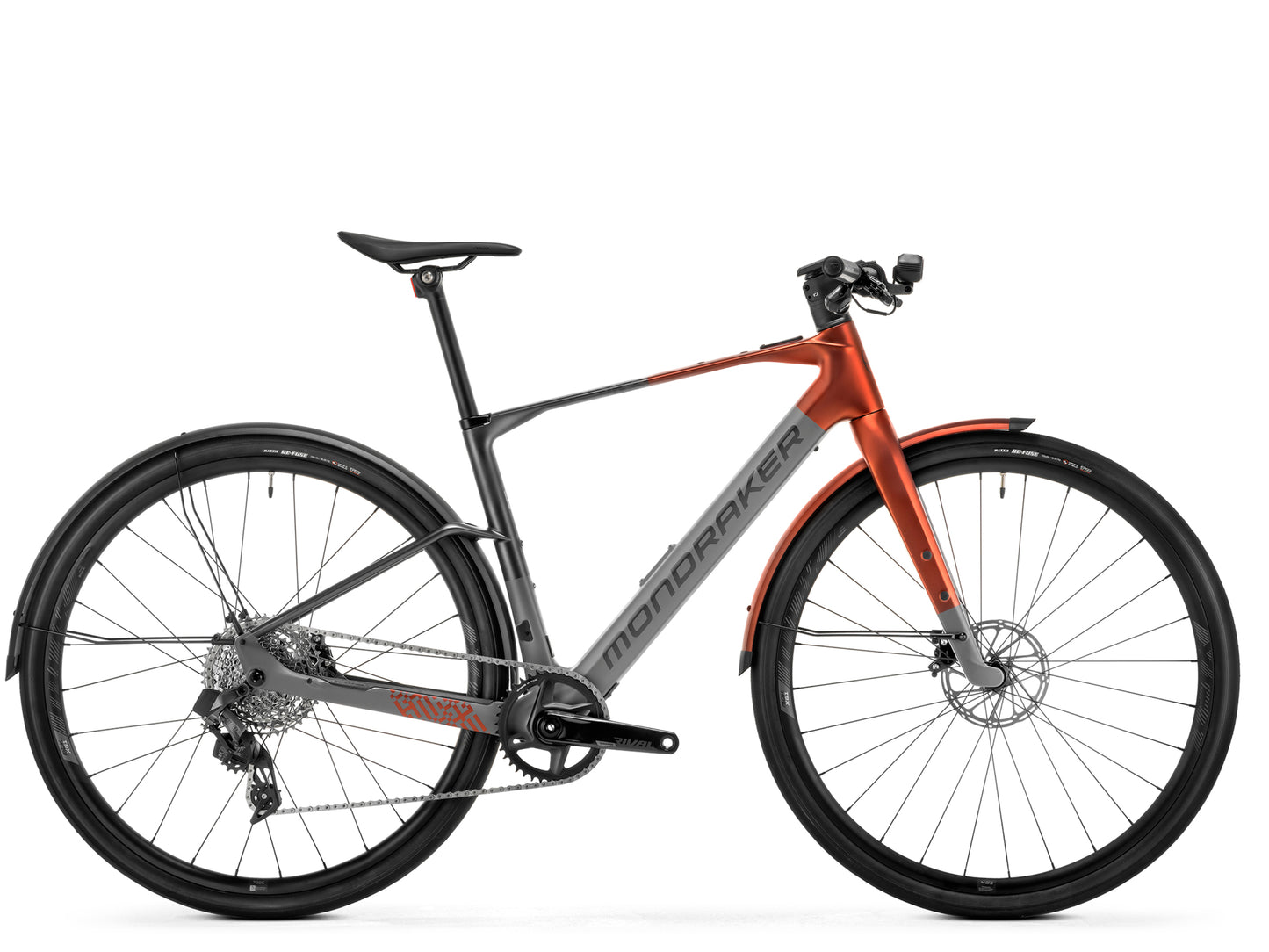

Mondraker Dusty RX
Mondraker Dusty RX
Regular price
$5,999.00
Sale price
$5,999.00
Regular price
Unit price
per
Couldn't load pickup availability
The Full Scoop on Mondraker Dusty RX
The Mondraker Dusty's origins are based on fun, going further and pedalling over technical terrain. You can expect complete versatility with the Mondraker Dusty.
*Components are subject to manufacturer changes.
| Motor | Mahle X20 Drive Unit |
| Battery | Mahle X20 IX350Wh (Optional external battery: Mahle e185Wh) |
| Display | Pulsar One Wireless |
| Charger | Spec not provided |
| Frame | Dusty Stealth Air Carbon, pressfit 386 EVO bottom bracket, tapered head tube, HHG internal cable routing, integrated internal non-removable battery, 12x142mm rear axle, 1X or 2X drivetrain design, Flatmount brake compatible, integrated dropout speed sensor. |
| Fork | Stealth Air Carbon tapered steerer tube, HHG, flat mount integrated fork |
| Rear Shock | Not applicable |
| Front Brake | Sram Level Silver 2P Stealth, 2 piece flatmount caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Rear Brake | Sram Level Silver 2P Stealth, 2 piece flatmount caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Rear Derailleur | Sram Rival XPLR Etap AXS 12s |
| Shift Levers | Sram Rival Etap AXS 12s, X-Actuation 1:1, single click |
| Chain | SRAM Rival, 12s, Powerlock |
| Cassette | Sram XG-1251 10-44T, 12s |
| Crankset | SRAM Rival 1 GLS Wide, S: 170mm, M: 172,5mm, L: 172,5mm, XL: 175mm |
| Chain Ring | Sram X-Sync Eagle 40T direct mount, alloy, narrow-wide |
| Chain Guard | Spec not provided |
| Rims | MDK-XG1, 25mm internal width, tubeless ready, 28 spokes |
| Front Hub | MDK-XG1, 25mm internal width, tubeless ready, 28 spokes |
| Rear Hub | Mahle X20 Drive Unit, XDR freehub |
| Front Tire | Maxxis Re-fuse 700x40, tubeless ready, dual compound, MaxxShield EXO protection, 60 TPI, folding bead |
| Rear Tire | Maxxis Re-fuse 700x40, tubeless ready, dual compound, MaxxShield EXO protection, 60 TPI, folding bead |
| Handlebars | MDK Urban 1.0 double butted 6061 alloy, rise: 0mm, width: 640mm, 9º backsweep, 0º upsweep, 31.8mm barbore |
| Stem | OnOff e-gravel 6061 T6 Alloy, 31.8mm barbore, rise: -7º, length: S size: 60mm, M size: 70mm L size: 80mm, XL size: 90mm |
| Headset | OnOff e-gravel tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º |
| Grips | Lizard Skins DSP 30.3 |
| Saddle | Selle Royal Prestige 139mm |
| Seatpost | Seatpost with integrated Supernova led rear light, diameter 27.2mm, length 400mm |
| Pedals | Not applicable |
| Front Light | Not applicable |
| Rear Light | Not applicable |
| Kickstand | Not applicable |
| Rear Carrier | Not applicable |
| Fenders | Not applicable |
| Bell | Not applicable |
| Lock | Not applicable |
| Mirror | Not applicable |
| FRAME SIZE | S | M | L | XL | |
|---|---|---|---|---|---|
| A | Seattube length | 440mm | 460mm | 500mm | 530mm |
| B | Toptube length | 550mm | 570mm | 595mm | 620mm |
| C | Bottom bracket drop | -70mm | -70mm | -70mm | -70mm |
| D | Bottom bracket height | 286mm | 286mm | 286mm | 286mm |
| E | Chainstay length | 425mm | 425mm | 425mm | 425mm |
| F | Seat tube angle | 74° | 74° | 74° | 74° |
| G | Effective seattube angle | 74° | 74° | 74° | 74° |
| H | Headtube angle | 70° | 70° | 70° | 70° |
| I | Fork Offset | 45mm | 45mm | 45mm | 45mm |
| J | Wheelbase | 1034mm | 1056mm | 1082mm | 1110mm |
| K | Headtube length | 125mm | 150mm | 175mm | 210mm |
| L | Reach | 393mm | 405mm | 424mm | 440mm |
| M | Stack | 548mm | 576mm | 595mm | 628mm |
The Full Scoop on Mondraker Dusty RX
The Mondraker Dusty's origins are based on fun, going further and pedalling over technical terrain. You can expect complete versatility with the Mondraker Dusty.
*Components are subject to manufacturer changes.
Motor System
| Motor | Mahle X20 Drive Unit |
| Battery | Mahle X20 IX350Wh (Optional external battery: Mahle e185Wh) |
| Display | Pulsar One Wireless |
| Charger | Spec not provided |
Components
| Frame | Dusty Stealth Air Carbon, pressfit 386 EVO bottom bracket, tapered head tube, HHG internal cable routing, integrated internal non-removable battery, 12x142mm rear axle, 1X or 2X drivetrain design, Flatmount brake compatible, integrated dropout speed sensor. |
| Fork | Stealth Air Carbon tapered steerer tube, HHG, flat mount integrated fork |
| Rear Shock | Not applicable |
| Front Brake | Sram Level Silver 2P Stealth, 2 piece flatmount caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Rear Brake | Sram Level Silver 2P Stealth, 2 piece flatmount caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Rear Derailleur | Sram Rival XPLR Etap AXS 12s |
| Shift Levers | Sram Rival Etap AXS 12s, X-Actuation 1:1, single click |
| Chain | SRAM Rival, 12s, Powerlock |
| Cassette | Sram XG-1251 10-44T, 12s |
| Crankset | SRAM Rival 1 GLS Wide, S: 170mm, M: 172,5mm, L: 172,5mm, XL: 175mm |
| Chain Ring | Sram X-Sync Eagle 40T direct mount, alloy, narrow-wide |
| Chain Guard | Spec not provided |
| Rims | MDK-XG1, 25mm internal width, tubeless ready, 28 spokes |
| Front Hub | MDK-XG1, 25mm internal width, tubeless ready, 28 spokes |
| Rear Hub | Mahle X20 Drive Unit, XDR freehub |
| Front Tire | Maxxis Re-fuse 700x40, tubeless ready, dual compound, MaxxShield EXO protection, 60 TPI, folding bead |
| Rear Tire | Maxxis Re-fuse 700x40, tubeless ready, dual compound, MaxxShield EXO protection, 60 TPI, folding bead |
| Handlebars | MDK Urban 1.0 double butted 6061 alloy, rise: 0mm, width: 640mm, 9º backsweep, 0º upsweep, 31.8mm barbore |
| Stem | OnOff e-gravel 6061 T6 Alloy, 31.8mm barbore, rise: -7º, length: S size: 60mm, M size: 70mm L size: 80mm, XL size: 90mm |
| Headset | OnOff e-gravel tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º |
| Grips | Lizard Skins DSP 30.3 |
| Saddle | Selle Royal Prestige 139mm |
| Seatpost | Seatpost with integrated Supernova led rear light, diameter 27.2mm, length 400mm |
Extras
| Pedals | Not applicable |
| Front Light | Not applicable |
| Rear Light | Not applicable |
| Kickstand | Not applicable |
| Rear Carrier | Not applicable |
| Fenders | Not applicable |
| Bell | Not applicable |
| Lock | Not applicable |
| Mirror | Not applicable |
Geometry
| FRAME SIZE | S | M | L | XL | |
|---|---|---|---|---|---|
| A | Seattube length | 440mm | 460mm | 500mm | 530mm |
| B | Toptube length | 550mm | 570mm | 595mm | 620mm |
| C | Bottom bracket drop | -70mm | -70mm | -70mm | -70mm |
| D | Bottom bracket height | 286mm | 286mm | 286mm | 286mm |
| E | Chainstay length | 425mm | 425mm | 425mm | 425mm |
| F | Seat tube angle | 74° | 74° | 74° | 74° |
| G | Effective seattube angle | 74° | 74° | 74° | 74° |
| H | Headtube angle | 70° | 70° | 70° | 70° |
| I | Fork Offset | 45mm | 45mm | 45mm | 45mm |
| J | Wheelbase | 1034mm | 1056mm | 1082mm | 1110mm |
| K | Headtube length | 125mm | 150mm | 175mm | 210mm |
| L | Reach | 393mm | 405mm | 424mm | 440mm |
| M | Stack | 548mm | 576mm | 595mm | 628mm |
