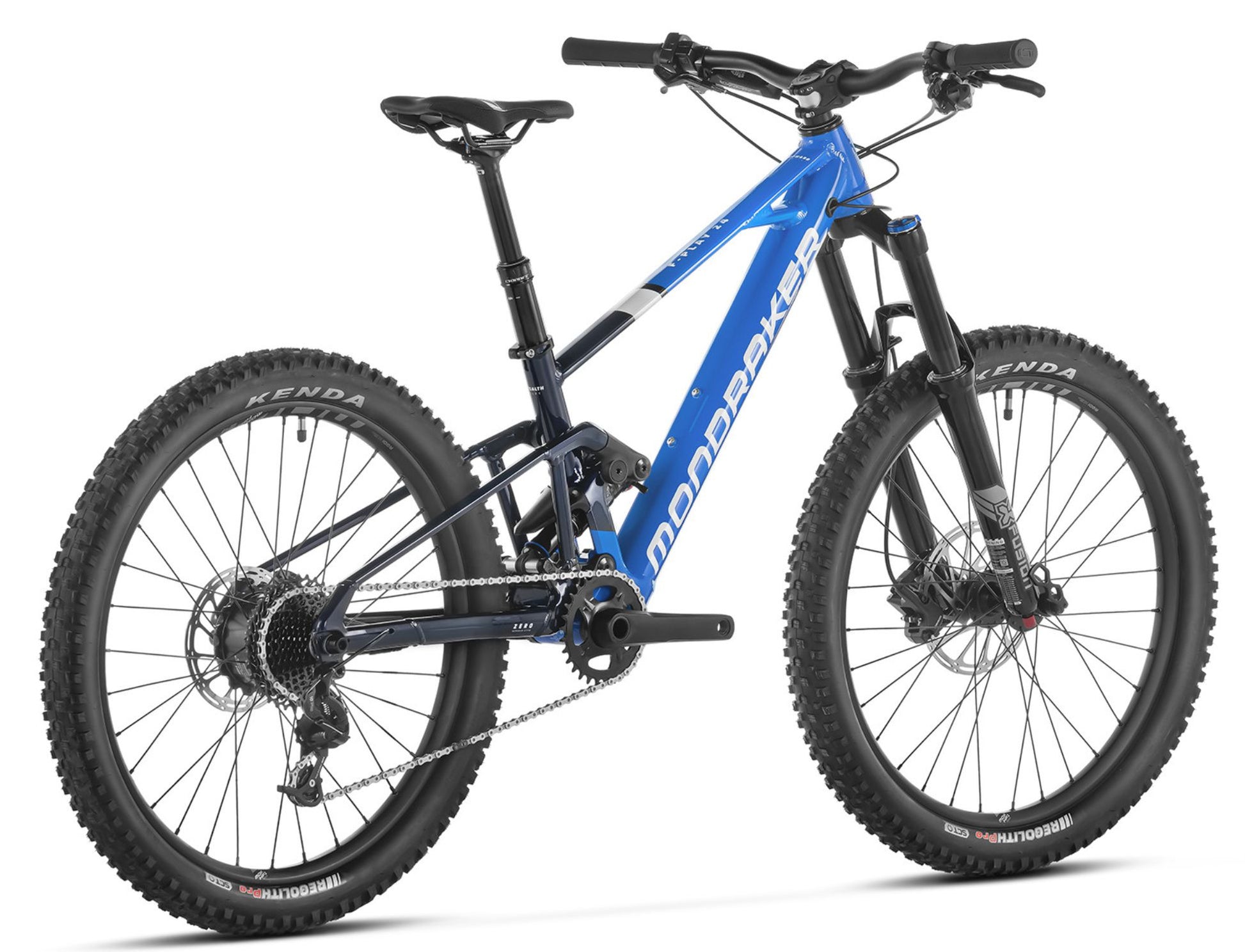

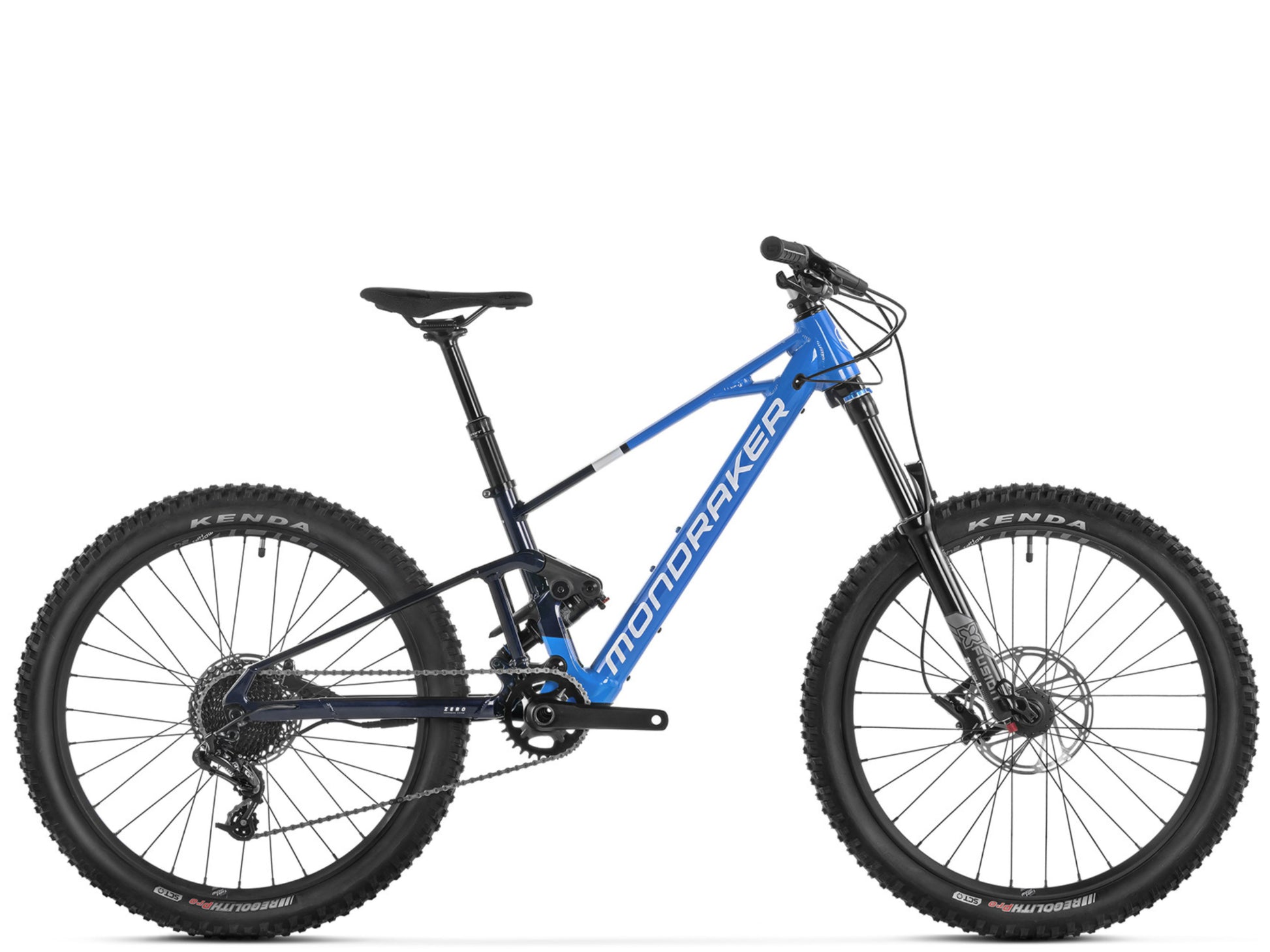

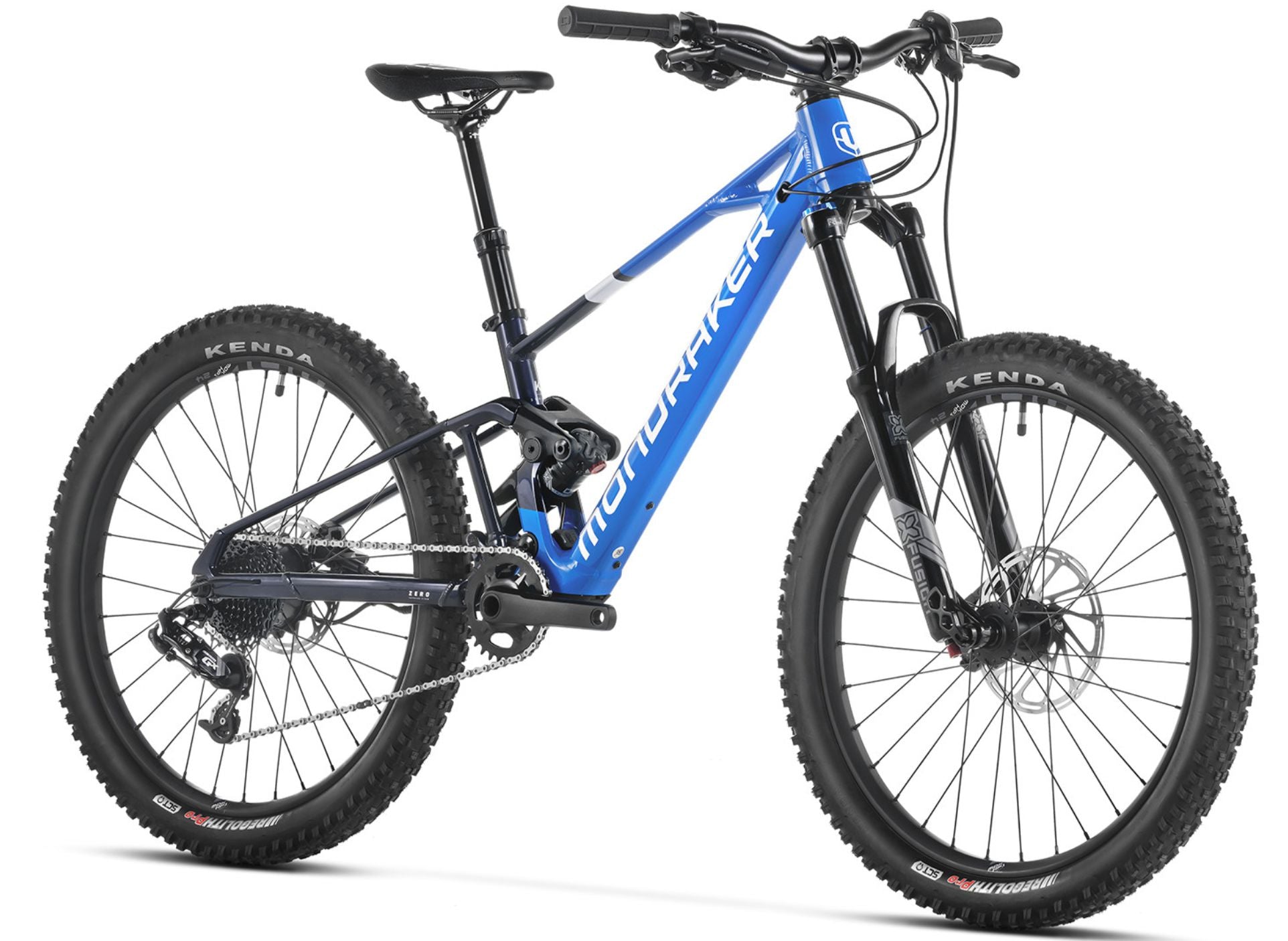

Mondraker F-Play 24
Mondraker F-Play 24
Regular price
$3,299.00
Sale price
$3,299.00
Regular price
Unit price
per
Shipping calculated at checkout.
The Full Scoop on the Mondraker F-Play 24
Family Shred.
Adult bike technology designed in the best kid's bike out there. Happiness, fun and getting started in a sport like mountain biking is what Mondraker eMTB KIDS bikes are all about.
*Components subject to manufacturer changes.
| Motor | Mahle-Ebikemotion X-35 |
| Battery | Mahle-Ebikemotion Internal 250Wh |
| Display | Mahle-Ebikemotion |
| Charger | Spec not provided |
| Frame | F-Play 24 6061 Alloy Stealth evo, hydroformed tubing, Zero Suspension System, 120mm travel, one piece bolt-on upper link, integrated internal non-removable battery, Tapered head tube, HHG internal cable routing, BSA bottom bracket, QR 9mm rear axle, 1x drivetrain compatible |
| Fork | X-Fusion Velvet RL 26, 120mm, air spring, tapered steerer tube, 15x100mm axle, 32mm aluminum stanchions, 41mm offset. Settings: lockout, rebound, air preload |
| Rear Shock | X-Fusion 02PRO R, 165x42.5mm. Settings: low-speed rebound, air preload. Trunnion top, 50x8mm bottom bushings |
| Front Brake | Sram Level, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Rear Brake | Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Rear Derailleur | Sram GX, 10s, short cage, X-actuation 1:1 |
| Shift Levers | Sram trigger GX 10s, X-actuation 1:1 |
| Chain | Sram PC1031 10s, Powerlock |
| Cassette | Sram PG 1020 11-36T, 10s |
| Crankset | Samox DM 30T steel, 152mm |
| Chain Ring | 30T, steel |
| Chain Guard | Spec not provided |
| Rims | MDK-HP1 24 TLR, 25mm internal width, tubeless ready, 32 spokes |
| Front Hub | DA210FS02, 15x100mm, cup & cone ball bearings, IS 6 bolts |
| Rear Hub | Mahle-Ebikemotion X-35, HG freehub |
| Front Tire | Kenda Regolith 24x2.4 120TPI, Folding TLR |
| Rear Tire | Kenda Regolith 24x2.4 120TPI, Folding TLR |
| Handlebars | MDK XC 1.0, 6061 alloy, rise: 25mm, width: 680mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
| Stem | Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| Headset | Acros AZX-239 R1 Block Lock 135°, ZS44/28.6 top, ZS56/40 bottom |
| Grips | Onoff Twin, 1lock-on |
| Saddle | SDG Fly JR |
| Seatpost | Onoff Pija dropper internal, diameter 31.6mm, 100mm |
| Pedals | SDG Slater JR |
| Front Light | Not applicable |
| Rear Light | Not applicable |
| Kickstand | Not applicable |
| Rear Carrier | Not applicable |
| Fenders | Not applicable |
| Bell | Not applicable |
| Lock | Not applicable |
| Mirror | Not applicable |
| FRAME SIZE | 24" | |
|---|---|---|
| A | Seattube length | 320mm |
| B | Toptube length | 525mm |
| C | Bottom bracket drop | -10mm |
| D | Bottom bracket height | 295mm |
| E | Chainstay length | 420mm |
| F | Seat tube angle | 71° |
| G | Effective seattube angle | 76° |
| H | Headtube angle | 67° |
| I | Fork Offset | 39mm |
| J | Wheelbase | 1050mm |
| K | Headtube length | 90mm |
| L | Reach | 375mm |
| M | Stack | 513mm |
The Full Scoop on the Mondraker F-Play 24
Family Shred.
Adult bike technology designed in the best kid's bike out there. Happiness, fun and getting started in a sport like mountain biking is what Mondraker eMTB KIDS bikes are all about.
*Components subject to manufacturer changes.
Motor System
| Motor | Mahle-Ebikemotion X-35 |
| Battery | Mahle-Ebikemotion Internal 250Wh |
| Display | Mahle-Ebikemotion |
| Charger | Spec not provided |
Components
| Frame | F-Play 24 6061 Alloy Stealth evo, hydroformed tubing, Zero Suspension System, 120mm travel, one piece bolt-on upper link, integrated internal non-removable battery, Tapered head tube, HHG internal cable routing, BSA bottom bracket, QR 9mm rear axle, 1x drivetrain compatible |
| Fork | X-Fusion Velvet RL 26, 120mm, air spring, tapered steerer tube, 15x100mm axle, 32mm aluminum stanchions, 41mm offset. Settings: lockout, rebound, air preload |
| Rear Shock | X-Fusion 02PRO R, 165x42.5mm. Settings: low-speed rebound, air preload. Trunnion top, 50x8mm bottom bushings |
| Front Brake | Sram Level, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Rear Brake | Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Rear Derailleur | Sram GX, 10s, short cage, X-actuation 1:1 |
| Shift Levers | Sram trigger GX 10s, X-actuation 1:1 |
| Chain | Sram PC1031 10s, Powerlock |
| Cassette | Sram PG 1020 11-36T, 10s |
| Crankset | Samox DM 30T steel, 152mm |
| Chain Ring | 30T, steel |
| Chain Guard | Spec not provided |
| Rims | MDK-HP1 24 TLR, 25mm internal width, tubeless ready, 32 spokes |
| Front Hub | DA210FS02, 15x100mm, cup & cone ball bearings, IS 6 bolts |
| Rear Hub | Mahle-Ebikemotion X-35, HG freehub |
| Front Tire | Kenda Regolith 24x2.4 120TPI, Folding TLR |
| Rear Tire | Kenda Regolith 24x2.4 120TPI, Folding TLR |
| Handlebars | MDK XC 1.0, 6061 alloy, rise: 25mm, width: 680mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
| Stem | Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| Headset | Acros AZX-239 R1 Block Lock 135°, ZS44/28.6 top, ZS56/40 bottom |
| Grips | Onoff Twin, 1lock-on |
| Saddle | SDG Fly JR |
| Seatpost | Onoff Pija dropper internal, diameter 31.6mm, 100mm |
Extras
| Pedals | SDG Slater JR |
| Front Light | Not applicable |
| Rear Light | Not applicable |
| Kickstand | Not applicable |
| Rear Carrier | Not applicable |
| Fenders | Not applicable |
| Bell | Not applicable |
| Lock | Not applicable |
| Mirror | Not applicable |

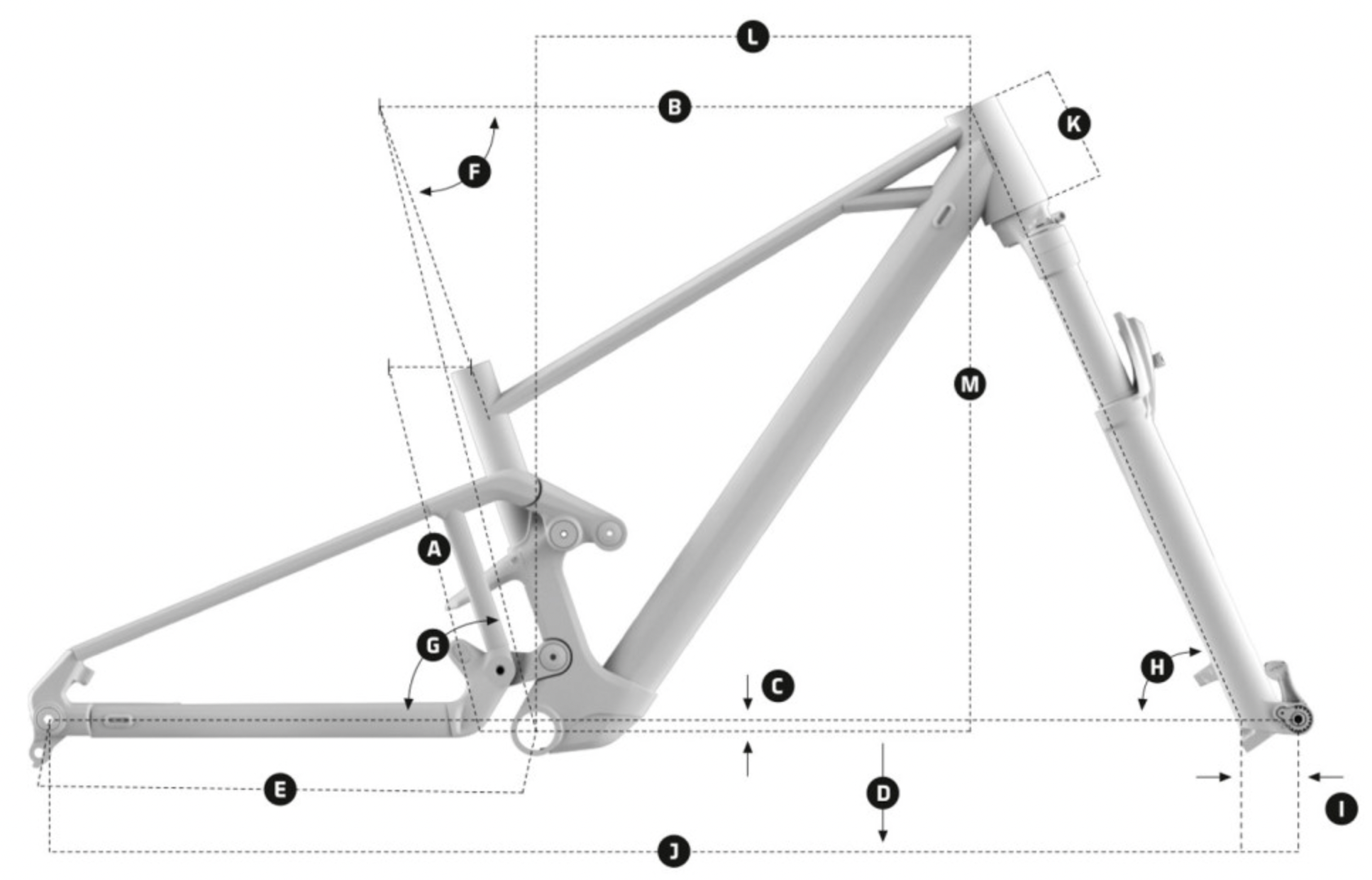

Geometry
| FRAME SIZE | 24" | |
|---|---|---|
| A | Seattube length | 320mm |
| B | Toptube length | 525mm |
| C | Bottom bracket drop | -10mm |
| D | Bottom bracket height | 295mm |
| E | Chainstay length | 420mm |
| F | Seat tube angle | 71° |
| G | Effective seattube angle | 76° |
| H | Headtube angle | 67° |
| I | Fork Offset | 39mm |
| J | Wheelbase | 1050mm |
| K | Headtube length | 90mm |
| L | Reach | 375mm |
| M | Stack | 513mm |
