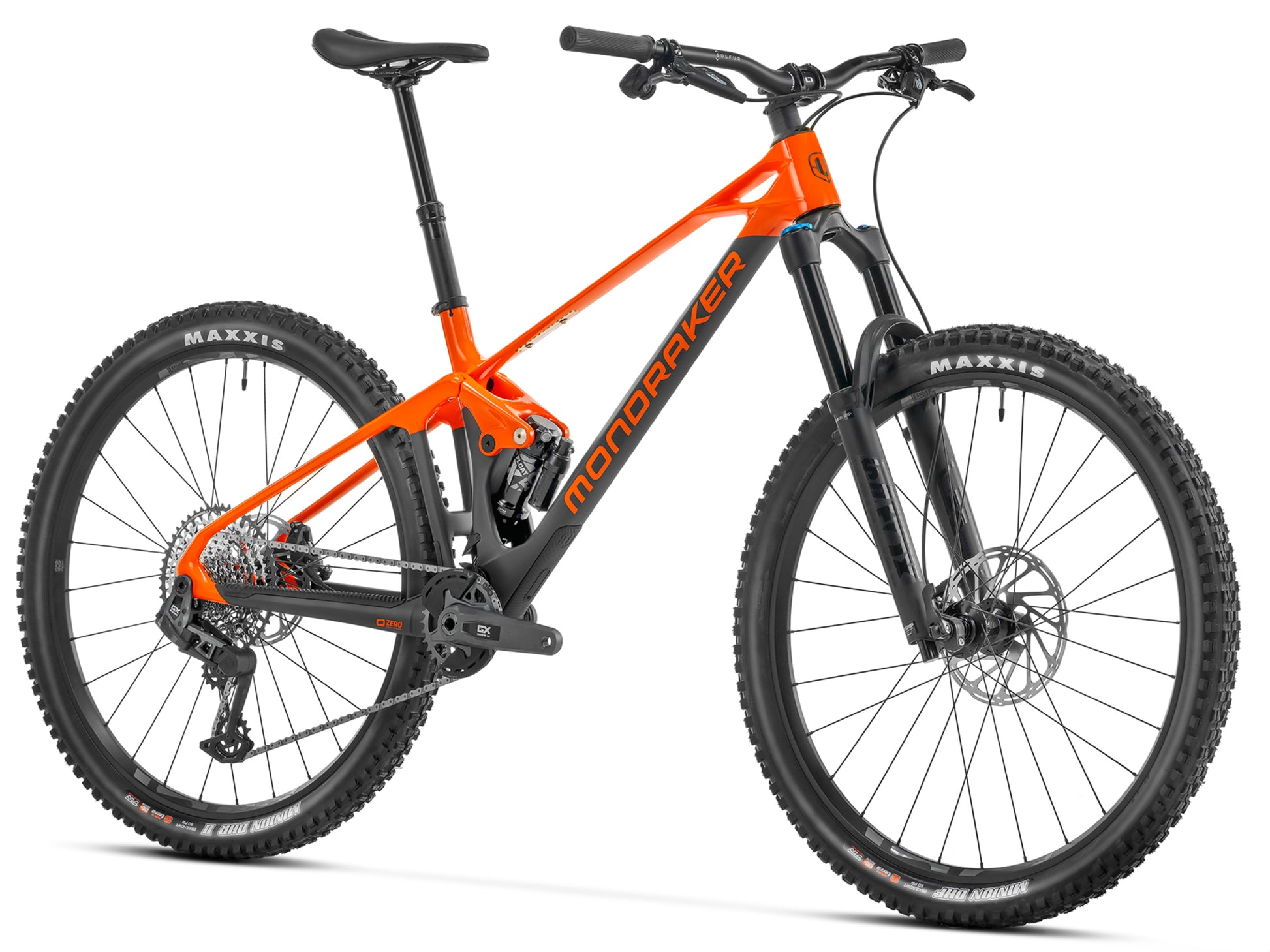

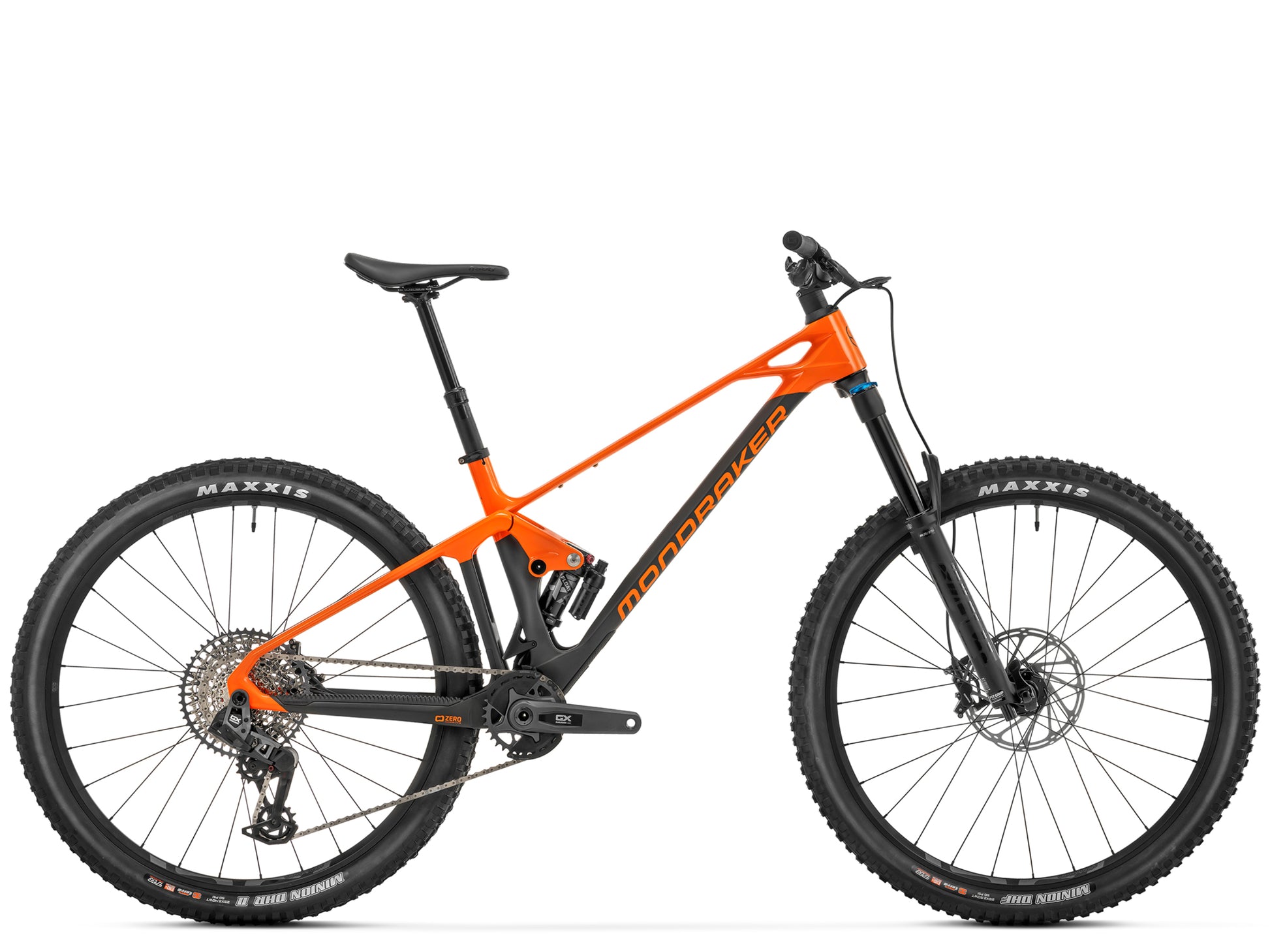

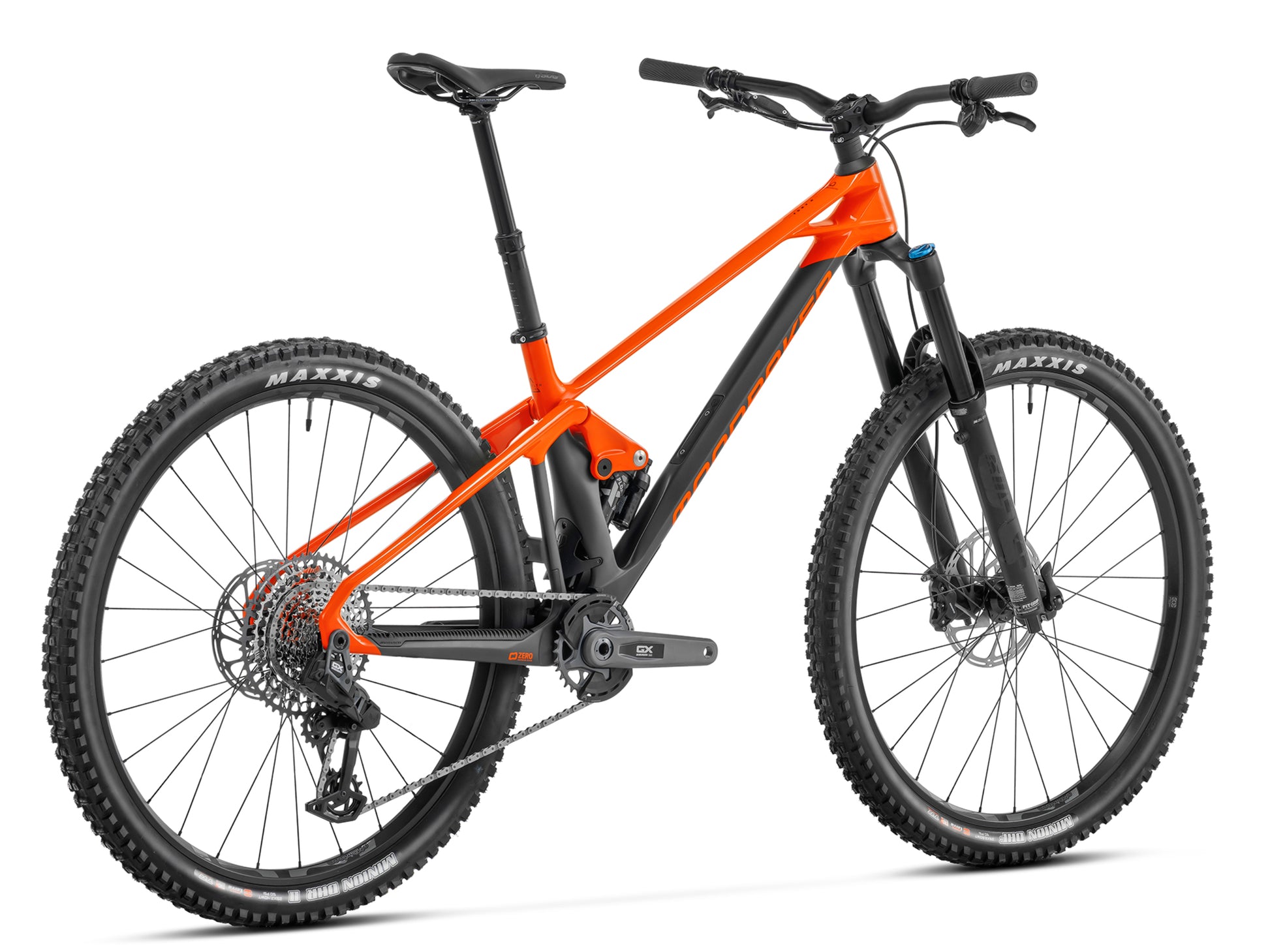

Mondraker Foxy Carbon R AXS
Mondraker Foxy Carbon R AXS
Regular price
$6,599.00
Sale price
$6,599.00
Regular price
Unit price
per
Shipping calculated at checkout.
The Full Scoop on the Mondraker Foxy Carbon R AXS
The FOXY CARBON R is the most affordable model with a carbon frame identical to the XR and RR CARBON. It comes equipped with Fox suspension with 160 mm of travel at the front and 150 mm at the rear. It also features a SRAM GX T-TYPE Eagle 12-speed shifter drivetrain, e*thirteen LG1 Plus Enduro wheels, SRAM G2 R 4-piston brakes, and ONOFF components, highlighting the Pija dropper post. A geometry modification kit is optional.
*Components subject to manufacturer changes.
| Frame | Foxy 29 Stealth Air full Carbon, Zero Suspension System, 150mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors. |
| Fork | Fox 36 29 Float Performance GRIP, 160mm, 3 Position, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload |
| Rear Shock | Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings |
| Front Brake | Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Rear Brake | Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Rear Derailleur | Sram GX Eagle AXS, T-Type roller bearing clutch, cage lock, 1x12s |
| Shift Levers | Sram Eagle AXS Pod, 12s |
| Chain | Sram GX T-TYPE, 12s, Powerlock |
| Cassette | Sram XS-1275, 10-52T, T-Type, 12s |
| Crankset | Sram GX Eagle T-Type, Boost, DUB axle, Direct mount chain ring, S size: 170mm M size: 170mm L size: 175mm XL size: 175mm, CL55 |
| Chain Ring | 32T, steel, X-Sync 2 |
| Chain Guard | Spec not provided |
| Rims | e*thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes |
| Front Hub | e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts |
| Rear Hub | e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, Shimano freehub |
| Front Tire | Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead |
| Rear Tire | Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead |
| Handlebars | ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
| Stem | ONOFF Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| Headset | Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing |
| Grips | ONOFF Desert, 1lock-on, 135mm |
| Saddle | SDG BEL-AIR 3.0, LPU foam, steel rails |
| Seatpost | ONOFF Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm |
| Pedals | Not applicable |
| Front Light | Not applicable |
| Rear Light | Not applicable |
| Kickstand | Not applicable |
| Rear Carrier | Not applicable |
| Fenders | Not applicable |
| Bell | Not applicable |
| Lock | Not applicable |
| Mirror | Not applicable |
The Full Scoop on the Mondraker Foxy Carbon R AXS
The FOXY CARBON R is the most affordable model with a carbon frame identical to the XR and RR CARBON. It comes equipped with Fox suspension with 160 mm of travel at the front and 150 mm at the rear. It also features a SRAM GX T-TYPE Eagle 12-speed shifter drivetrain, e*thirteen LG1 Plus Enduro wheels, SRAM G2 R 4-piston brakes, and ONOFF components, highlighting the Pija dropper post. A geometry modification kit is optional.
*Components subject to manufacturer changes.
Components
| Frame | Foxy 29 Stealth Air full Carbon, Zero Suspension System, 150mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors. |
| Fork | Fox 36 29 Float Performance GRIP, 160mm, 3 Position, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload |
| Rear Shock | Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings |
| Front Brake | Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Rear Brake | Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Rear Derailleur | Sram GX Eagle AXS, T-Type roller bearing clutch, cage lock, 1x12s |
| Shift Levers | Sram Eagle AXS Pod, 12s |
| Chain | Sram GX T-TYPE, 12s, Powerlock |
| Cassette | Sram XS-1275, 10-52T, T-Type, 12s |
| Crankset | Sram GX Eagle T-Type, Boost, DUB axle, Direct mount chain ring, S size: 170mm M size: 170mm L size: 175mm XL size: 175mm, CL55 |
| Chain Ring | 32T, steel, X-Sync 2 |
| Chain Guard | Spec not provided |
| Rims | e*thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes |
| Front Hub | e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts |
| Rear Hub | e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, Shimano freehub |
| Front Tire | Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead |
| Rear Tire | Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead |
| Handlebars | ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
| Stem | ONOFF Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| Headset | Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing |
| Grips | ONOFF Desert, 1lock-on, 135mm |
| Saddle | SDG BEL-AIR 3.0, LPU foam, steel rails |
| Seatpost | ONOFF Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm |
Extras
| Pedals | Not applicable |
| Front Light | Not applicable |
| Rear Light | Not applicable |
| Kickstand | Not applicable |
| Rear Carrier | Not applicable |
| Fenders | Not applicable |
| Bell | Not applicable |
| Lock | Not applicable |
| Mirror | Not applicable |
Geometry
