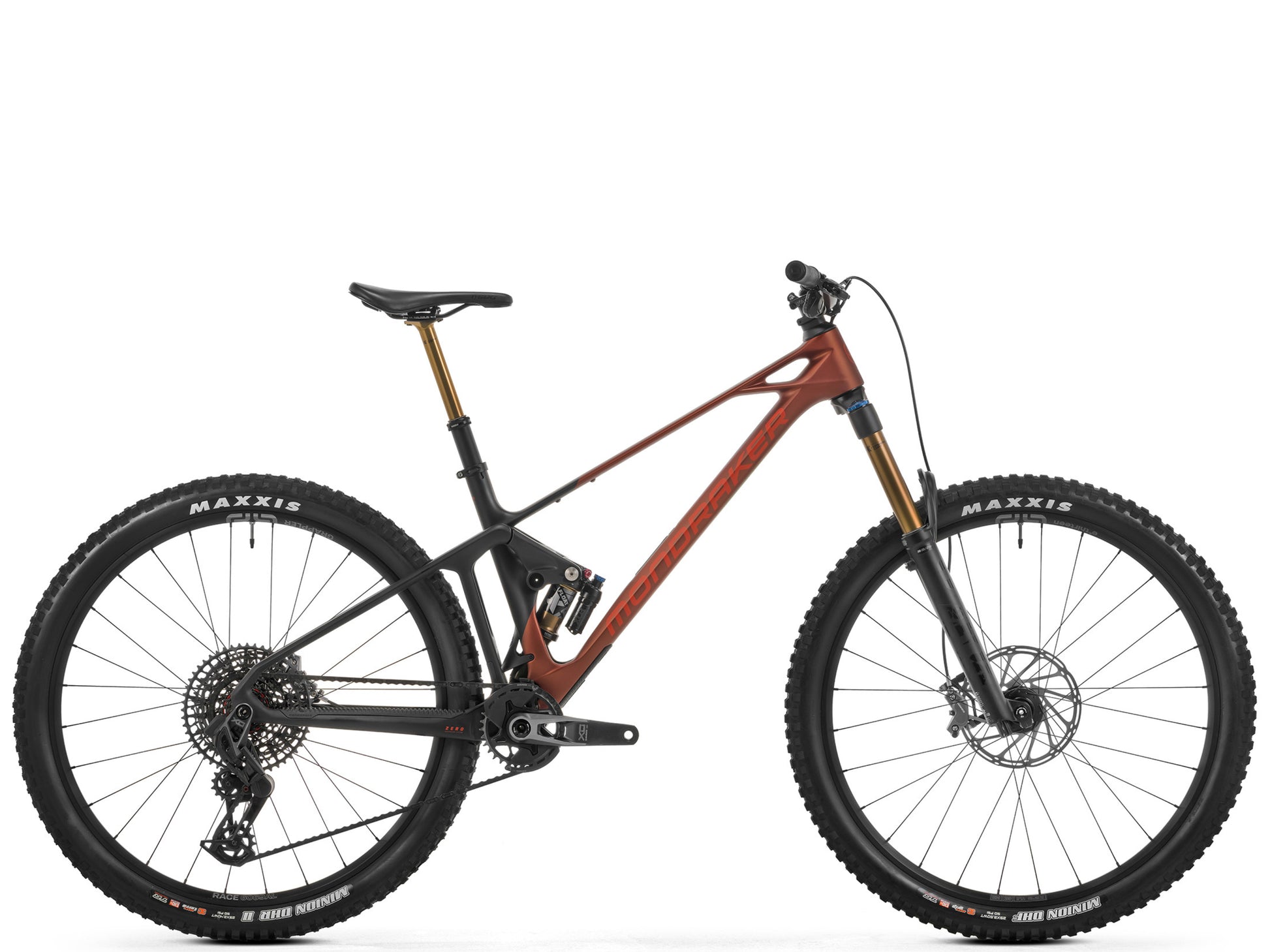

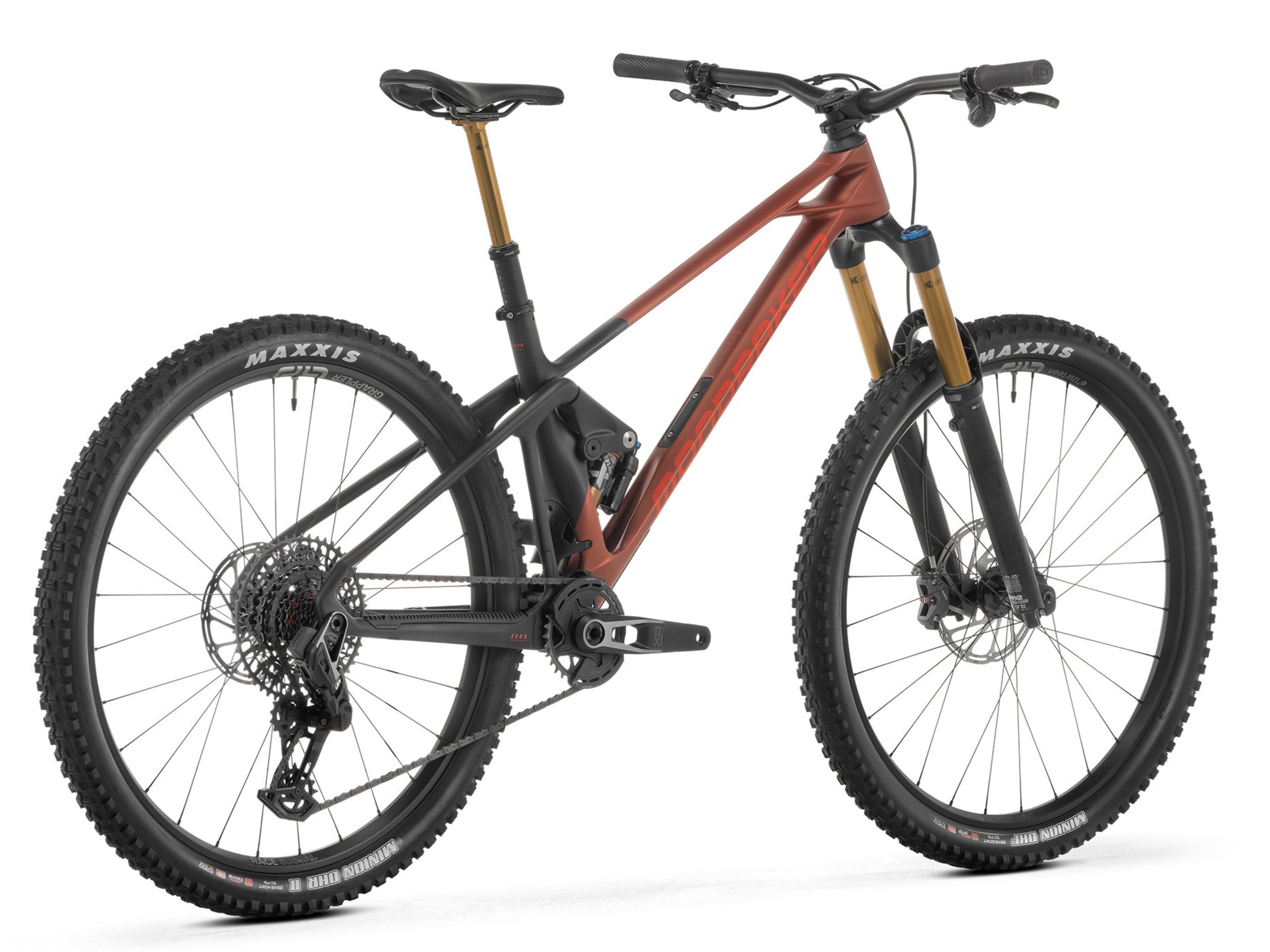

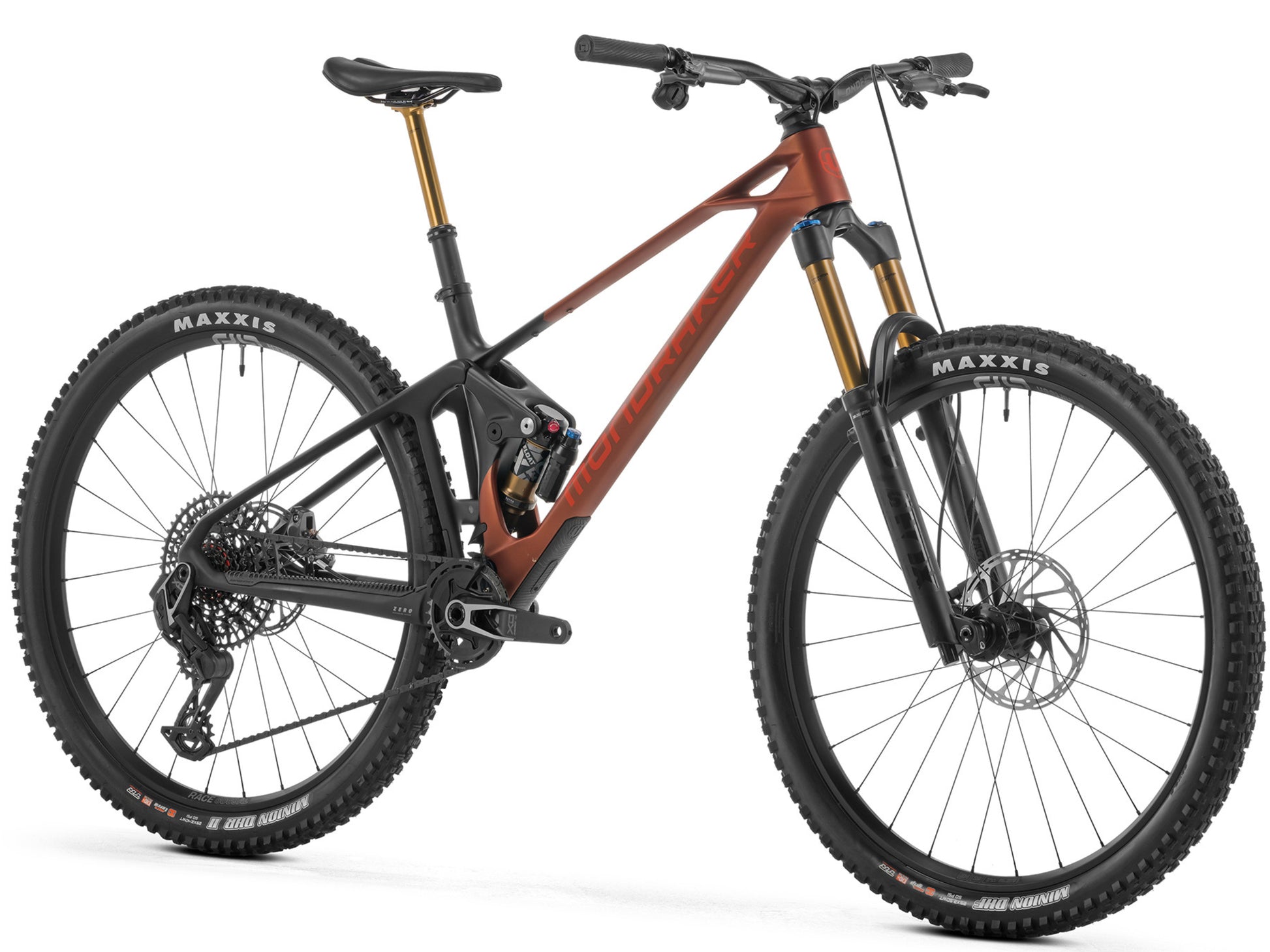

Mondraker Foxy Carbon RR
Mondraker Foxy Carbon RR
Regular price
$8,299.00
Sale price
$8,299.00
Regular price
Unit price
per
Shipping calculated at checkout.
The Full Scoop on the Mondraker Foxy Carbon RR
The FOXY RR is more enduro-ready than ever before. The Foxy RR features 160mm of front and 150mm rear travel, with Fox suspension; a SRAM GX Eagle shifter drivetrain; DT Swiss EX1700 Spline 29 wheels; SRAM G2 R brakes; and ONOFF components.
*Components subject to manufacturer changes.
| Frame | Foxy 29 Stealth Air Full Carbon, Zero Suspension System, 150mm travel, Forward Geometry, Monobloc carbon upper link, 12x148mm Boost rear axle, tapered head tube, 73mm BSA bottom bracket, designed for single-chain cranks, HHG internal cable routing, sealed Enduro MAX bearings, shock fenders, ISCG 05, custom frame guards. |
| Fork | Fox 36 29 Float GRIP X2 Factory Kashima, gloss black, 160mm, tapered head tube, 15x110mm Kabolt Boost axle, 44mm offset. Adjustments: high- and low-speed compression, high- and low-speed rebound, air preload. |
| Rear Shock | Fox Float X Factory Kashima EVOL, 205x65mm. Adjustments: 2-position compression (Open/Locked), rebound, air preload. Trunnion upper mount, 30x8mm lower bushings. |
| Front Brake | SRAM Code Bronze Stealth, 4-piston caliper, 200mm Centerline IS one-piece 6-bolt rotor, organic pads with steel backing. |
| Rear Brake | SRAM Code Bronze Stealth, 4-piston caliper, 180mm Centerline one-piece IS 6-bolt rotor, organic pads with steel backing. |
| Rear Derailleur | Sram X0 Eagle AXS T-Type, 12v |
| Shift Levers | Sram Eagle AXS Pod, 12v |
| Chain | Sram X0 Eagle T-Type, 12v, Powerlock |
| Cassette | Sram XS-1295 10-52 teeth, T-Type, 12v |
| Crankset | Sram X0 Eagle T-Type, Boost, DUB axle, Direct Mount chainring; All sizes: 170mm, CL 55 |
| Chain Ring | 32 teeth, CNC machined aluminum, T-Type |
| Chain Guard | Spec not provided |
| Rims | e*thirteen Hive custom, black, triple-butted steel, aluminum nipples, with nipple washers |
| Front Hub | e*thirteen Boost 15x110mm, triple-sealed, 100% machined aluminum, 6-bolt IS |
| Rear Hub | e*thirteen Boost 12x148mm, triple-sealed, 100% machined aluminum, with a 6º return angle, 6-bolt IS, XD freehub |
| Front Tire | e*thirteen Grappler Race, IW30 hookless, welded 6069 alloy, 30mm internal width, tubeless ready, 28 spokes |
| Rear Tire | e*thirteen Grappler Race, IW30 hookless, welded 6069 alloy, 30mm internal width, tubeless ready, 28 spokes |
| Handlebars | ONOFF S9 1.0 Carbon, rise: 25mm, width: 800mm, backsweep: 8º, upsweep: 5º, diameter 31.8mm Size L and XL: Rise of 1.5. |
| Stem | ONOFF S9 30mm 0º, full CNC, 31.8mm diameter |
| Headset | Acros custom IS52/ZS56, 1-1/8", for 1.5" steerer tube, internal cable routing, non-blocklock end caps |
| Grips | ONOFF Forest, lock-on CNC, 135mm. |
| Saddle | SDG BEL-AIR 3.0, LPU foam, steel rails |
| Seatpost | Fox Transfer Factory Kashima internal cable routing, adjustable travel, 31.6mm diameter, S: 95mm -120mm, M: 125mm -150mm, L: 155mm -180mm, XL: 185mm x -210mm |
| Pedals | Not applicable |
| Front Light | Not applicable |
| Rear Light | Not applicable |
| Kickstand | Not applicable |
| Rear Carrier | Not applicable |
| Fenders | Not applicable |
| Bell | Not applicable |
| Lock | Not applicable |
| Mirror | Not applicable |
The Full Scoop on the Mondraker Foxy Carbon RR
The FOXY RR is more enduro-ready than ever before. The Foxy RR features 160mm of front and 150mm rear travel, with Fox suspension; a SRAM GX Eagle shifter drivetrain; DT Swiss EX1700 Spline 29 wheels; SRAM G2 R brakes; and ONOFF components.
*Components subject to manufacturer changes.
Components
| Frame | Foxy 29 Stealth Air Full Carbon, Zero Suspension System, 150mm travel, Forward Geometry, Monobloc carbon upper link, 12x148mm Boost rear axle, tapered head tube, 73mm BSA bottom bracket, designed for single-chain cranks, HHG internal cable routing, sealed Enduro MAX bearings, shock fenders, ISCG 05, custom frame guards. |
| Fork | Fox 36 29 Float GRIP X2 Factory Kashima, gloss black, 160mm, tapered head tube, 15x110mm Kabolt Boost axle, 44mm offset. Adjustments: high- and low-speed compression, high- and low-speed rebound, air preload. |
| Rear Shock | Fox Float X Factory Kashima EVOL, 205x65mm. Adjustments: 2-position compression (Open/Locked), rebound, air preload. Trunnion upper mount, 30x8mm lower bushings. |
| Front Brake | SRAM Code Bronze Stealth, 4-piston caliper, 200mm Centerline IS one-piece 6-bolt rotor, organic pads with steel backing. |
| Rear Brake | SRAM Code Bronze Stealth, 4-piston caliper, 180mm Centerline one-piece IS 6-bolt rotor, organic pads with steel backing. |
| Rear Derailleur | Sram X0 Eagle AXS T-Type, 12v |
| Shift Levers | Sram Eagle AXS Pod, 12v |
| Chain | Sram X0 Eagle T-Type, 12v, Powerlock |
| Cassette | Sram XS-1295 10-52 teeth, T-Type, 12v |
| Crankset | Sram X0 Eagle T-Type, Boost, DUB axle, Direct Mount chainring; All sizes: 170mm, CL 55 |
| Chain Ring | 32 teeth, CNC machined aluminum, T-Type |
| Chain Guard | Spec not provided |
| Rims | e*thirteen Hive custom, black, triple-butted steel, aluminum nipples, with nipple washers |
| Front Hub | e*thirteen Boost 15x110mm, triple-sealed, 100% machined aluminum, 6-bolt IS |
| Rear Hub | e*thirteen Boost 12x148mm, triple-sealed, 100% machined aluminum, with a 6º return angle, 6-bolt IS, XD freehub |
| Front Tire | e*thirteen Grappler Race, IW30 hookless, welded 6069 alloy, 30mm internal width, tubeless ready, 28 spokes |
| Rear Tire | e*thirteen Grappler Race, IW30 hookless, welded 6069 alloy, 30mm internal width, tubeless ready, 28 spokes |
| Handlebars | ONOFF S9 1.0 Carbon, rise: 25mm, width: 800mm, backsweep: 8º, upsweep: 5º, diameter 31.8mm Size L and XL: Rise of 1.5. |
| Stem | ONOFF S9 30mm 0º, full CNC, 31.8mm diameter |
| Headset | Acros custom IS52/ZS56, 1-1/8", for 1.5" steerer tube, internal cable routing, non-blocklock end caps |
| Grips | ONOFF Forest, lock-on CNC, 135mm. |
| Saddle | SDG BEL-AIR 3.0, LPU foam, steel rails |
| Seatpost | Fox Transfer Factory Kashima internal cable routing, adjustable travel, 31.6mm diameter, S: 95mm -120mm, M: 125mm -150mm, L: 155mm -180mm, XL: 185mm x -210mm |
Extras
| Pedals | Not applicable |
| Front Light | Not applicable |
| Rear Light | Not applicable |
| Kickstand | Not applicable |
| Rear Carrier | Not applicable |
| Fenders | Not applicable |
| Bell | Not applicable |
| Lock | Not applicable |
| Mirror | Not applicable |
Geometry
