Mondraker Foxy Carbon XR
Mondraker Foxy Carbon XR
Regular price
$9,999.00
Sale price
$9,999.00
Regular price
Unit price
per
Shipping calculated at checkout.

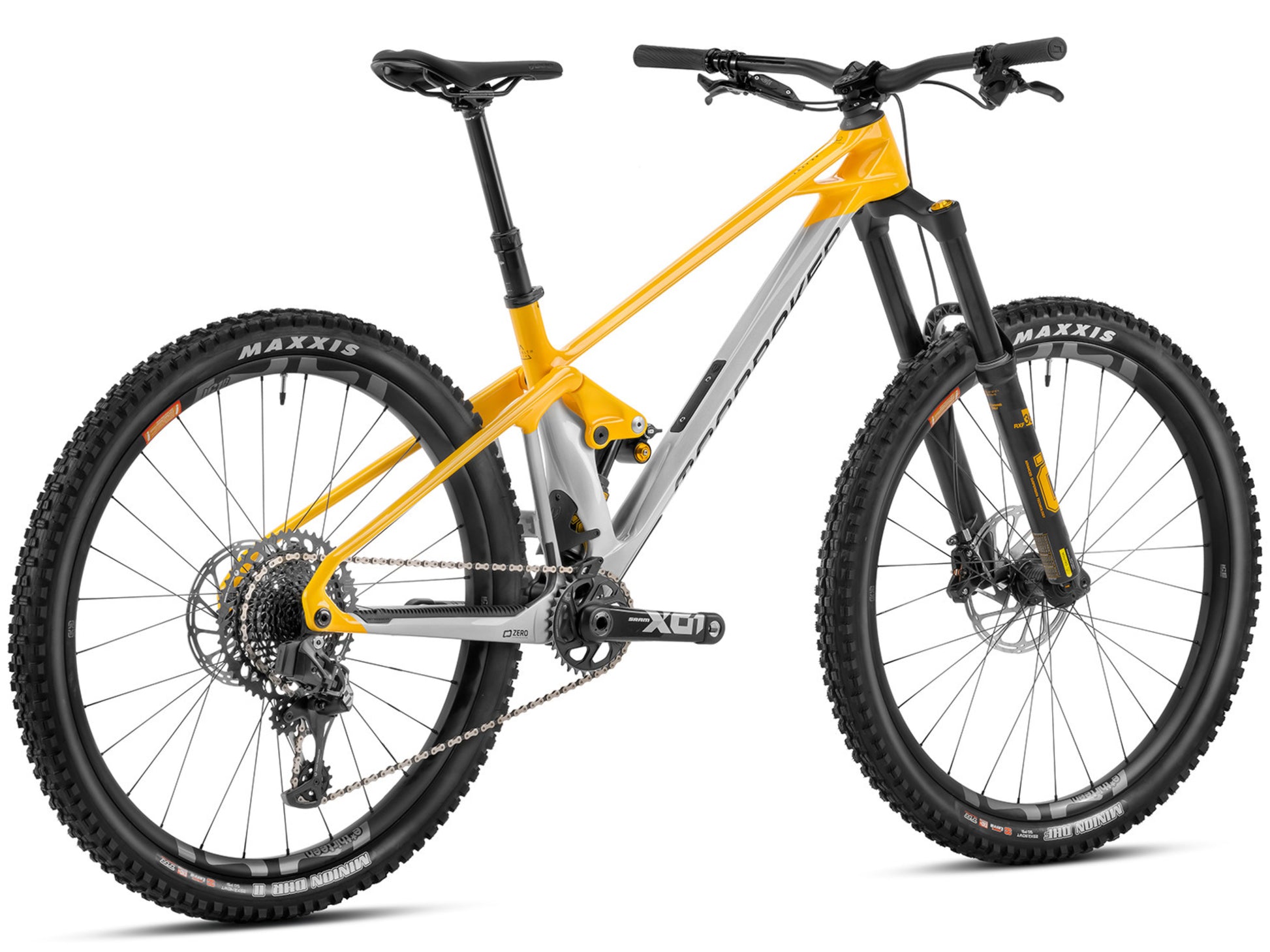

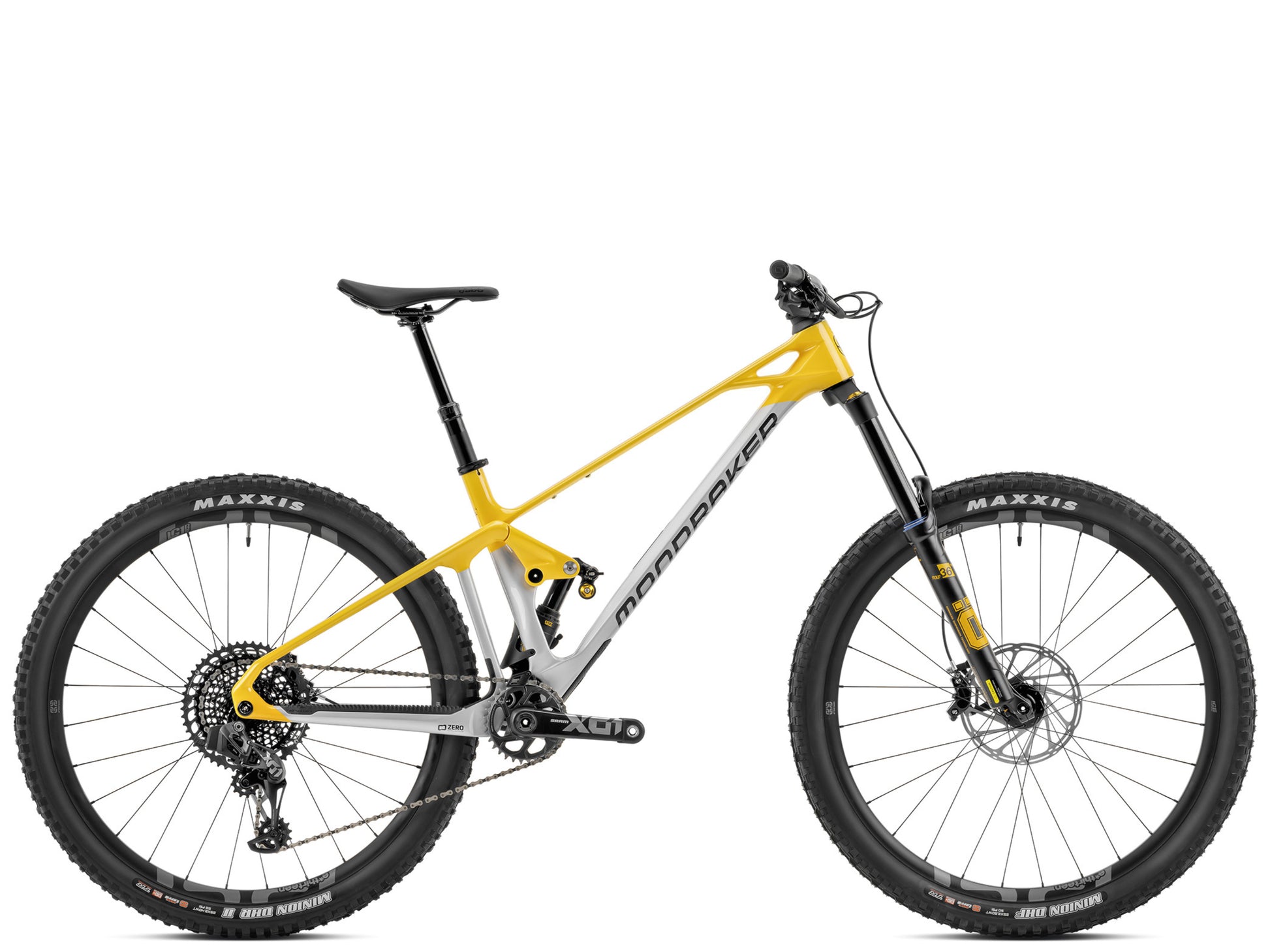

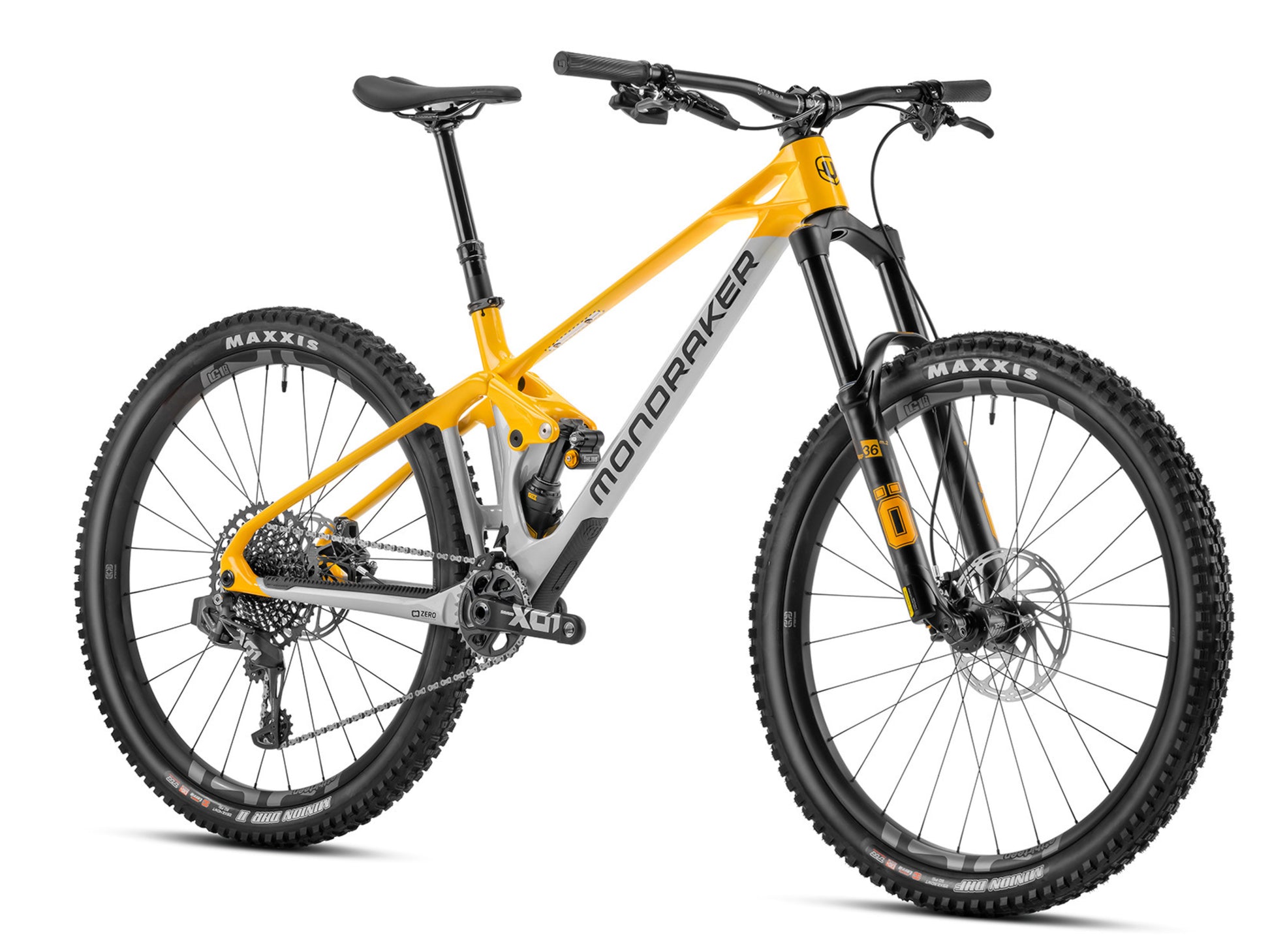

The Full Scoop on the Mondraker Foxy Carbon XR
The FOXY XR is more enduro-ready than ever before. With 170 mm of front travel and 150 mm of rear travel. It features the prestigious Öhlins suspension (RFX 36 fork and TTX Air shock), a SRAM X01 Eagle AXS wireless shifting drivetrain, e*thirteen Race Carbon wheels; SRAM G2 RSC 4-piston brakes and ONOFF components with Kripton Carbon 1.0 handlebars.
*Components subject to manufacturer changes.
| Frame | Foxy 29 Stealth Air Full Carbon, Zero Suspension System, 150mm travel, Forward Geometry, Monobloc carbon upper link, 12x148mm Boost rear axle, tapered head tube, 73mm BSA bottom bracket, designed for single-chain cranks, HHG internal cable routing, sealed Enduro MAX bearings, shock fenders, ISCG 05, custom frame guards. |
| Fork | Öhlins RXF 36 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer, Boost 15x110mm axle, 44mm offset. Settings: High compression with climb mode, low compression, rebound, air preload, ramp chamber. Setup: C20 R40 |
| Rear Shock | Öhlins TTX Air 205x65mm. Adjustments: high-pressure lever with climb mode (semi-locked), low-pressure lever, rebound damping, air preload. Trunnion upper mount, 30x8mm lower bushings. |
| Front Brake | SRAM Code RSC, oversized 4-piston caliper, 200mm Centerline IS 6-bolt rotor, sintered steel plate pads |
| Rear Brake | SSRAM Code RSC, oversized 4-piston caliper, 180mm Centerline IS 6-bolt one-piece rotor, sintered steel plate pads |
| Rear Derailleur | SRAM X01 Eagle AXS, needle bearing clutch, cage lockout, 1x12s, X-ACTUATION 1:1 |
| Shift Levers | SRAM Eagle AXS, 12v |
| Chain | Sram GX Eagle, 12v, Powerlock |
| Cassette | SRAM XG-1295, 10-52T, 12v |
| Crankset | SRAM X01 Eagle, Boost, DUB axle, Direct Mount chainring, S/M: 170mm, L/XL: 175mm |
| Chain Ring | 32, CNC machined alloy, X-SYNC 2 |
| Chain Guard | Spec not provided |
| Rims | e*thirteen custom Hive alloy, triple-butted black, alloy nipples, with nipple washers |
| Front Hub | e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts |
| Rear Hub | e*thirteen Boost 12x148mm, triple-sealed, 100% machined aluminum, IS 6-bolt, XD core with a 6º return angle |
| Front Tire | Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ casing, 120TPI, folding rim |
| Rear Tire | Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ casing, 120TPI, folding rim |
| Handlebars | ONOFF Krypton Carbon 1.0, height: 25mm, width: 800mm, 9º backsweep, 5º upsweep, diameter 31.8mm |
| Stem | ONOFF Krypton FG 30mm, CNC, for 31.8mm handlebars |
| Headset | Acros customized for 1-1/2" tube, 40x52x7 angular contact bearings, internal cable guide |
| Grips | ONOFF Desert, 1lock-on, 135mm |
| Saddle | SDG BEL-AIR 3.0, LPU foam, steel rails |
| Seatpost | ONOFF Pija internal wiring, diameter 31.6mm, size S: 405x95-125mm, M: 458x120-150mm, L: 498x140-170mm, XL: 498x140-170mm |
| Pedals | Not applicable |
| Front Light | Not applicable |
| Rear Light | Not applicable |
| Kickstand | Not applicable |
| Rear Carrier | Not applicable |
| Fenders | Not applicable |
| Bell | Not applicable |
| Lock | Not applicable |
| Mirror | Not applicable |
The Full Scoop on the Mondraker Foxy Carbon XR
The FOXY XR is more enduro-ready than ever before. With 170 mm of front travel and 150 mm of rear travel. It features the prestigious Öhlins suspension (RFX 36 fork and TTX Air shock), a SRAM X01 Eagle AXS wireless shifting drivetrain, e*thirteen Race Carbon wheels; SRAM G2 RSC 4-piston brakes and ONOFF components with Kripton Carbon 1.0 handlebars.
*Components subject to manufacturer changes.
Components
| Frame | Foxy 29 Stealth Air Full Carbon, Zero Suspension System, 150mm travel, Forward Geometry, Monobloc carbon upper link, 12x148mm Boost rear axle, tapered head tube, 73mm BSA bottom bracket, designed for single-chain cranks, HHG internal cable routing, sealed Enduro MAX bearings, shock fenders, ISCG 05, custom frame guards. |
| Fork | Öhlins RXF 36 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer, Boost 15x110mm axle, 44mm offset. Settings: High compression with climb mode, low compression, rebound, air preload, ramp chamber. Setup: C20 R40 |
| Rear Shock | Öhlins TTX Air 205x65mm. Adjustments: high-pressure lever with climb mode (semi-locked), low-pressure lever, rebound damping, air preload. Trunnion upper mount, 30x8mm lower bushings. |
| Front Brake | SRAM Code RSC, oversized 4-piston caliper, 200mm Centerline IS 6-bolt rotor, sintered steel plate pads |
| Rear Brake | SSRAM Code RSC, oversized 4-piston caliper, 180mm Centerline IS 6-bolt one-piece rotor, sintered steel plate pads |
| Rear Derailleur | SRAM X01 Eagle AXS, needle bearing clutch, cage lockout, 1x12s, X-ACTUATION 1:1 |
| Shift Levers | SRAM Eagle AXS, 12v |
| Chain | Sram GX Eagle, 12v, Powerlock |
| Cassette | SRAM XG-1295, 10-52T, 12v |
| Crankset | SRAM X01 Eagle, Boost, DUB axle, Direct Mount chainring, S/M: 170mm, L/XL: 175mm |
| Chain Ring | 32, CNC machined alloy, X-SYNC 2 |
| Chain Guard | Spec not provided |
| Rims | e*thirteen custom Hive alloy, triple-butted black, alloy nipples, with nipple washers |
| Front Hub | e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts |
| Rear Hub | e*thirteen Boost 12x148mm, triple-sealed, 100% machined aluminum, IS 6-bolt, XD core with a 6º return angle |
| Front Tire | Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ casing, 120TPI, folding rim |
| Rear Tire | Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ casing, 120TPI, folding rim |
| Handlebars | ONOFF Krypton Carbon 1.0, height: 25mm, width: 800mm, 9º backsweep, 5º upsweep, diameter 31.8mm |
| Stem | ONOFF Krypton FG 30mm, CNC, for 31.8mm handlebars |
| Headset | Acros customized for 1-1/2" tube, 40x52x7 angular contact bearings, internal cable guide |
| Grips | ONOFF Desert, 1lock-on, 135mm |
| Saddle | SDG BEL-AIR 3.0, LPU foam, steel rails |
| Seatpost | ONOFF Pija internal wiring, diameter 31.6mm, size S: 405x95-125mm, M: 458x120-150mm, L: 498x140-170mm, XL: 498x140-170mm |
Extras
| Pedals | Not applicable |
| Front Light | Not applicable |
| Rear Light | Not applicable |
| Kickstand | Not applicable |
| Rear Carrier | Not applicable |
| Fenders | Not applicable |
| Bell | Not applicable |
| Lock | Not applicable |
| Mirror | Not applicable |
Geometry
