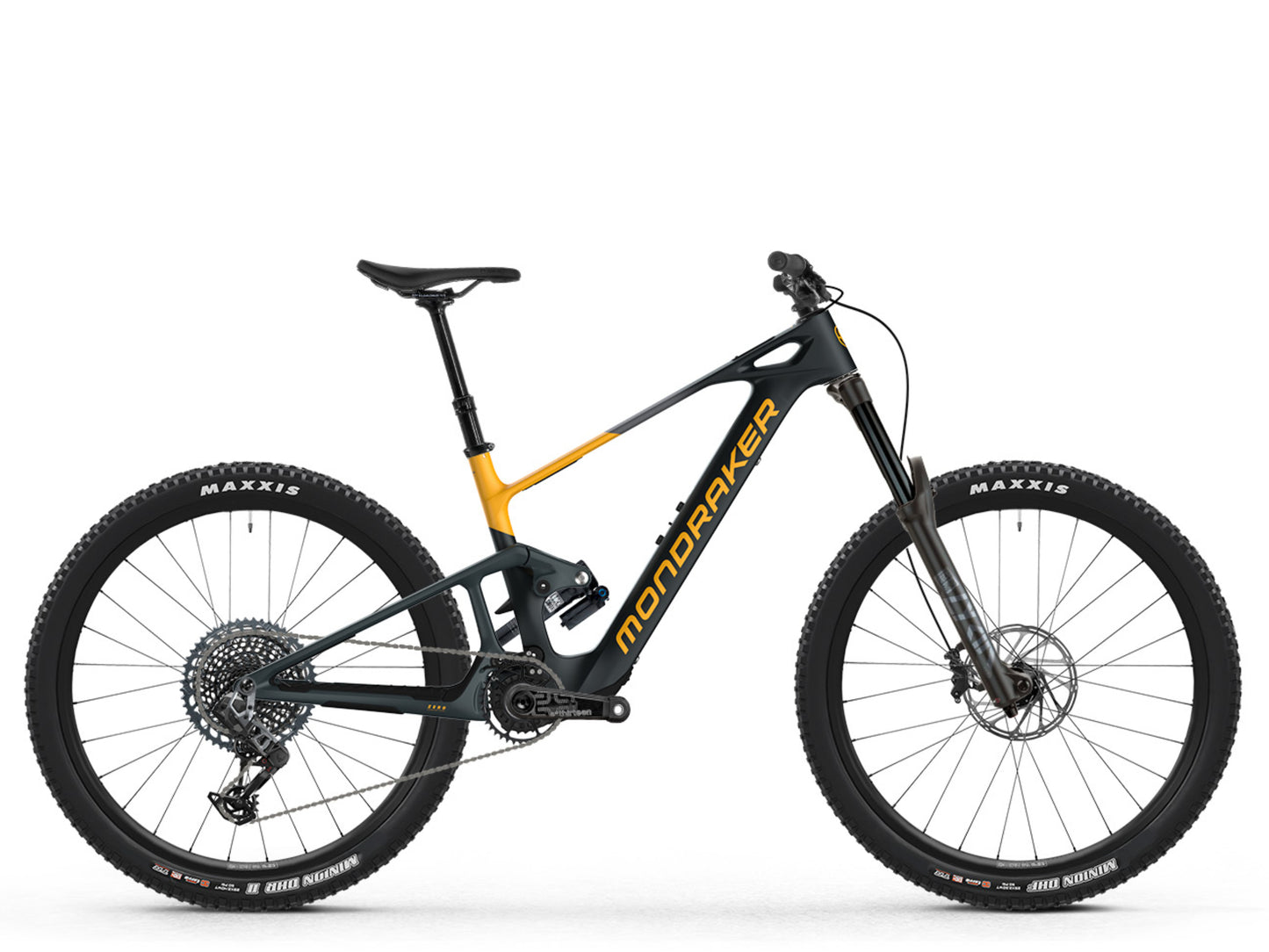

Mondraker Neat R
Mondraker Neat R

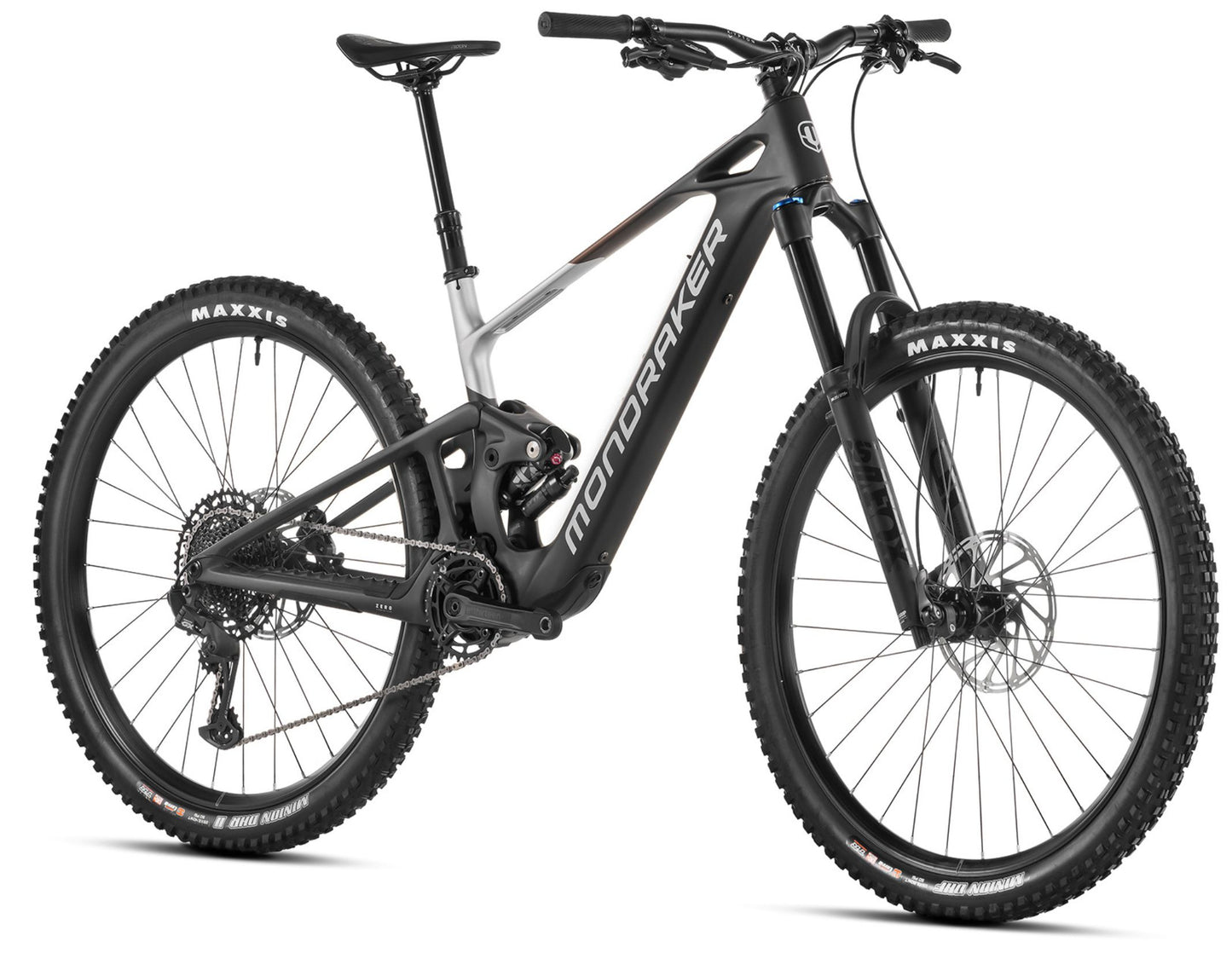

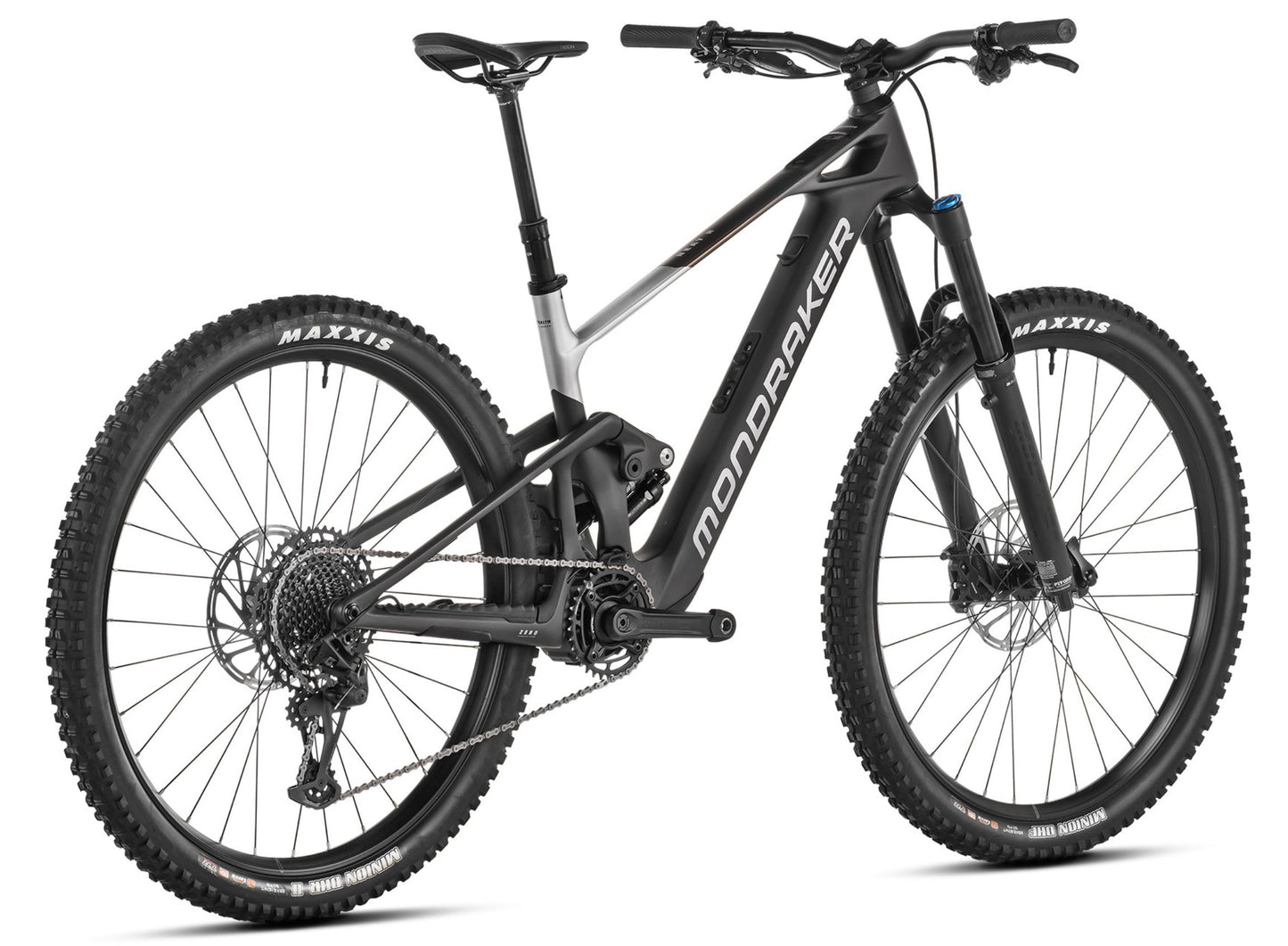

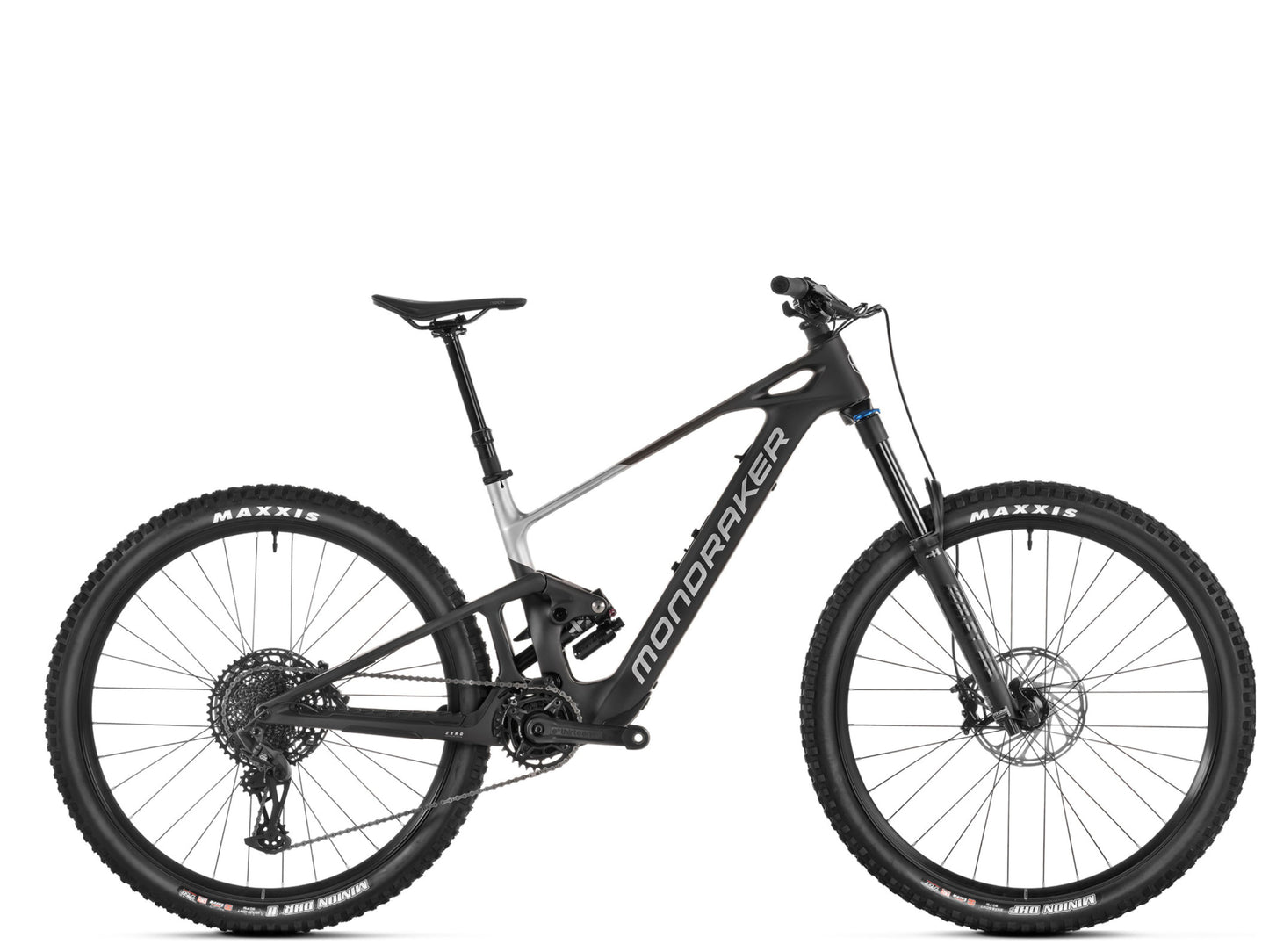

The Full Scoop on the Mondraker Neat RR
The Neat Range e-MTB's are a new genration of ebikes that redefines mountain biking. A full carbon fiber frame under 40lbs, an integrated removable battery and TQ-HPR50 motor, the Mondraker Neat is ready to roll with the very best version of you as a rider.
*Components subject to manufacturer changes.
Motor | TQ HPR-50 |
Battery | TQ HPR-50 360Wh integrated and removable *Optional external battery: TQ 160Wh |
Display | TQ HPR display V01 |
Charger | Spec not provided |
Frame | Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, integrated dropout speed sensor, exclusive plastic motor covers. |
Fork | Fox 36 29 Float GRIP EVOL Performance, 160mm, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload |
Rear Shock | Fox Float X Performance EVOL, 185x55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings |
Front Brake | Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
Rear Brake | Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
Rear Derailleur | Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 |
Shift Levers | Sram Trigger NX Eagle, 12s, X-Actuation 1:1 |
Chain | Sram NX Eagle, 12s, Powerlock |
Cassette | Sram PG-1230, 11-50T, 12s |
Crankset | E.13 E*Spec Plus,, S size: 165mm M size: 165mm L size: 170mm XL size: 170mm |
Chain Ring | Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD |
Chain Guard | Spec not provided |
Rims | Mavic E-CrossRide 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes |
Front Hub | Mavic, Boost 15x110mm, IS 6 bolts |
Rear Hub | Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, HG freehub |
Front Tire | Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead |
Rear Tire | Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead |
Handlebars | Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
Stem | Onoff Krypton FG 30mm, CNC, 31.8mm barbore |
Headset | Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing |
Grips | Onoff Desert, 1lock-on, 135mm |
Saddle | Fizik Terra Aidon Slim X5 |
Seatpost | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm |
Pedals | Not applicable |
Front Light | Not applicable |
Rear Light | Not applicable |
Kickstand | Not applicable |
Rear Carrier | Not applicable |
Fenders | Not applicable |
Bell | Not applicable |
Lock | Not applicable |
Mirror | Not applicable |
FRAME SIZE | S | M | L | XL | |
---|---|---|---|---|---|
A | Seattube length | 380mm | 420mm | 450mm | 490mm |
B | Toptube length | 595mm | 615mm | 640mm | 660mm |
C | Bottom bracket drop | -25mm | -25mm | -25mm | -25mm |
D | Bottom bracket height | 348mm | 348mm | 348mm | 348mm |
E | Chainstay length | 450mm | 450mm | 450mm | 450mm |
F | Seat tube angle | 72.6° | 72.6° | 72.6° | 72.6° |
G | Effective seattube angle | 76.5° | 76.5° | 76.5° | 76.5° |
H | Headtube angle | 64.5° | 64.5° | 64.5° | 64.5° |
I | Fork Offset | 44mm | 44mm | 44mm | 44mm |
J | Wheelbase | 1235mm | 1255mm | 1275mm | 1295mm |
K | Headtube length | 110mm | 110mm | 130mm | 130mm |
L | Reach | 450mm | 470mm | 495mm | 515mm |
M | Stack | 626mm | 626mm | 642mm | 650mm |
The Full Scoop on the Mondraker Neat RR
Description
The Neat Range e-MTB's are a new genration of ebikes that redefines mountain biking. A full carbon fiber frame under 40lbs, an integrated removable battery and TQ-HPR50 motor, the Mondraker Neat is ready to roll with the very best version of you as a rider.
*Components subject to manufacturer changes.
Motor System
Motor | TQ HPR-50 |
Battery | TQ HPR-50 360Wh integrated and removable *Optional external battery: TQ 160Wh |
Display | TQ HPR display V01 |
Charger | Spec not provided |
Components
Frame | Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, integrated dropout speed sensor, exclusive plastic motor covers. |
Fork | Fox 36 29 Float GRIP EVOL Performance, 160mm, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload |
Rear Shock | Fox Float X Performance EVOL, 185x55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings |
Front Brake | Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
Rear Brake | Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
Rear Derailleur | Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 |
Shift Levers | Sram Trigger NX Eagle, 12s, X-Actuation 1:1 |
Chain | Sram NX Eagle, 12s, Powerlock |
Cassette | Sram PG-1230, 11-50T, 12s |
Crankset | E.13 E*Spec Plus,, S size: 165mm M size: 165mm L size: 170mm XL size: 170mm |
Chain Ring | Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD |
Chain Guard | Spec not provided |
Rims | Mavic E-CrossRide 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes |
Front Hub | Mavic, Boost 15x110mm, IS 6 bolts |
Rear Hub | Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, HG freehub |
Front Tire | Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead |
Rear Tire | Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead |
Handlebars | Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
Stem | Onoff Krypton FG 30mm, CNC, 31.8mm barbore |
Headset | Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing |
Grips | Onoff Desert, 1lock-on, 135mm |
Saddle | Fizik Terra Aidon Slim X5 |
Seatpost | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm |
Extras
Pedals | Not applicable |
Front Light | Not applicable |
Rear Light | Not applicable |
Kickstand | Not applicable |
Rear Carrier | Not applicable |
Fenders | Not applicable |
Bell | Not applicable |
Lock | Not applicable |
Mirror | Not applicable |
Geometry
FRAME SIZE | S | M | L | XL | |
---|---|---|---|---|---|
A | Seattube length | 380mm | 420mm | 450mm | 490mm |
B | Toptube length | 595mm | 615mm | 640mm | 660mm |
C | Bottom bracket drop | -25mm | -25mm | -25mm | -25mm |
D | Bottom bracket height | 348mm | 348mm | 348mm | 348mm |
E | Chainstay length | 450mm | 450mm | 450mm | 450mm |
F | Seat tube angle | 72.6° | 72.6° | 72.6° | 72.6° |
G | Effective seattube angle | 76.5° | 76.5° | 76.5° | 76.5° |
H | Headtube angle | 64.5° | 64.5° | 64.5° | 64.5° |
I | Fork Offset | 44mm | 44mm | 44mm | 44mm |
J | Wheelbase | 1235mm | 1255mm | 1275mm | 1295mm |
K | Headtube length | 110mm | 110mm | 130mm | 130mm |
L | Reach | 450mm | 470mm | 495mm | 515mm |
M | Stack | 626mm | 626mm | 642mm | 650mm |
