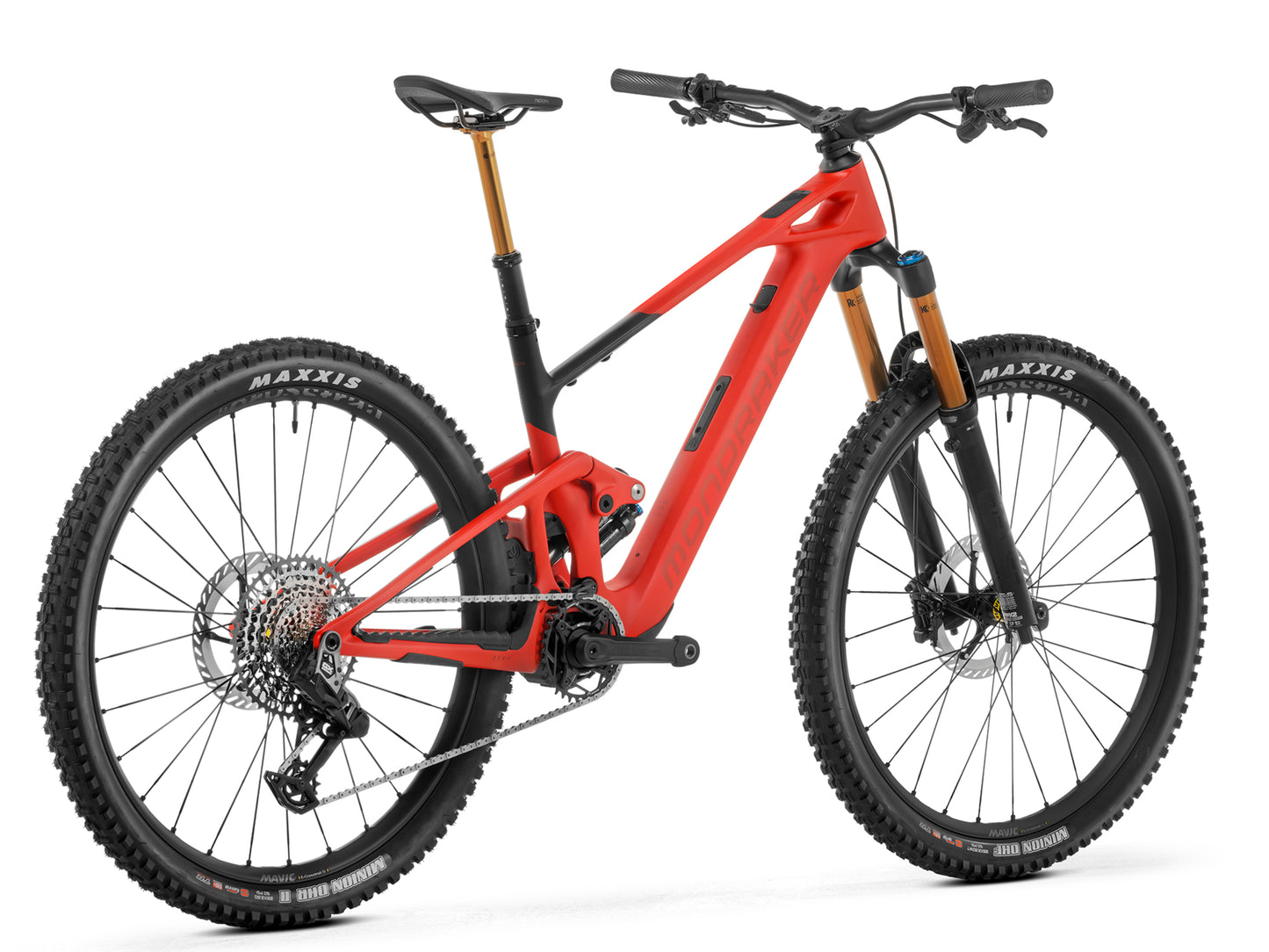

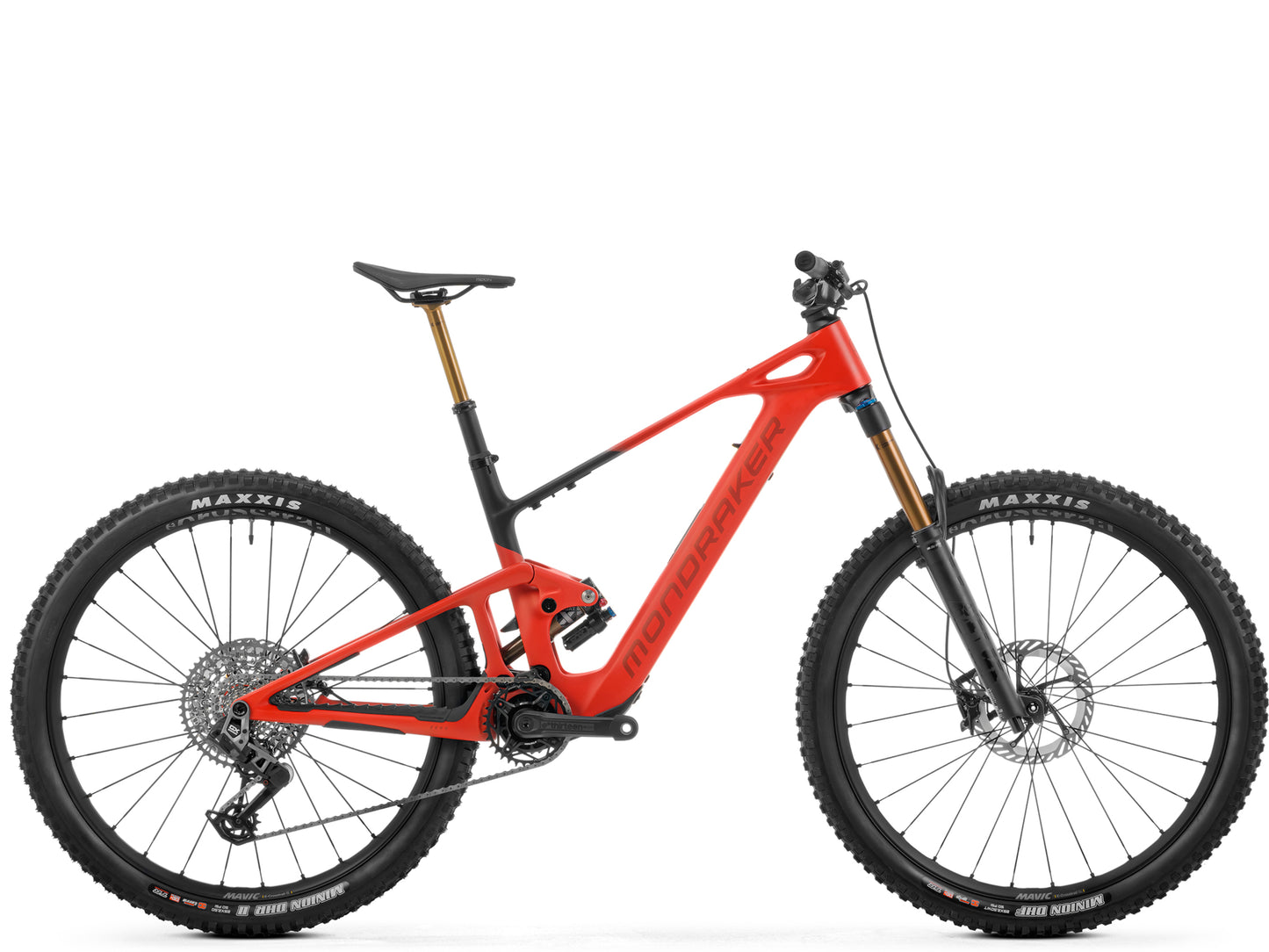

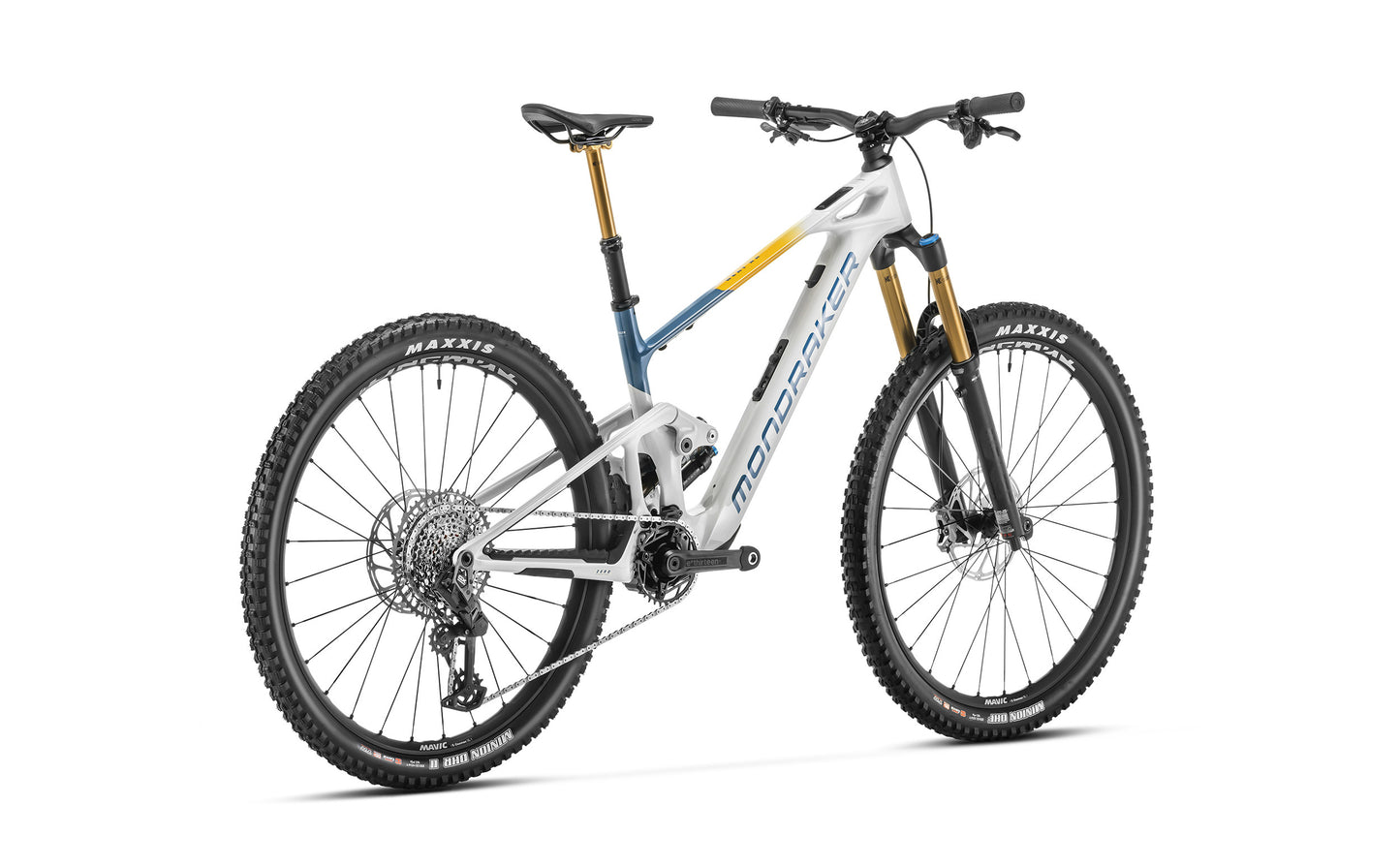

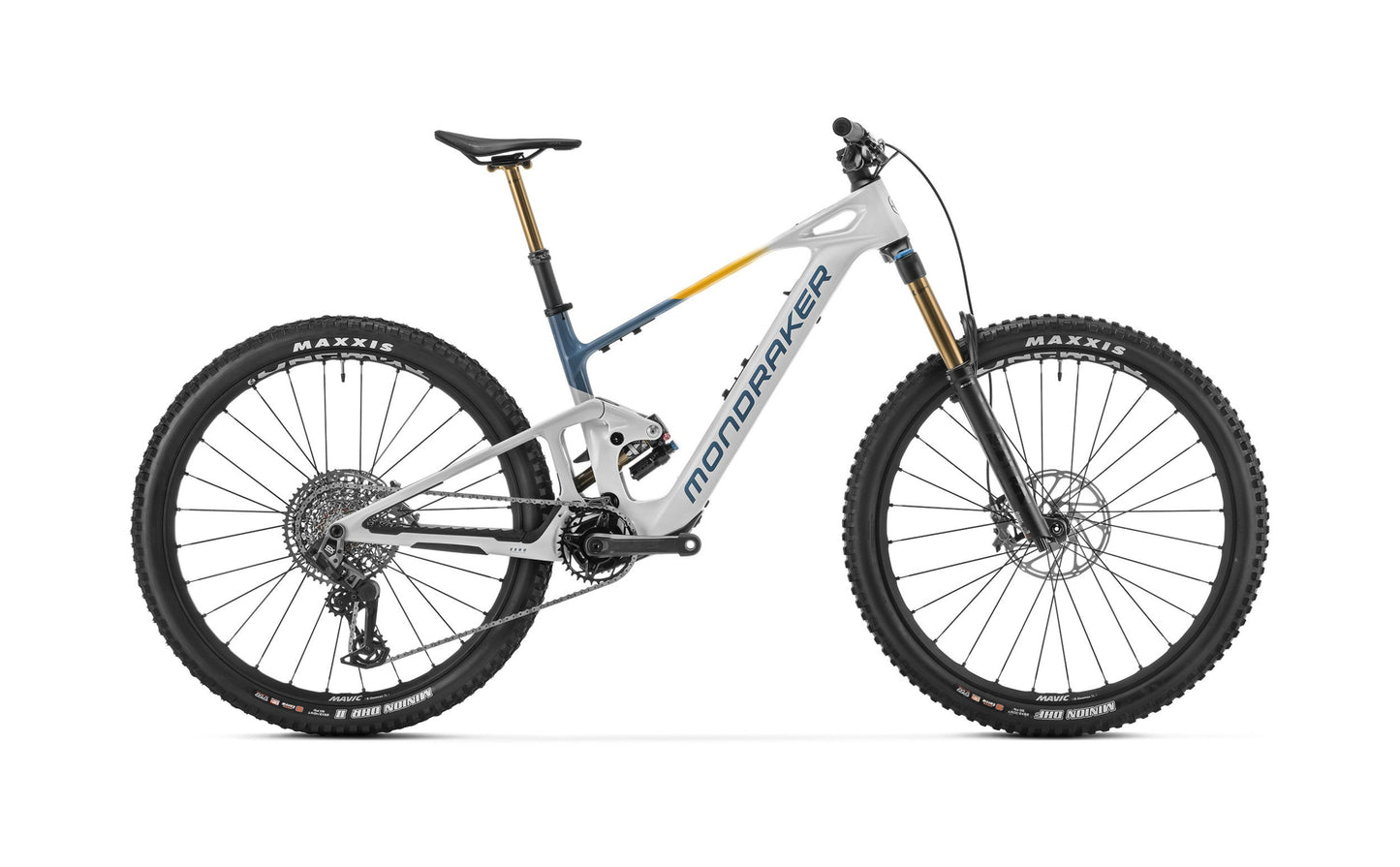

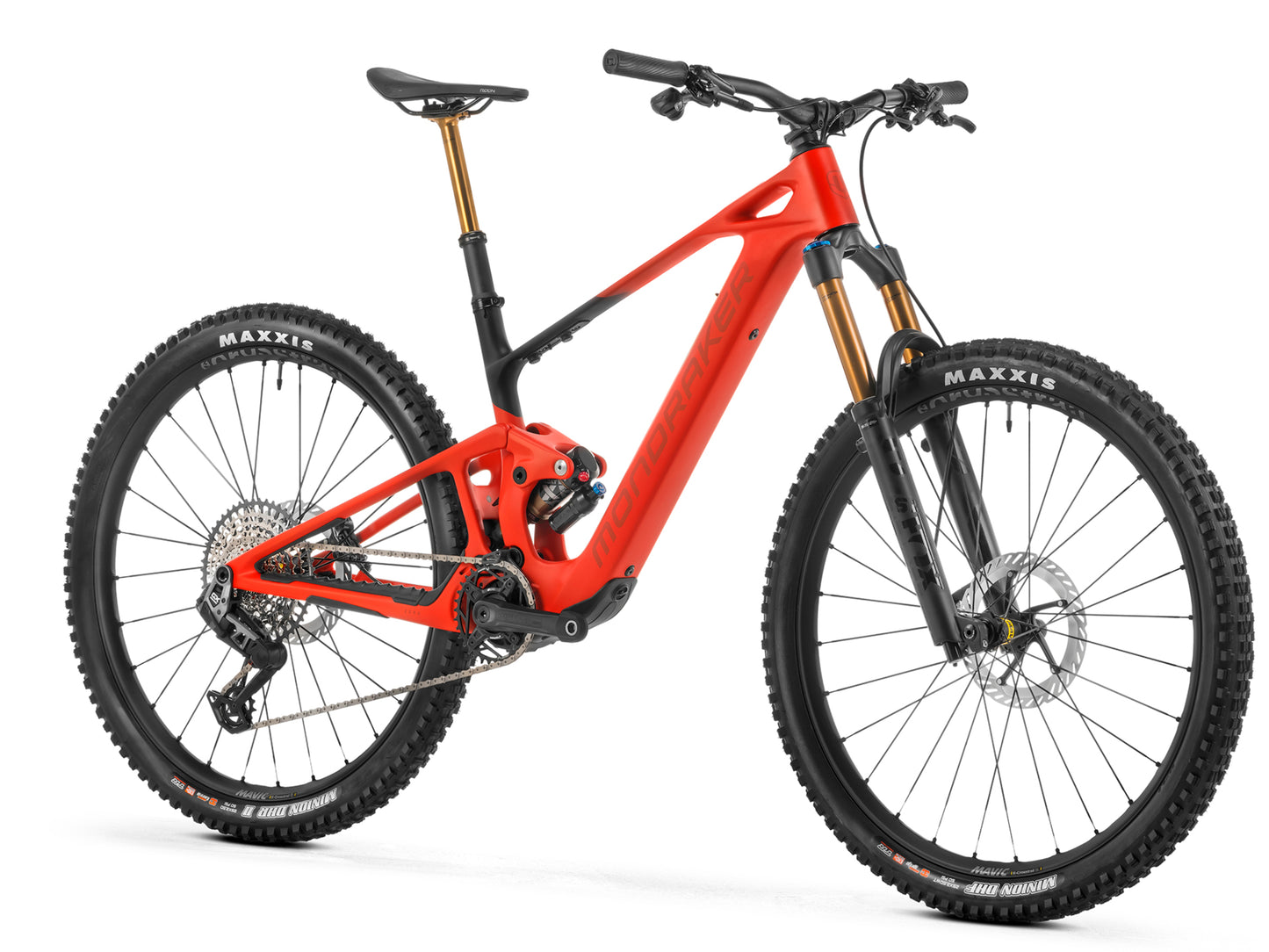

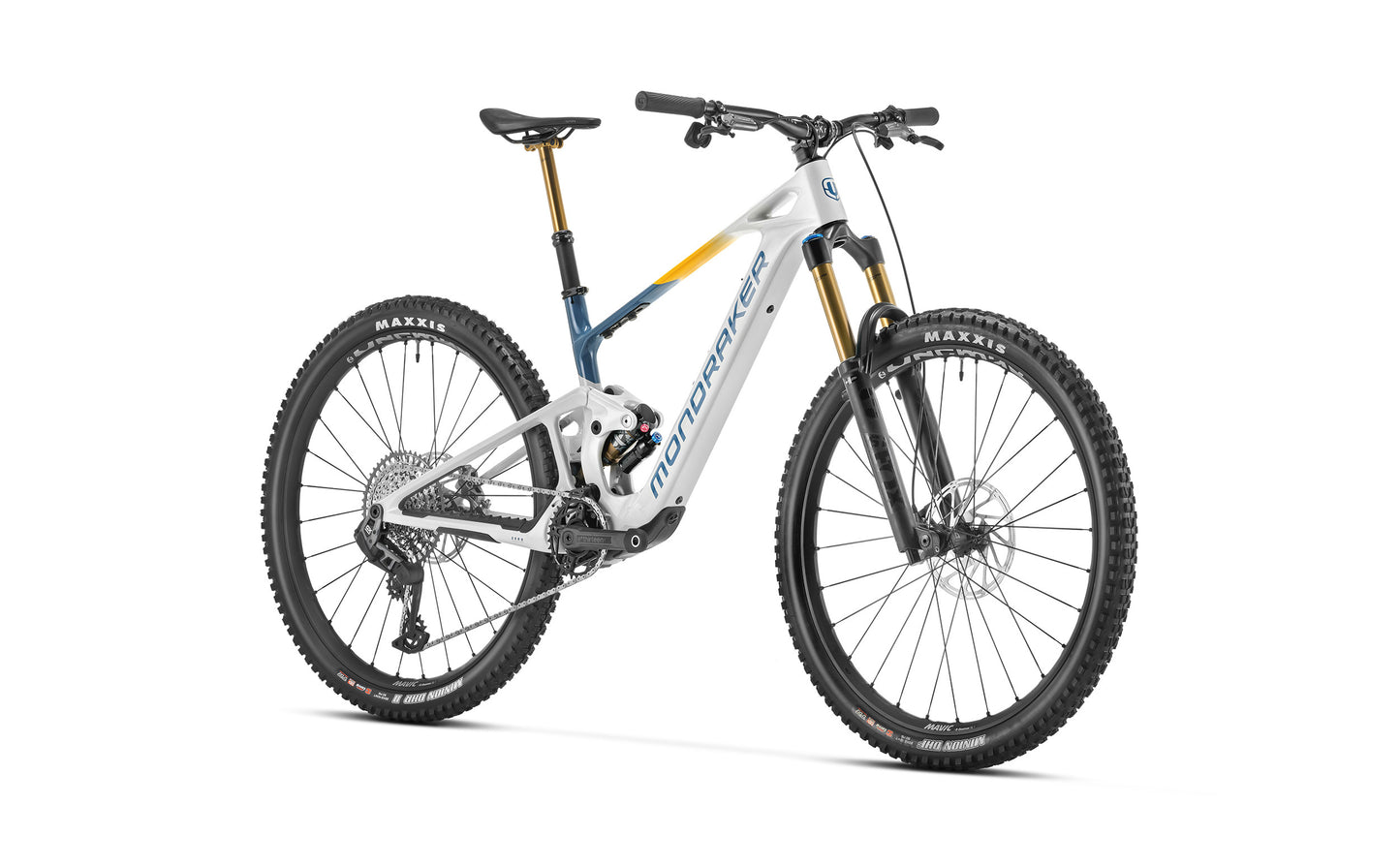

Mondraker Neat RR

Mondraker Neat RR

Regular price $9,999.00
Sale price $9,999.00 Regular price
Model Year
Size
Color

*Note: We will always give you a call before preparing your order! We'll confirm you picked the right size and see if you need any accessories.

View full details

The Full Scoop on the Mondraker Neat RR

The Neat Range e-MTB's are a new genration of ebikes that redefines mountain biking. A full carbon fiber frame under 40lbs, an integrated removable battery and TQ-HPR50 motor, the Mondraker Neat is ready to roll with the very best version of you as a rider.

*Components subject to manufacturer changes.

The Full Scoop on the Mondraker Neat RR

Description

The Neat Range e-MTB's are a new genration of ebikes that redefines mountain biking. A full carbon fiber frame under 40lbs, an integrated removable battery and TQ-HPR50 motor, the Mondraker Neat is ready to roll with the very best version of you as a rider.

*Components subject to manufacturer changes.

Motor System

Motor TQ HPR-50
Battery TQ HPR-50 360Wh integrated and removable *Optional external battery: TQ 160Wh
Display TQ HPR display V01
Charger Spec not provided

Components

Frame Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
Fork Fox 36 29 Float GRIP2 Factory Kashima, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload
Rear Shock Fox Float X Factory Kashima EVOL, 185x55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Front Brake Sram Level Bronze Stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear Brake Sram Level Bronze Stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear Derailleur Sram GX Eagle AXS, T-Type roller bearing clutch, cage lock, 1x12s
Shift Levers Sram Eagle AXS Pod MMX, 12s
Chain Sram GX Eagle T-Type, 12s, Powerlock
Cassette Sram XS-1275, 10-52T, T-Type, 12s
Crankset E.13 E*Spec Plus,, S size: 165mm M size: 165mm L size: 170mm XL size: 170mm
Chain Ring Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD
Chain Guard Spec not provided
Rims Mavic E-DeeMax SL 29 Boost 30mm internal width, hookless, tubeless ready, 28 spokes
Front Hub Mavic Infinity hub, Boost 15x110mm, IS 6 bolts
Rear Hub Mavic Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts XD freehub
Front Tire Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Rear Tire Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Handlebars Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Stem Onoff Krypton FG 30mm, CNC, 31.8mm barbore
Headset Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
Grips Onoff Desert, 1lock-on, 135mm
Saddle Fizik Terra Aidon Slim X5
Seatpost Fox Transfer Factory Kashima internal, diameter 31.6mm, S size: 363.5x125mm, M size: 418.3x150mm, L size: 475.1x175mm, XL size size: 475.1x200mm

Extras

Pedals Not applicable
Front Light Not applicable
Rear Light Not applicable
Kickstand Not applicable
Rear Carrier Not applicable
Fenders Not applicable
Bell Not applicable
Lock Not applicable
Mirror Not applicable

Geometry

FRAME SIZESMLXL
ASeattube length380mm420mm450mm490mm
BToptube length605mm625mm650mm670mm
CBottom bracket drop-25mm-25mm-25mm-25mm
DBottom bracket height350mm350mm350mm350mm
EChainstay length455mm455mm455mm455mm
FSeat tube angle73.5°73.5°73.5°73.5°
GEffective seattube angle76°76°76°76°
HHeadtube angle65.5°65.5°65.5°65.5°
IFork Offset44mm44mm44mm44mm
JWheelbase1225mm1245mm1265mm1285mm
KHeadtube length110mm110mm130mm130mm
LReach450mm470mm490mm510mm
MStack622mm622mm640mm640mm
