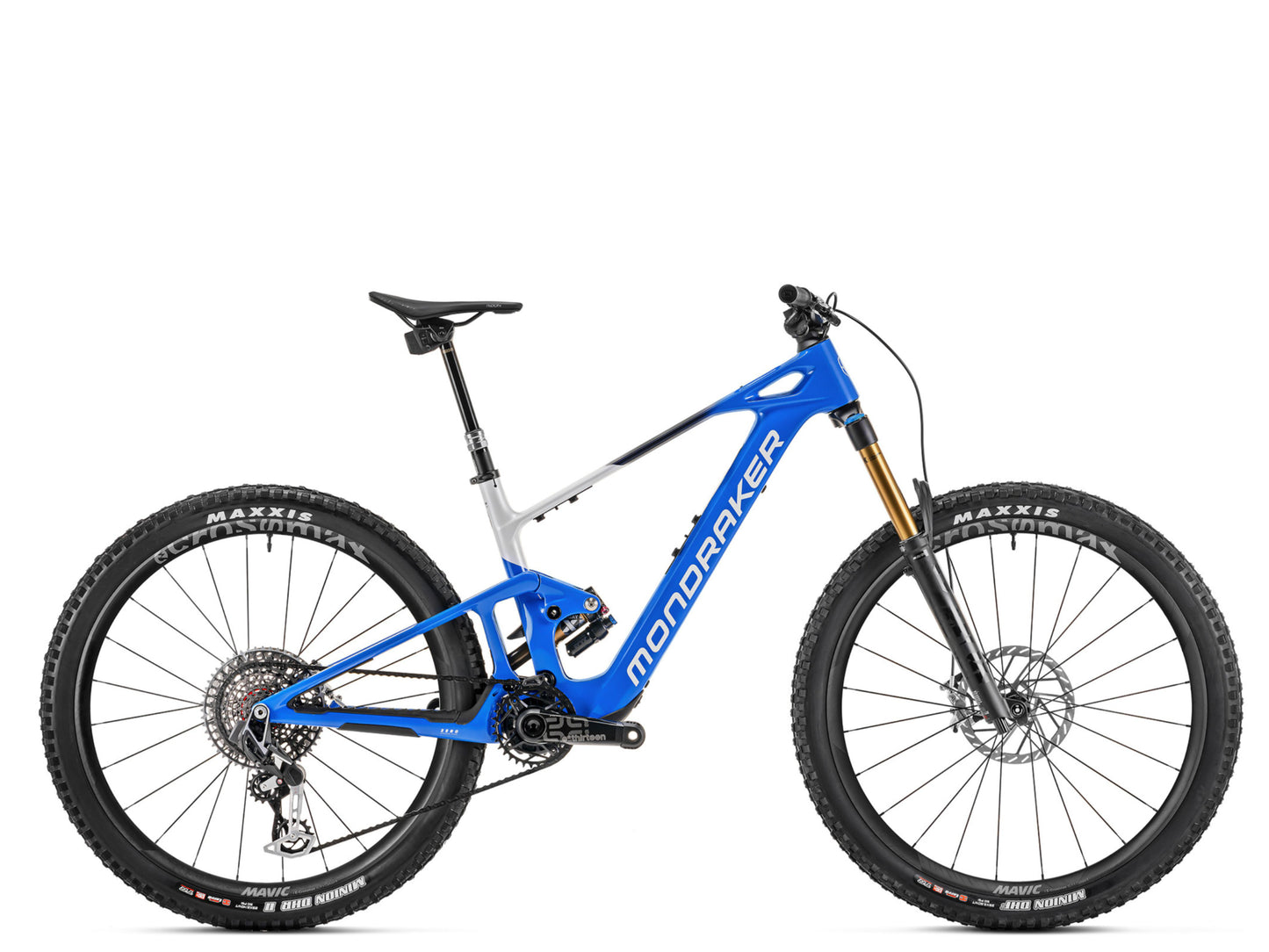

Mondraker Neat RR SL
Mondraker Neat RR SL
Regular price
$11,499.00
Sale price
$11,499.00
Regular price
Unit price
per
Shipping calculated at checkout.
The Full Scoop on the Mondraker Neat RR
The Neat Range e-MTB's are a new generation of eBikes that redefines mountain biking. A full carbon fiber frame under 40lbs, an integrated removable battery and TQ-HPR50 motor, the Mondraker Neat is ready to roll with the very best version of you as a rider.
*Components subject to manufacturer changes.
| Motor | TQ HPR-50 |

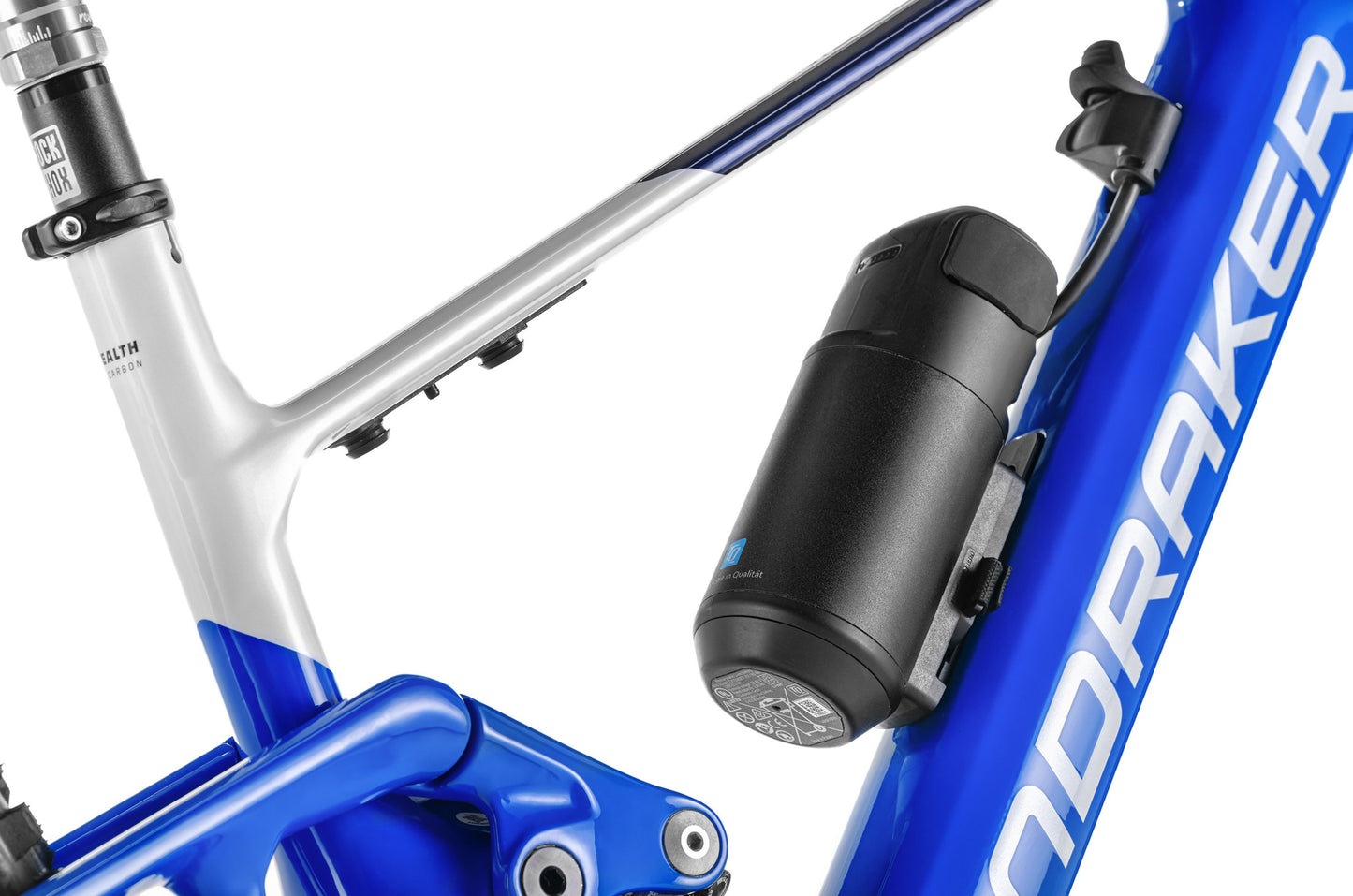

| Battery | TQ HPR-50 360Wh integrated and removable *Optional external battery: TQ 160Wh |
| Display | TQ HPR display V01 |
| Charger | Spec not provided |
| Frame | Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, integrated dropout speed sensor, exclusive plastic motor covers. |
| Fork | Fox 36 29 Float GRIP2 Factory Kashima, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload |
| Rear Shock | Fox Float X Factory Kashima EVOL, 185x55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings |
| Front Brake | Sram Level Ultimate Stealth, 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Rear Brake | Sram Level Ultimate Stealth, 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Rear Derailleur | Sram XX Eagle AXS, T-Type roller bearing clutch, cage lock, long carbon cage, 1x12s |
| Shift Levers | Sram Eagle AXS Pod MMX, 12s |
| Chain | Sram X0 Eagle T-Type, 12s, Powerlock |
| Cassette | Sram XS-1295, 10-52T, T-Type, 12s |

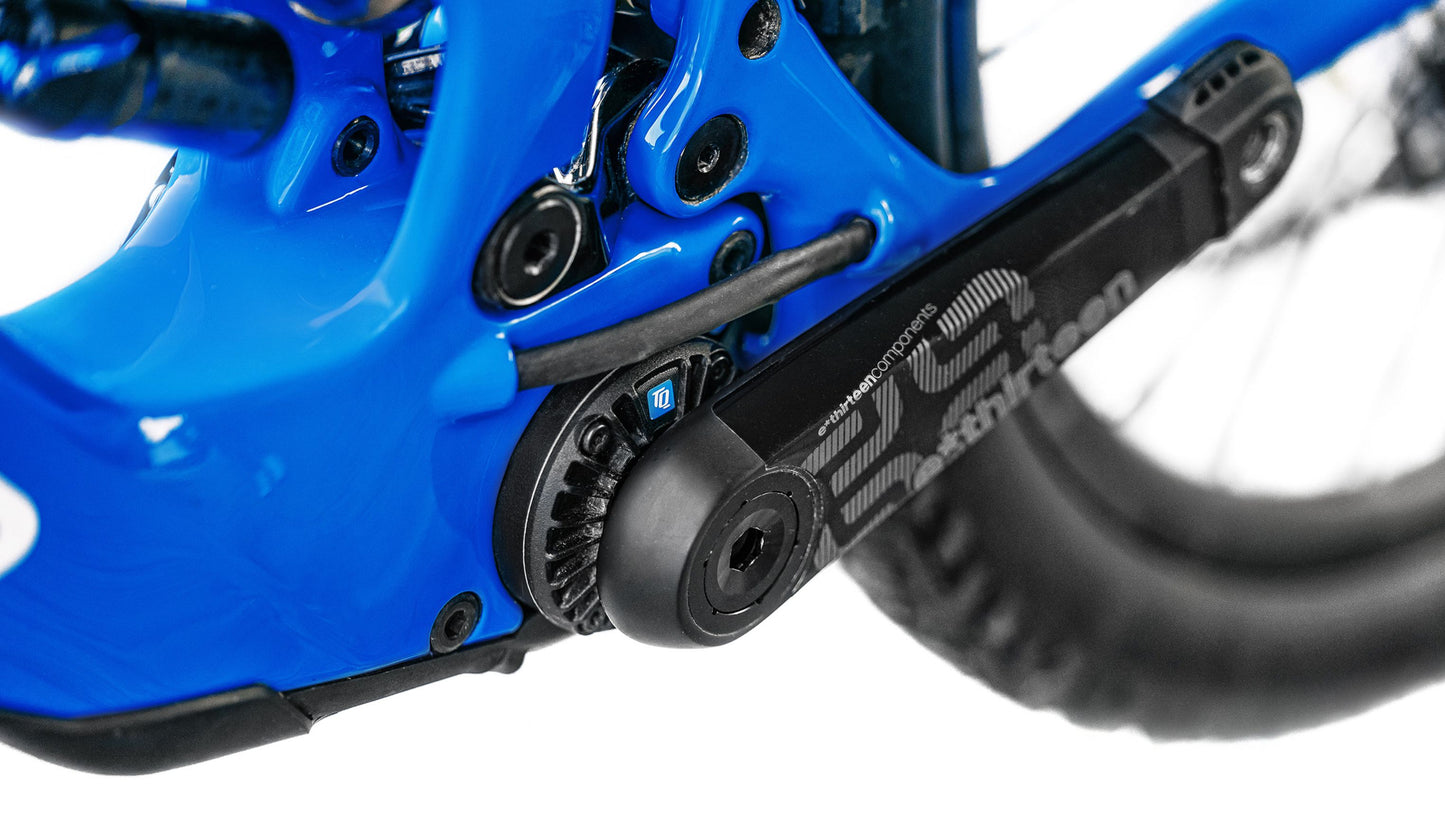

| Crankset | E.13 TRS Race carbon ebike, S size: 165mm M size: 165mm L size: 170mm XL size: 170mm |
| Chain Ring | Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD |
| Chain Guard | Spec not provided |
| Rims | Mavic E-CrossMax Carbon XL R, 29 Boost 30mm internal width, hookless, tubeless ready, 28 spokes |
| Front Hub | Mavic Infinity hub, Boost 15x110mm, IS 6 bolts |
| Rear Hub | Mavic Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts XD freehub |
| Front Tire | Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead |
| Rear Tire | Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead |
| Handlebars | Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
| Stem | Onoff Krypton FG 30mm, CNC, 31.8mm barbore |
| Headset | Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing |
| Grips | Onoff Desert, 1lock-on, 135mm |
| Saddle | Fizik Terra Aidon Slim X5 |

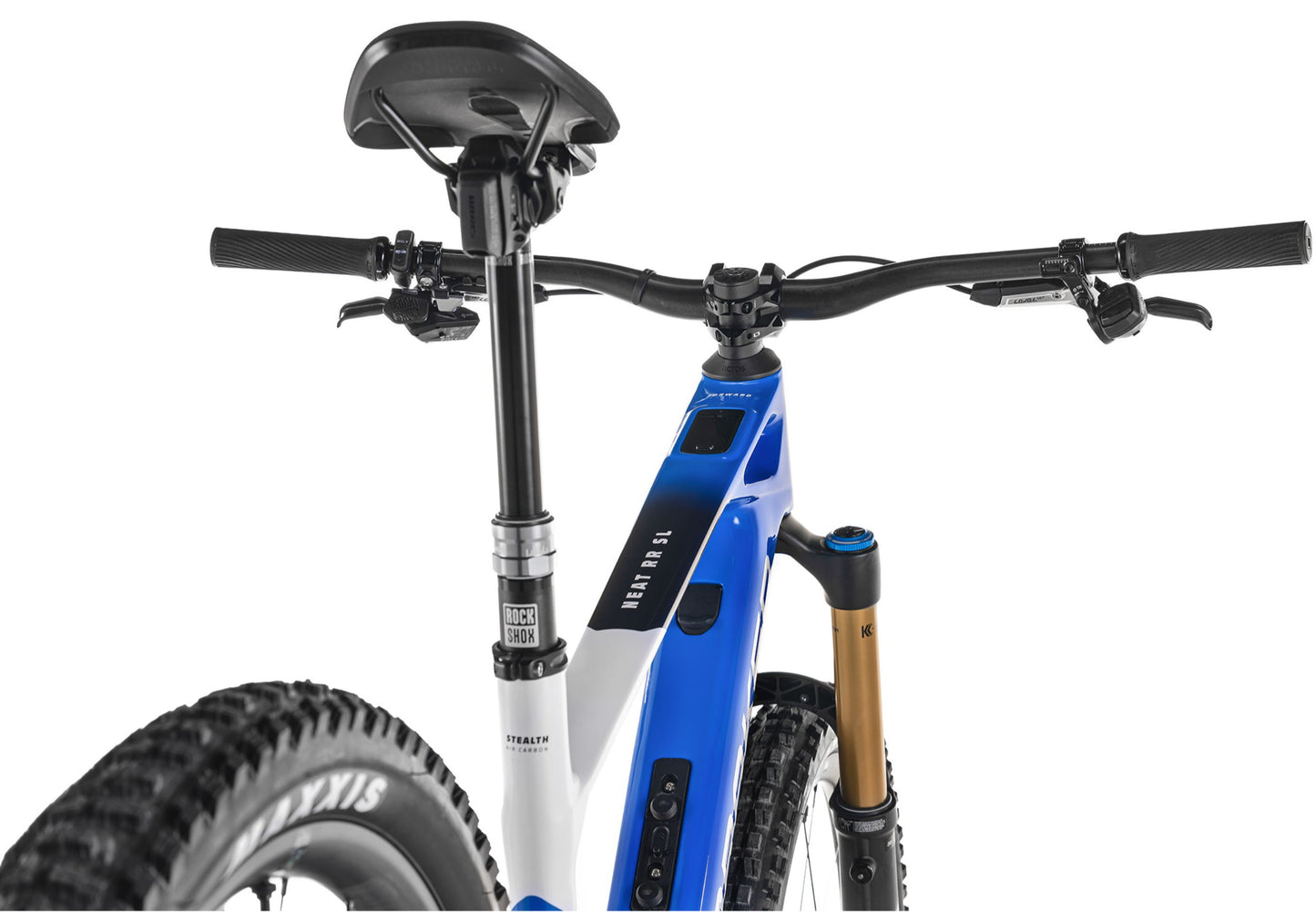

| Seatpost | RockShox Reverb Stealth AXS, diameter 31.6mm S size: 340x125mm M size: 390x150mm L size: 440x170mm XL size: 440x170mm |
| Pedals | Not applicable |
| Front Light | Not applicable |
| Rear Light | Not applicable |
| Kickstand | Not applicable |
| Rear Carrier | Not applicable |
| Fenders | Not applicable |
| Bell | Not applicable |
| Lock | Not applicable |
| Mirror | Not applicable |
| FRAME SIZE | S | M | L | XL | |
|---|---|---|---|---|---|
| A | Seattube length | 380mm | 420mm | 450mm | 490mm |
| B | Toptube length | 605mm | 625mm | 650mm | 670mm |
| C | Bottom bracket drop | -25mm | -25mm | -25mm | -25mm |
| D | Bottom bracket height | 350mm | 350mm | 350mm | 350mm |
| E | Chainstay length | 455mm | 455mm | 455mm | 455mm |
| F | Seat tube angle | 73.5° | 73.5° | 73.5° | 73.5° |
| G | Effective seattube angle | 76° | 76° | 76° | 76° |
| H | Headtube angle | 65.5° | 65.5° | 65.5° | 65.5° |
| I | Fork Offset | 44mm | 44mm | 44mm | 44mm |
| J | Wheelbase | 1225mm | 1245mm | 1265mm | 1285mm |
| K | Headtube length | 110mm | 110mm | 130mm | 130mm |
| L | Reach | 450mm | 470mm | 490mm | 510mm |
| M | Stack | 622mm | 622mm | 640mm | 640mm |
The Full Scoop on the Mondraker Neat RR
The Neat Range e-MTB's are a new generation of eBikes that redefines mountain biking. A full carbon fiber frame under 40lbs, an integrated removable battery and TQ-HPR50 motor, the Mondraker Neat is ready to roll with the very best version of you as a rider.
*Components subject to manufacturer changes.
Motor System
| Motor | TQ HPR-50 |
| Battery | TQ HPR-50 360Wh integrated and removable *Optional external battery: TQ 160Wh |

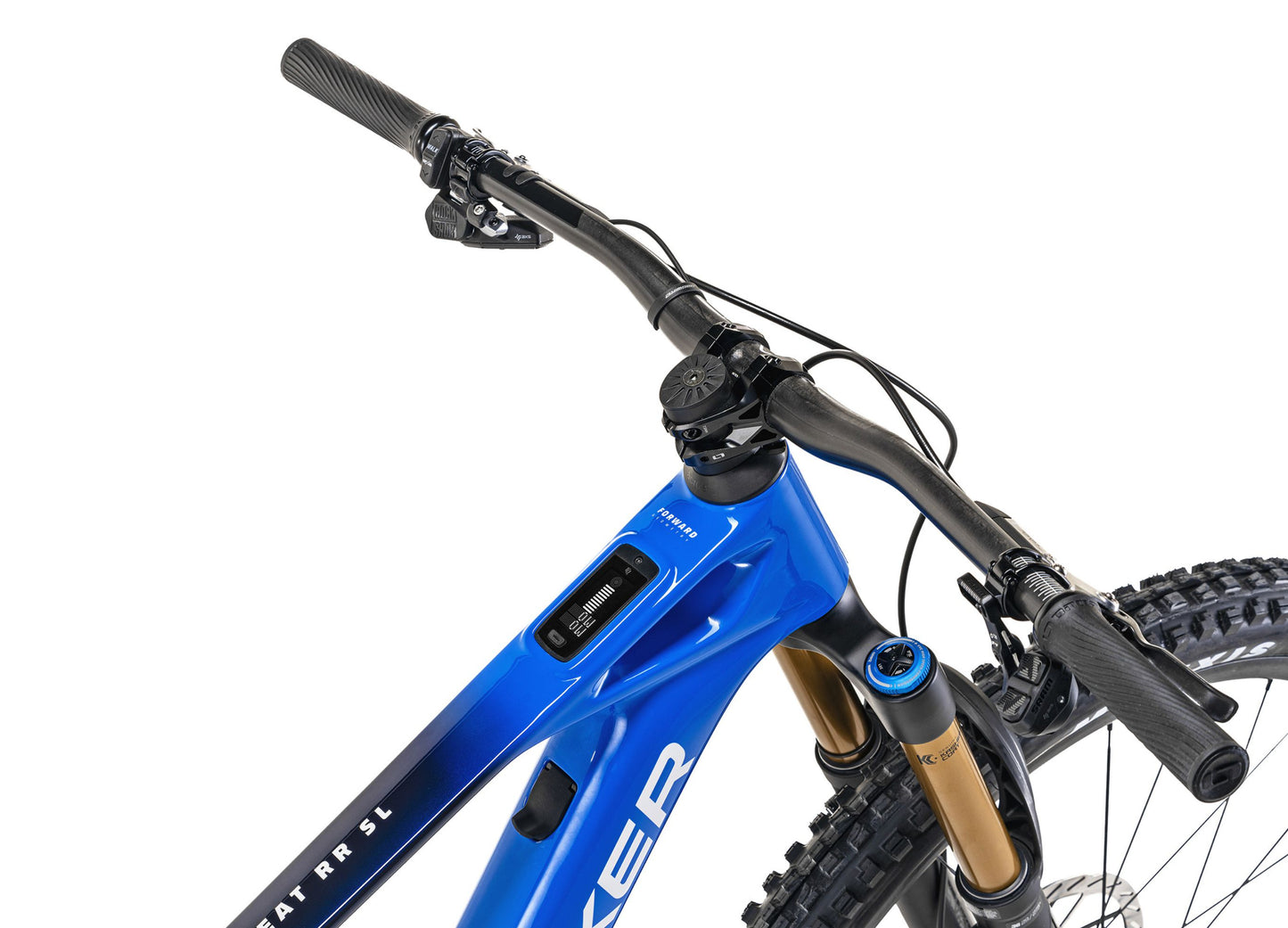

| Display | TQ HPR display V01 |
| Charger | Spec not provided |
Components
| Frame | Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, integrated dropout speed sensor, exclusive plastic motor covers. |
| Fork | Fox 36 29 Float GRIP2 Factory Kashima, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload |

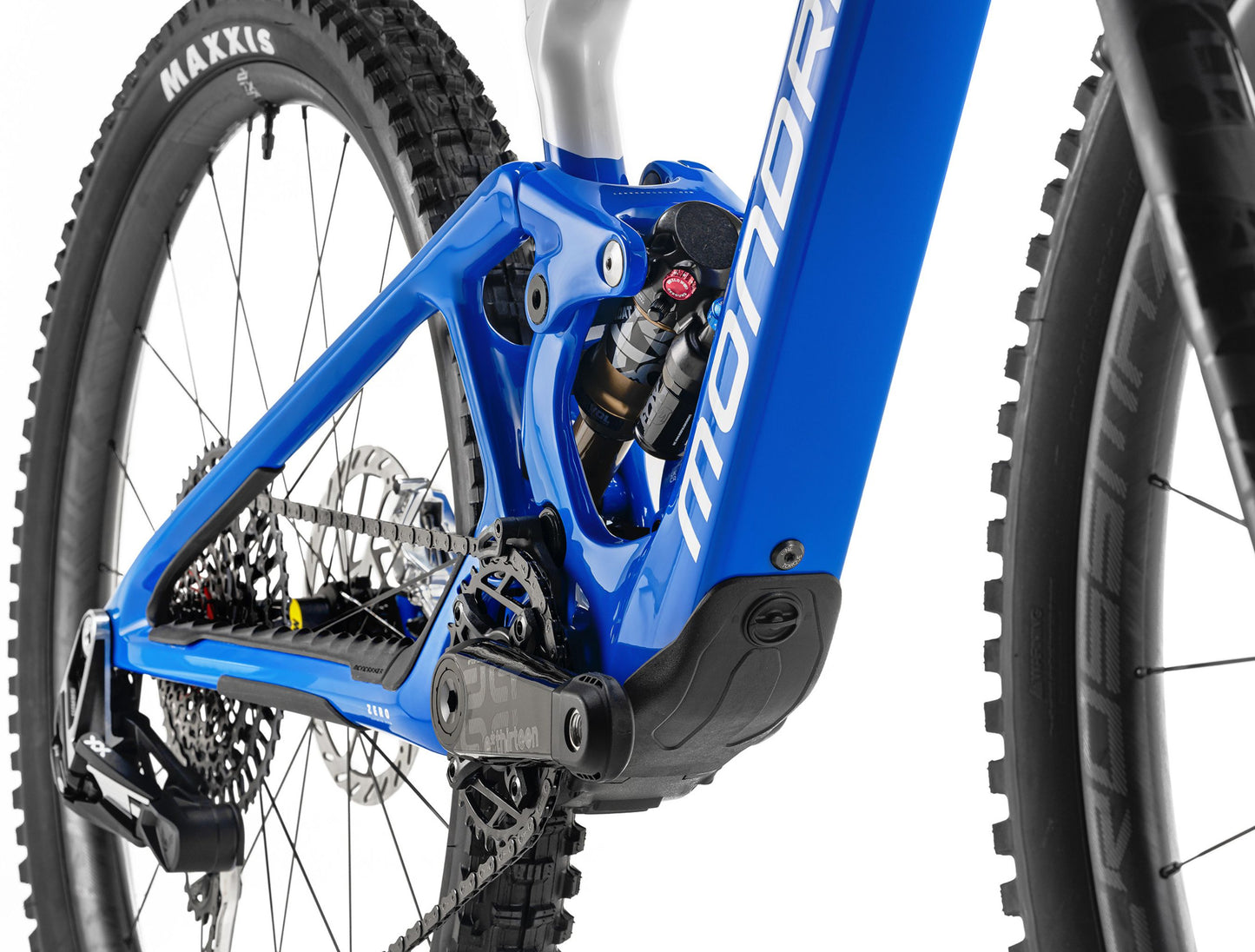

| Rear Shock | Fox Float X Factory Kashima EVOL, 185x55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings |
| Front Brake | Sram Level Ultimate Stealth, 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Rear Brake | Sram Level Ultimate Stealth, 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Rear Derailleur | Sram XX Eagle AXS, T-Type roller bearing clutch, cage lock, long carbon cage, 1x12s |
| Shift Levers | Sram Eagle AXS Pod MMX, 12s |
| Chain | Sram X0 Eagle T-Type, 12s, Powerlock |
| Cassette | Sram XS-1295, 10-52T, T-Type, 12s |
| Crankset | E.13 TRS Race carbon ebike, S size: 165mm M size: 165mm L size: 170mm XL size: 170mm |
| Chain Ring | Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD |
| Chain Guard | Spec not provided |
| Rims | Mavic E-CrossMax Carbon XL R, 29 Boost 30mm internal width, hookless, tubeless ready, 28 spokes |
| Front Hub | Mavic Infinity hub, Boost 15x110mm, IS 6 bolts |
| Rear Hub | Mavic Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts XD freehub |
| Front Tire | Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead |
| Rear Tire | Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead |
| Handlebars | Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
| Stem | Onoff Krypton FG 30mm, CNC, 31.8mm barbore |
| Headset | Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing |
| Grips | Onoff Desert, 1lock-on, 135mm |
| Saddle | Fizik Terra Aidon Slim X5 |
| Seatpost | RockShox Reverb Stealth AXS, diameter 31.6mm S size: 340x125mm M size: 390x150mm L size: 440x170mm XL size: 440x170mm |
Extras
| Pedals | Not applicable |
| Front Light | Not applicable |
| Rear Light | Not applicable |
| Kickstand | Not applicable |
| Rear Carrier | Not applicable |
| Fenders | Not applicable |
| Bell | Not applicable |
| Lock | Not applicable |
| Mirror | Not applicable |

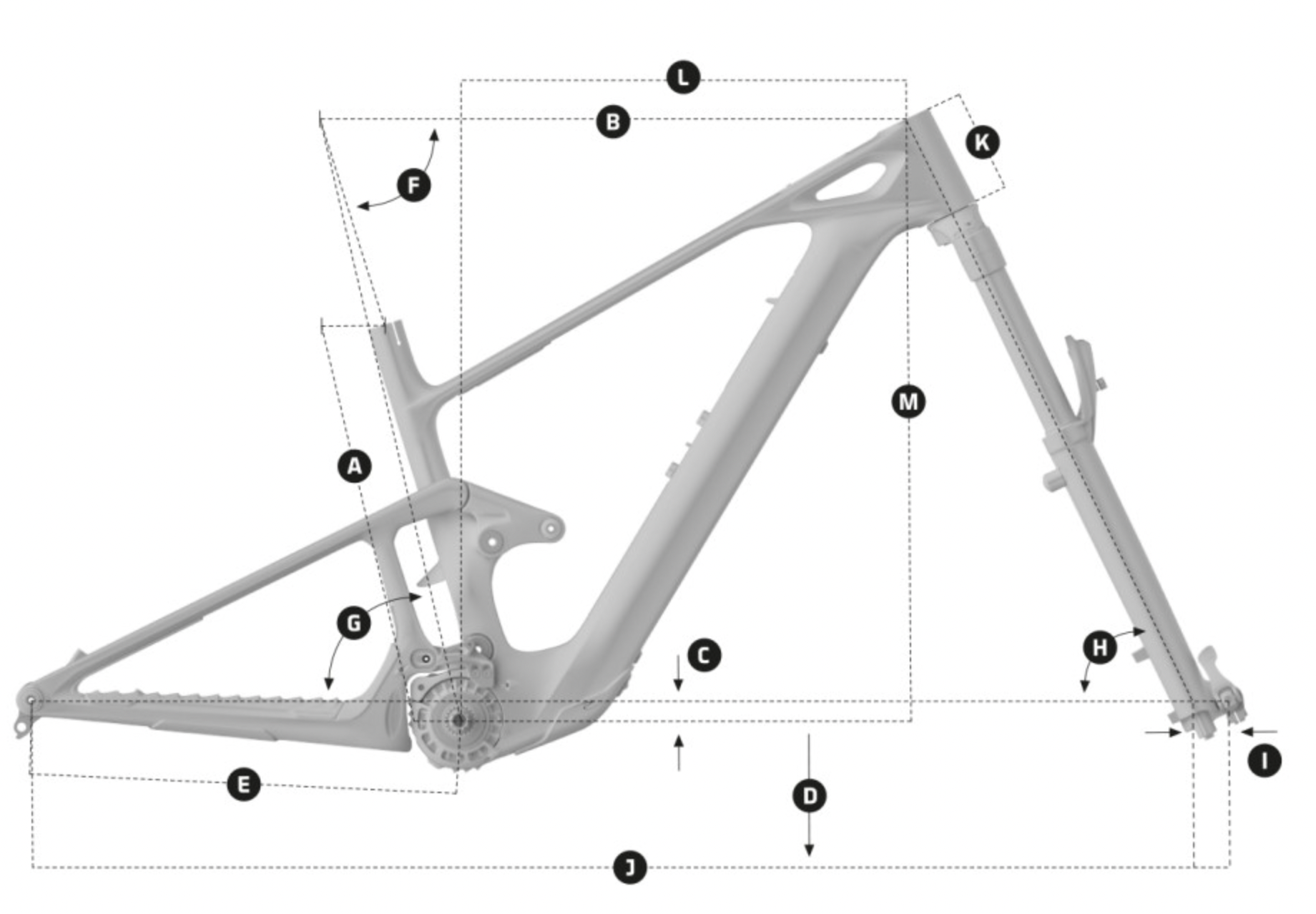

Geometry
| FRAME SIZE | S | M | L | XL | |
|---|---|---|---|---|---|
| A | Seattube length | 380mm | 420mm | 450mm | 490mm |
| B | Toptube length | 605mm | 625mm | 650mm | 670mm |
| C | Bottom bracket drop | -25mm | -25mm | -25mm | -25mm |
| D | Bottom bracket height | 350mm | 350mm | 350mm | 350mm |
| E | Chainstay length | 455mm | 455mm | 455mm | 455mm |
| F | Seat tube angle | 73.5° | 73.5° | 73.5° | 73.5° |
| G | Effective seattube angle | 76° | 76° | 76° | 76° |
| H | Headtube angle | 65.5° | 65.5° | 65.5° | 65.5° |
| I | Fork Offset | 44mm | 44mm | 44mm | 44mm |
| J | Wheelbase | 1225mm | 1245mm | 1265mm | 1285mm |
| K | Headtube length | 110mm | 110mm | 130mm | 130mm |
| L | Reach | 450mm | 470mm | 490mm | 510mm |
| M | Stack | 622mm | 622mm | 640mm | 640mm |
