Mondraker Scree R
Mondraker Scree R
The natural step-up in performance. The Mondraker Scree R is built for riders looking to push and refine their skills with hardcore components tuned to make the most of every trail. Optimal response on climbs and maximum control on descents, all powered by an 800Wh Bosch Powertube battery and the relentless Bosch CX Gen 5 motor.
The Scree R upgrades to Fox suspension front and rear — a Fox 36 Rhythm fork with GRIP Sweep-Adjust damping and a Fox Float Rhythm rear shock — delivering a noticeable jump in trail performance. e*thirteen Grappler Core wheels with 30mm internal width handle everything the trail throws at you, while SRAM 70 Eagle T-Type 12-speed shifting keeps things precise and reliable.
Built on the same Forward Geometry aluminum frame as the entire Scree family, with 150mm front and 130mm rear travel, the R strikes the ideal balance between capability and value. Plenty of power, proven suspension, and a build spec that says you're serious about trail riding.
*Components subject to manufacturer changes.
| Motor | Bosch Performance Line CX Gen 5 (25 km/h), SMART SYSTEM (BDU384Y) |
| Peak Power | 750W |
| Max Torque | 100Nm |
| Battery | Bosch Powertube 800Wh, internal, removable |
| Display | Kiox 400C, top-tube integrated |
| Remote | Bosch Mini Remote (top-tube integrated) |
| Charging | Standard Bosch Smart System charger |
| Fork | Fox 36 29 Float Rhythm, 150mm, GRIP Sweep-Adjust, Boost 15x110mm, 44mm offset |
| Rear Shock | Fox Float Rhythm EVOL 165x45mm, 2-position (Open/Firm), trunnion mount |
| Headset | Acros custom ZS56/ZS56, 1-1/8" to 1.5" |
| Stem | Onoff S6 30mm 0°, 6061 forged alloy, 31.8mm |
| Handlebar | Onoff S6 1.0 7050 alloy, 800mm, rise 25mm (38mm L/XL), 31.8mm |
| Grips | Onoff Desert Pro, CNC lock-on, 135mm |
| Seatpost | X-Fusion Manic 31.6mm dropper, 1X Remote |
| Saddle | Ergon SMC10 Gel |
| Front Brake | SRAM DB6, 4-piston, Centerline 200mm rotor |
| Rear Brake | SRAM DB6, 4-piston, Centerline 200mm rotor |
| Rims | e*thirteen Grappler Core, IW30 Hookless, 30mm internal, tubeless ready |
| Front Hub | e*thirteen Boost 15x110mm, triple-sealed |
| Rear Hub | e*thirteen Superboost 12x148mm, triple-sealed, 6° engagement, HG freehub |
| Front Tire | Maxxis Dissector 29x2.6, 3C MaxxTerra, EXO+, tubeless ready |
| Rear Tire | Maxxis Dissector 29x2.6, 3C MaxxTerra, EXO+, tubeless ready |
| Crankset | e*thirteen Helix Core E*Spec Plus, 160mm |
| Chainring | SRAM Eagle 34T T-Type, direct mount |
| Chain | SRAM 70 T-Type, 12-speed |
| Rear Derailleur | SRAM 70 Eagle T-Type, 12-speed |
| Shifter | SRAM Trigger 70, 12-speed, T-Type |
| Cassette | SRAM XS-1270, 10-52T, T-Type, 12-speed |
| Frame | 6061 Aluminum Alloy, Stealth Evo construction |
| Geometry | Forward Geometry with Zero Suspension System |
| Front Travel | 150mm |
| Rear Travel | 130mm |
| Wheel Size | 29" |
| Rear Axle | Boost 12x148mm thru-axle |
| Derailleur Hanger | UDH (Universal Derailleur Hanger) |
| Cable Routing | HHG internal routing |
| Upper Link | One-piece Monoblock |
| Bearings | MAX capacity sealed bearings |
| Pivot Axles | Oversize 15mm |
| Battery Access | Internal removable |
| Sizes Available | S, M, ML, L, XL |
The natural step-up in performance. The Mondraker Scree R is built for riders looking to push and refine their skills with hardcore components tuned to make the most of every trail. Optimal response on climbs and maximum control on descents, all powered by an 800Wh Bosch Powertube battery and the relentless Bosch CX Gen 5 motor.
The Scree R upgrades to Fox suspension front and rear — a Fox 36 Rhythm fork with GRIP Sweep-Adjust damping and a Fox Float Rhythm rear shock — delivering a noticeable jump in trail performance. e*thirteen Grappler Core wheels with 30mm internal width handle everything the trail throws at you, while SRAM 70 Eagle T-Type 12-speed shifting keeps things precise and reliable.
Built on the same Forward Geometry aluminum frame as the entire Scree family, with 150mm front and 130mm rear travel, the R strikes the ideal balance between capability and value. Plenty of power, proven suspension, and a build spec that says you're serious about trail riding.
*Components subject to manufacturer changes.
Motor System
| Motor | Bosch Performance Line CX Gen 5 (25 km/h), SMART SYSTEM (BDU384Y) |
| Peak Power | 750W |
| Max Torque | 100Nm |
| Battery | Bosch Powertube 800Wh, internal, removable |

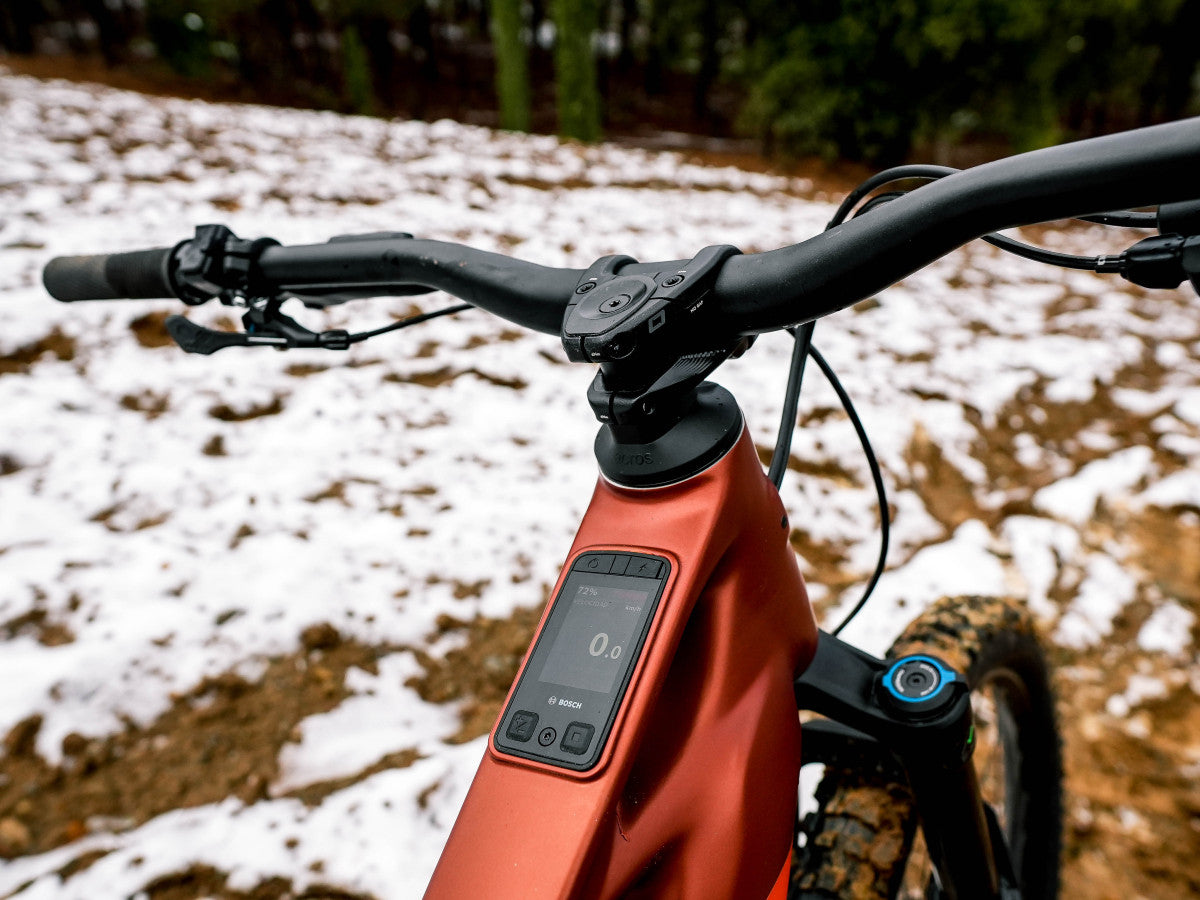

| Display | Kiox 400C, top-tube integrated |
| Remote | Bosch Mini Remote (top-tube integrated) |
| Charging | Standard Bosch Smart System charger |
Components
| Fork | Fox 36 29 Float Rhythm, 150mm, GRIP Sweep-Adjust, Boost 15x110mm, 44mm offset |
| Rear Shock | Fox Float Rhythm EVOL 165x45mm, 2-position (Open/Firm), trunnion mount |
| Headset | Acros custom ZS56/ZS56, 1-1/8" to 1.5" |
| Stem | Onoff S6 30mm 0°, 6061 forged alloy, 31.8mm |
| Handlebar | Onoff S6 1.0 7050 alloy, 800mm, rise 25mm (38mm L/XL), 31.8mm |
| Grips | Onoff Desert Pro, CNC lock-on, 135mm |
| Seatpost | X-Fusion Manic 31.6mm dropper, 1X Remote |
| Saddle | Ergon SMC10 Gel |
| Front Brake | SRAM DB6, 4-piston, Centerline 200mm rotor |
| Rear Brake | SRAM DB6, 4-piston, Centerline 200mm rotor |
| Rims | e*thirteen Grappler Core, IW30 Hookless, 30mm internal, tubeless ready |
| Front Hub | e*thirteen Boost 15x110mm, triple-sealed |
| Rear Hub | e*thirteen Superboost 12x148mm, triple-sealed, 6° engagement, HG freehub |
| Front Tire | Maxxis Dissector 29x2.6, 3C MaxxTerra, EXO+, tubeless ready |
| Rear Tire | Maxxis Dissector 29x2.6, 3C MaxxTerra, EXO+, tubeless ready |
| Crankset | e*thirteen Helix Core E*Spec Plus, 160mm |
| Chainring | SRAM Eagle 34T T-Type, direct mount |
| Chain | SRAM 70 T-Type, 12-speed |
| Rear Derailleur | SRAM 70 Eagle T-Type, 12-speed |
| Shifter | SRAM Trigger 70, 12-speed, T-Type |
| Cassette | SRAM XS-1270, 10-52T, T-Type, 12-speed |
Frame & Details
| Frame | 6061 Aluminum Alloy, Stealth Evo construction |
| Geometry | Forward Geometry with Zero Suspension System |
| Front Travel | 150mm |
| Rear Travel | 130mm |
| Wheel Size | 29" |
| Rear Axle | Boost 12x148mm thru-axle |
| Derailleur Hanger | UDH (Universal Derailleur Hanger) |
| Cable Routing | HHG internal routing |
| Upper Link | One-piece Monoblock |
| Bearings | MAX capacity sealed bearings |
| Pivot Axles | Oversize 15mm |
| Battery Access | Internal removable |
| Sizes Available | S, M, ML, L, XL |
