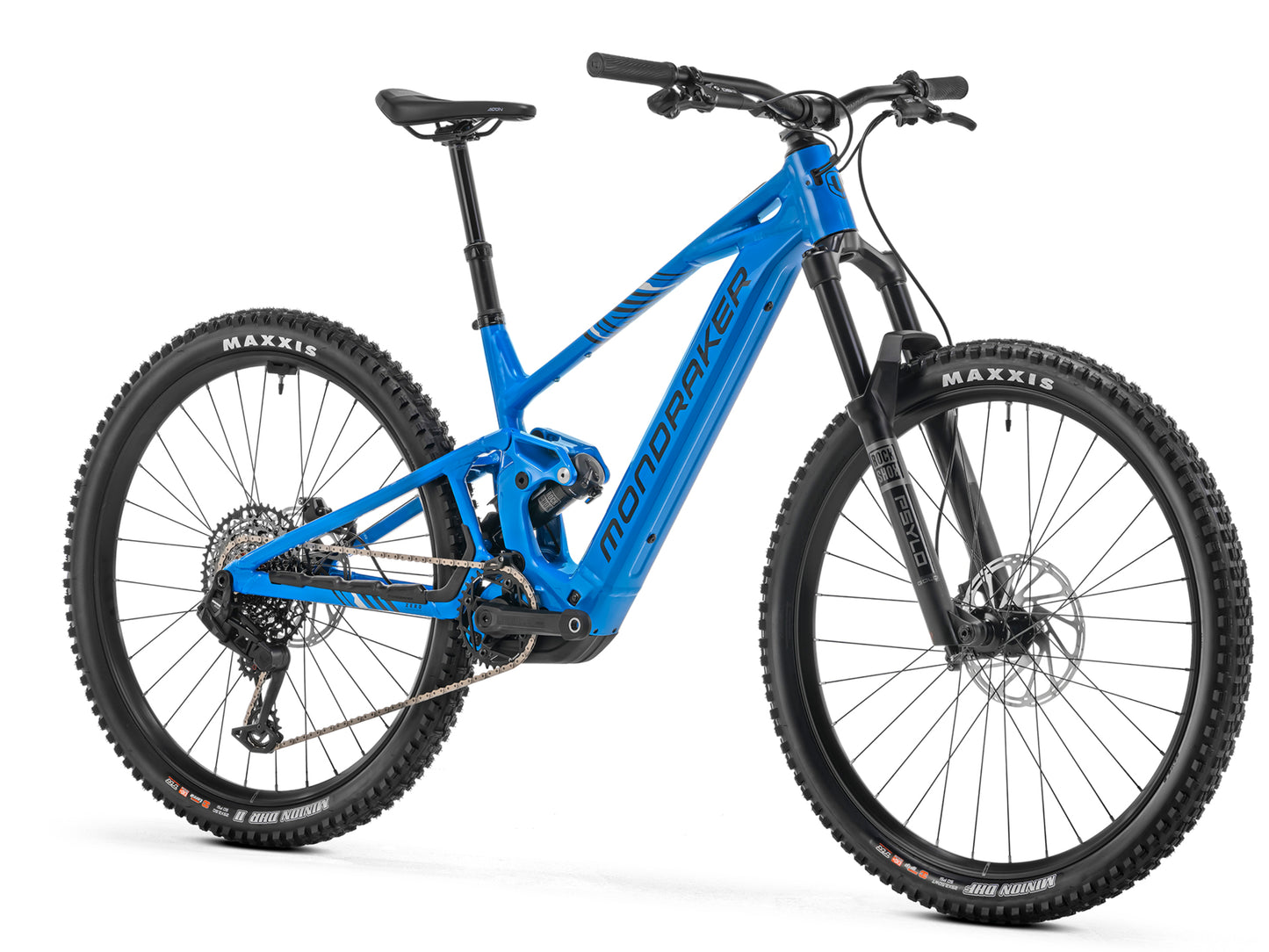

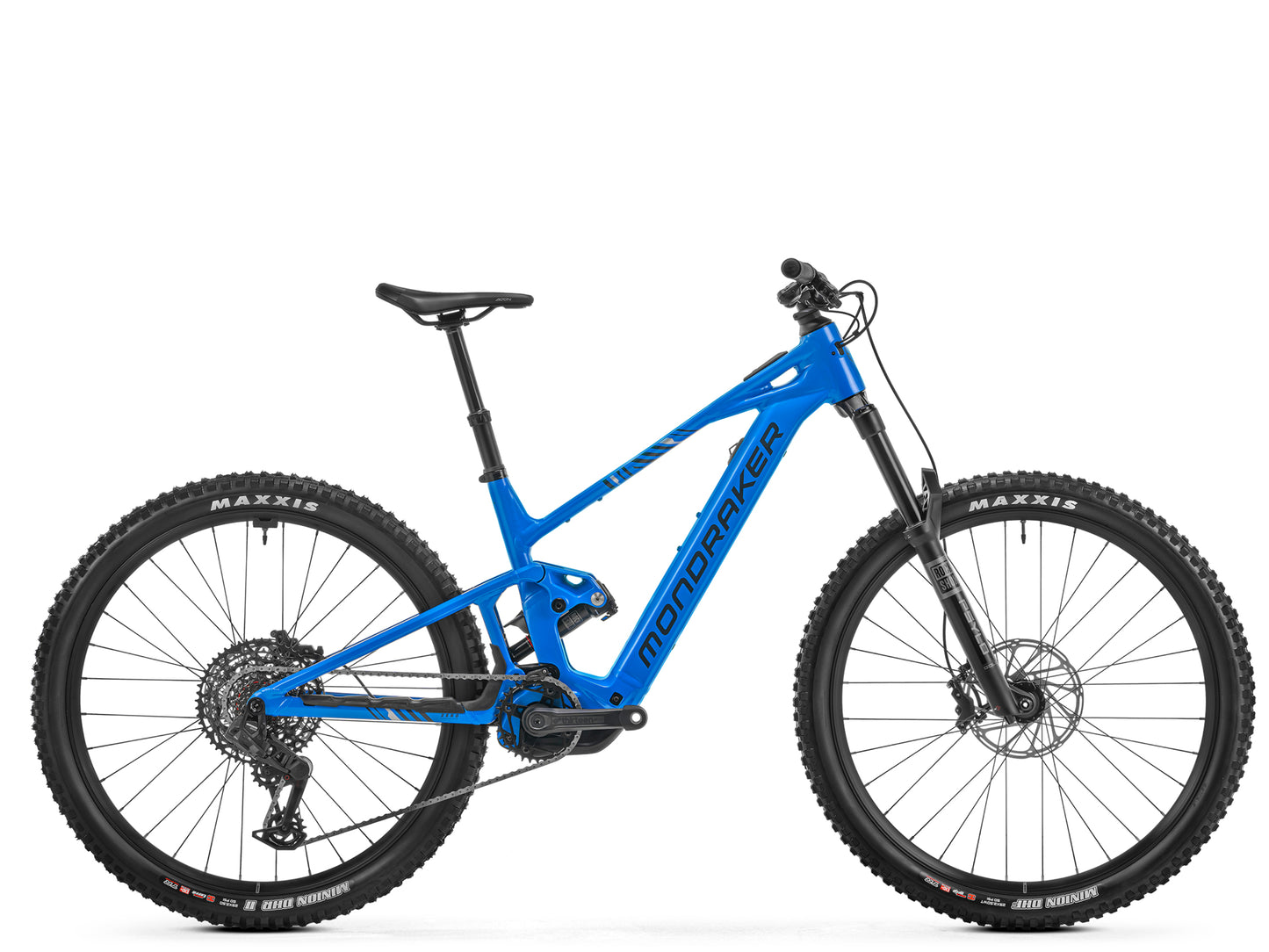

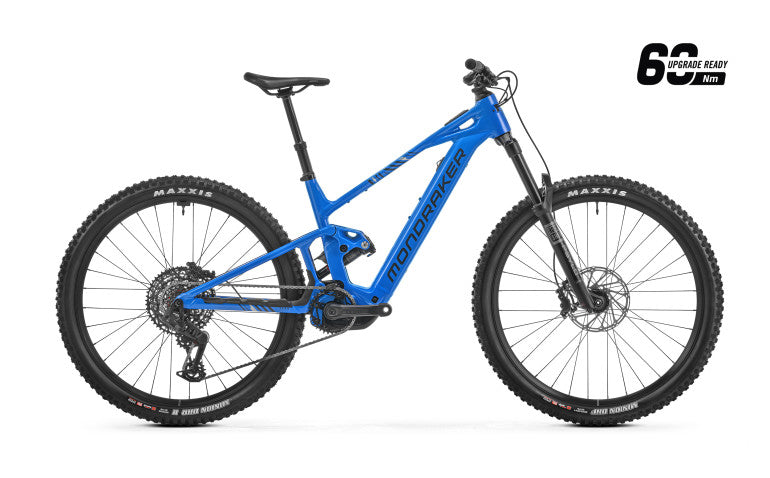

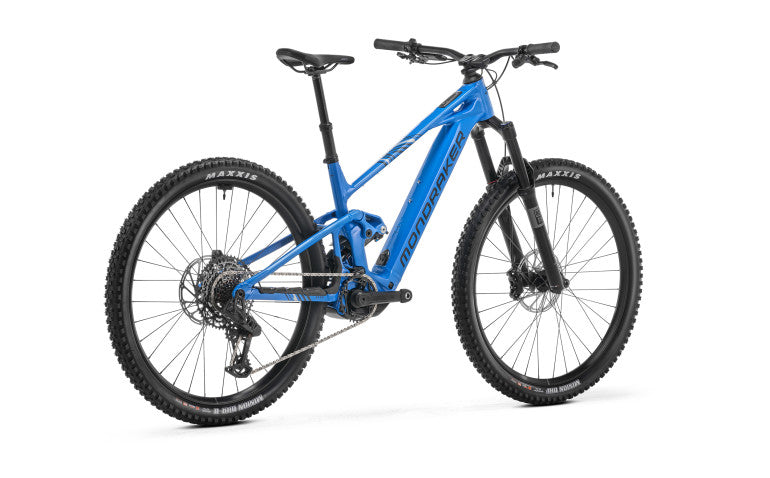

Mondraker Sly R
Mondraker Sly R
Regular price
$5,599.00
Sale price
$5,599.00
Regular price
Unit price
per
Couldn't load pickup availability
The Full Scoop on the Mondraker Sly R
A new breed of ebike blending Stealth aluminium with a Bosch SX motor and a 400Wh battery. Providing a balanced power delivery to make you the master of your rides. It’s not about who you are when you’re riding an ebike. It’s about who you want to be. Introducing SLY. ONE SLY FITS ALL.
*Components subject to manufacturer changes.
| Motor | Bosch Performance Line SX (20 mph) GEN4 SMART SYSTEM |
| Battery | Bosch Powertube 400Wh |
| Display | Bosch Purion 400 / Bosch Mini Remote / Bosch System Controller |
| Charger | Bosch 4Ah |
| Frame | 6061 Alloy Stealth Evo, hydroformed tubing, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, integrated dropout speed sensor, exclusive plastic motor covers. |
| Fork | Rockshox Psylo Gold RC, 160mm, 3 Position, Debon Air, tapered steerer tube, Boost 15x110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload |
| Rear Shock | Rockshox Deluxe Select+, 185x55mm, Trunnion top mount, 30x8mm bottom bushings |
| Front Brake | Sram DB8 stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Rear Brake | Sram DB8 stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Rear Derailleur | Sram S1000 Eagle AXS T-Type, 12s |
| Shift Levers | Sram Eagle AXS Pod MMX, 12s |
| Chain | Sram GX Eagle T-Type, 12s, Powerlock |
| Cassette | Sram XS-1270, 10-52T, T-Type, 12s |
| Crankset | e*Thirteen Helix Core E*Spec Plus, All sizes: 160mm |
| Chain Ring | Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD |
| Chain Guard | Spec not provided |
| Rims | Mavic E-CrossRide 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes |
| Front Hub | Mavic, Boost 15x110mm, IS 6 bolts |
| Rear Hub | Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts |
| Front Tire | Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX GRIP compound, EXO+ protection, 60TPI, folding bead |
| Rear Tire | Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 60TPI, folding bead |
| Handlebars | Onoff S3 1.0 6061 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise. |
| Stem | Onoff Sulfur FG 30mm 0°, 6061 forged alloy, 31.8mm barbore |
| Headset | Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock |
| Grips | Onoff Forest, CNC lock-on, 135mm |
| Saddle | Fizik Terra Aidon X5 145mm |
| Seatpost | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm) |
| Pedals | Not applicable |
| Front Light | Not applicable |
| Rear Light | Not applicable |
| Kickstand | Not applicable |
| Rear Carrier | Not applicable |
| Fenders | Not applicable |
| Bell | Not applicable |
| Lock | Not applicable |
| Mirror | Not applicable |
| FRAME SIZE | S | M | M/L | L | XL | |
|---|---|---|---|---|---|---|
| A | Seattube length | 380mm | 410mm | 435mm | 460mm | 490mm |
| B | Toptube length | 595mm | 615mm | 635mm | 650mm | 670mm |
| C | Bottom bracket drop | -22mm | -22mm | -22mm | -22mm | -22mm |
| D | Bottom bracket height | 350mm | 350mm | 350mm | 350mm | 350mm |
| E | Chainstay length | 455mm | 455mm | 455mm | 455mm | 455mm |
| F | Seat tube angle | 74° | 74° | 74° | 74° | 74° |
| G | Effective seattube angle | 77° | 77° | 77° | 77° | 77° |
| H | Headtube angle | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° |
| I | Fork Offset | 44mm | 44mm | 44mm | 44mm | 44mm |
| J | Wheelbase | 1225mm | 1250mm | 1265mm | 1290mm | 1315mm |
| K | Headtube length | 120mm | 120mm | 130mm | 140mm | 150mm |
| L | Reach | 440mm | 460mm | 480mm | 500mm | 520mm |
| M | Stack | 633mm | 633mm | 642mm | 651mm | 660mm |
The Full Scoop on the Mondraker Sly R
A new breed of ebike blending Stealth aluminium with a Bosch SX motor and a 400Wh battery. Providing a balanced power delivery to make you the master of your rides. It’s not about who you are when you’re riding an ebike. It’s about who you want to be. Introducing SLY. ONE SLY FITS ALL.
*Components subject to manufacturer changes.
Motor System
| Motor | Bosch Performance Line SX (20 mph) GEN4 SMART SYSTEM |
| Battery | Bosch Powertube 400Wh |
| Display | Bosch Purion 400 / Bosch Mini Remote / Bosch System Controller |
| Charger | Bosch 4Ah |
Components
| Frame | 6061 Alloy Stealth Evo, hydroformed tubing, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, integrated dropout speed sensor, exclusive plastic motor covers. |
| Fork | Rockshox Psylo Gold RC, 160mm, 3 Position, Debon Air, tapered steerer tube, Boost 15x110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload |
| Rear Shock | Rockshox Deluxe Select+, 185x55mm, Trunnion top mount, 30x8mm bottom bushings |
| Front Brake | Sram DB8 stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Rear Brake | Sram DB8 stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Rear Derailleur | Sram S1000 Eagle AXS T-Type, 12s |
| Shift Levers | Sram Eagle AXS Pod MMX, 12s |
| Chain | Sram GX Eagle T-Type, 12s, Powerlock |
| Cassette | Sram XS-1270, 10-52T, T-Type, 12s |
| Crankset | e*Thirteen Helix Core E*Spec Plus, All sizes: 160mm |
| Chain Ring | Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD |
| Chain Guard | Spec not provided |
| Rims | Mavic E-CrossRide 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes |
| Front Hub | Mavic, Boost 15x110mm, IS 6 bolts |
| Rear Hub | Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts |
| Front Tire | Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX GRIP compound, EXO+ protection, 60TPI, folding bead |
| Rear Tire | Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 60TPI, folding bead |
| Handlebars | Onoff S3 1.0 6061 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise. |
| Stem | Onoff Sulfur FG 30mm 0°, 6061 forged alloy, 31.8mm barbore |
| Headset | Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock |
| Grips | Onoff Forest, CNC lock-on, 135mm |
| Saddle | Fizik Terra Aidon X5 145mm |
| Seatpost | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm) |
Extras
| Pedals | Not applicable |
| Front Light | Not applicable |
| Rear Light | Not applicable |
| Kickstand | Not applicable |
| Rear Carrier | Not applicable |
| Fenders | Not applicable |
| Bell | Not applicable |
| Lock | Not applicable |
| Mirror | Not applicable |

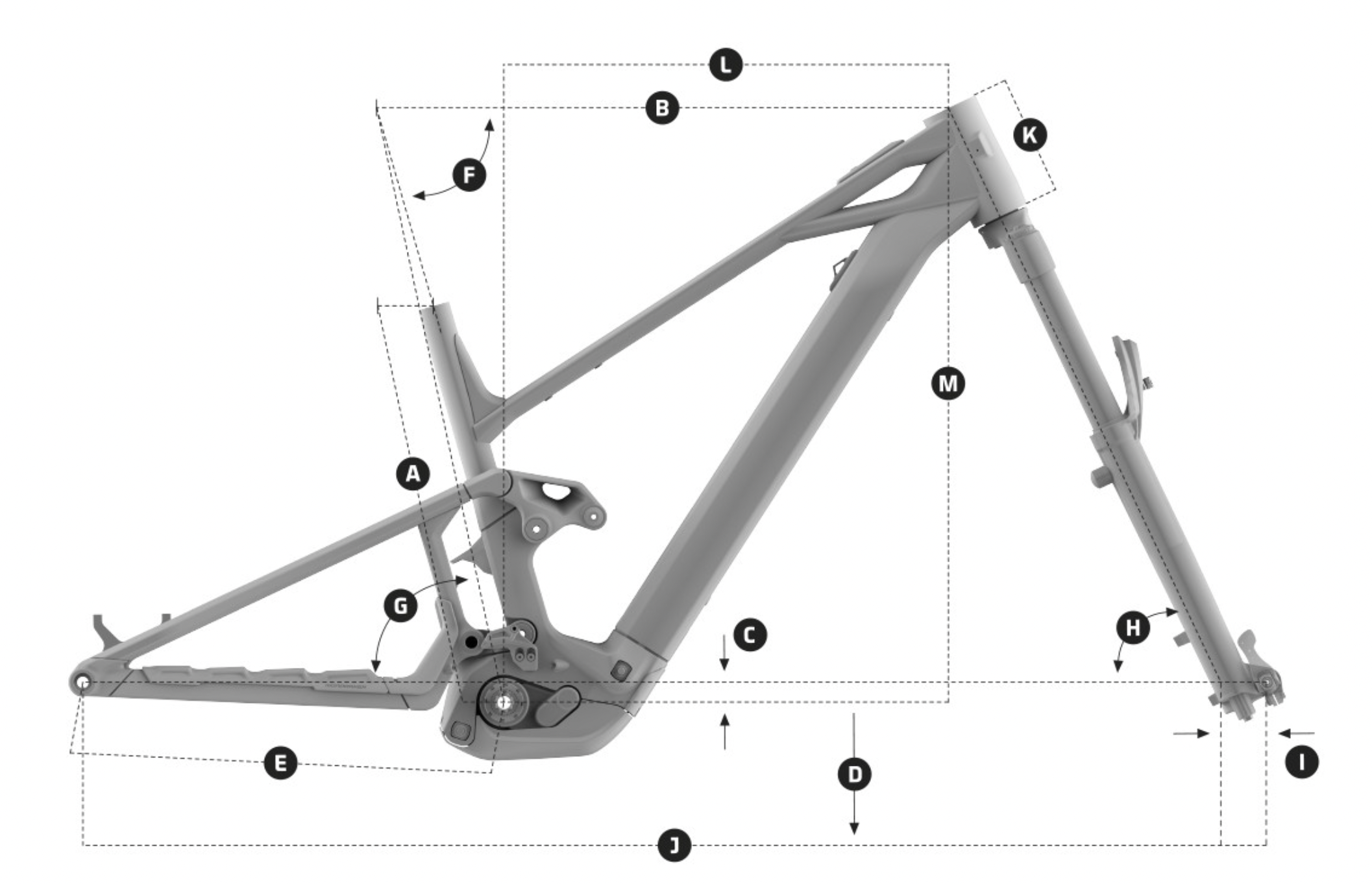

Geometry
| FRAME SIZE | S | M | M/L | L | XL | |
|---|---|---|---|---|---|---|
| A | Seattube length | 380mm | 410mm | 435mm | 460mm | 490mm |
| B | Toptube length | 595mm | 615mm | 635mm | 650mm | 670mm |
| C | Bottom bracket drop | -22mm | -22mm | -22mm | -22mm | -22mm |
| D | Bottom bracket height | 350mm | 350mm | 350mm | 350mm | 350mm |
| E | Chainstay length | 455mm | 455mm | 455mm | 455mm | 455mm |
| F | Seat tube angle | 74° | 74° | 74° | 74° | 74° |
| G | Effective seattube angle | 77° | 77° | 77° | 77° | 77° |
| H | Headtube angle | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° |
| I | Fork Offset | 44mm | 44mm | 44mm | 44mm | 44mm |
| J | Wheelbase | 1225mm | 1250mm | 1265mm | 1290mm | 1315mm |
| K | Headtube length | 120mm | 120mm | 130mm | 140mm | 150mm |
| L | Reach | 440mm | 460mm | 480mm | 500mm | 520mm |
| M | Stack | 633mm | 633mm | 642mm | 651mm | 660mm |
