Mondraker Superfoxy Carbon R
Mondraker Superfoxy Carbon R
Regular price
$6,999.00
Sale price
$6,999.00
Regular price
Unit price
per
Shipping calculated at checkout.

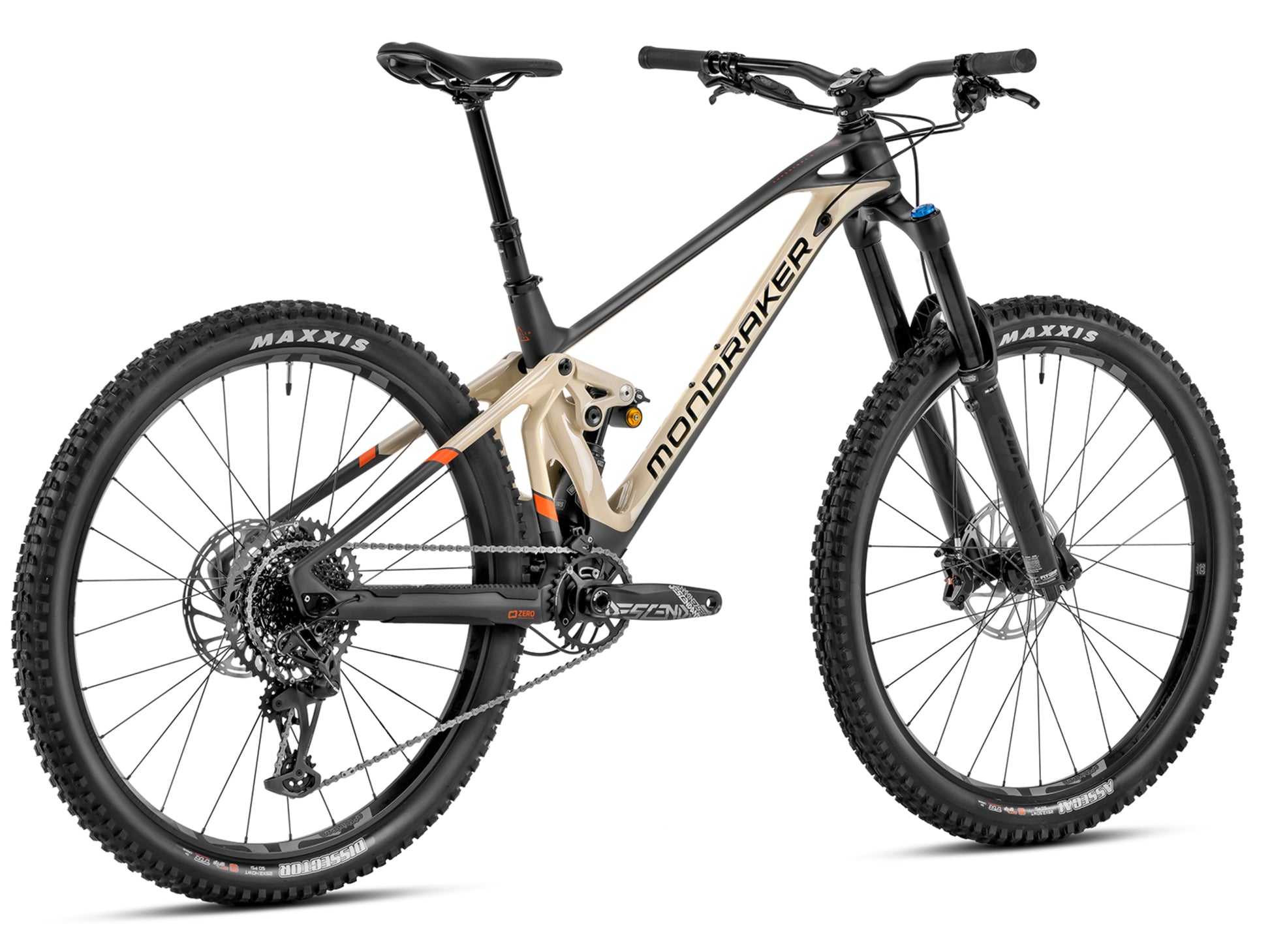

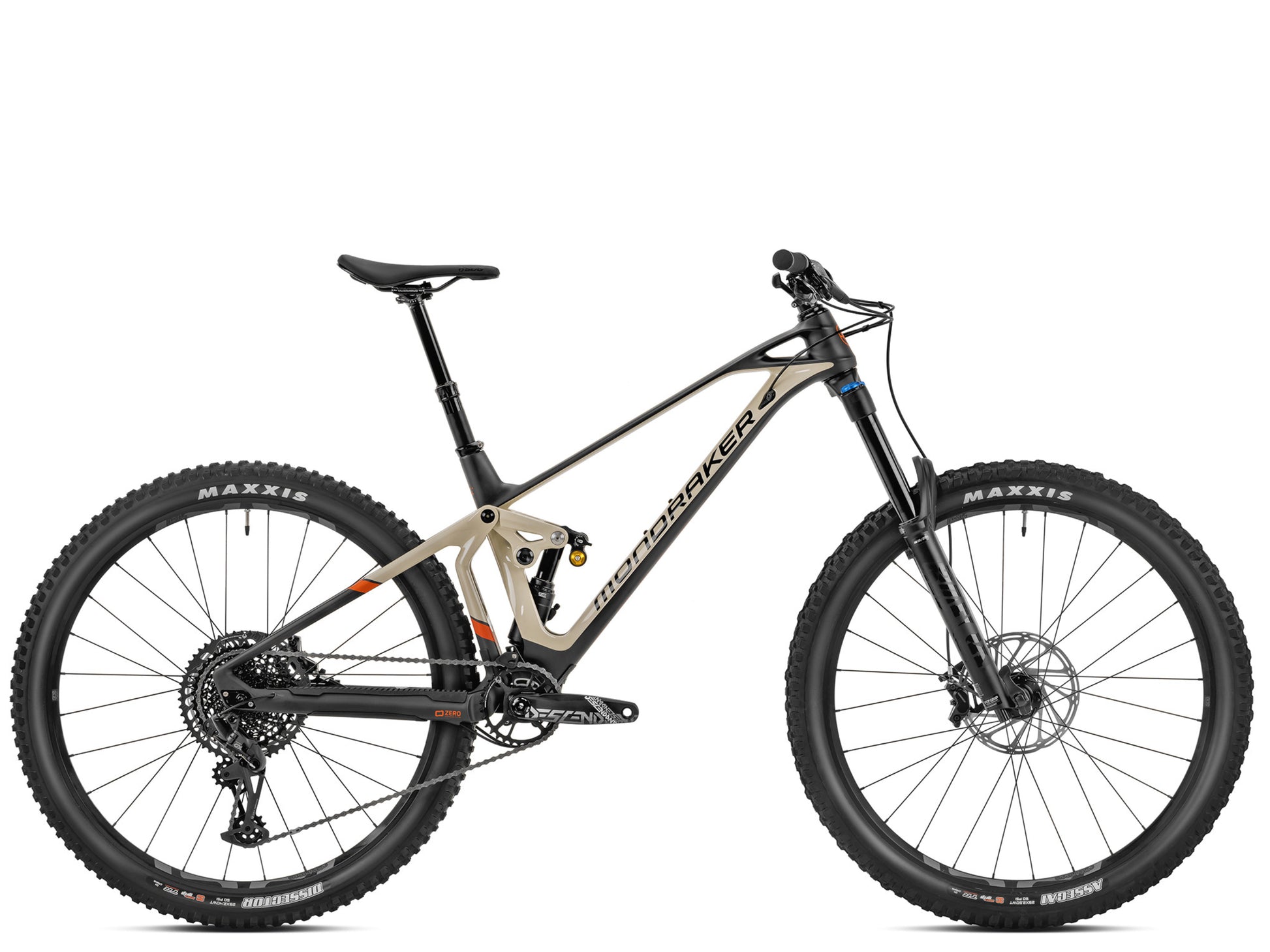

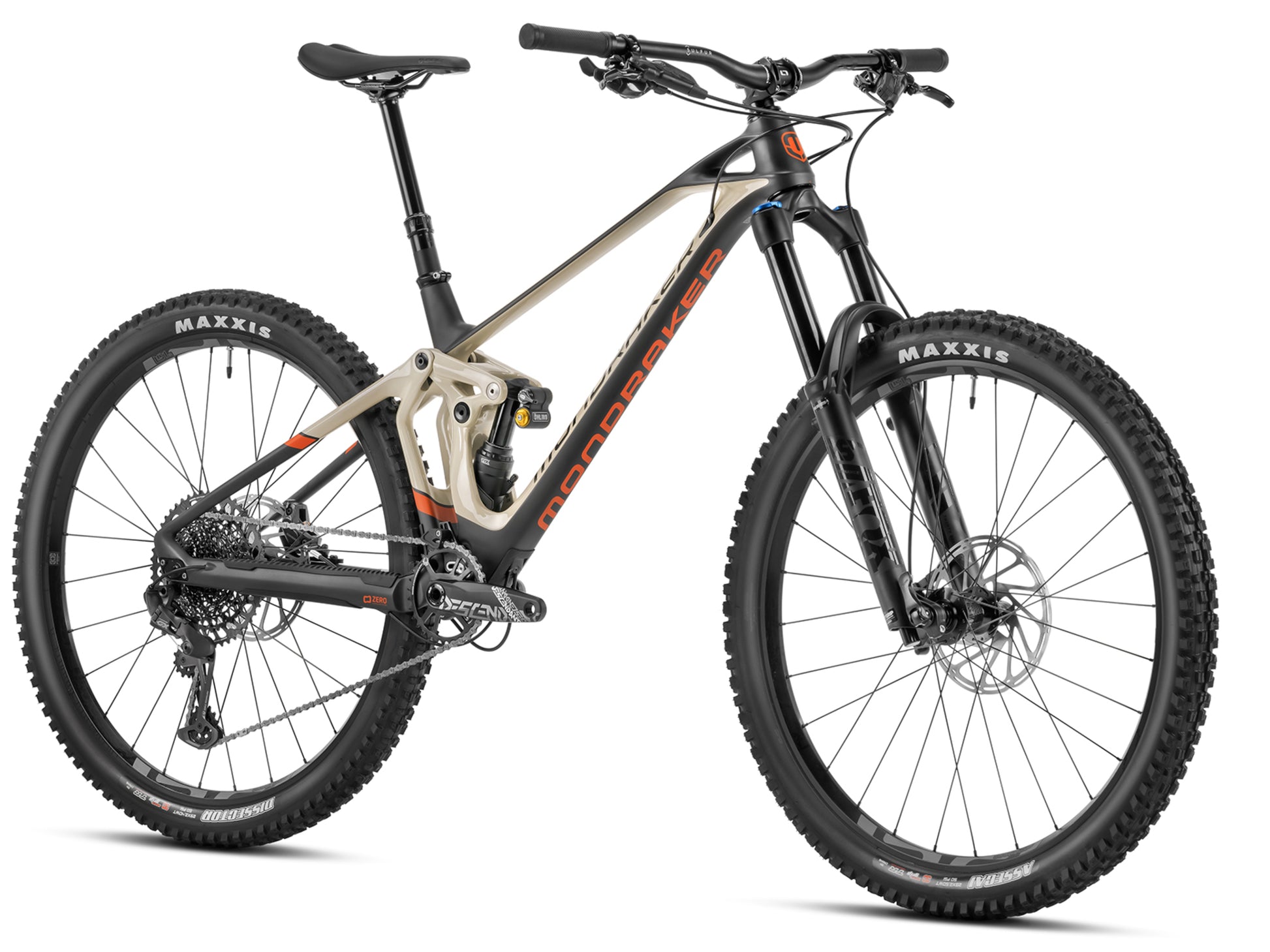

The Full Scoop on the Mondraker Superfoxy Carbon R
The SUPERFOXY CARBON is one of the lightest carbon downhill bikes in the Super Enduro category. 170mm of front suspension travel and 160mm at the rear leave no doubt as to what this bike is all about, and best of all, thanks to the 12-speed SRAM transmission you can climb all the way to the top to take another shot! The Fox 38 fork and Öhlins TTX Air shock combined with a SuperBoost 12x157mm frame and swingarm will give you unprecedented stiffness that make the most brutal lines seem like child's play.
*Components subject to manufacturer changes.
| Frame | SuperFoxy 29 Stealth Air full Carbon, Zero Suspension System, 160mm travel, Forward Geometry, Carbon Monoblock upper link, SuperBoost 12x157mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors. *Optional Geometry kit |
| Fork | Fox 38 29 Float FIT GRIP EVOL Performance, 170mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload |
| Rear Shock | Öhlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings |
| Front Brake | Sram Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
| Rear Brake | Sram Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
| Rear Derailleur | Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 |
| Shift Levers | Sram Trigger GX Eagle, 12s, X-Actuation 1:1 |
| Chain | Sram NX Eagle, 12s, Powerlock |
| Cassette | Sram XG-1275, 10-52T, 12s |
| Crankset | Truvativ Descendant 7K Eagle, SuperBoost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm |
| Chain Ring | 32T, CNC-machined alloy, X-SYNC 2 |
| Chain Guard | Spec not provided |
| Rims | e*thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes |
| Front Hub | e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts |
| Rear Hub | e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub |
| Front Tire | Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead |
| Rear Tire | Maxxis Dissector 29x2.4WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead |
| Handlebars | ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore. |
| Stem | ONOFF Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| Headset | ONOFF Titan tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41.8x30.5x8x45ºx45º, bottom 51.9x40x8x45ºx45º |
| Grips | ONOFF Desert, 1lock-on, 135mm |
| Saddle | SDG BEL-AIR 3.0, LPU foam, steel rails |
| Seatpost | ONOFF Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm |
| Pedals | Not applicable |
| Front Light | Not applicable |
| Rear Light | Not applicable |
| Kickstand | Not applicable |
| Rear Carrier | Not applicable |
| Fenders | Not applicable |
| Bell | Not applicable |
| Lock | Not applicable |
| Mirror | Not applicable |
The Full Scoop on the Mondraker Superfoxy Carbon R
The SUPERFOXY CARBON is one of the lightest carbon downhill bikes in the Super Enduro category. 170mm of front suspension travel and 160mm at the rear leave no doubt as to what this bike is all about, and best of all, thanks to the 12-speed SRAM transmission you can climb all the way to the top to take another shot! The Fox 38 fork and Öhlins TTX Air shock combined with a SuperBoost 12x157mm frame and swingarm will give you unprecedented stiffness that make the most brutal lines seem like child's play.
*Components subject to manufacturer changes.
Components
| Frame | SuperFoxy 29 Stealth Air full Carbon, Zero Suspension System, 160mm travel, Forward Geometry, Carbon Monoblock upper link, SuperBoost 12x157mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors. *Optional Geometry kit |
| Fork | Fox 38 29 Float FIT GRIP EVOL Performance, 170mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload |
| Rear Shock | Öhlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings |
| Front Brake | Sram Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
| Rear Brake | Sram Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
| Rear Derailleur | Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 |
| Shift Levers | Sram Trigger GX Eagle, 12s, X-Actuation 1:1 |
| Chain | Sram NX Eagle, 12s, Powerlock |
| Cassette | Sram XG-1275, 10-52T, 12s |
| Crankset | Truvativ Descendant 7K Eagle, SuperBoost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm |
| Chain Ring | 32T, CNC-machined alloy, X-SYNC 2 |
| Chain Guard | Spec not provided |
| Rims | e*thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes |
| Front Hub | e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts |
| Rear Hub | e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub |
| Front Tire | Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead |
| Rear Tire | Maxxis Dissector 29x2.4WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead |
| Handlebars | ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore. |
| Stem | ONOFF Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| Headset | ONOFF Titan tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41.8x30.5x8x45ºx45º, bottom 51.9x40x8x45ºx45º |
| Grips | ONOFF Desert, 1lock-on, 135mm |
| Saddle | SDG BEL-AIR 3.0, LPU foam, steel rails |
| Seatpost | ONOFF Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm |
Extras
| Pedals | Not applicable |
| Front Light | Not applicable |
| Rear Light | Not applicable |
| Kickstand | Not applicable |
| Rear Carrier | Not applicable |
| Fenders | Not applicable |
| Bell | Not applicable |
| Lock | Not applicable |
| Mirror | Not applicable |
Geometry
